Hiya Siddharth Shah

AR2004

Kindergarten, Ahmedabad

The project is a Kindergarten situated in Ahmedabad, Gujarat. It is inspired by an unbuilt kindergarten project in Llubi, Spain, by TED'A Architects. The building is divided into a grid system that repeats modules and elements. It is an exposed brick building with a vaulted ceiling and courtyards. With a variety of materials like brick, stone, and tile throughout the building, cavity walls and heightened ceiling, it is made into a space that a child of 3-5 years enjoys as their first experience of a space outside home.

View Additional Work

Report Content

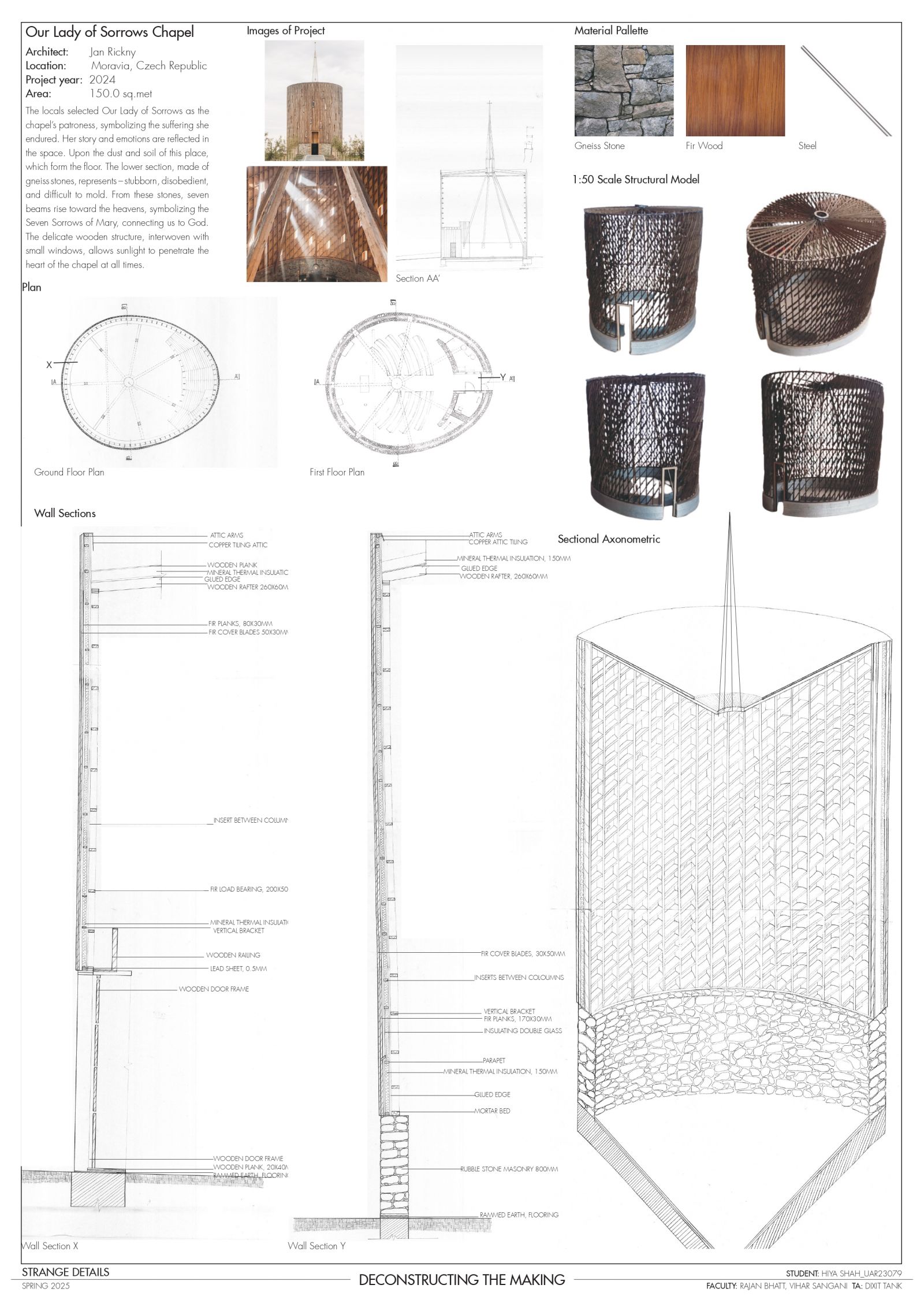

Deconstructing the Making : Our Lady of Sorrows Chapel

Material Study : Stone

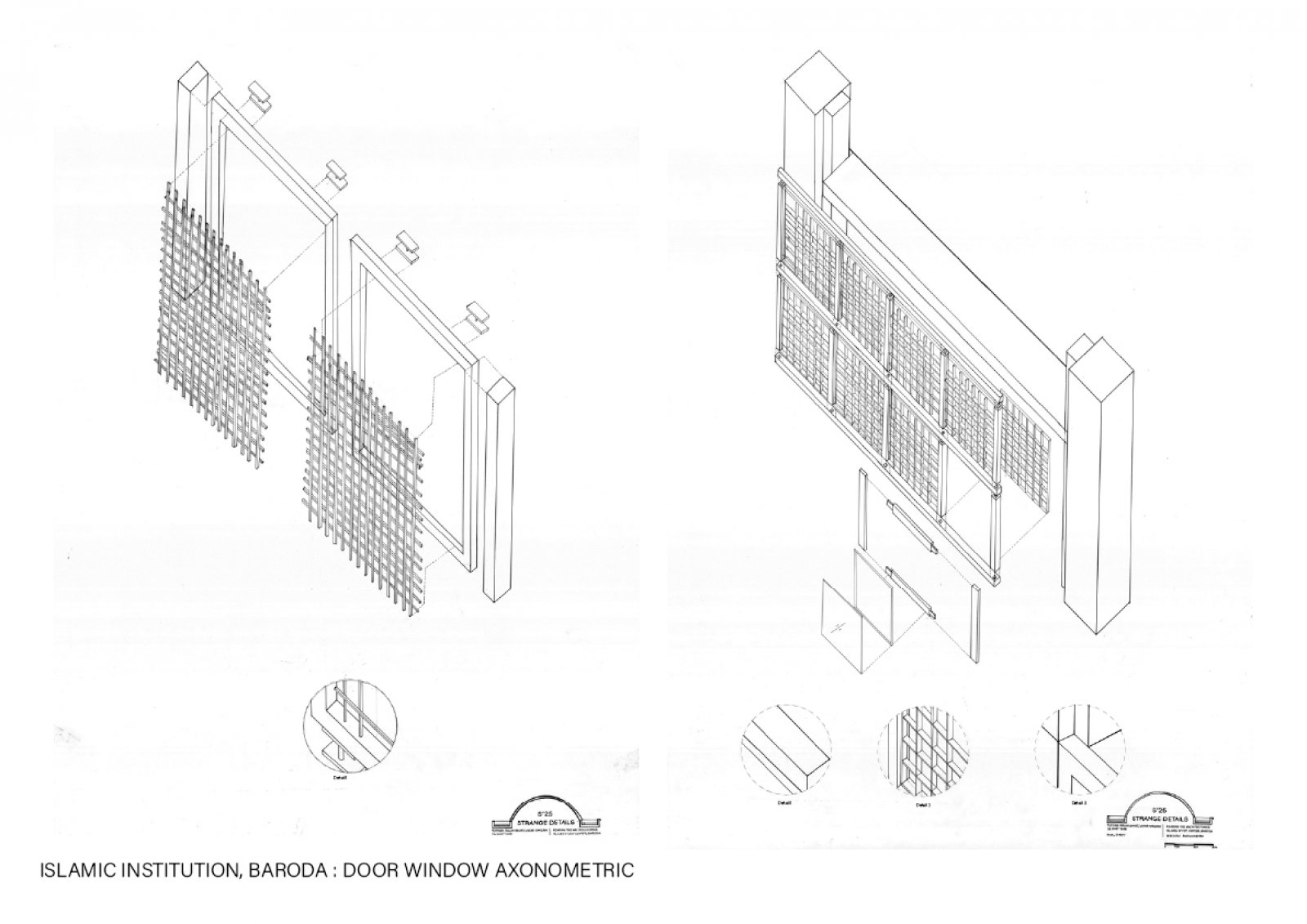

Documentation : Door Window Axonometrics

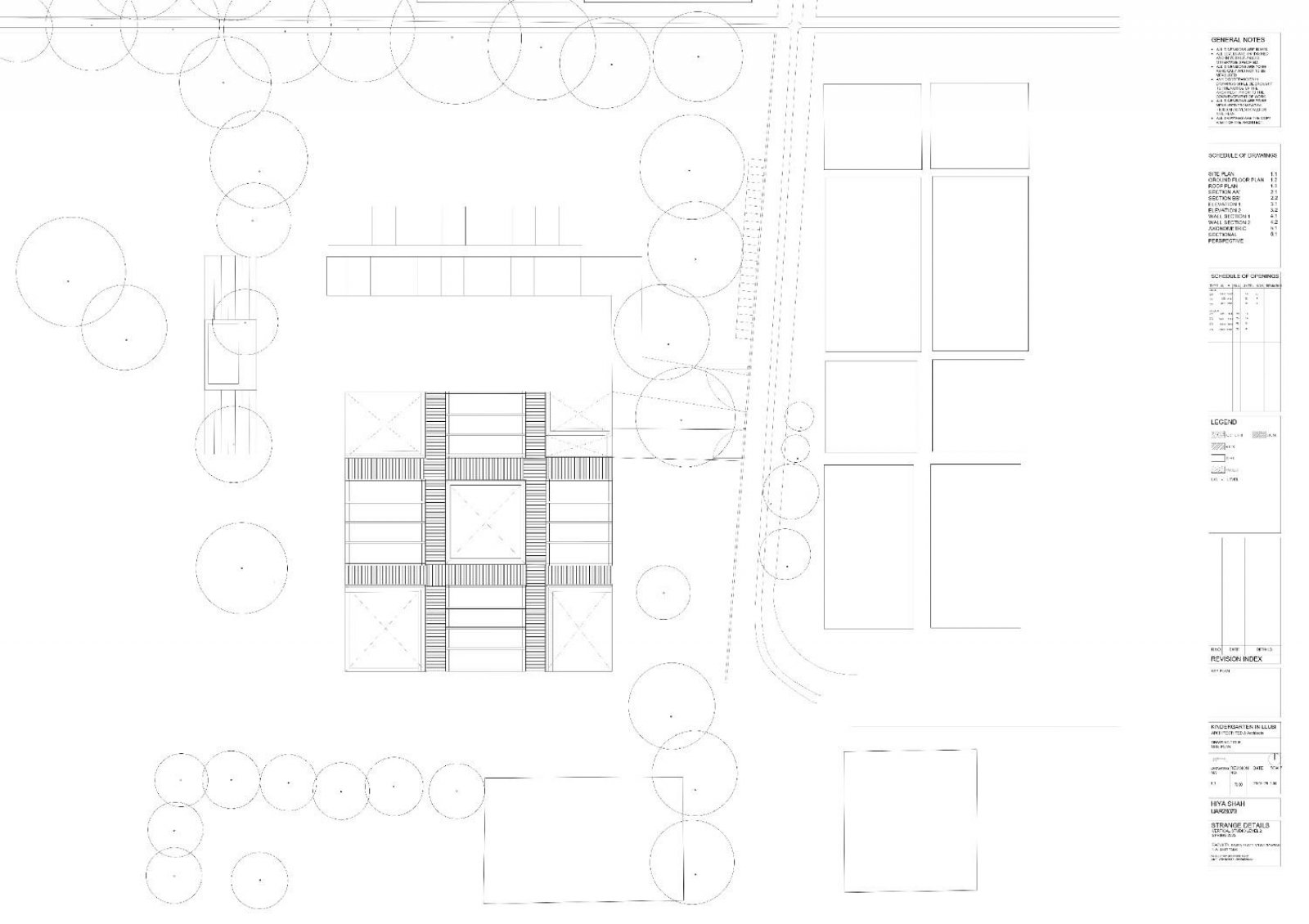

Site Plan 1: 200 scale

Ground Floor Plan 1:50 Scale

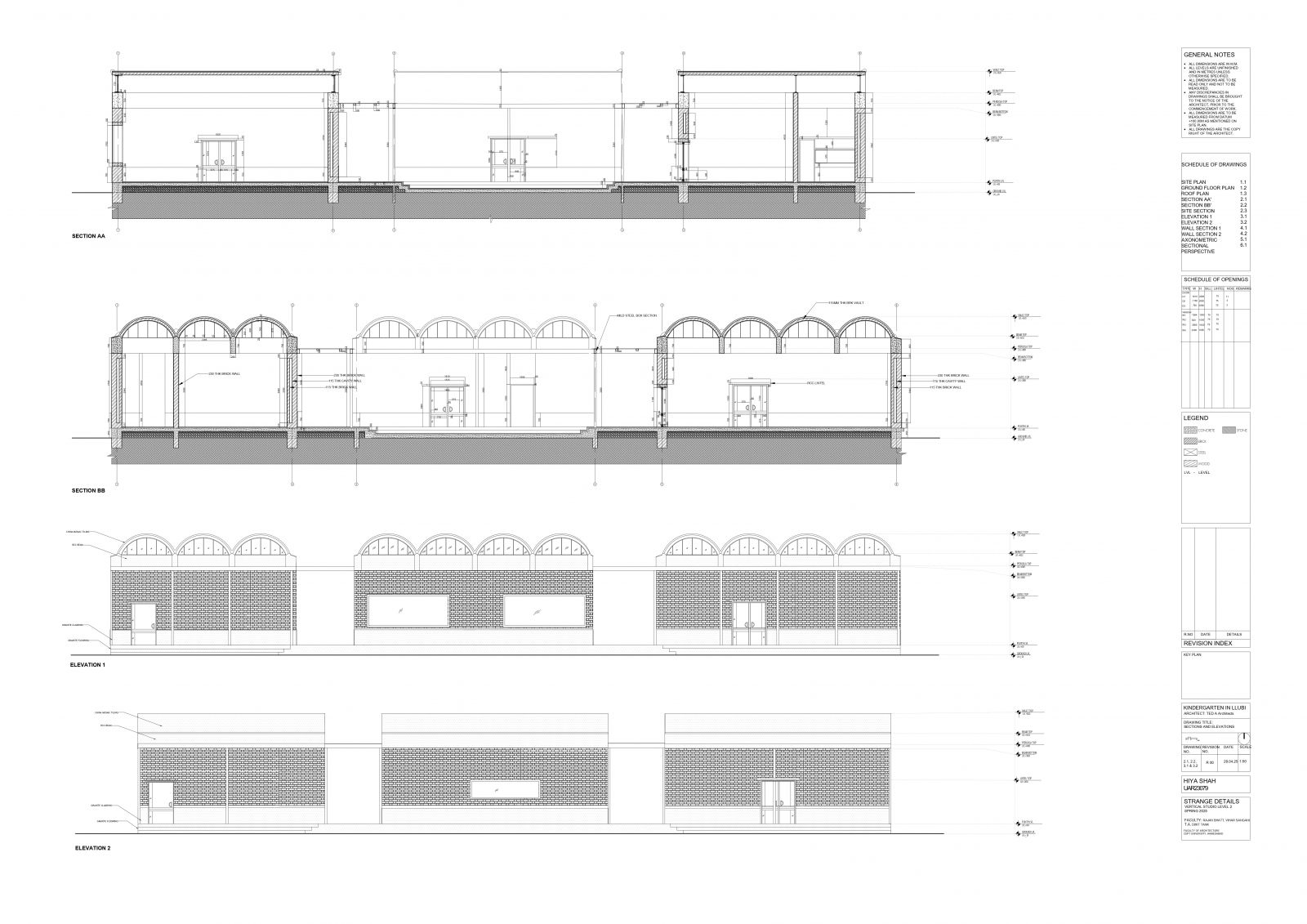

Sections and Elevations 1:50 Scale

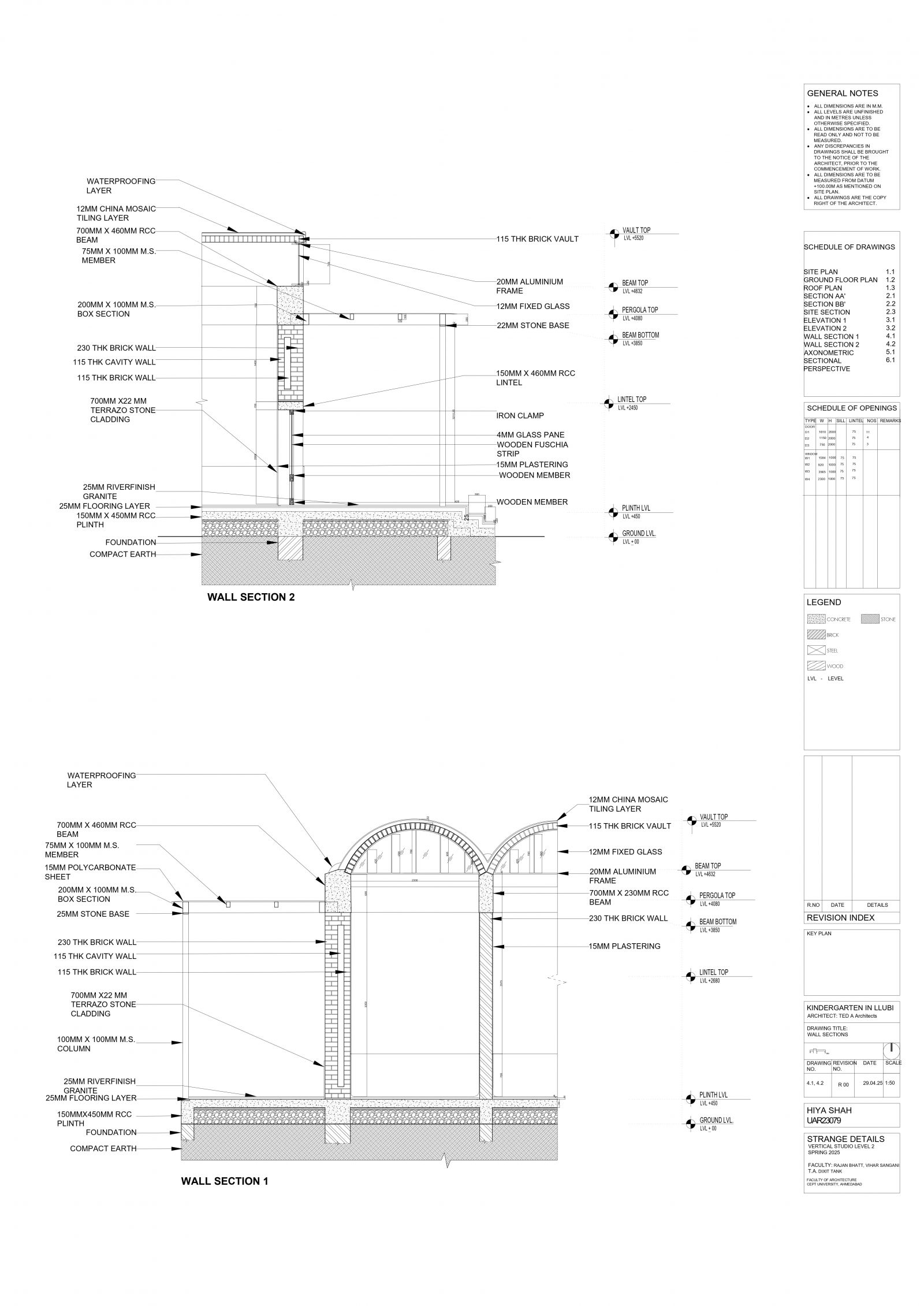

Wall Sections 1:20 Scale

Sectional Axonometric 1:20 Scale

Sectional Perspective 1:20 Scale
