Ranjana Rangarajan

AR2016

Crescendo - A Space for Music

The Project celebrates the nature of music - to proliferate. The crystalline shell develops as an extension of the existing timber pitched roof, growing as plywood clad faceted surfaces in the foyer and erupting out as a brooding, dramatic volume with light washing over the surfaces. As the roof continues to extend unabashedly, the robust brick walls wrap around the project, in an attempt to contain the chaos - creating a water channel where one is in between the roof and the wall. The project aims to express the programme both  formally and spatially through its tectonic resolution.

View Additional Work

Report Content

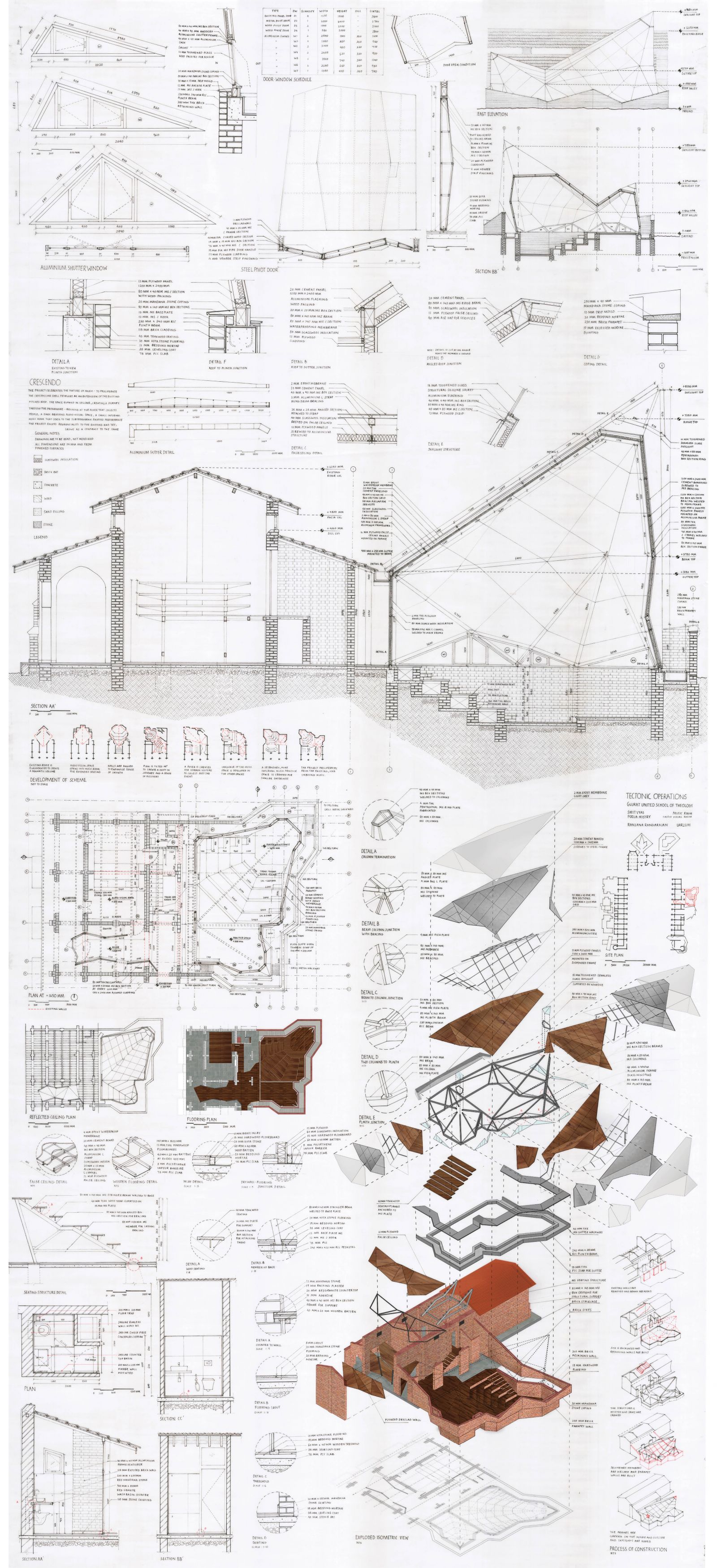

8' x 4' Hand Drafted Set of Drawings

Site and Intervention

Process

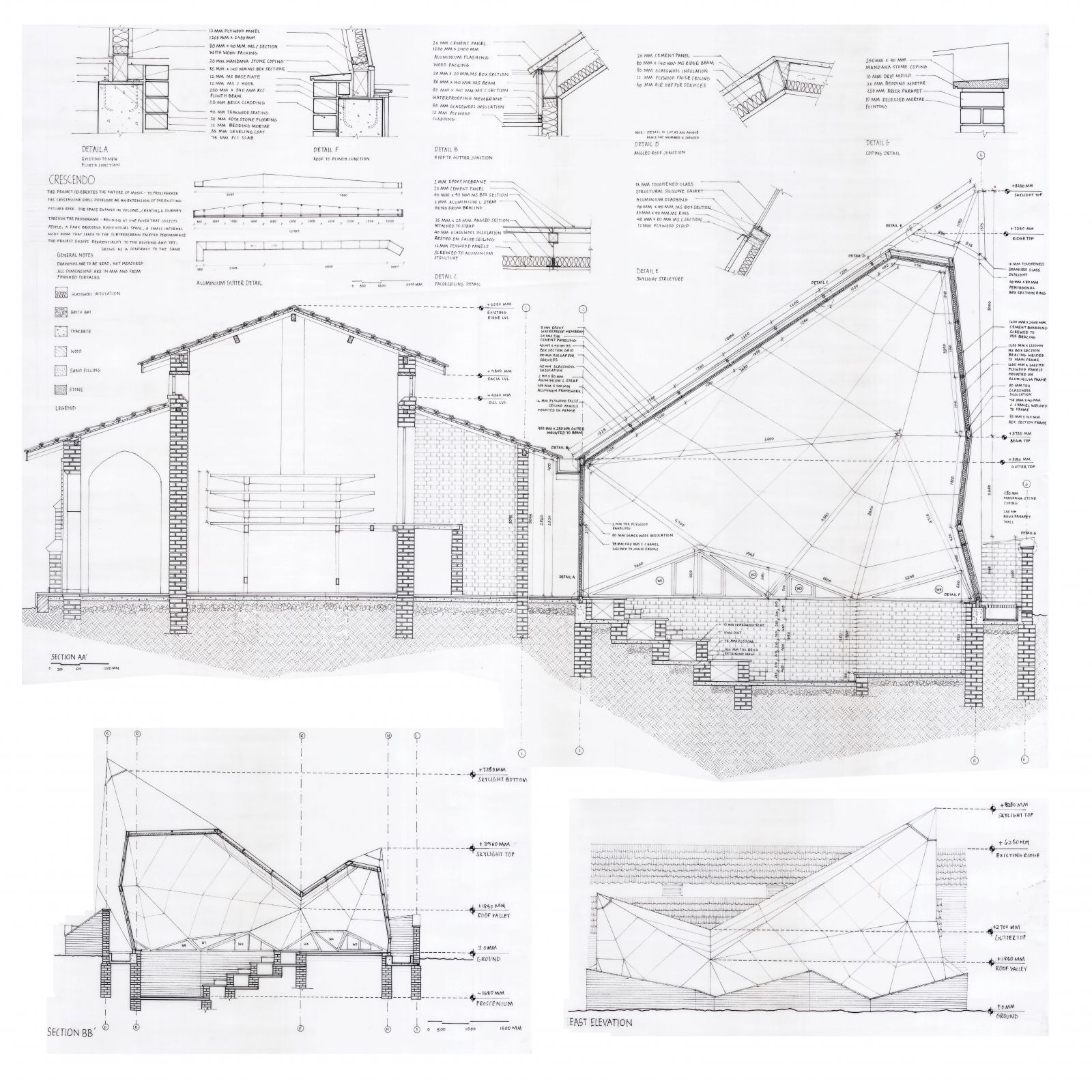

Sections | Elevation | Details

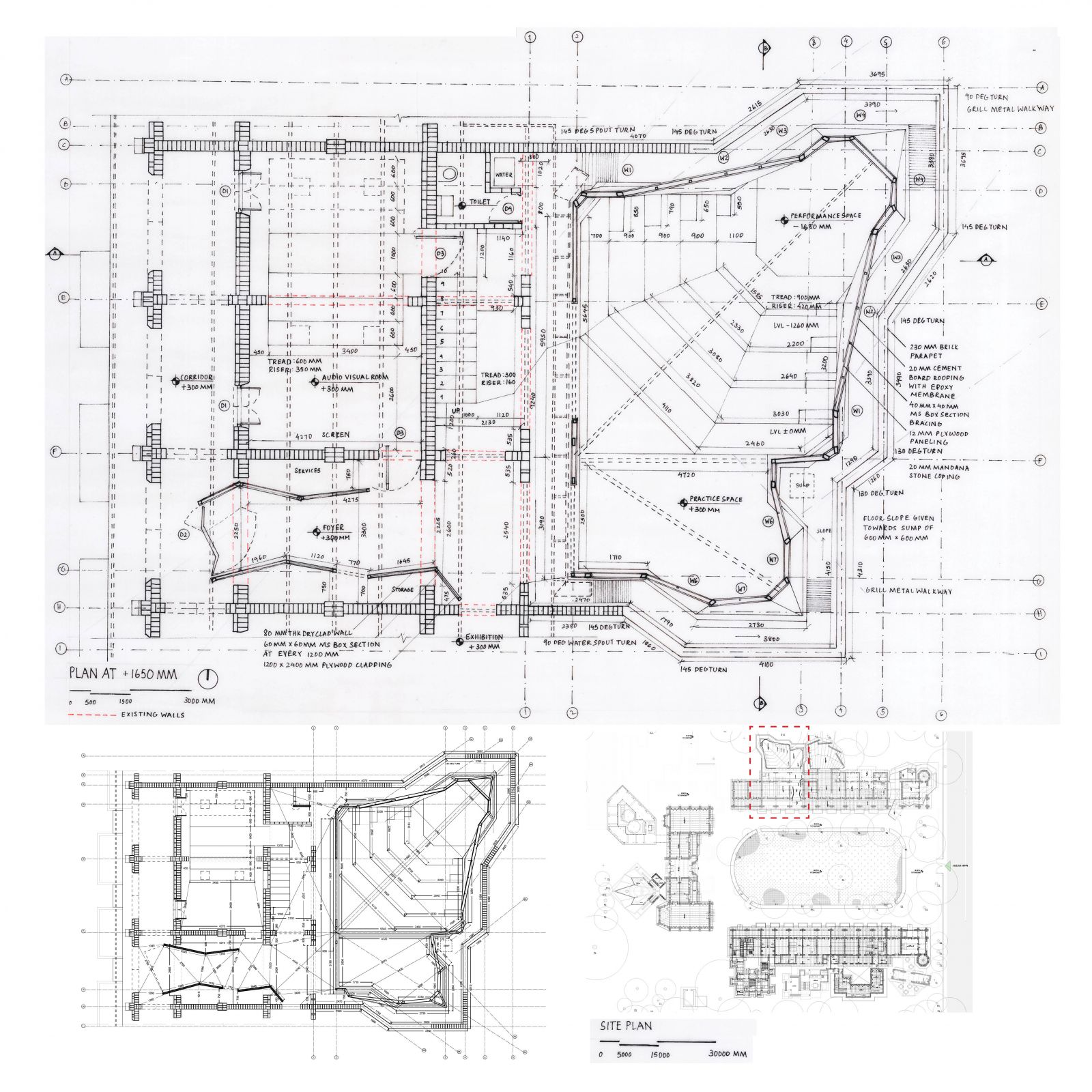

Plan | Site Plan | Setting Out Plan

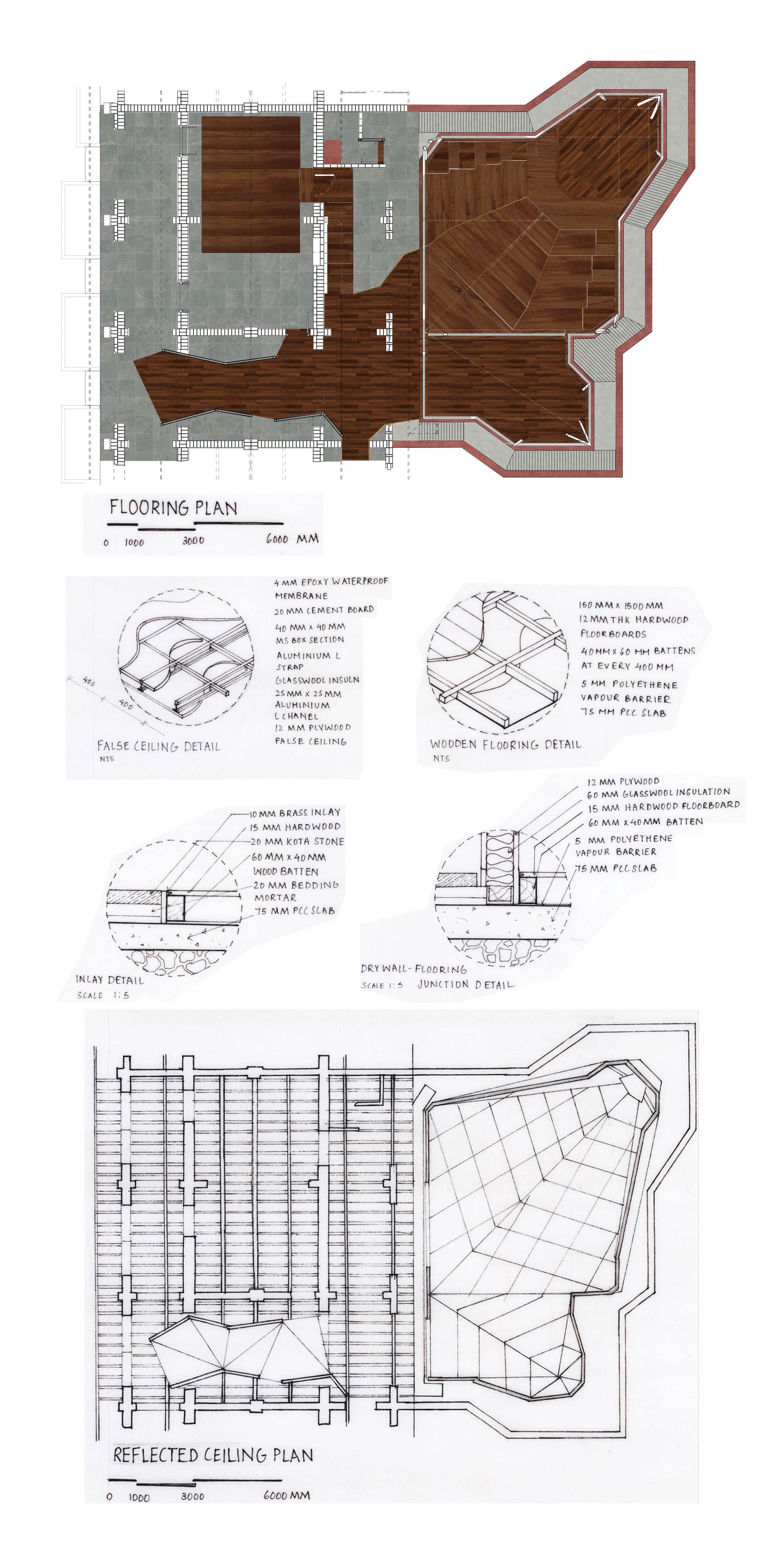

Flooring Layout | Ceiling Layout

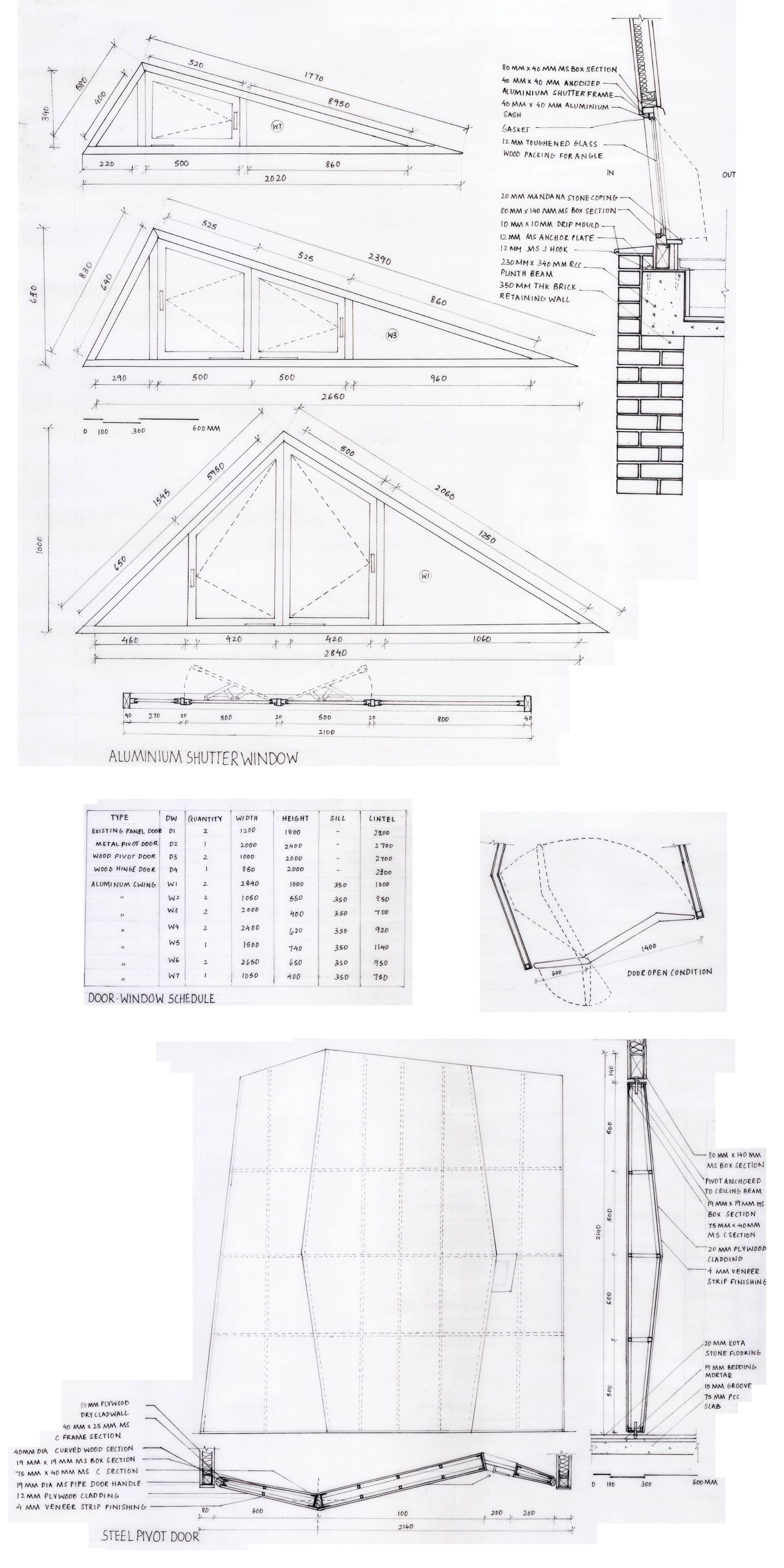

Window Detail | Door Detail

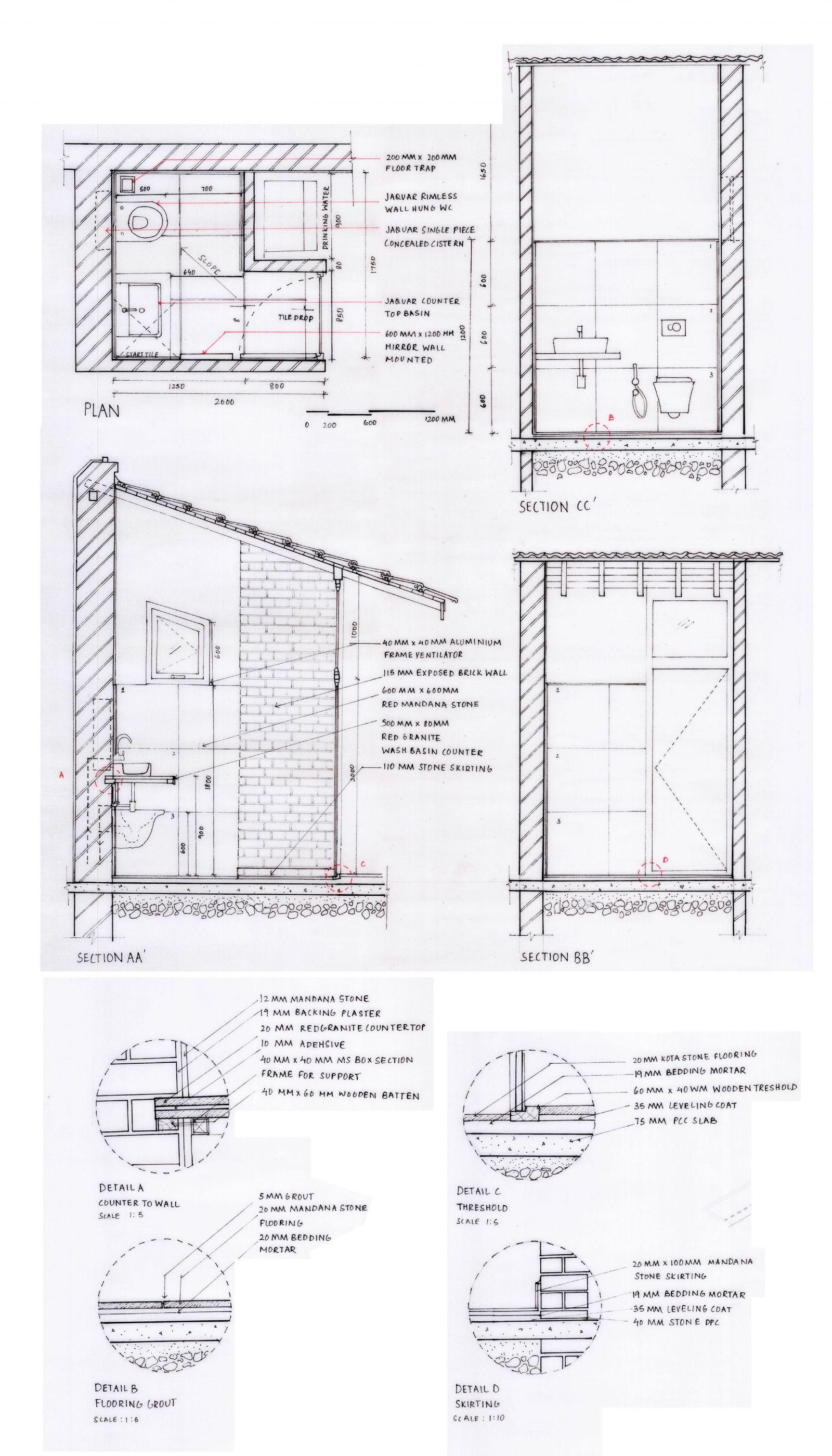

Toilet Details

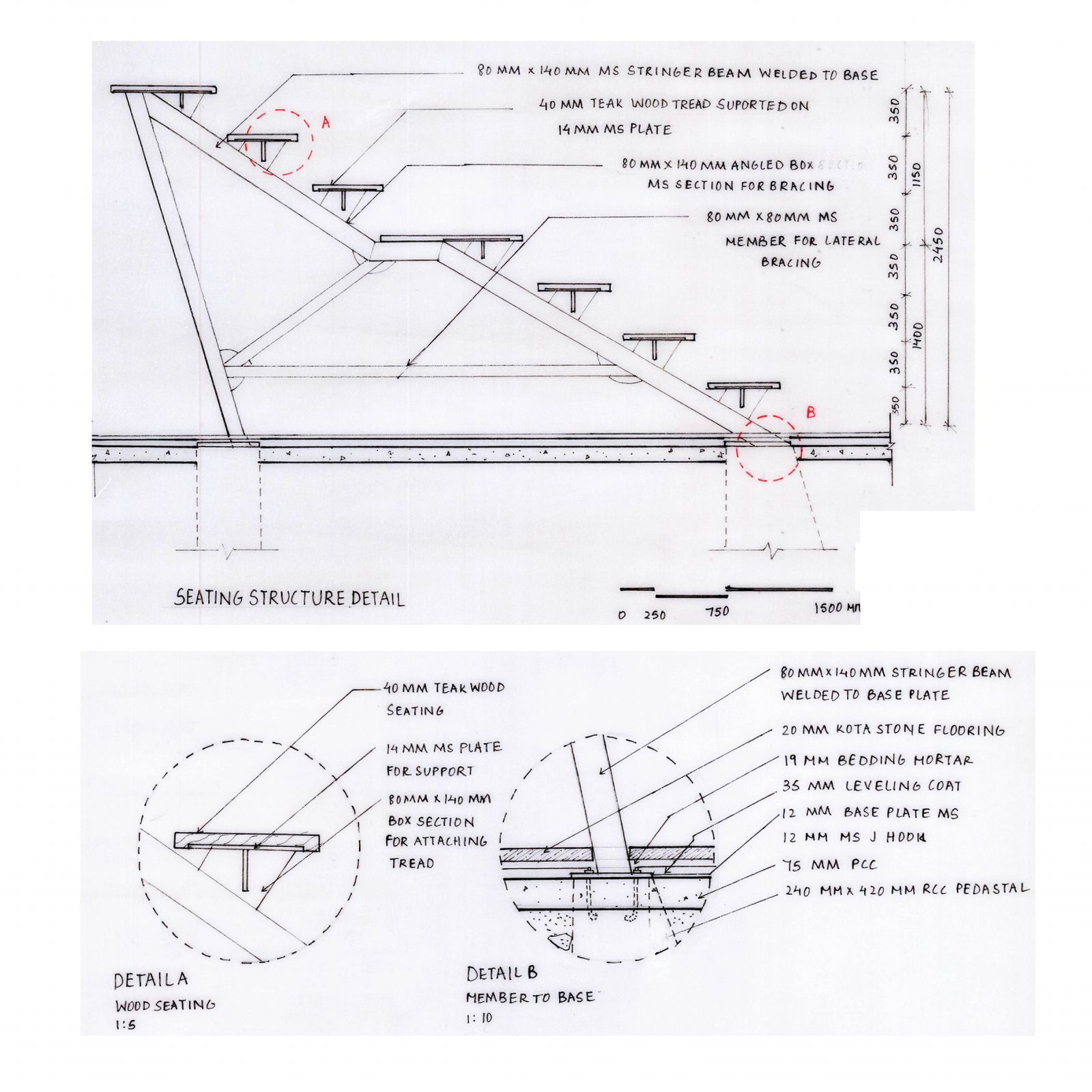

Seating Structure Detail

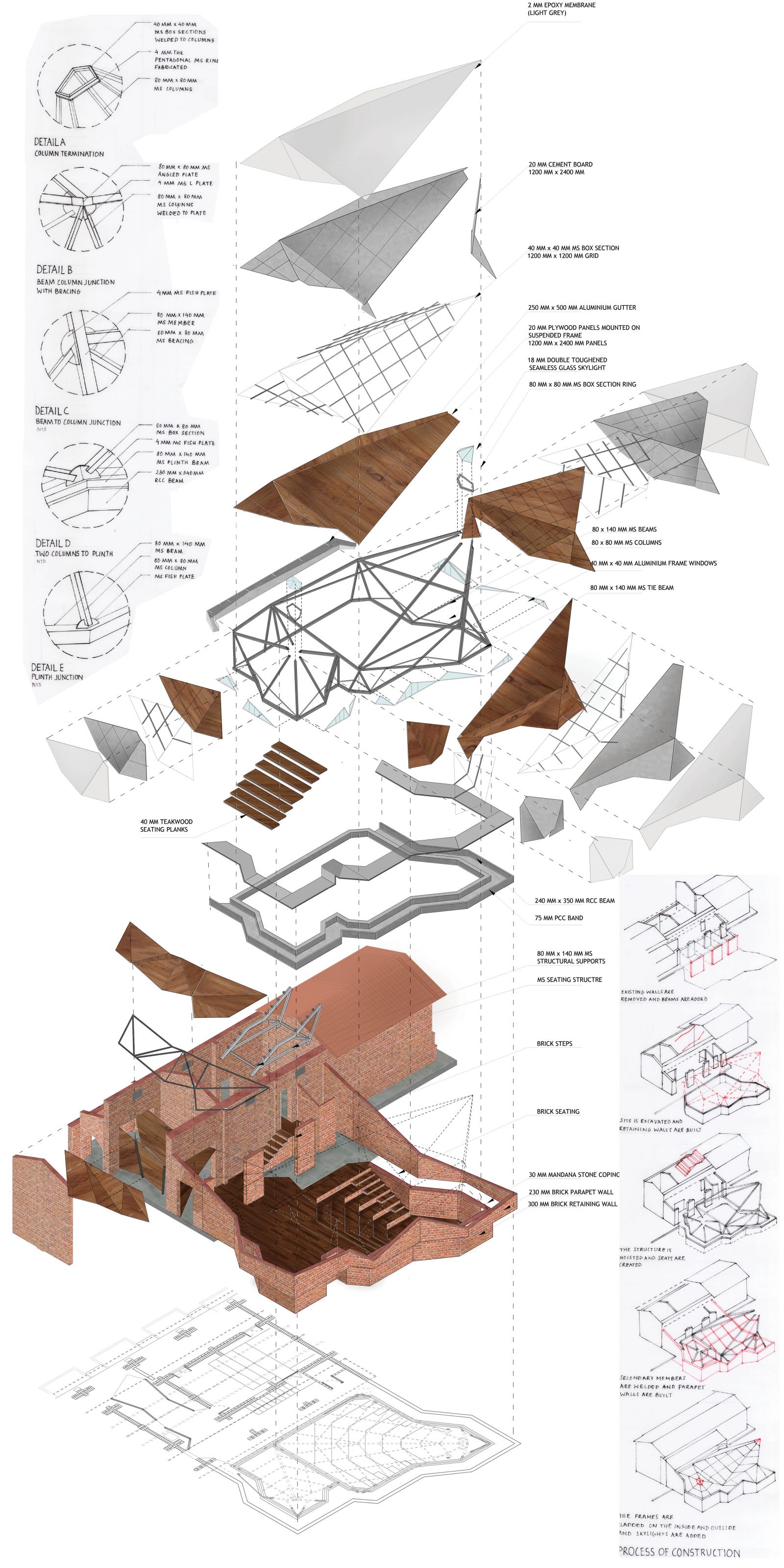

Exploded Isometric View | Structural Details | Process of Construction
