Nila Subramani

AR2016

The Shepherd's Path

Emerging from investigations in wrapping, layering, and connection, the design evolves as a strategy of partial enclosure as a parasitic sheath around an existing masonry structure. A ramp through shifting conditions—encircling, revealing, and bridging— connects the pastor’s residence, reception, and administration with spaces inside and outside the existing building. The interplay of parallel and angled walls construct a dialogue between the original structure and the new intervention articulated by lightweight materials that contrast the original mass. The project operates as a spiral—layering spaces around the core and articulating a continuous ascent from ground-level entry to the terrace.

View Additional Work

Report Content

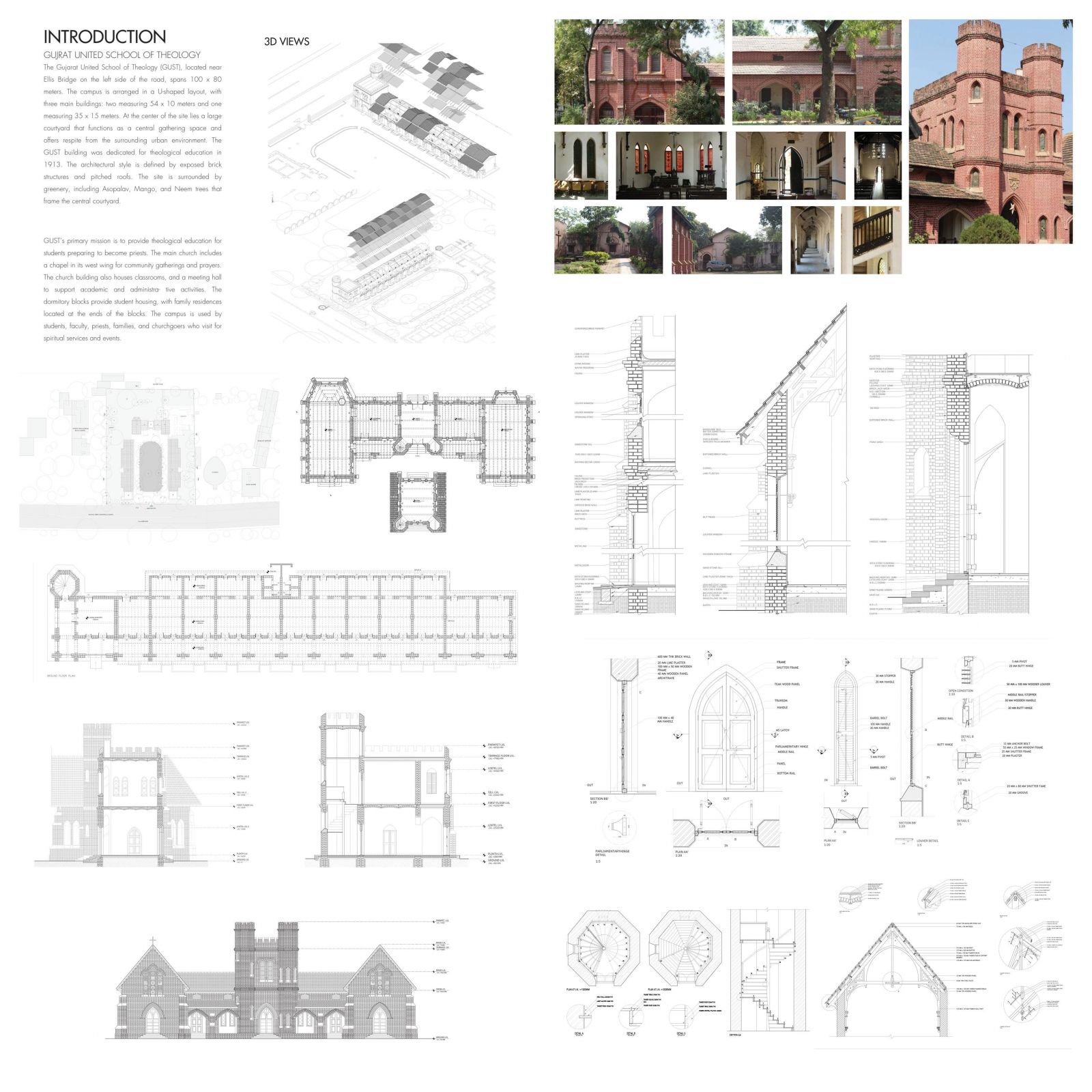

Site Documentation - Measure Drawings

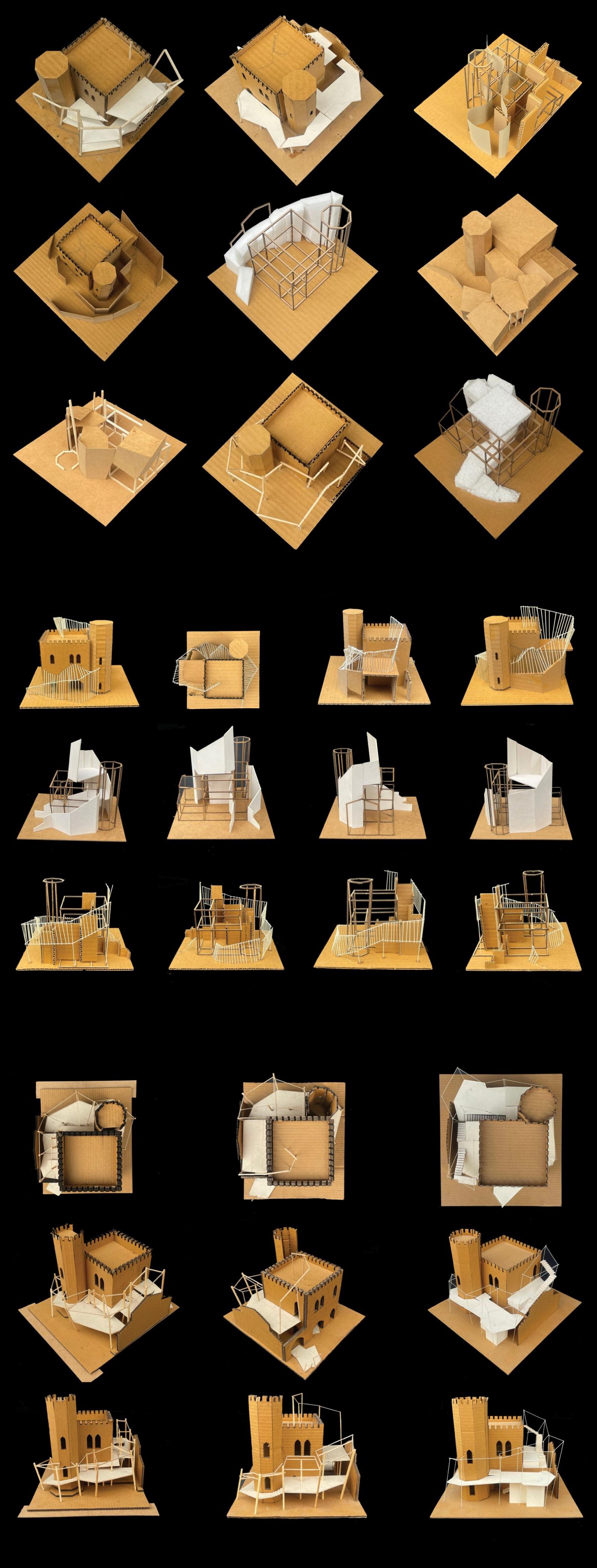

Process Models and Design Development

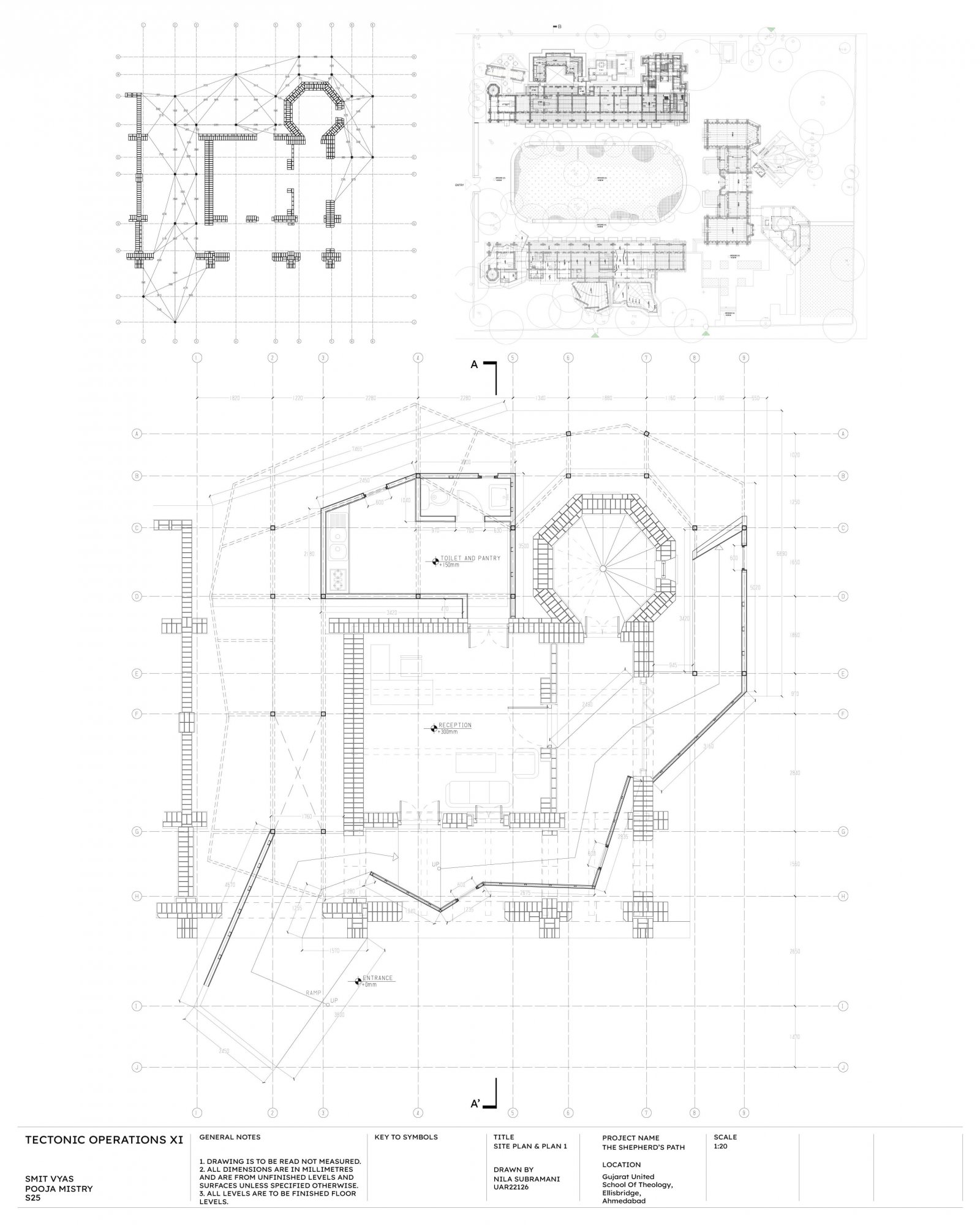

Line out, Site, Ground Floor Plan

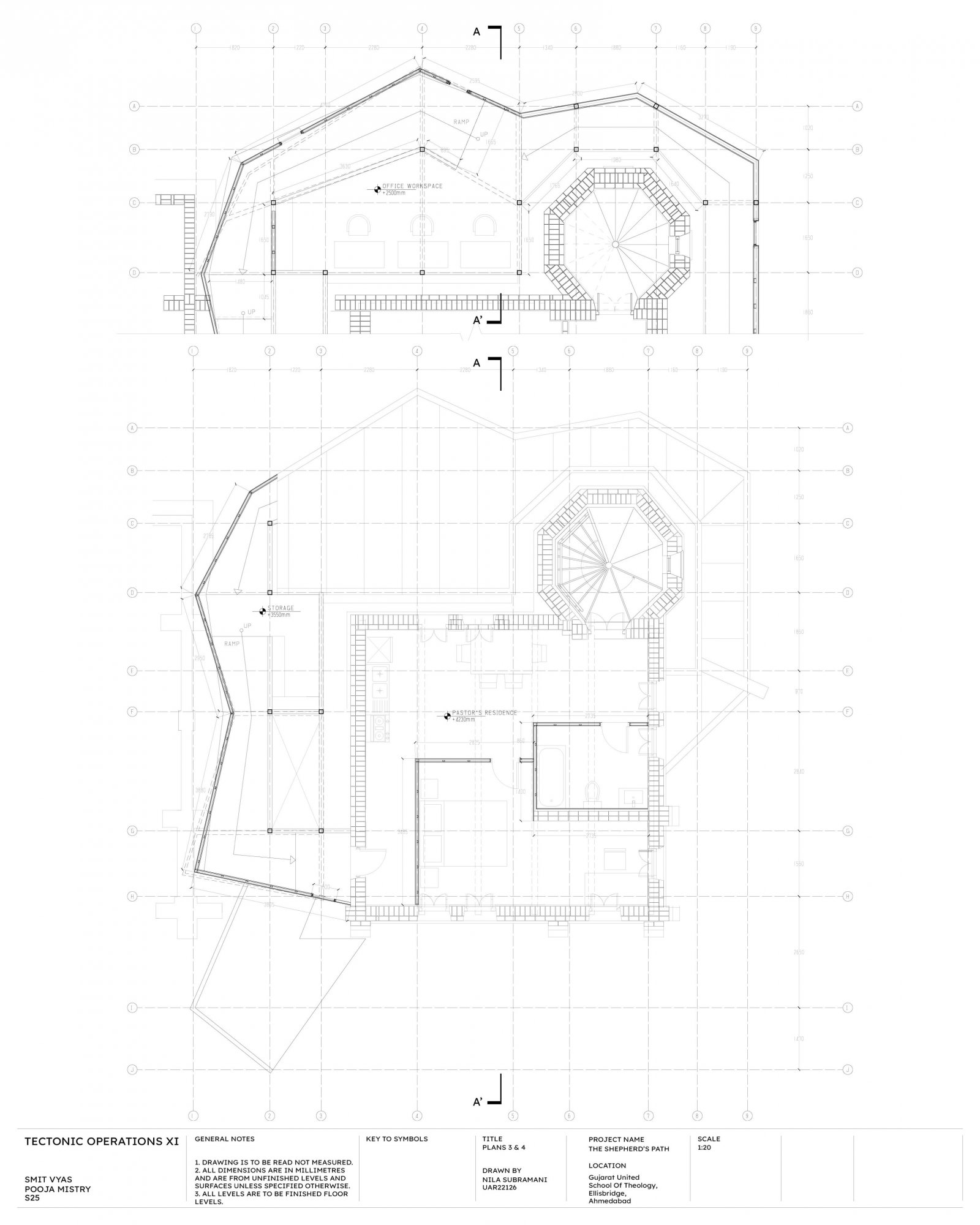

Part Plan (office) and First Floor Plan (residence)

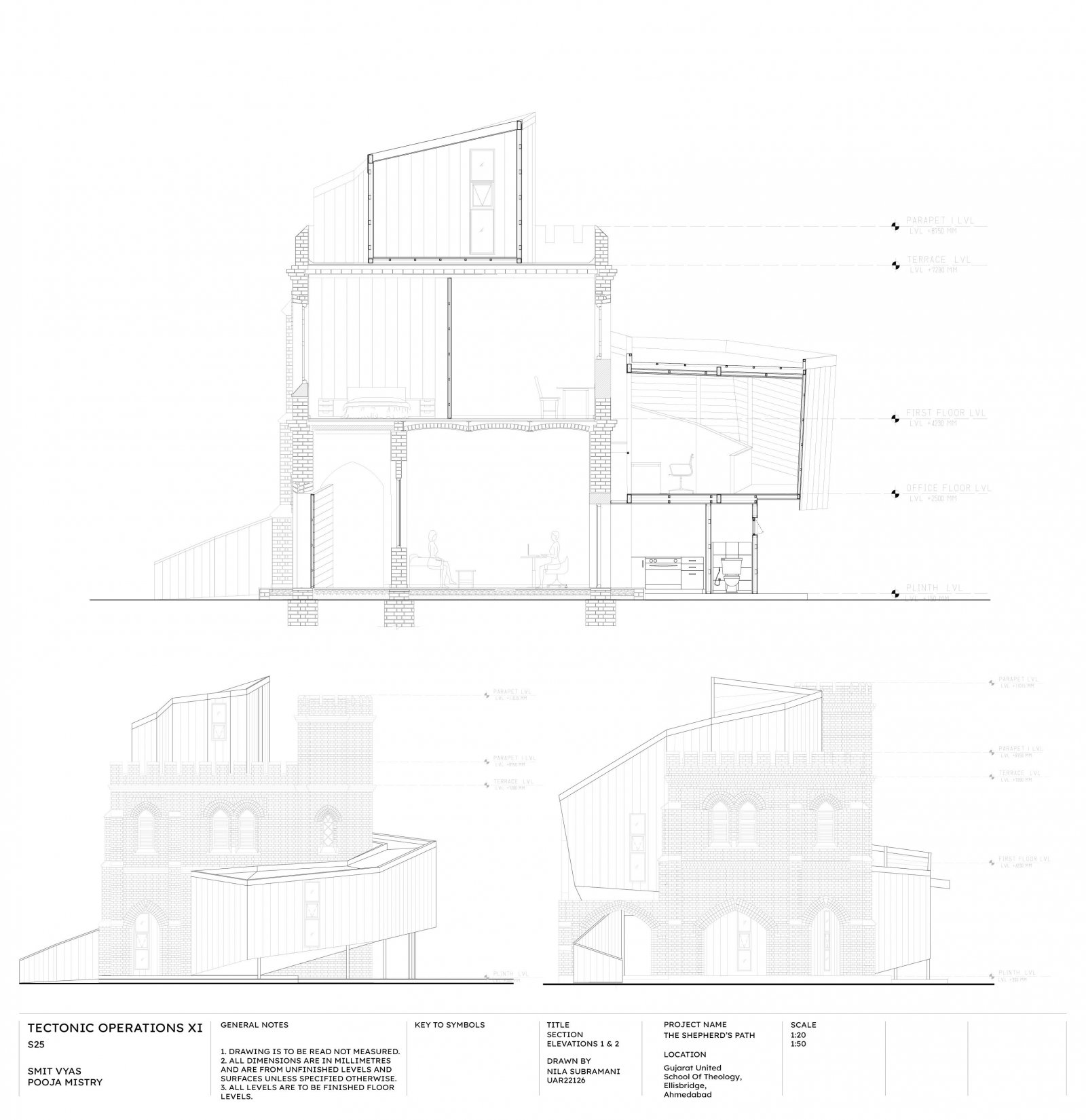

Section and Elevations

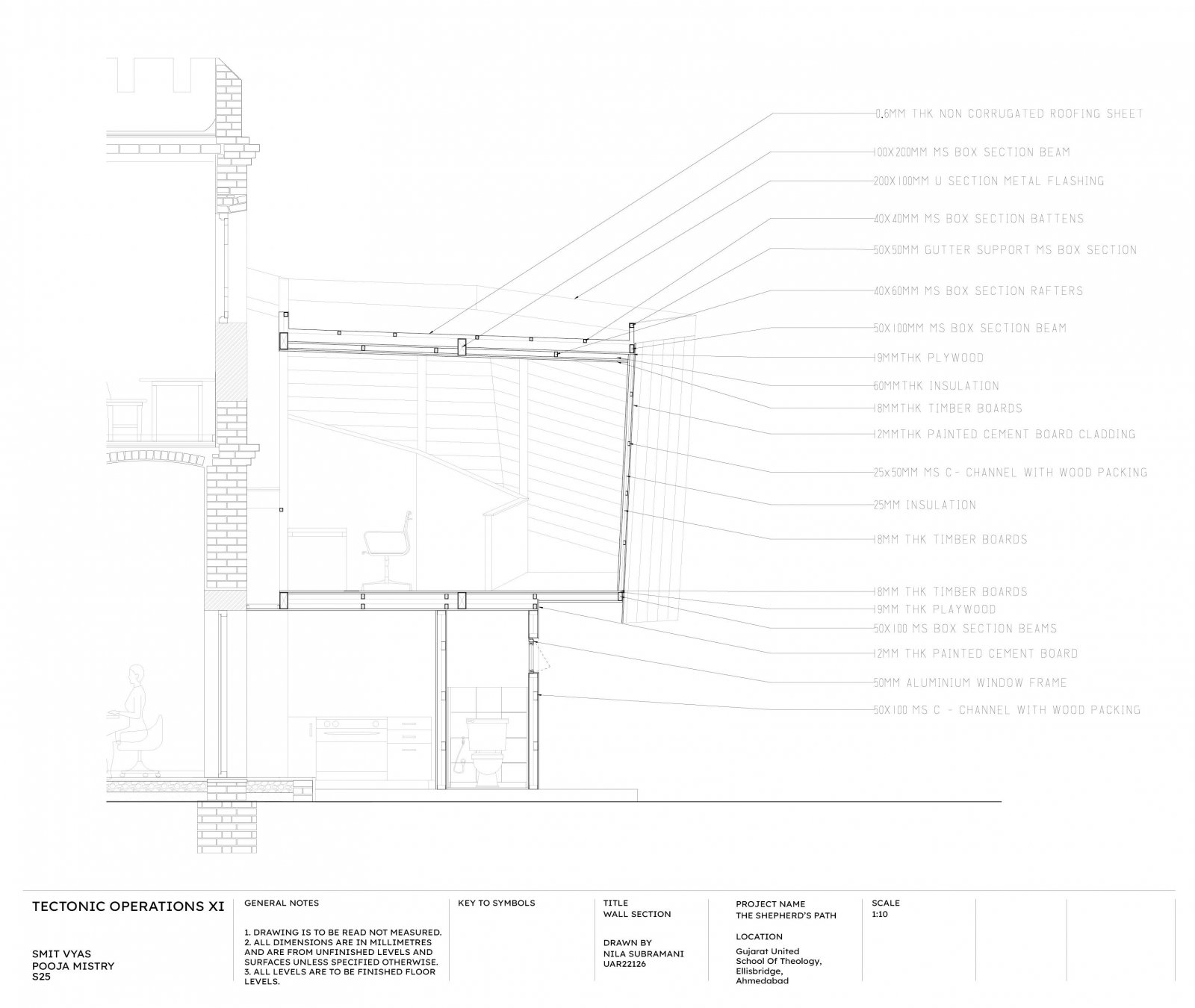

Wall Section

Opening Detail

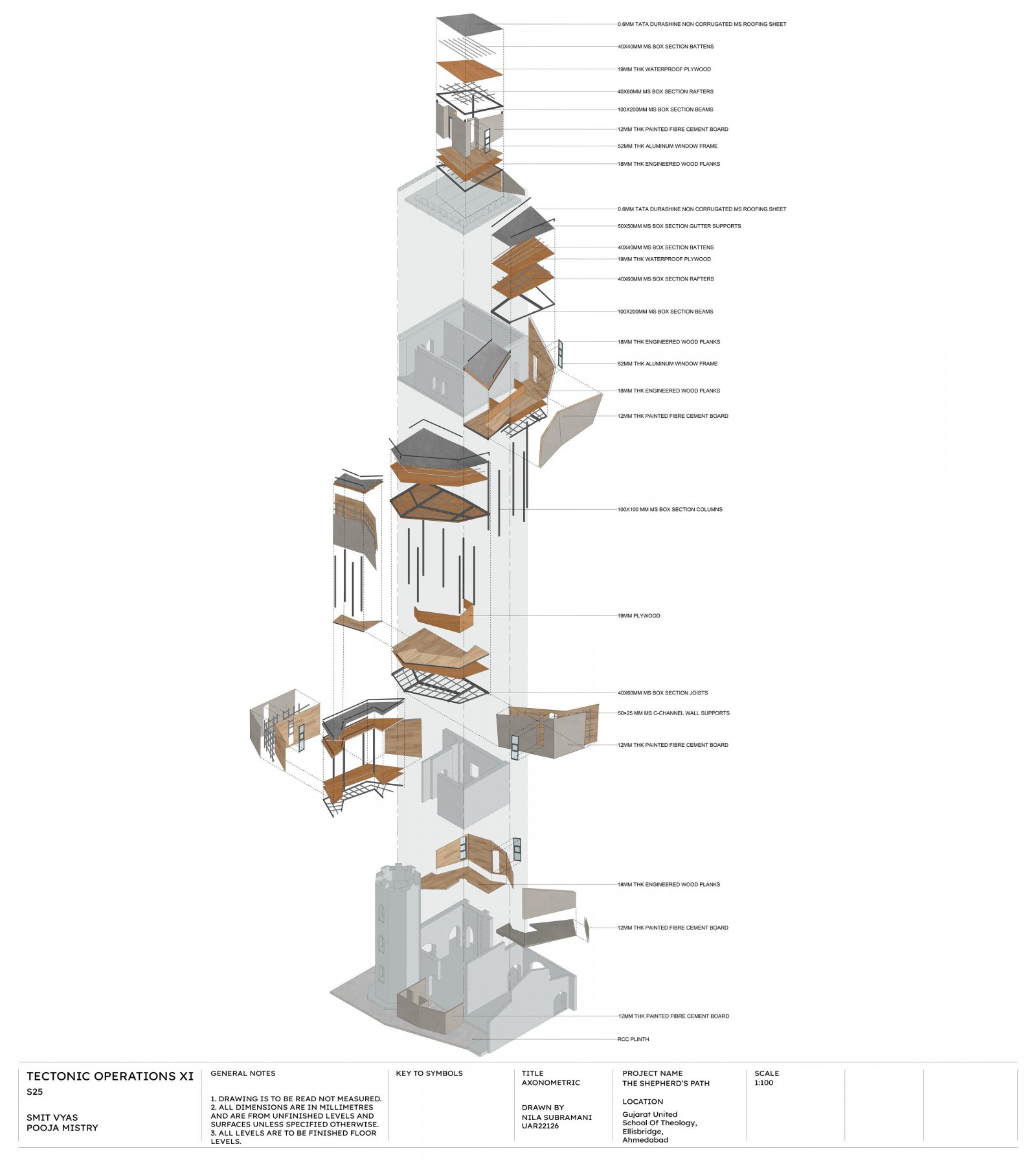

Exploded Axonometric

Final Model Images
