Vidhi J Bhimani

IR3010

Monte Sereno, Goa

This project envisions the transformation of a colonial convent in Old Goa into a luxury  resort. Nestled amidst historic landmarks, the site offers a unique opportunity to blend timeless Portuguese architecture with refined modern hospitality.The concept builds on the original sense of seclusion but introduces thoughtful spatial interventions that open up selected areas of the convent to the surrounding landscape. It encourages guests to connect with both the heritage architecture and the natural environment while maintaining privacy and exclusivity. HIGH RESOLUTION PORTFOLIO

View Additional Work

Report Content

CONTEXT AND SITE ANALYSIS.

DESIGN PROGRAM AND CONCEPT DERIVATION.

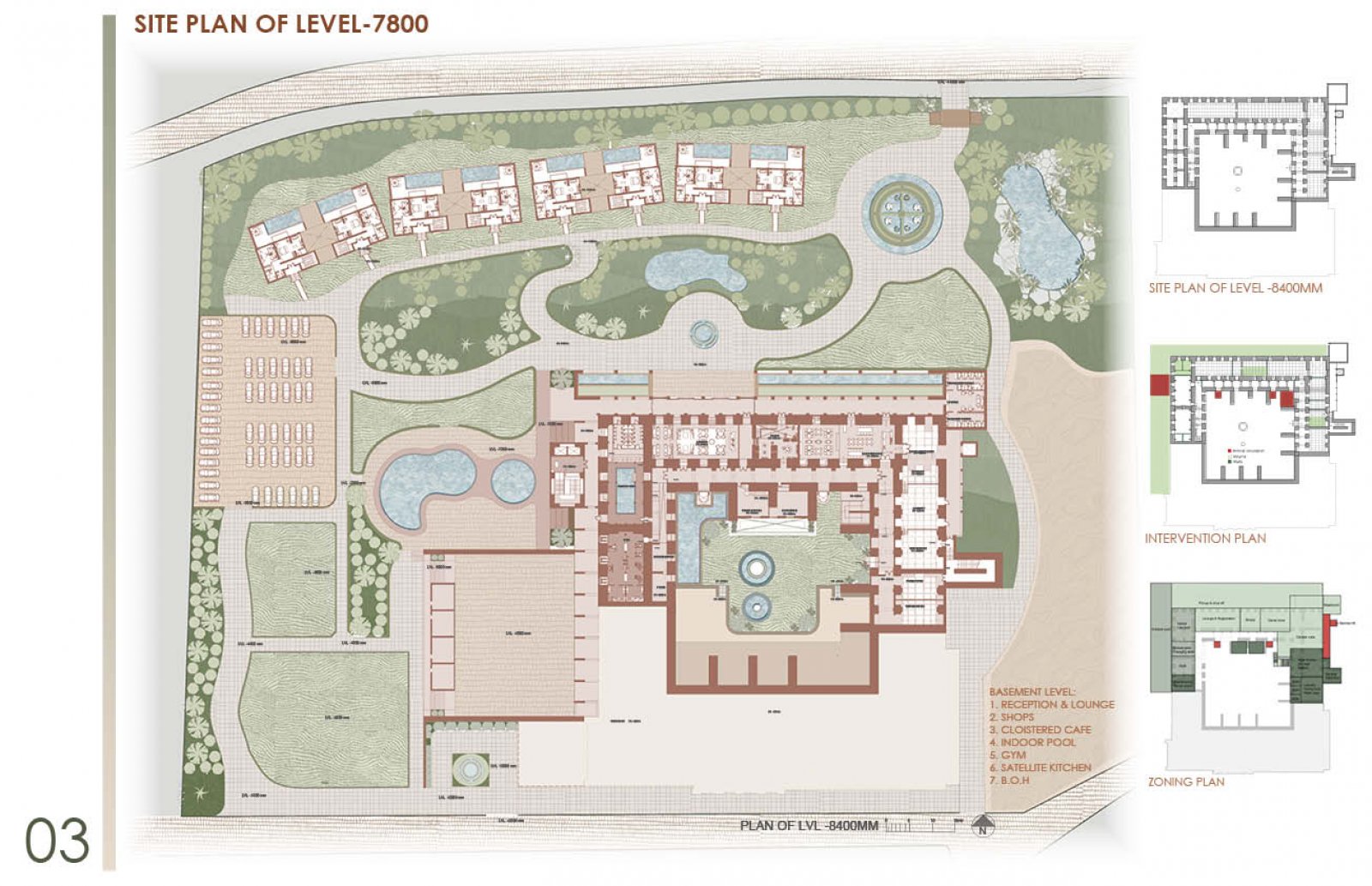

SITE PLAN AT LEVEL-7800MM WITH ZONING AND INTERVENTION DIAGRAMS.

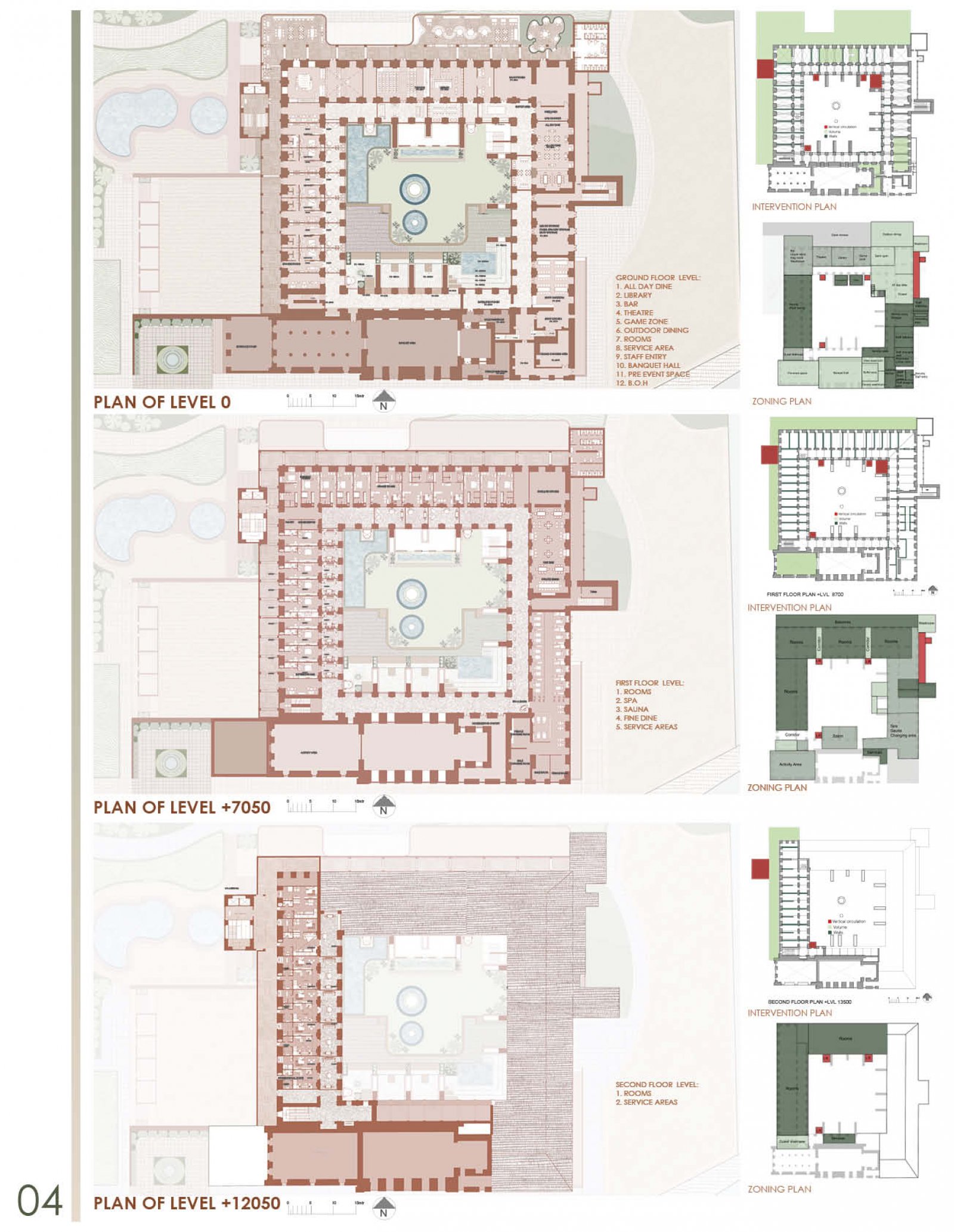

PLANS AT ALL LEVELS OF THE SITE WITH INTERVENTIONS.

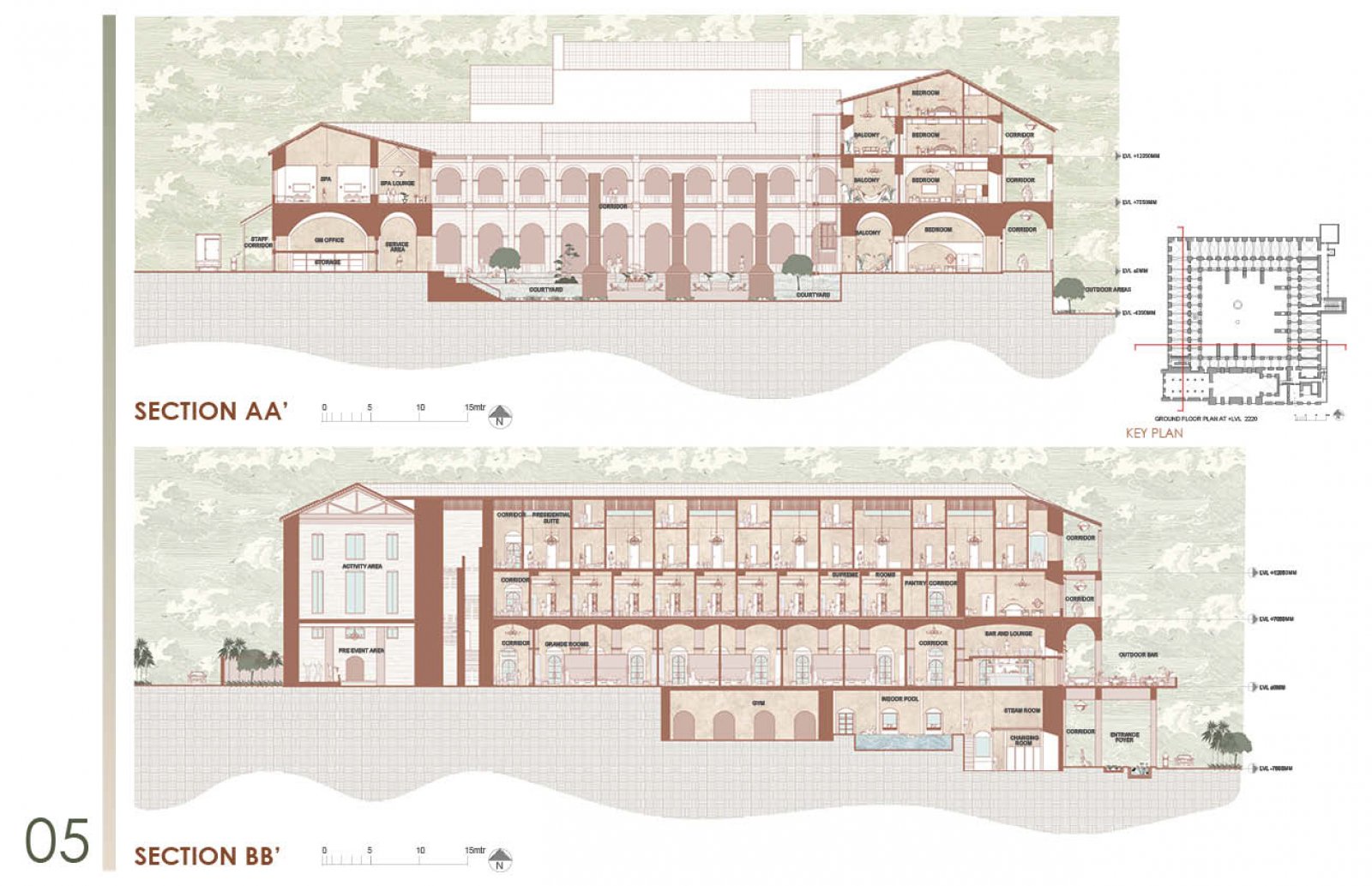

LONGITUDINAL SECTIONS OF THE SITE.

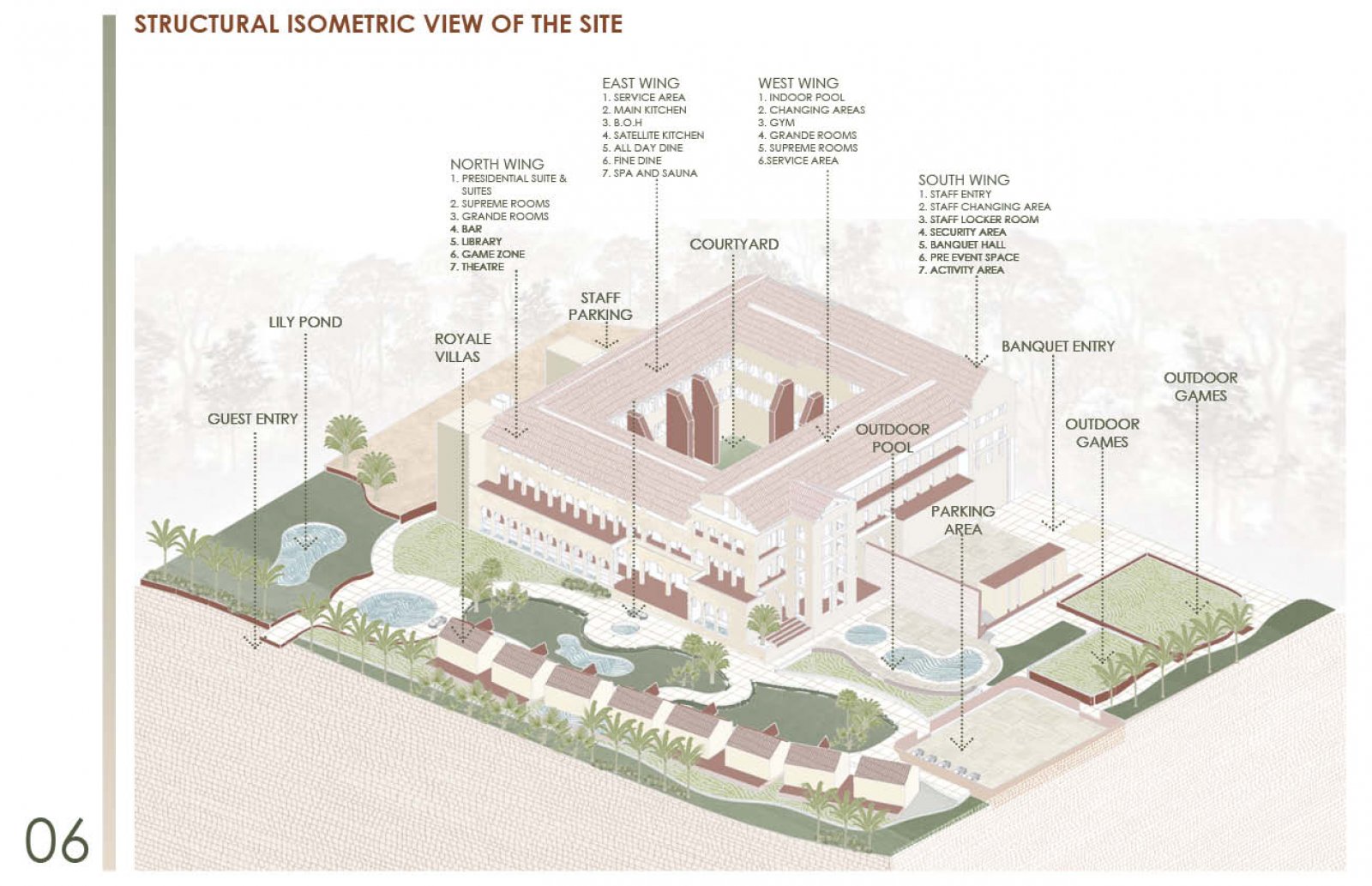

STRUCTURAL VIEW OF THE SITE.

DETAILED SPACE 01 - BAR AND LOUNGE.

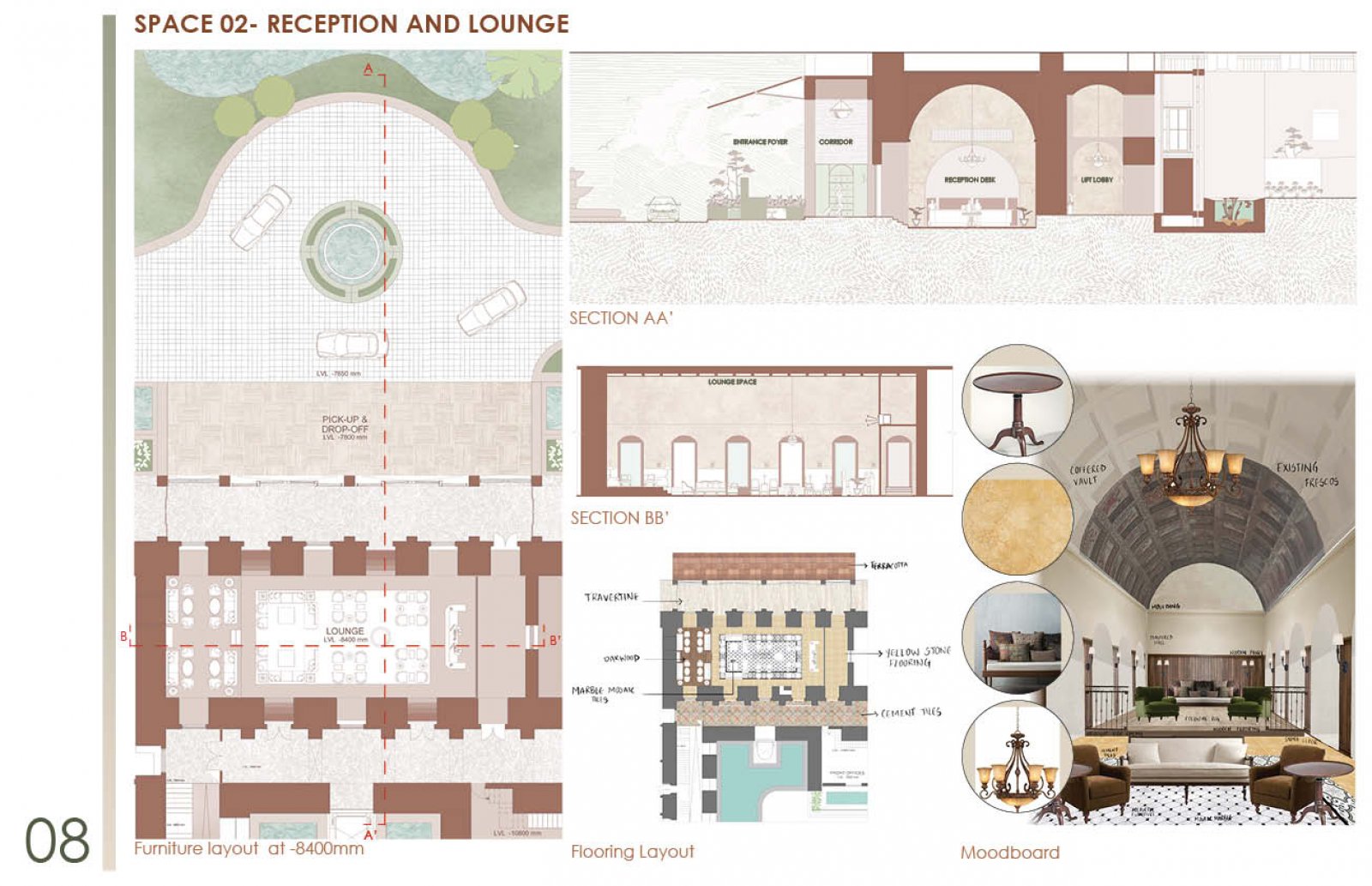

DETAILED SPACE 02- RECEPTION.

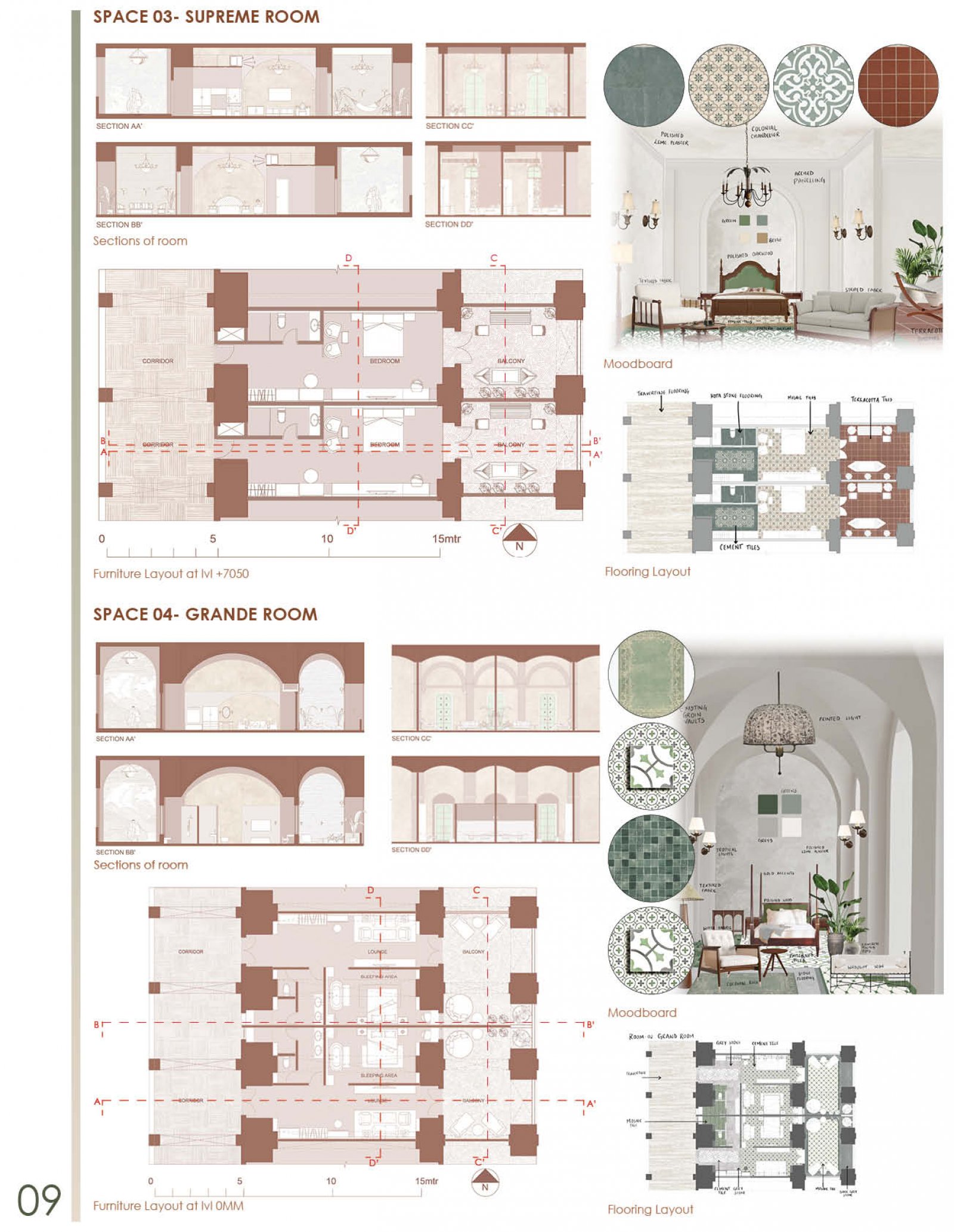

DETAILED SSPACE 03, 04- ROOMS

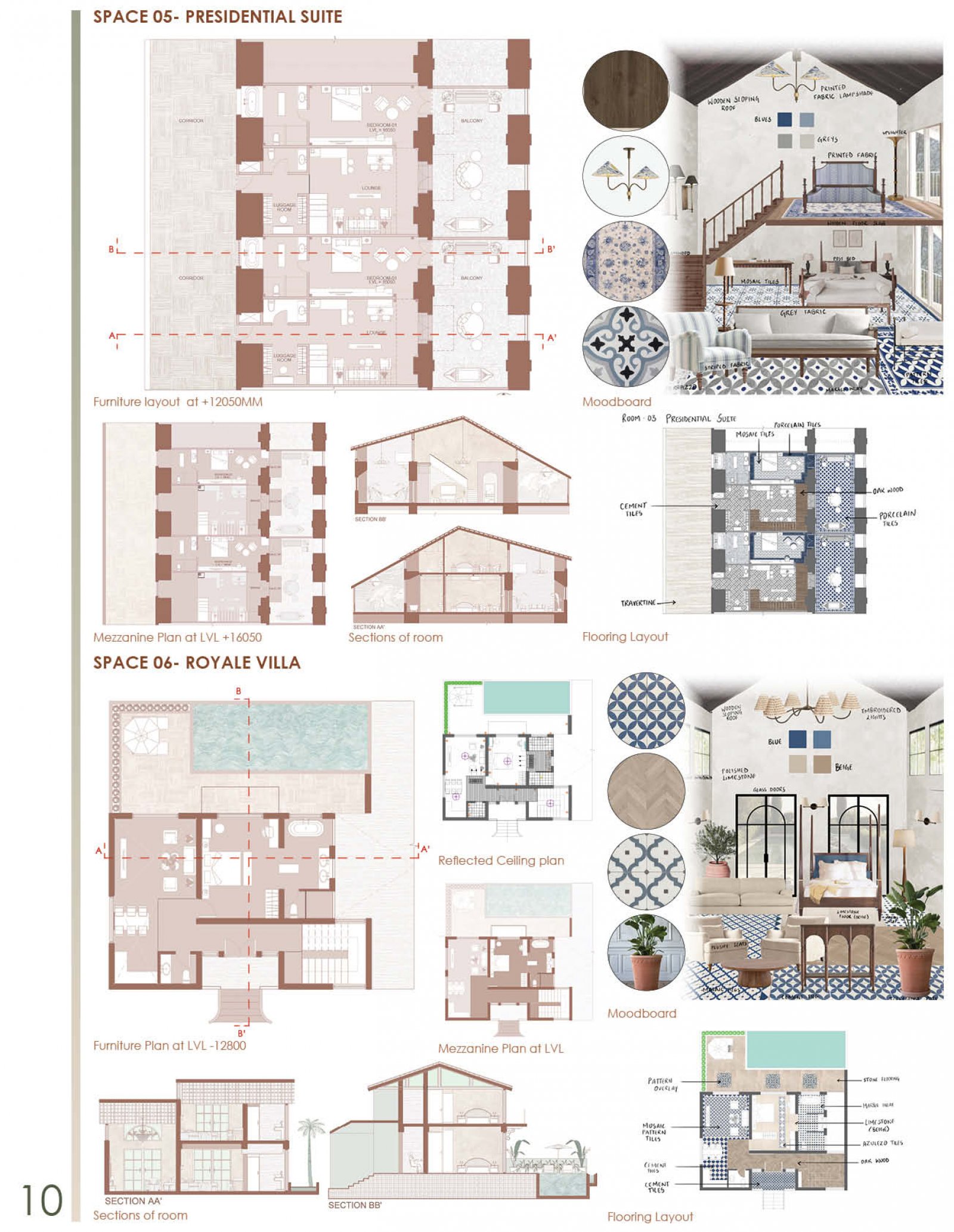

DETAILED SPACE 05,06- SUITE AND VILLA
