Sayantan Chowdhury

CD4004

HexHive - A modular maze design for kids

HexHive is a modular maze for kids focusing on cognitive and sensorial development. It's a site-based adaptive growth system customizable for various terrains and learning goals. Unlike traditional planar mazes, HexHive provides an immersive experience for the children through a multi-sensorial 3d-dimensional aggregation. Unlike the classic square grid maze, HexHive is based on a hex grid system. A 6-axis robotic arm for 3d printing was employed as a fabrication technique, resulting in highly customised and topologically optimised modules. The maze assembly is designed with a universal plug joint of modules for ease in logistics.


Report Content

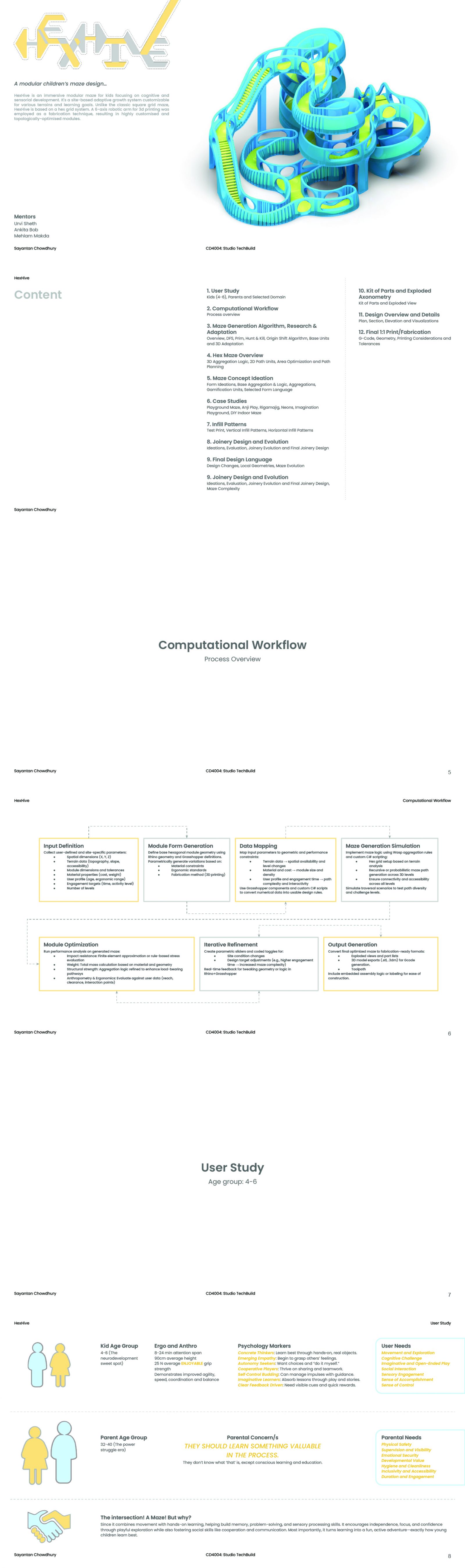

Concept, Computational Workflow and User Research

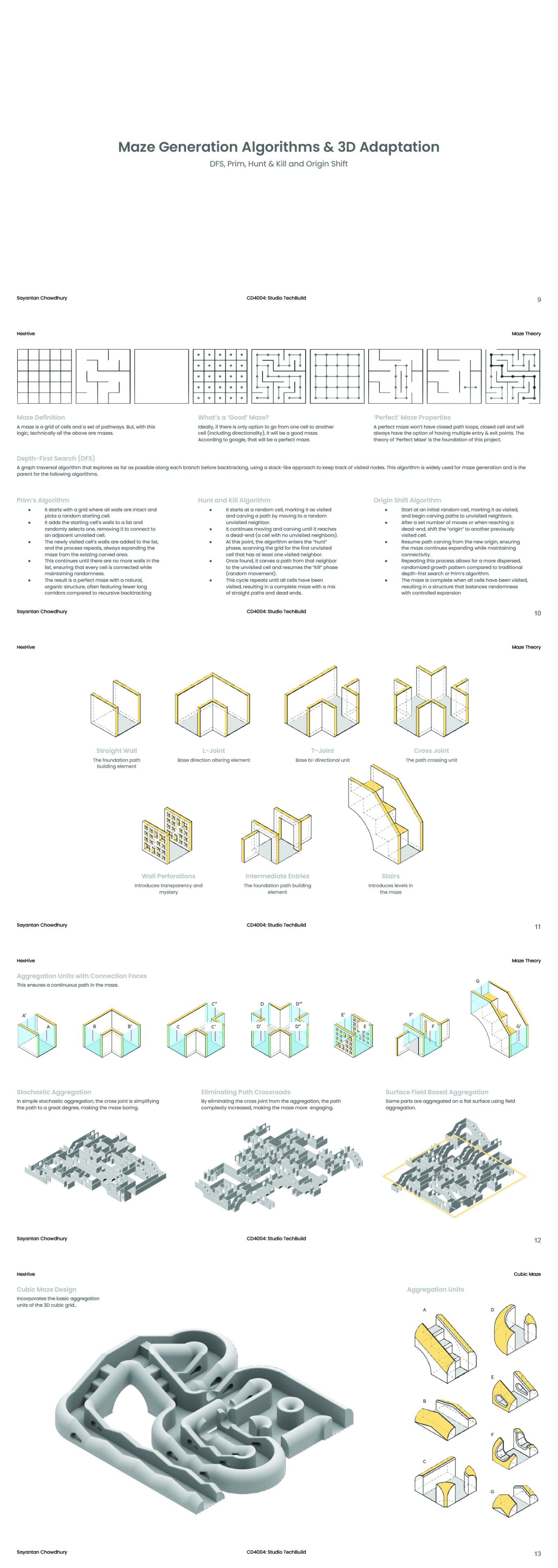

Maze Research, Generation Algorithms, Maze Units and Cubic Maze Design

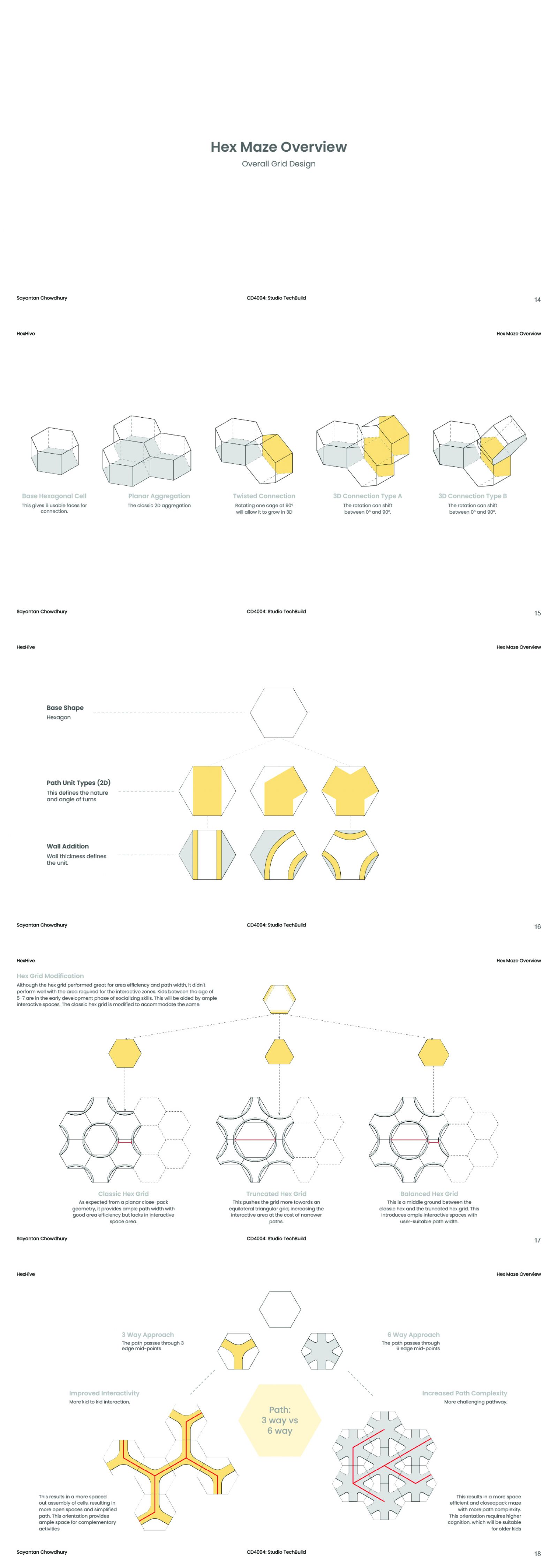

Hex Maze Overview

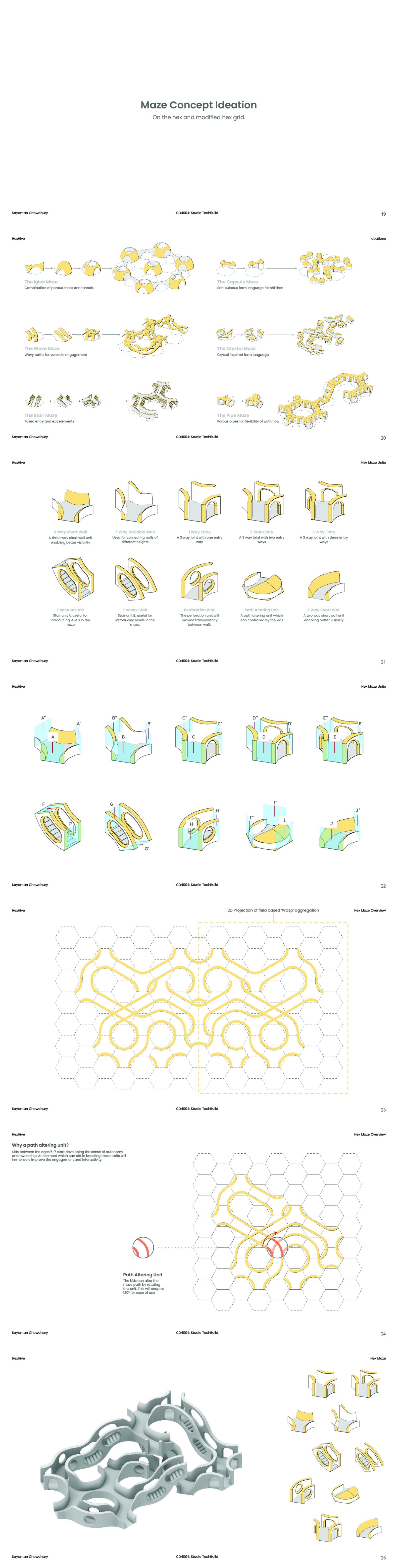

Ideations and Hex Maze Design

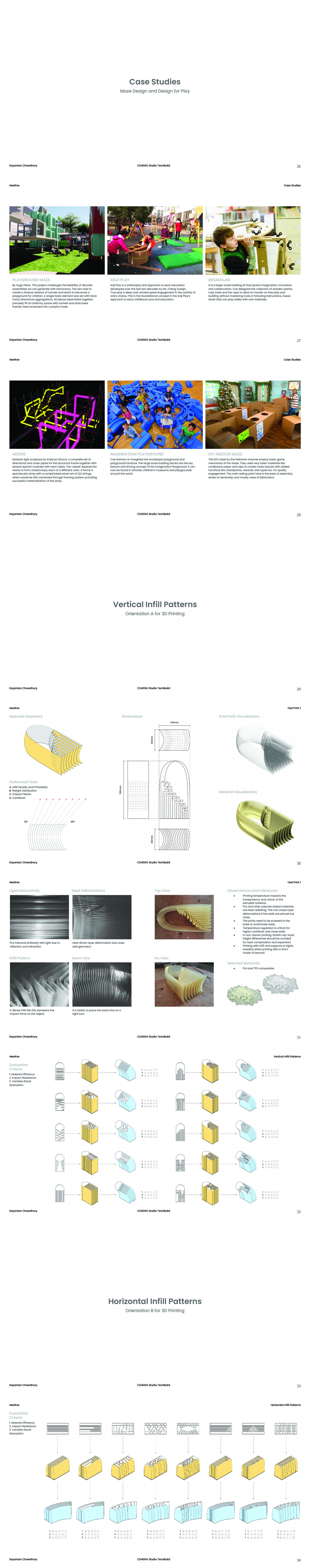

Case Studies, Test Print, Infill Pattern Design and Evaluation

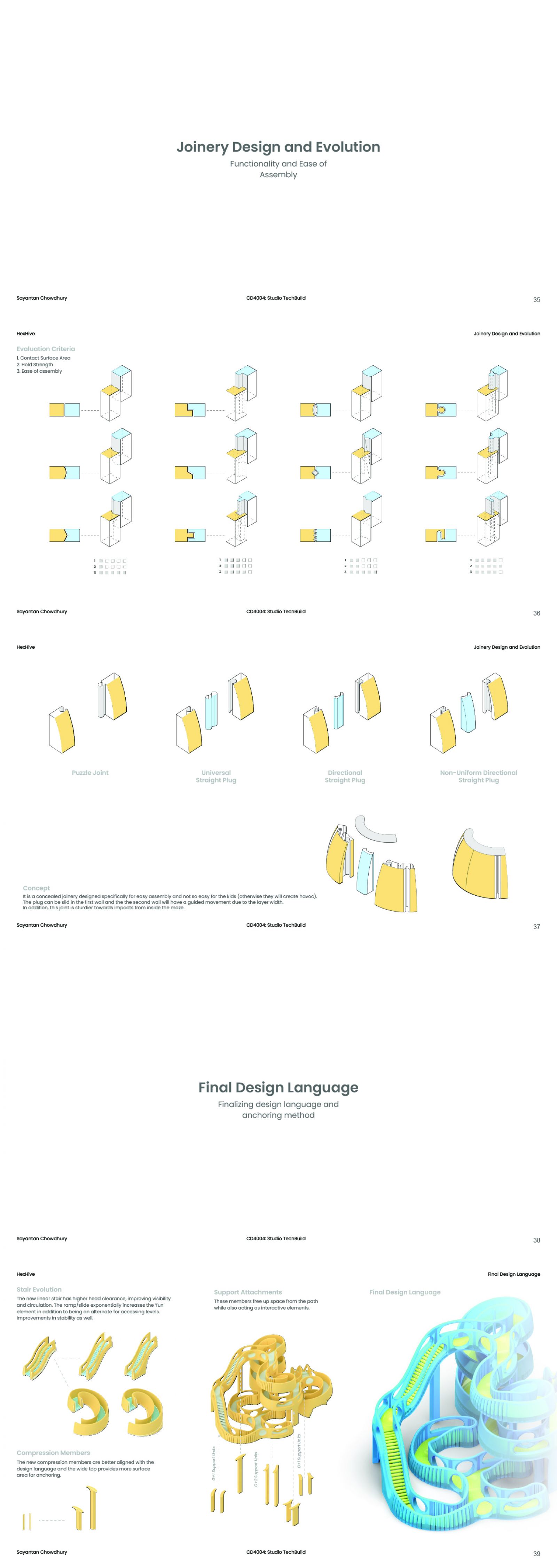

Joinery Design, Evaluation, Evolution and Final Design Language

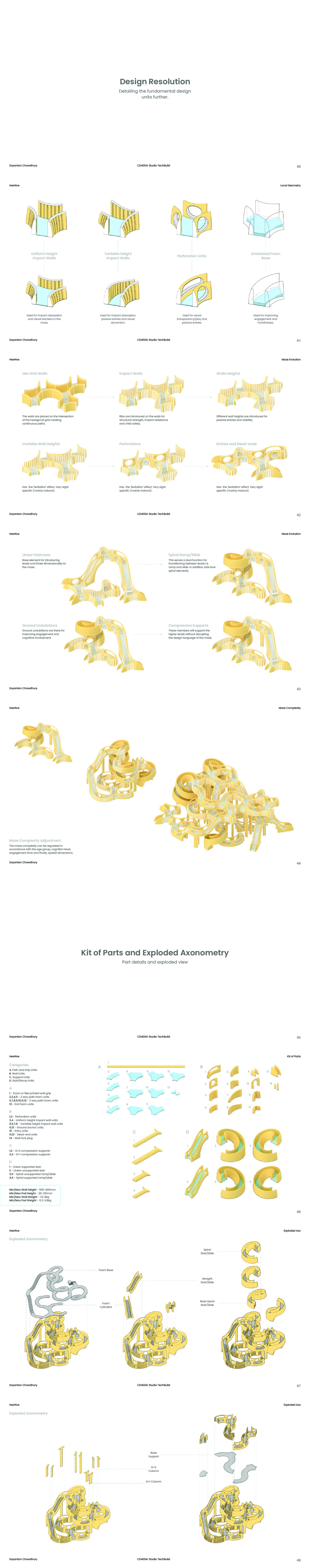

Local Geometries, Maze Evolution, Kit of Parts and Exploded Axonometry.

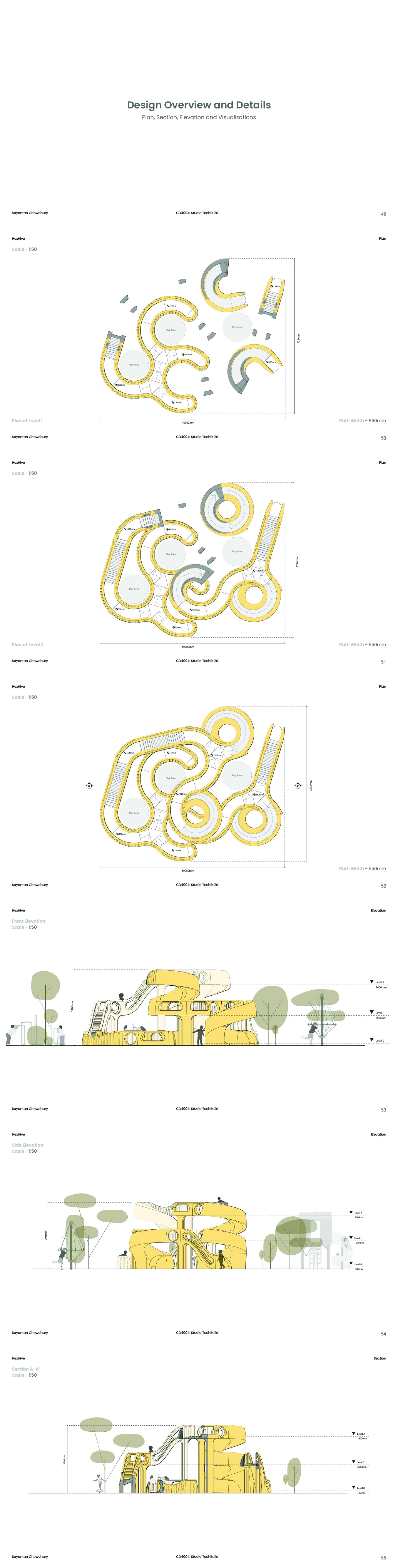

Plan, Elevation, Section

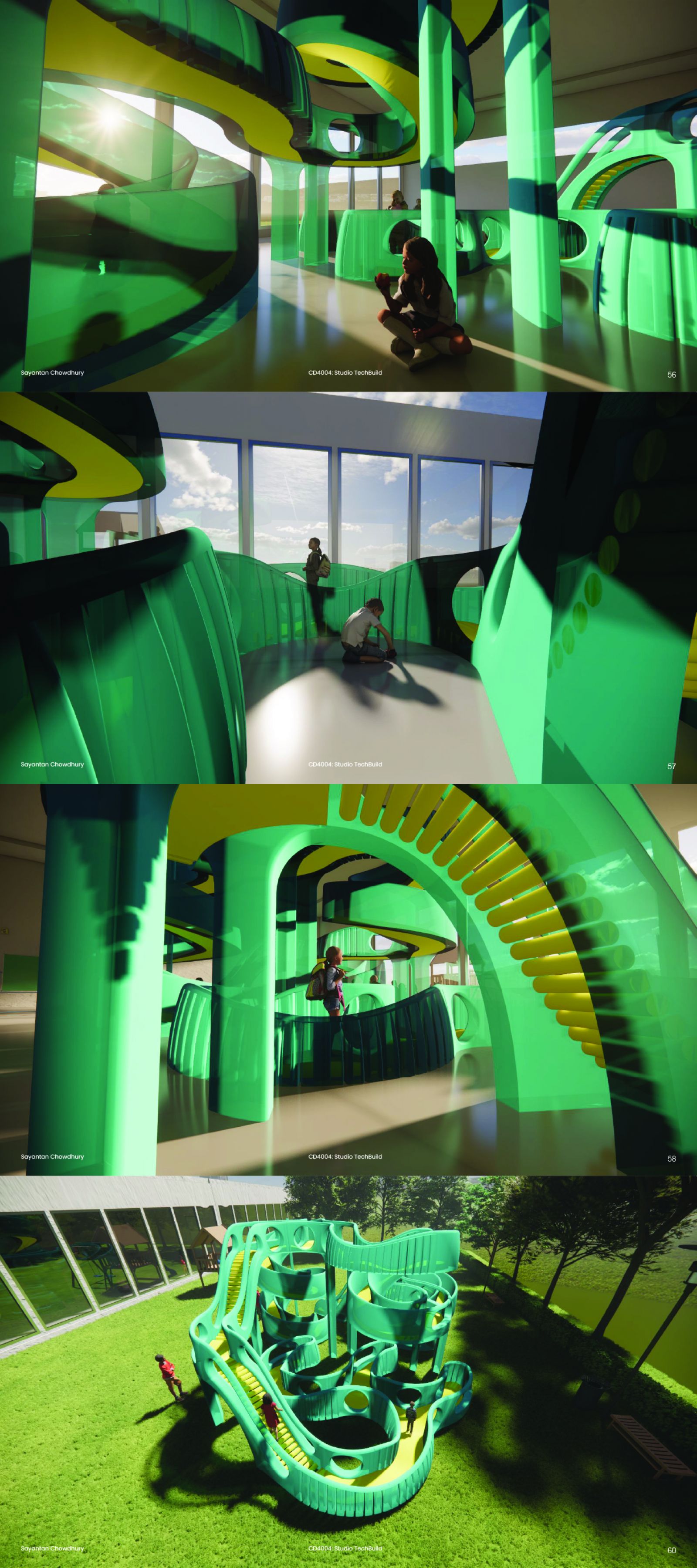

Visualizations

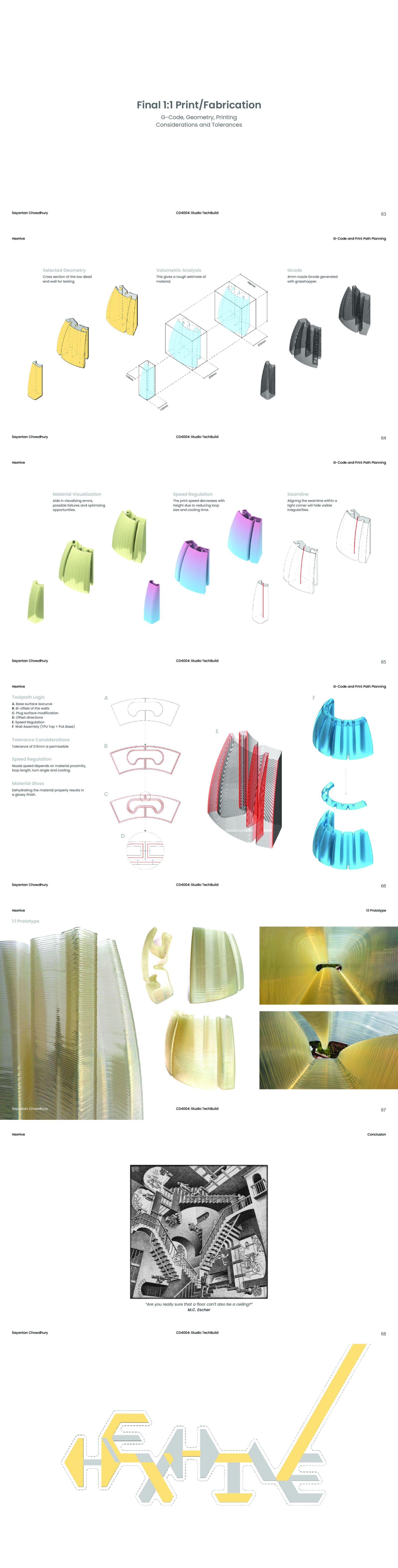

1:1 Print, Toolpath Planning and Prototype

Project Video
