  • From Insight to Intervention: Reimagining Urban Edges

Urnaba Das Roy

UD4003-1

From Insight to Intervention: Reimagining Urban Edges

This studio explored urban public spaces through three connected exercises to develop a deeper understanding of urban design. The first focused on Bahariye Street in Kad?köy, Istanbul, studying elements of a vibrant, walkable street. The second involved redesigning Shyamal Cross Road in Ahmedabad to enhance pedestrian movement, safety, and public life. The final exercise examined Bapunagar Block, addressing issues of congestion and poor public spaces, with proposals for inclusive, context-sensitive interventions. Together, these exercises moved from observation to design, exploring how streets and blocks can be transformed into more livable, connected, and culturally rooted urban environments.

View Additional Work

Report Content

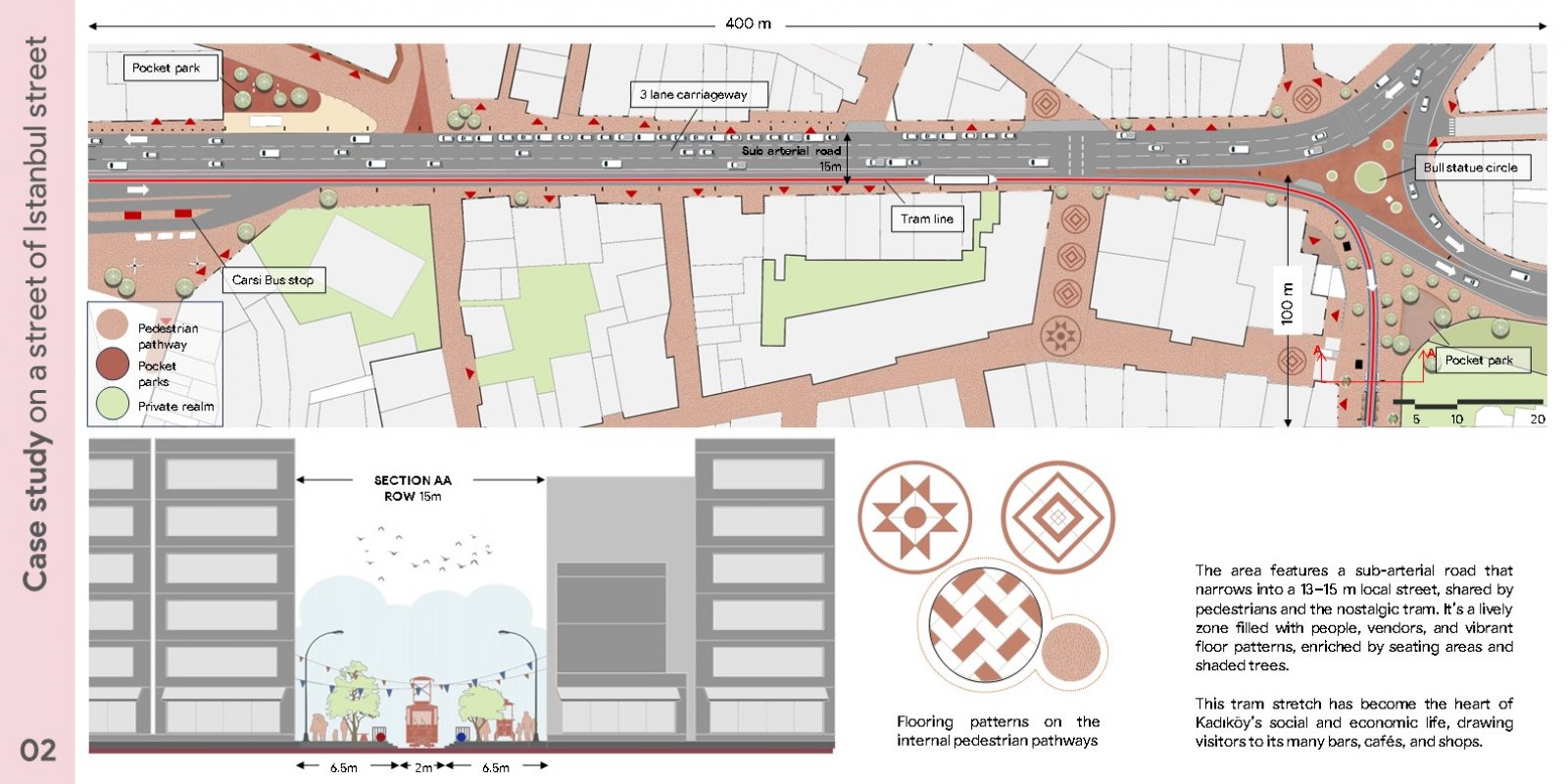

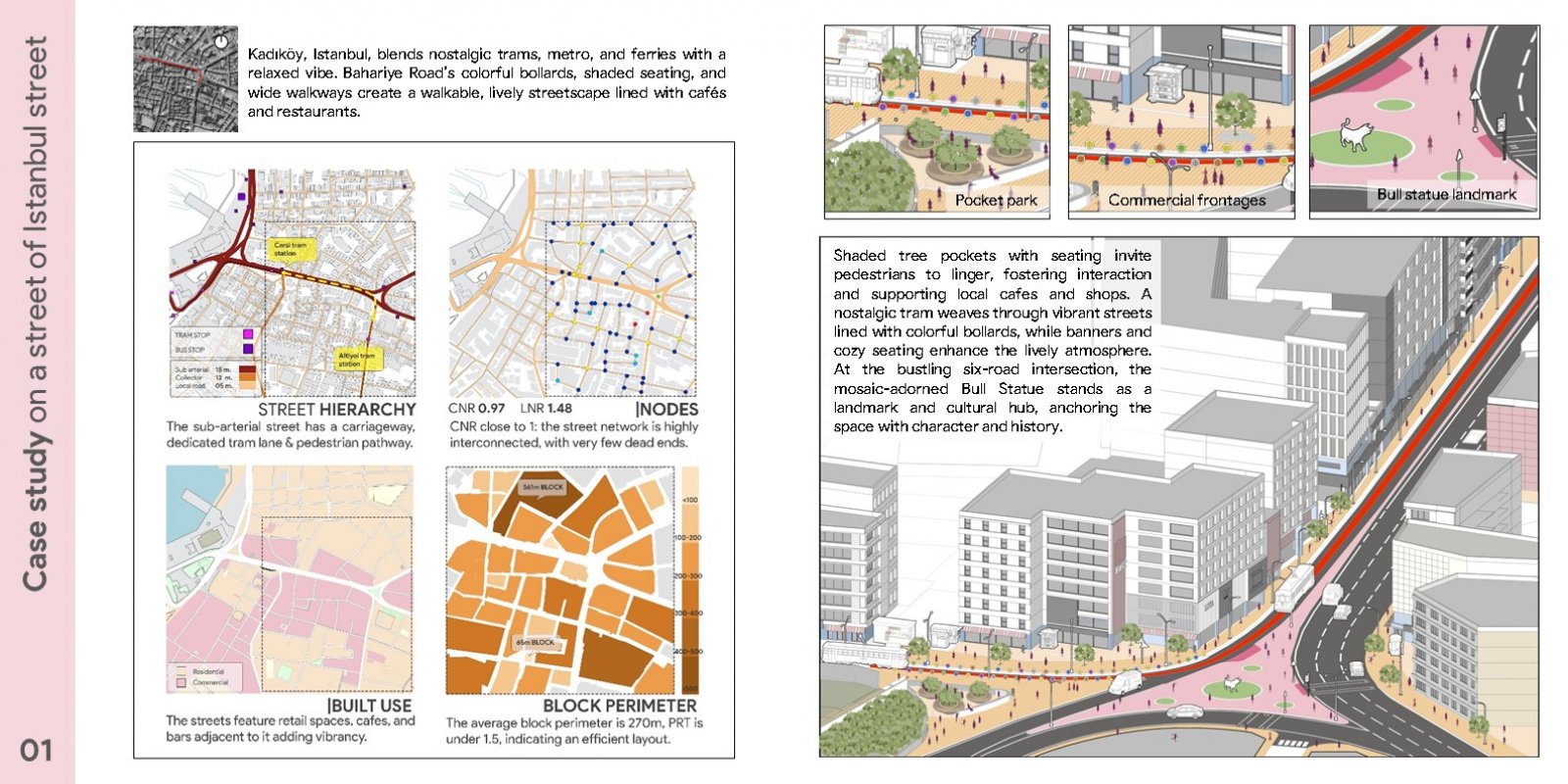

Site analysis and Introduction

Street layout and sections

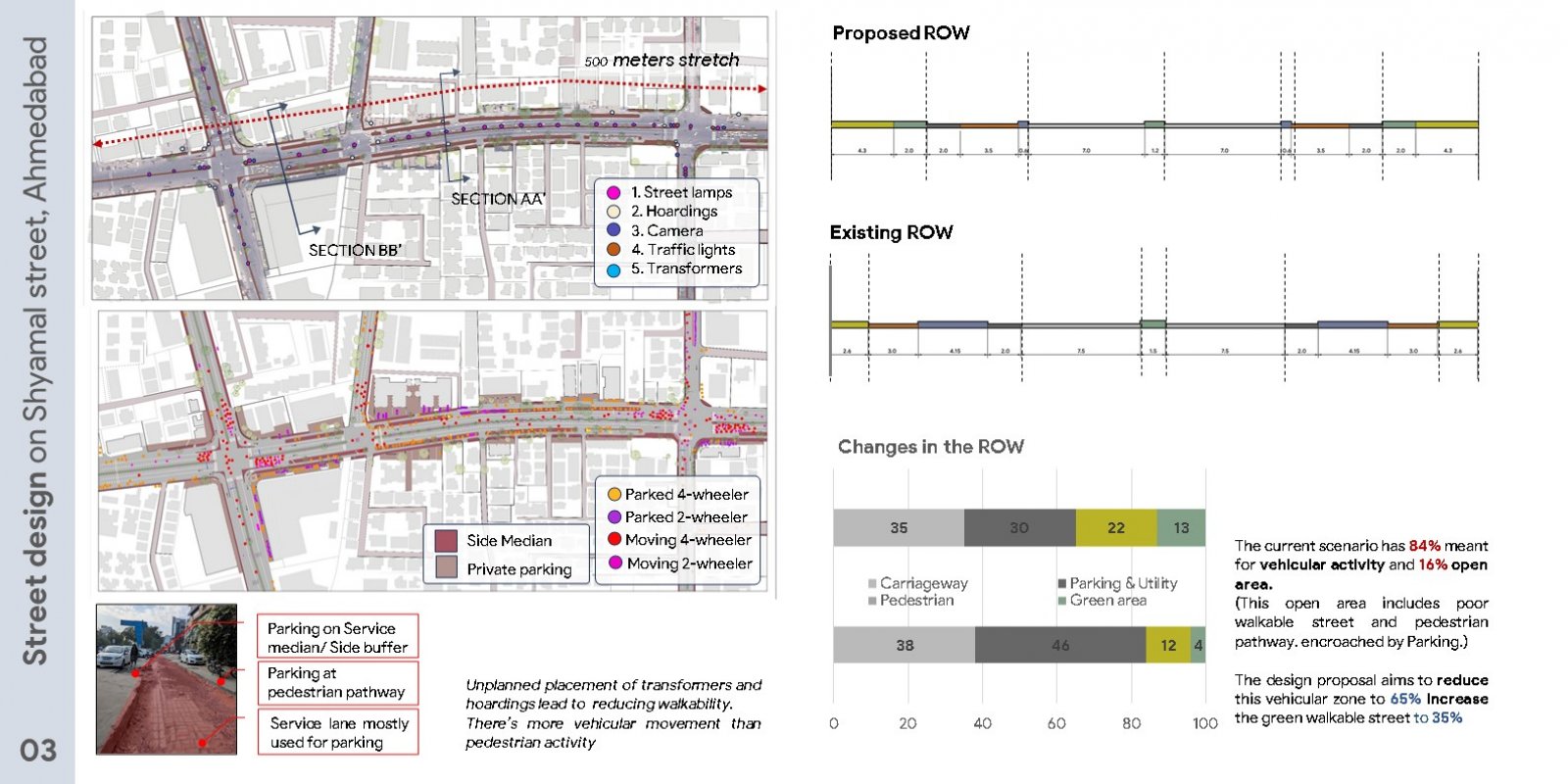

Existing Street layout and ROW optimisation

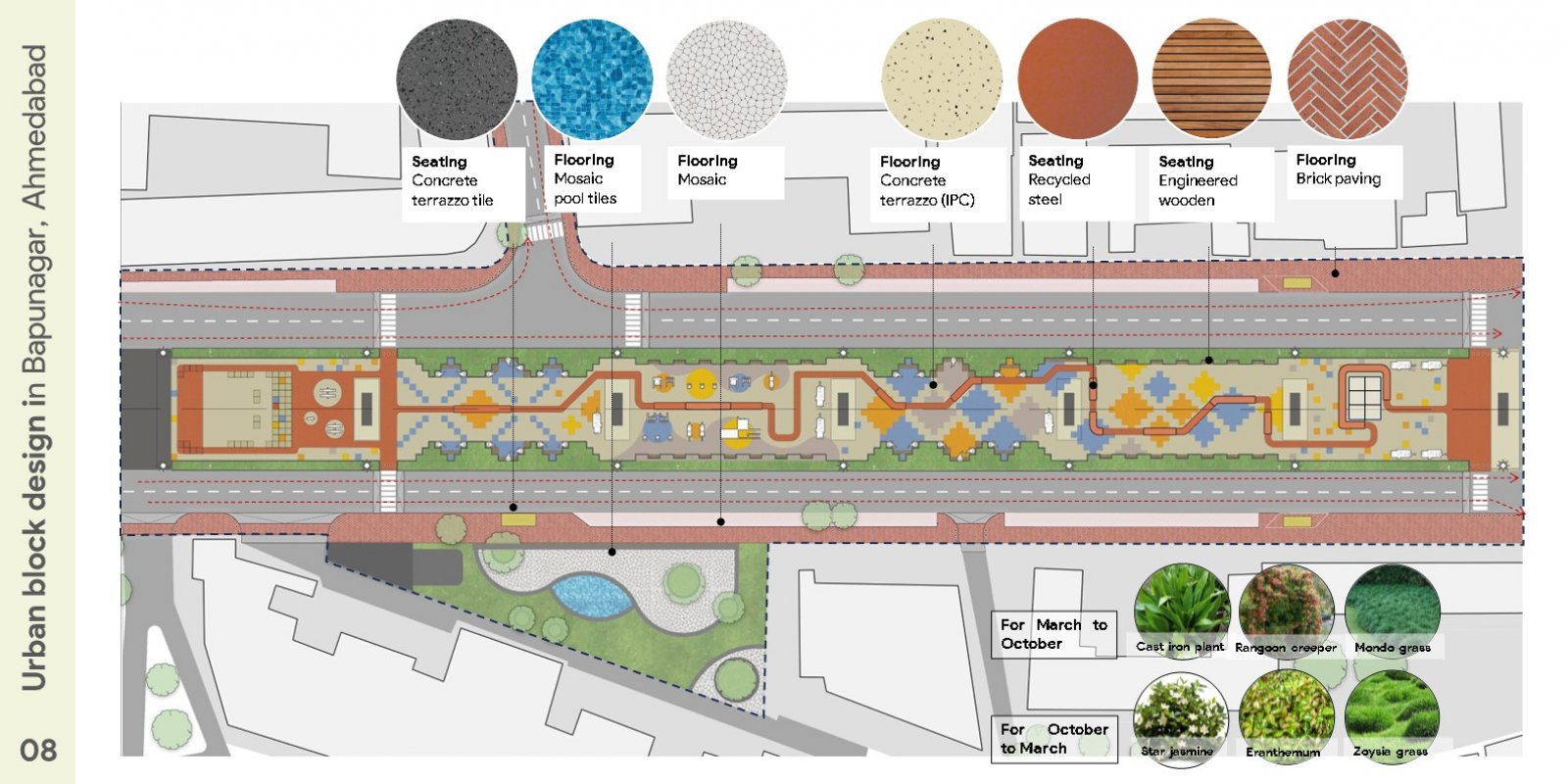

Proposed Street layout and activities

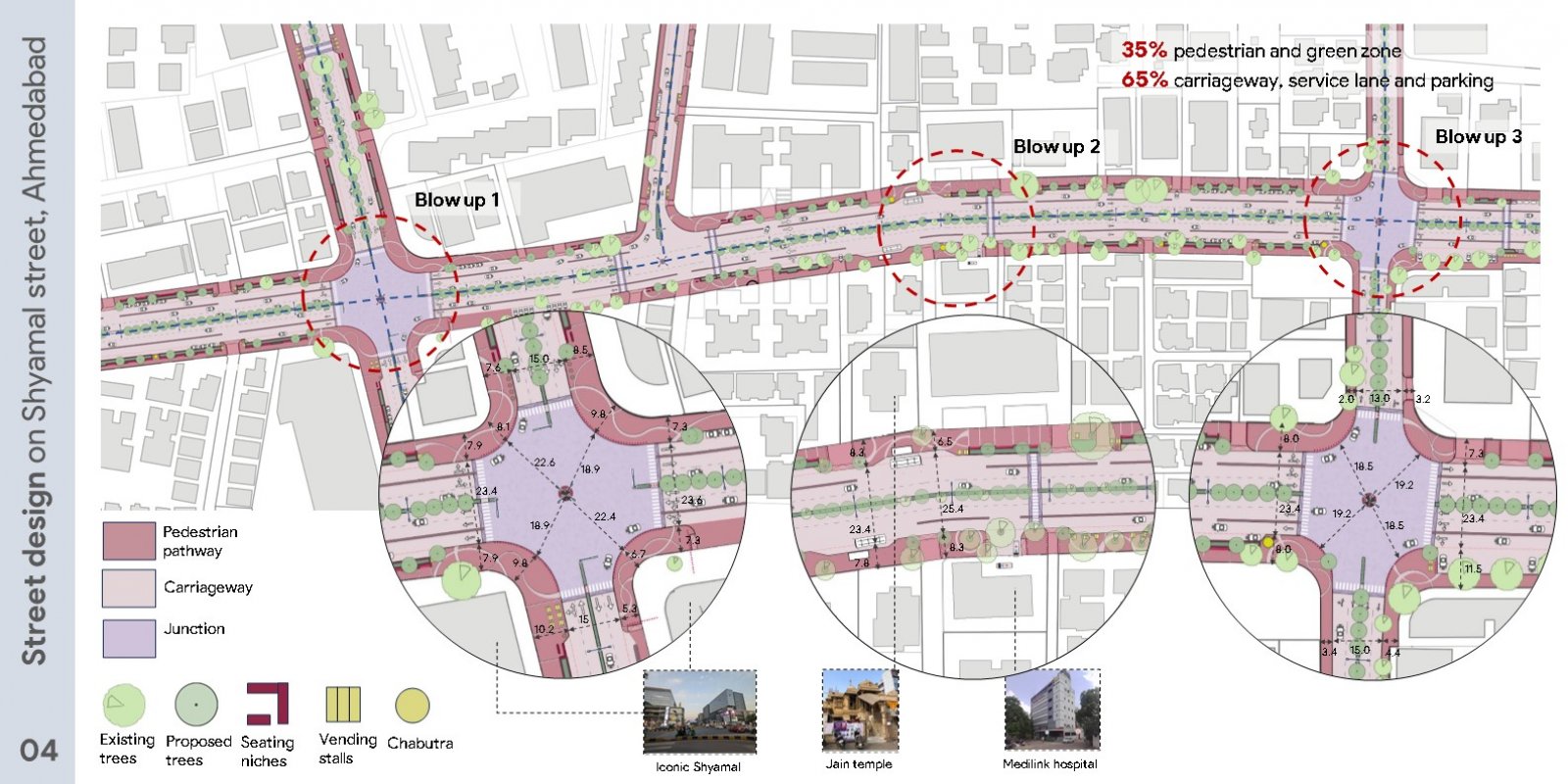

Interventions at specific areas

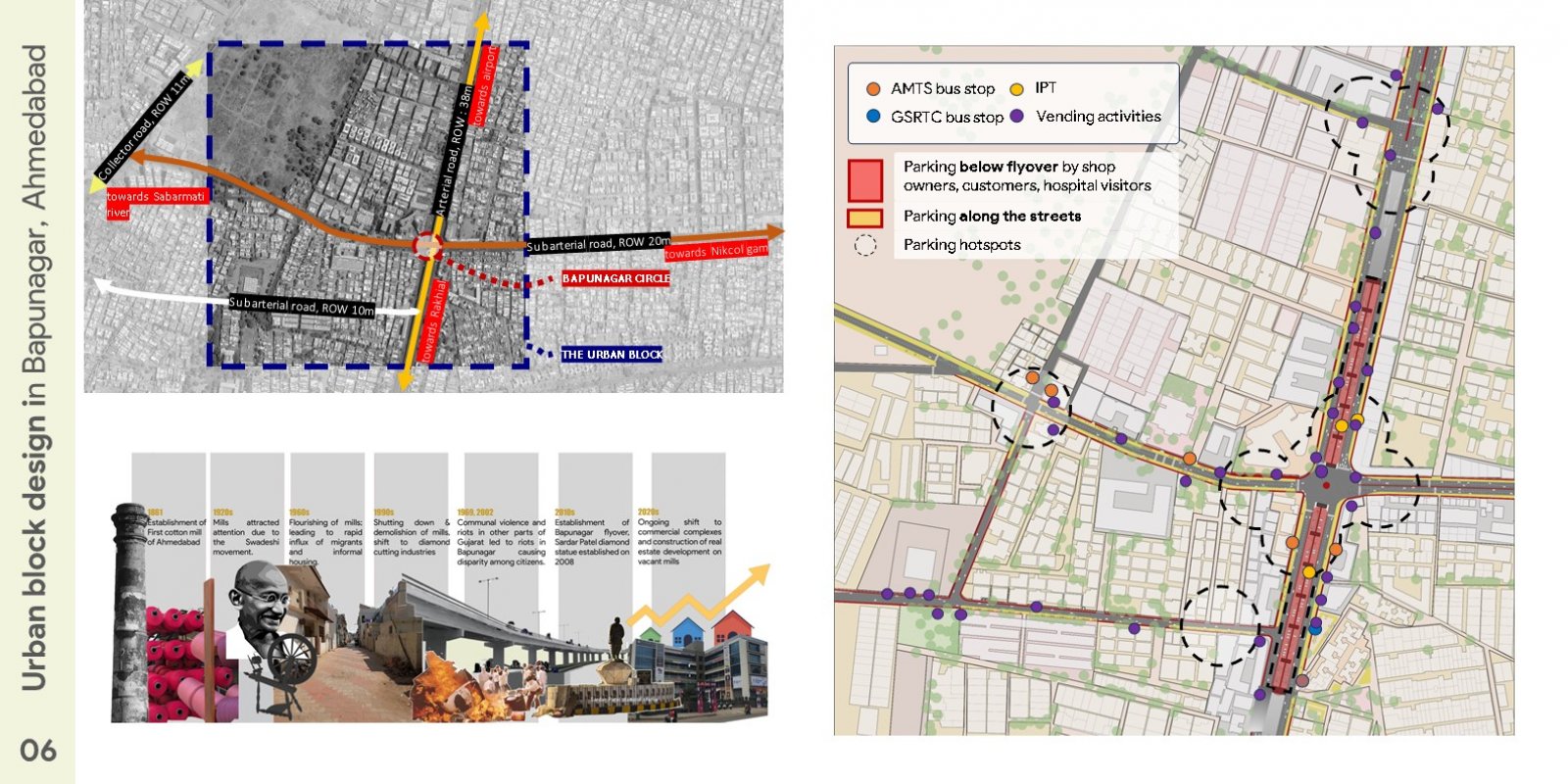

Street connectivity, Evolution and Block Analysis

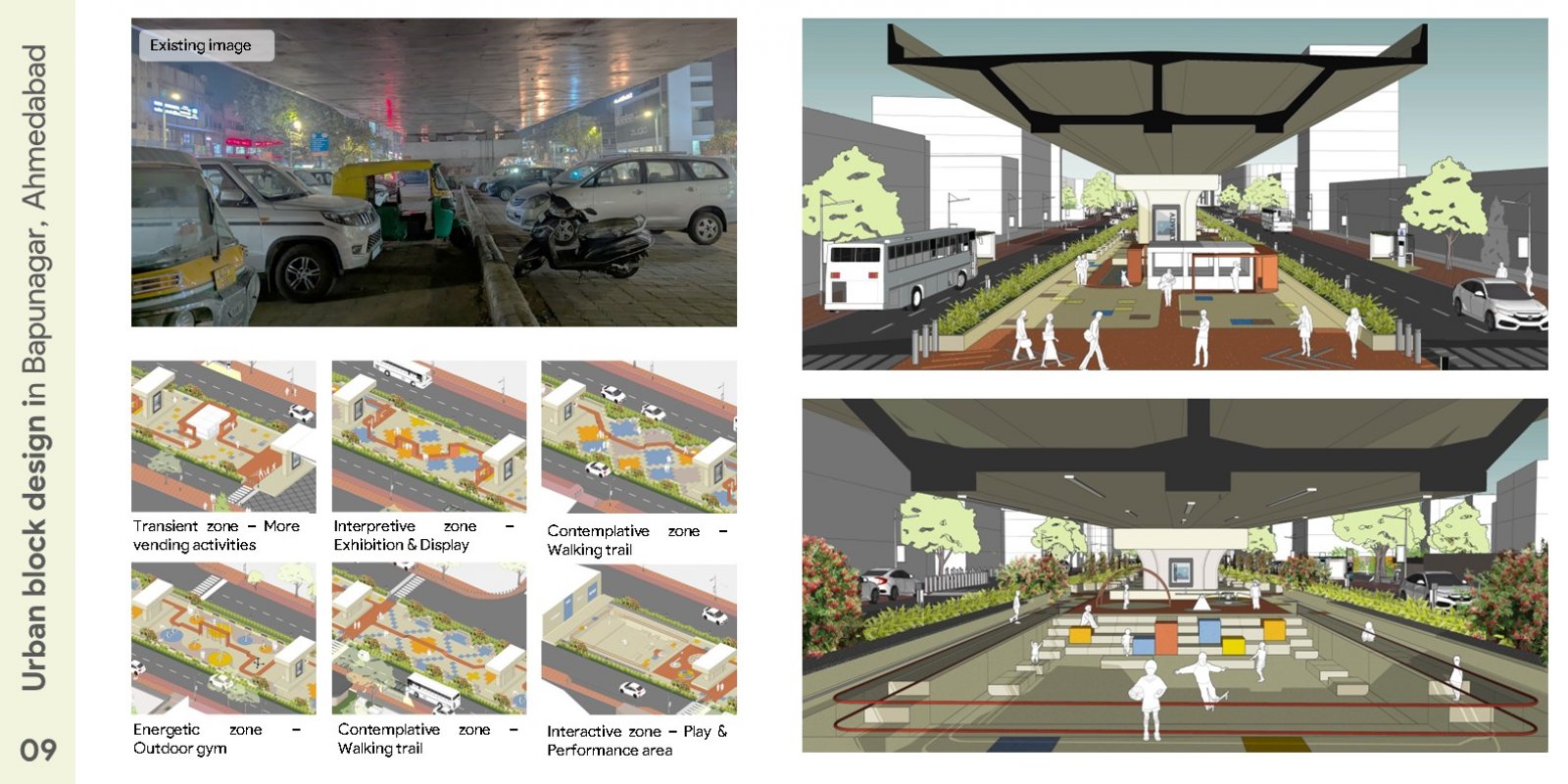

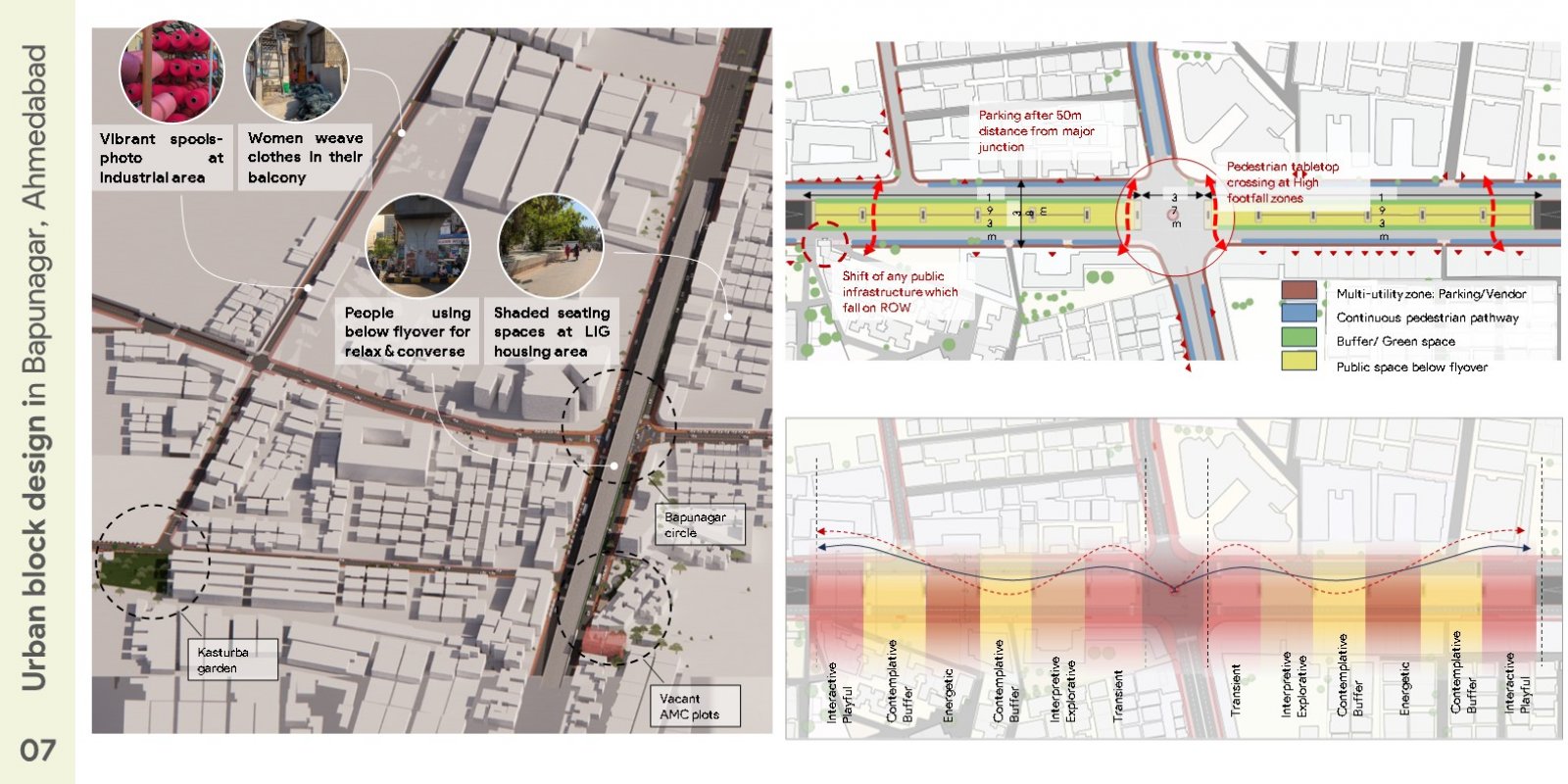

Concept and Zoning for Below flyover space

Proposed layout for below flyover space

Before and after images

Other intervention areas
