Dhairya Jagrut Shah

CT3017

SWARNABHOOMI

The project involves constructing 343 twin 1 BHK units for the EWS community, led by DP Contractors. It features framed RCC structures with durable, cost-effective materials, a 1.5m foundation depth, and a 9-month core and shell timeline. Simultaneous building of five twin units optimizes resources. Techniques like modular formwork and ready-mix concrete accelerate progress. The project addresses challenges in logistics, resources, and climate through strategic planning. Emphasizing safety, quality, and budget control, it showcases efficient, sustainable methods ideal for large-scale affordable housing replication.

View Additional Work

Report Content

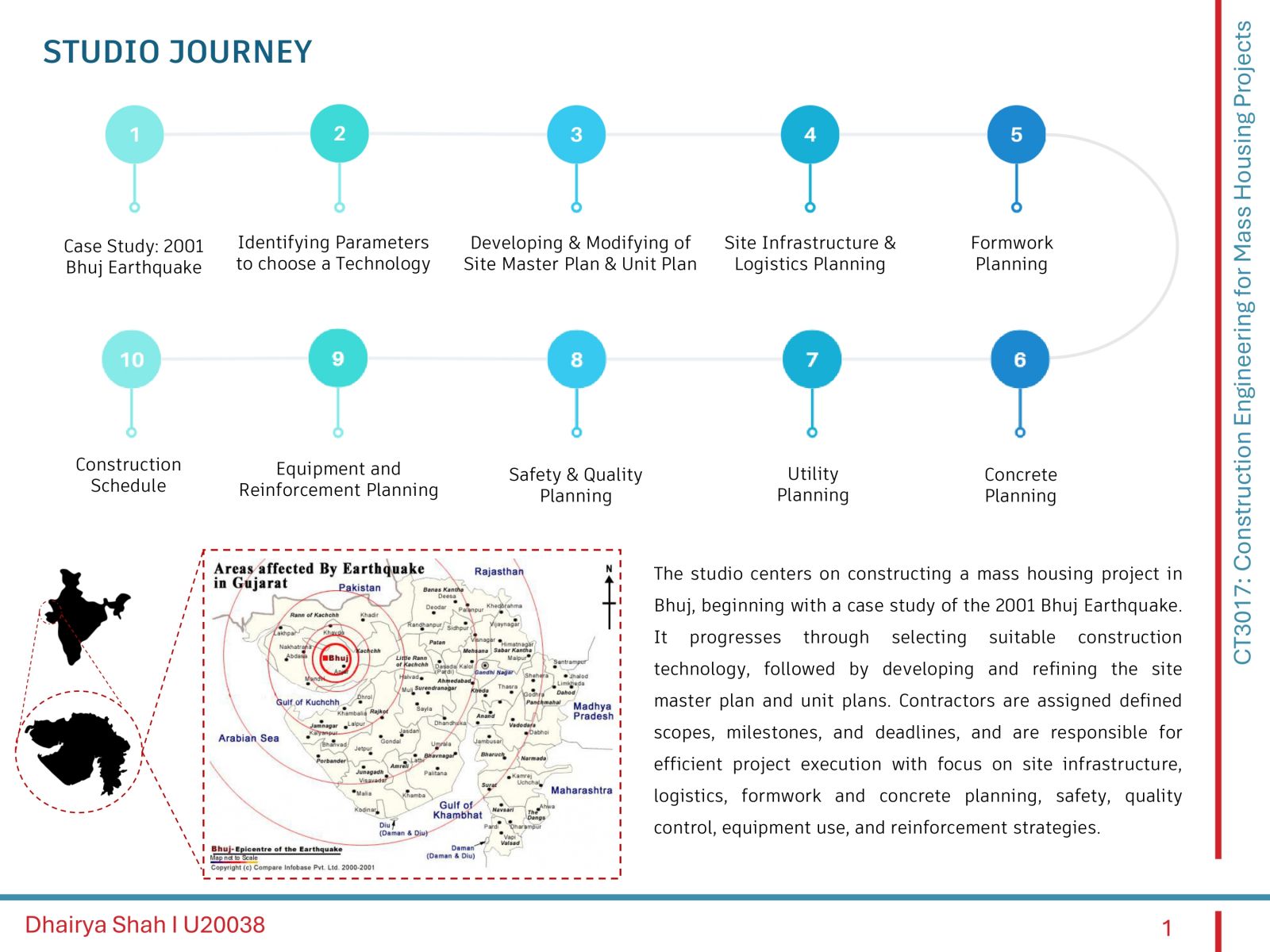

The image reflects the studio journey throughout the semester

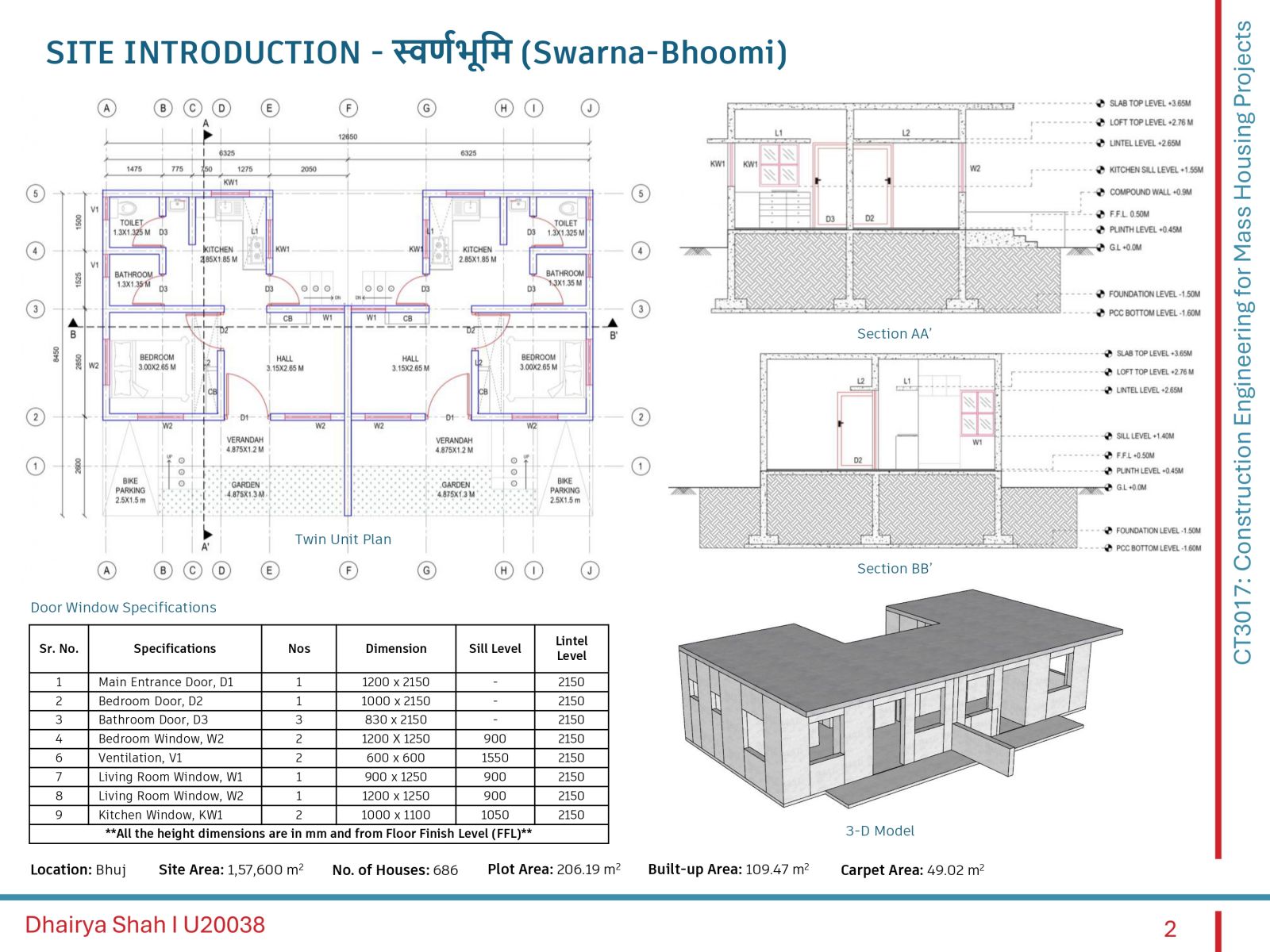

The image shows twin unit plan, section, door window specifications and 3-D view of Swarnabhoomi

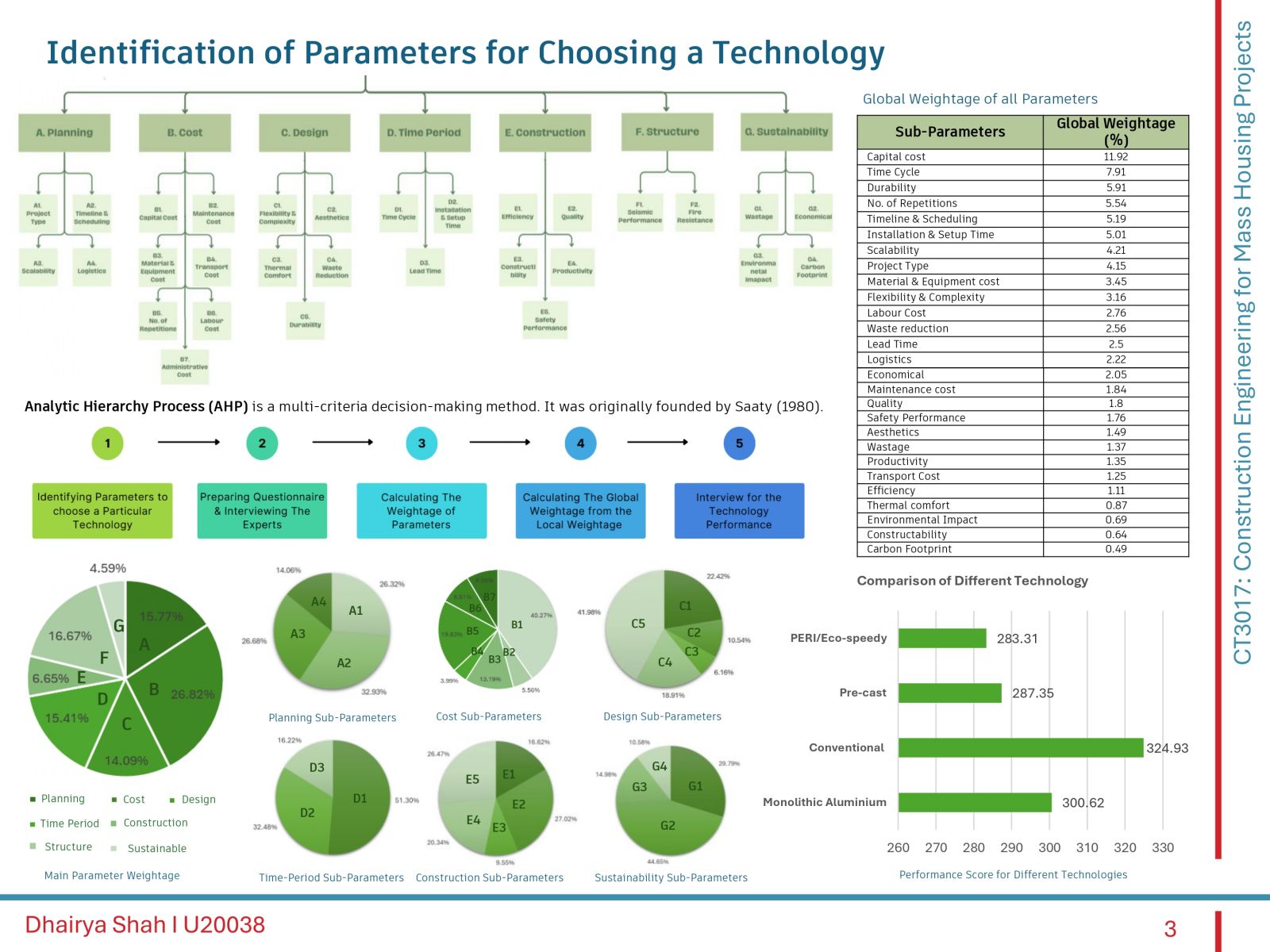

Identification of parameters to choose technology for Swarnabhoom

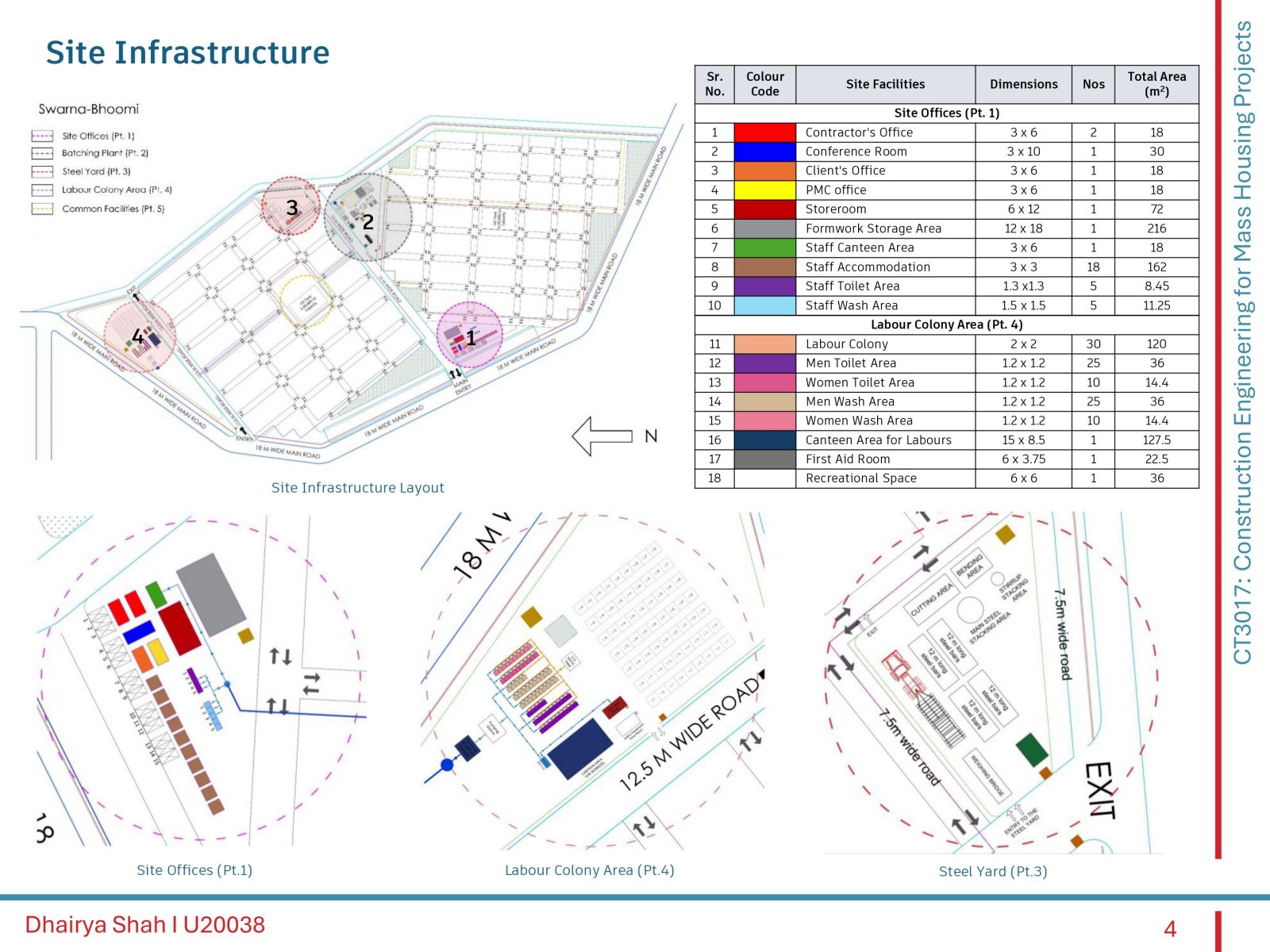

Site infrastructure & Logistics for construction of Swarnabhoomi

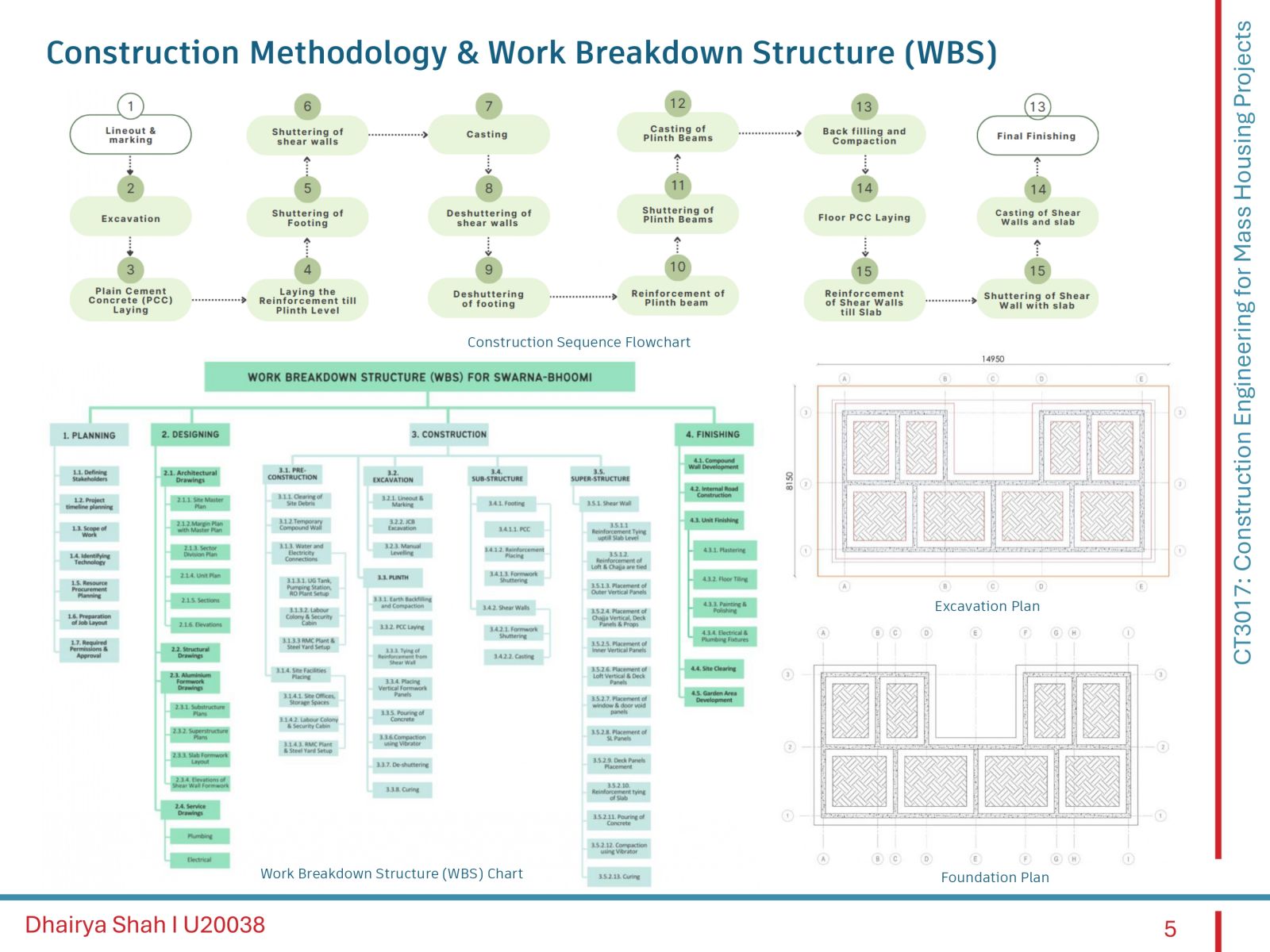

Sequence of Construction for one twin unit and Work Breakdown Structure for whole project

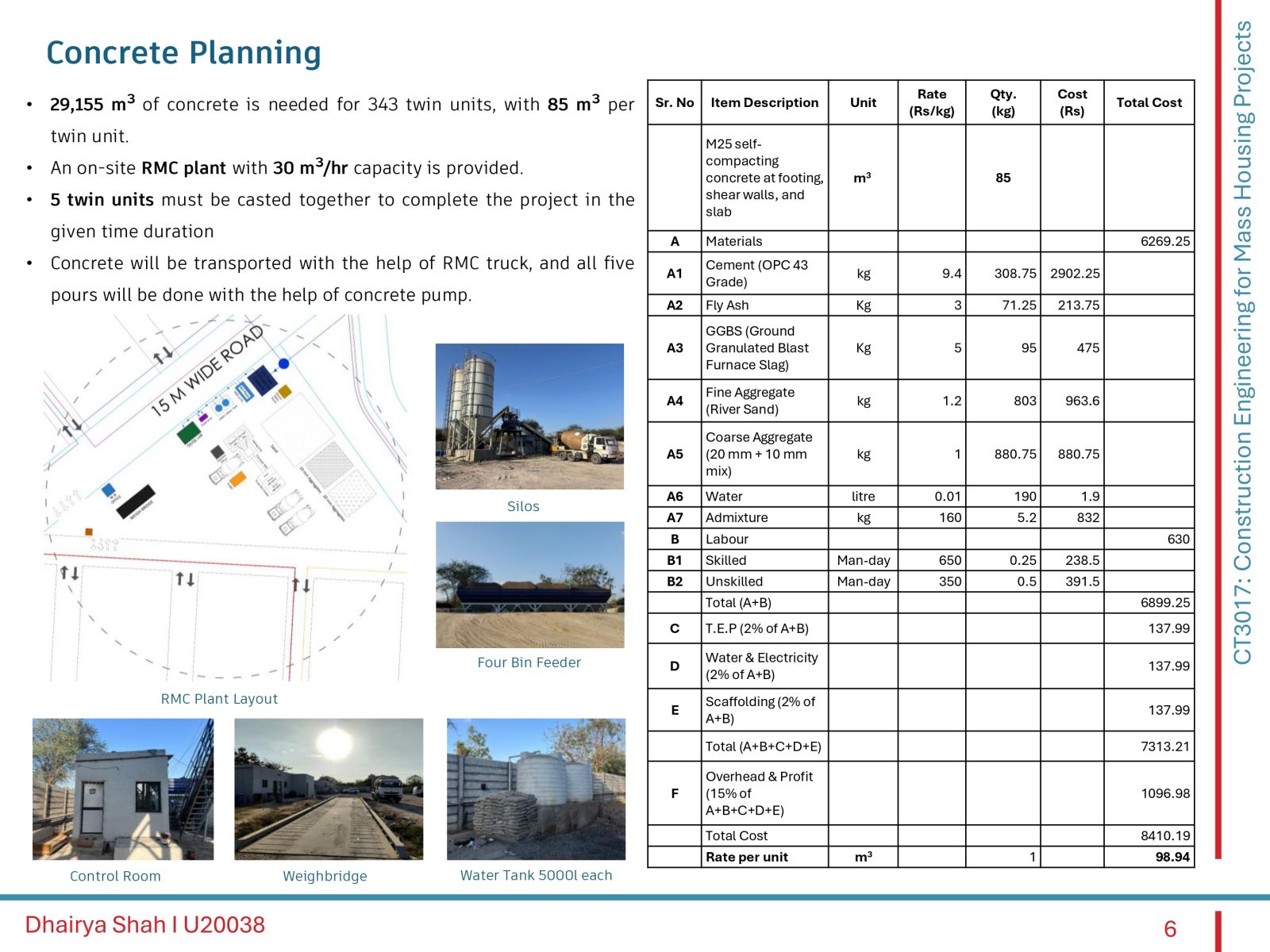

Concrete planning and rate analysis of concrete

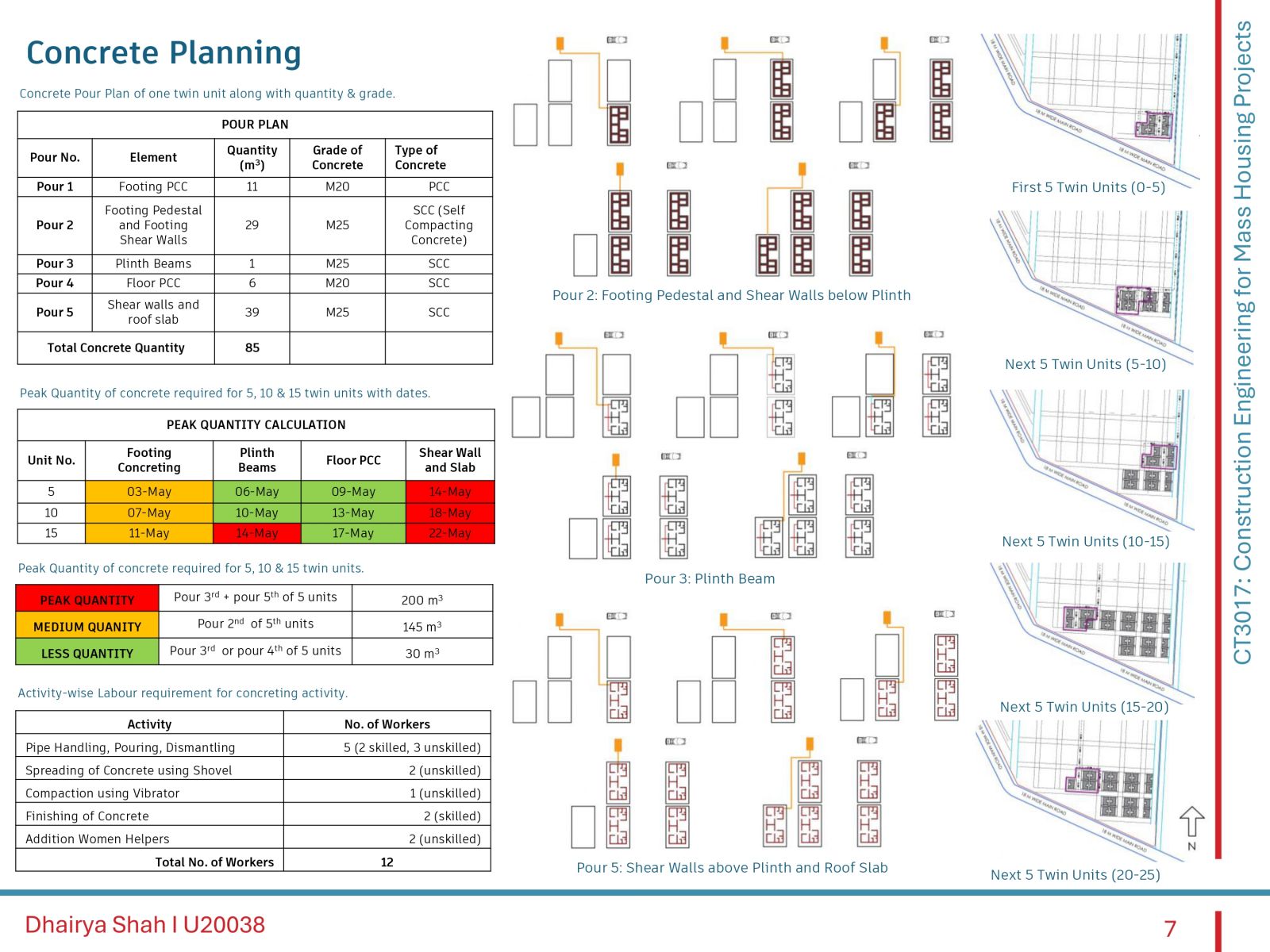

Concrete Pour plan and sequence of construction of five twin units

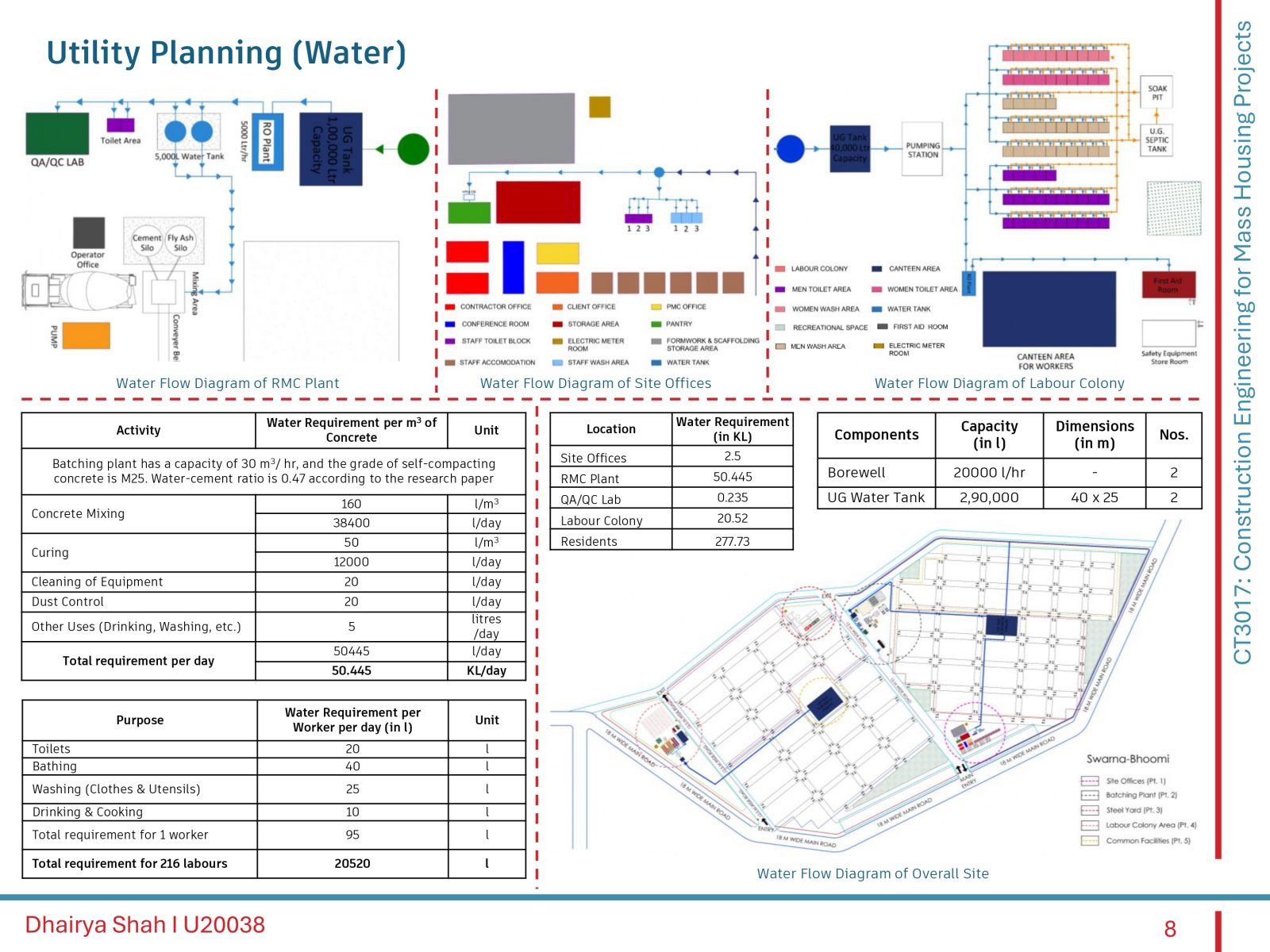

Utility planning (water) for for construction of Swarnabhoomi

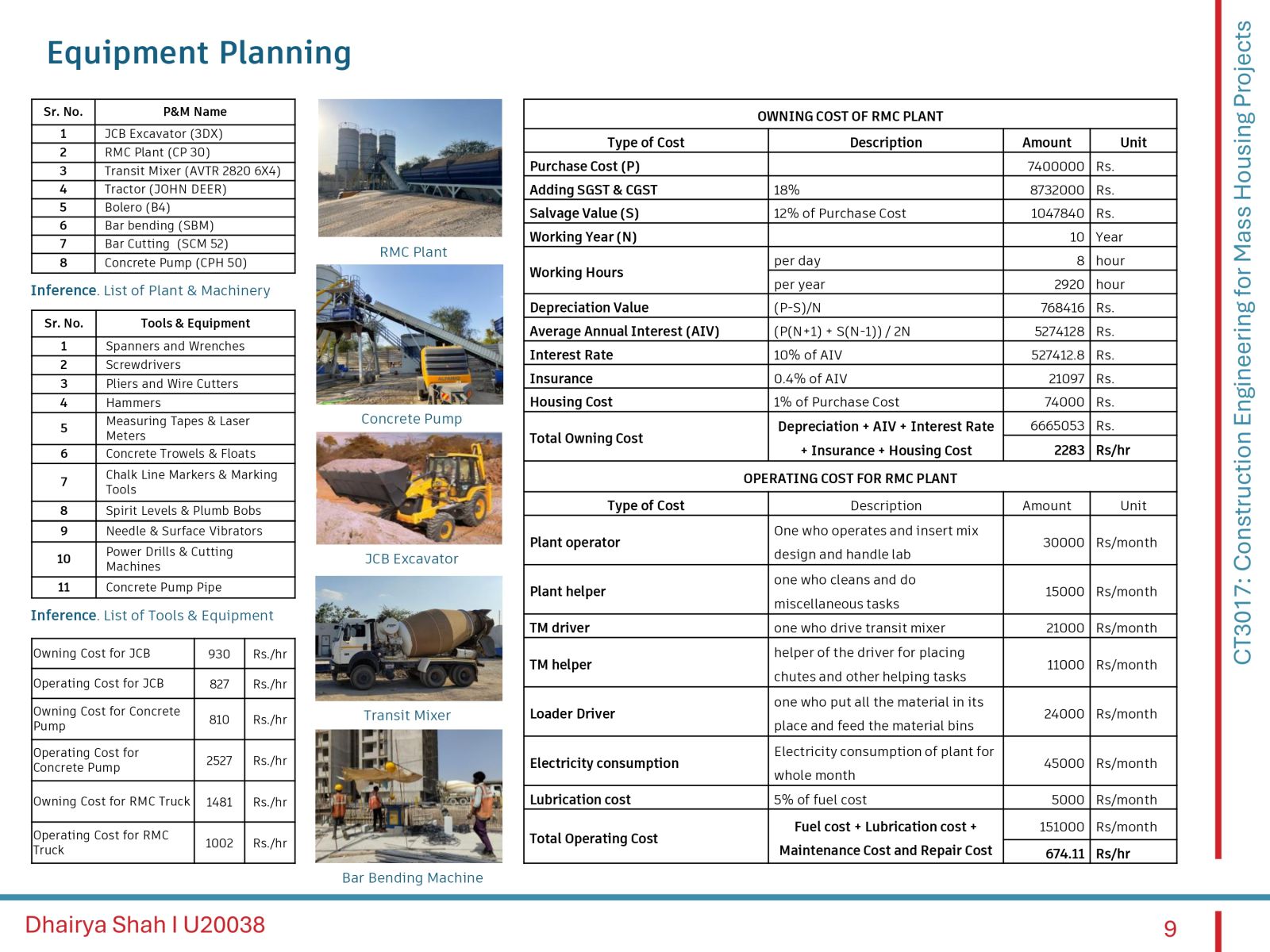

Equipment planning for the project

Conclusion
