Faldu Jaykumar Chhaganbhai

SD4010

Repair and Strengthening of G+4 Storey RCC Building

The project involves the gravity analysis and design of a G+4 story residential building. It focuses on strengthening the building by implementing the latest code and a suitable structural system to withstand both gravity and lateral loads, while also providing an economical strengthening solution.


Report Content

Architectural Layout, Structural System

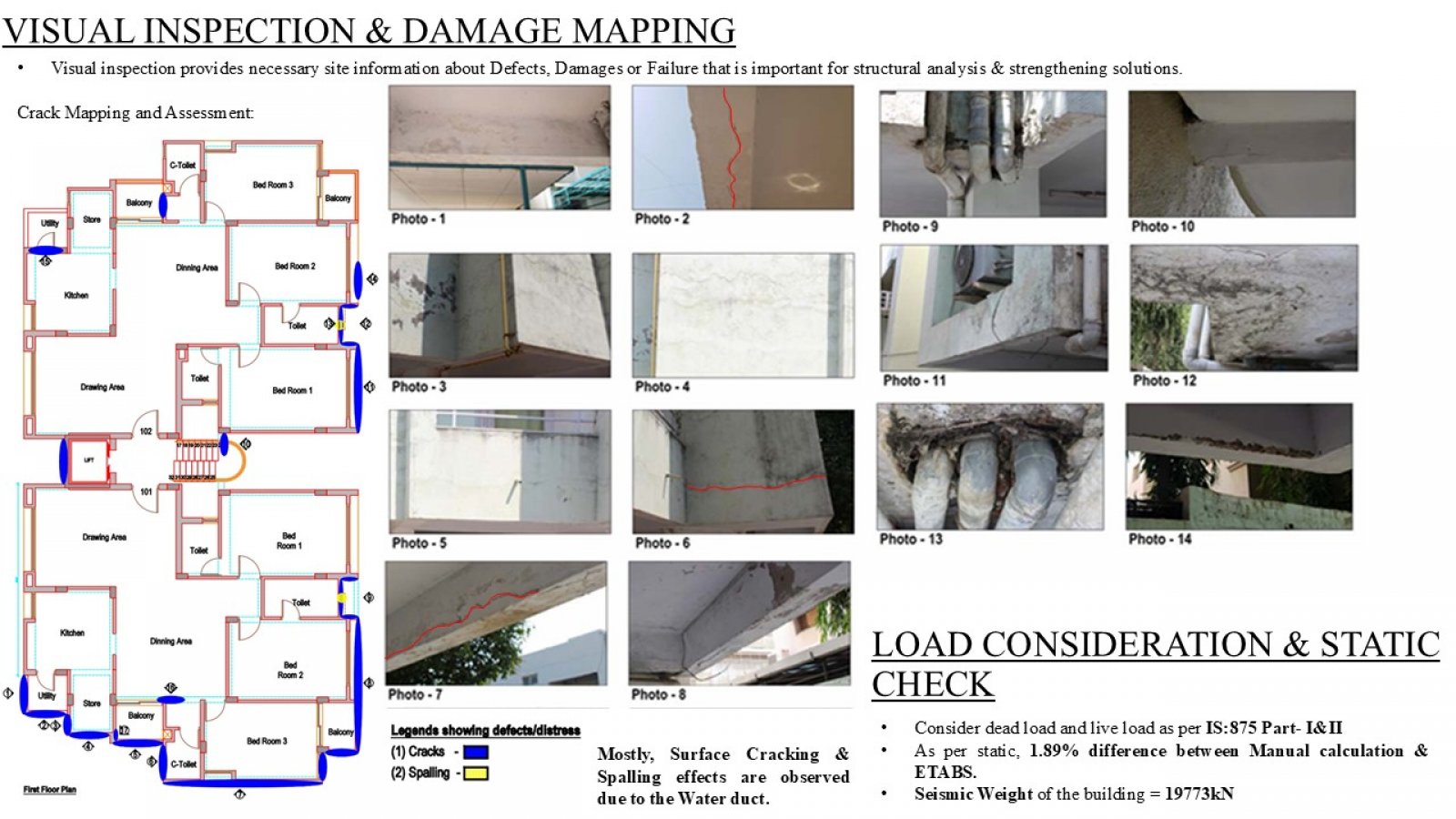

Visual Inspection & Damage Mapping, Load Consideration & Static Check

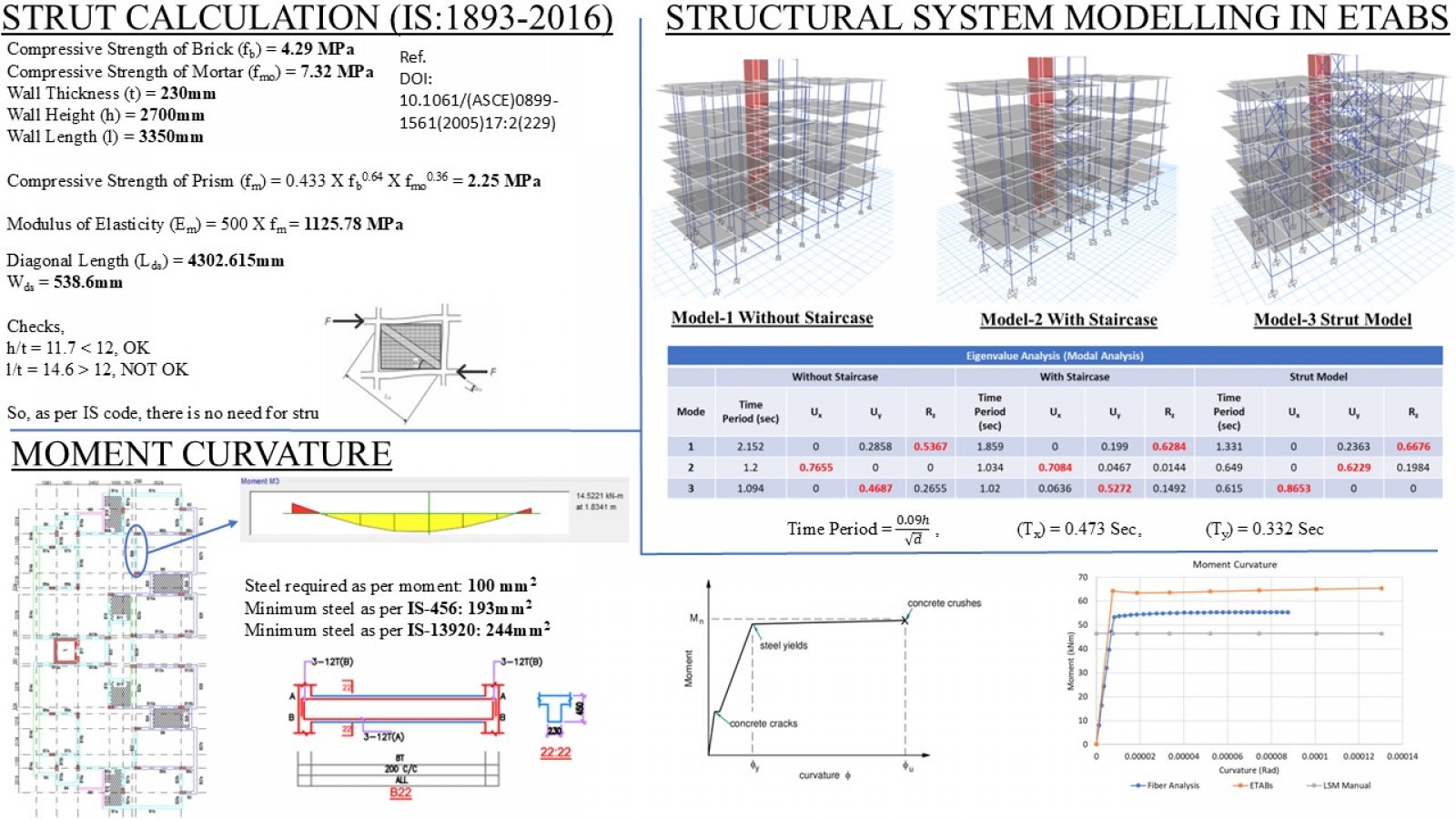

Strut Calculation, Moment Curvature, Different Structural System

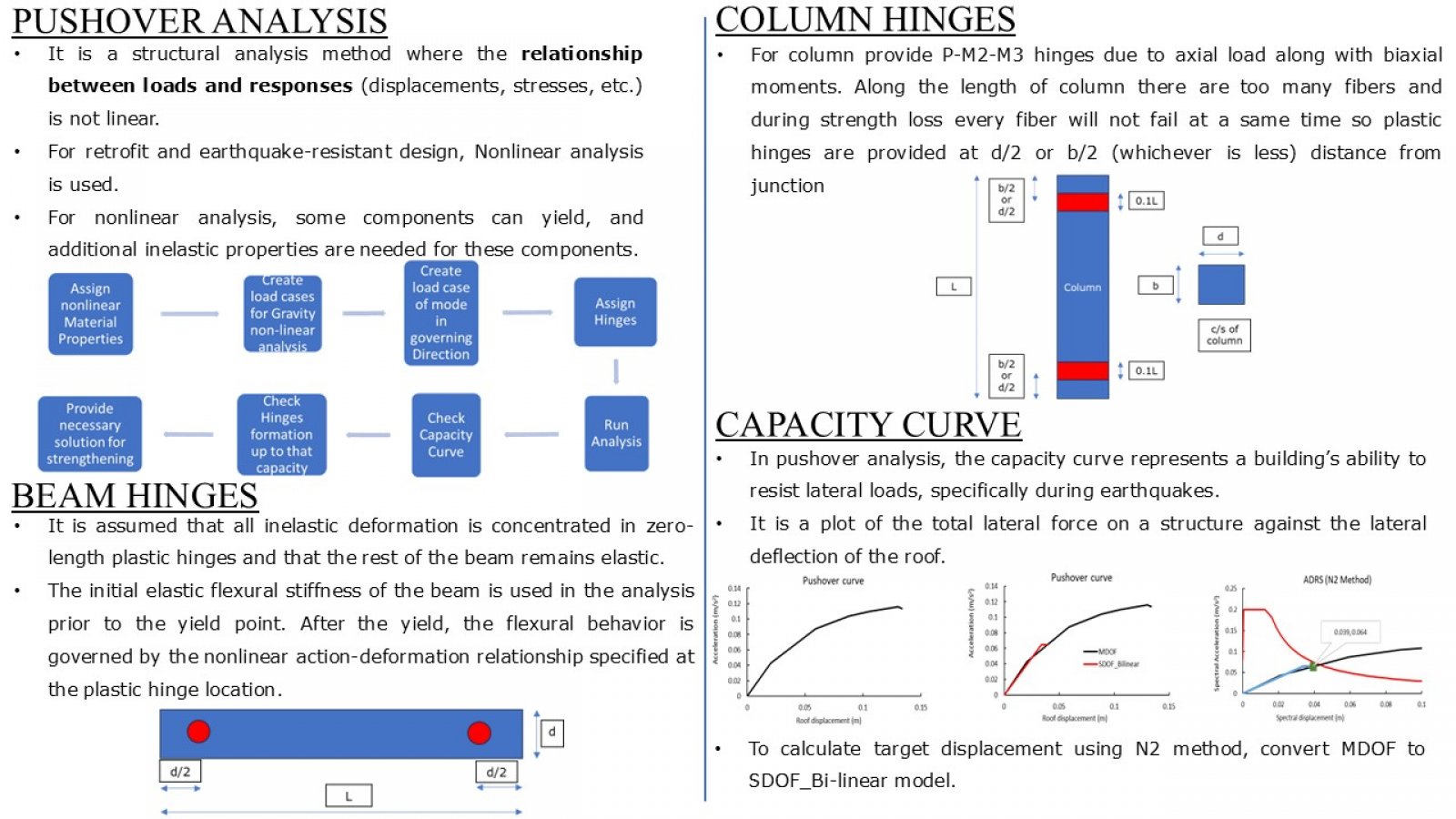

Pushover Analysis, Beam & Column Hinges

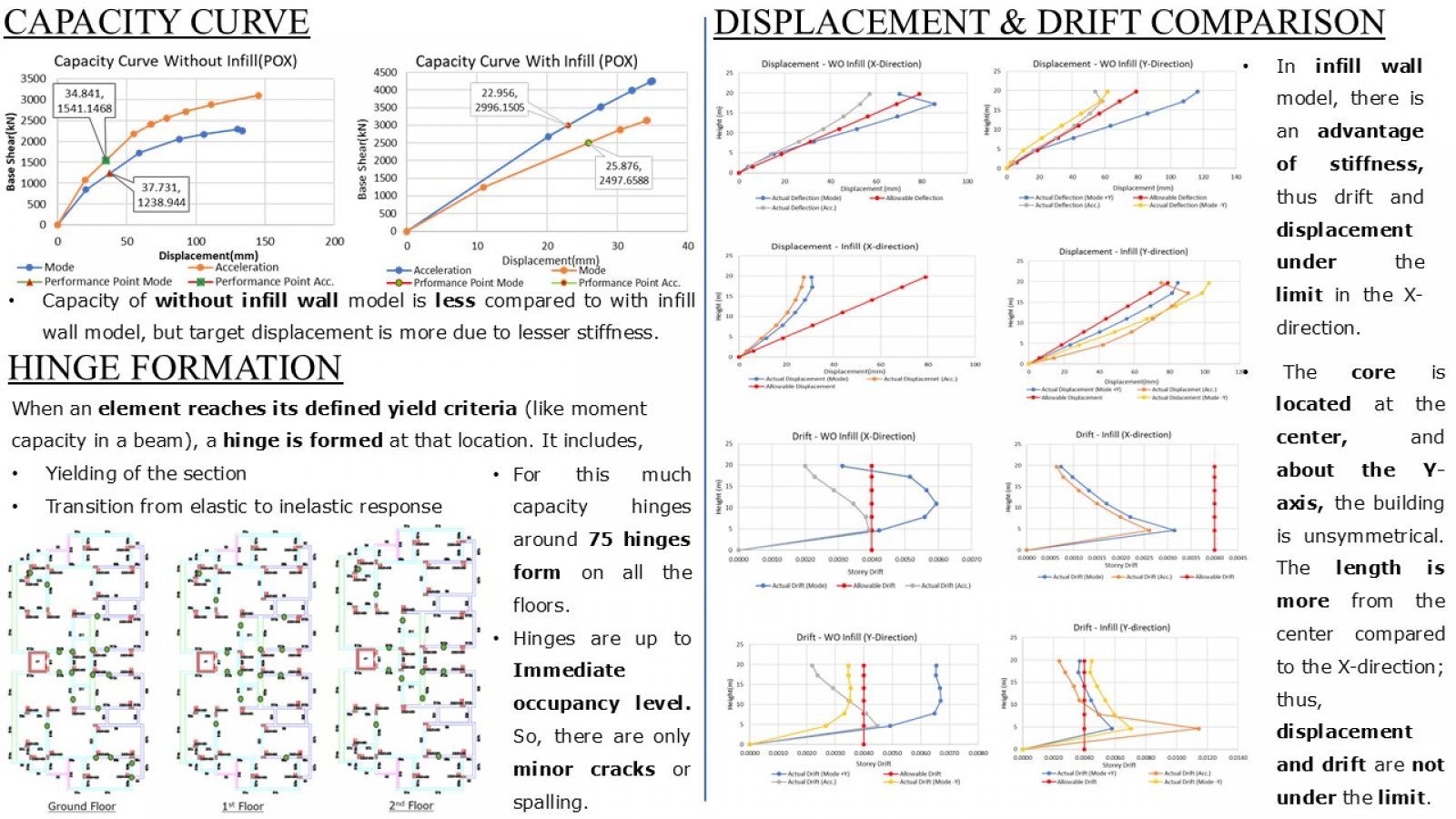

Capacity Curve, Hinge Formation, Displacement & Drift Comparison

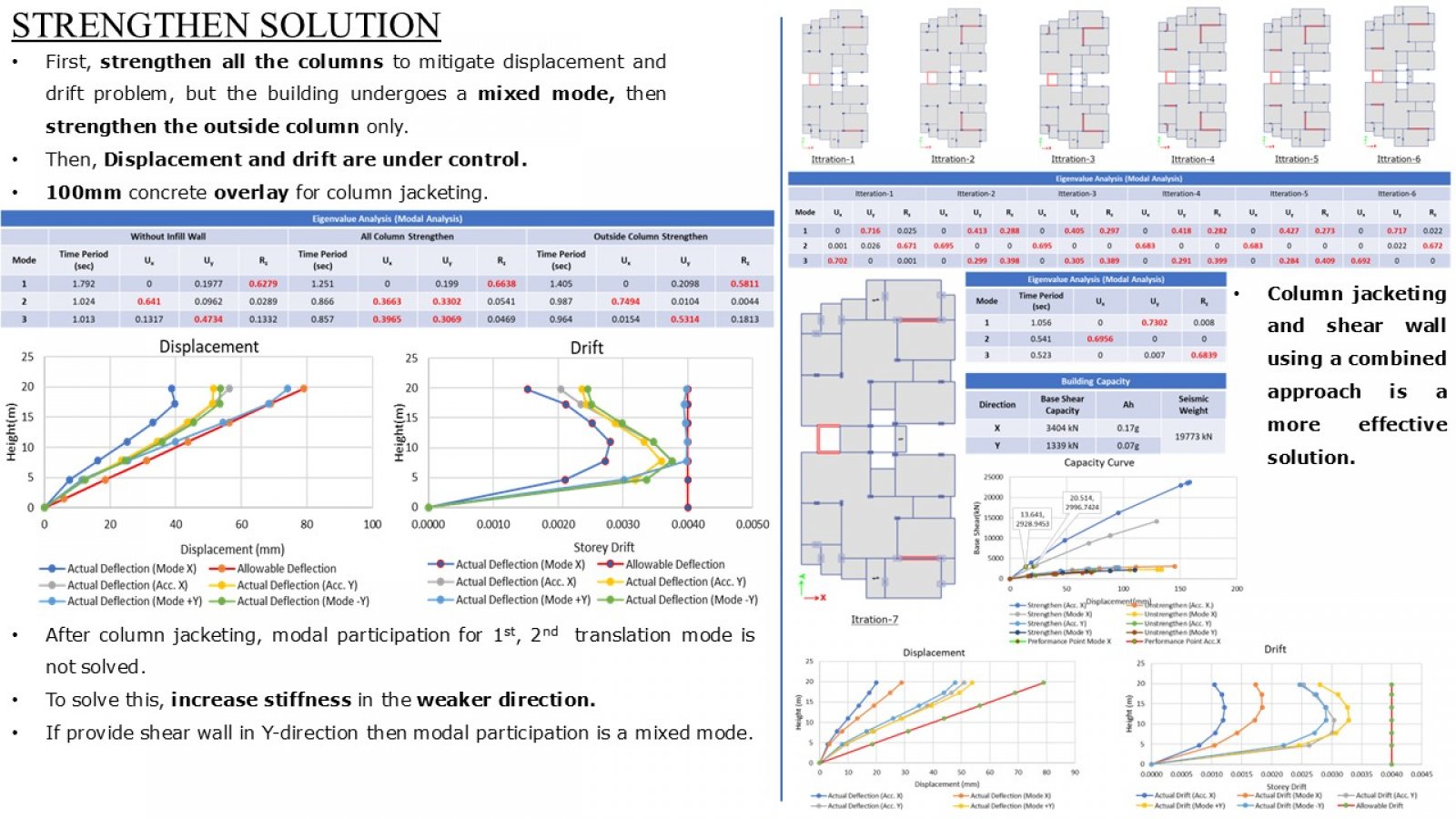

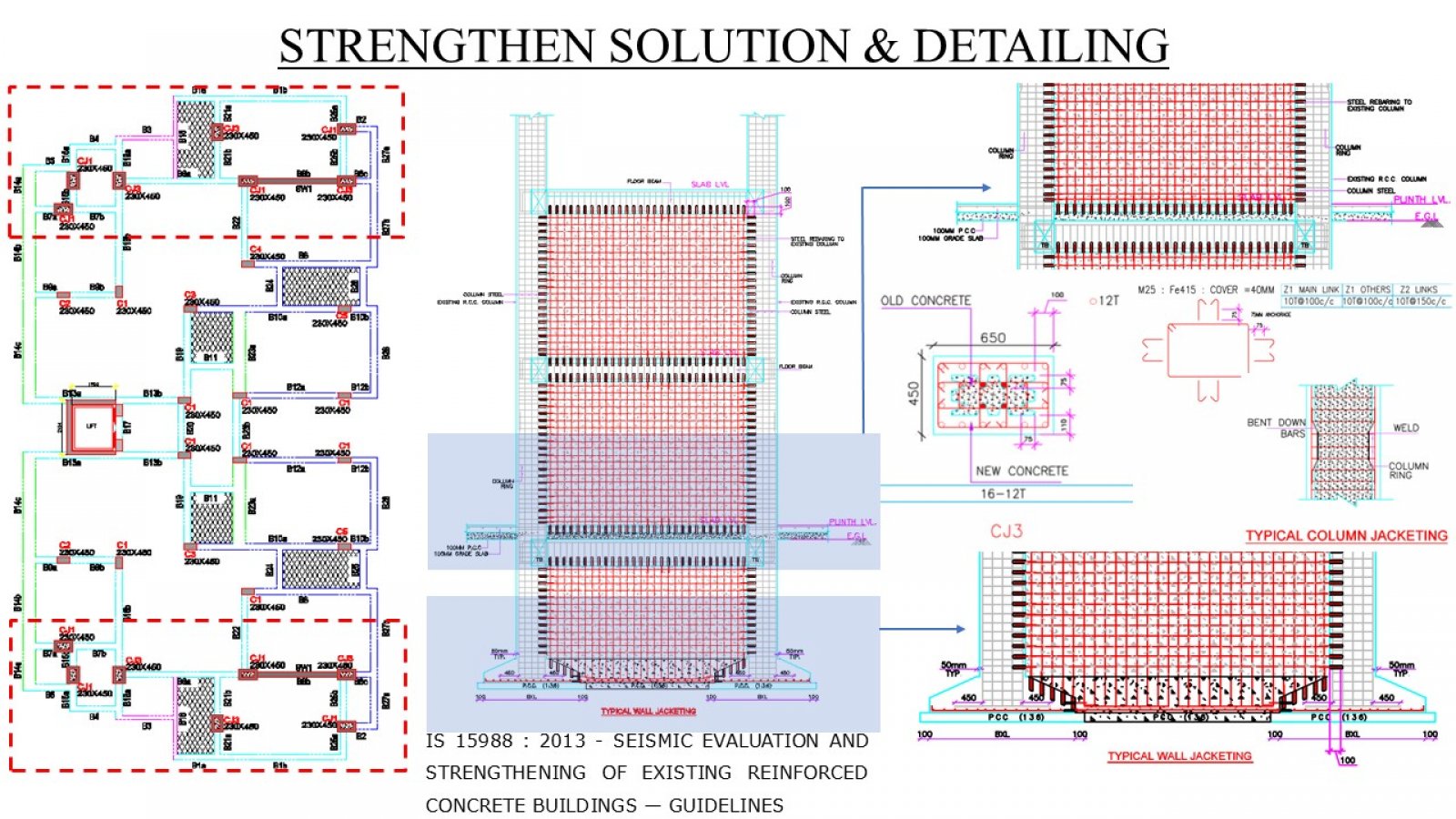

Strengthen Solution

Detailing of Strengthen Element

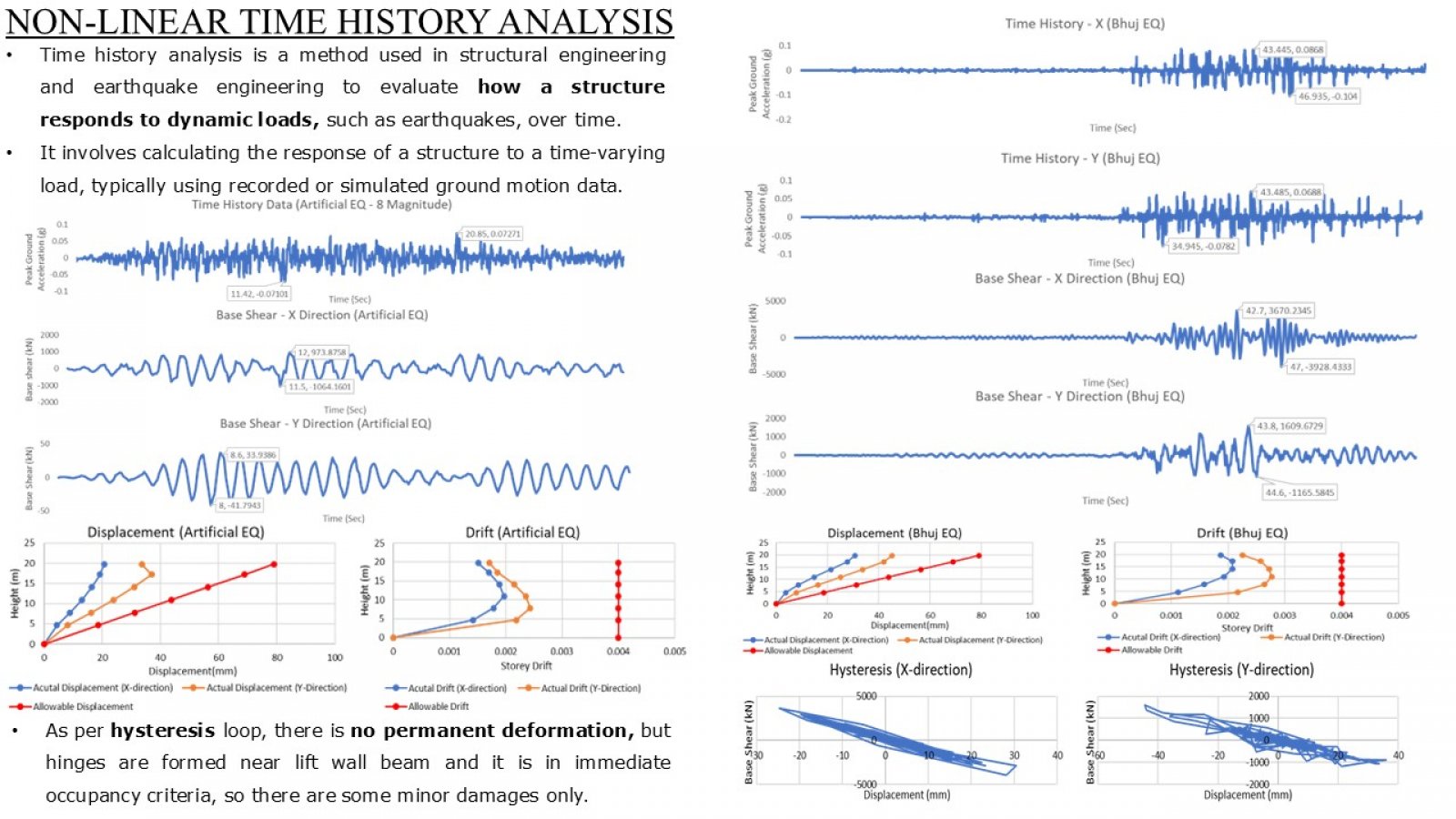

Non Linear Time History Analysis

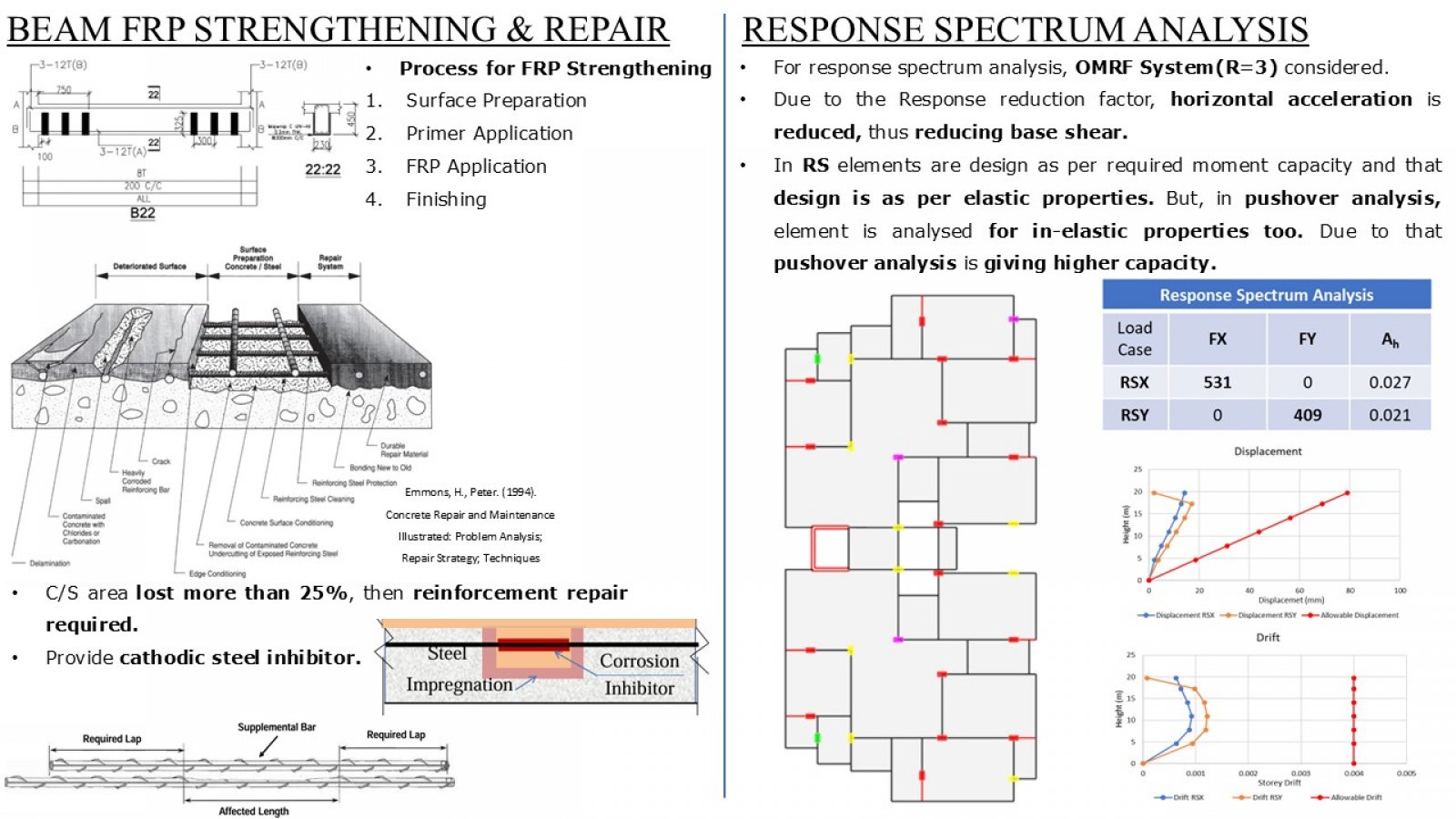

Beam FRP Strengthening & RS Analysis

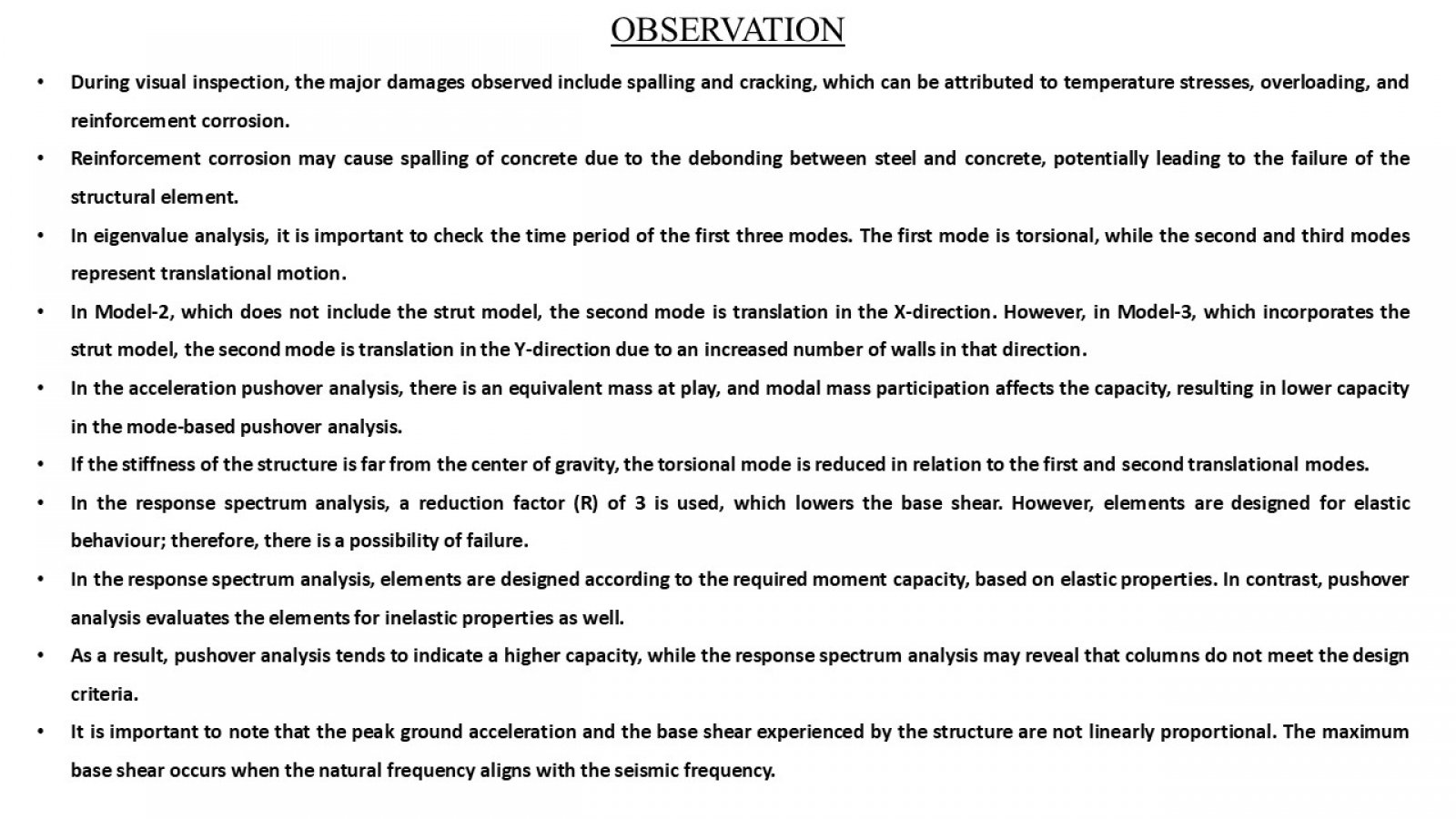

Observation
