Ridhii Garg

AR2038

The Hollow Ascent

Inspired by the digging motion of an ant, "The Hollow Ascent" captures a sequence of frames illustrating how an ant's legs move upward while excavating soil. The resulting form resembles a cantilevered viewing deck, cantilevering over the water, with a central hollow void that enhances the overall spatial experience. The structure is envisioned as a steel-frame system. The site's contours significantly influence the ascent of the structure, which is further defined by a series of curved staircases that gradually lead visitors to the elevated viewing platform for seamless views of the Kada Dam.

View Additional Work

Report Content

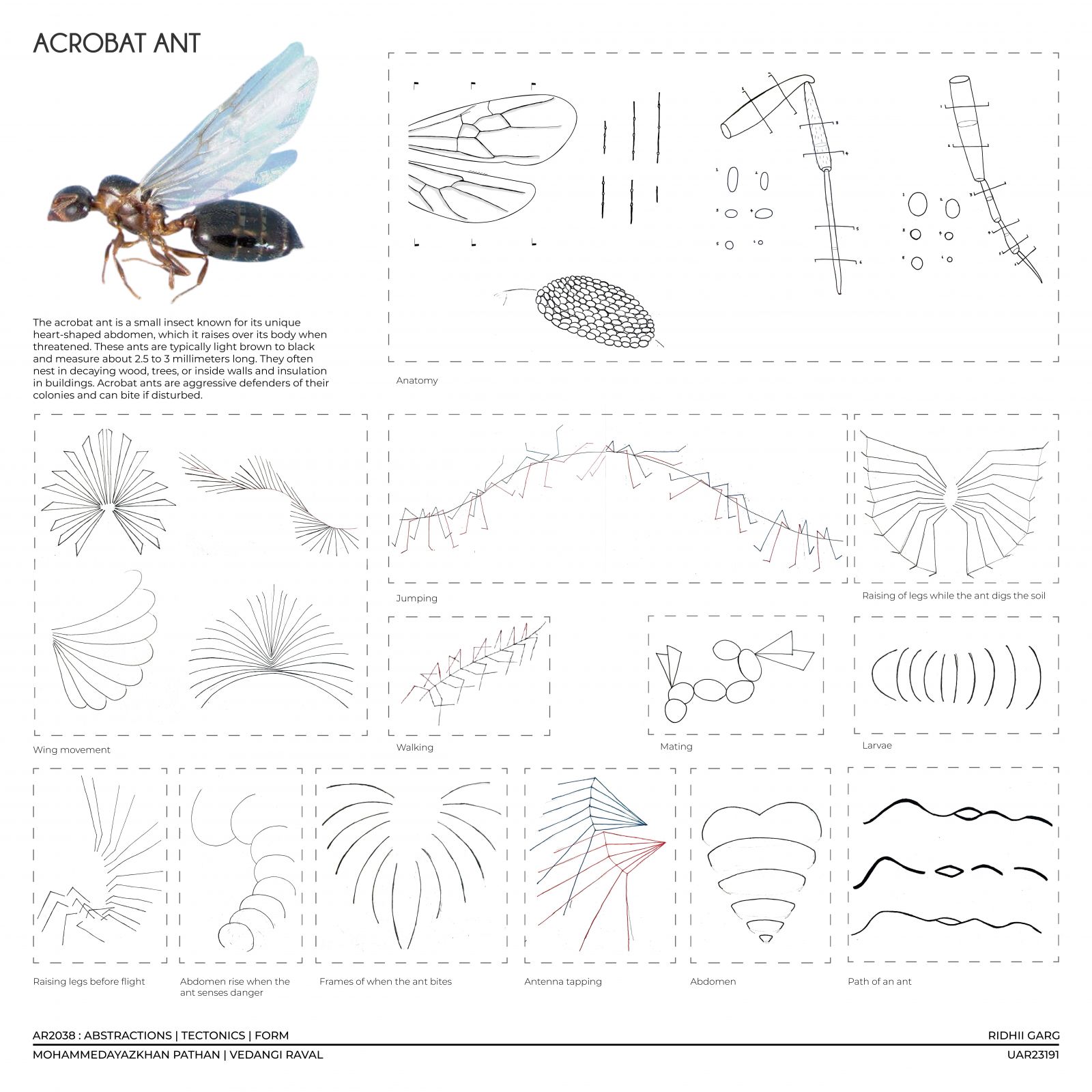

2D Abstractions

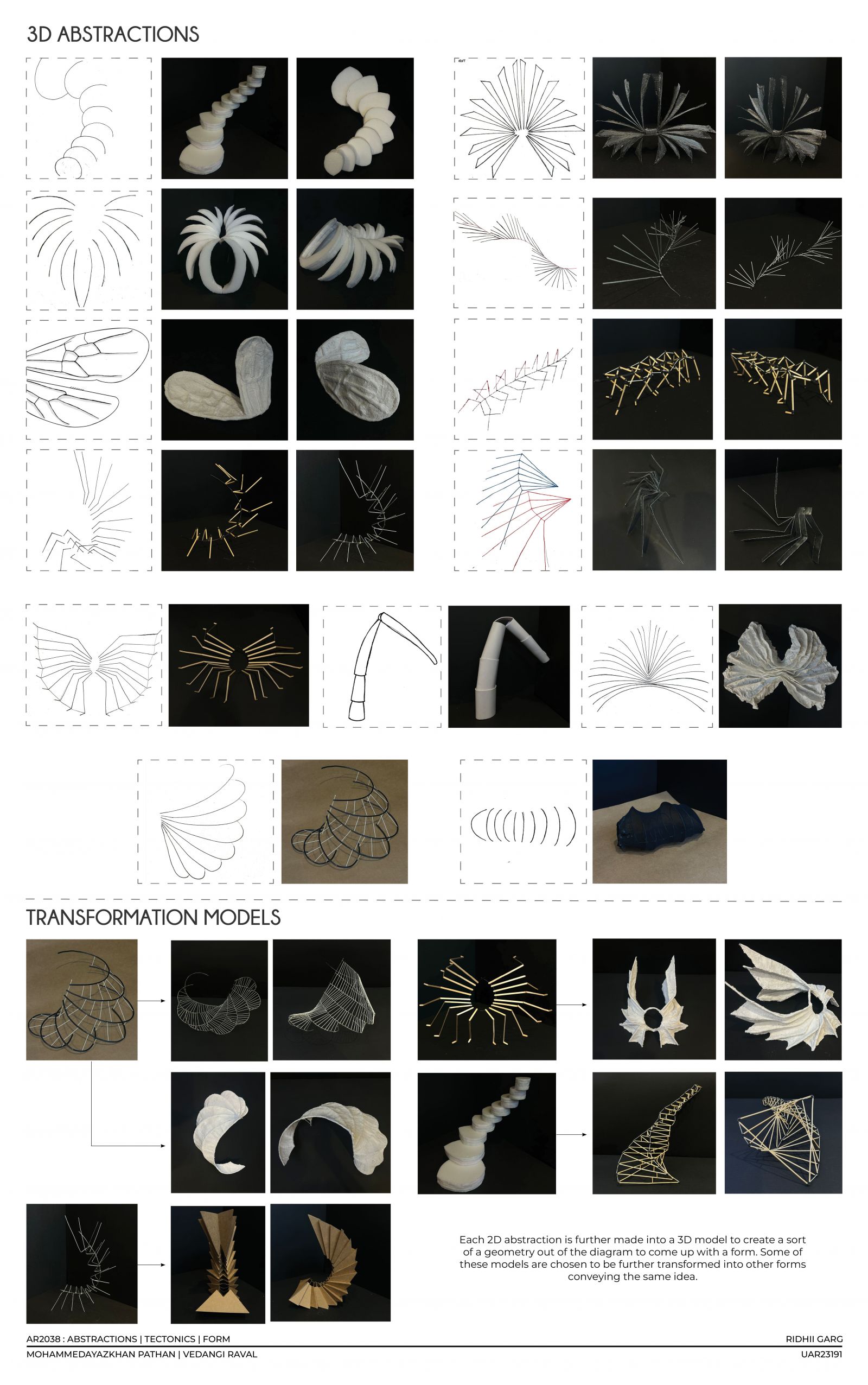

3D Abstractions

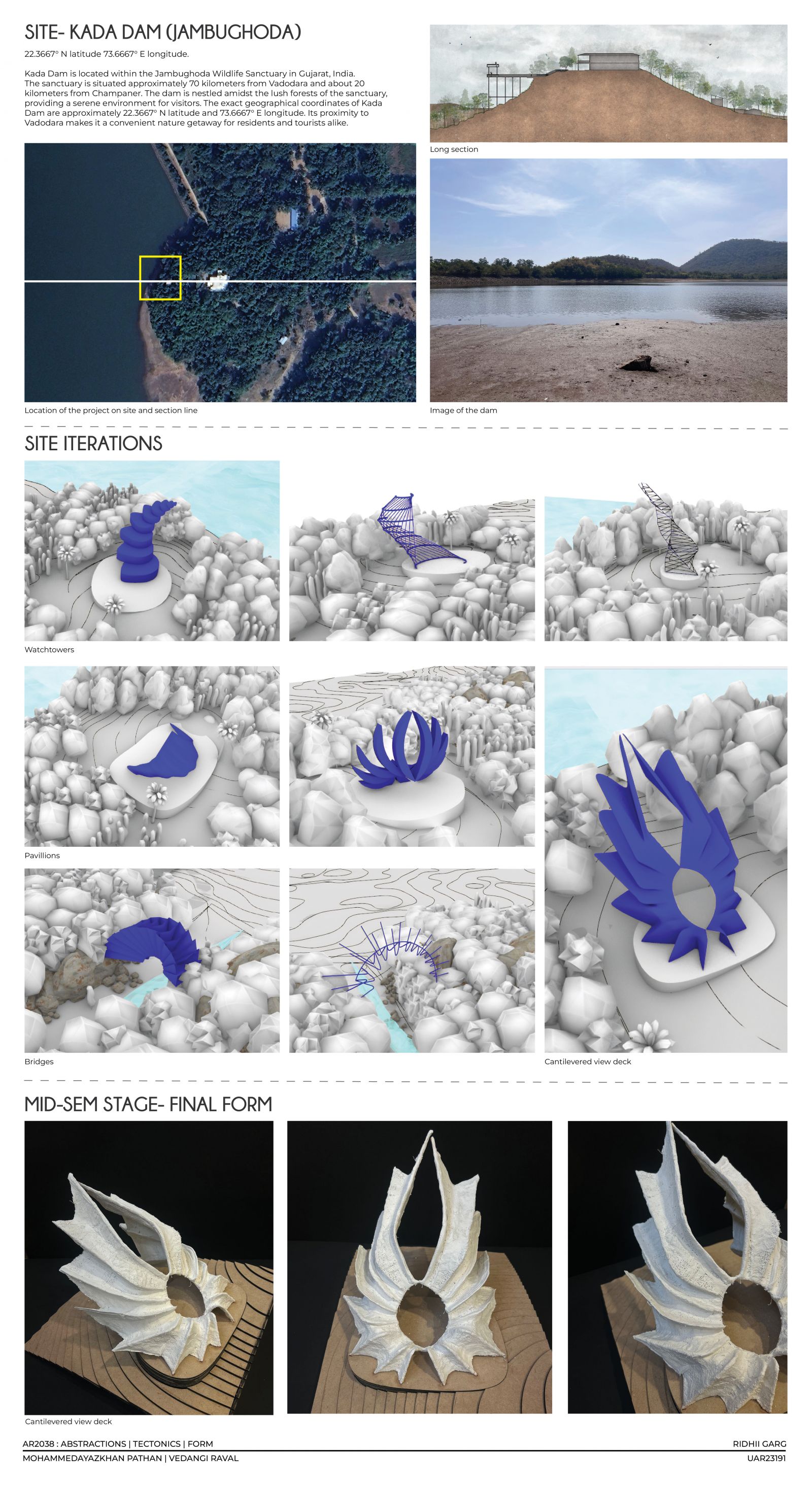

Site iterations and final form

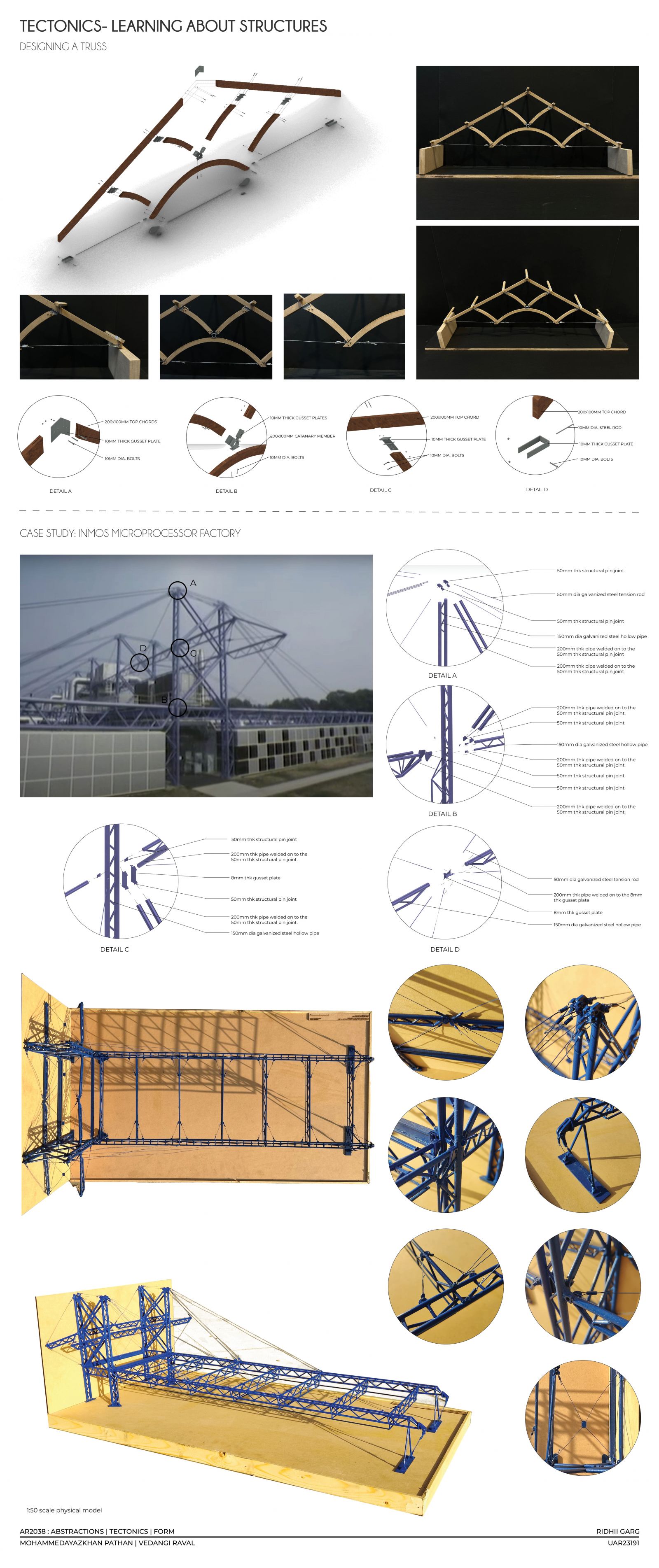

Understanding Structures

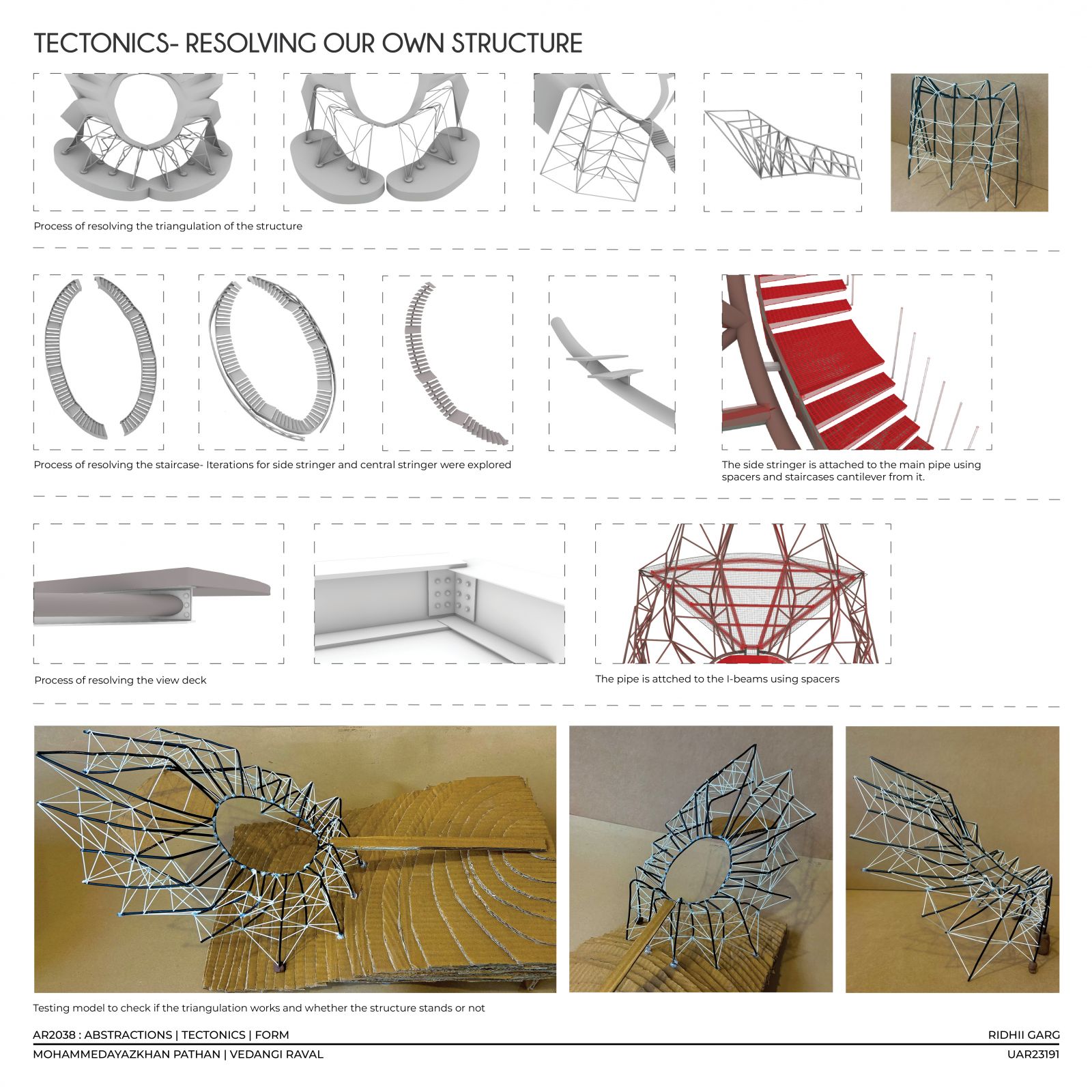

Resolving the structure of the form

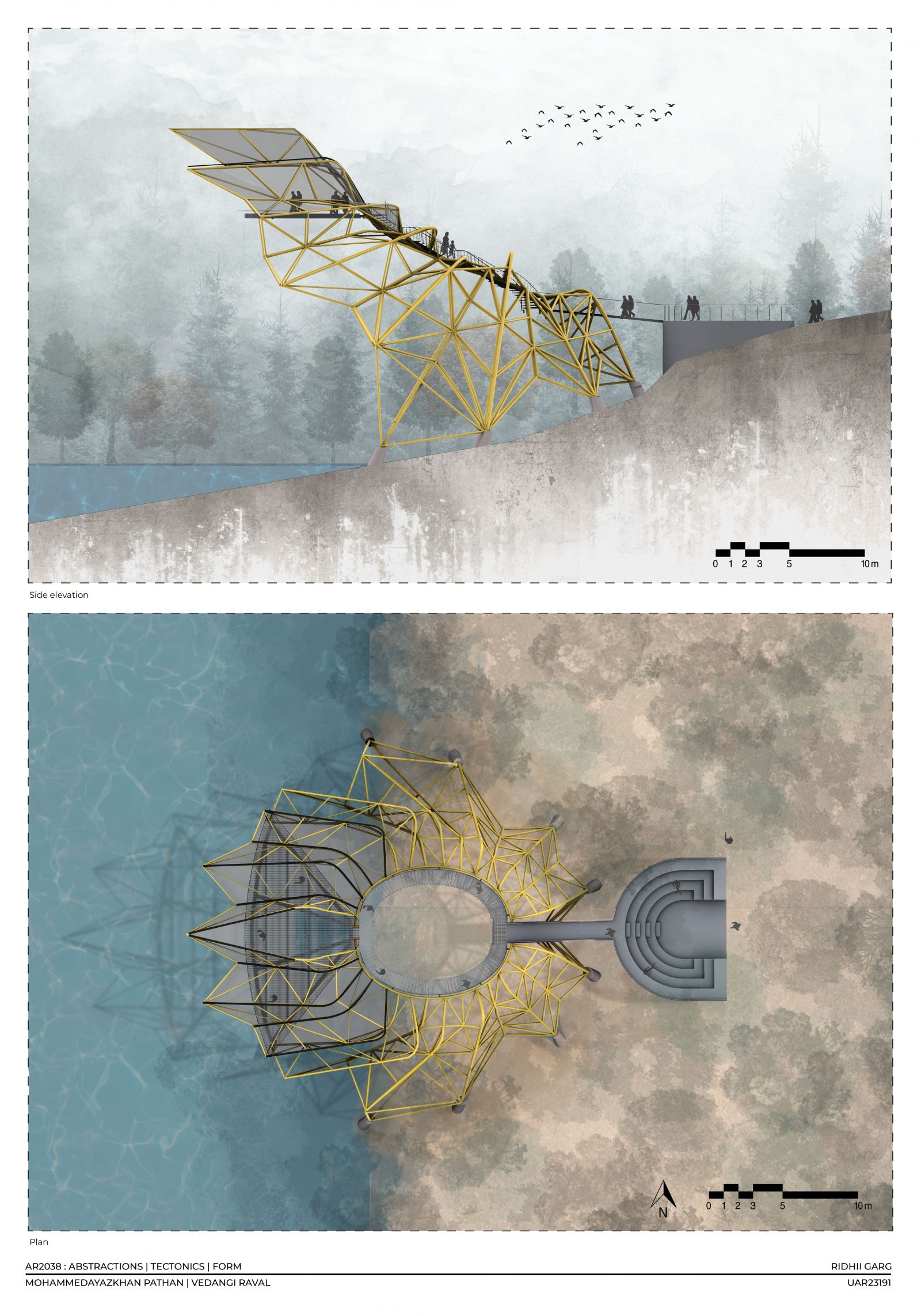

Plan and Side elevation at 1:100 scale

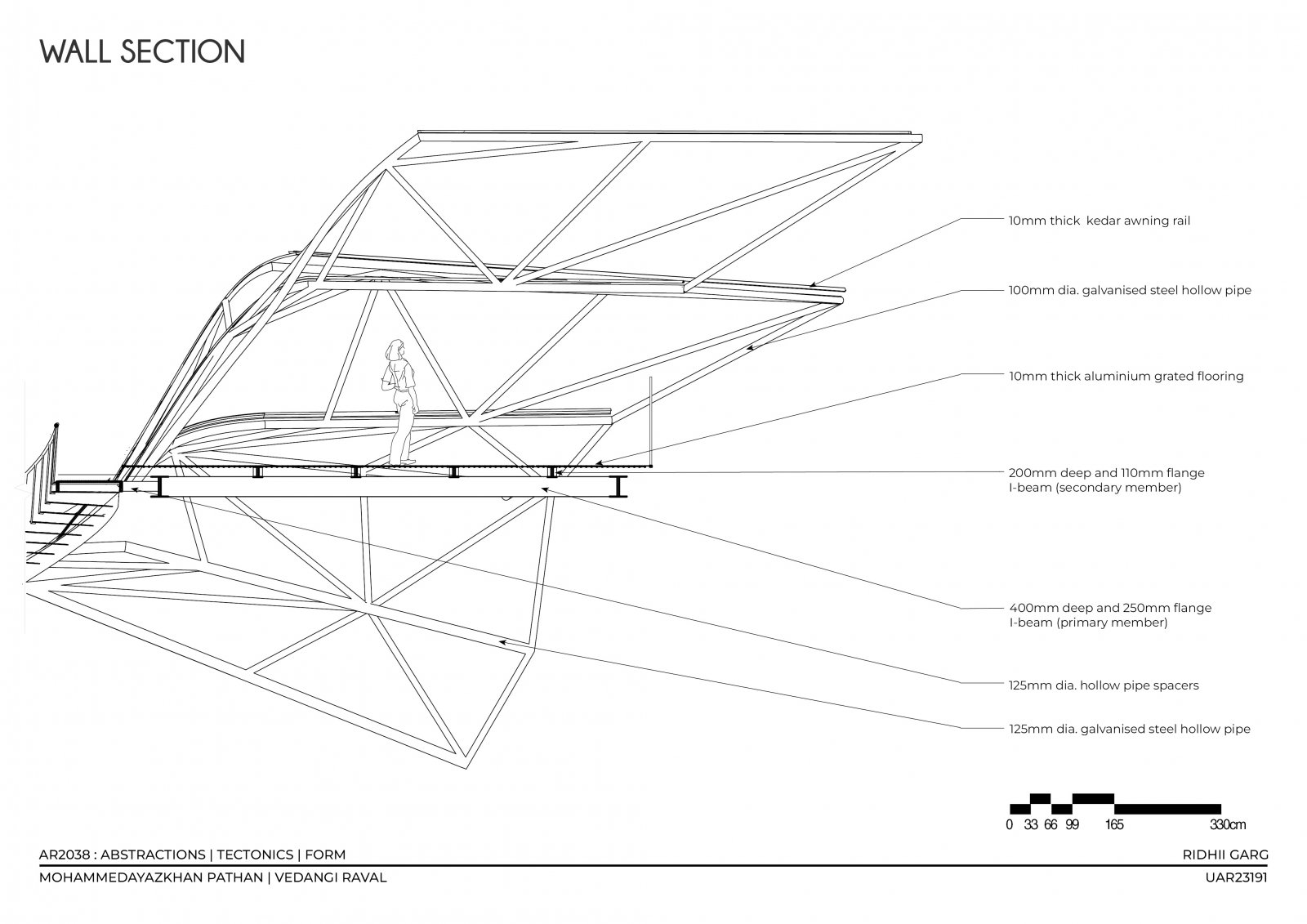

Wall section

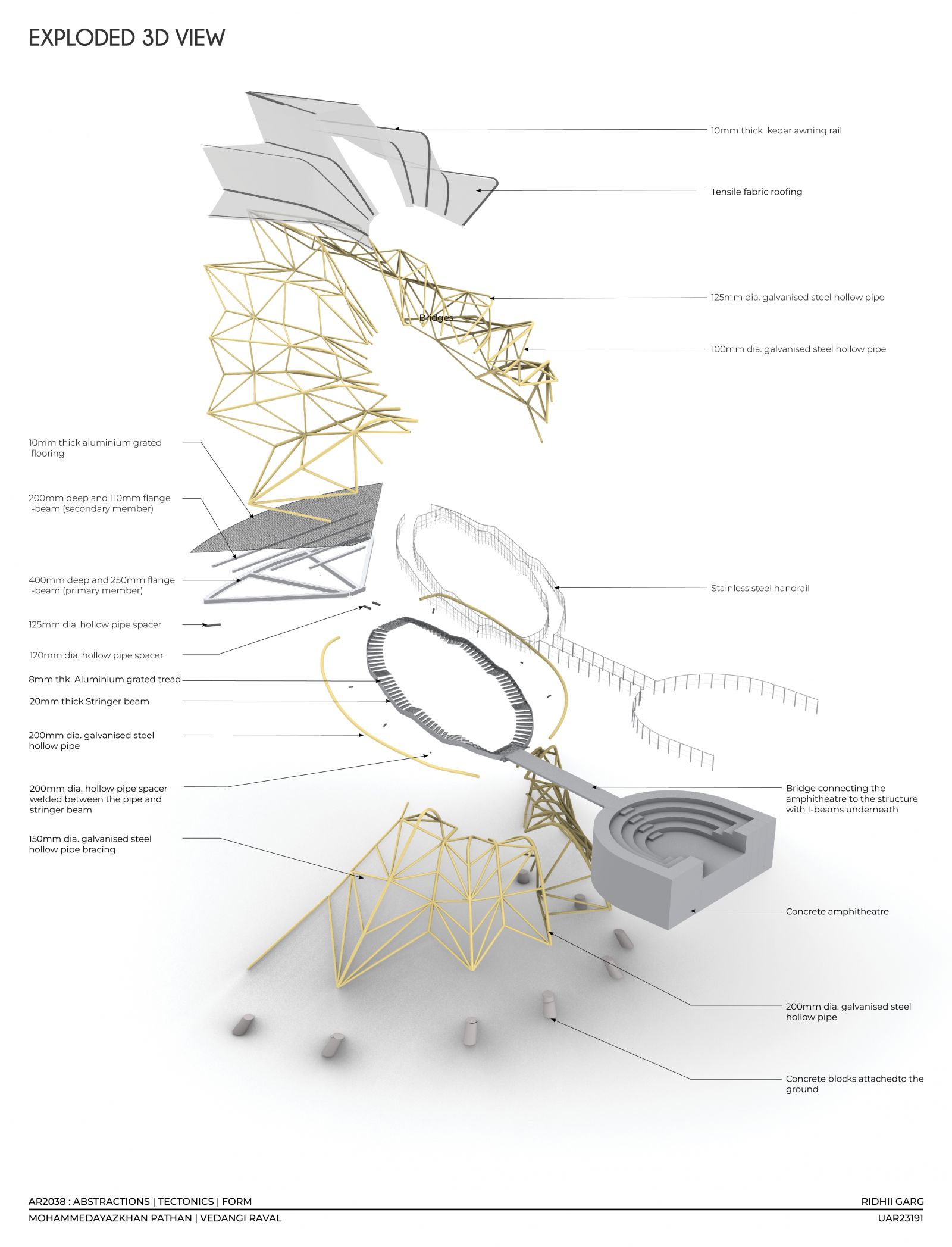

Exploded 3D view

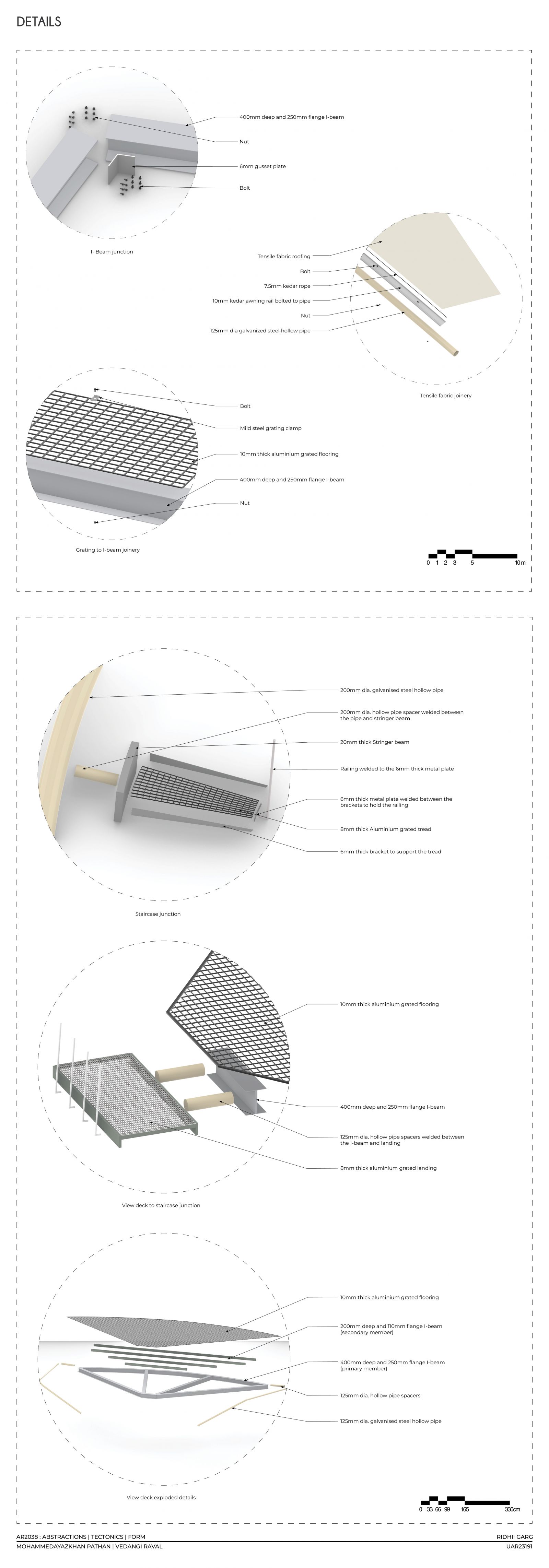

Junction Details

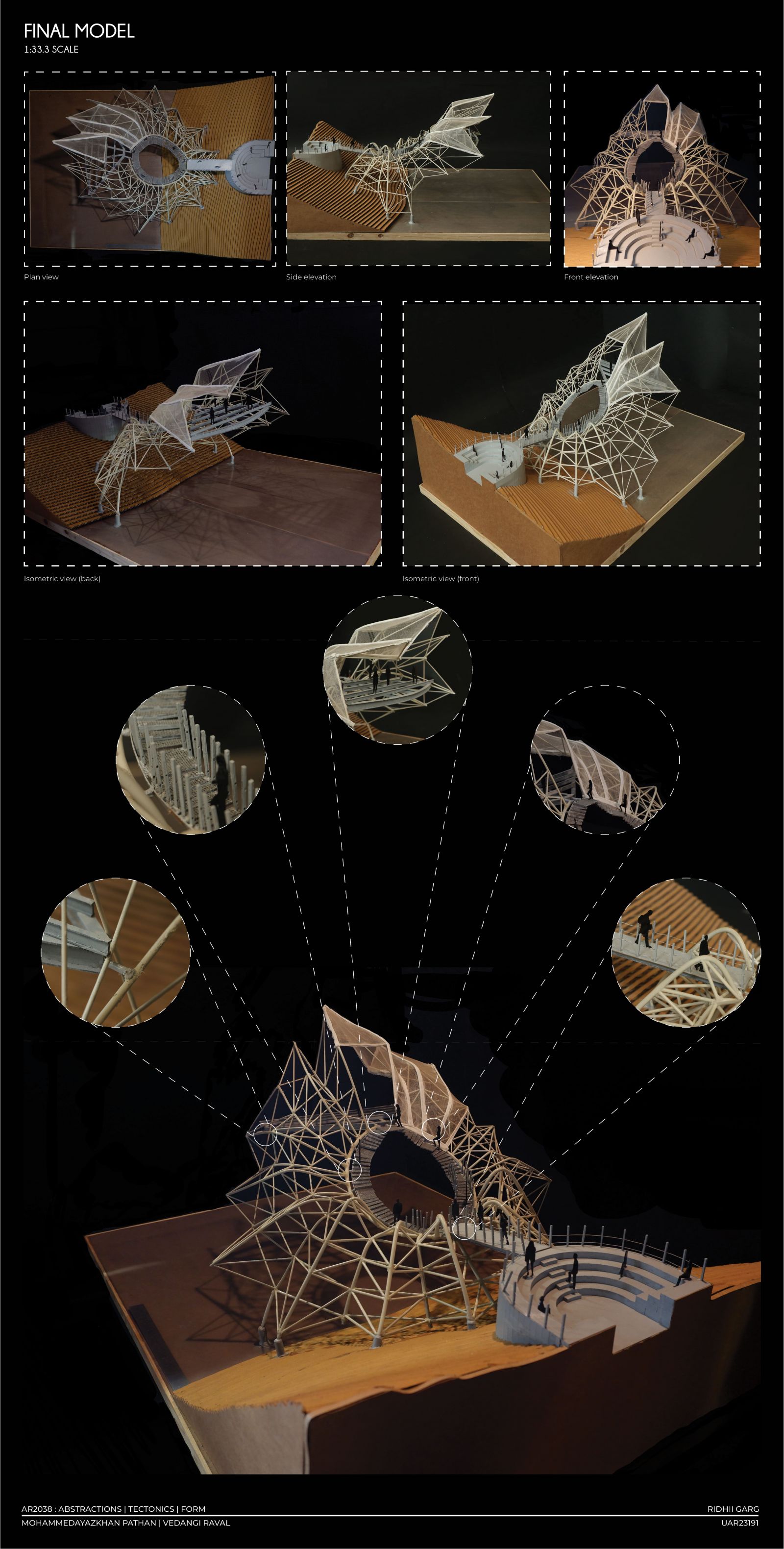

Physical model at 1:33.3 scale
