Roopashree K

AR2036

Studio 1500

A studio that at first glance reveals only its sweeping curved roof, while the true spaces lie hidden, carved into the earth like a burrow. Four walls, boldly angled 45 degrees from the conventional orthogonal, split the structure into two distinct halves—one opening toward the lake, where the curved roofs rise above the main studios and meeting rooms; the other tucked under a flat roof, concealing the service and ancillary areas. At its heart, a skylight spills light onto the shared wall between studio and meeting space, casting rhythmic light throughout the day that defines the soul of Studio 1500.


Report Content

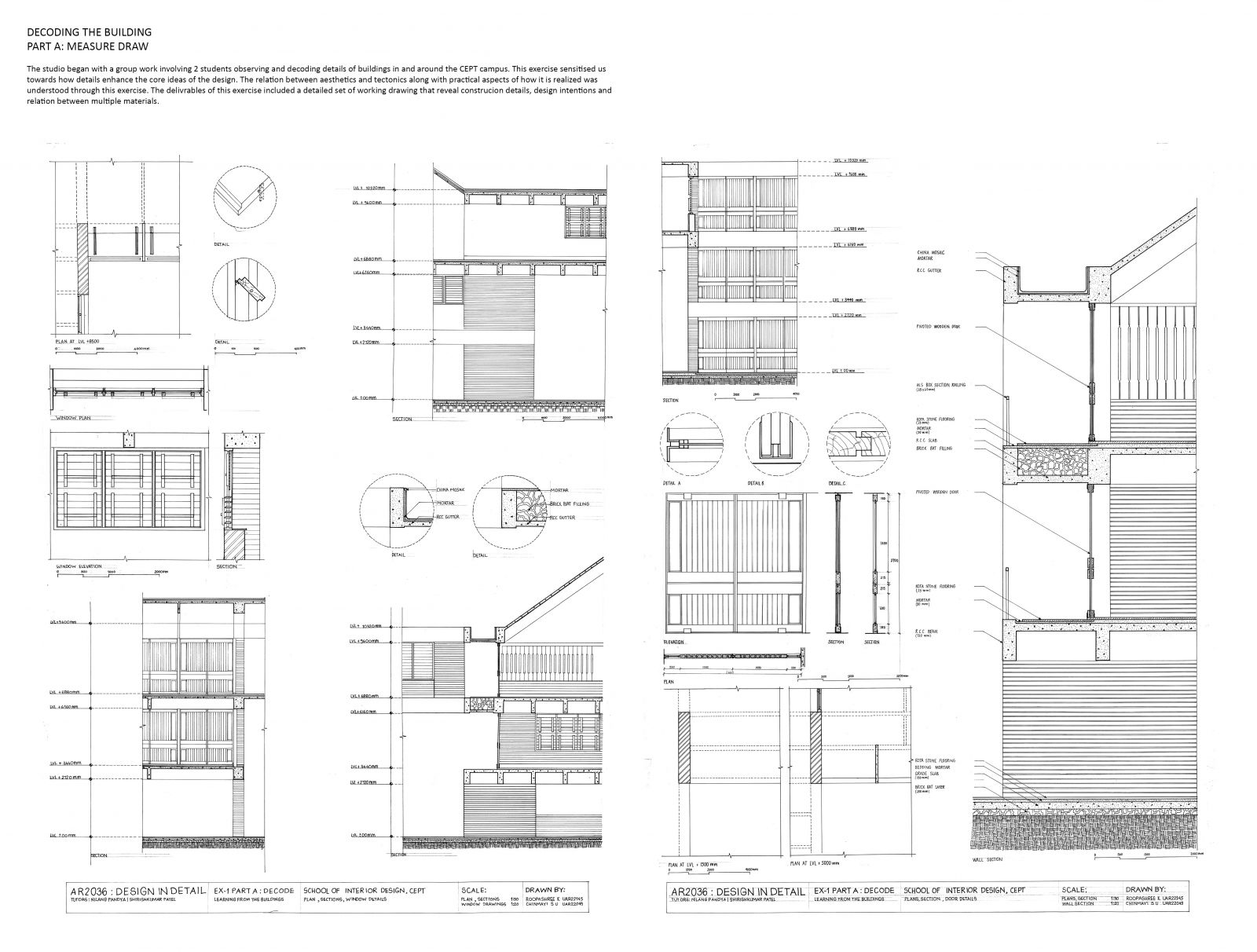

Decoding buildings: Measure drawings of SID

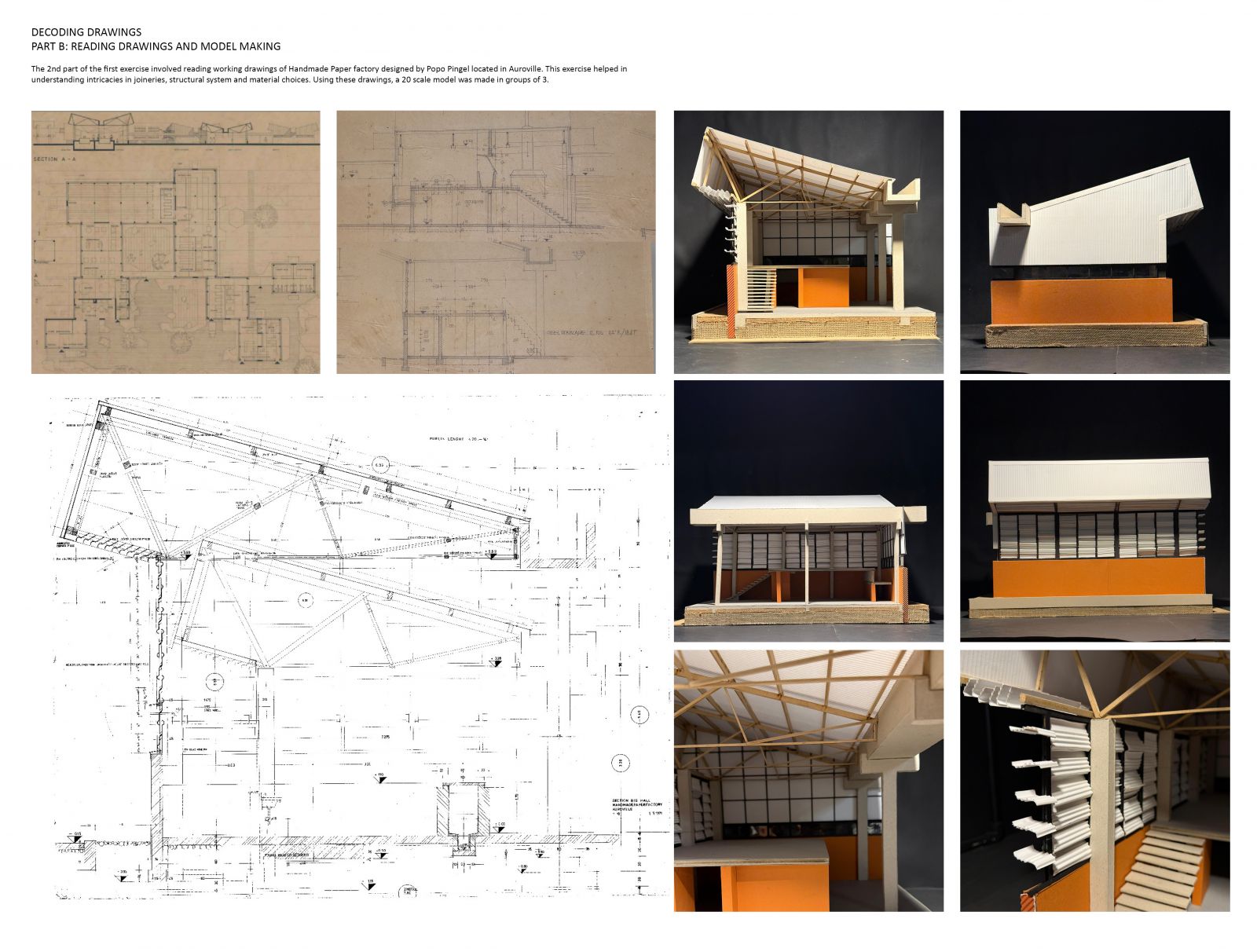

Decoding drawings: Reading working drawings

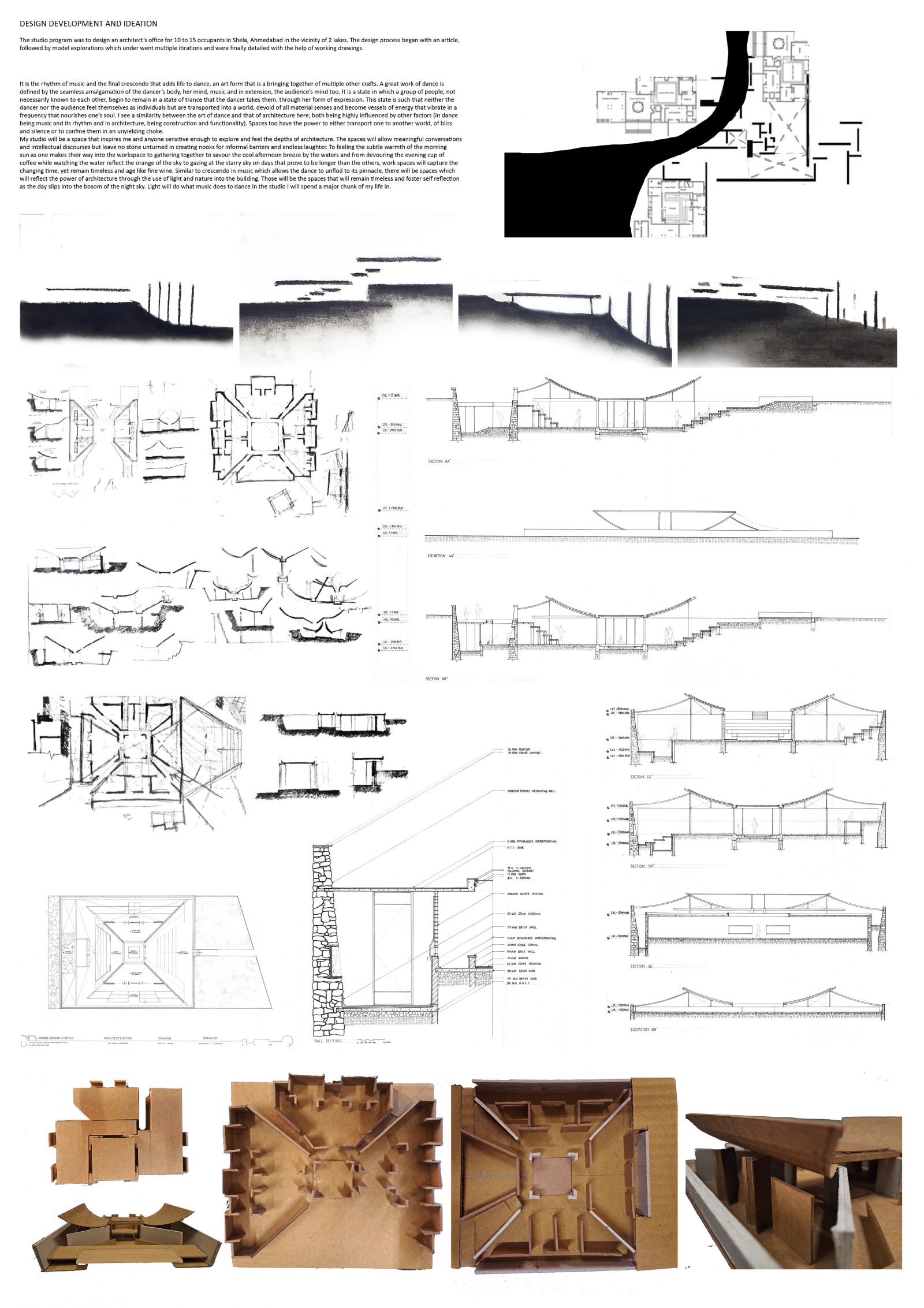

Design development: initial sketches, models and drawings

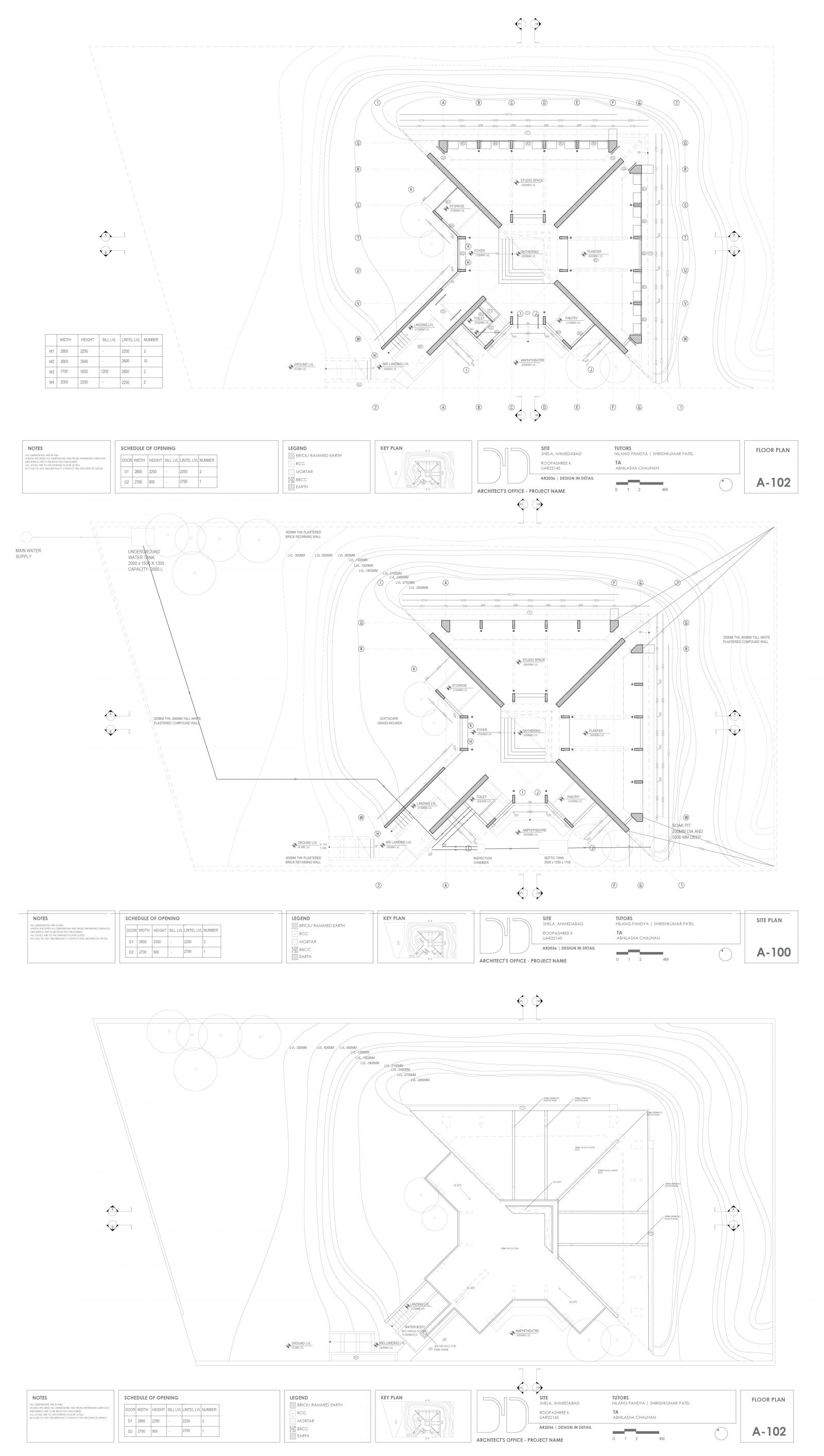

Final plans in 100 scale

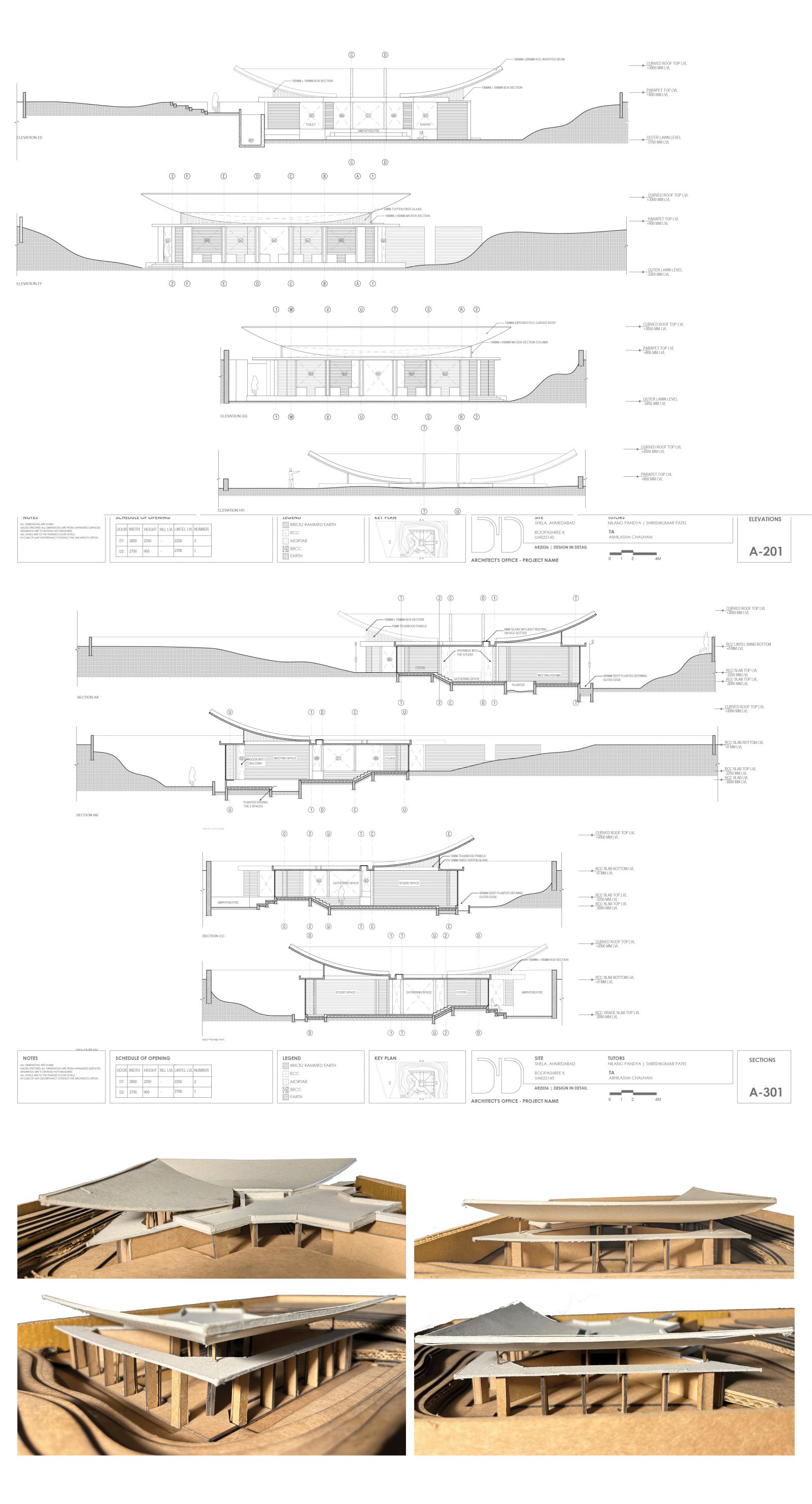

Elevations, sections and 100 scale model

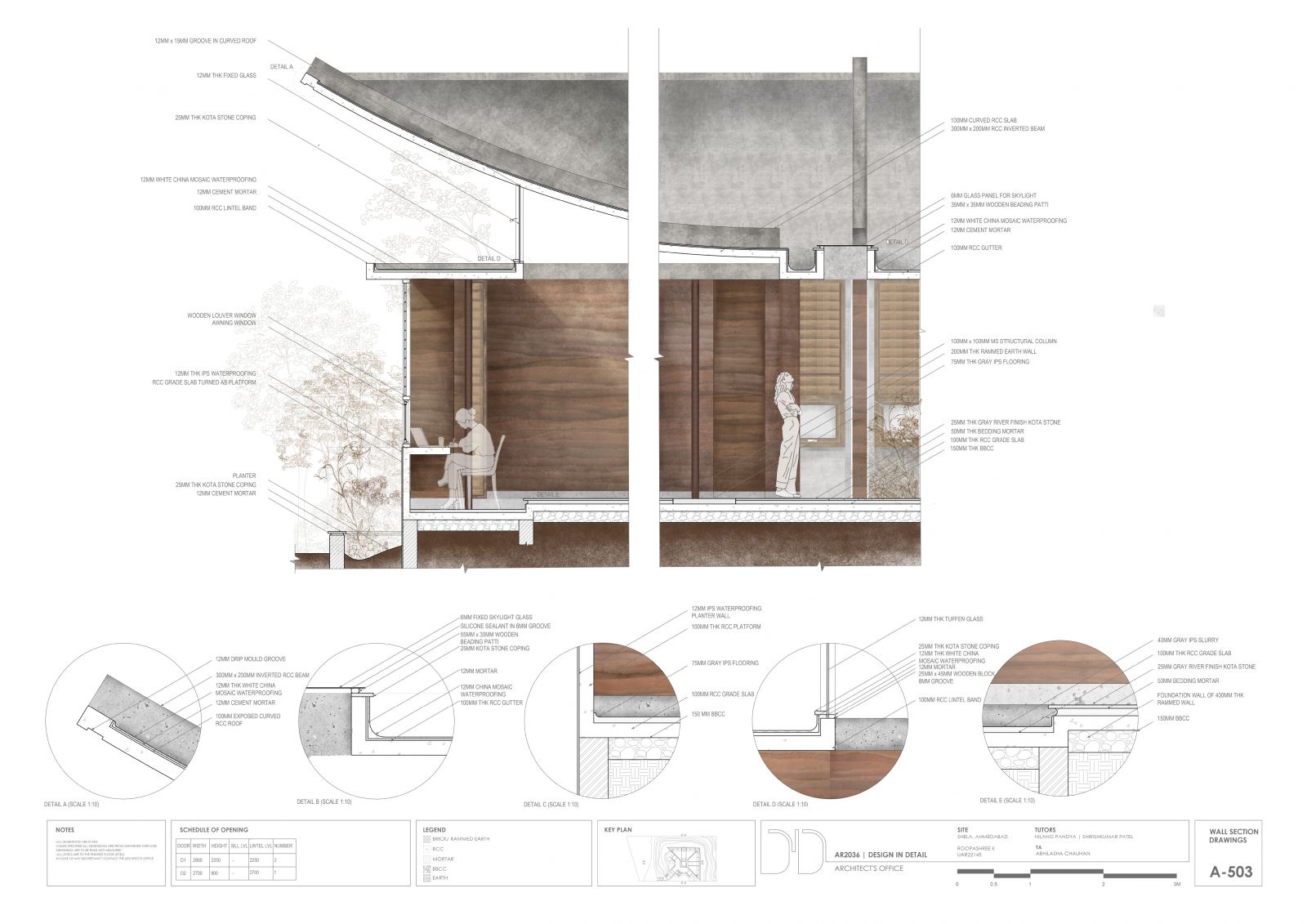

Wall sections

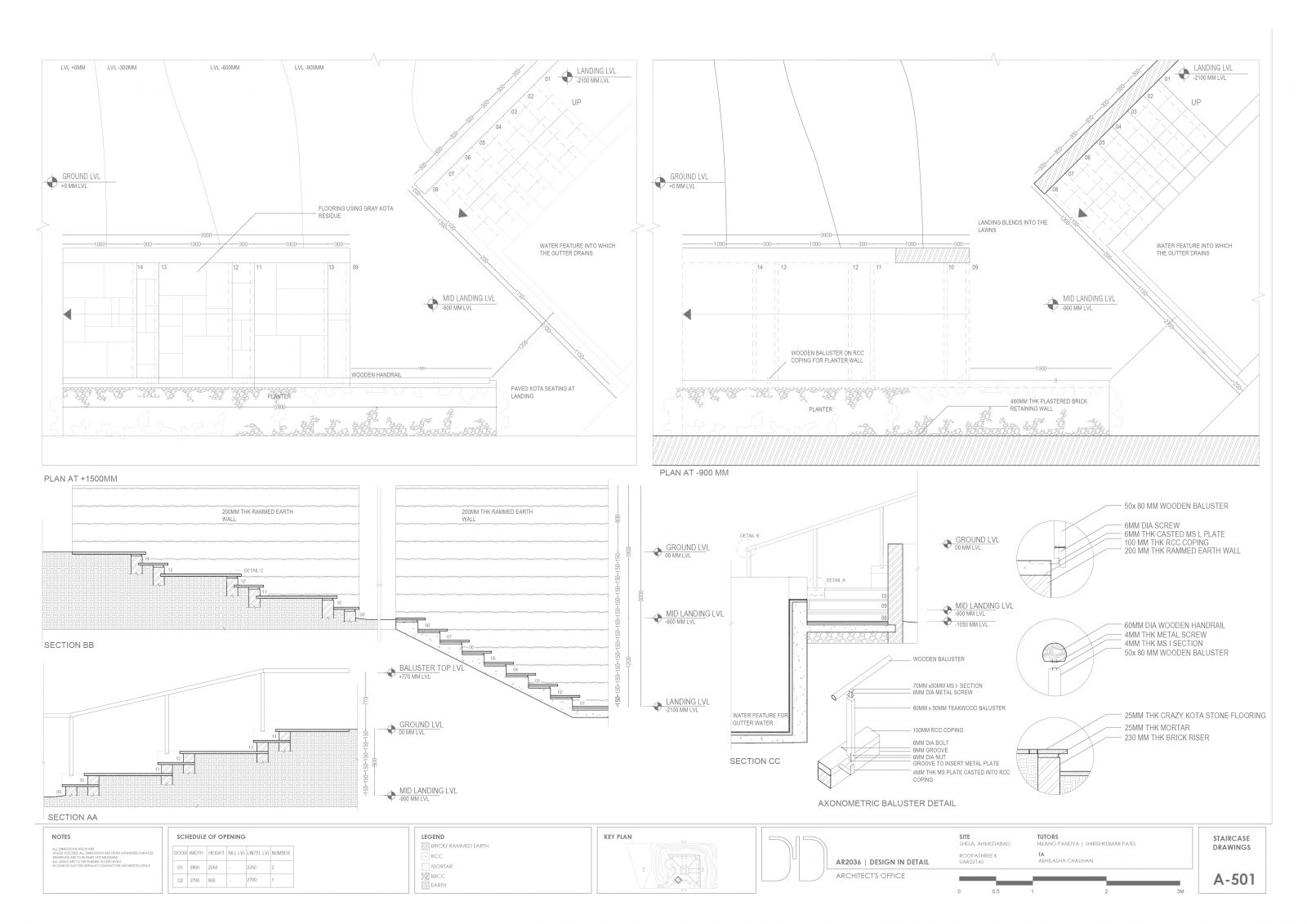

Staircase detail

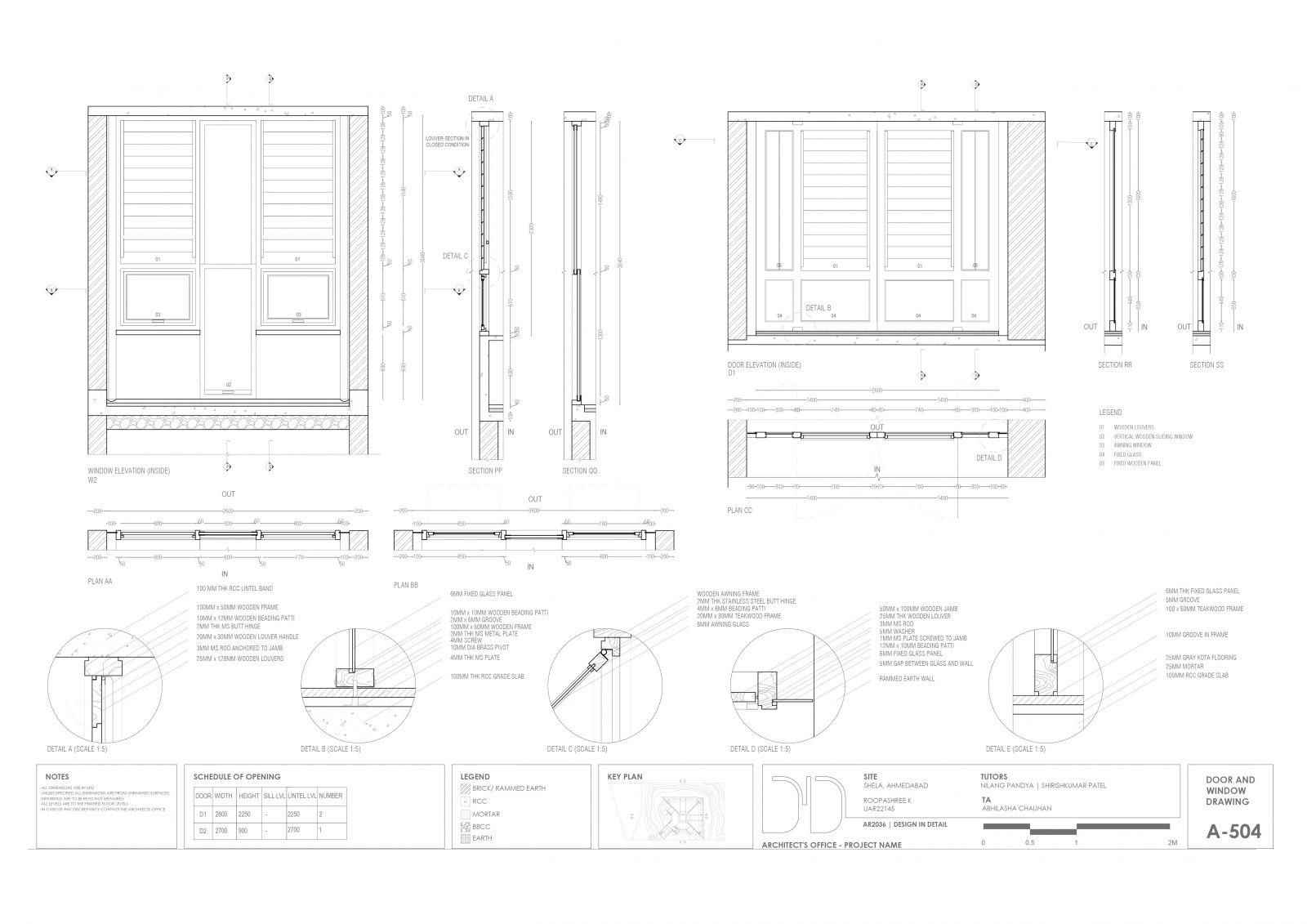

Door window detail

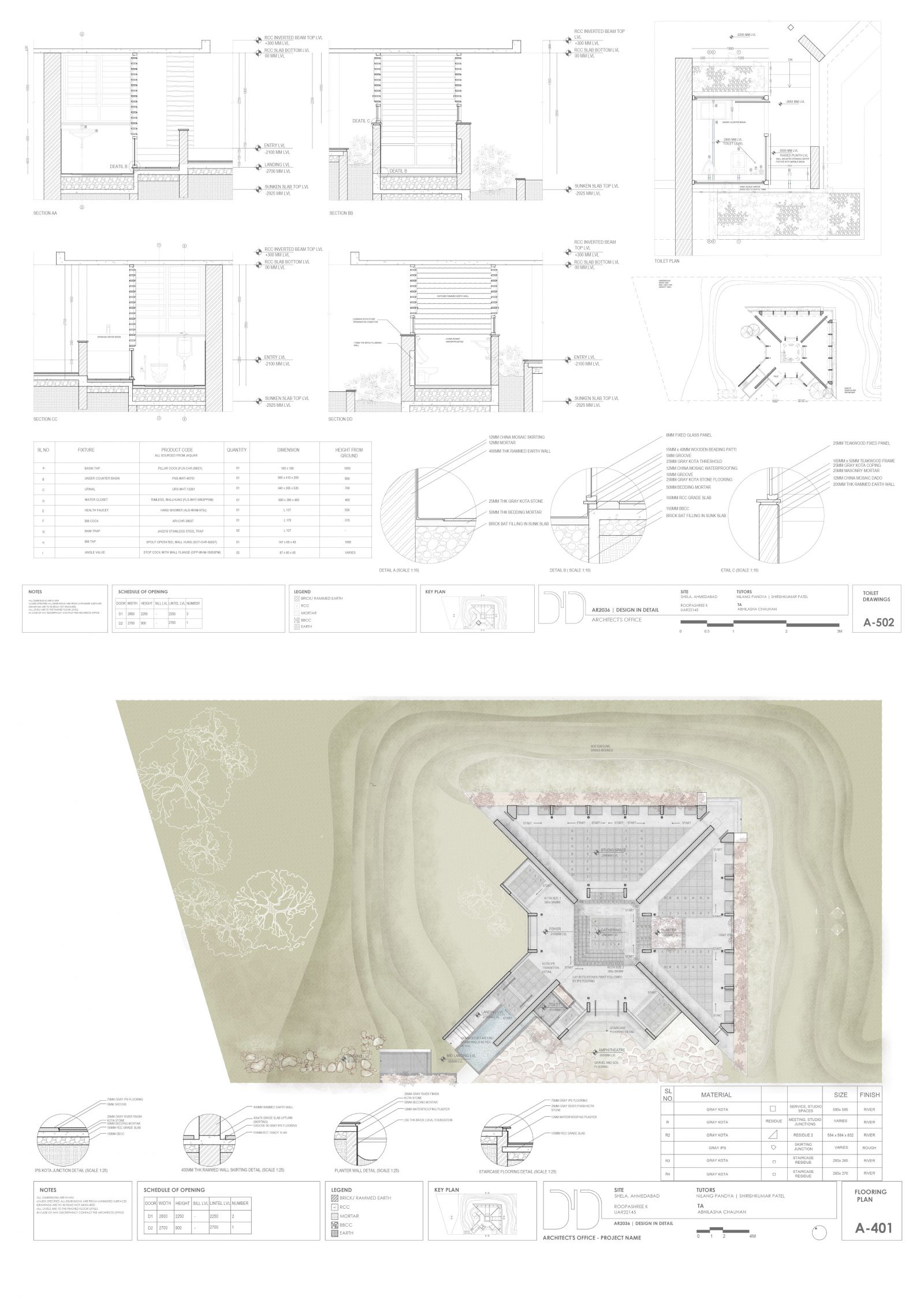

Toilet and flooring drawings

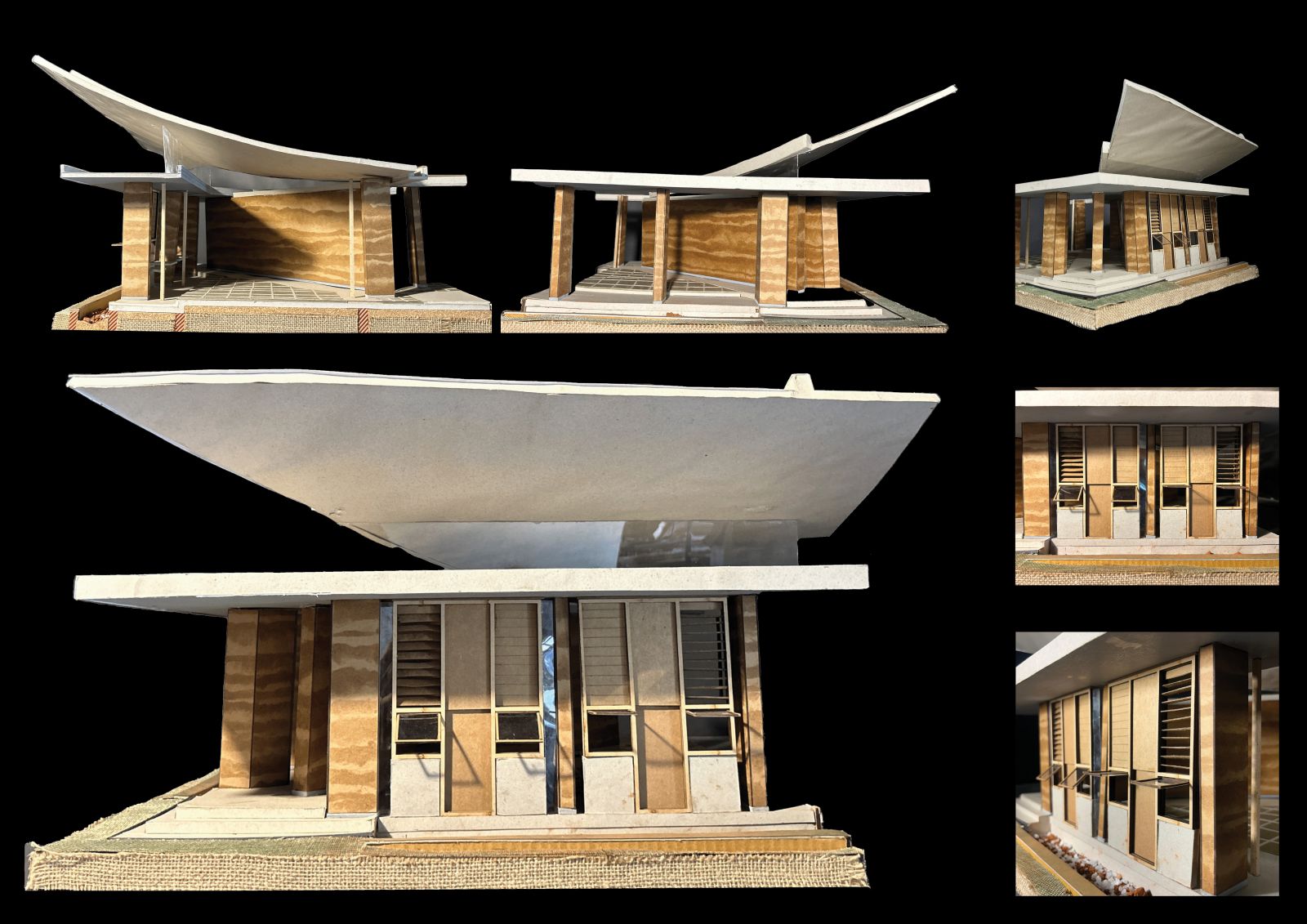

20 scale sectional model
