Jai Pannu

AR2036

Studio Axis : An Architect's Office

This architecture studio is designed to control perception: enclosing, guiding, and revealing. A strong west-east axis cuts through the structure, directing movement without immediately exposing the lake. Thick brick walls block distractions, while concrete fins reinforce linearity. The studio is a secluded, focused space, opening gradually through step-down seating to a water body. The final ascent leads to the viewing deck, the only point where the lake is fully revealed. The project balances solid and void, movement and stillness, enclosure and openness, a space that unfolds with intention and purpose.


Report Content

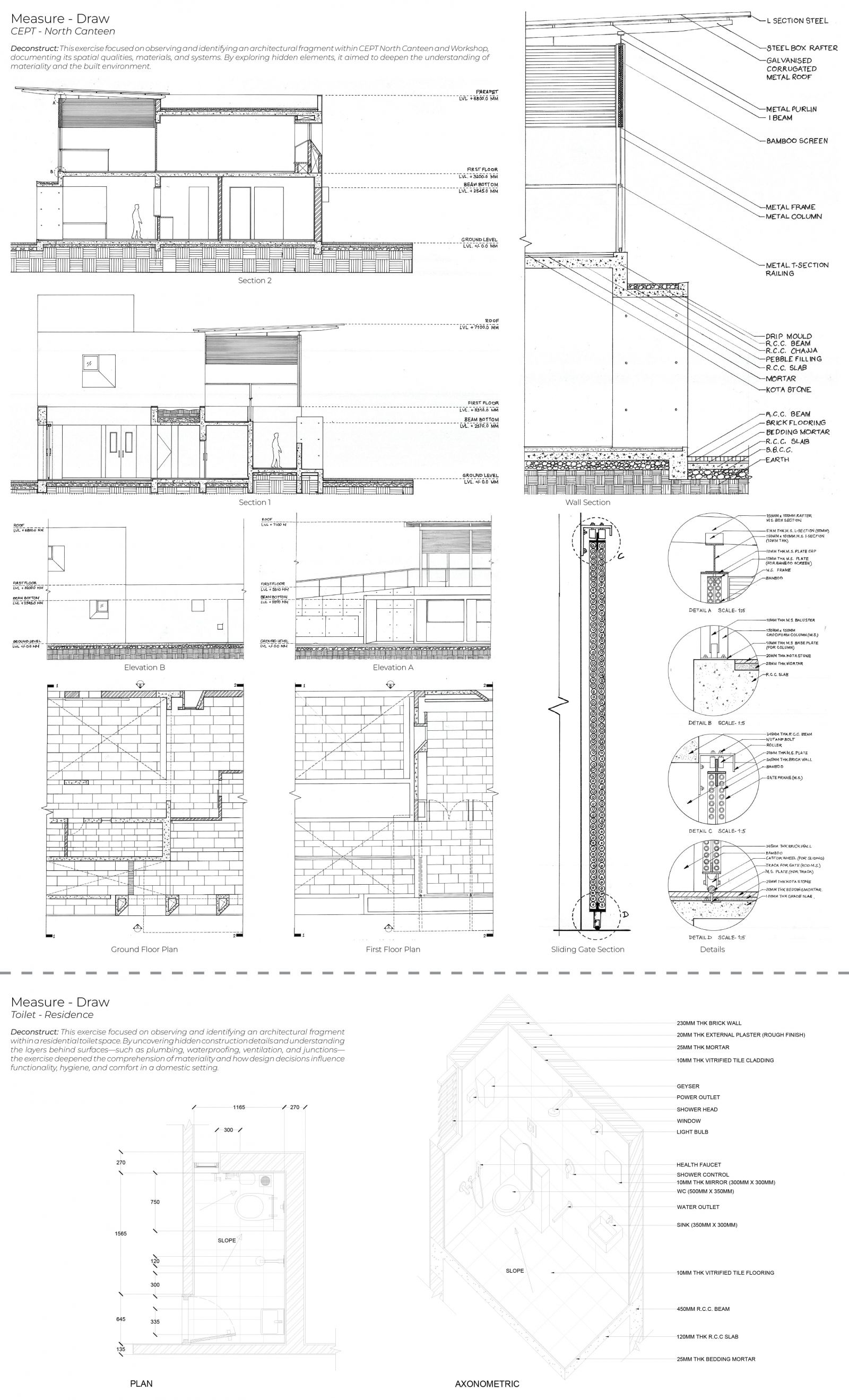

Measure-Draw: Deconstructing North Canteen, CEPT University, and Residence's Toilet.

CEPT Archives Project: Deconstructing and Rebuilding of Handmade Paper Factory by Ar. Poppo Pingel.

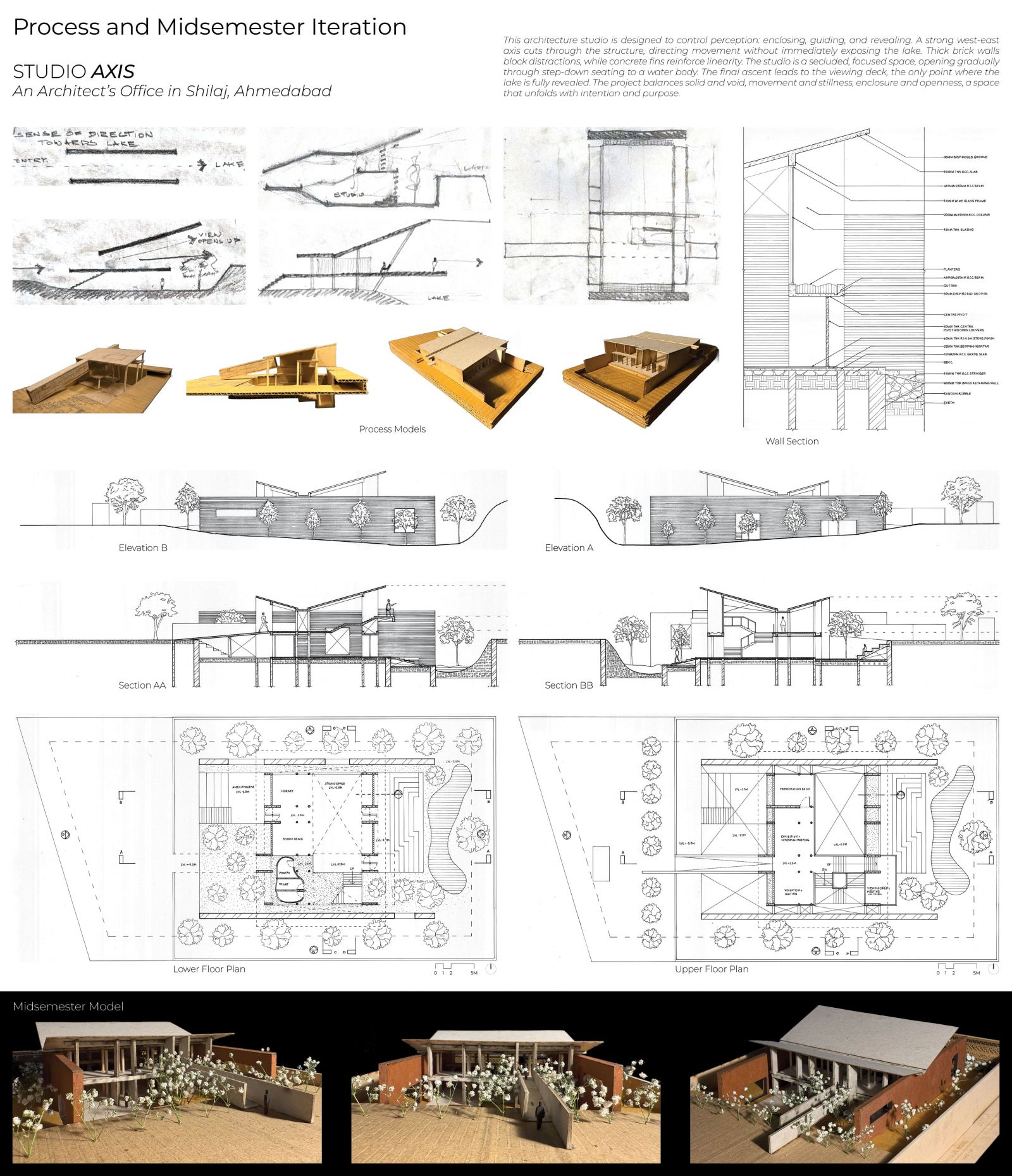

Design Development: Process and Midsemester Iteration.

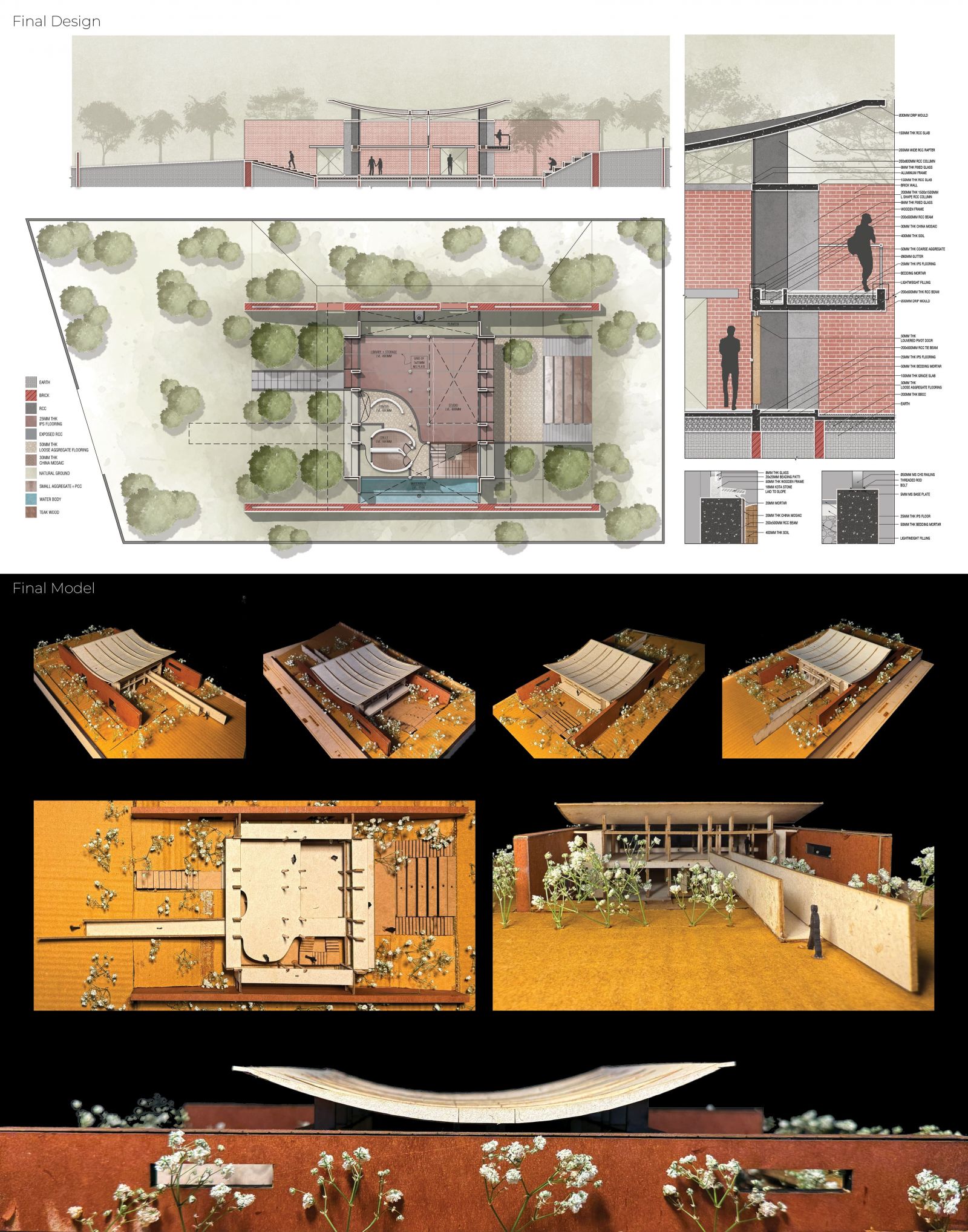

Final Design: Rendered Drawings and 1:100 Scale Physical Model.

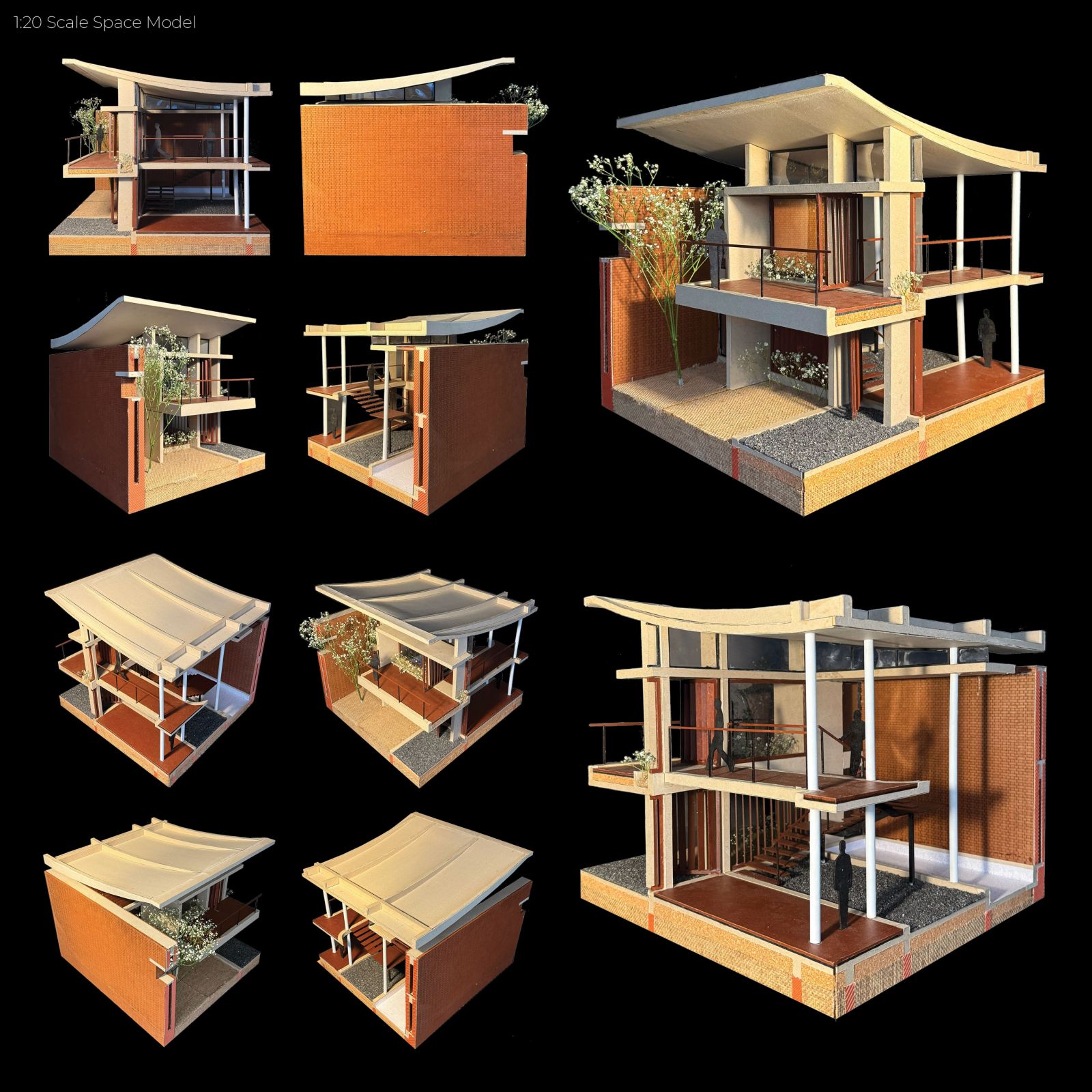

Final Design: 1:20 Scale Space Model.

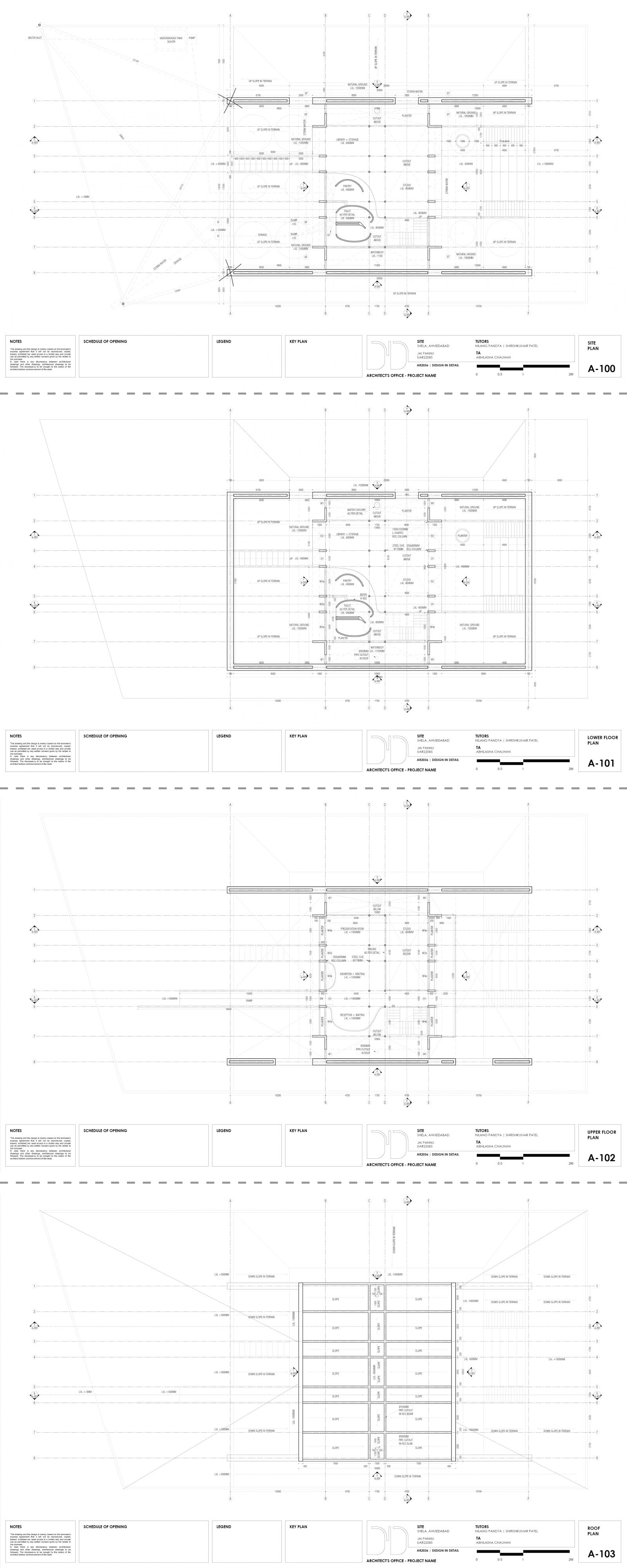

Final Design: Plans.

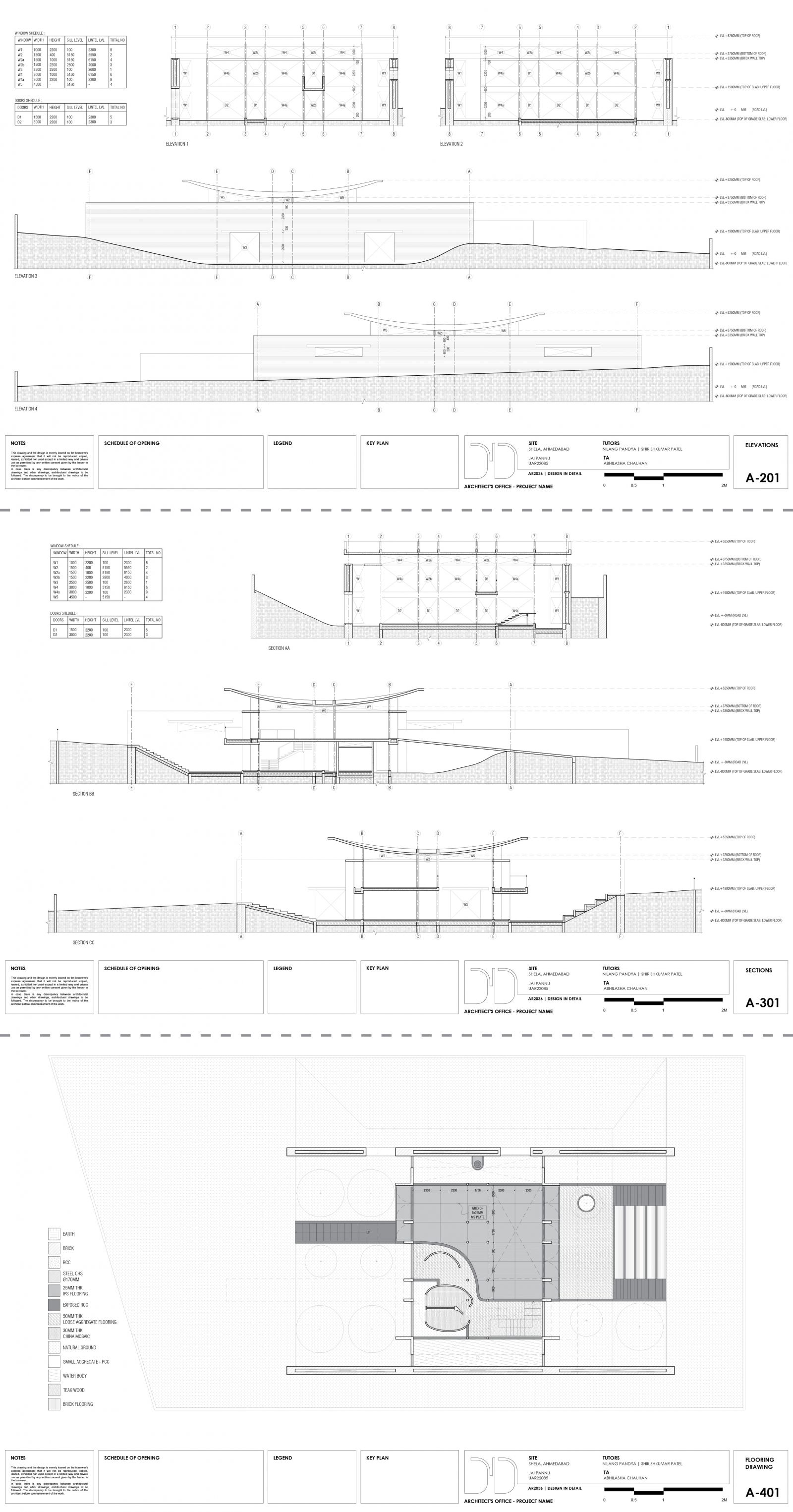

Final Design: Elevations, Sections, Flooring Drawing.

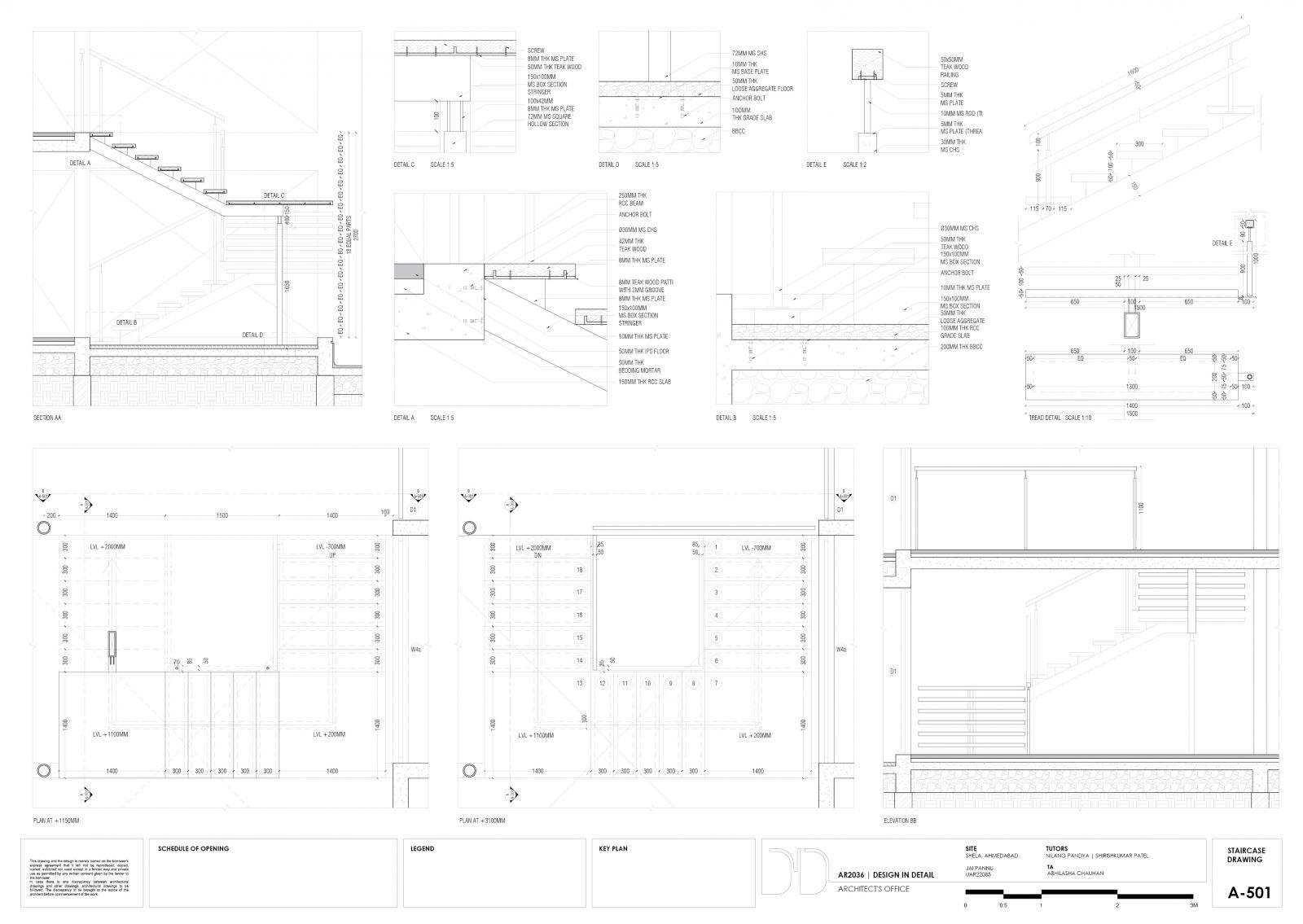

Final Design: Staircase Drawing

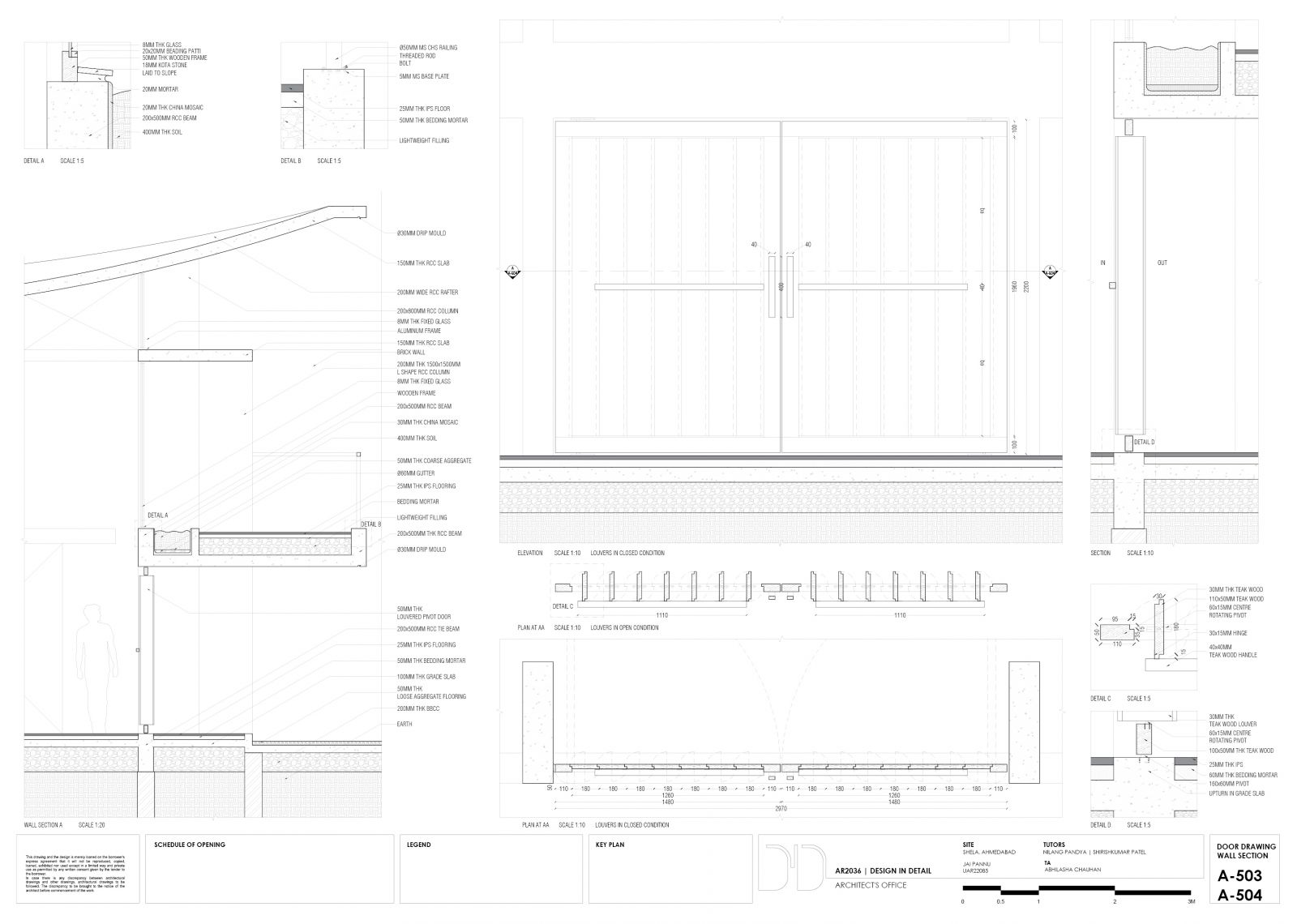

Final Design: Wall Section and Door/Window Drawing

Final Design: Toilet Drawing
