Studio Courtyard : An Architect's Office

The office is placed in the northeast corner of the site to get clear views of the lakes. A viewing deck sits at the heart of the project, offering peaceful views of water and greenery. The building stays hidden behind trees, protecting it from harsh sunlight and blending it with nature. A granite stone path leads to an open-to-sky courtyard that works as the entrance foyer. On the right are work areas like the studio, model space, and discussion zone. On the left is a service area that opens to a garden. Upstairs, the deck, meeting room, and office overlook the lake.

View Additional Work

Report Content

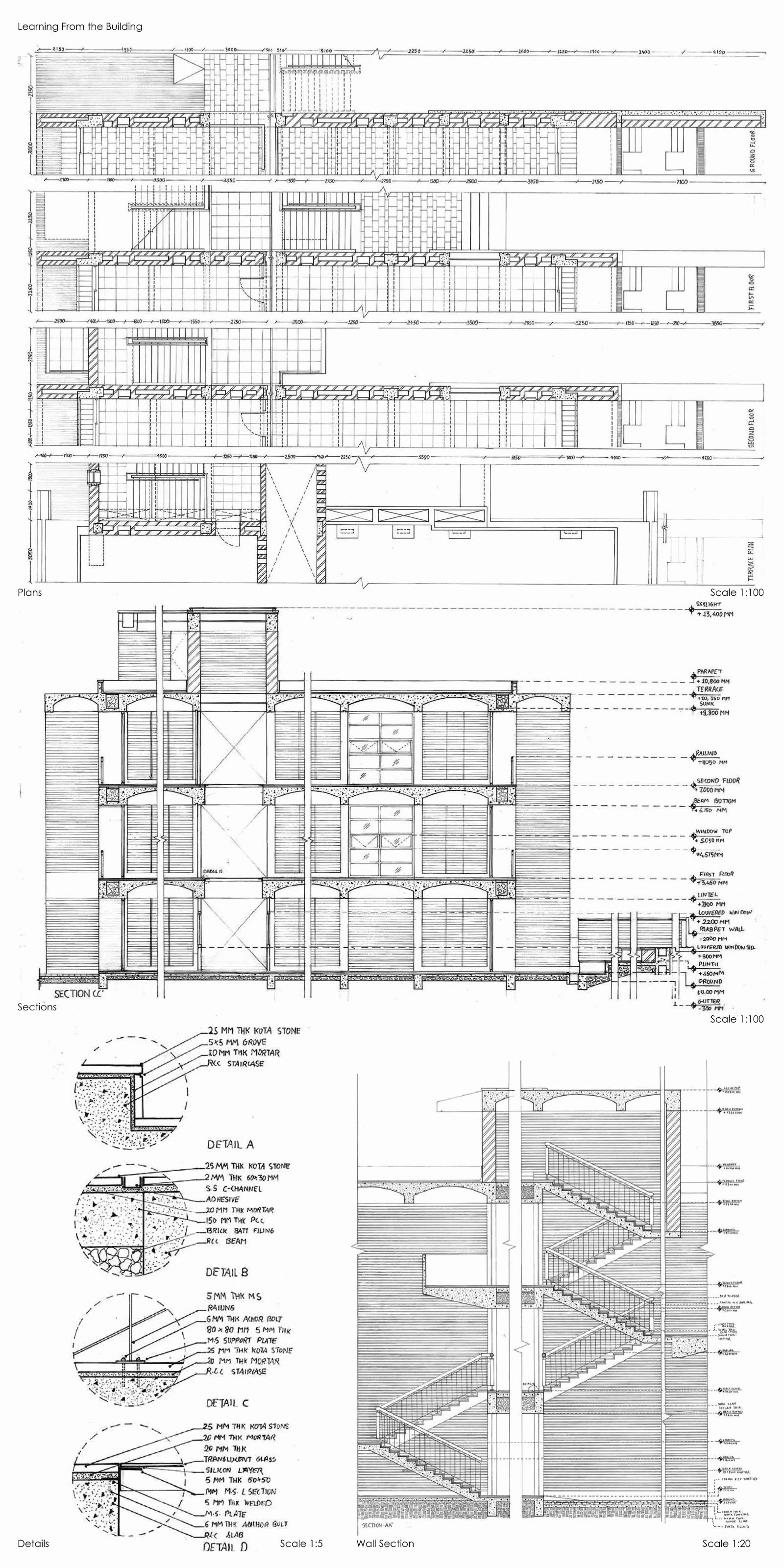

Measure drawings of CFP Building (Hand Drafted)

Creating a model and visualizing the building based on working drawings

Design Process

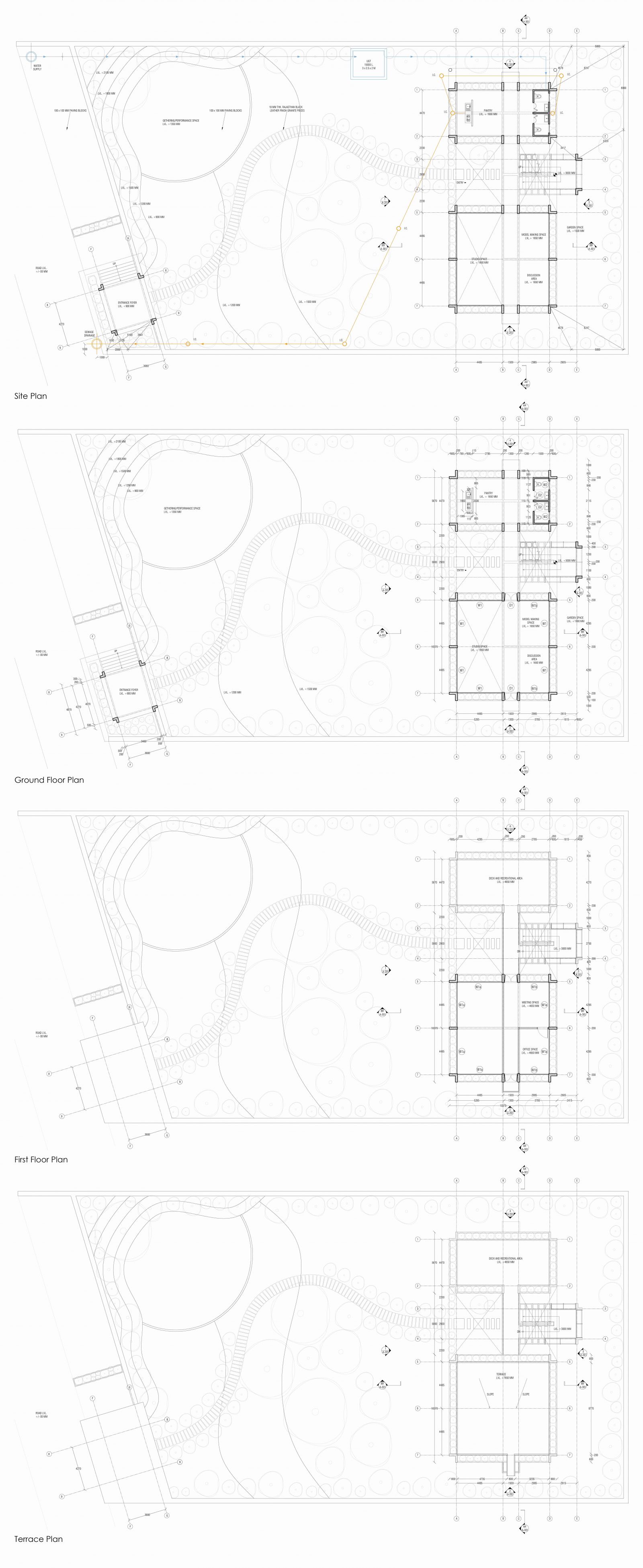

Final Plans

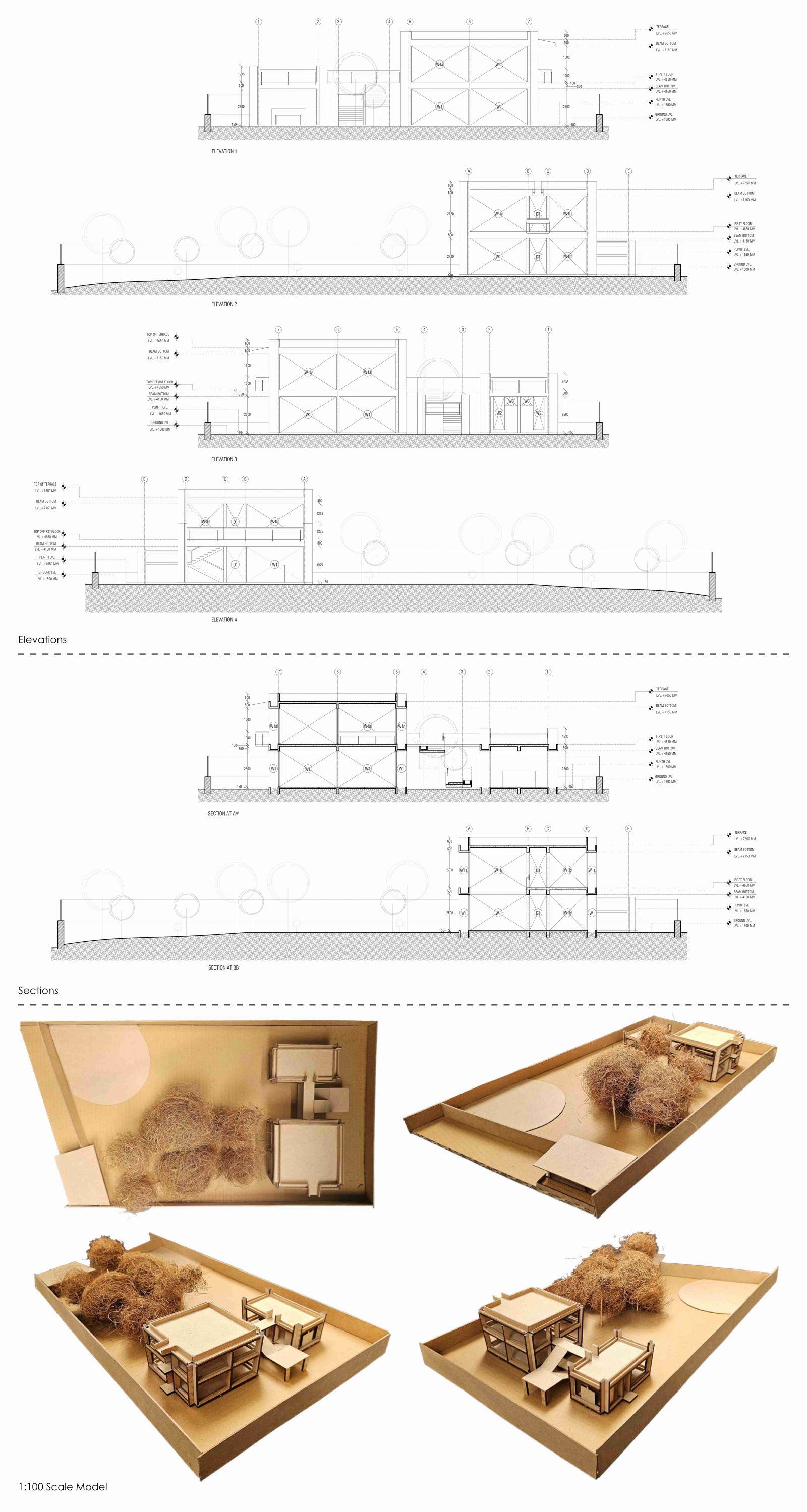

Elevations, Sections and Model

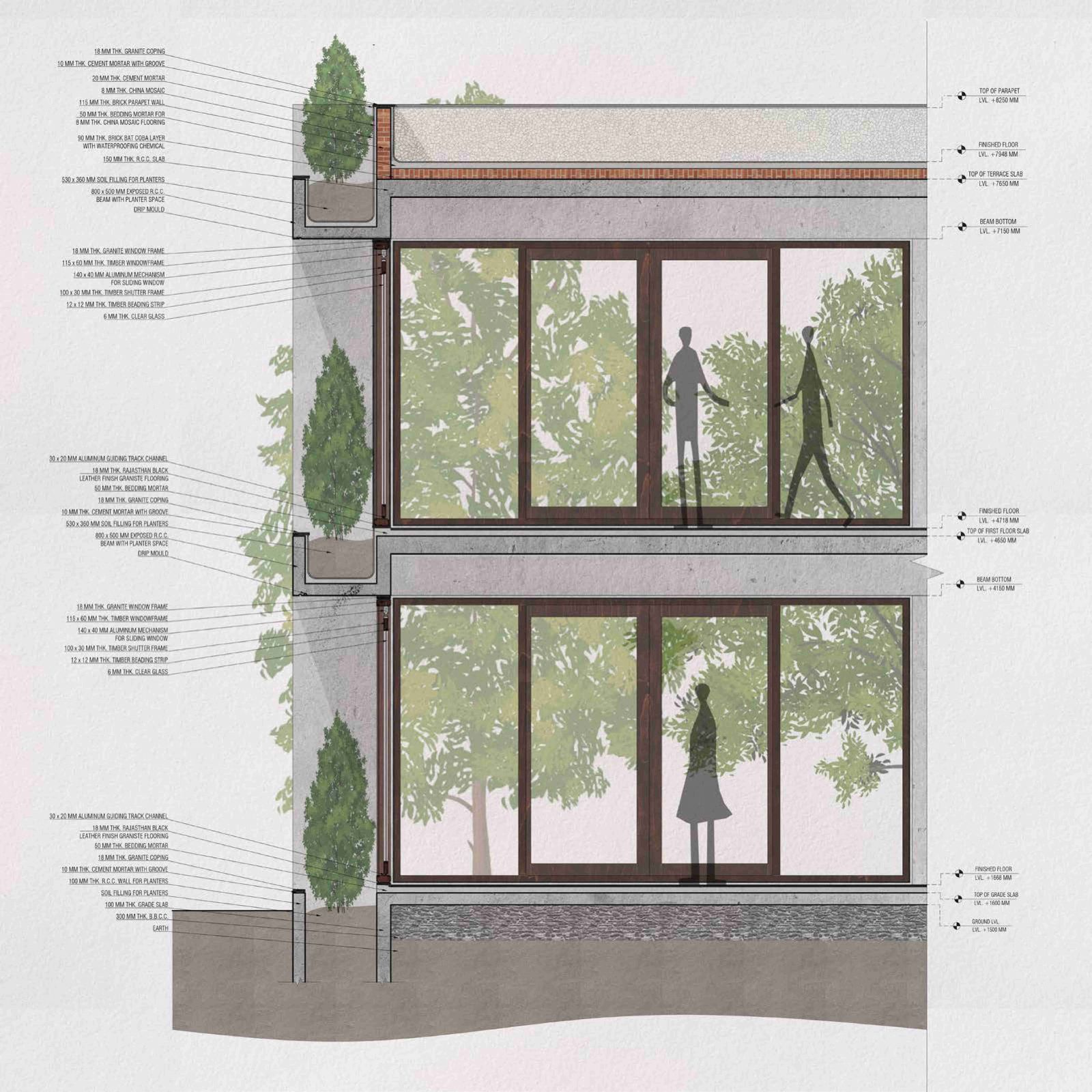

Wall Section

Staircase Detail

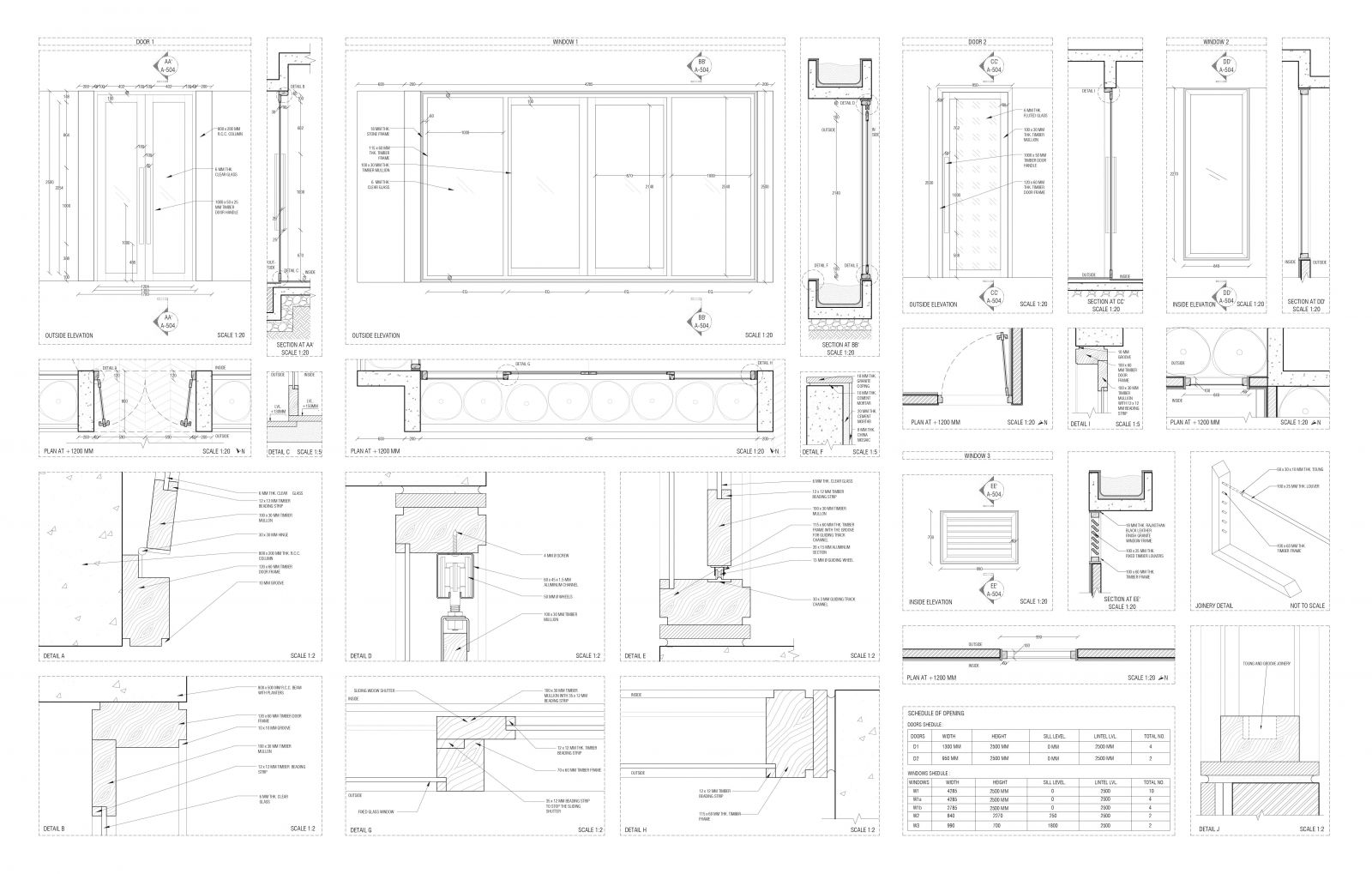

Door-Window Detail

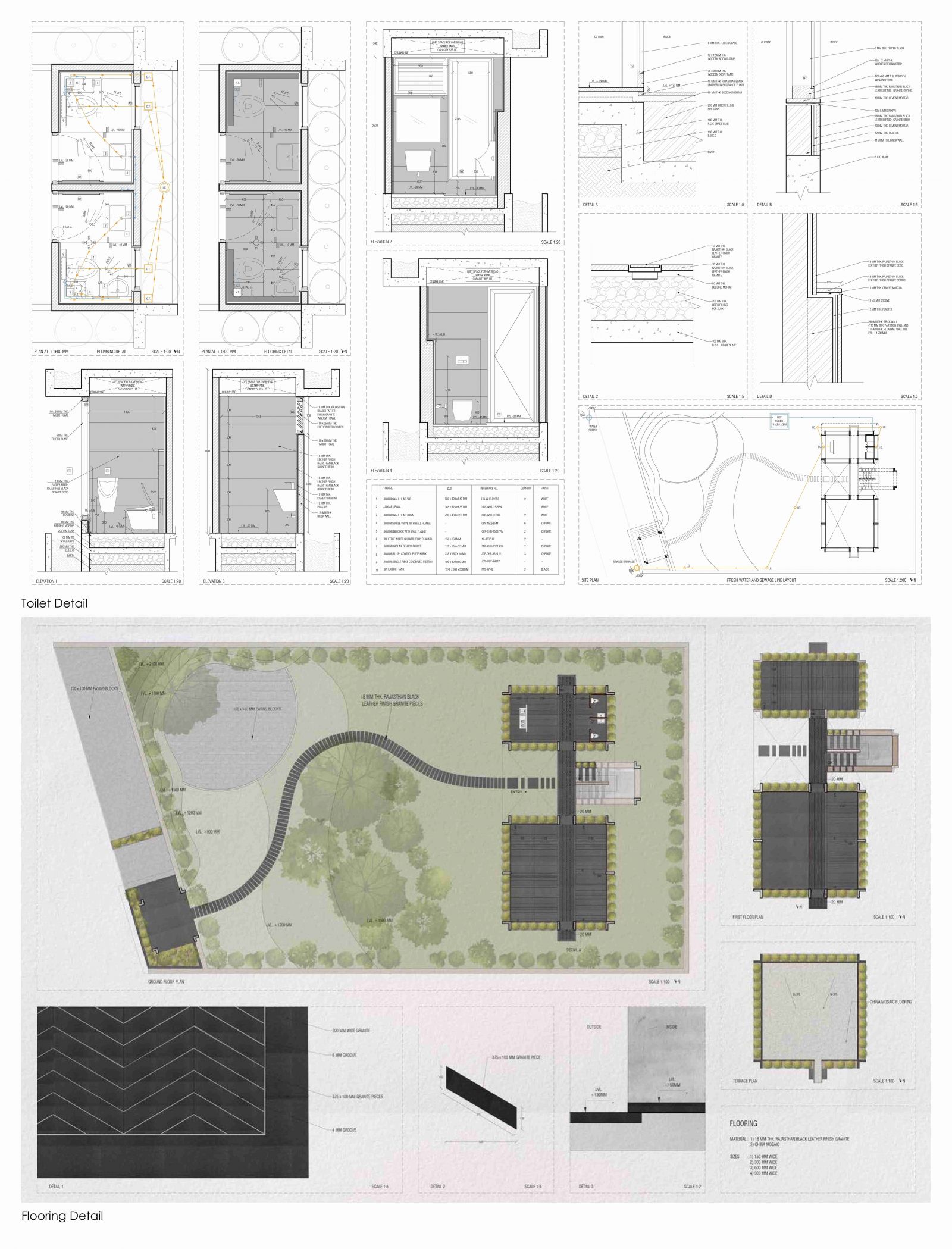

Toilet Detail and Flooring Detail

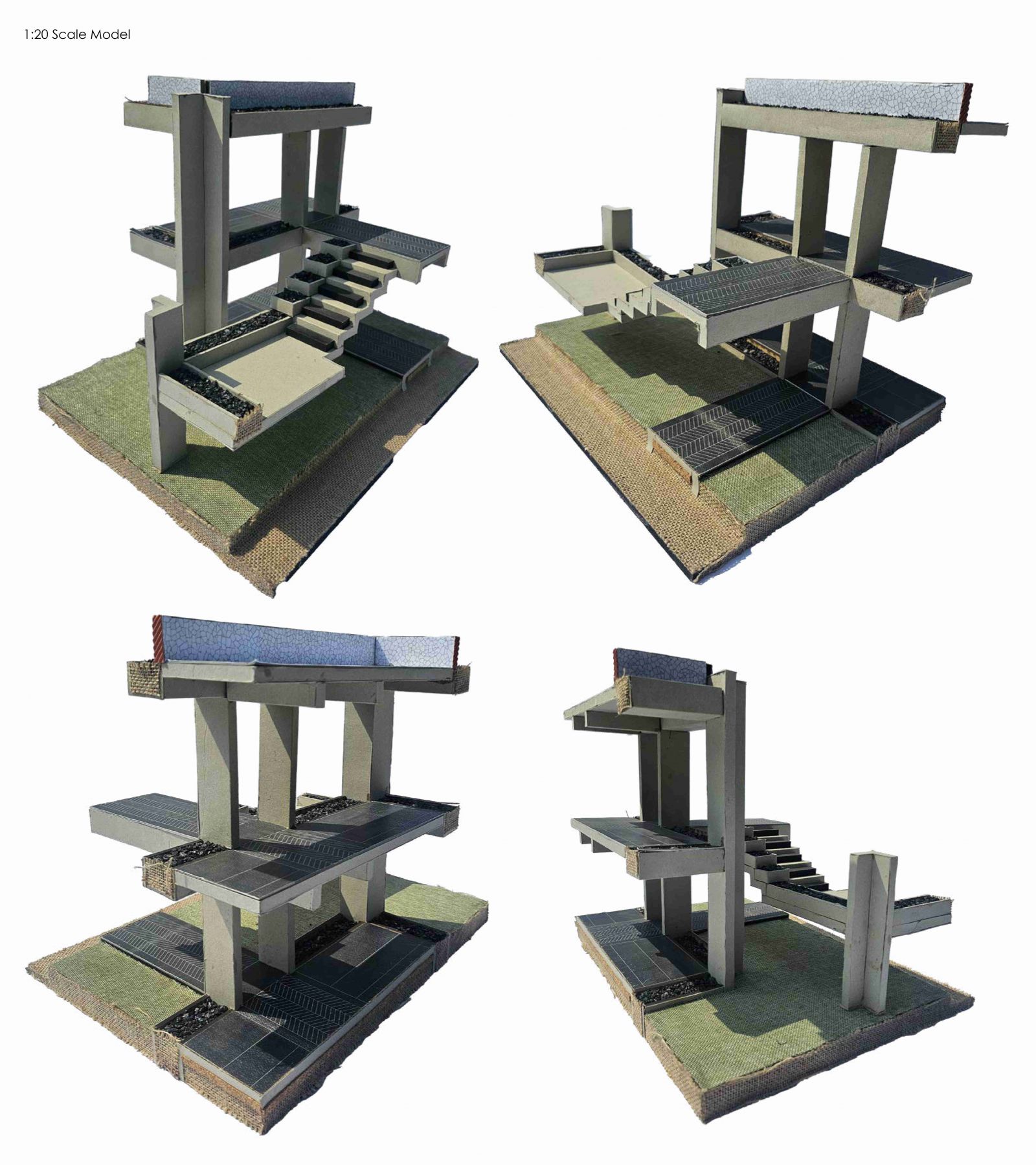

1:20 Scale Model
