VERDANT RETREAT

Verdant retreat is a sustainable archival centre in Mandu, driven by the system based design approach, where sustainability is a guiding principle, incorporating the usage of energy - efficient systems, play of light as a system. The design approach is predominantly driven by systems and sustainability, which is what it aspires to be. The studio started with the case study of systems in buildings like Ronchamp Chapel and building upon these systems for deriving the final output in the archival centre project.


Report Content

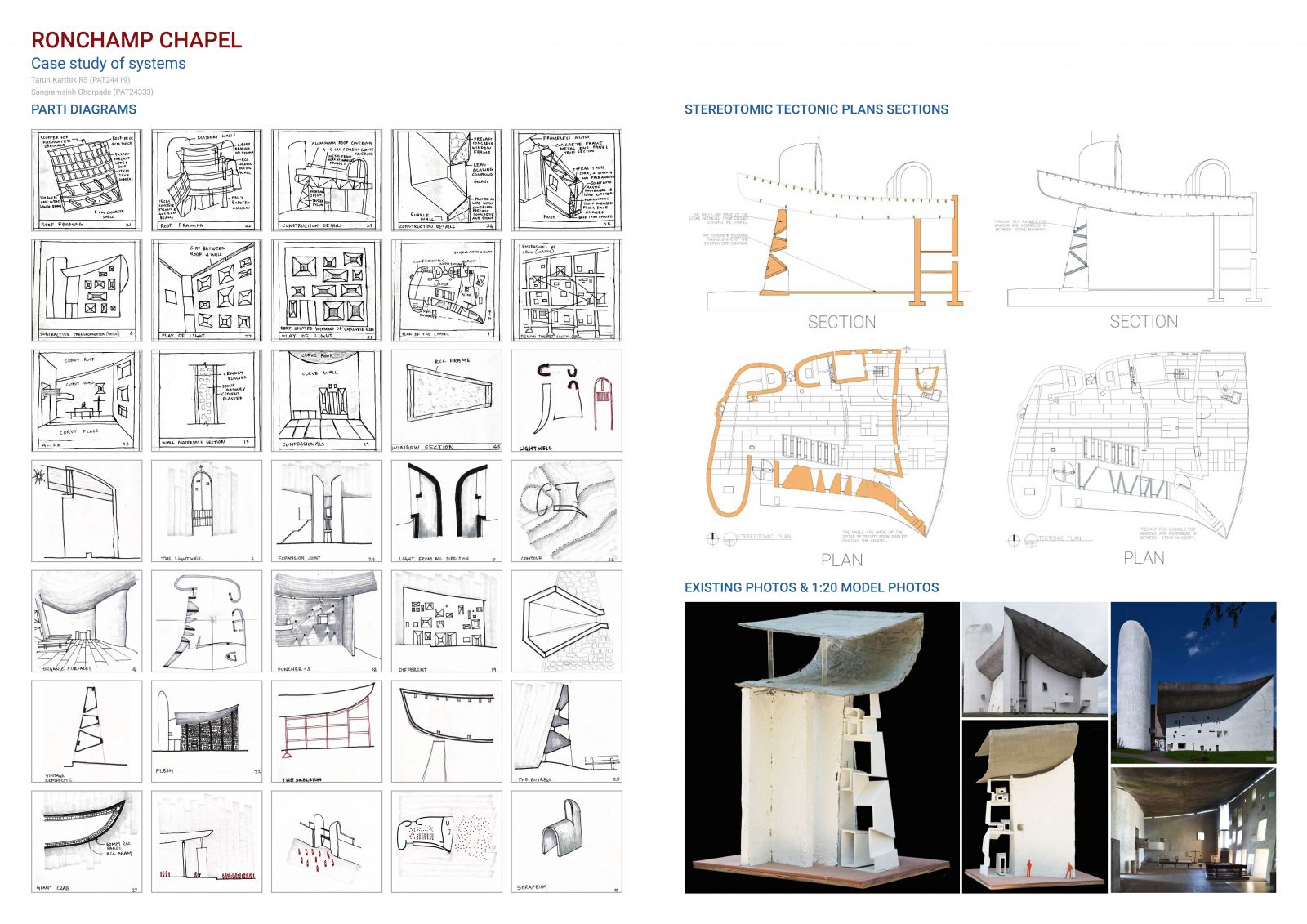

Case study of Ronchamp Chapel - Parti diagrams, Stereotomic Tectonic

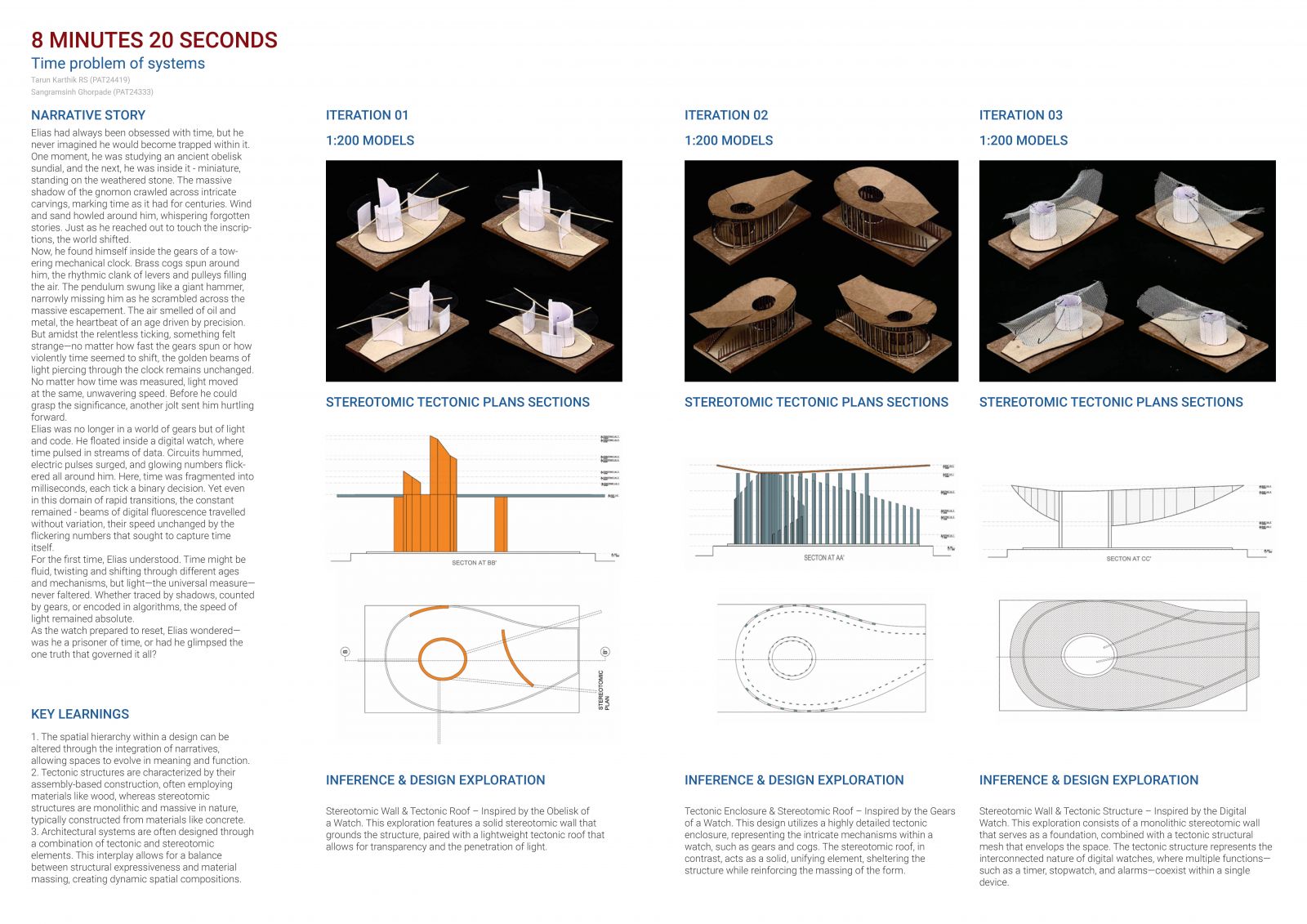

Time problem - Tectonic and Stereotomic

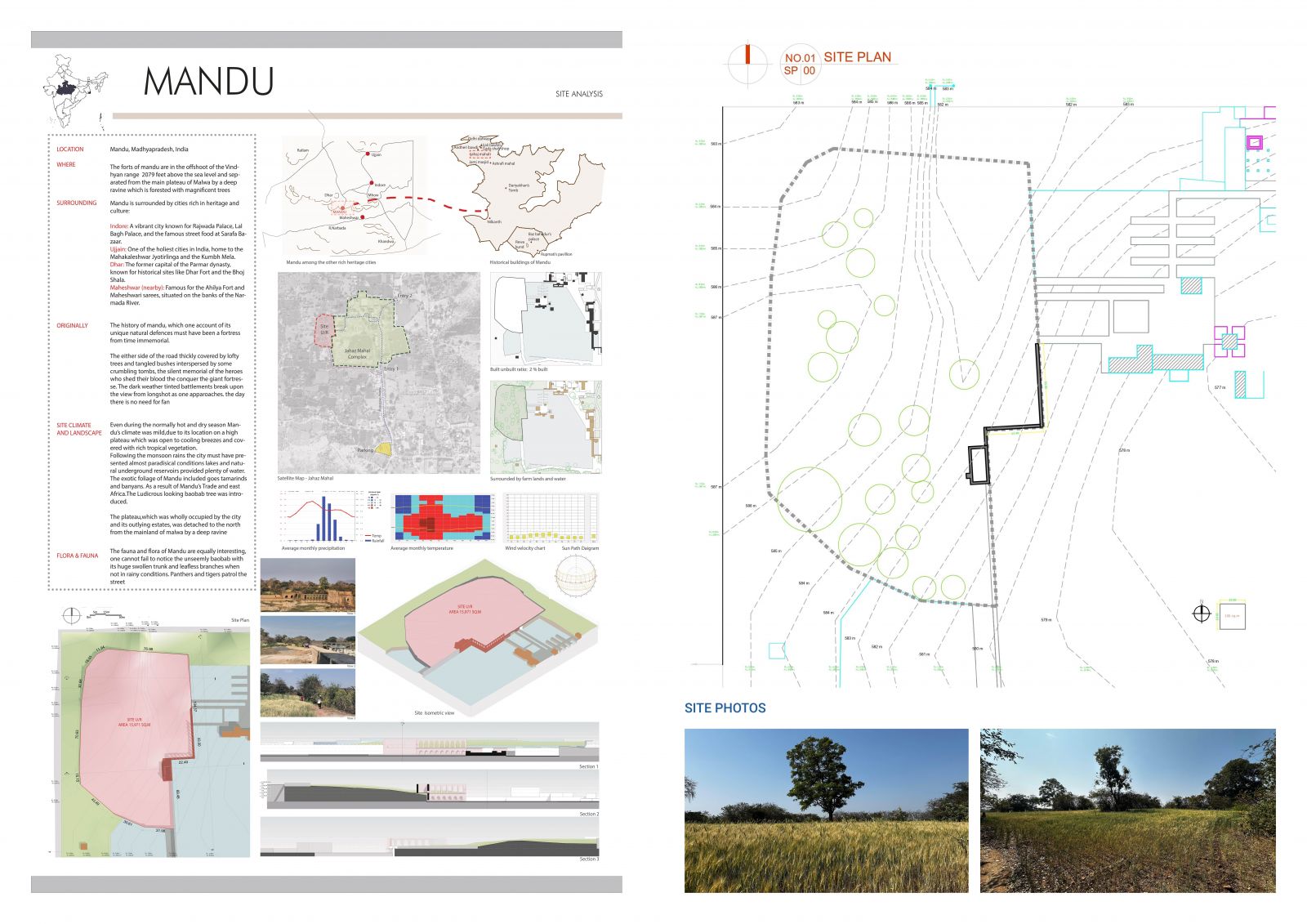

Site analysis and details

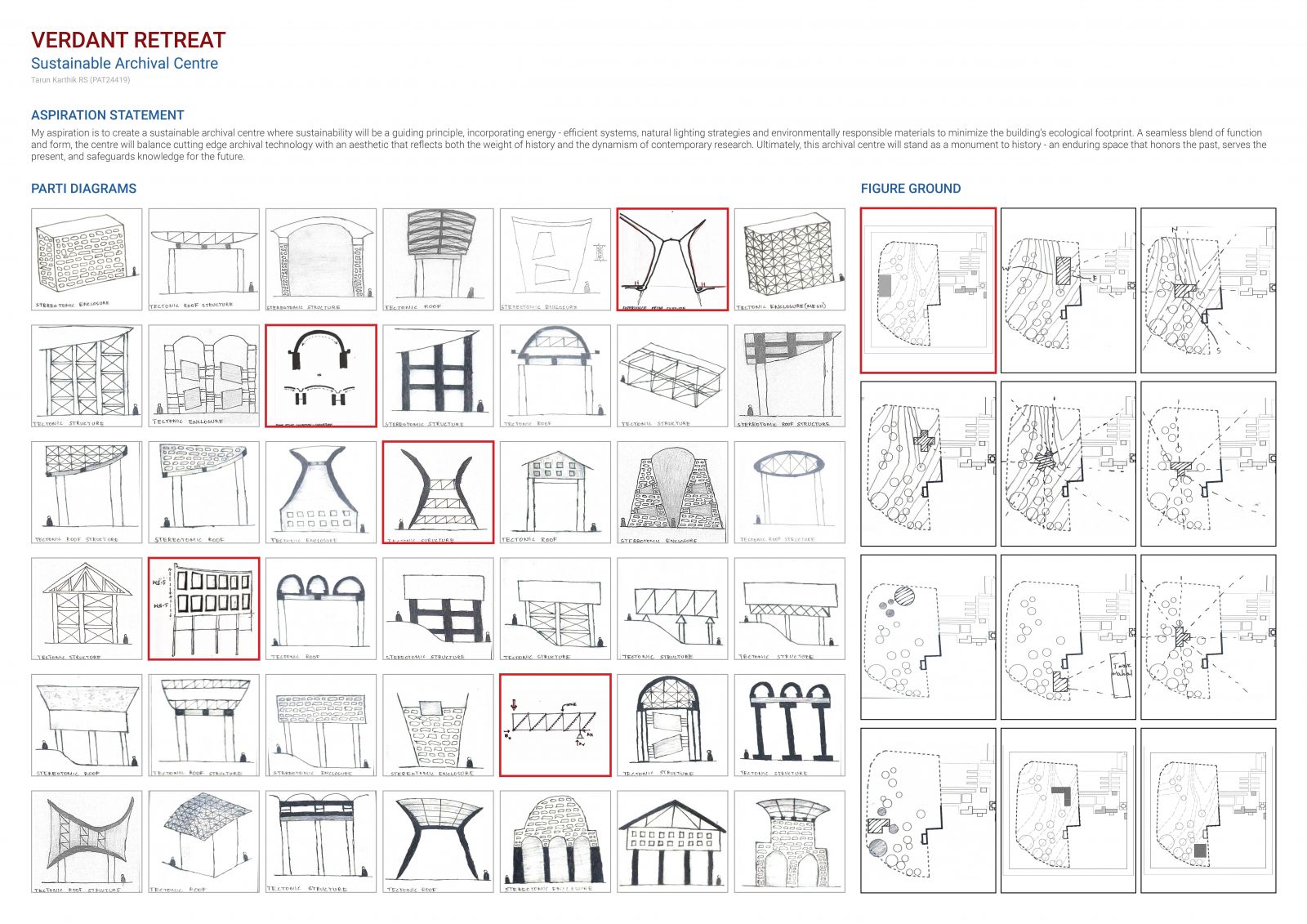

Design step 1 - Aspiration statement, parti diagrams, figure ground

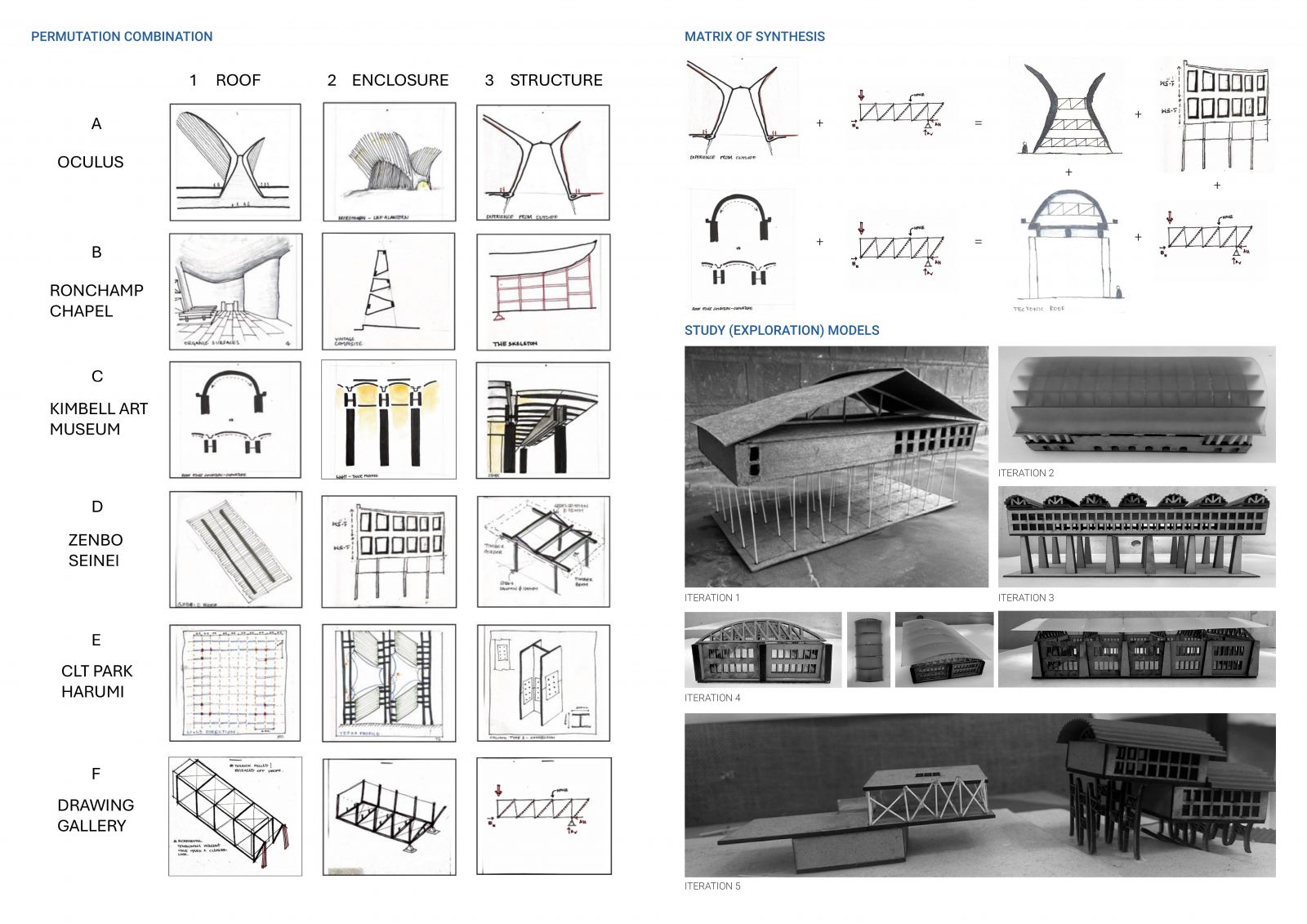

Design step 2 - Permutation combination, matrix of synthesis

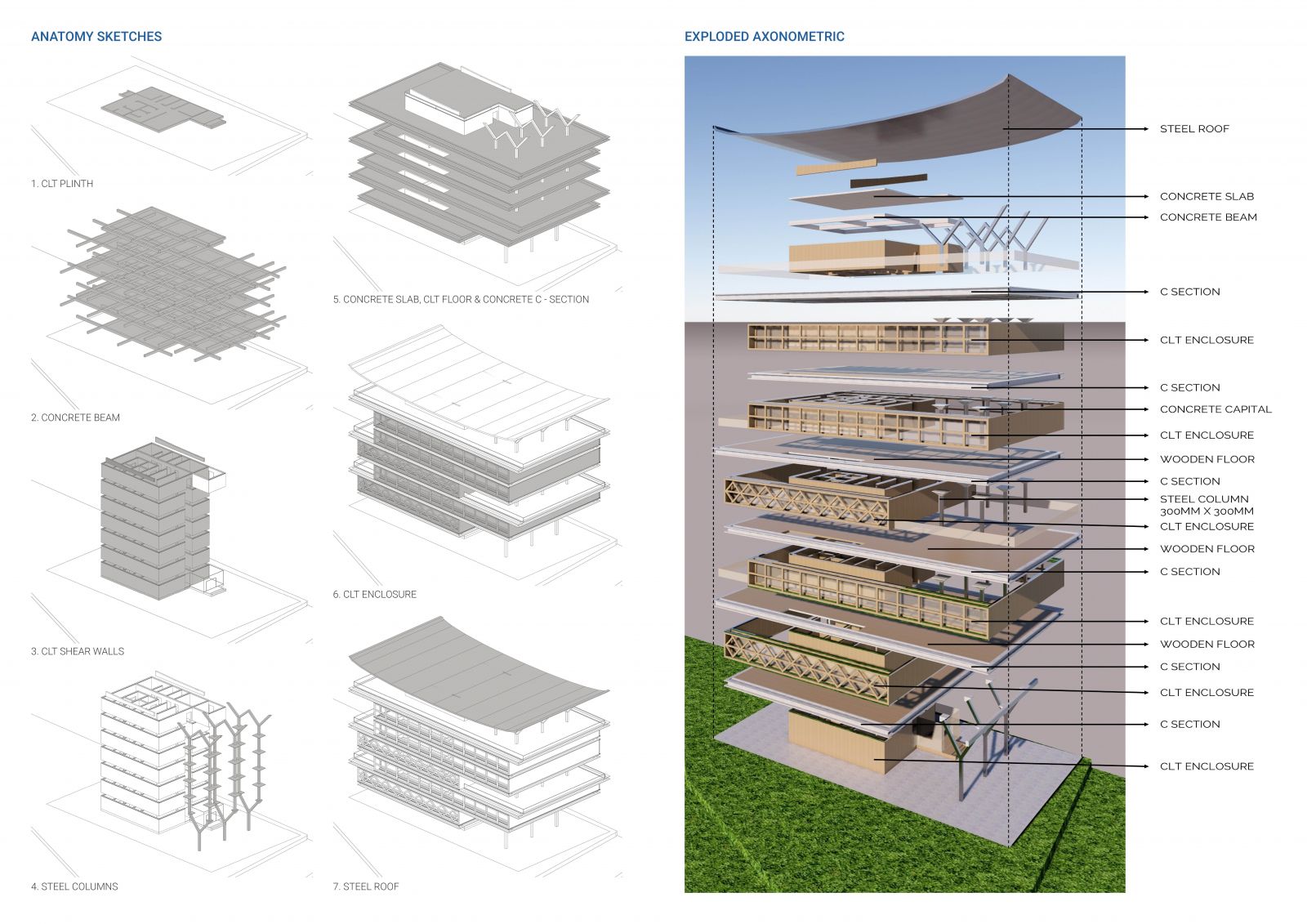

Design step 3 - Anatomy sketches, exploded axonometric

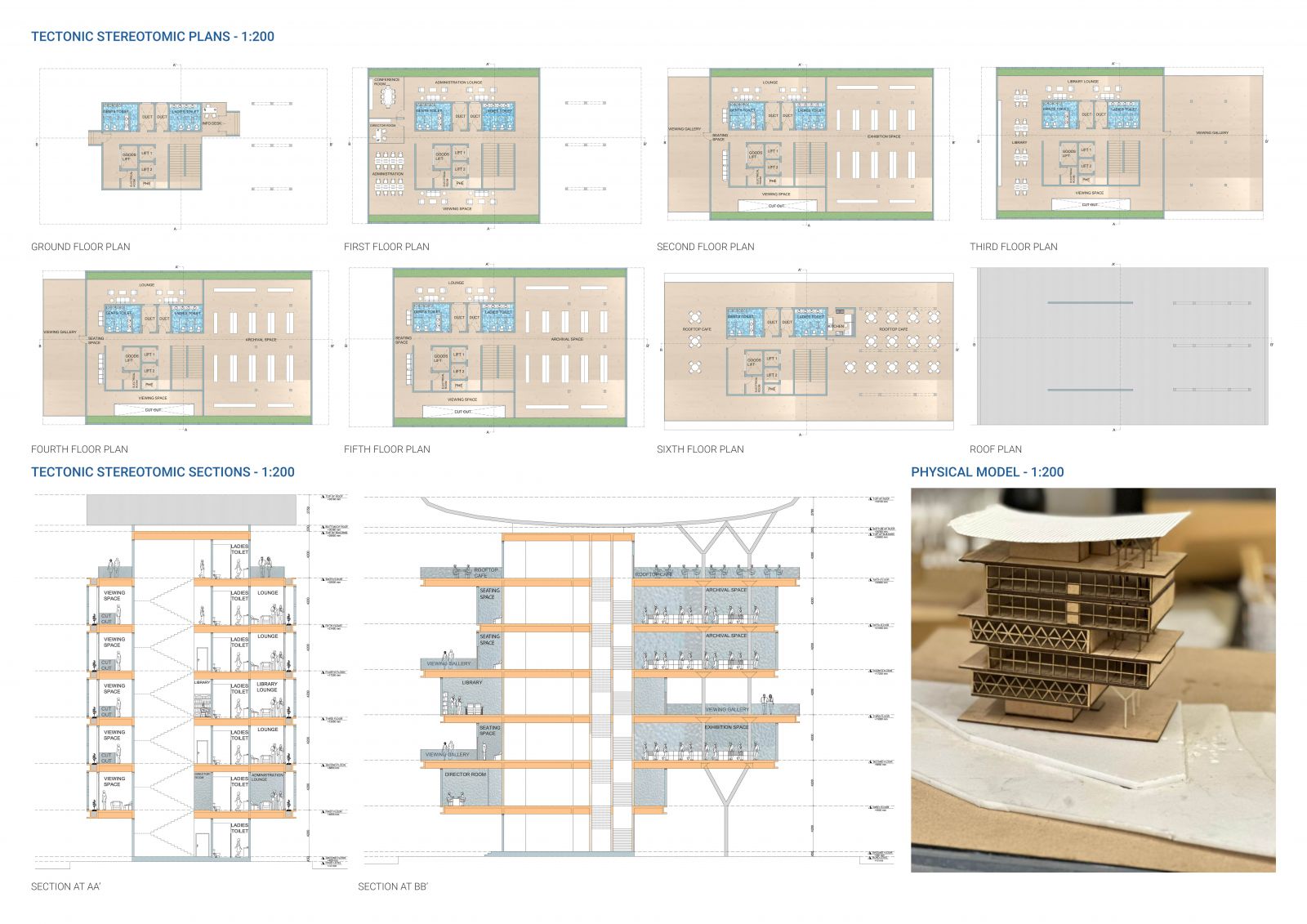

Design step 4 - Tectonic stereotomic plans sections 1:200 & 1:200 physical model

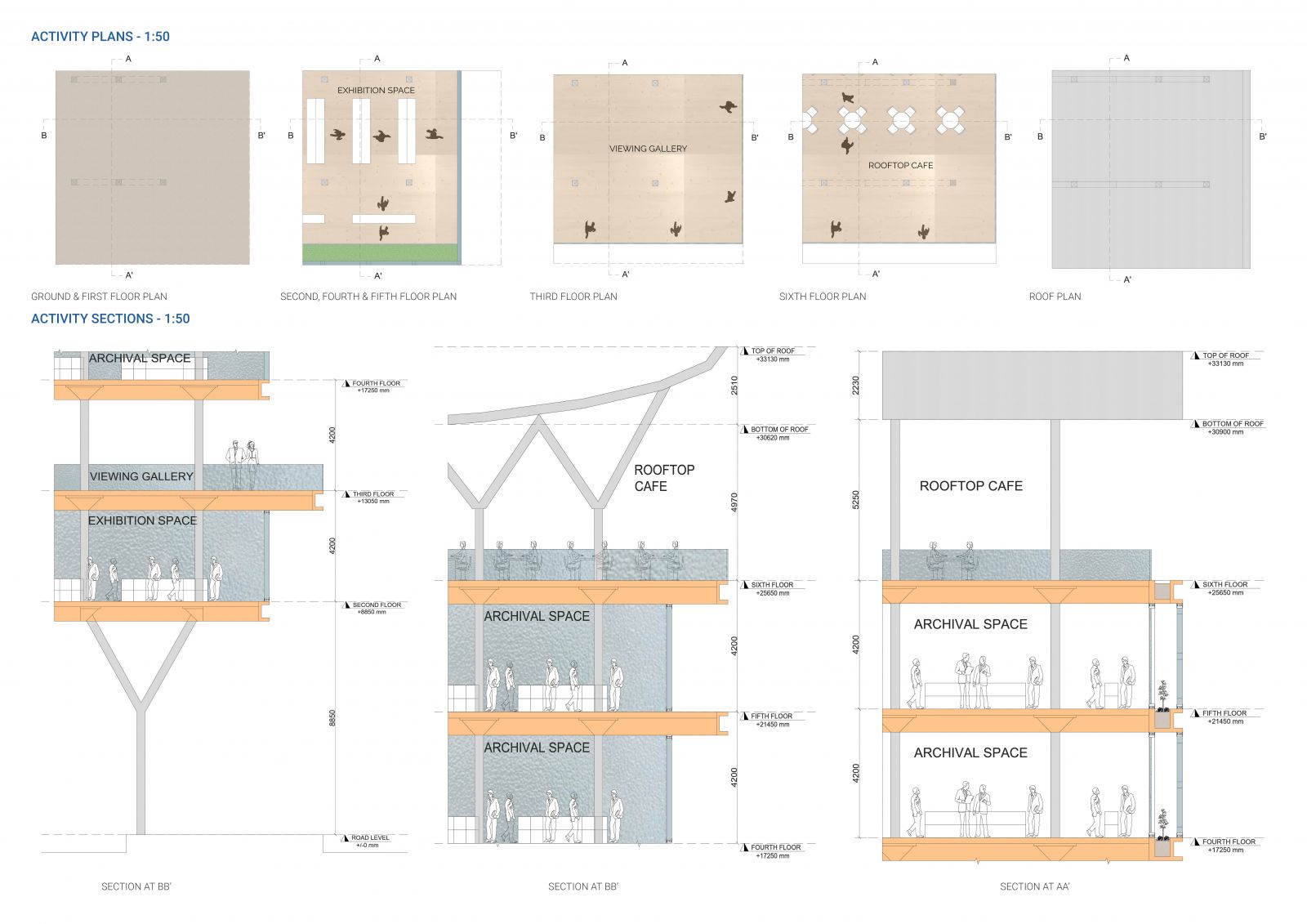

Design step 5 - Activity plans and sections in 1:50

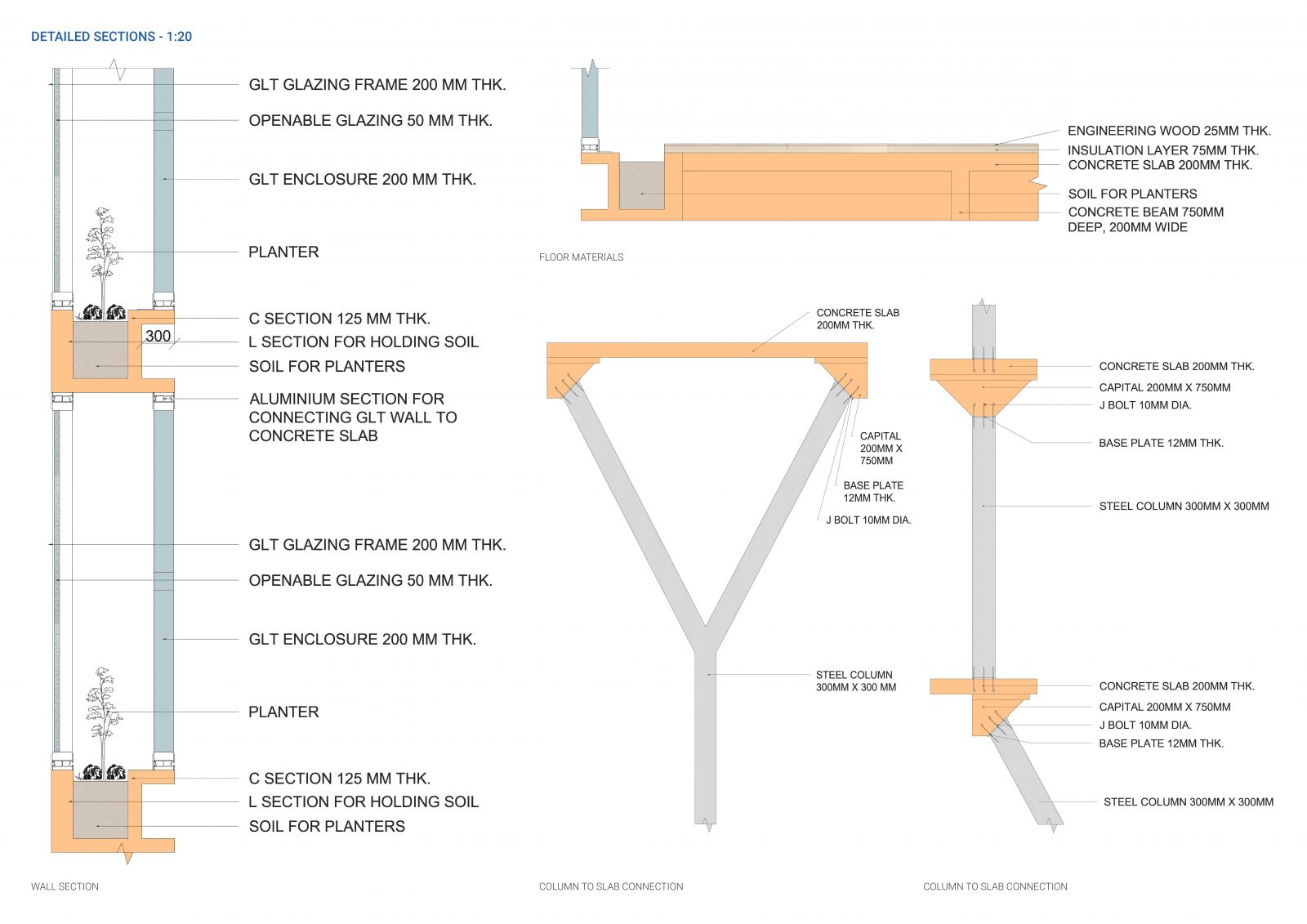

Design step 6 - 1:20 detailed sections

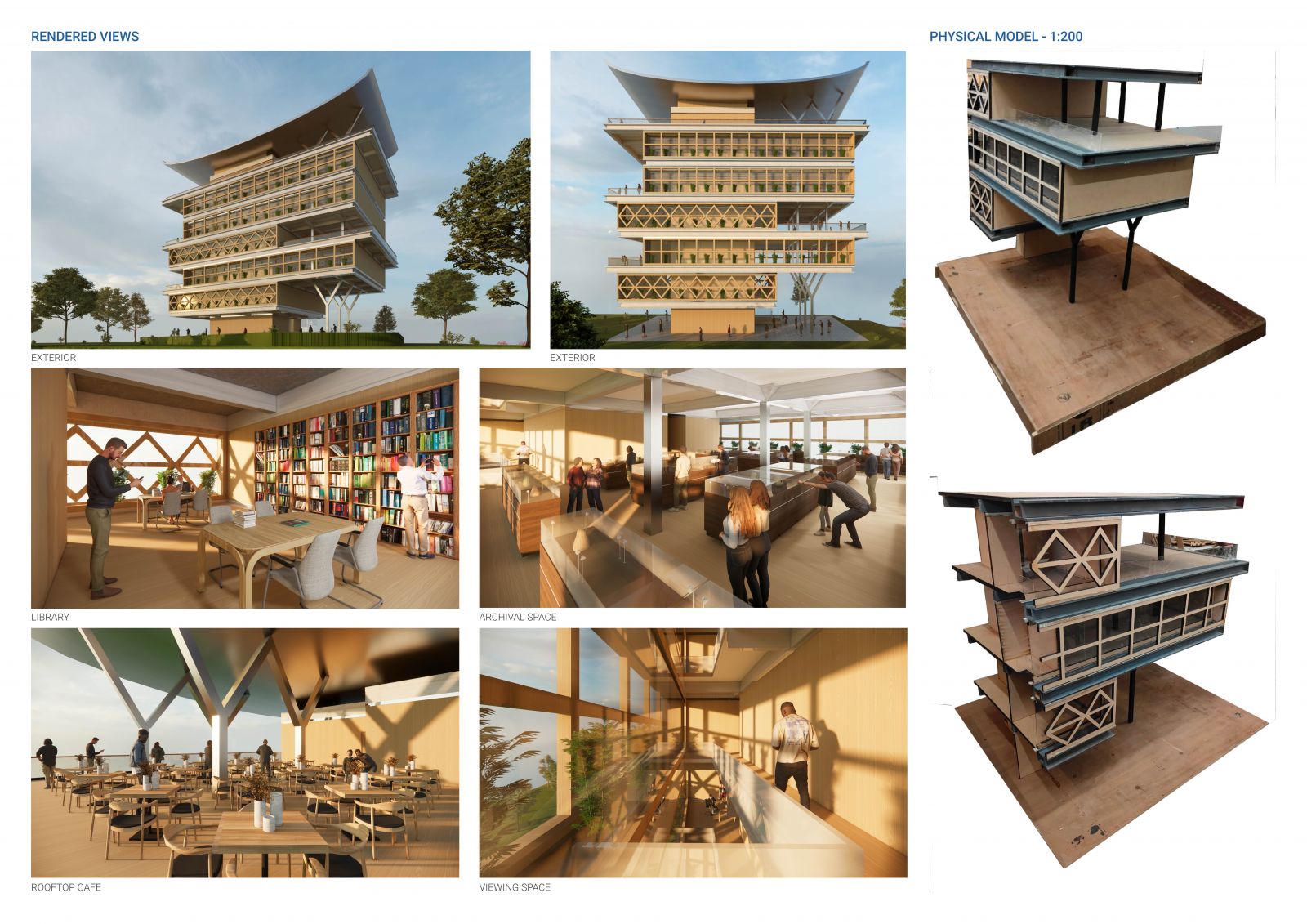

Design step 7 - 1:20 physical model, rendered views
