Sruthi Rose

HD4009

Shelterscape- A New map for Homeless shelter

The role of the government and NGOs is to be mentioned in terms of homeless shelters. There were frequent visits by the officers, and maintenance of these shelters was always to the point. But there is always an overflow of users at these homeless shelters, which shows the need for more such shelters in Ahmedabad, and thus, the need for more locations. This is where my proposal comes into play, where the metro infrastructure is there throughout the city, the space already exists (thus no need for converting the land use), it’s closer to most of the Nakas, accessible to the city-level infrastructures, and there is scope for further growth. Therefore, this proposal can be a plugin that can be fitted in-between the span of two pillars of the metro bridge, irrespective of the location, throughout the city. This can also be implemented in other cities where there is a space crunch and a need for homeless shelters.

View Additional Work

Report Content

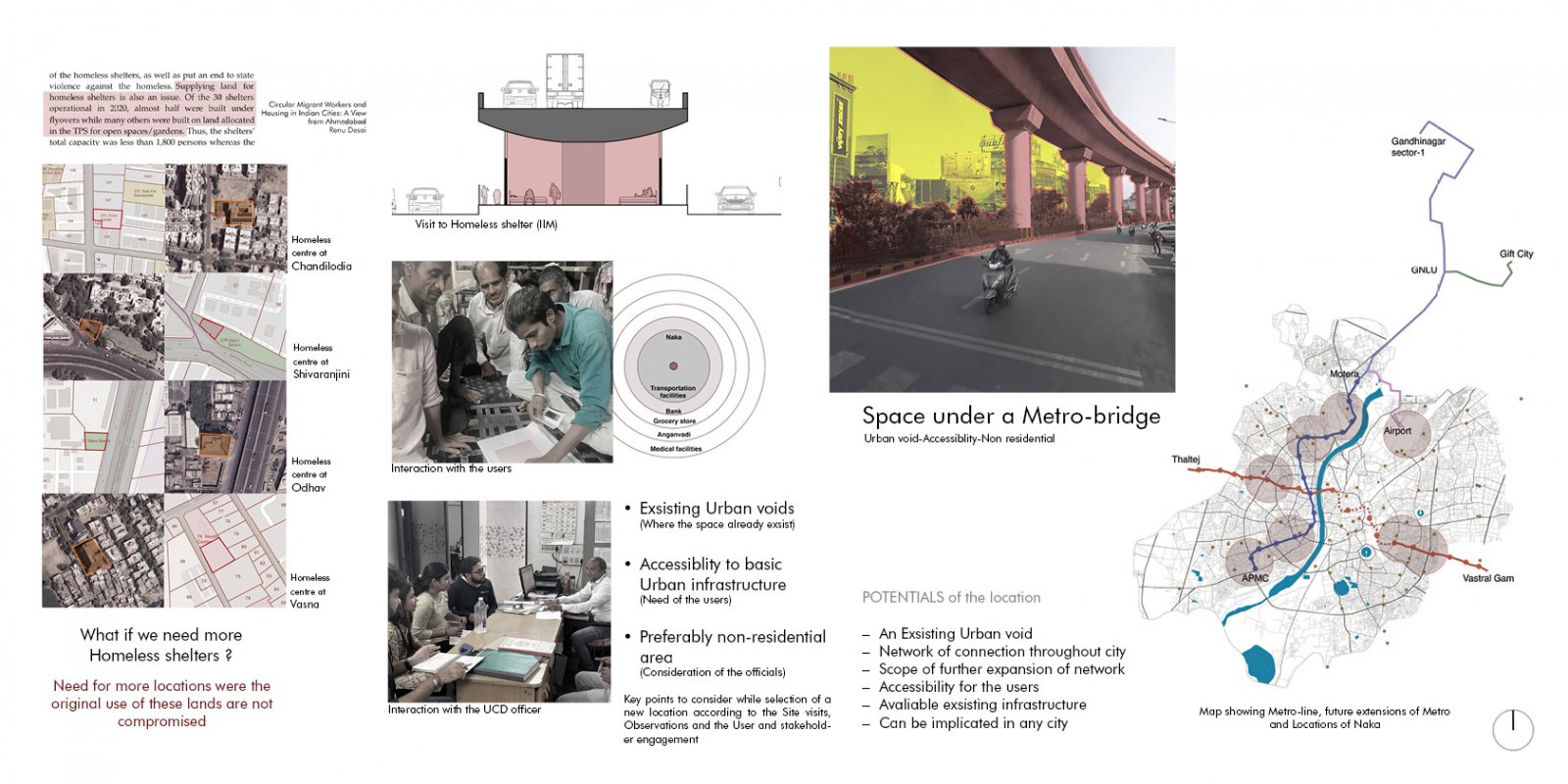

Existing sites for the Homeless shelter and Key points to consider while selecting a new location

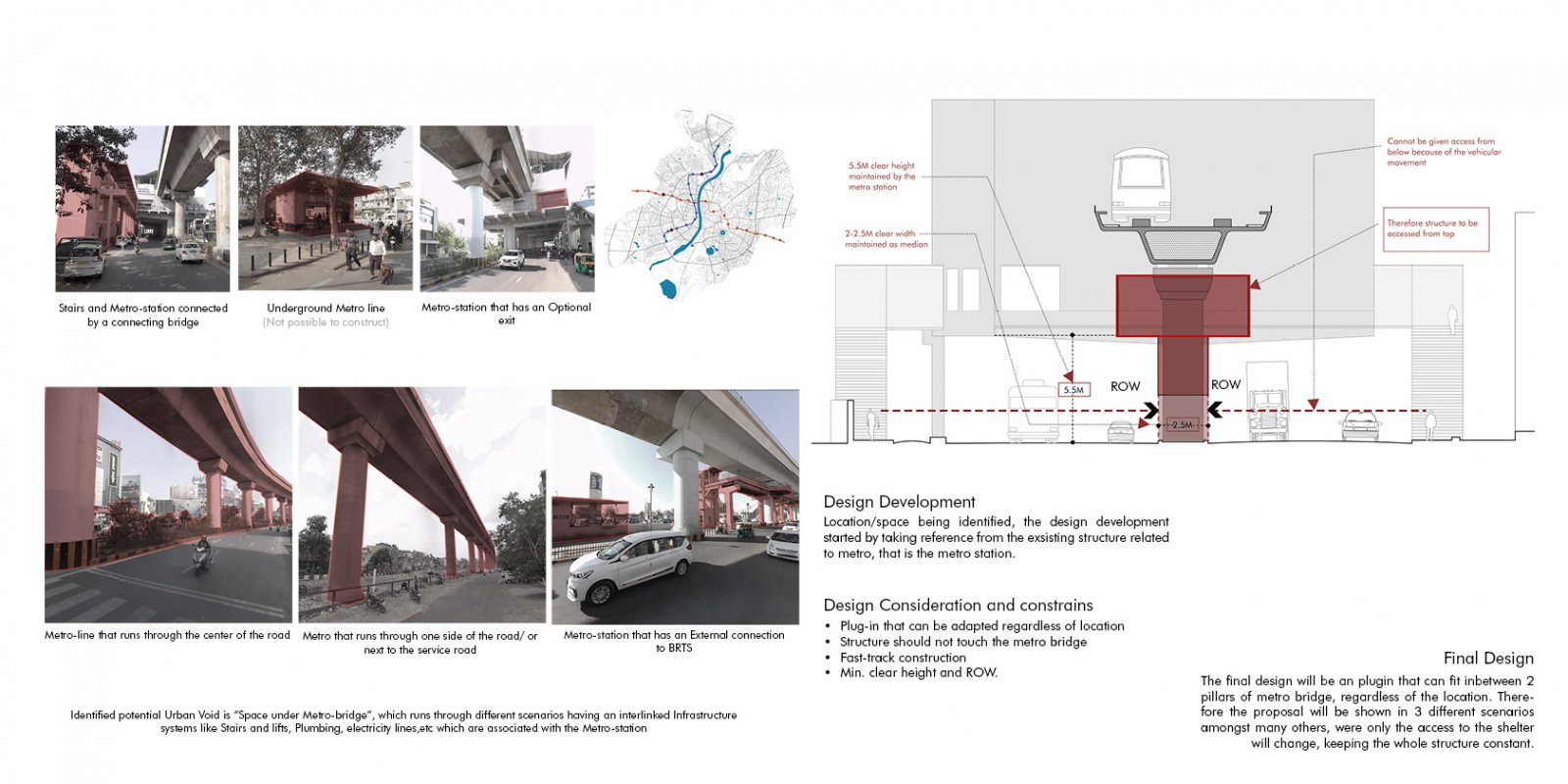

Identified the potential Urban Void - “Space under Metro-bridge”, and the design constraints regarding the same.

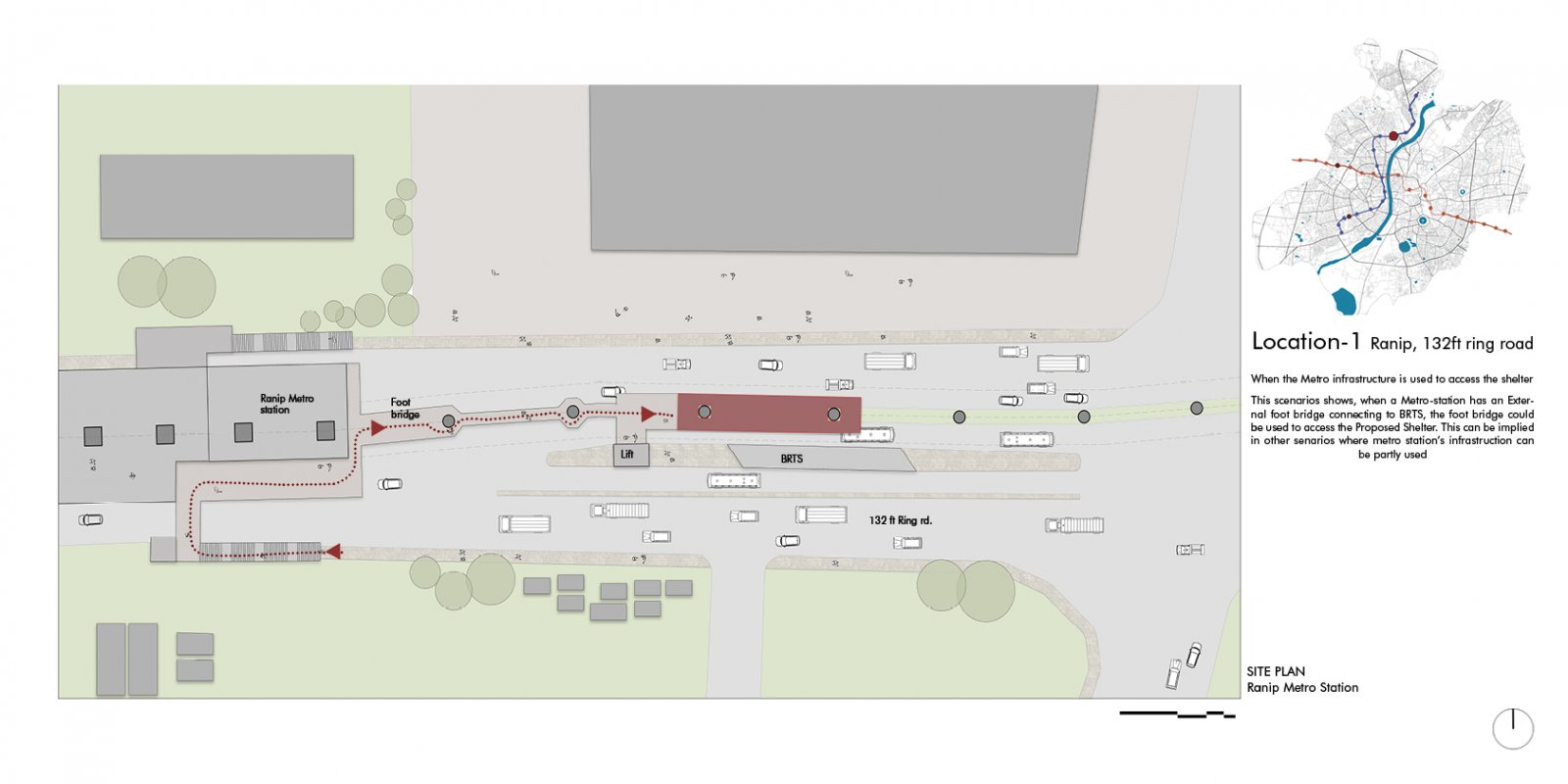

When the Metro infrastructure is used to access the shelter

Floor plans

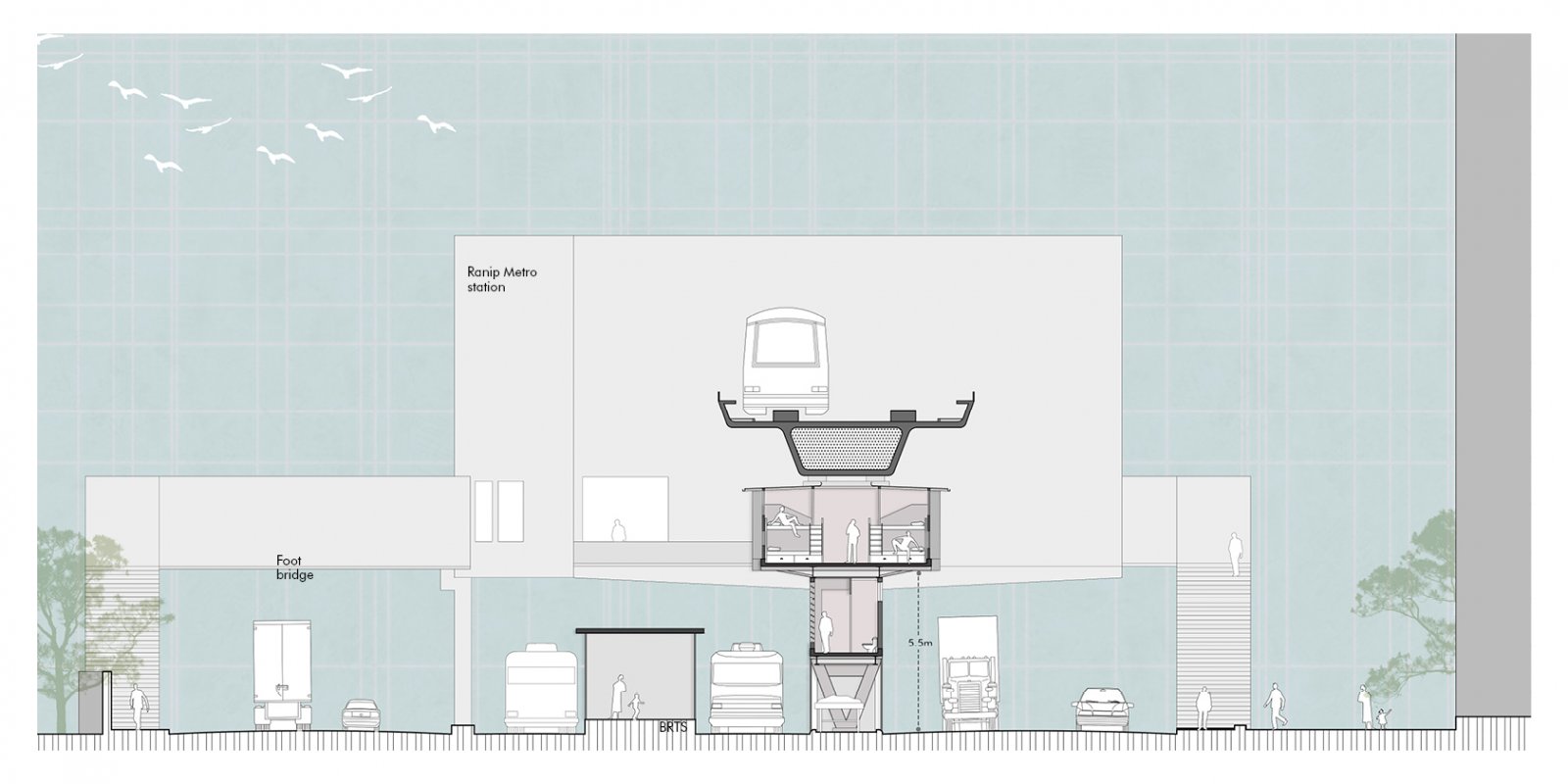

Section-1

Section-2

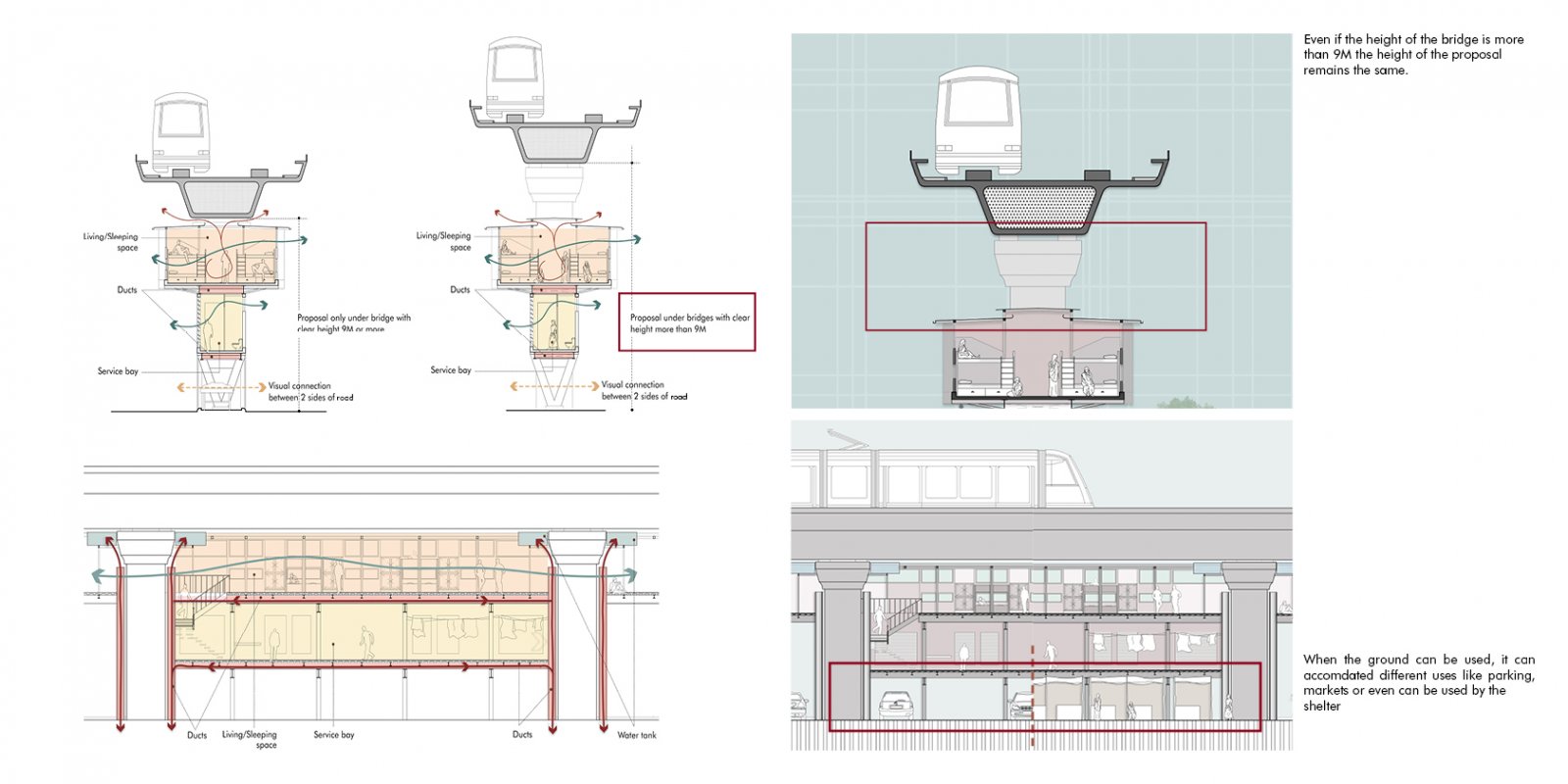

Working of shelter and shelter in other scenarios.

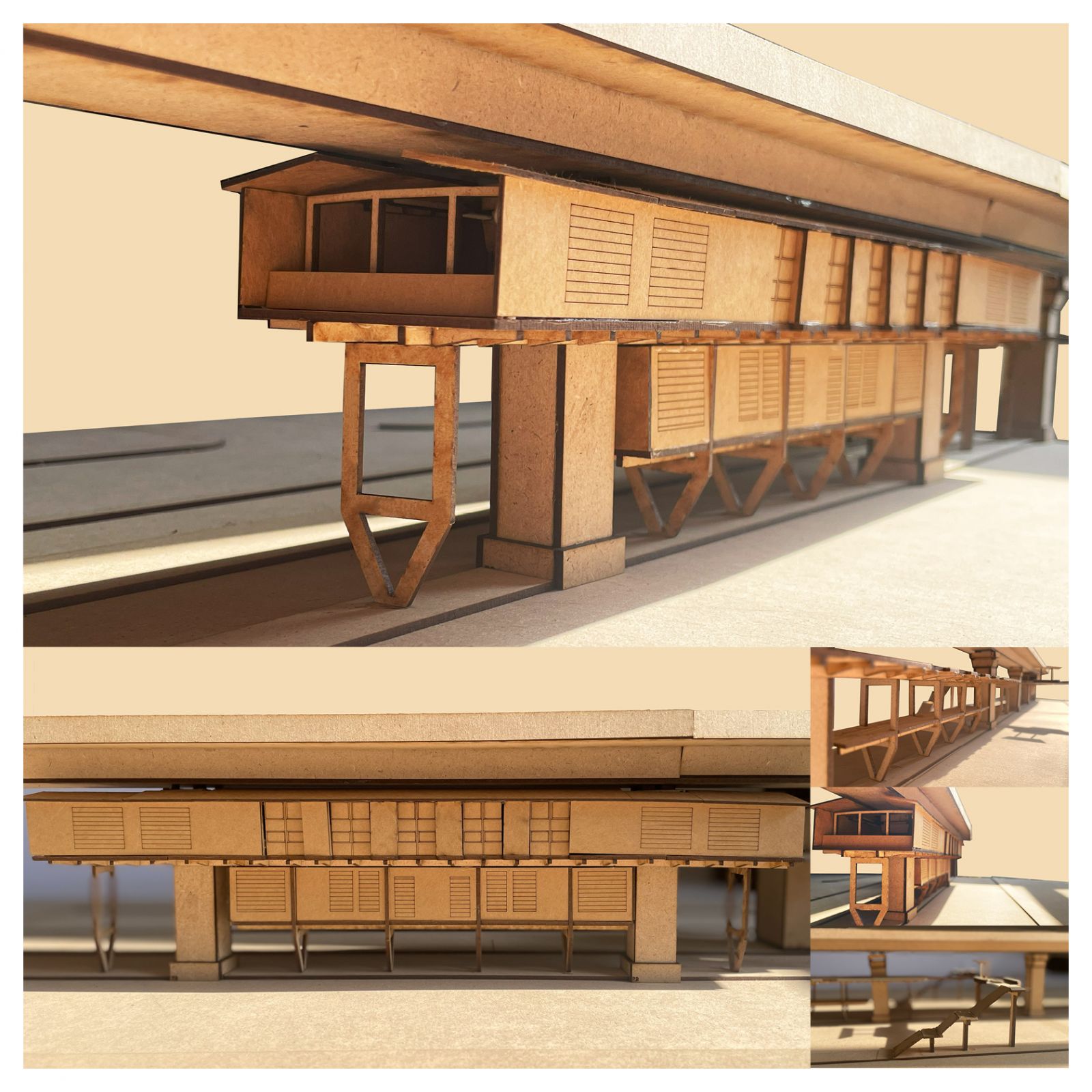

Physical Model

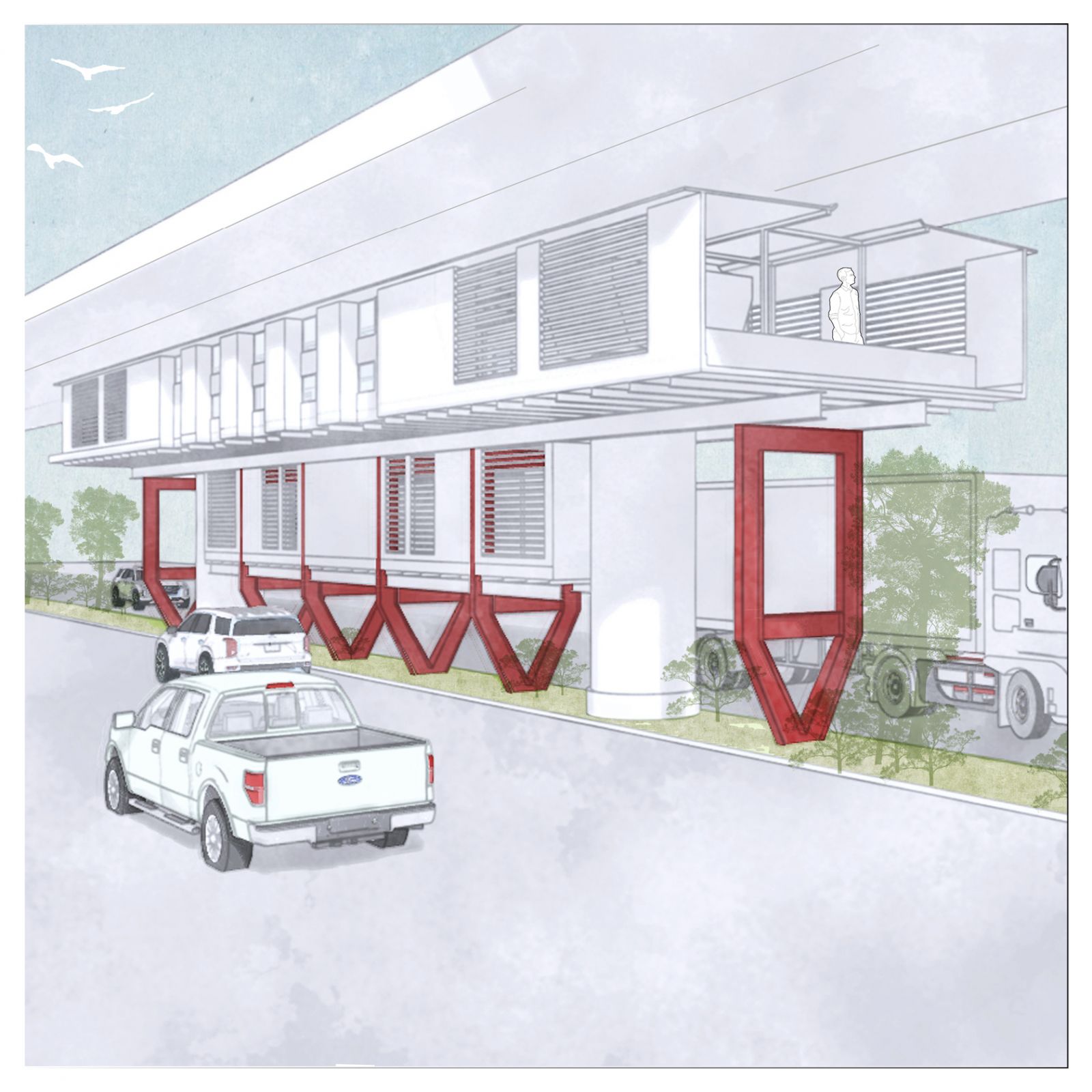

View
