Vadodaria Manasvi Tushar

HD4009

Women Centric Squatter: to provide accessible sanitation

Open defecation and bathing in a squatter is a neutral issue, however women face larger dangers while accessing them in squatter conditions which have no electricity and moral regulation. Location, accessibility and the challenge to maintain sanitation facility at a cluster level for women are the key points the mobile sanitation module tries to address. It is proposed that the potential of the unit to adapt itself into a space that promotes secondary source of income and into a space that nurtures their children will promote the users to maintain the sanitation module themselves. The exclusivity/ segregation of the module for female users is dependent on stakeholder’s finances however, the design decisions are taken keeping the spatial patterns of women in forefront.

View Additional Work

Report Content

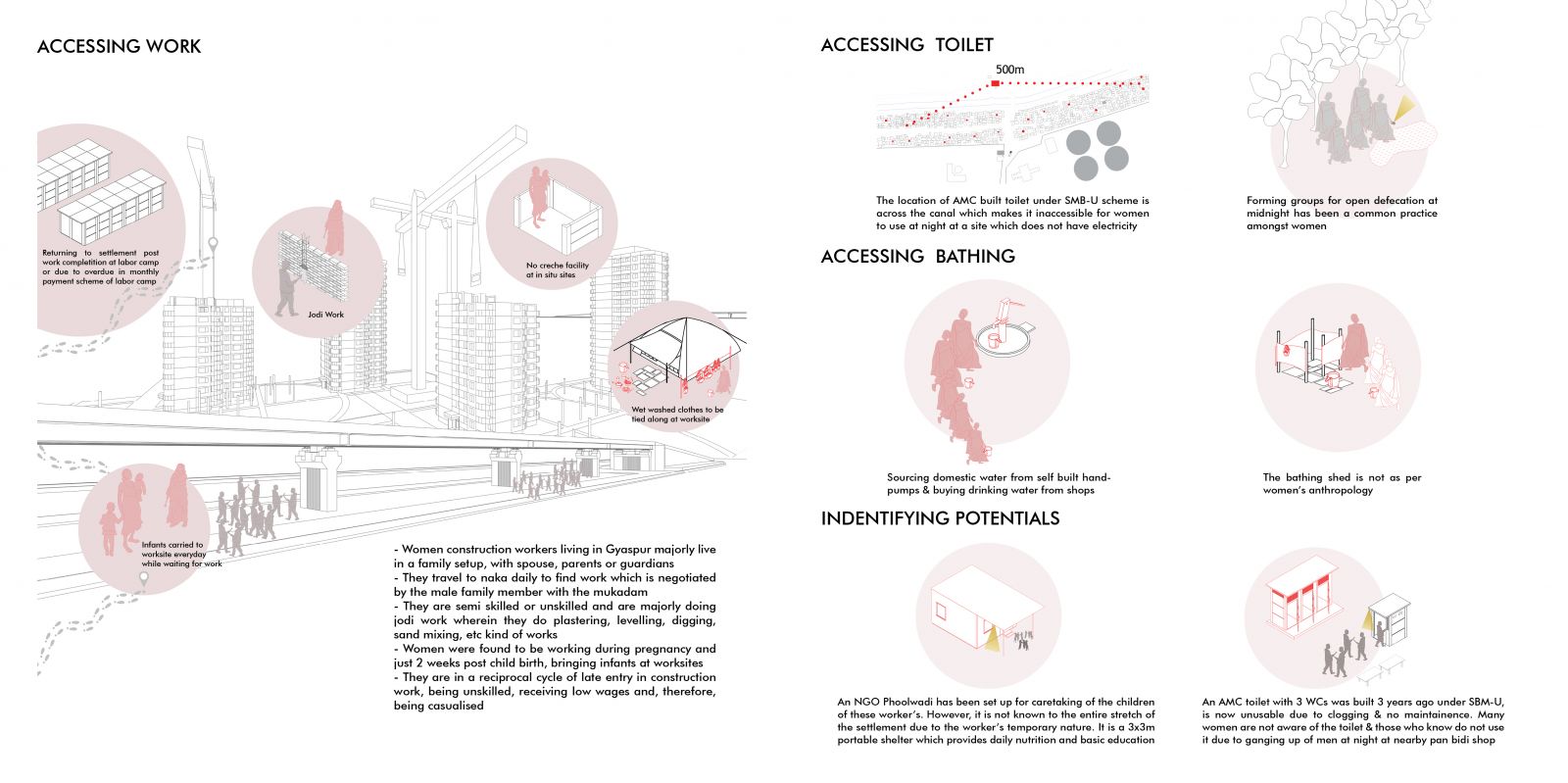

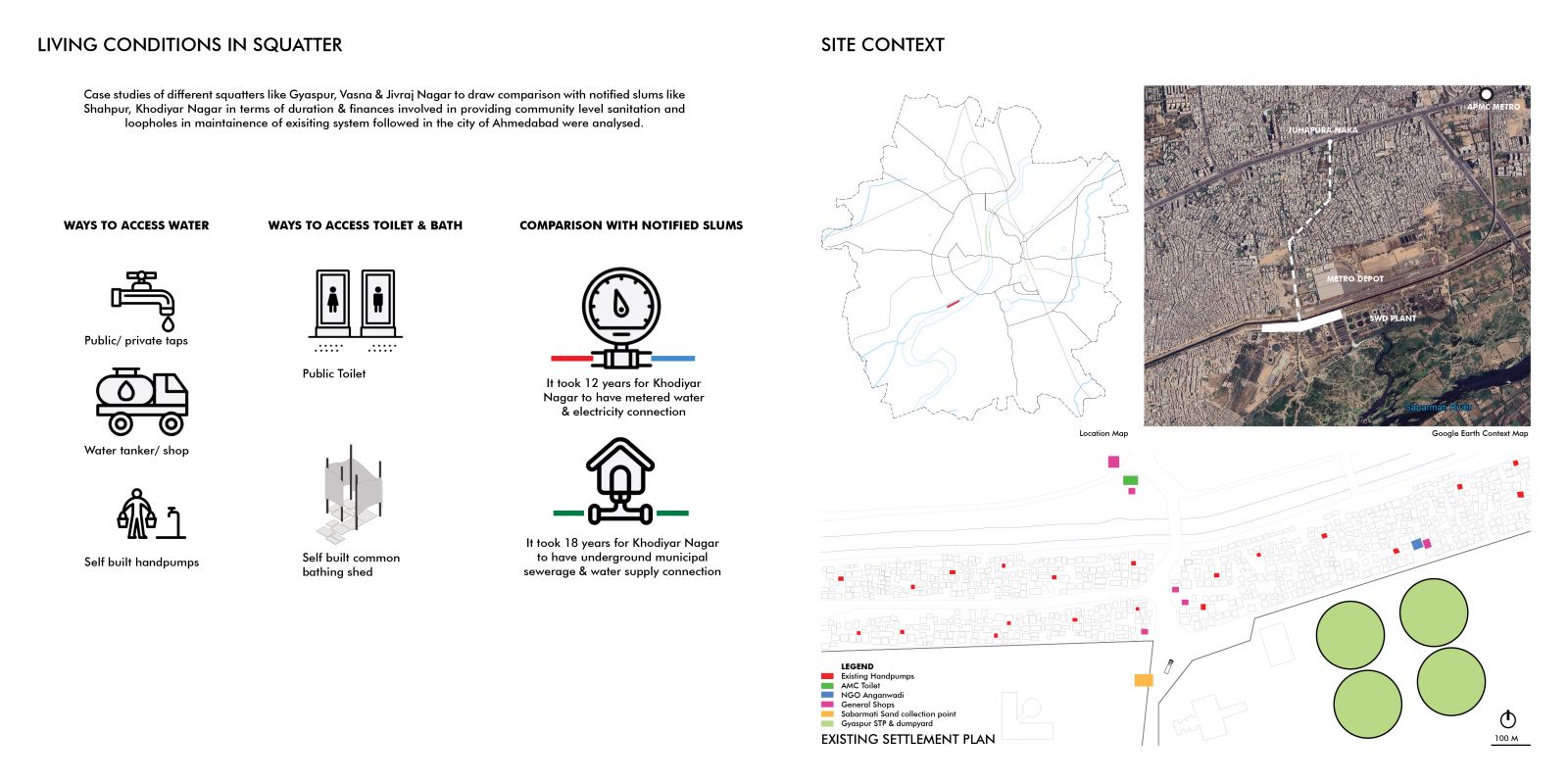

Site Context

Project Context

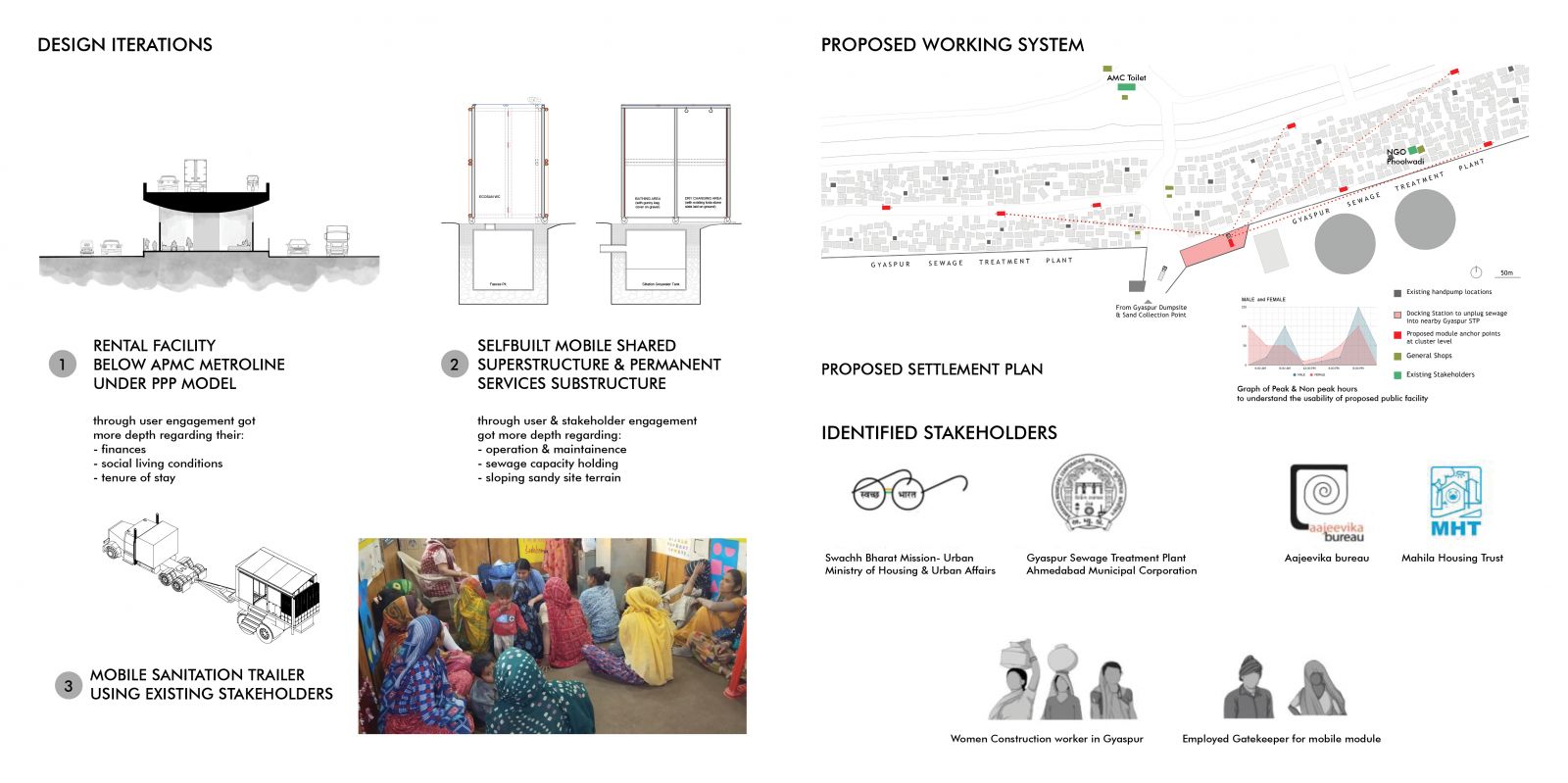

Design Strategy

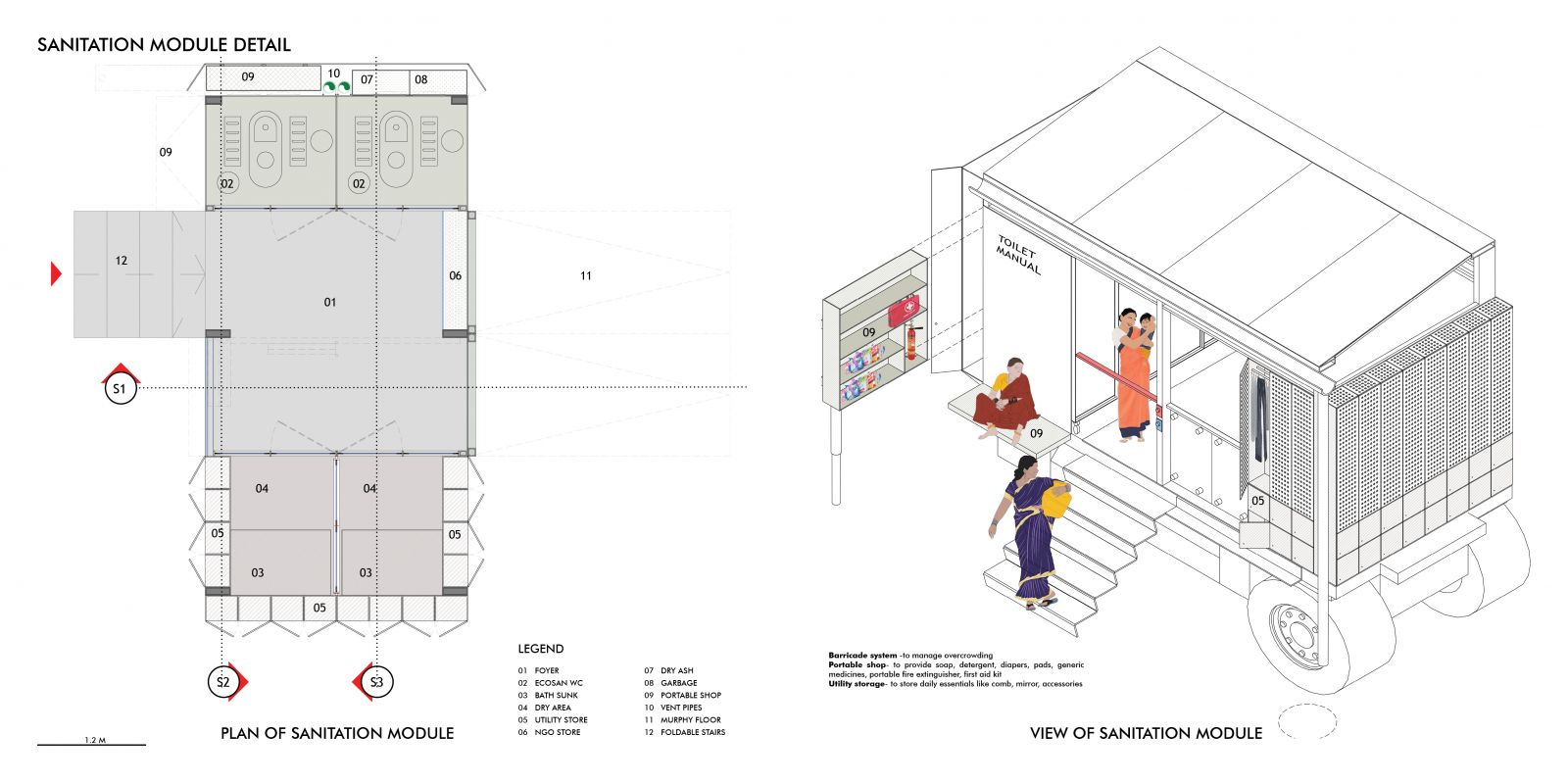

Sanitation Module Plan

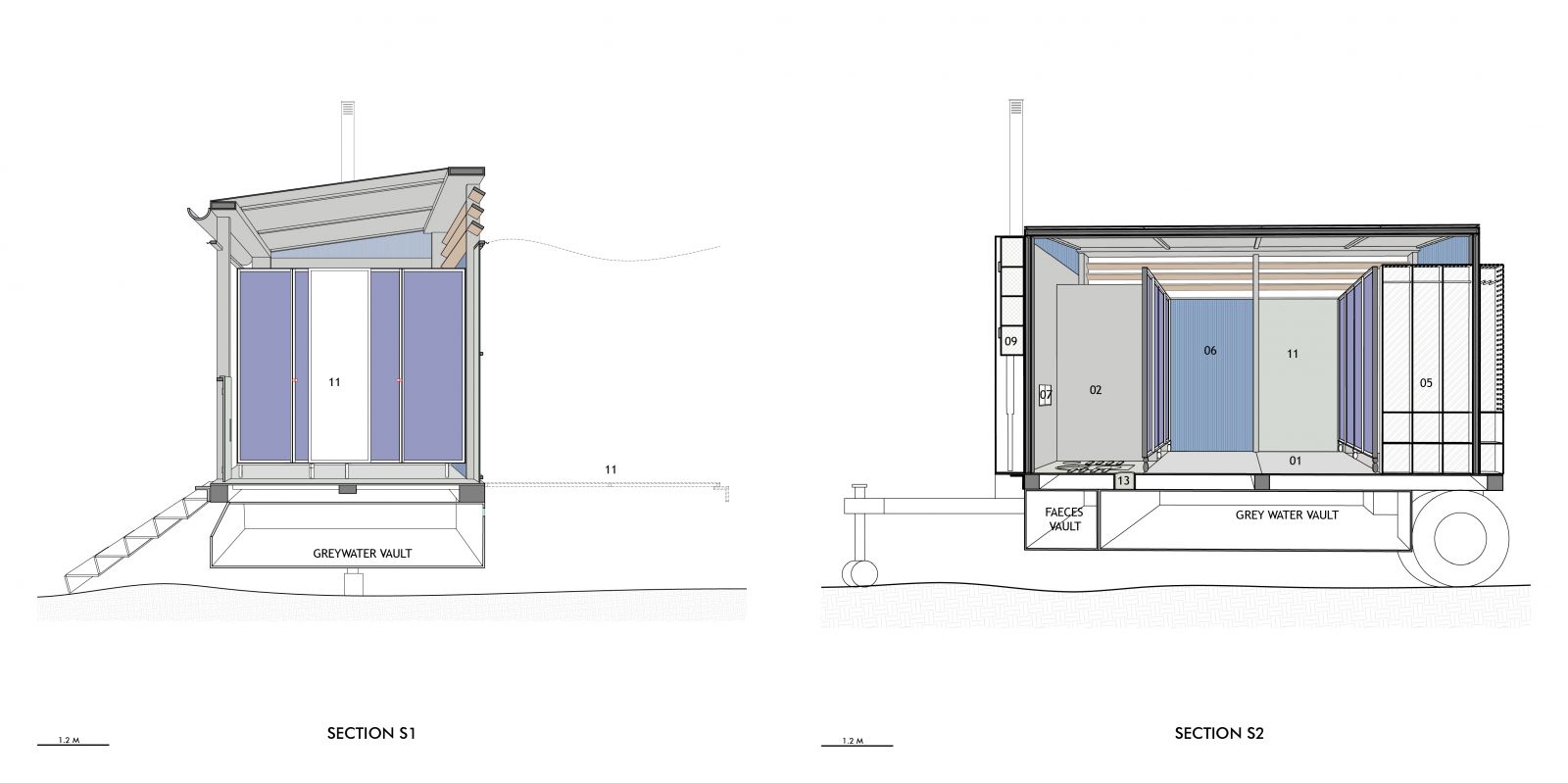

Sanitation Module Sections

Sewage Capacity

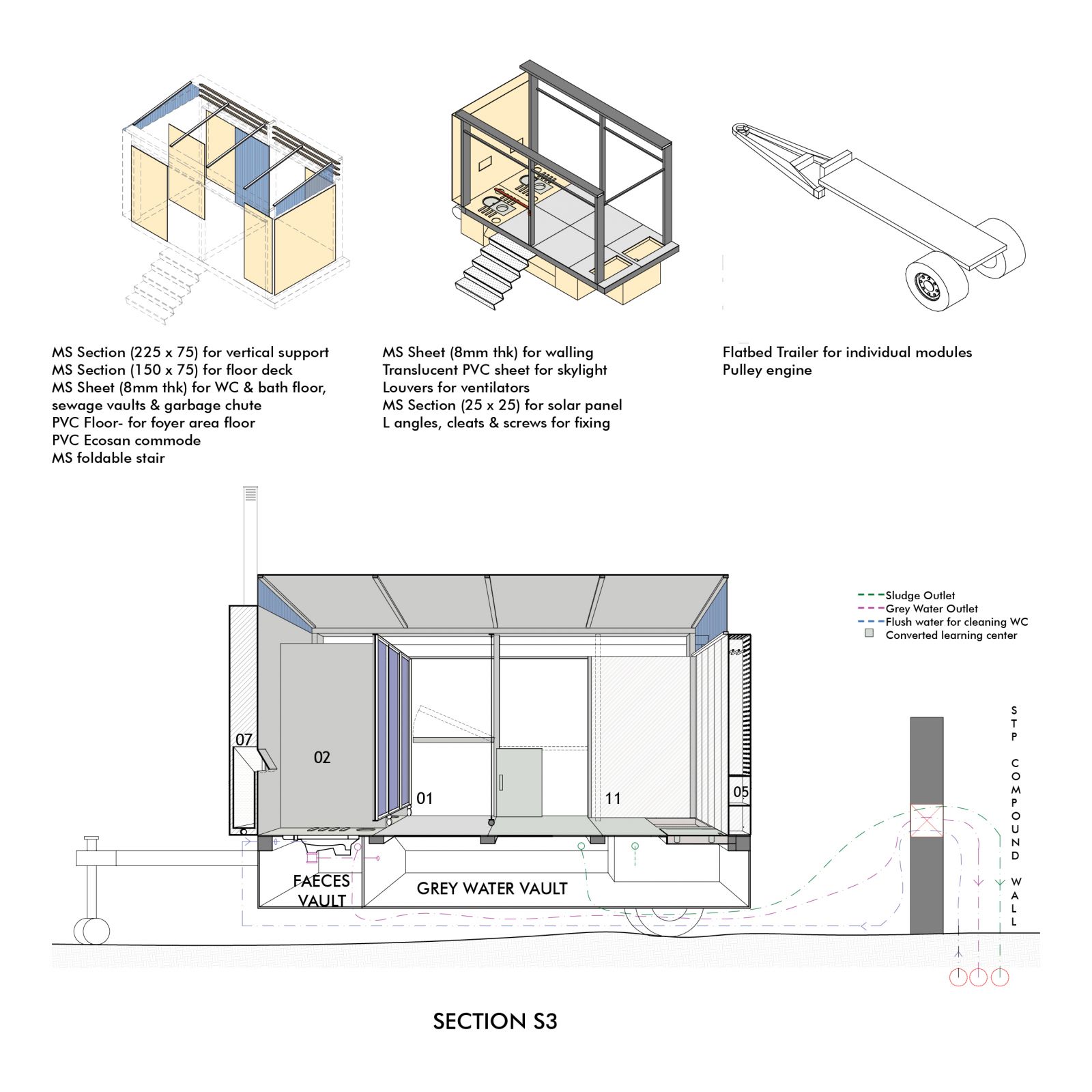

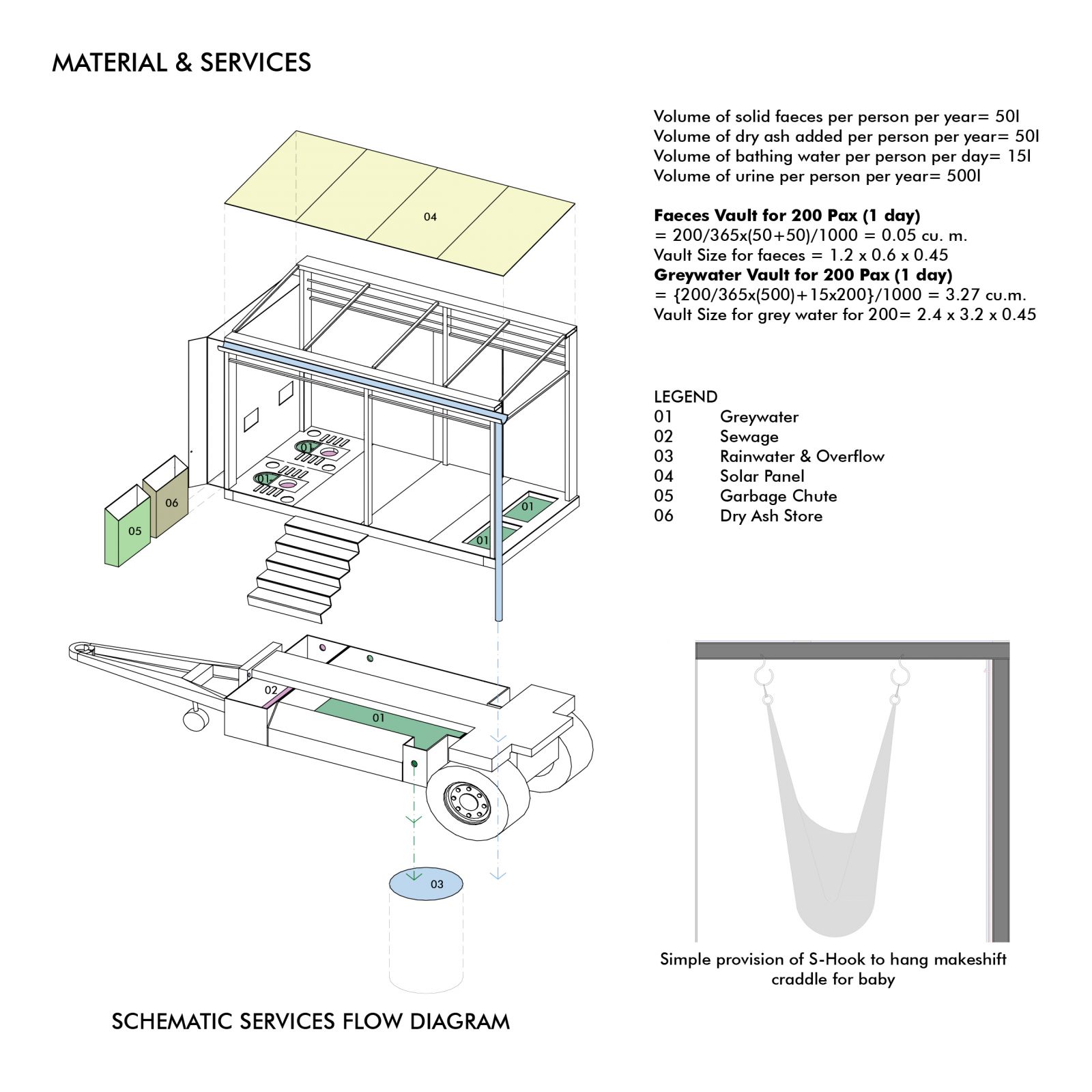

Material & Sewage System

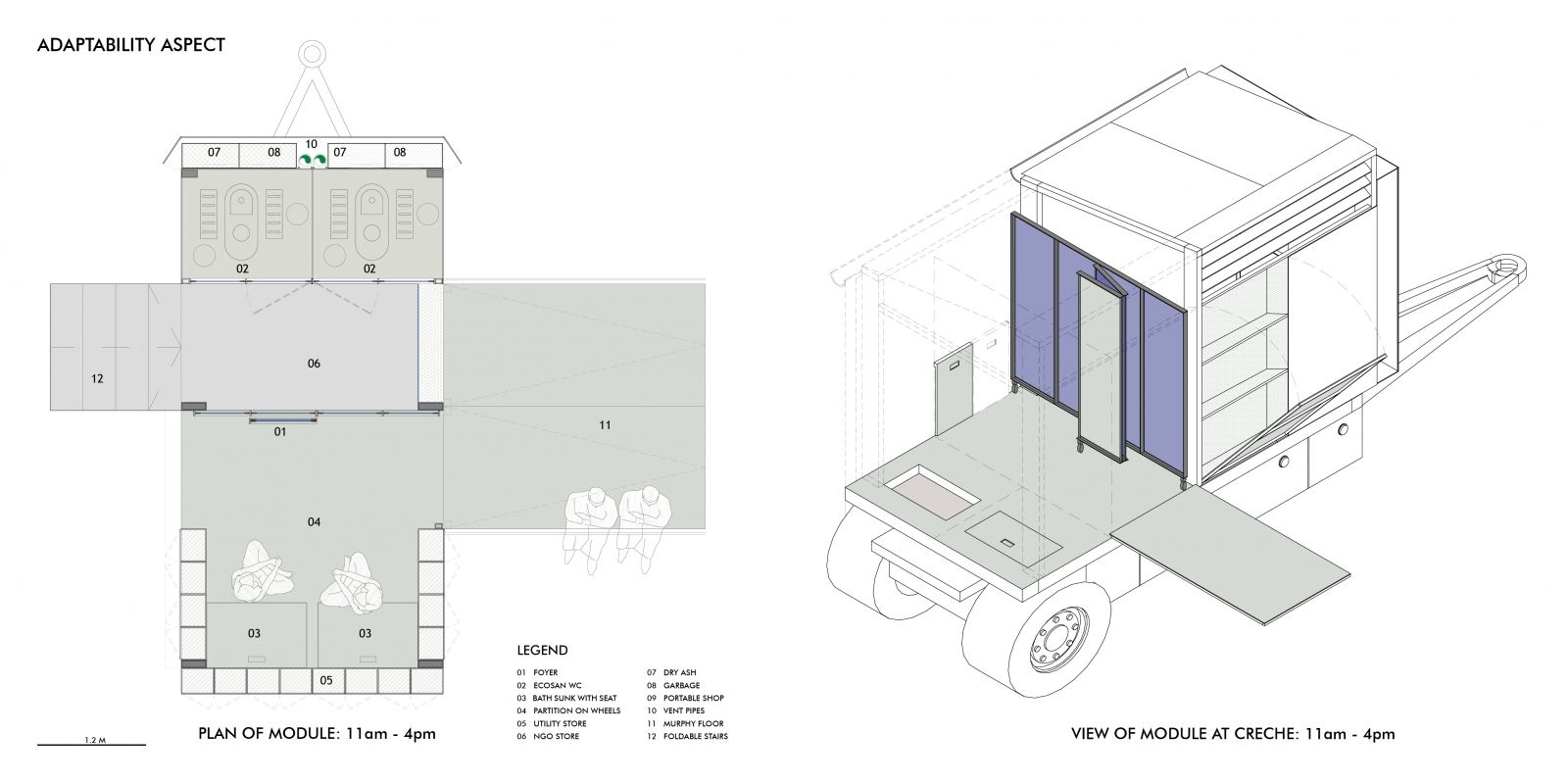

Module Plan-non peak hours

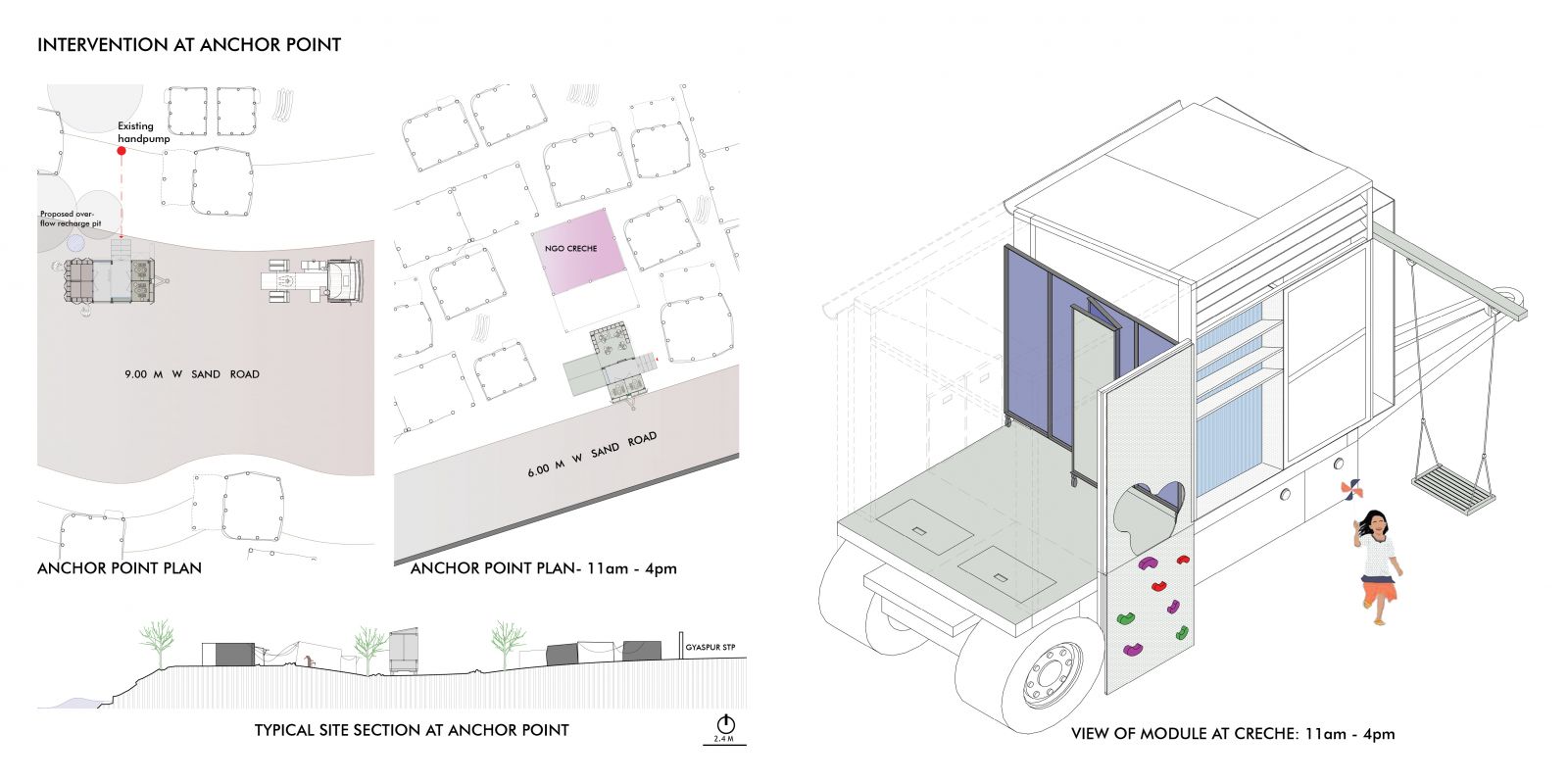

Anchor point plan- non peak hours

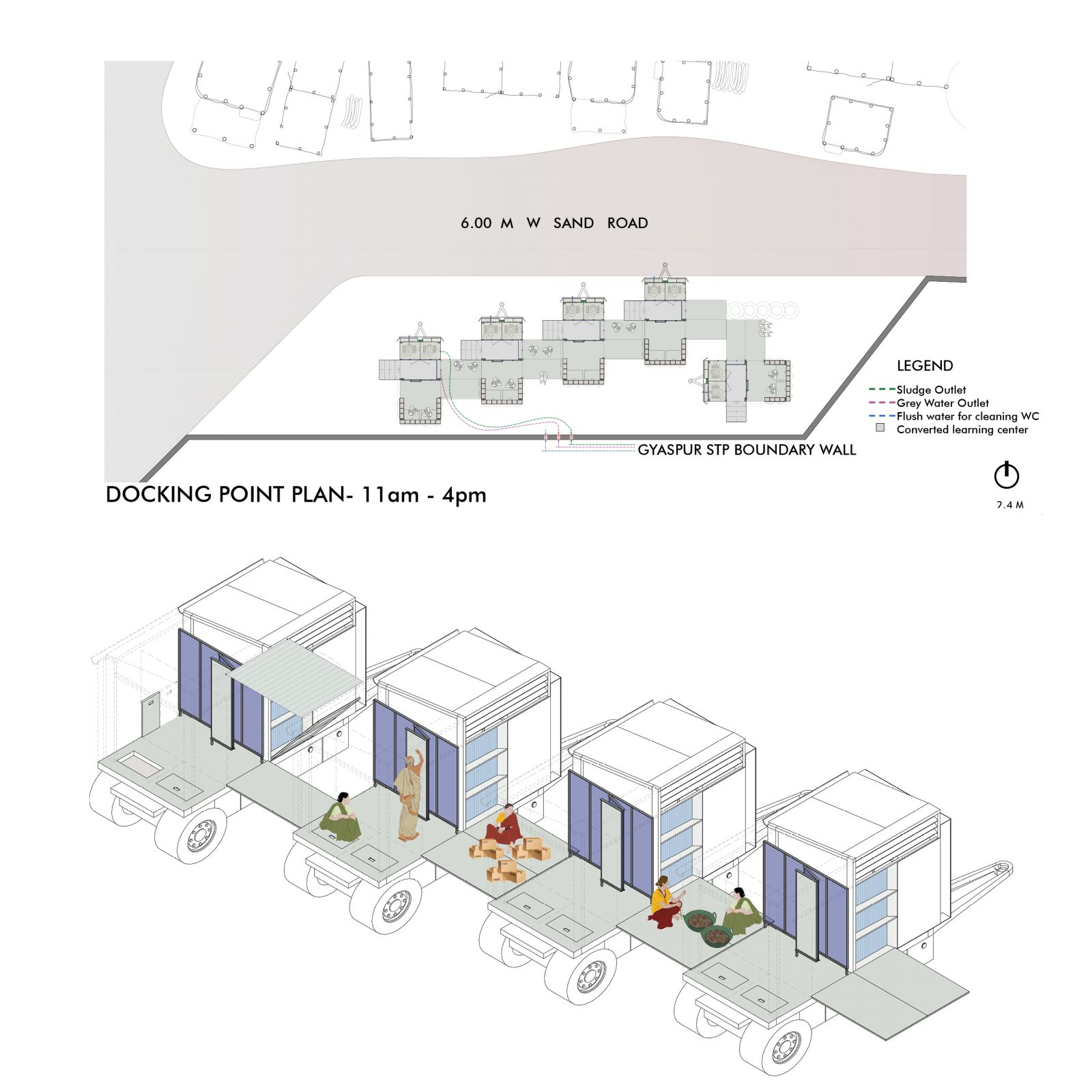

Docking point plan-non peak hours
