  • Living Threads – Spaces of Culture and Life

Rathod Nidhi Gajendrakumar

AR2051

Living Threads – Spaces of Culture and Life

This housing project in Khanpur, Ahmedabad, aims to provide better living conditions for small business families moving out of dense pol houses while retaining their social and cultural connections to the old city. The design offers flexible units ranging from 2 to 3 BHK, with personal balconies, community courtyards, and shared spaces at various scales. The layout responds to the challenges of narrow roads, limited access, and high density, while promoting walkability, interaction, and a sense of belonging. The proposal integrates small business support, play areas, and social zones, creating a layered, community-driven urban living environment.


Report Content

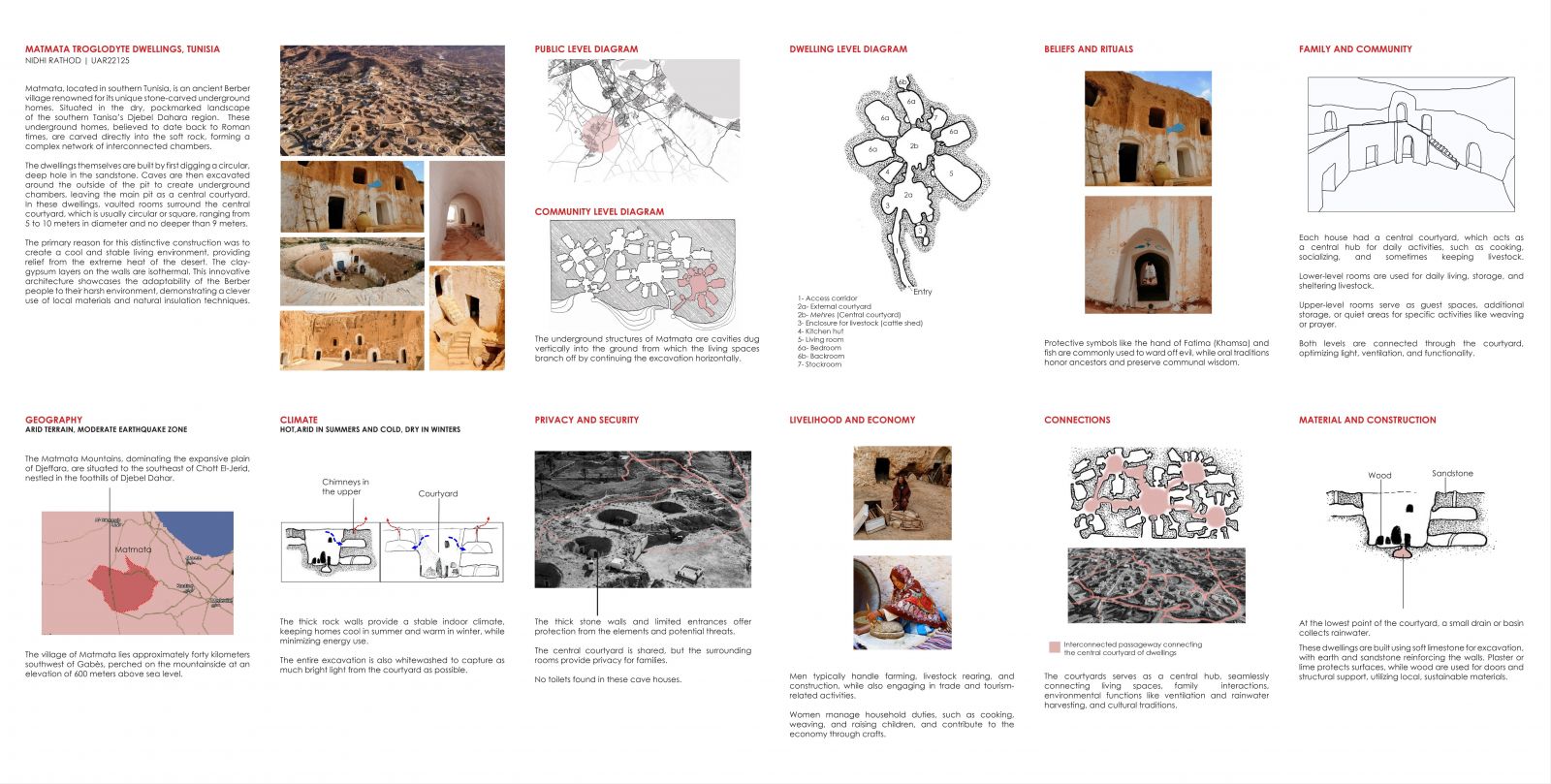

Culture and Space Analysis

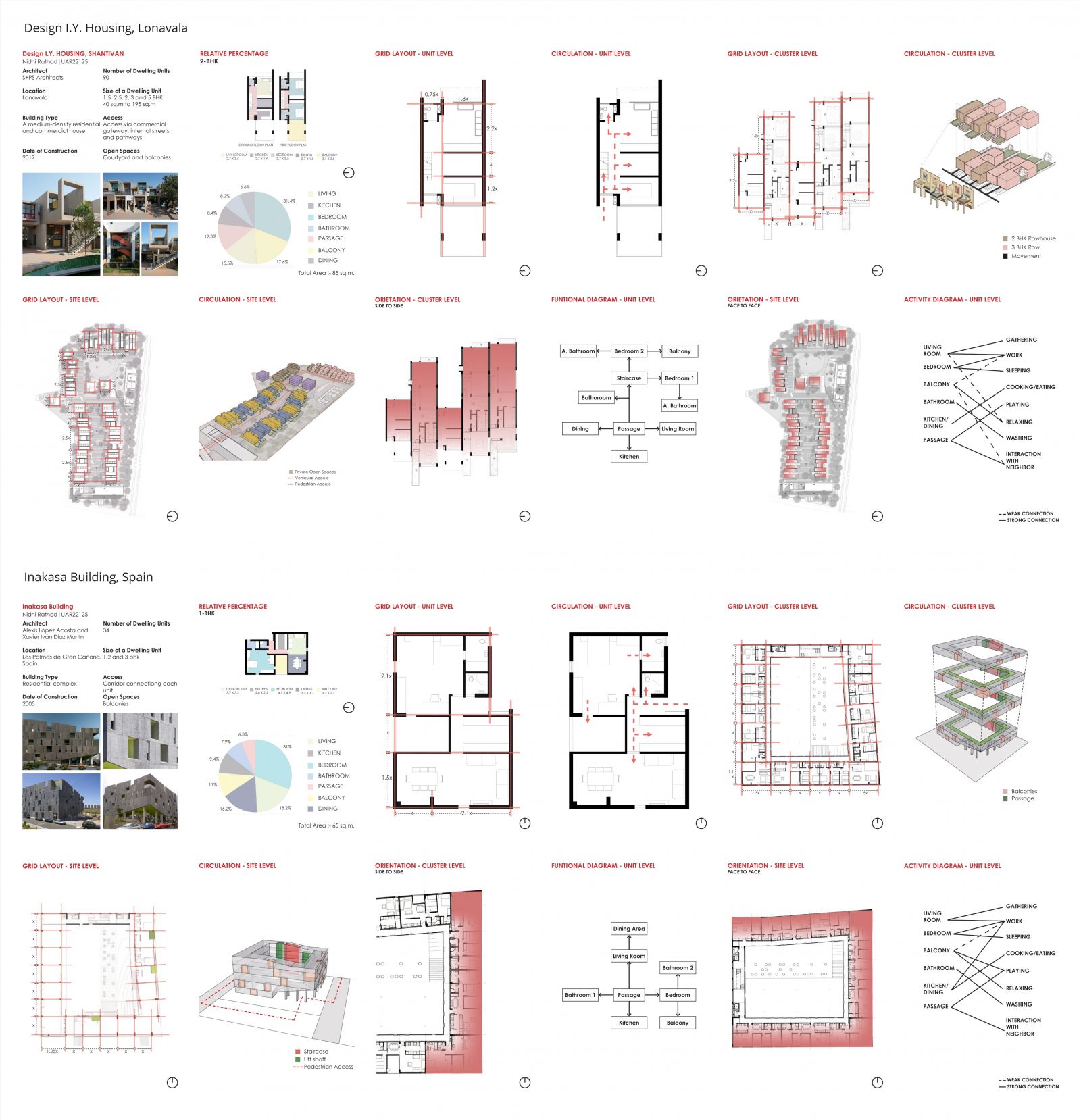

Housing case study: Design I.Y. Housing & Inakasa Building

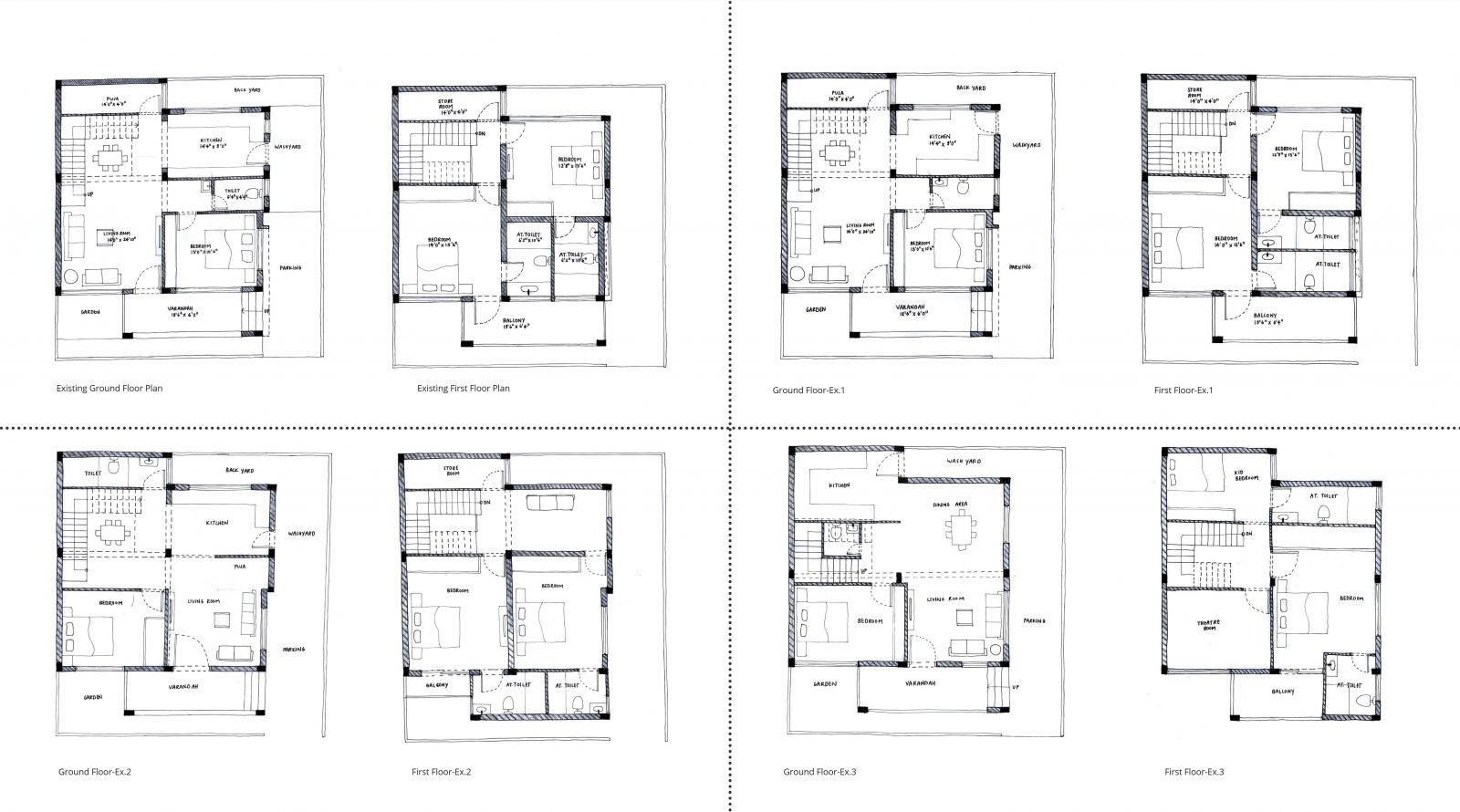

Reimagining House Plans for Functional Flow

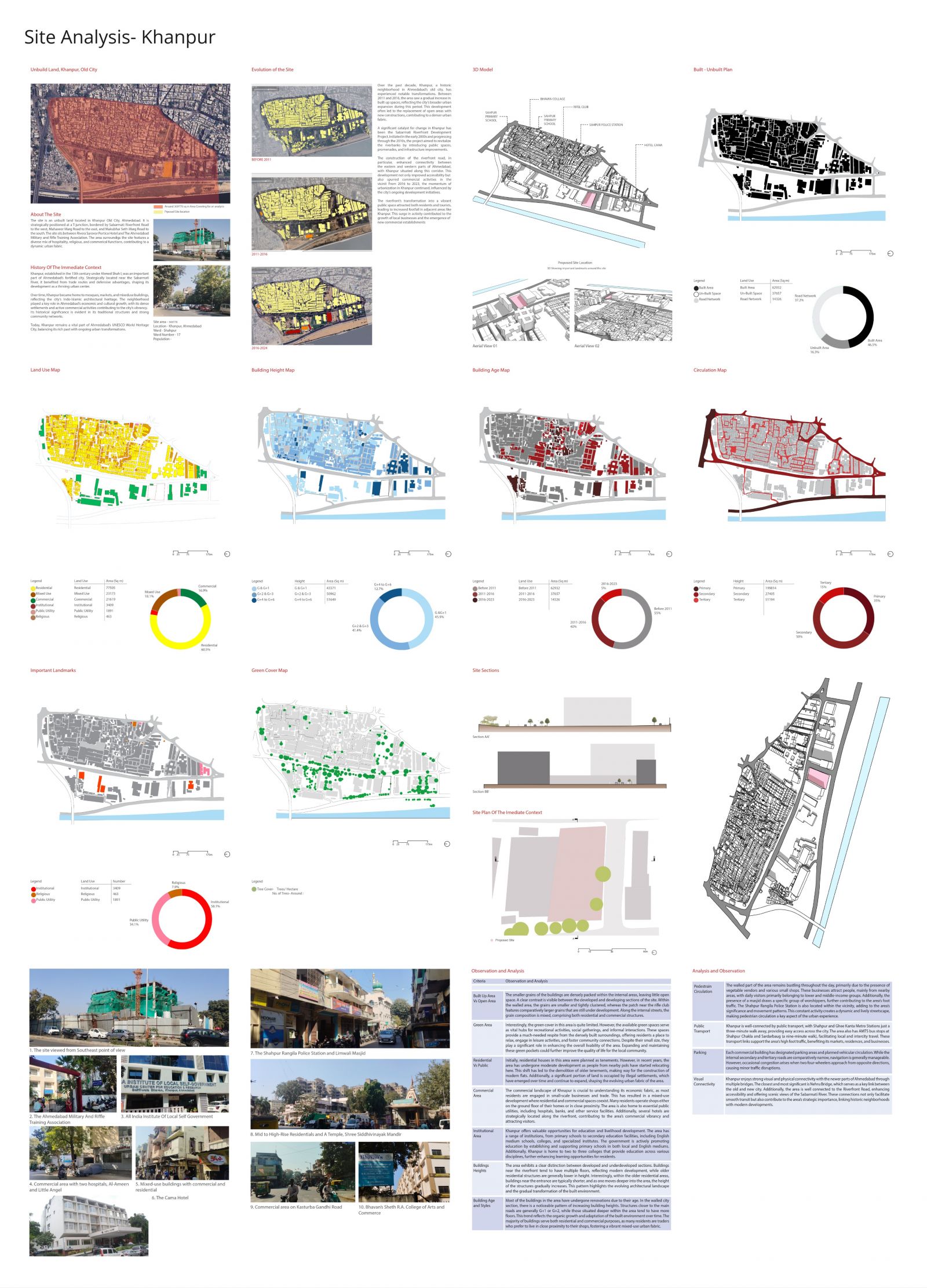

Site Analysis

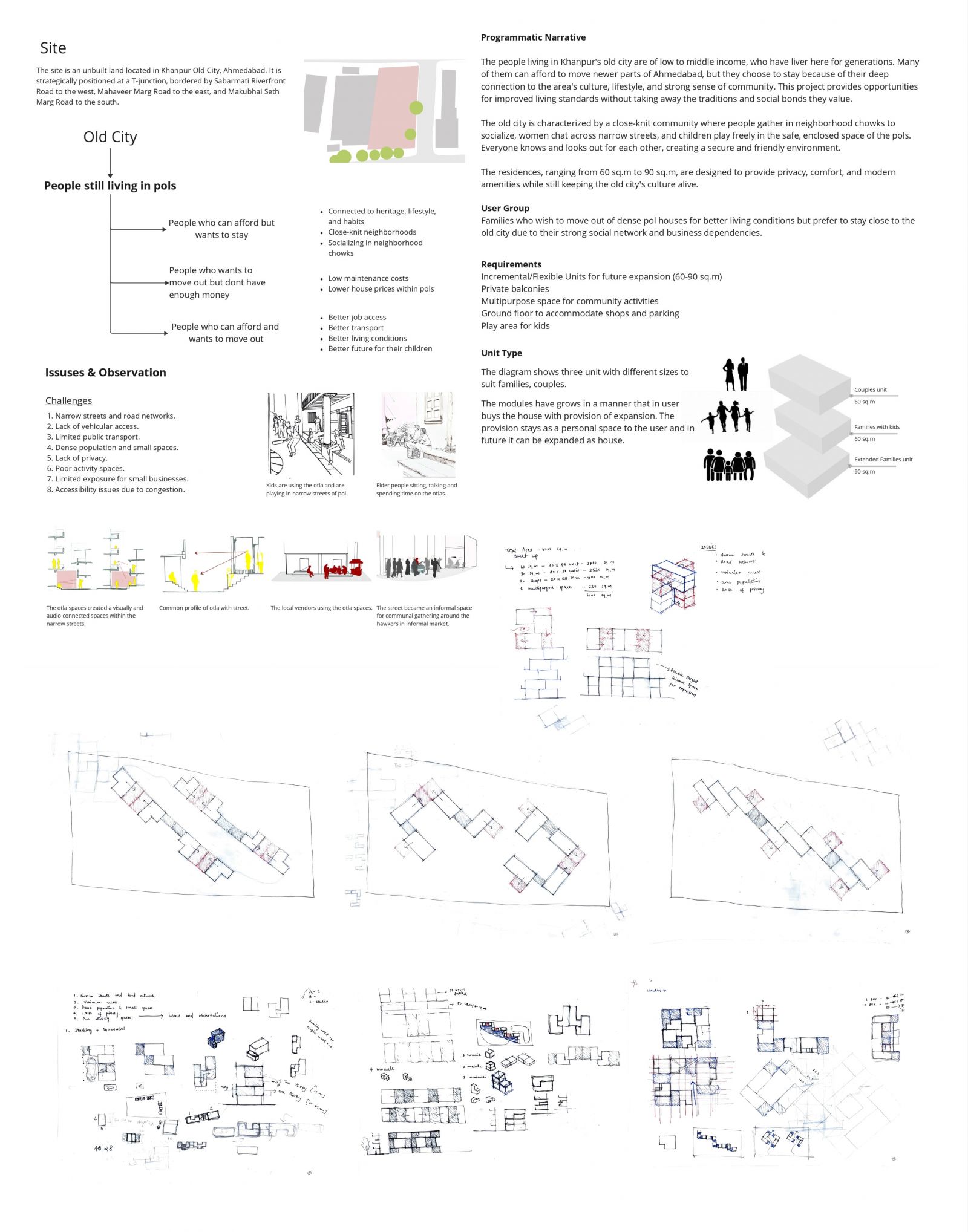

Narrative and Process drawings

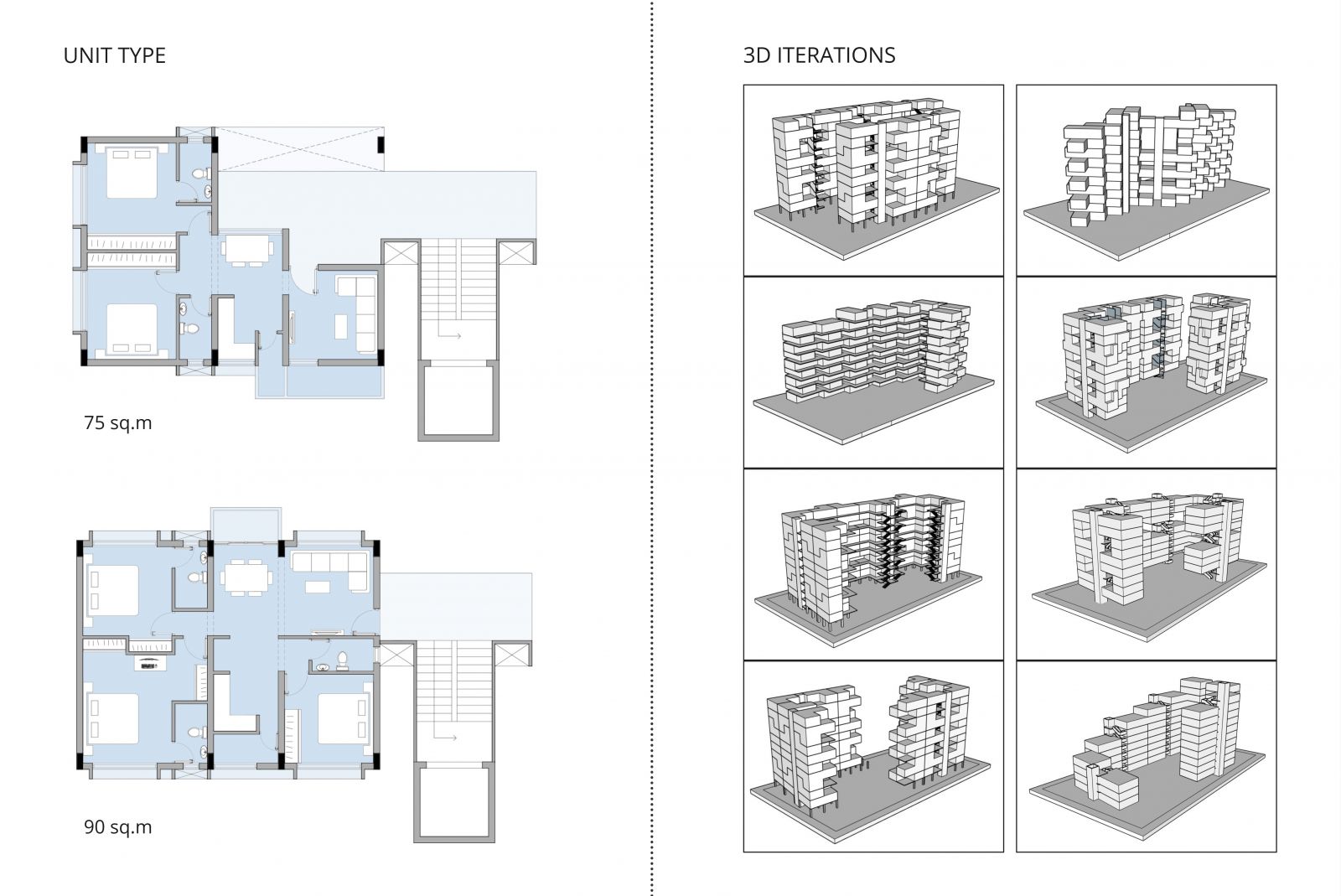

3D Iteration Process and Unit Types

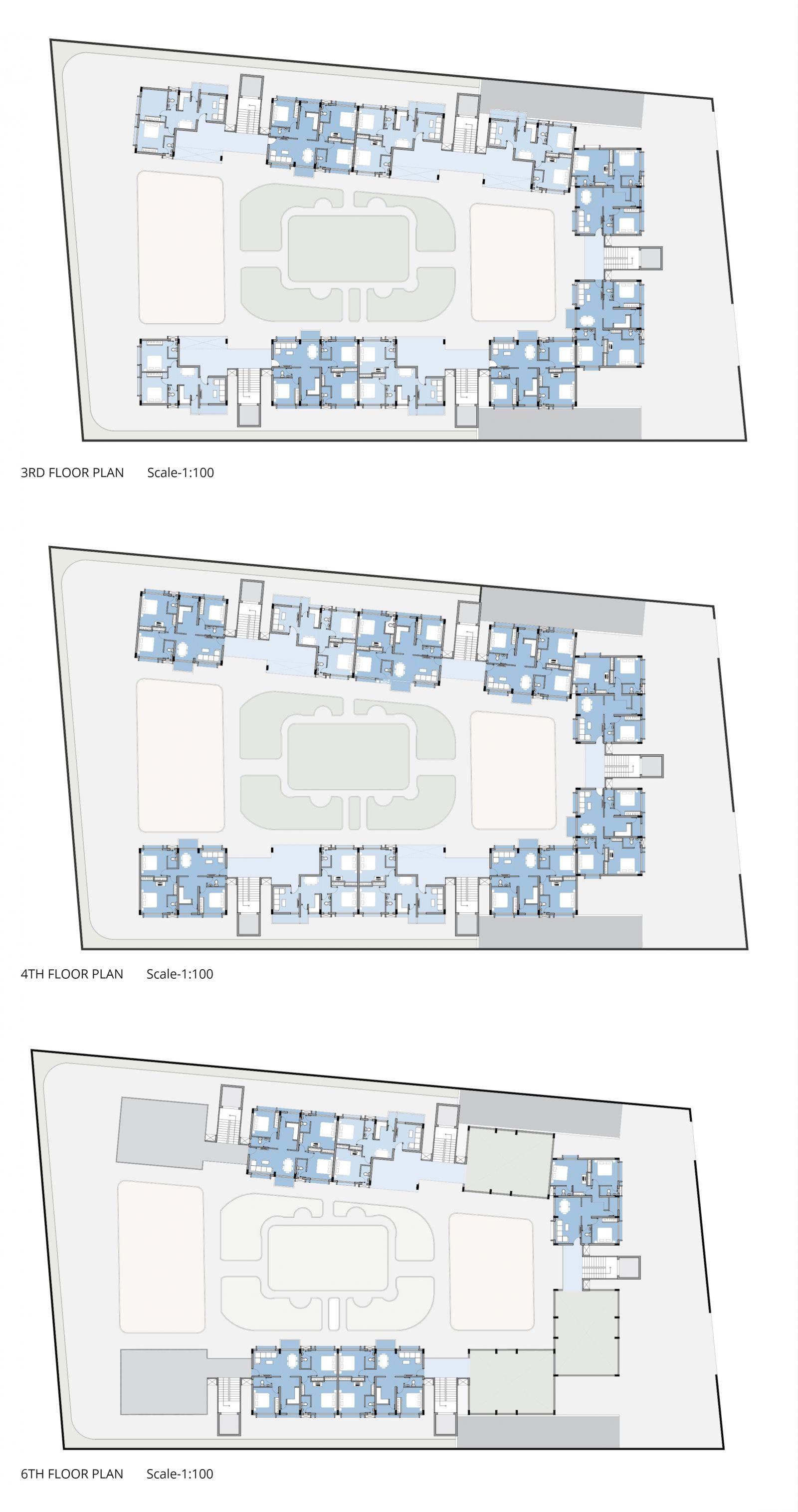

Different Level floor Plan

Site Plan

Floor Plan

Sections
