Joshita Vinanya Singaravel

BD2018

SARIFO - Make Folding Easier

A manually operated saree folding product that is designed to streamline and standardize the folding process in large saree retail shops. The machine, although designed for georgette can incorparate a multitude of fabrics like linen ensuring precise, damage-free folds. It enhances workflow efficiency, maintains uniform presentation for display or packaging, and reduces the physical strain on workers, while handling the saree delicately. This product can fold 3 sarees at a time with the help of two workers.

Drive link to detailed work: https://drive.google.com/drive/folders/1vR7Ea8Mp1UEVt_FqNSxE1azadSptSou0?usp=sharing


Report Content

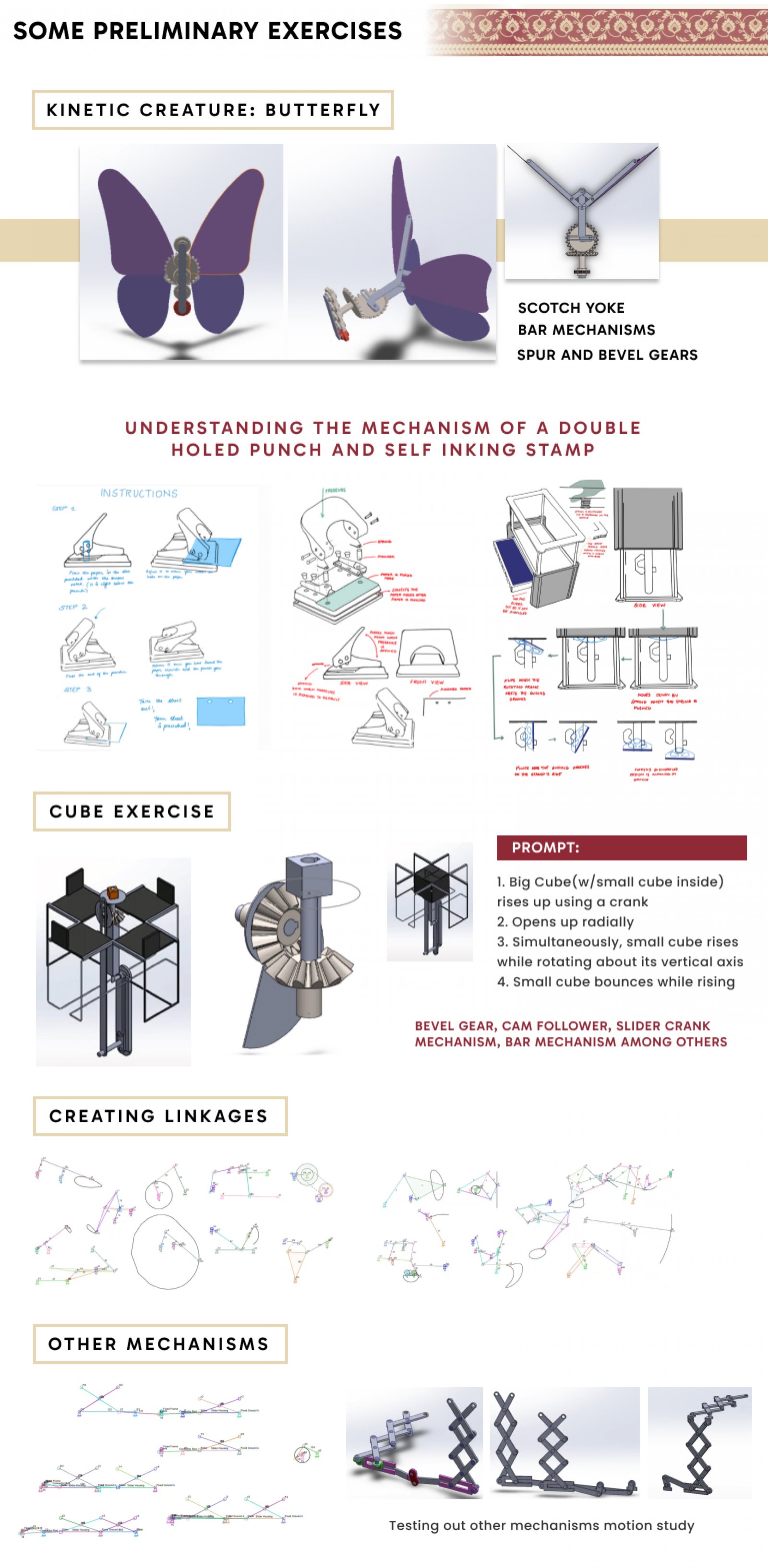

Preliminary Exercises

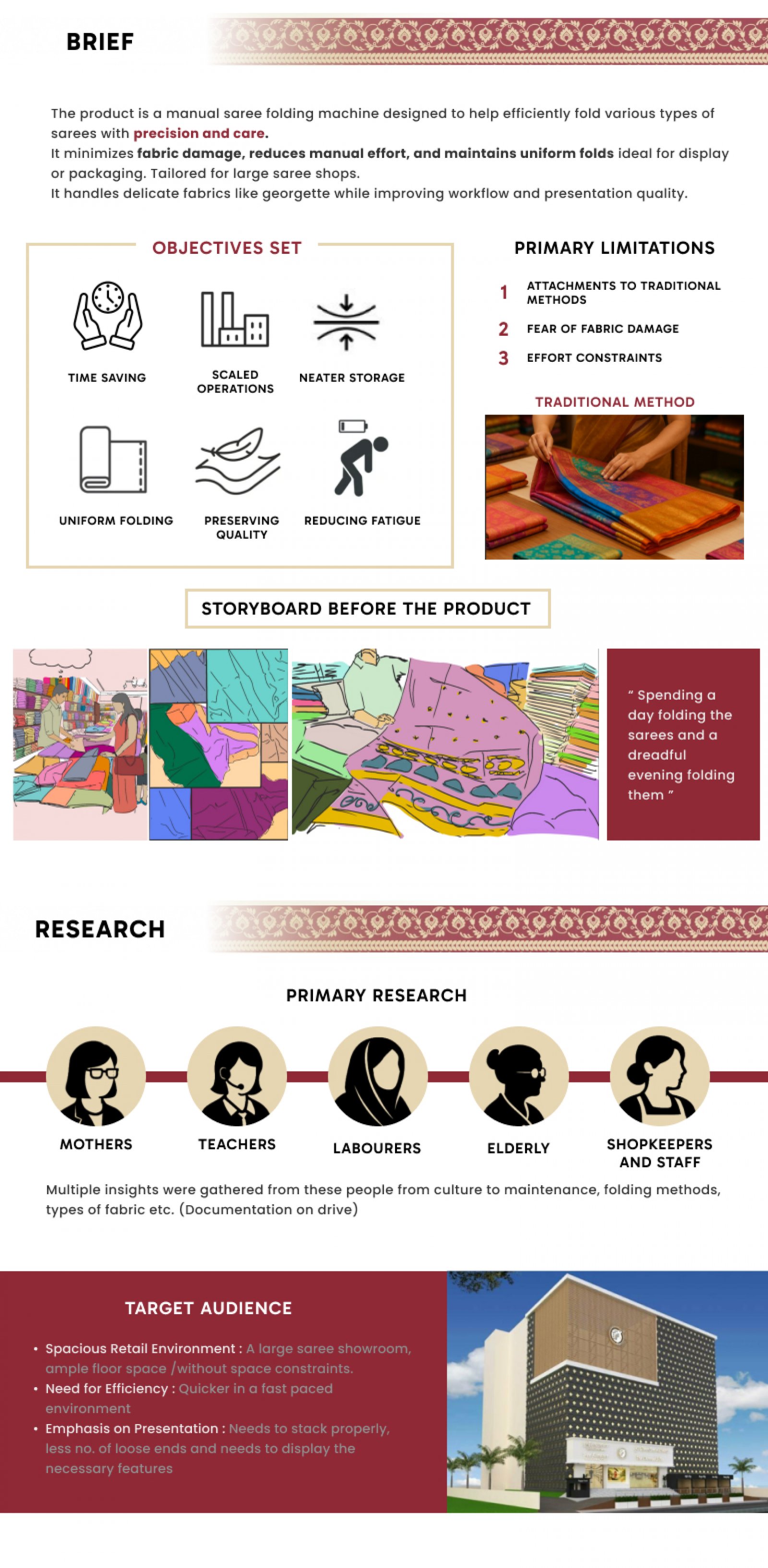

Understanding the Brief and Starting Research

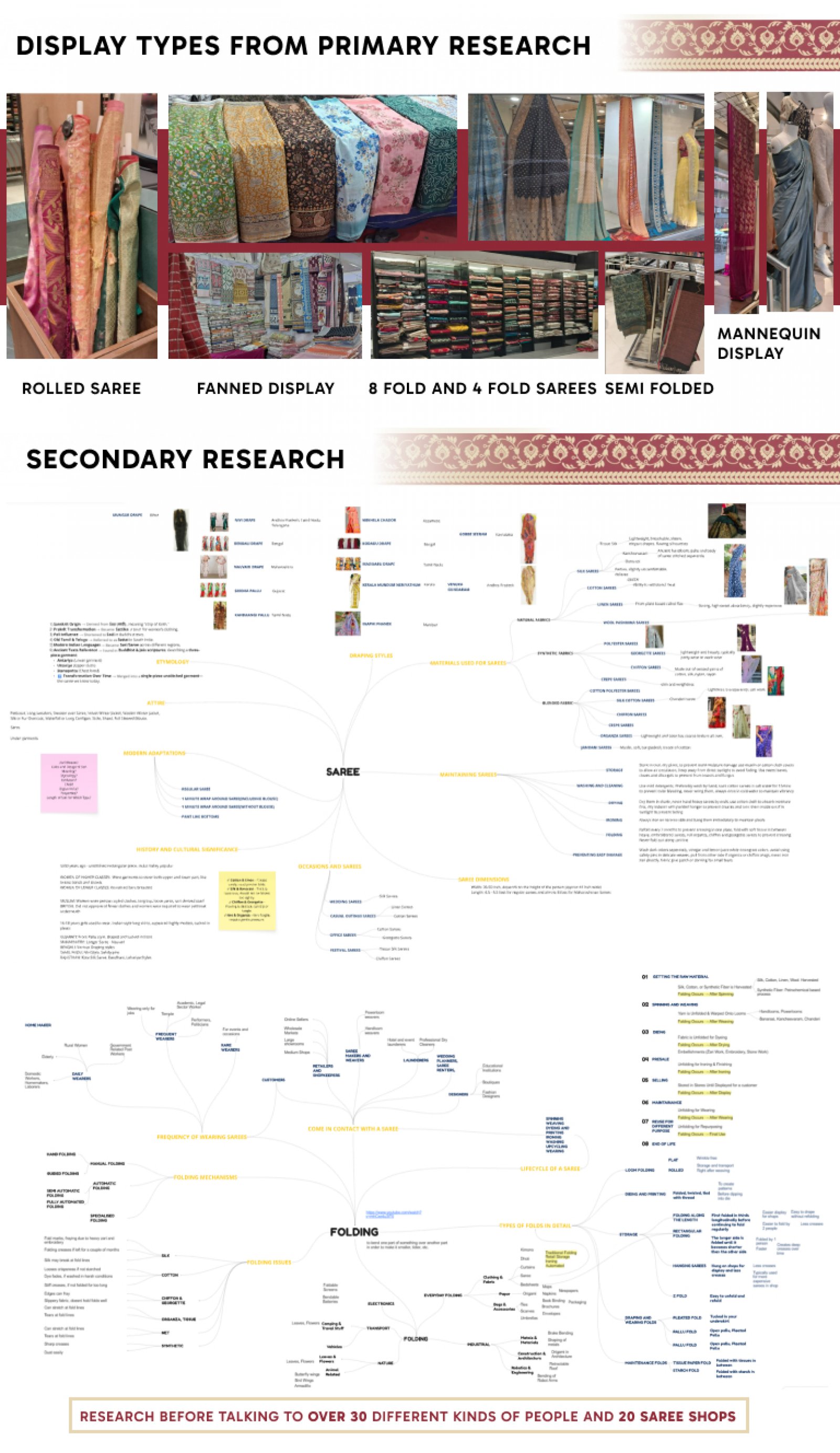

Primary and Secondary Research

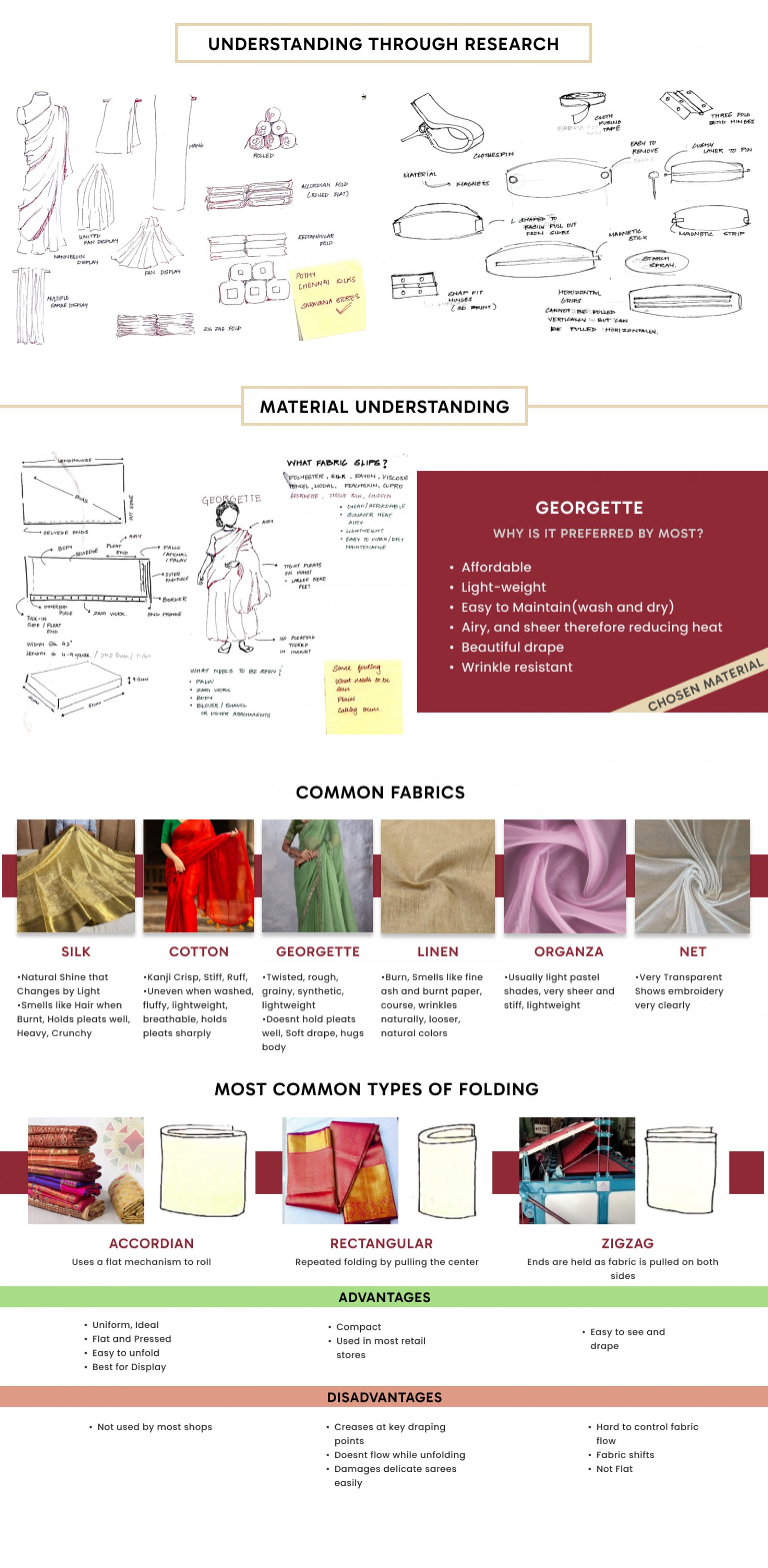

Material Understanding

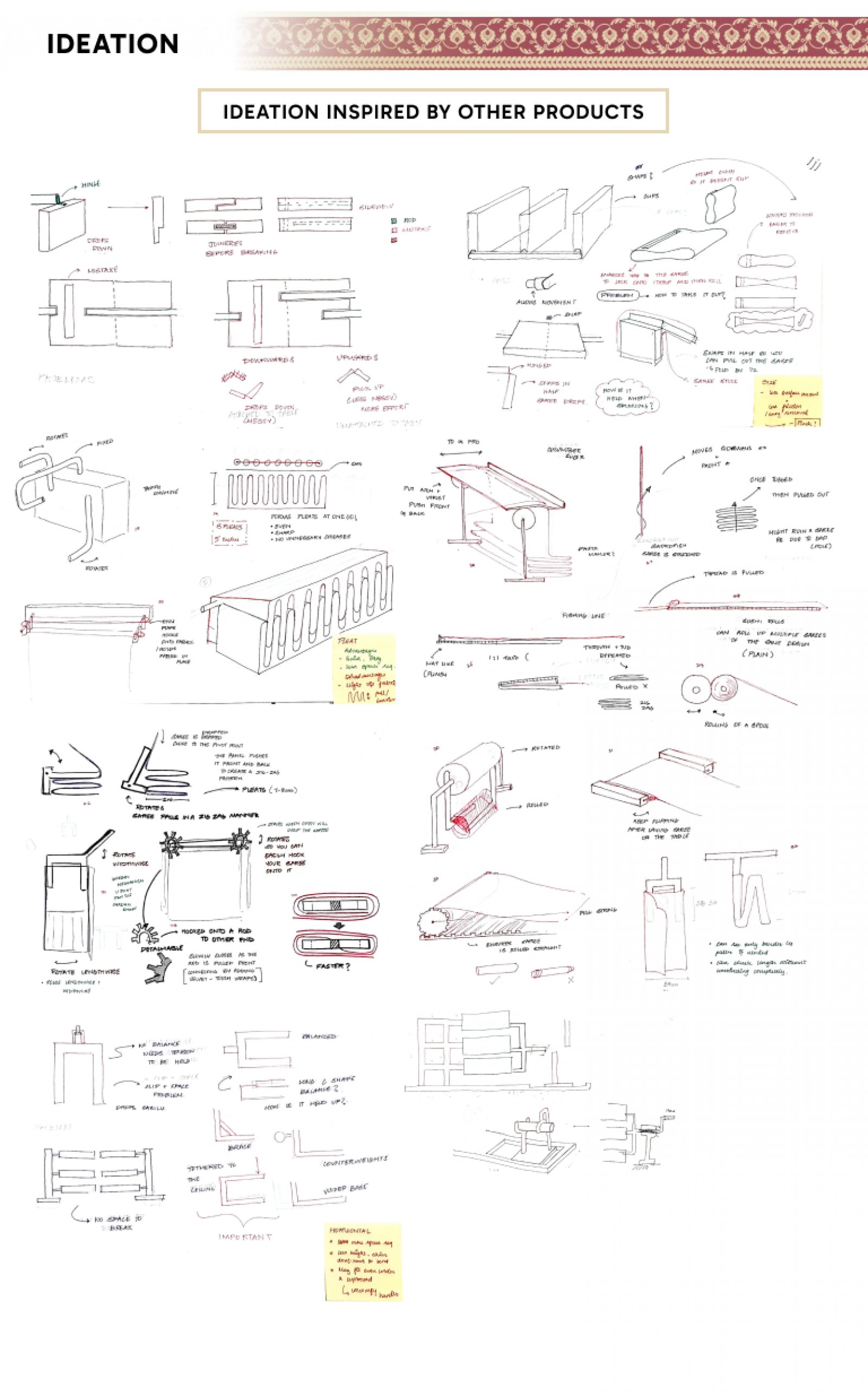

Ideation inspired by real life products

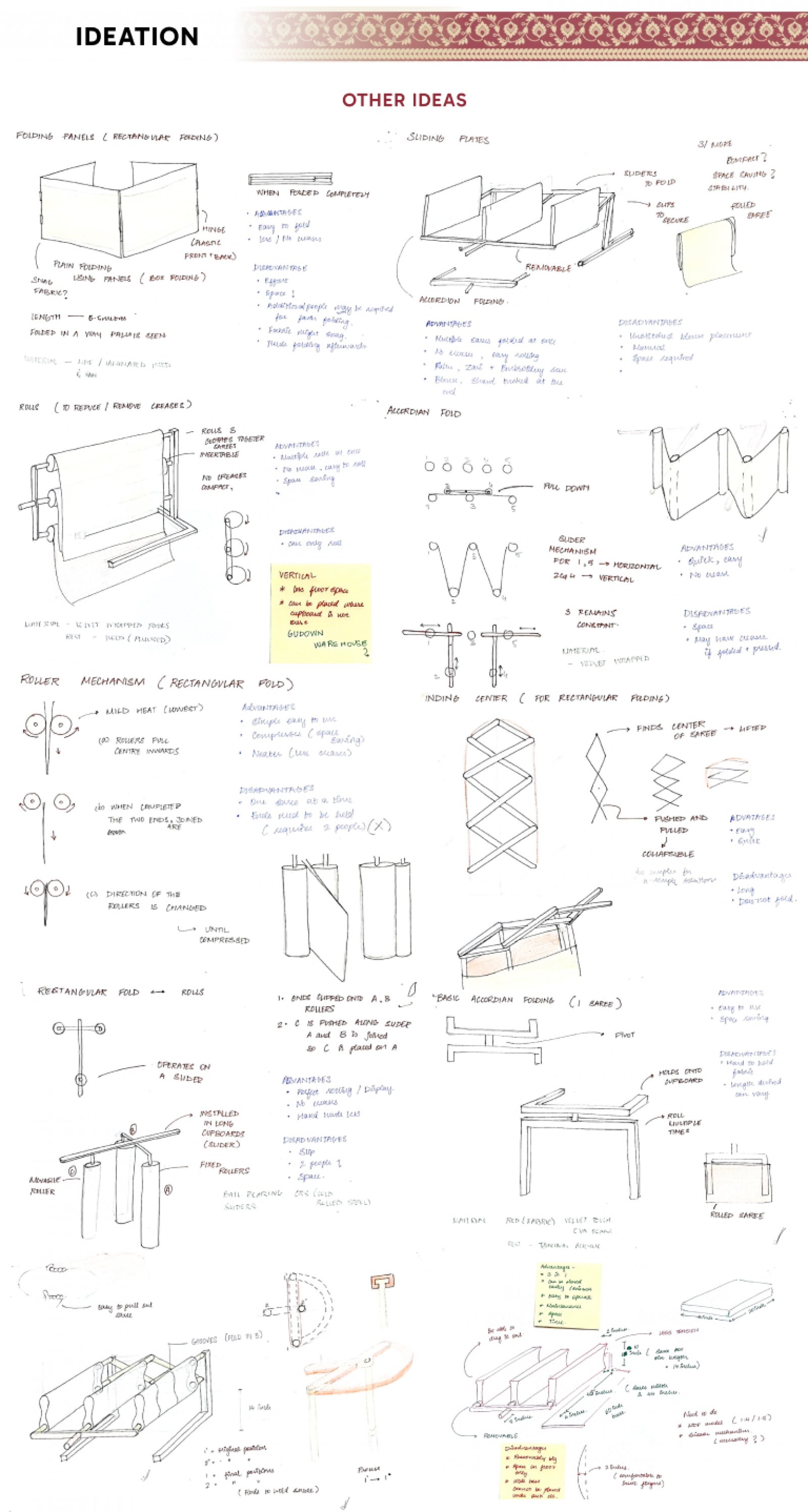

Other mechanisms

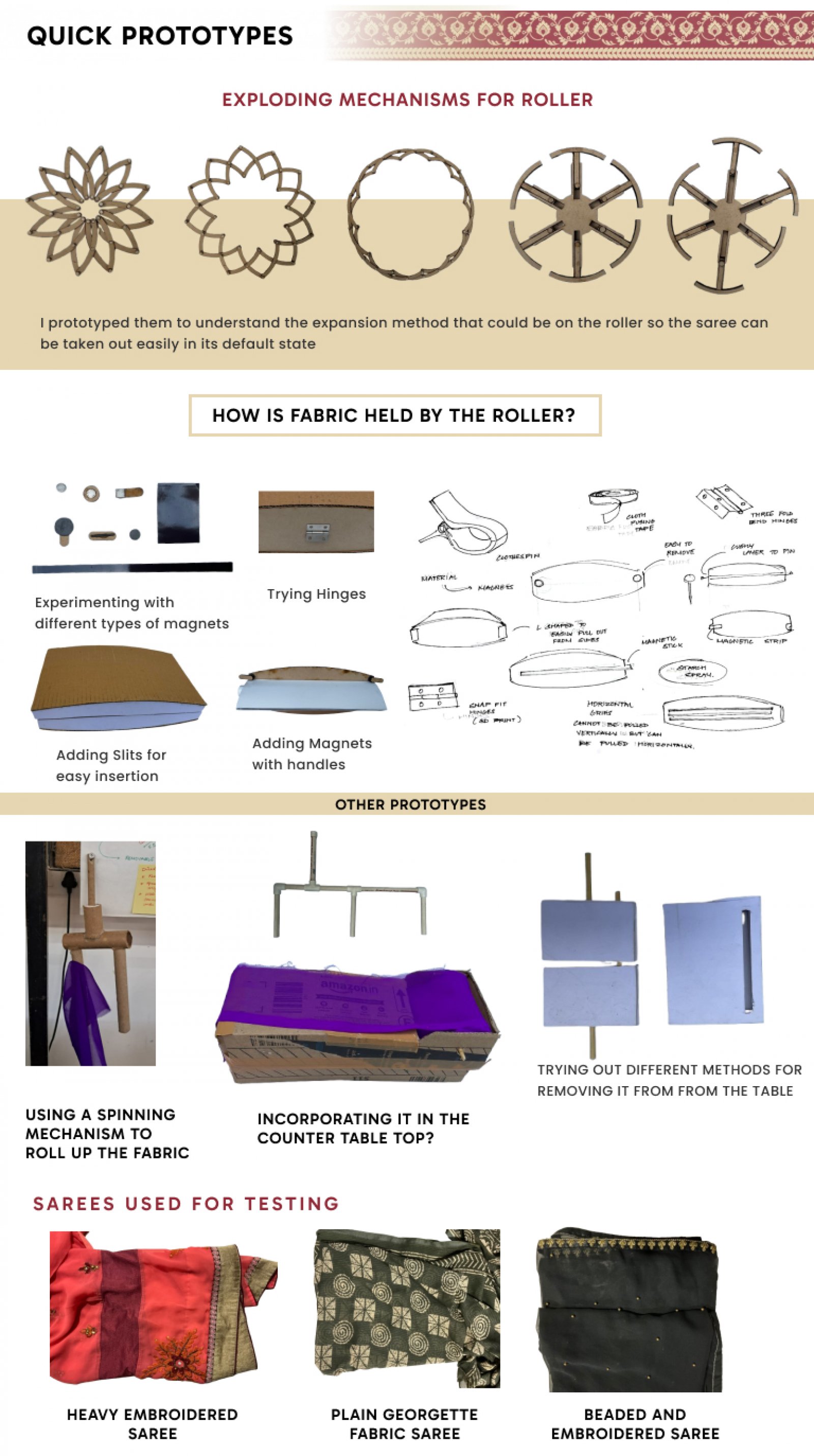

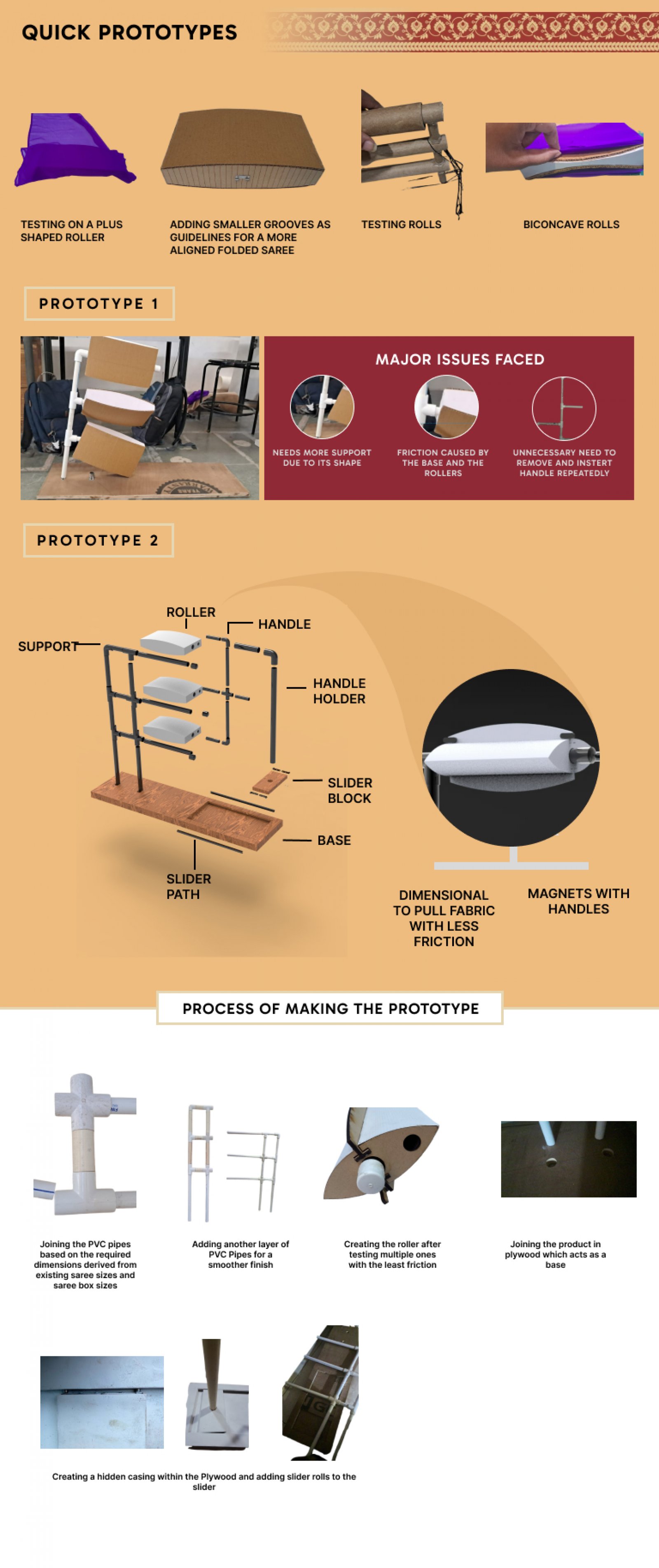

Prototypes

Creating the Model

Render, Final Model and Testing
