Sooraj Amarnath

FD4019

ONE SYSTEM

Flexibility is a key driver in the success of technical lighting products in today’s market. Transitioning from a standalone fixture to a fully integrated system is crucial for meeting diverse architectural needs. Introducing "ONE SYSTEM" — a modular lighting solution engineered to mount seamlessly on any ceiling type. Its adaptable design enables a single model to illuminate an entire building through its various configurations. At the heart of this innovation is a thoughtfully designed downlight featuring a cone reflector with a hidden LED source. The light is softly redirected by a spoon-shaped secondary reflector, significantly reducing glare and enhancing visual comfort. An angled heat sink ensures efficient thermal management while also enabling simplified assembly and maintenance. Optimized for both performance and ease of use, ONE SYSTEM is the ideal choice for modern public and architectural spaces looking for a unified, high-performance lighting solution.


Report Content

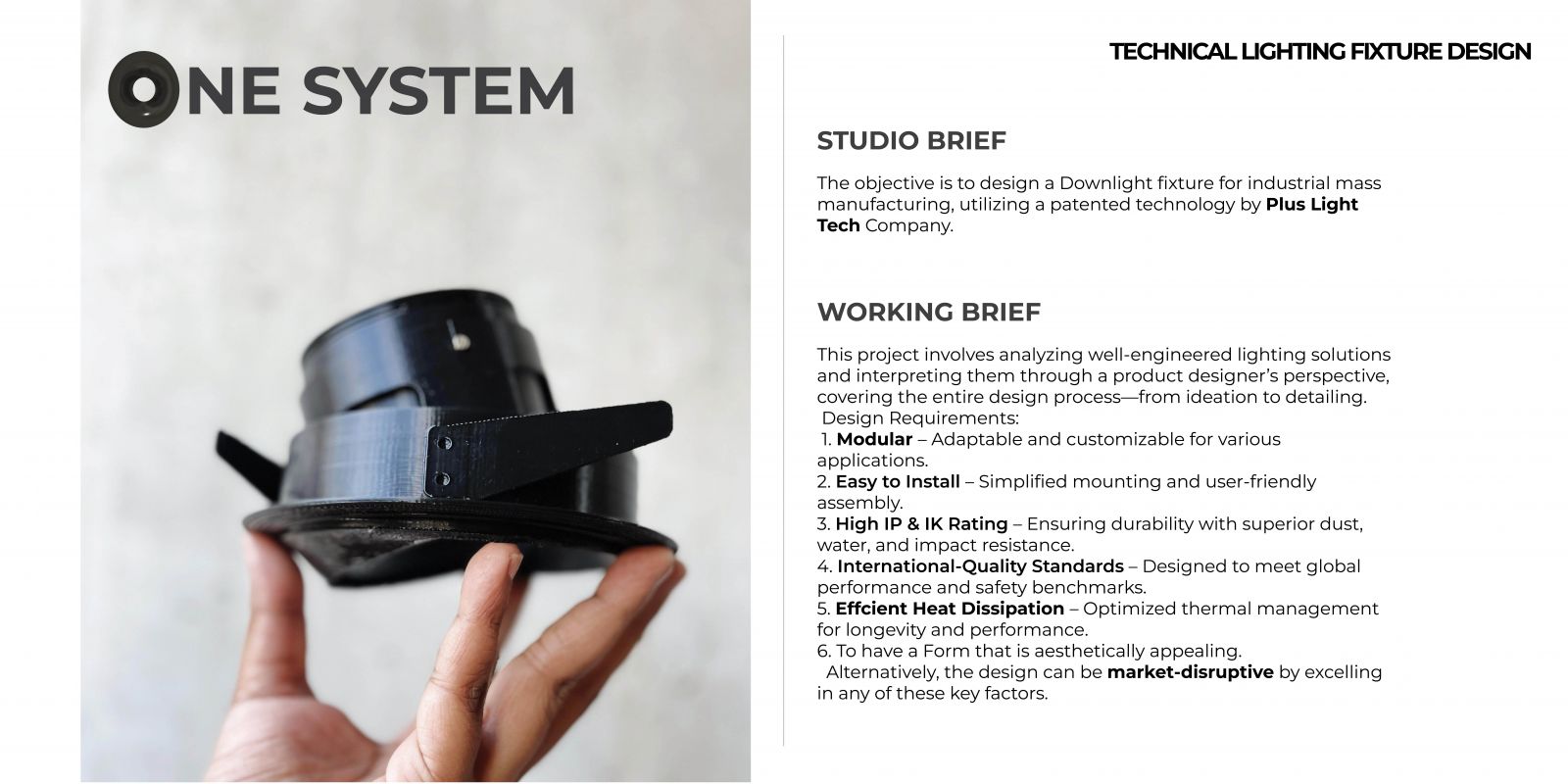

introduction

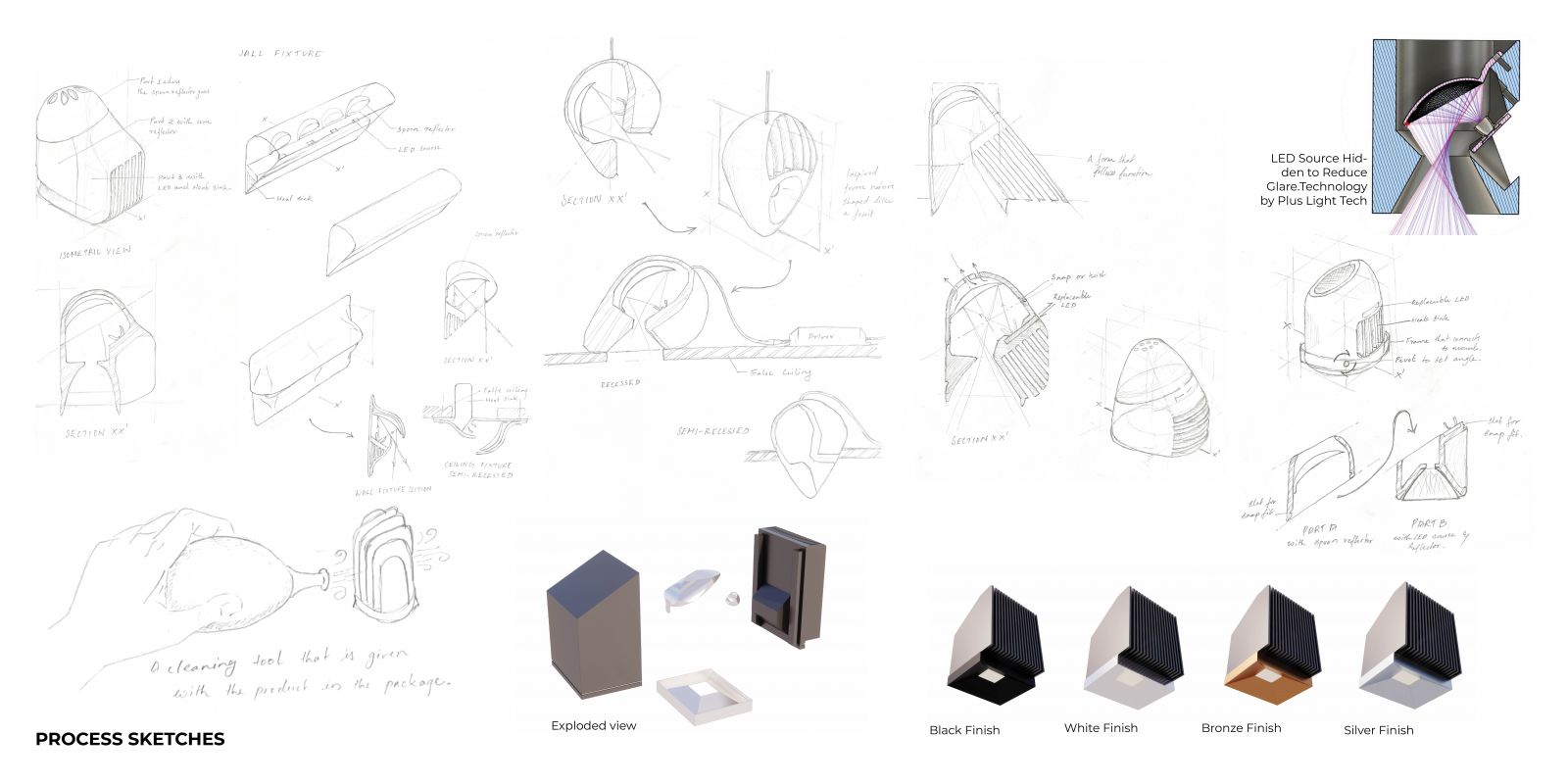

Ideation

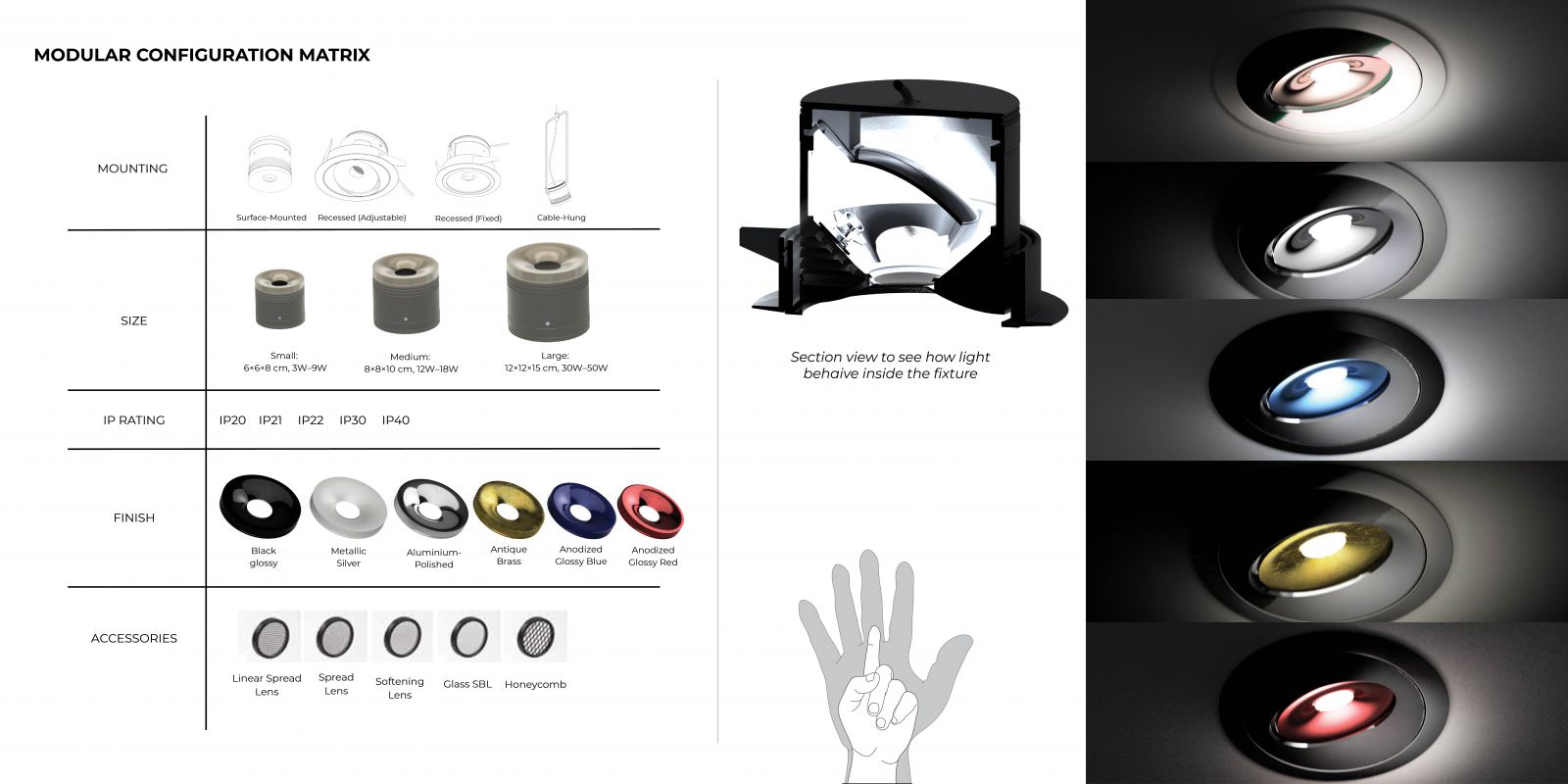

System

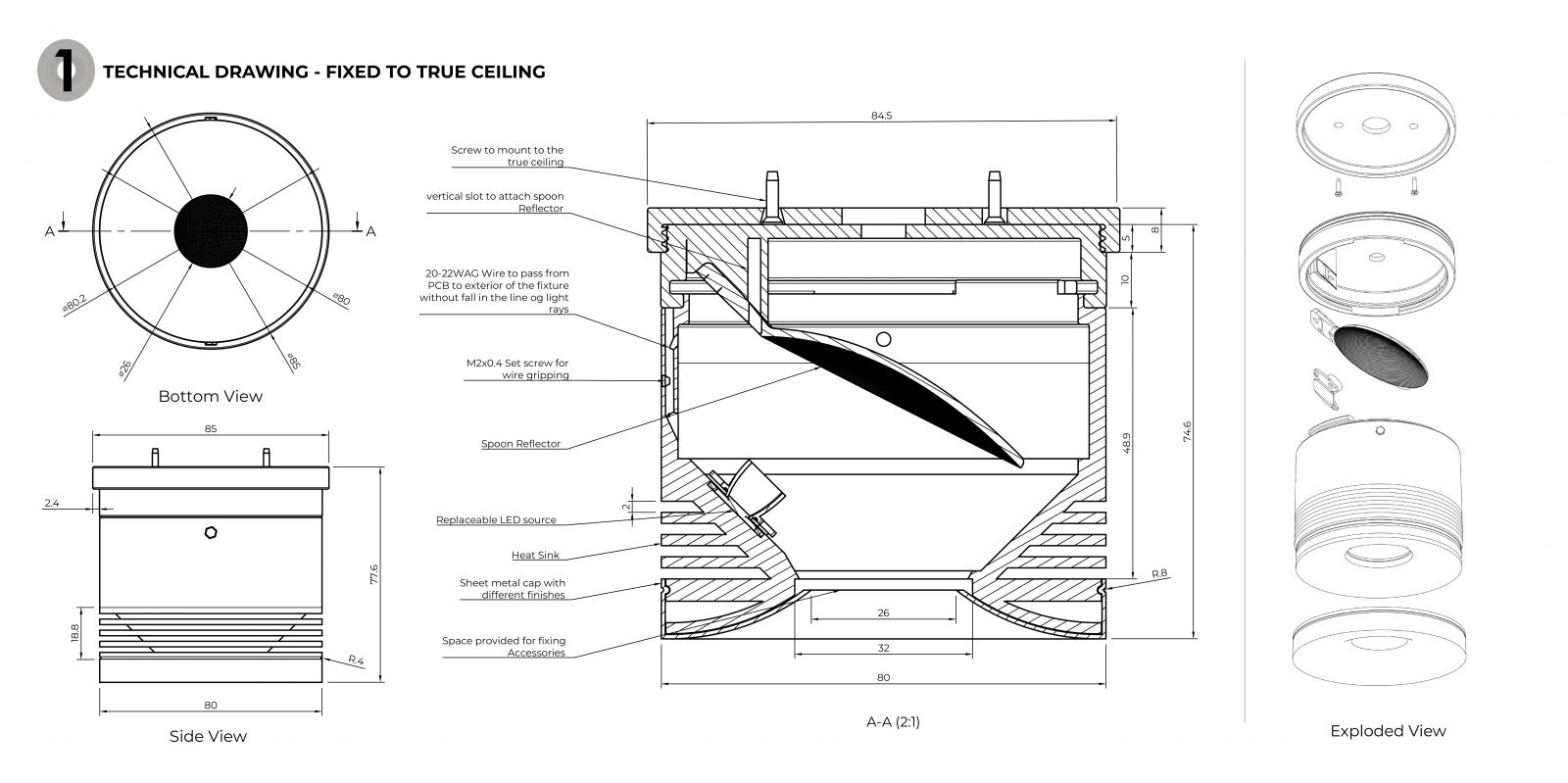

Technical Drawing 1

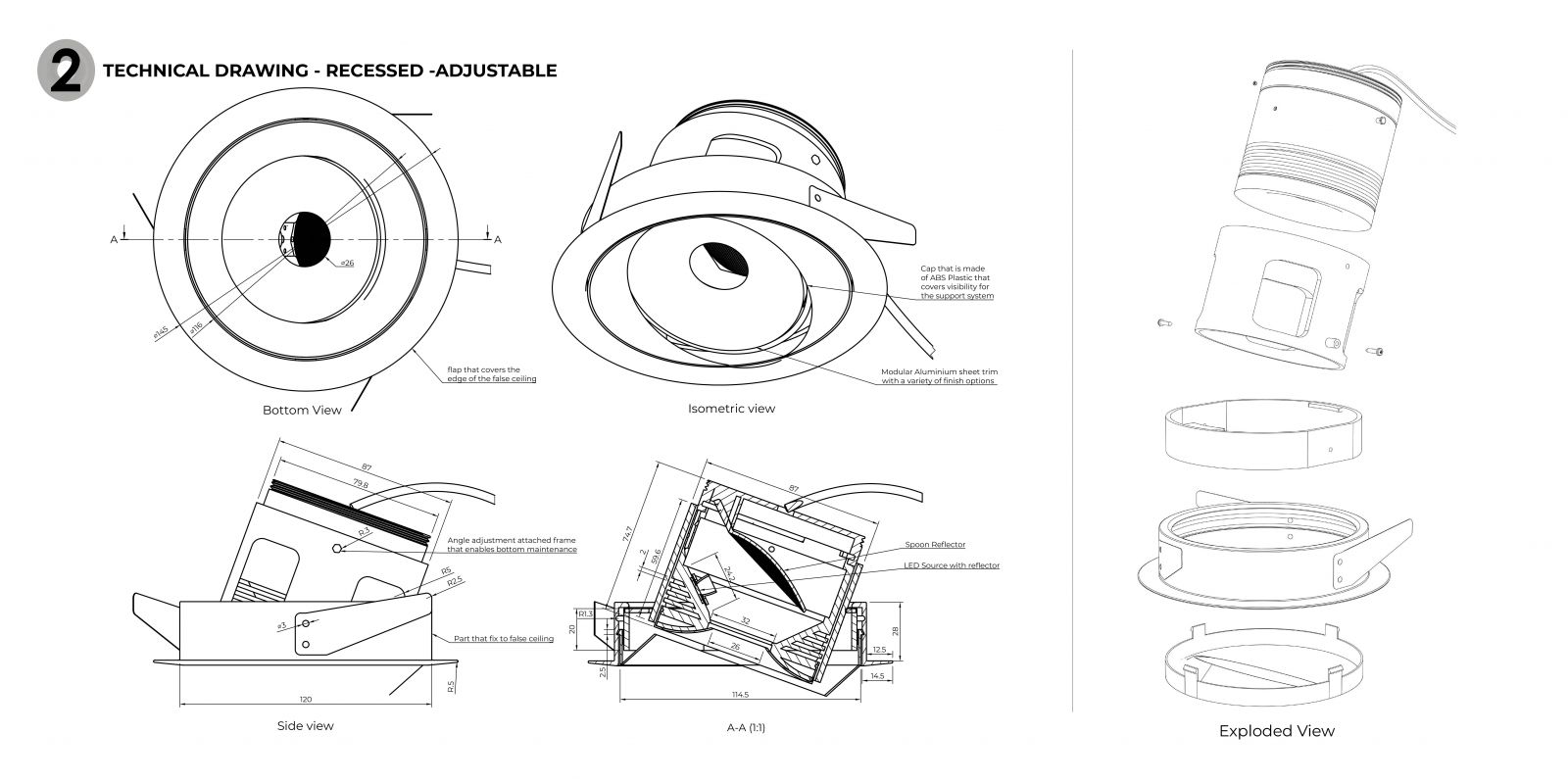

Technical Drawing 2

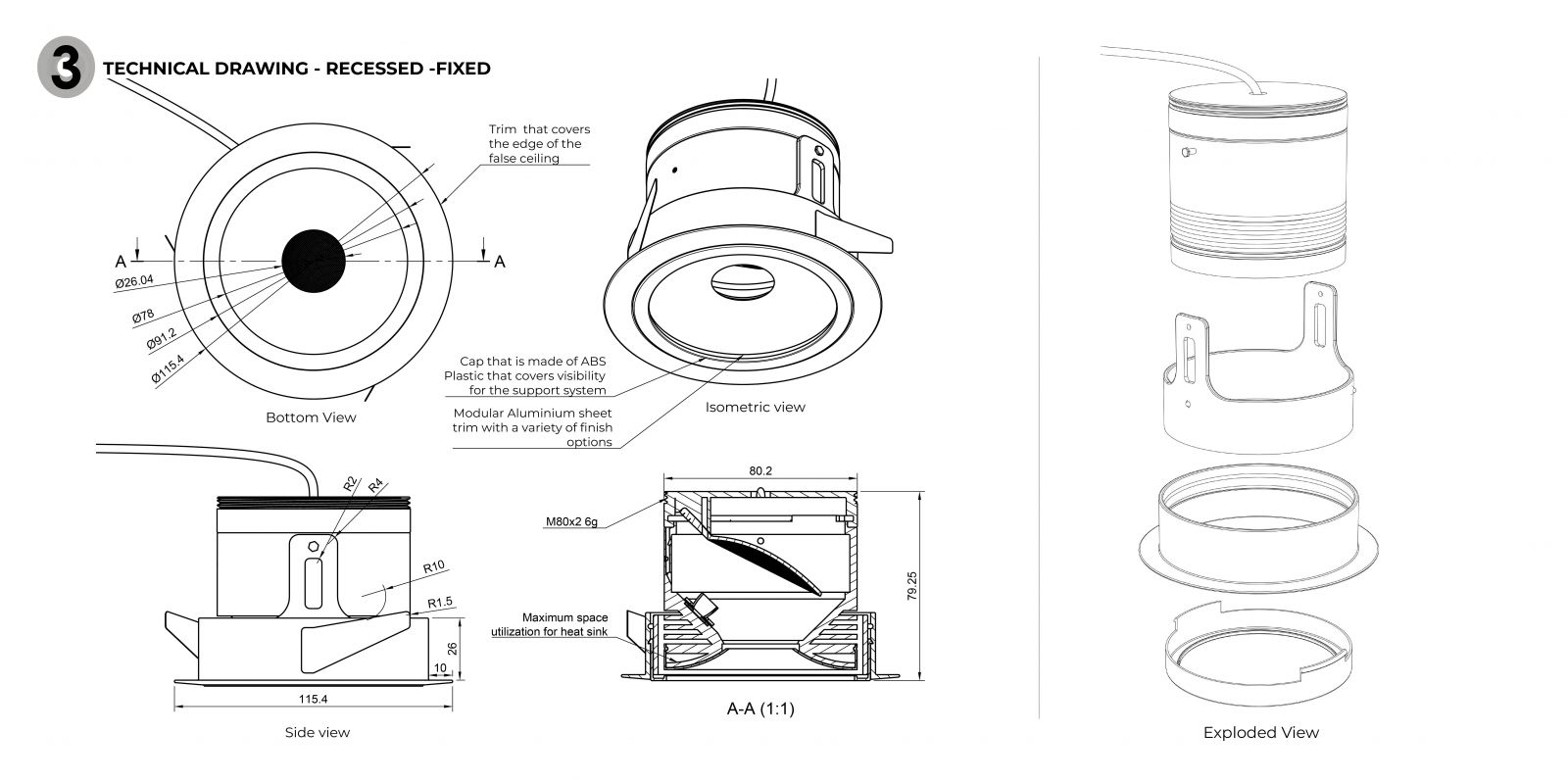

Technical Drawing 3

Technical Drawing 4

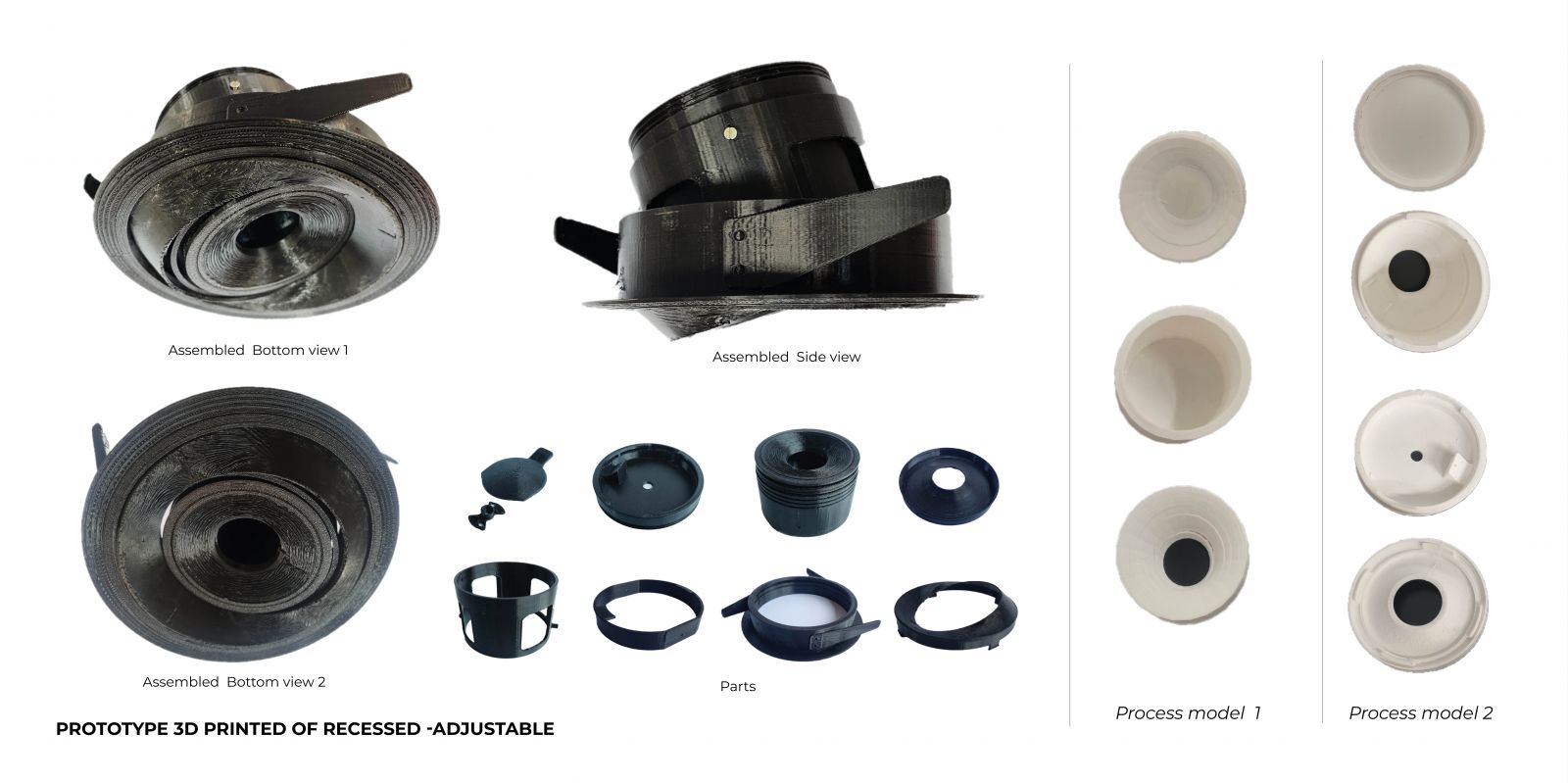

Prototype

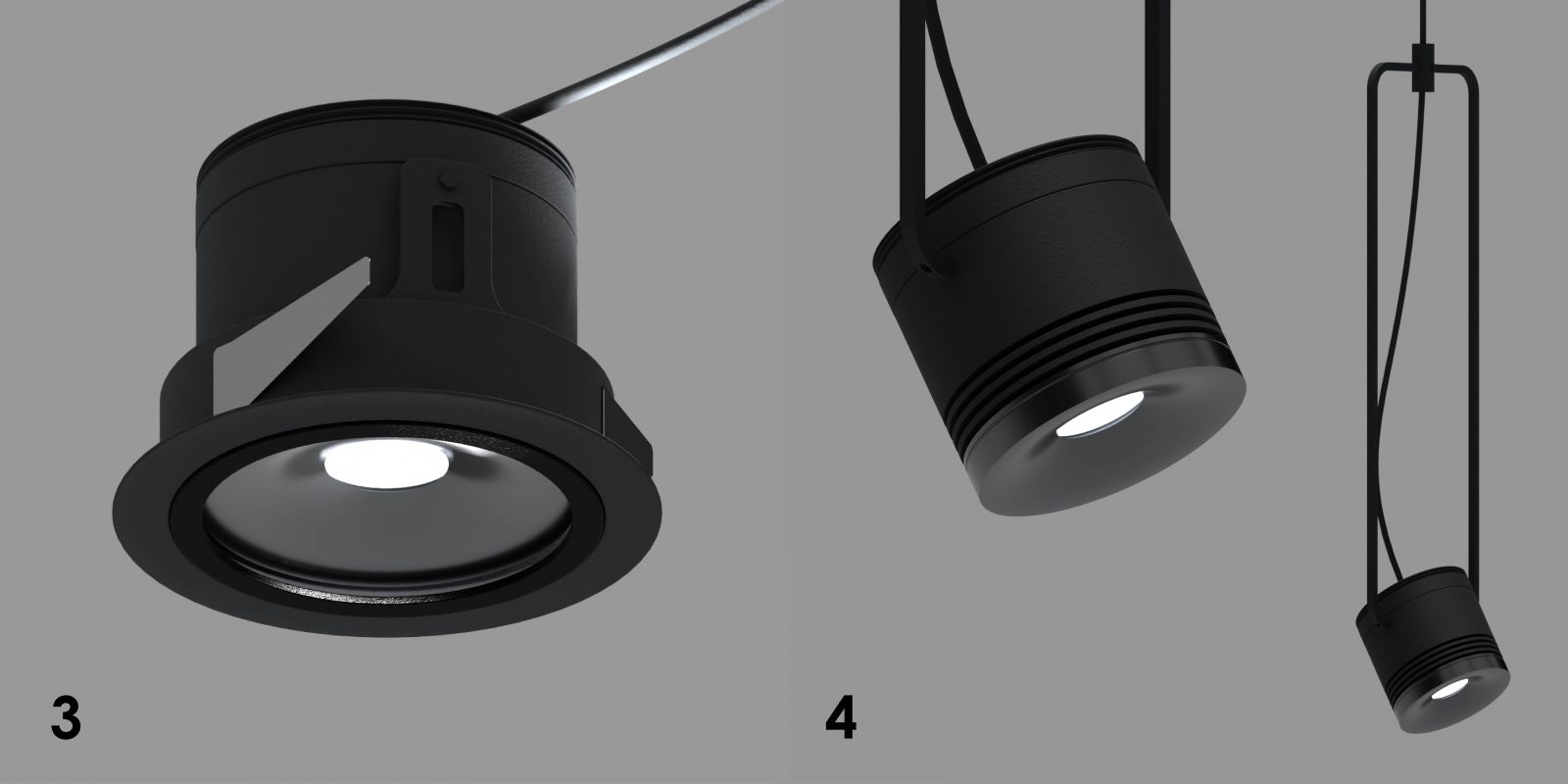

visualisation 1

visualisation 2
