Suhaan Panwar

UR2030

Riverside Blocks

The aim of the project was to redesign an urban block such that it can replicated throughout the dedicated Central Business District along the Sabarmati Riverfront.
The Design focuses on how the buildings in a block can work cohesively to form one large complex. These will also be aligned and designed in such a way that they create focus zones while allowing easily navigable walkable districts, which in turn could create an interesting experience that draws people in.

View Additional Work

Report Content

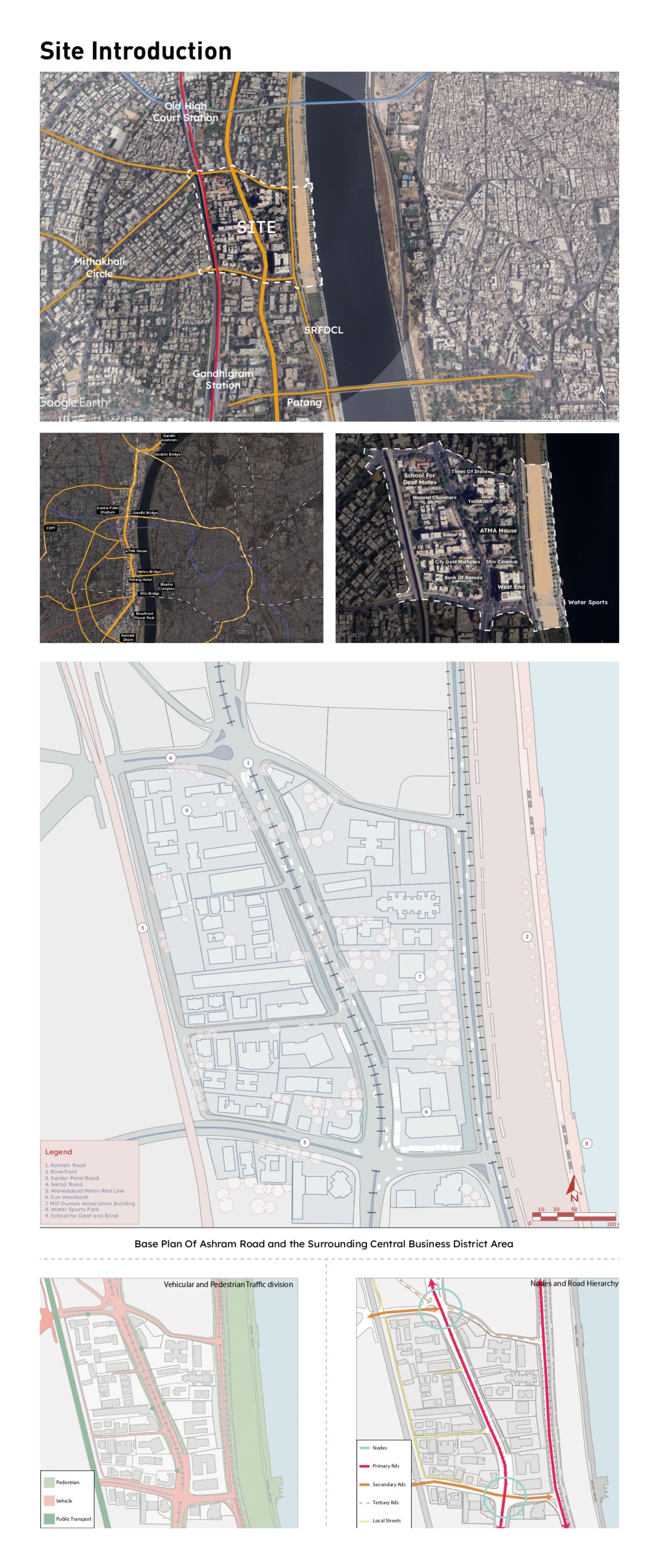

Site Chosen is an urban block situated on Ashram Road between the Sabarmati RIverfront and the North-South Metro line.

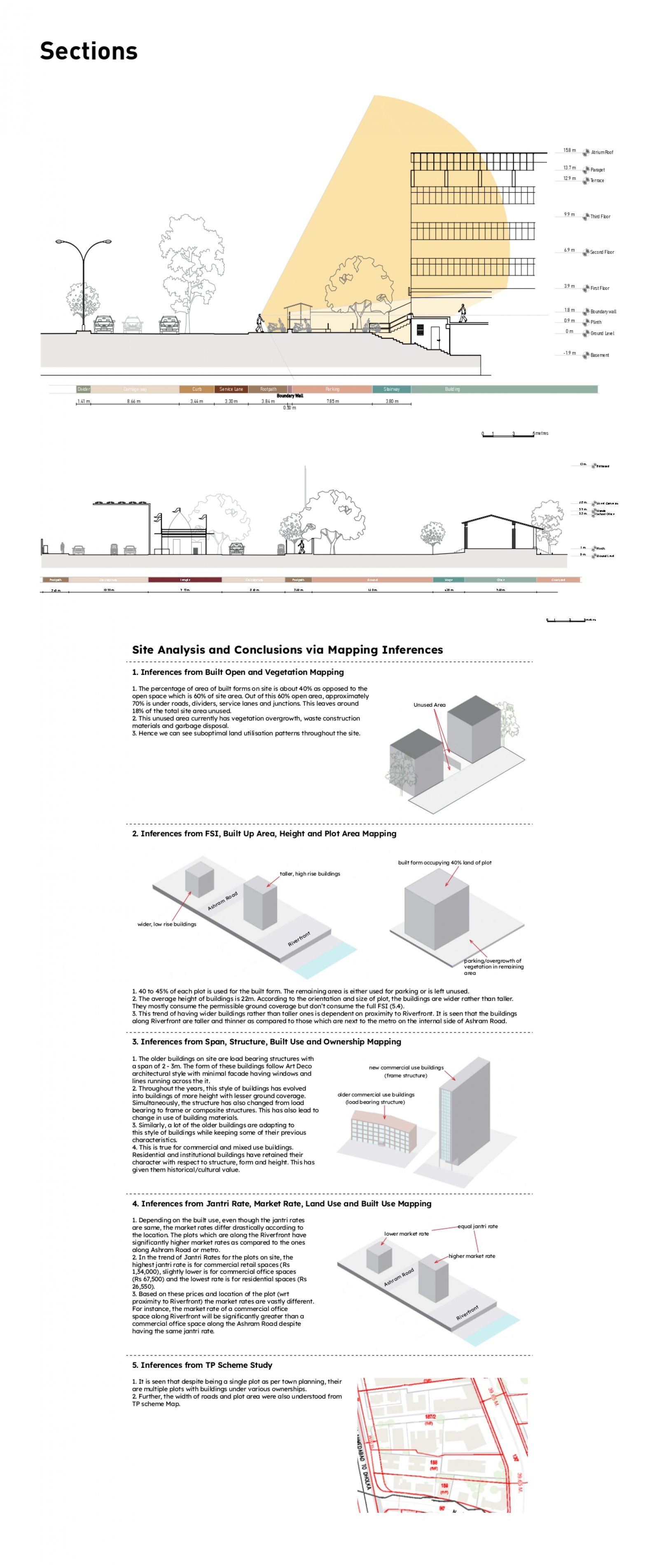

Making Sections and Analysing the Site

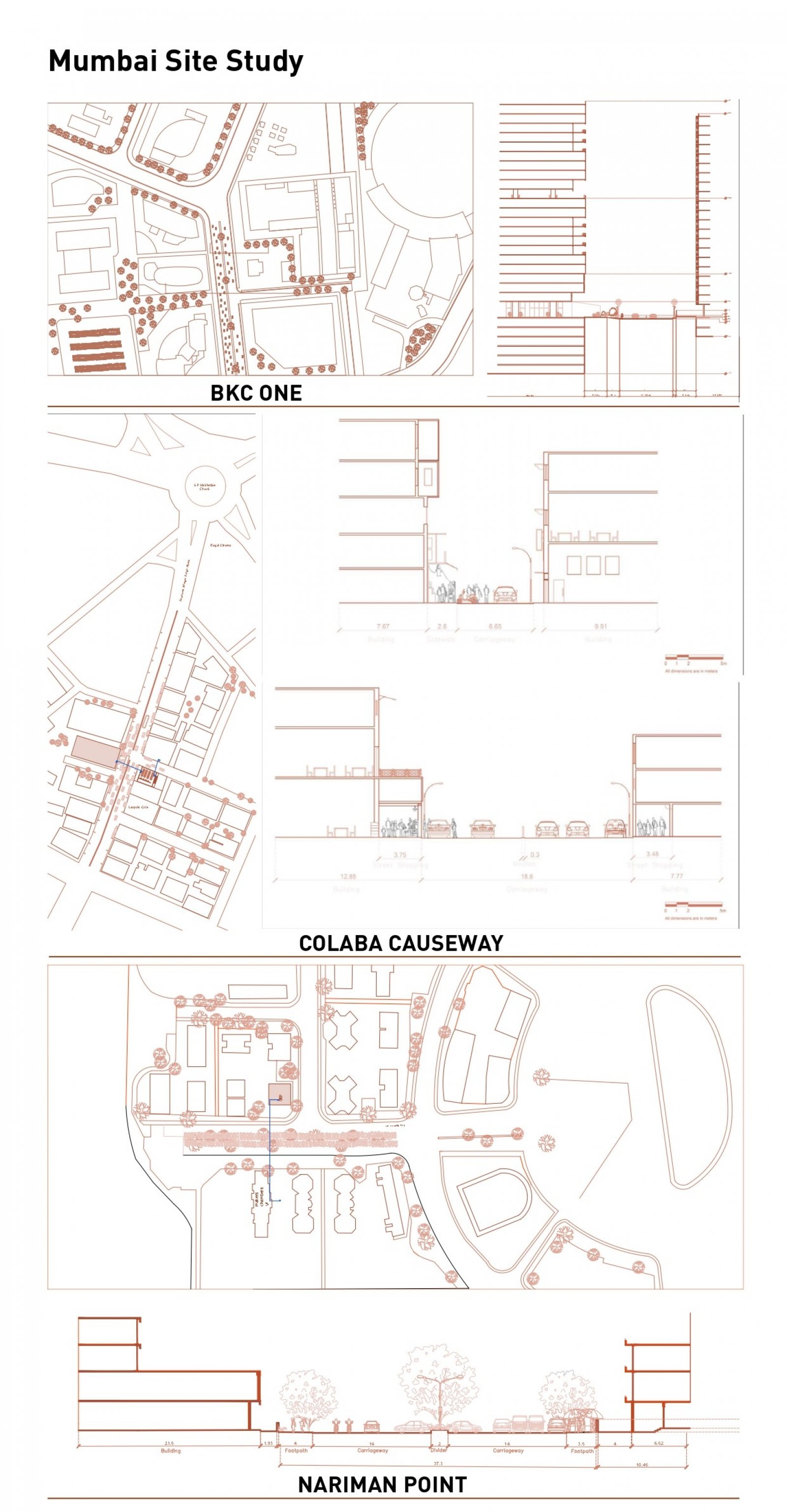

Mumbai Case Study - Visiting prominent commercial areas around Mumbai and understanding how they were developed.

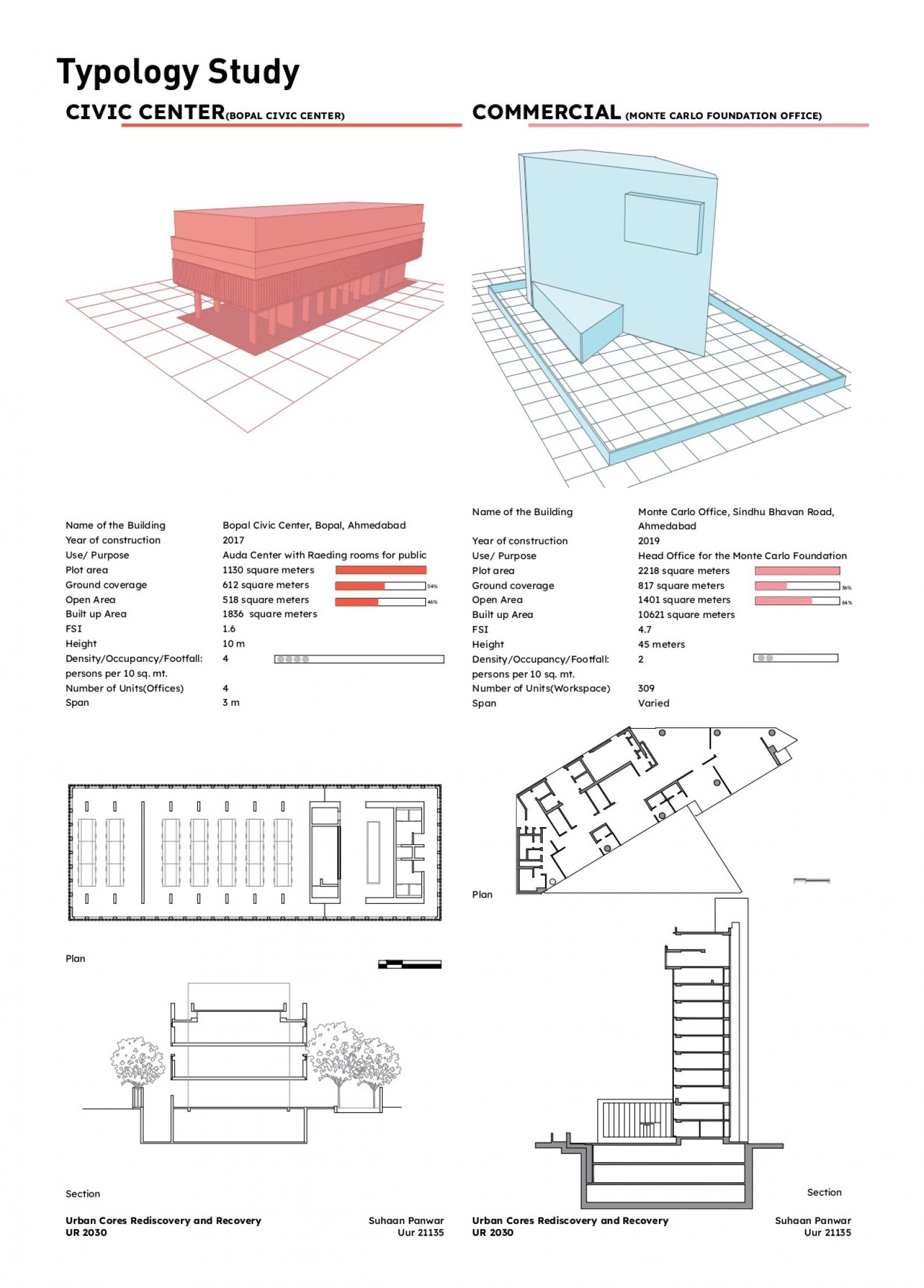

Building Typology Study

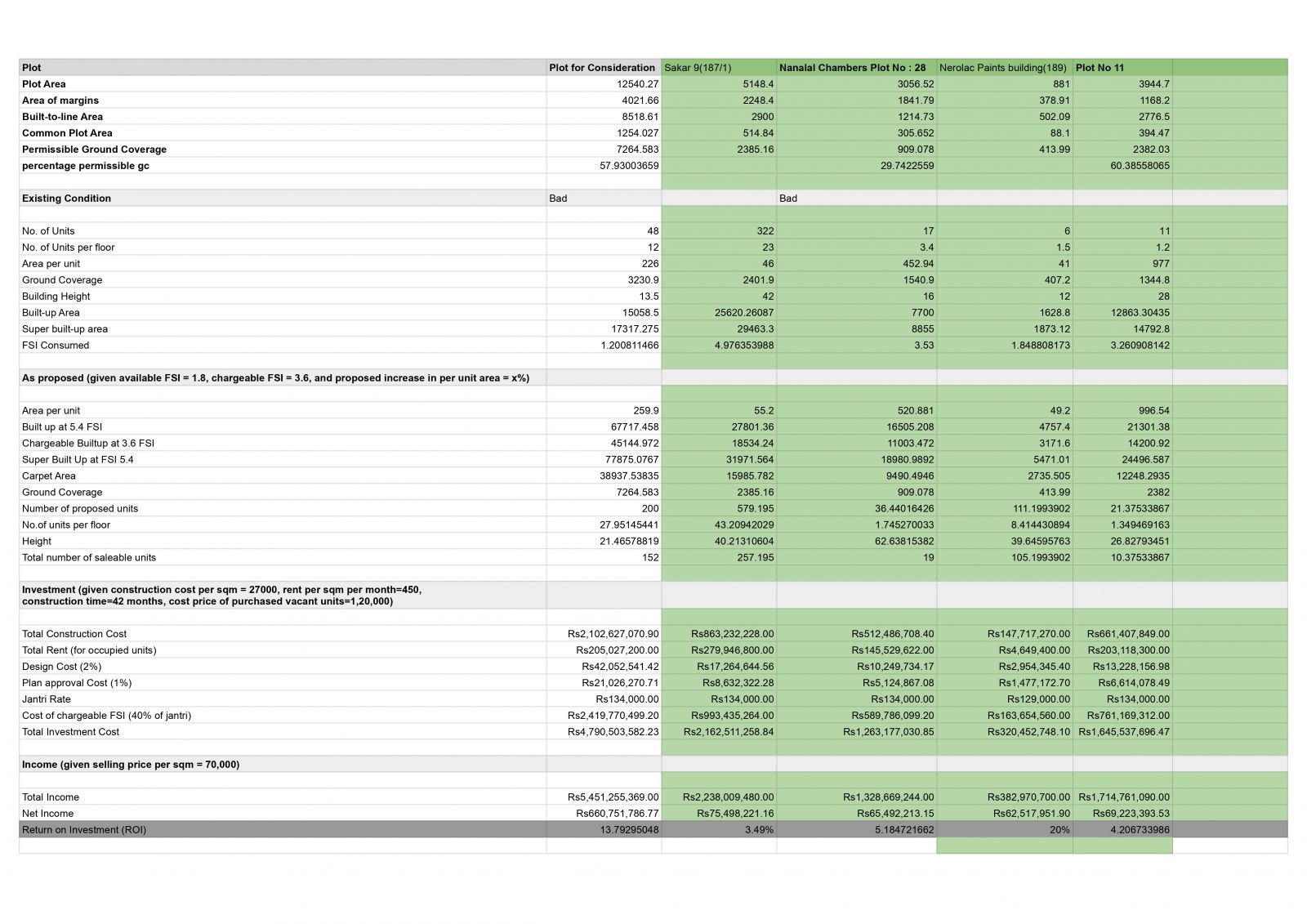

Feasibility of the block

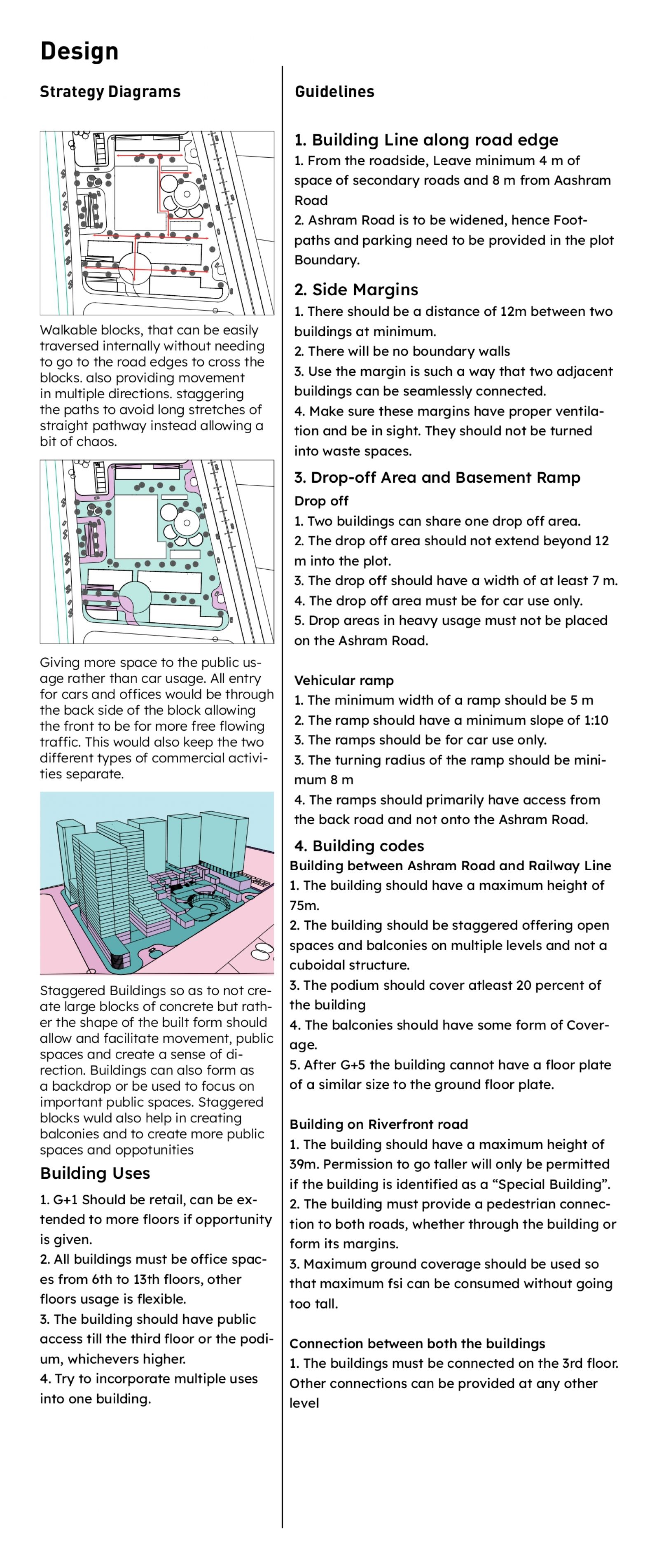

The Strategies and Guidelines formed to inform the redesign of the Block.

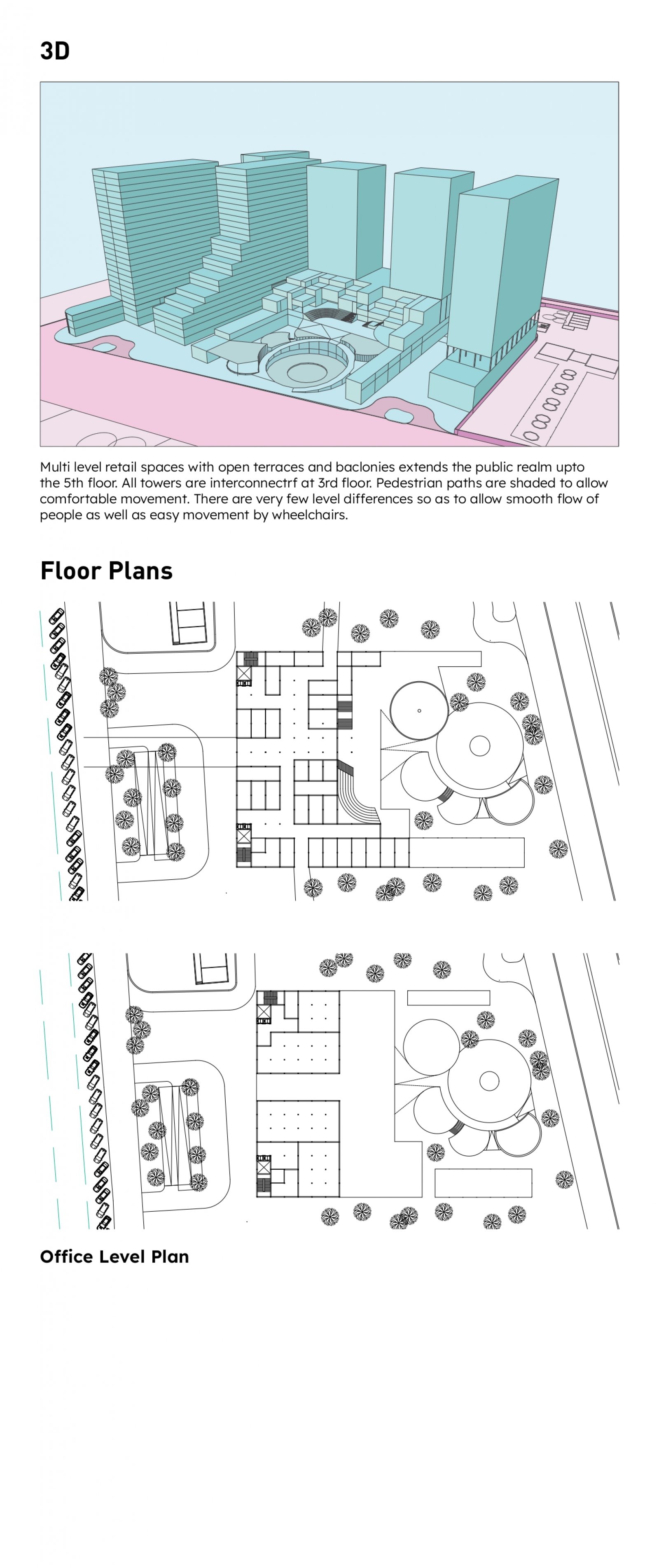

Block Level Ground Floor Plan

More Drawings

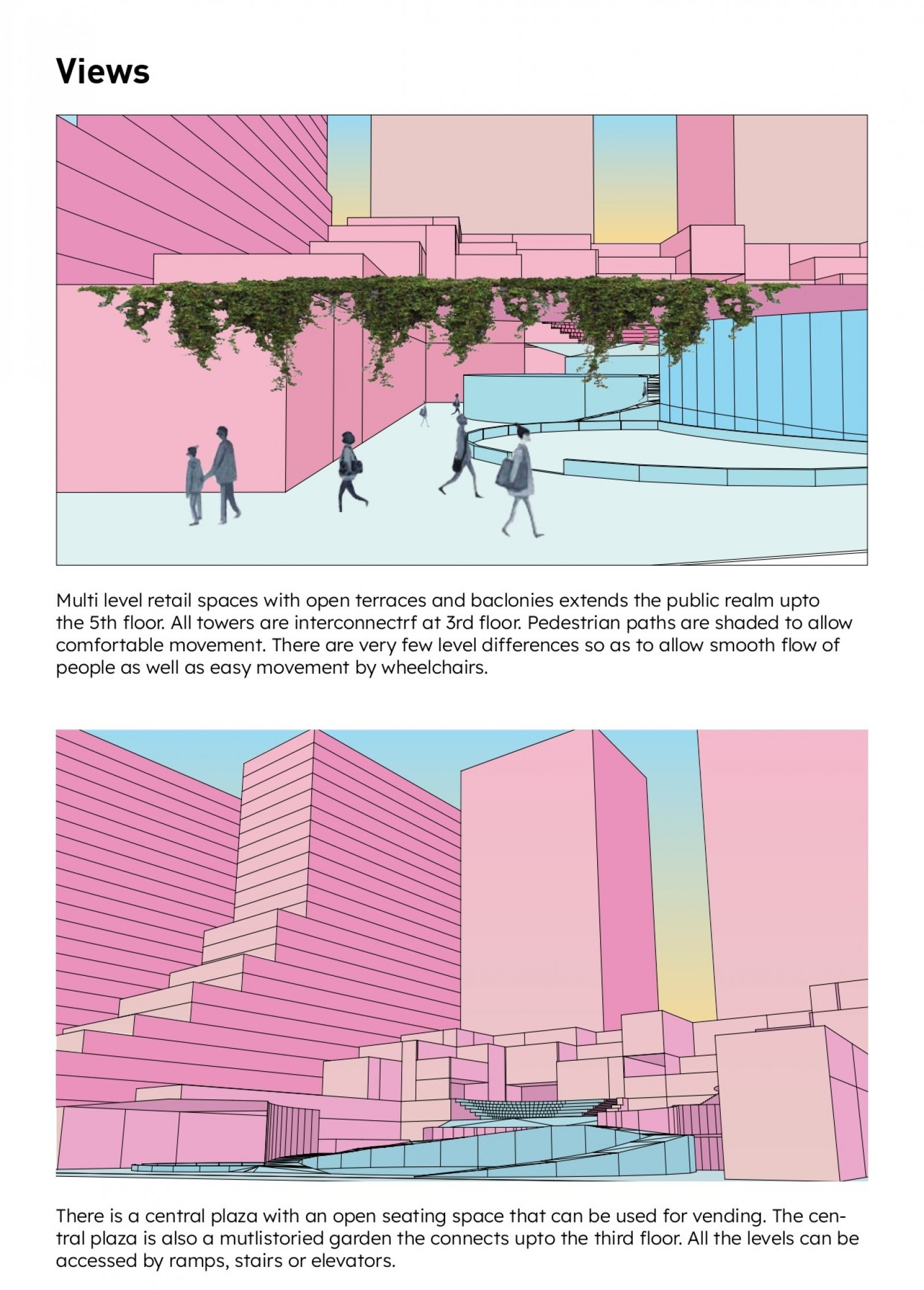

Views of the Block.

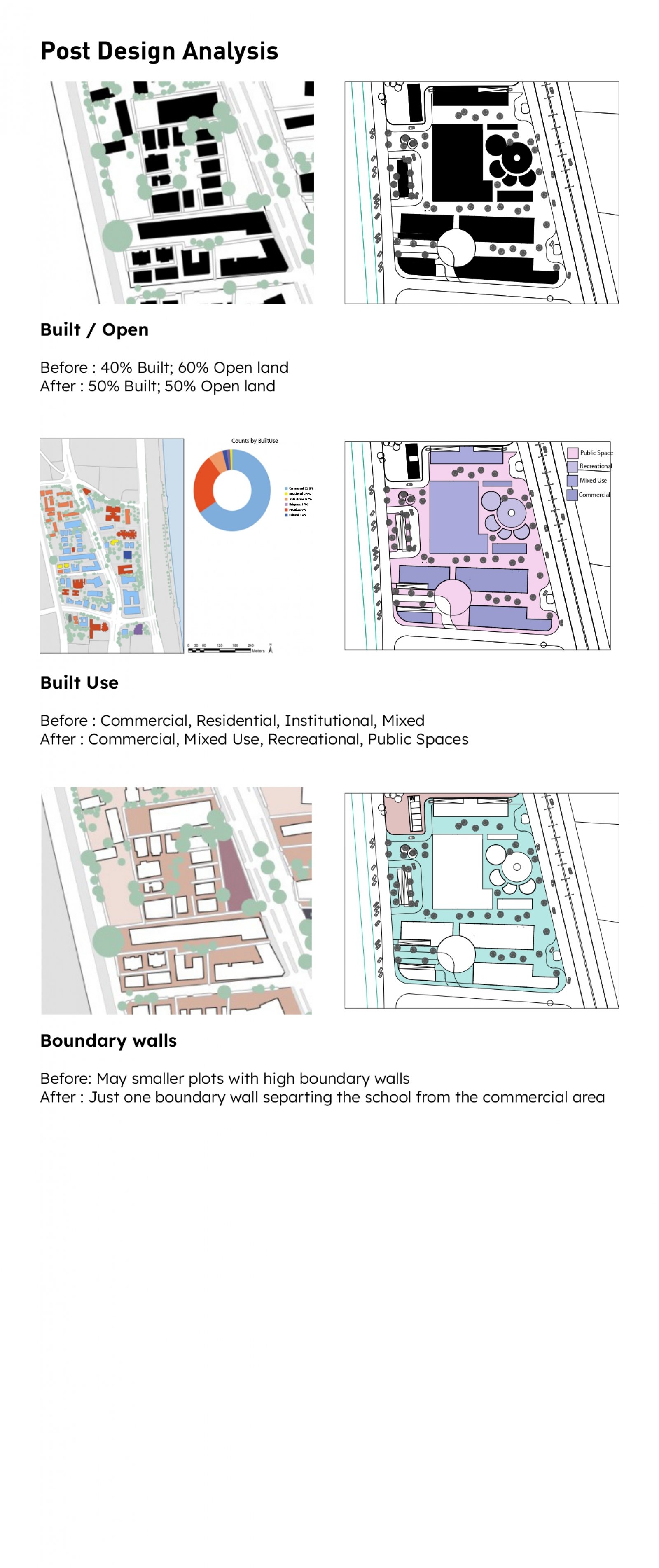

Post Design Analysis
