Tailor Shivam Pareshkumar

SD4006

DESIGN OF G+13 BUIDLING WITH SHEAR WALL PERIPHERY

During the studio sessions, we explored RCC design and analysis through a series of project-based tasks, each with distinct problem statements. We began with a basic beam-column system and gradually incorporated shear walls to address static torsion. Through experimentation, we observed behavioral changes and developed problem-solving skills for various design scenarios. One key challenge I encountered was designing a system with shear walls placed only at the periphery


Report Content

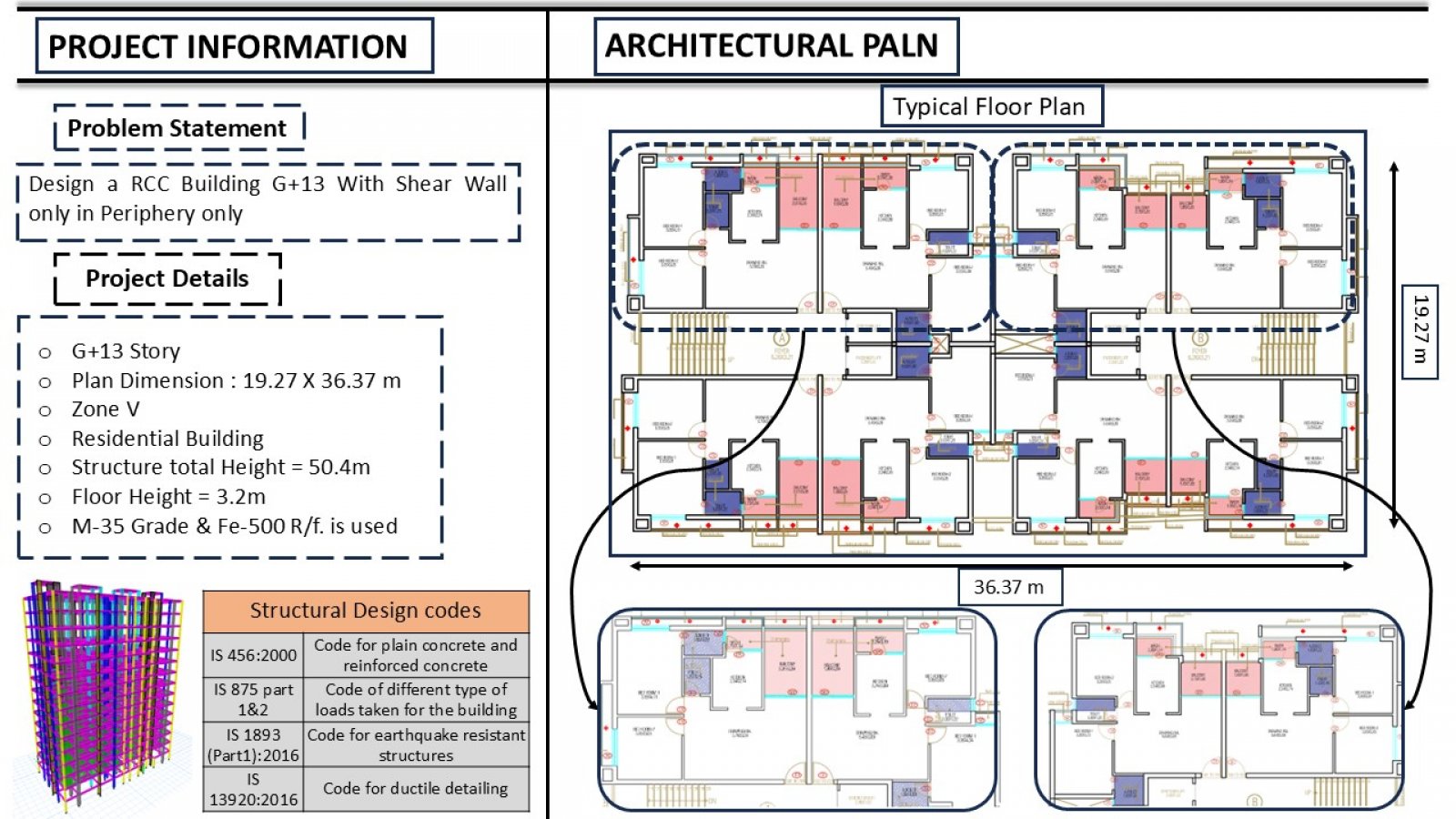

Problem Statement

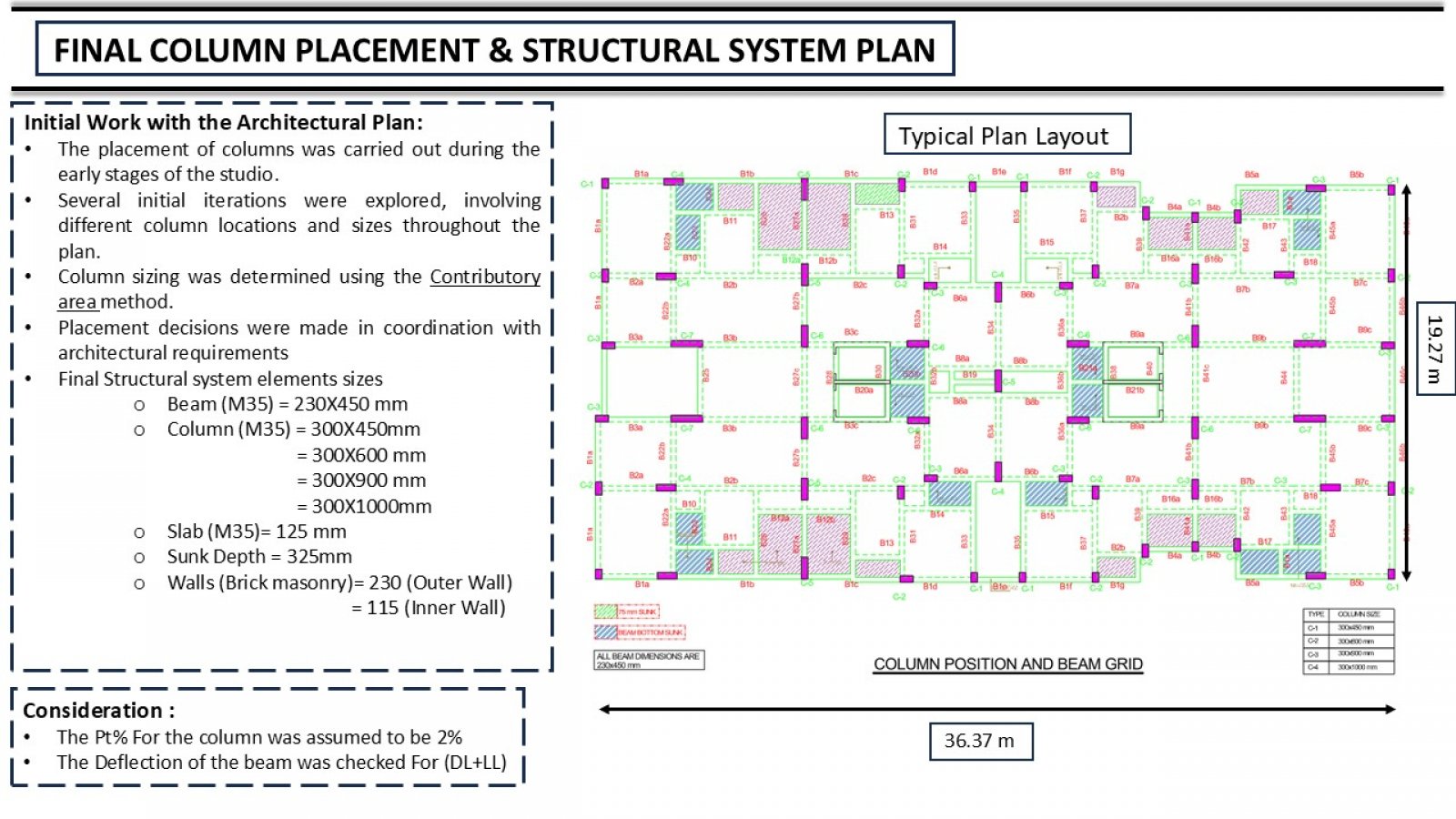

Final Structural System

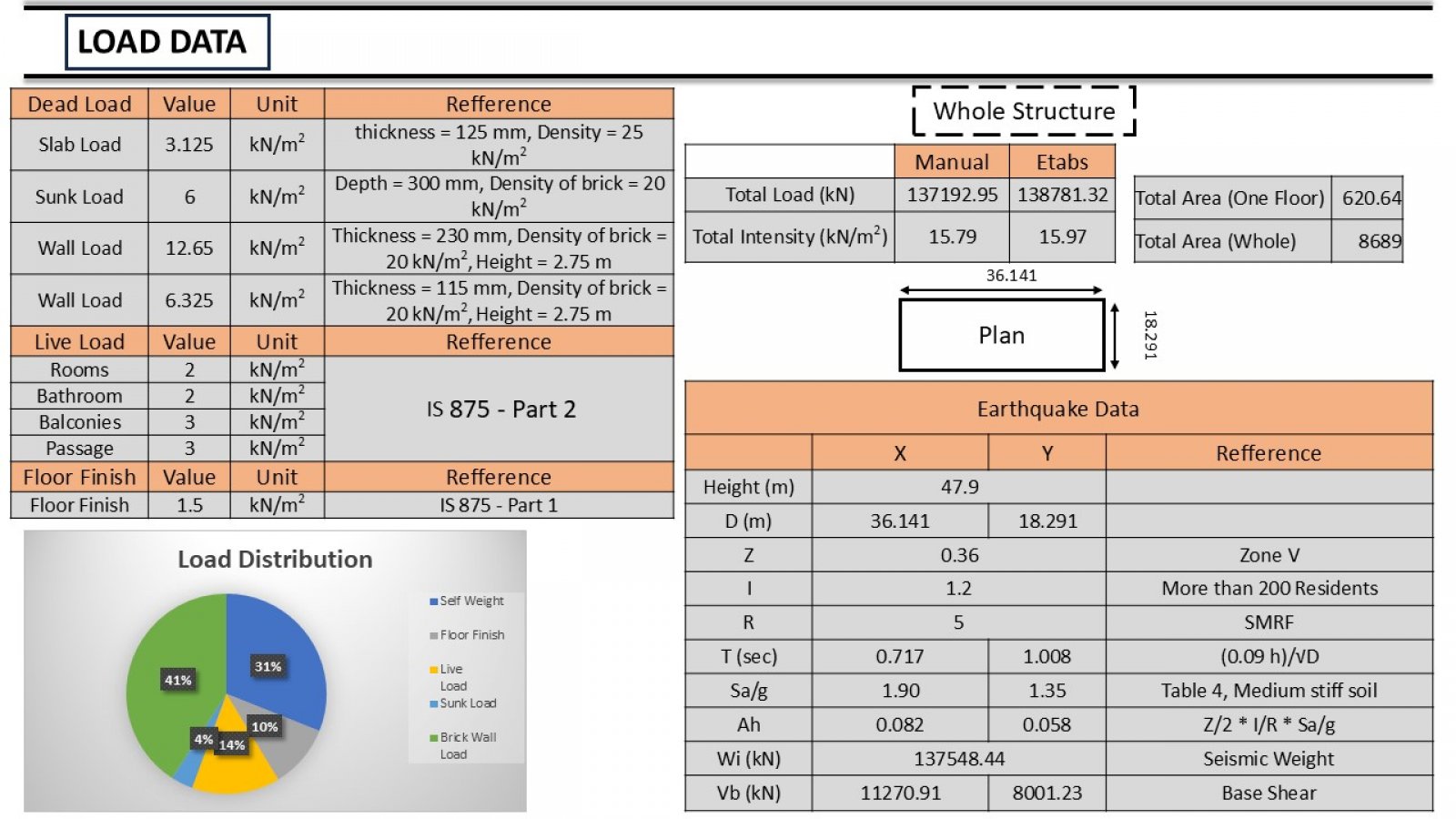

Load Data

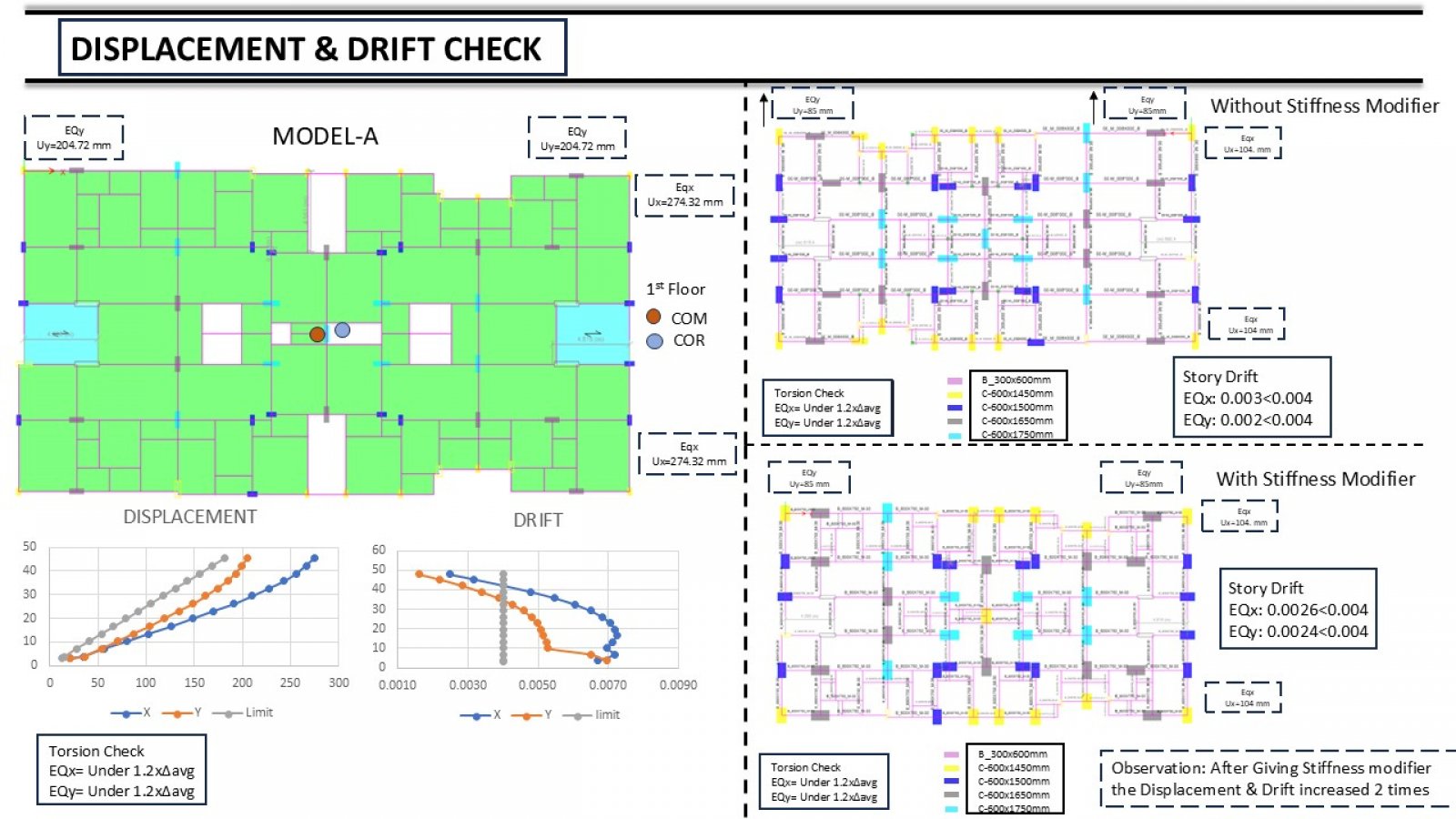

Displacement, Drift & Torsion Check of Gravity model

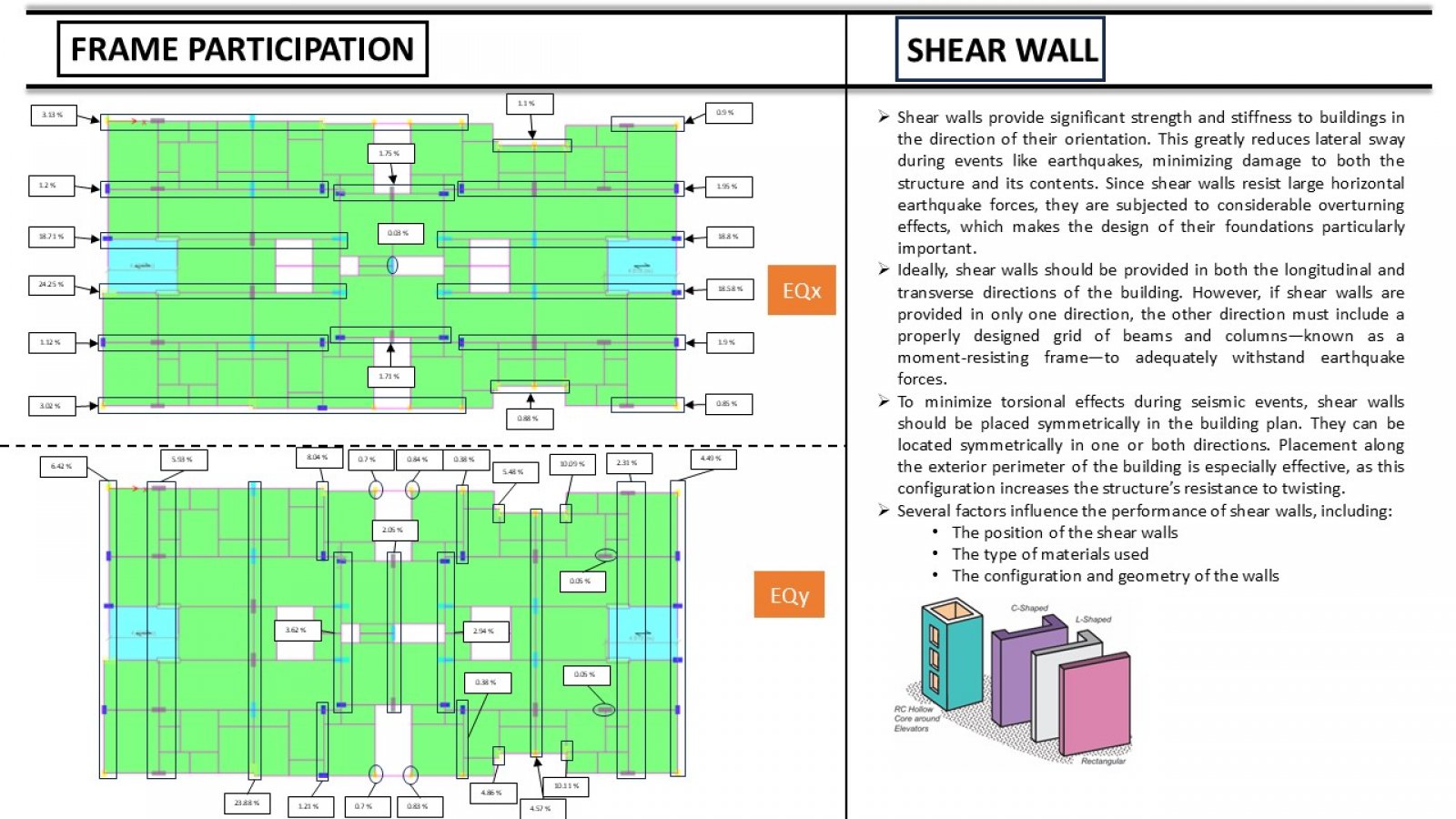

Frame Participation & Shear Wall

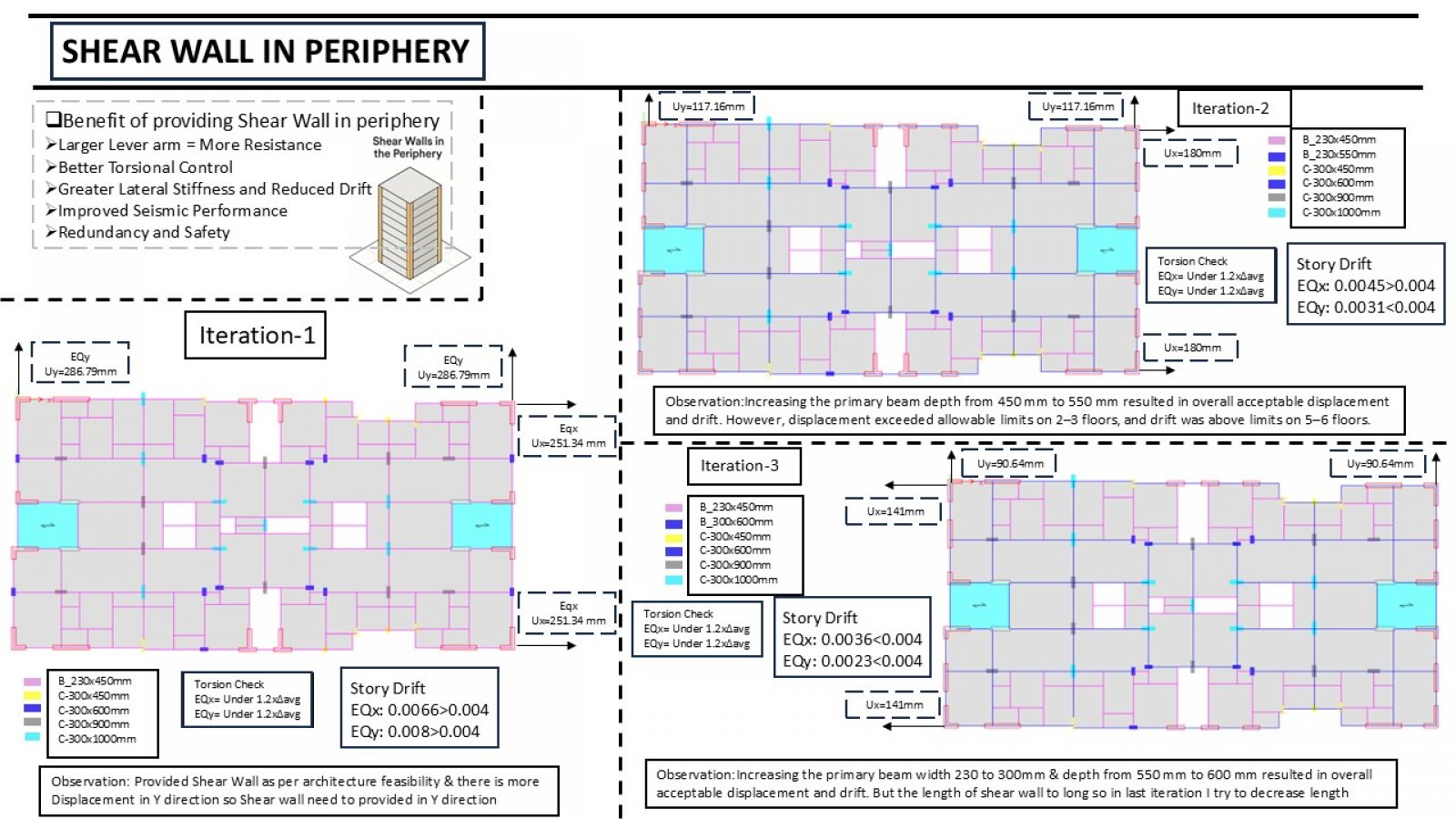

Shear Wall Iteration

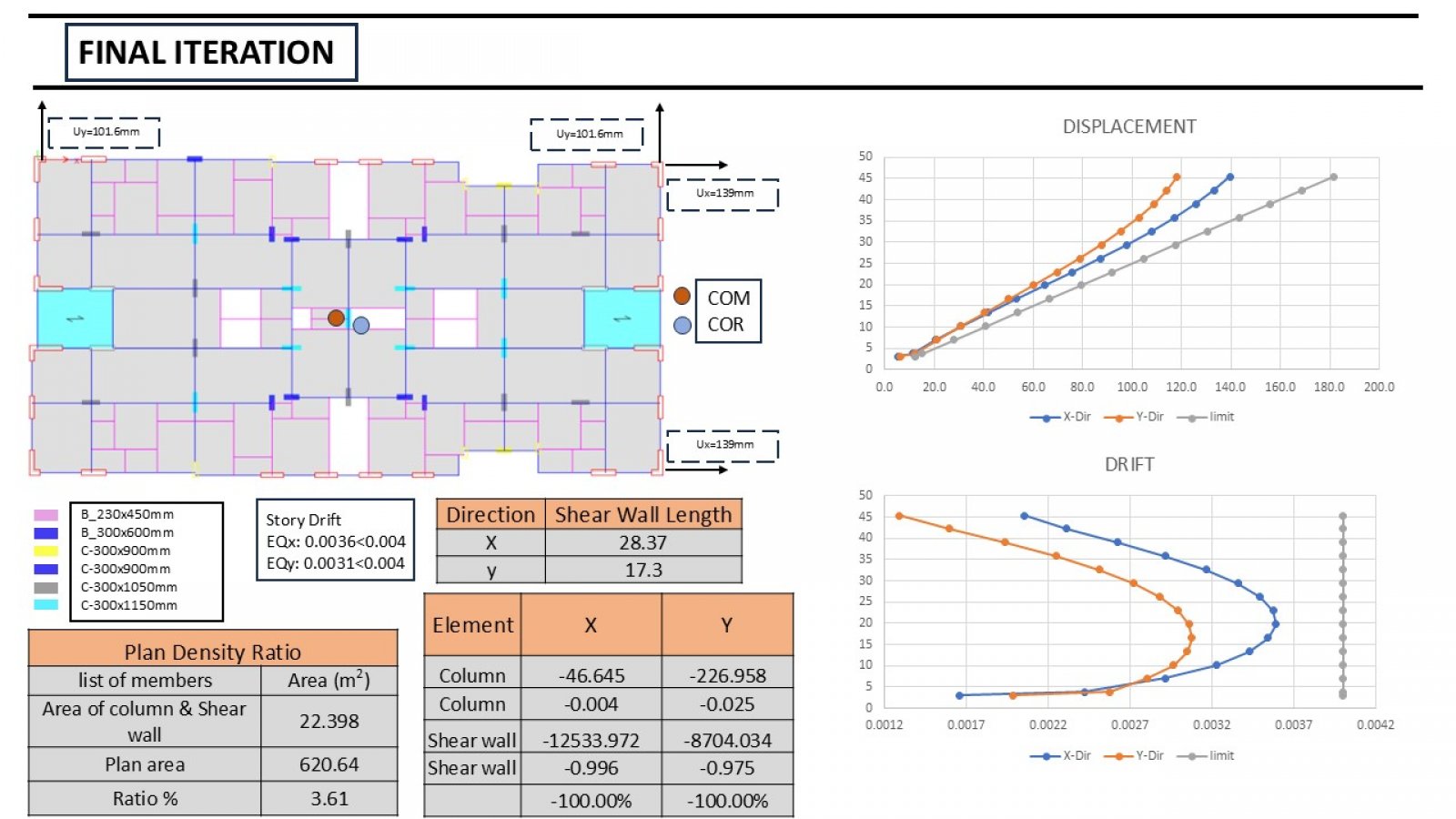

Final Iteration Check

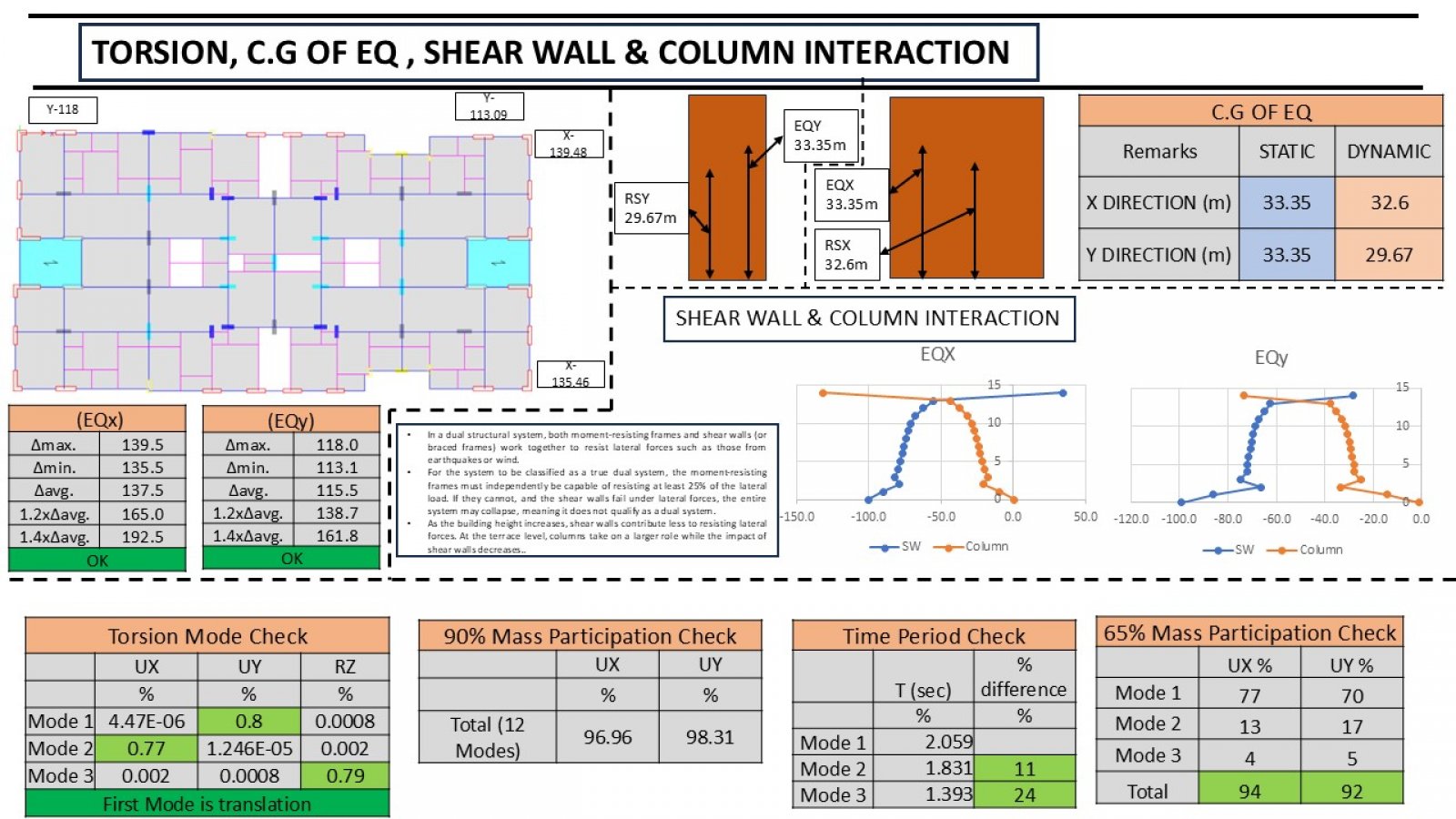

Torsion, C.G of EQ, Shear Wall & Column Interaction

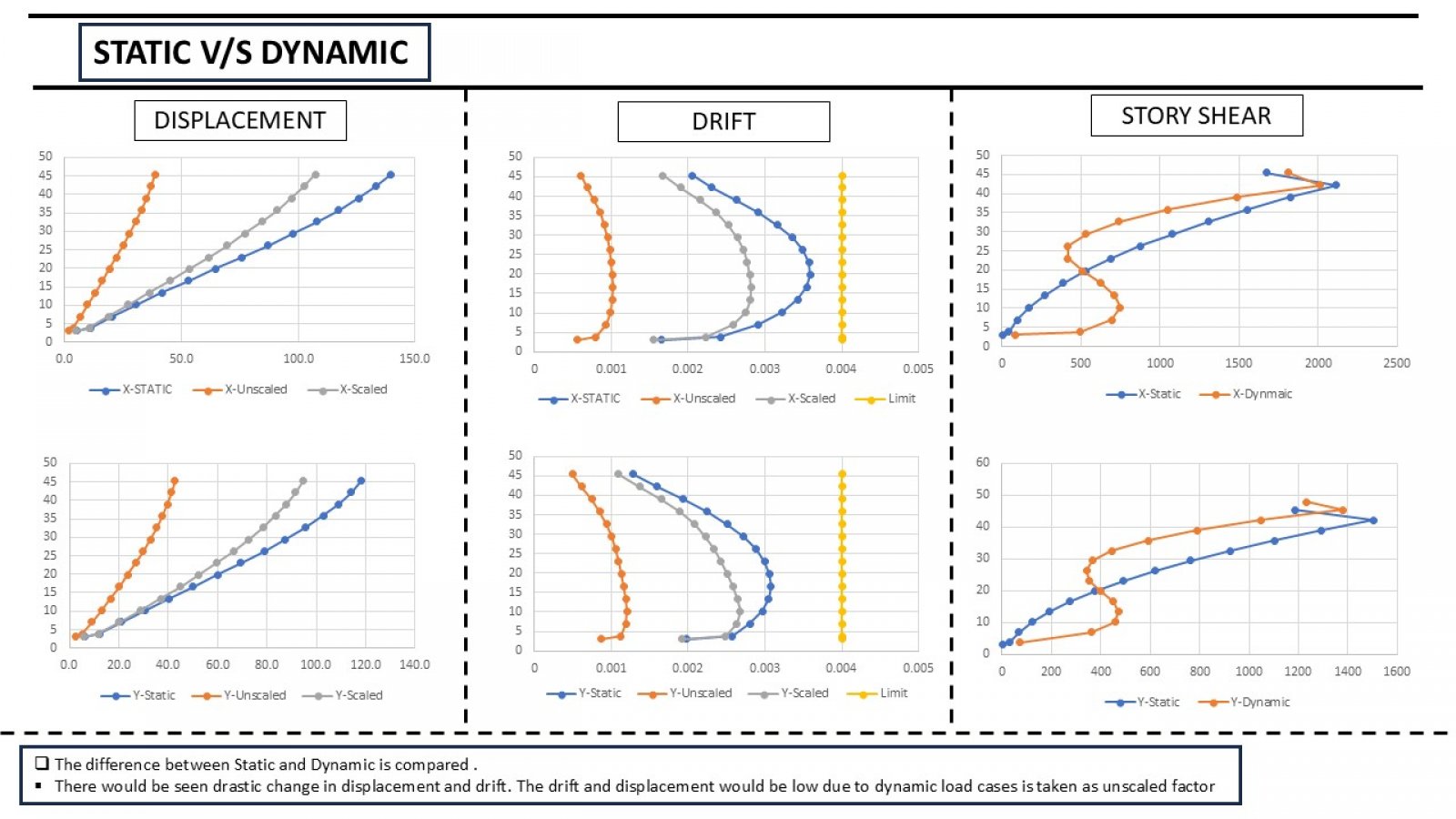

Static v/s Dynamic

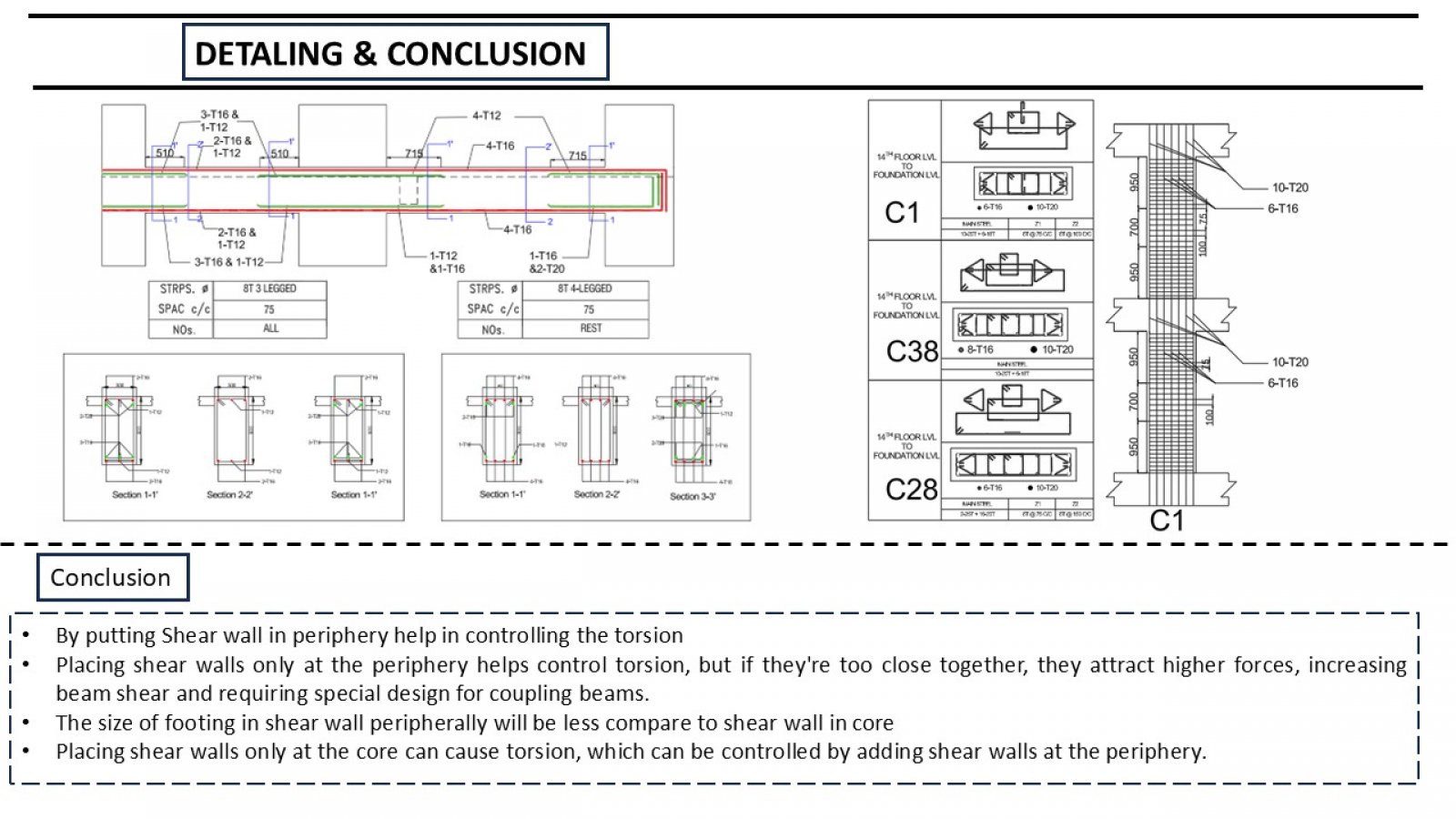

Detailing & Conclusion
