G+12 RESIDENTIAL BUILDING WITH FLOATING COLUMNS

Aryan Datta

SD4006

G+12 RCC BUILDING WITH FLOATING IS DESIGNED USING LIMIT STATE METHOD USING ETABS WHILE KEEPING IN MIND THE CODAL PROVISION SELECTIVELY FOR BUILDING WITH VERTICAL IRREGULARITY.

Report Content

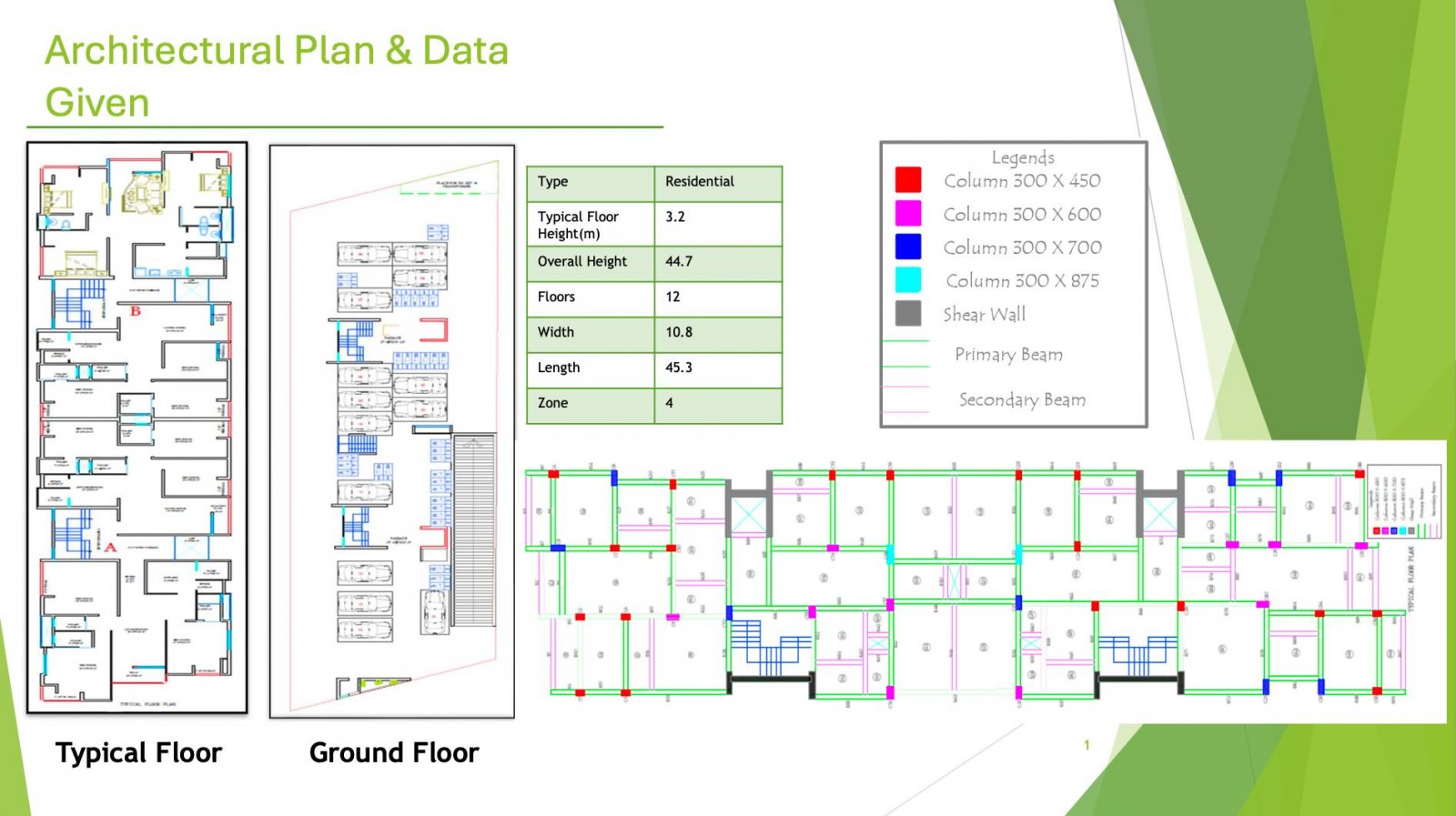

Architectural plan and Layout

Loading used in the structure

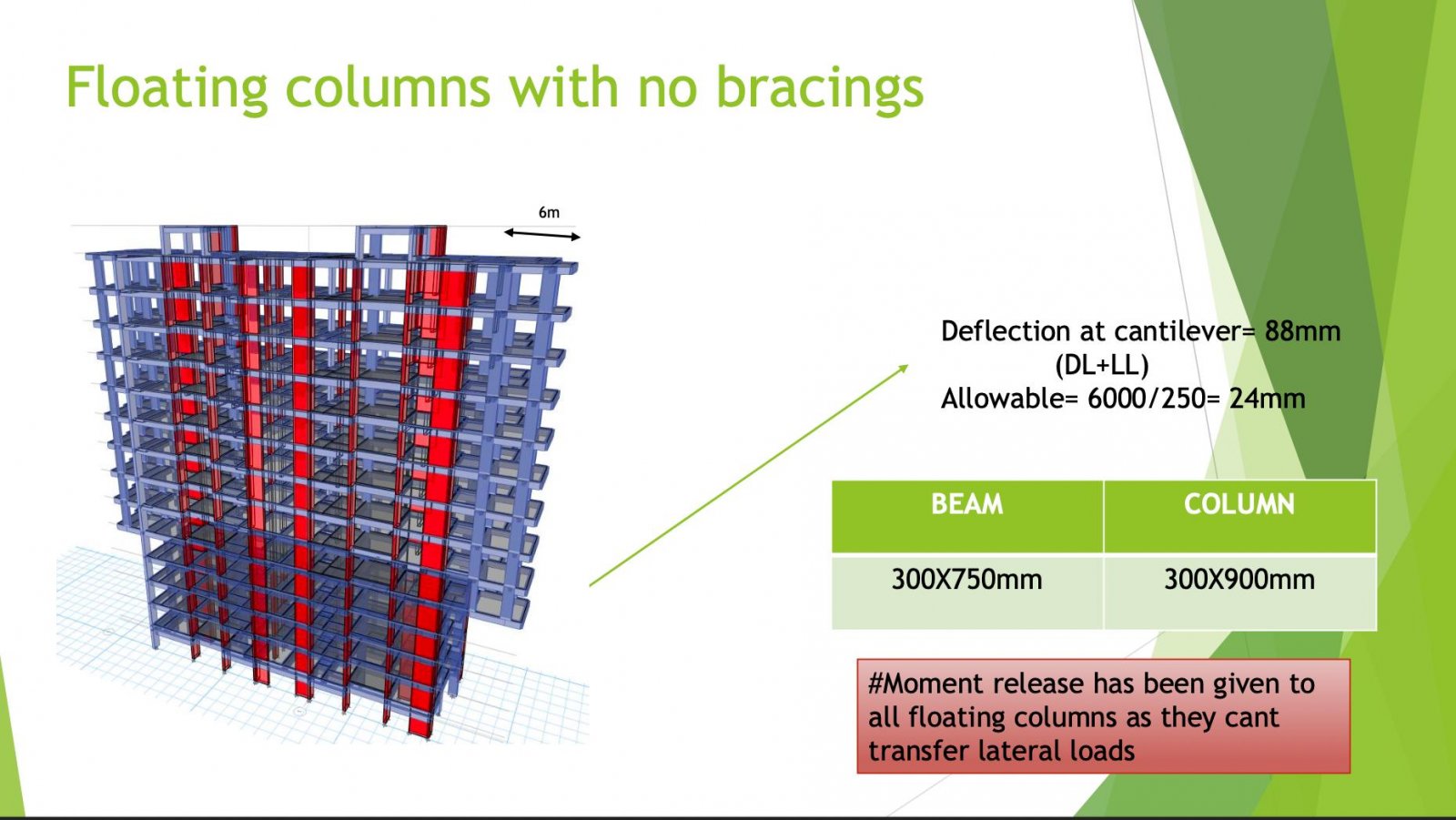

First iteration for No support floating columns

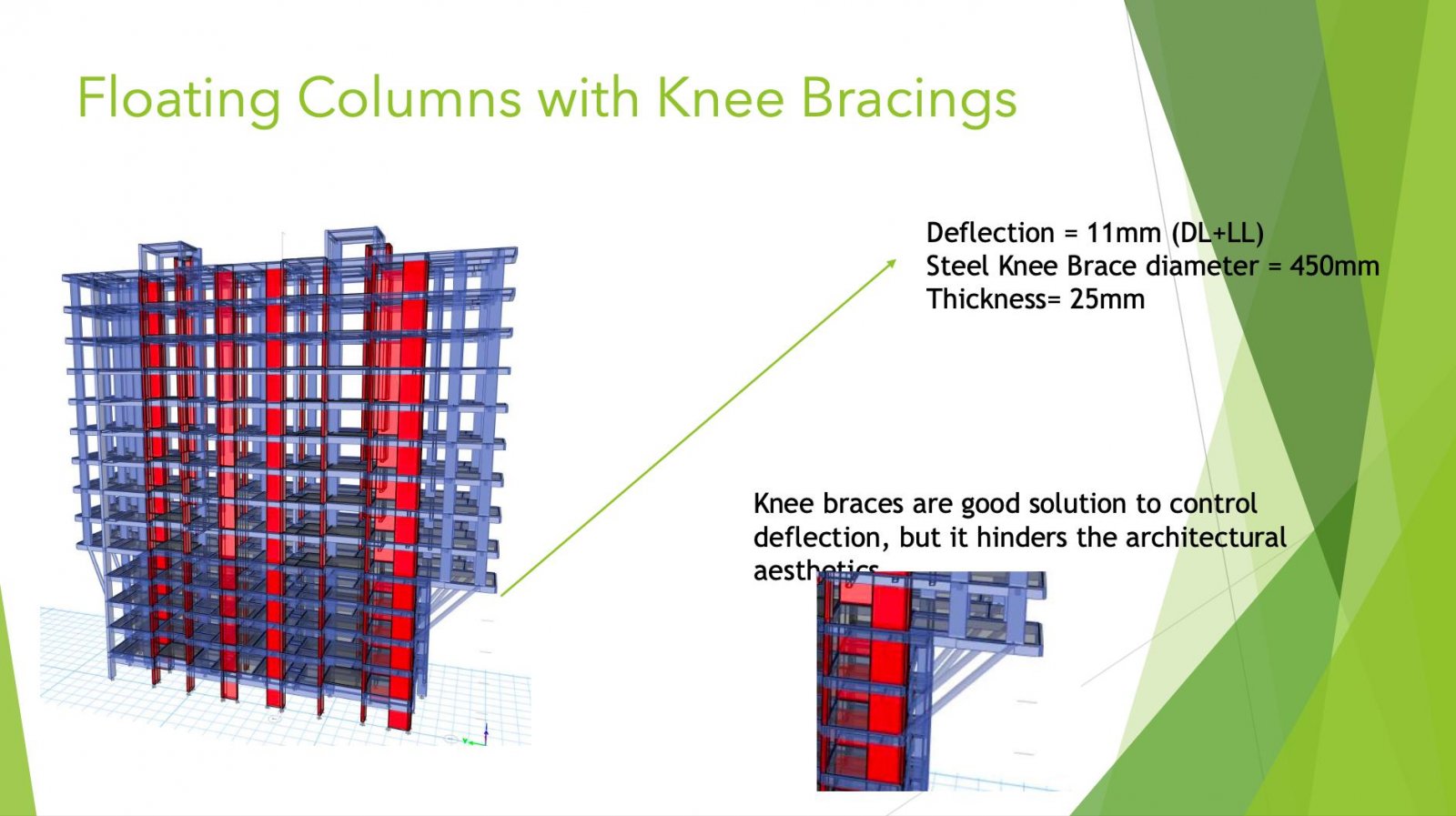

Second iteration for floating columns with steel knee bracing

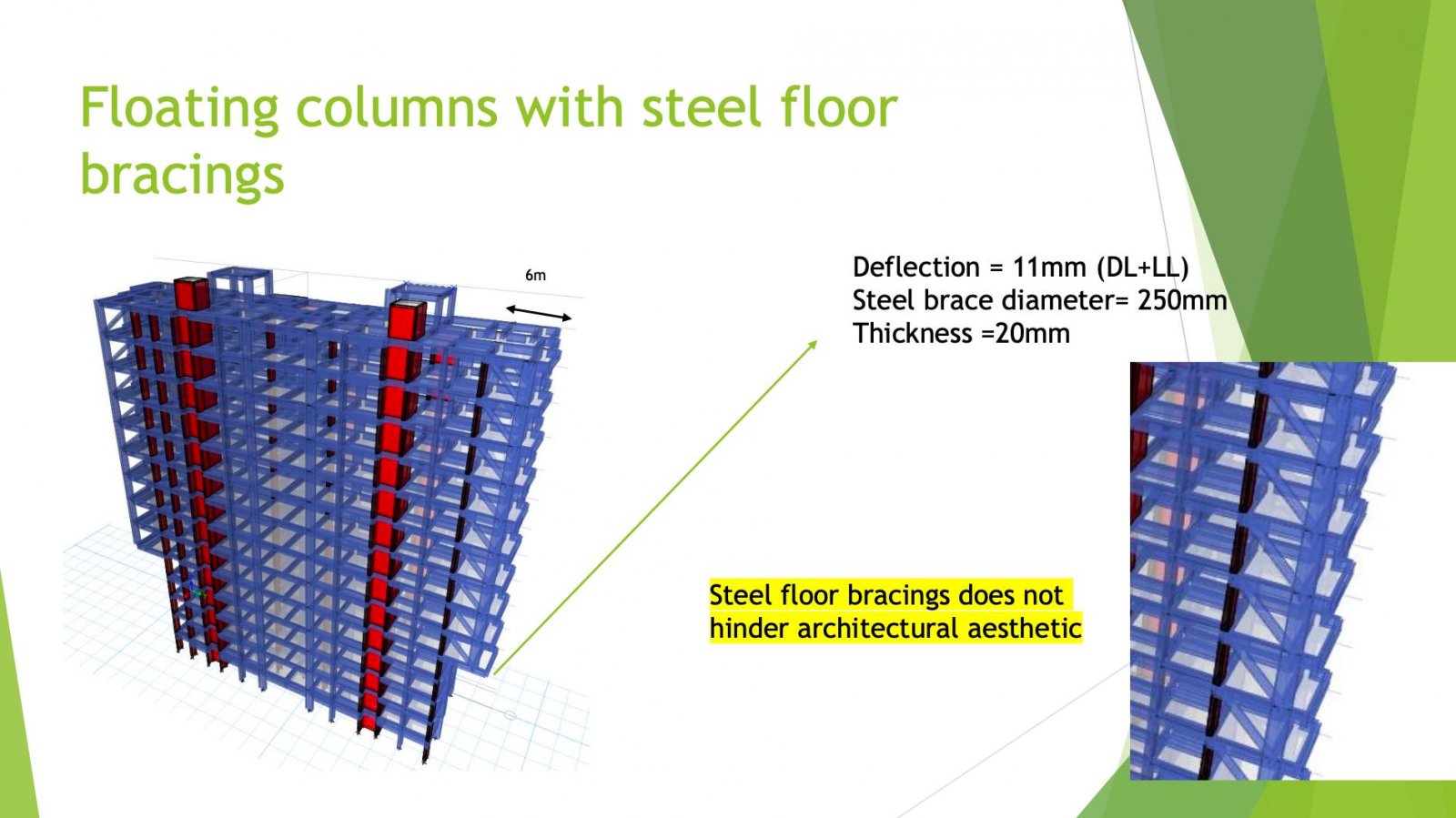

Final interaction for floating columns with steel floor bracing

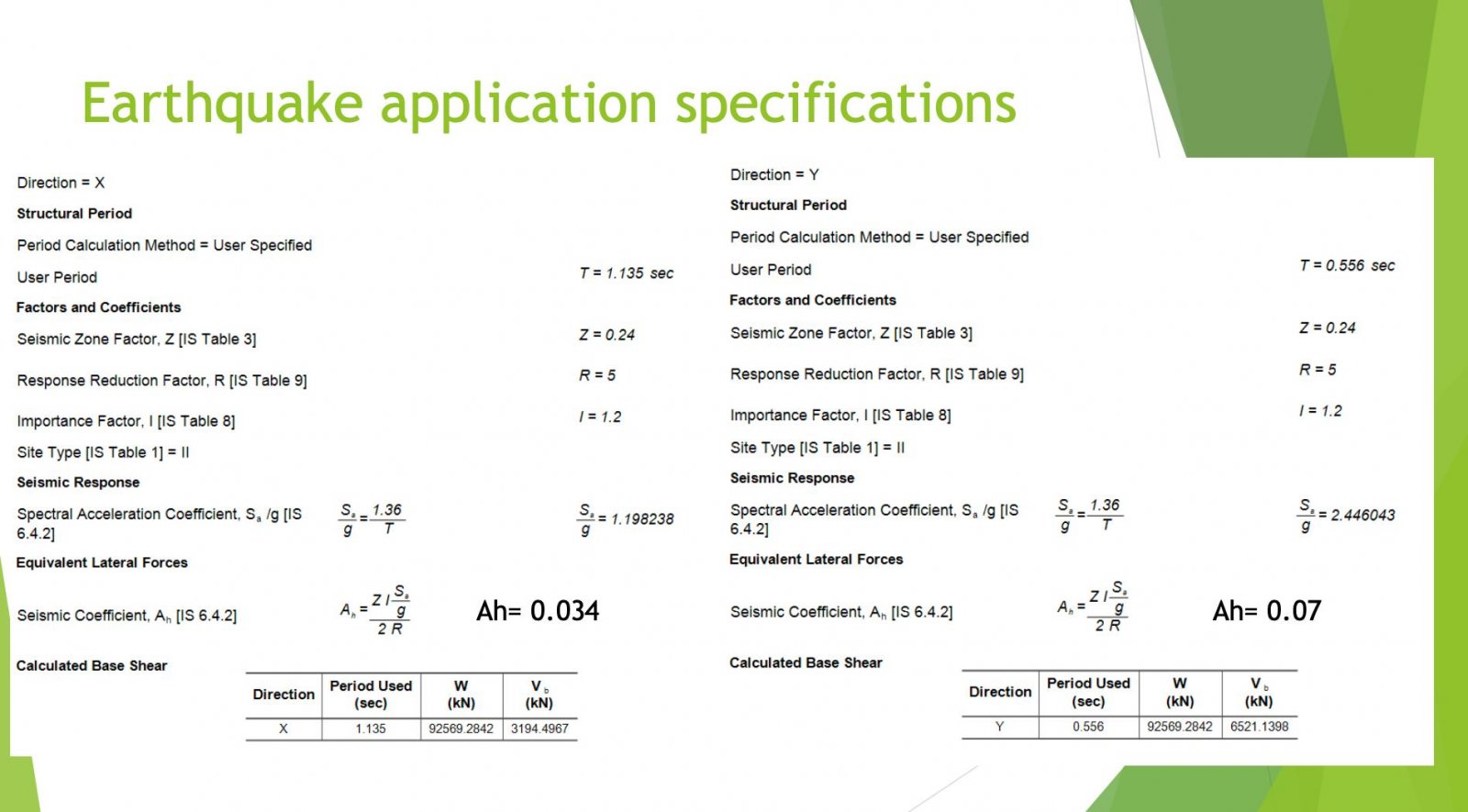

Earthquake load application results

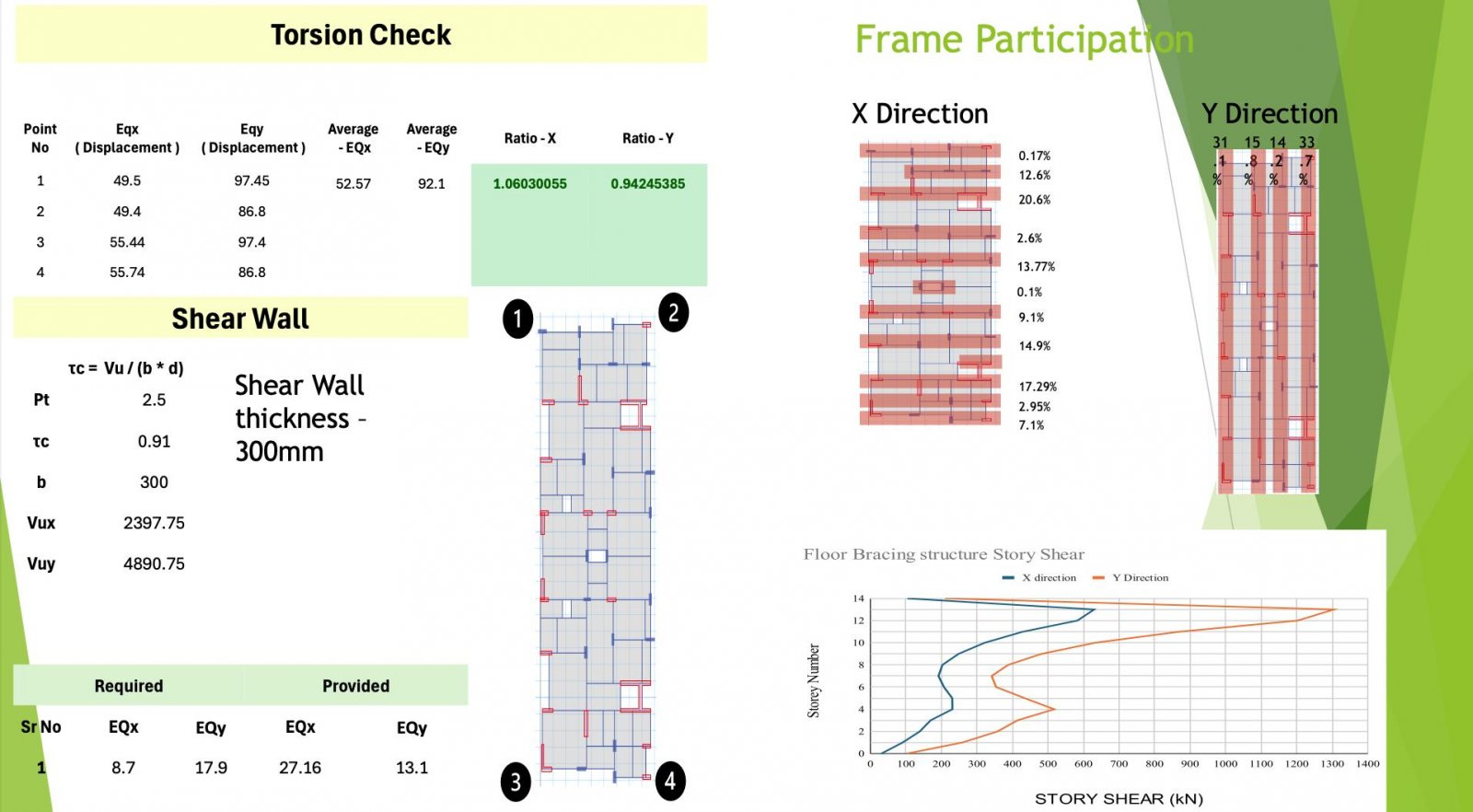

Torsion check and frame participation of the model in ETABs

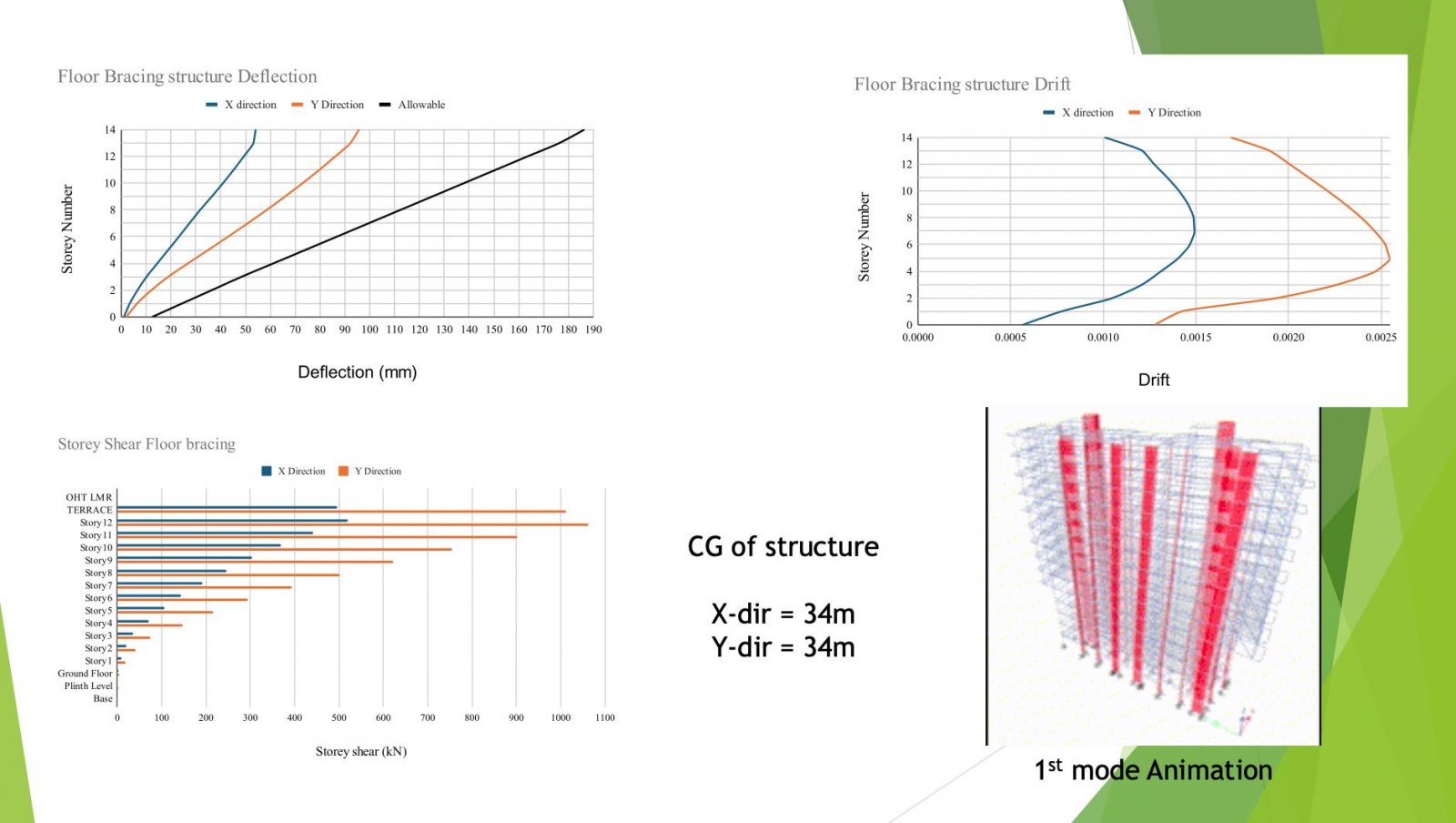

Various checks and results for the structural behaviour

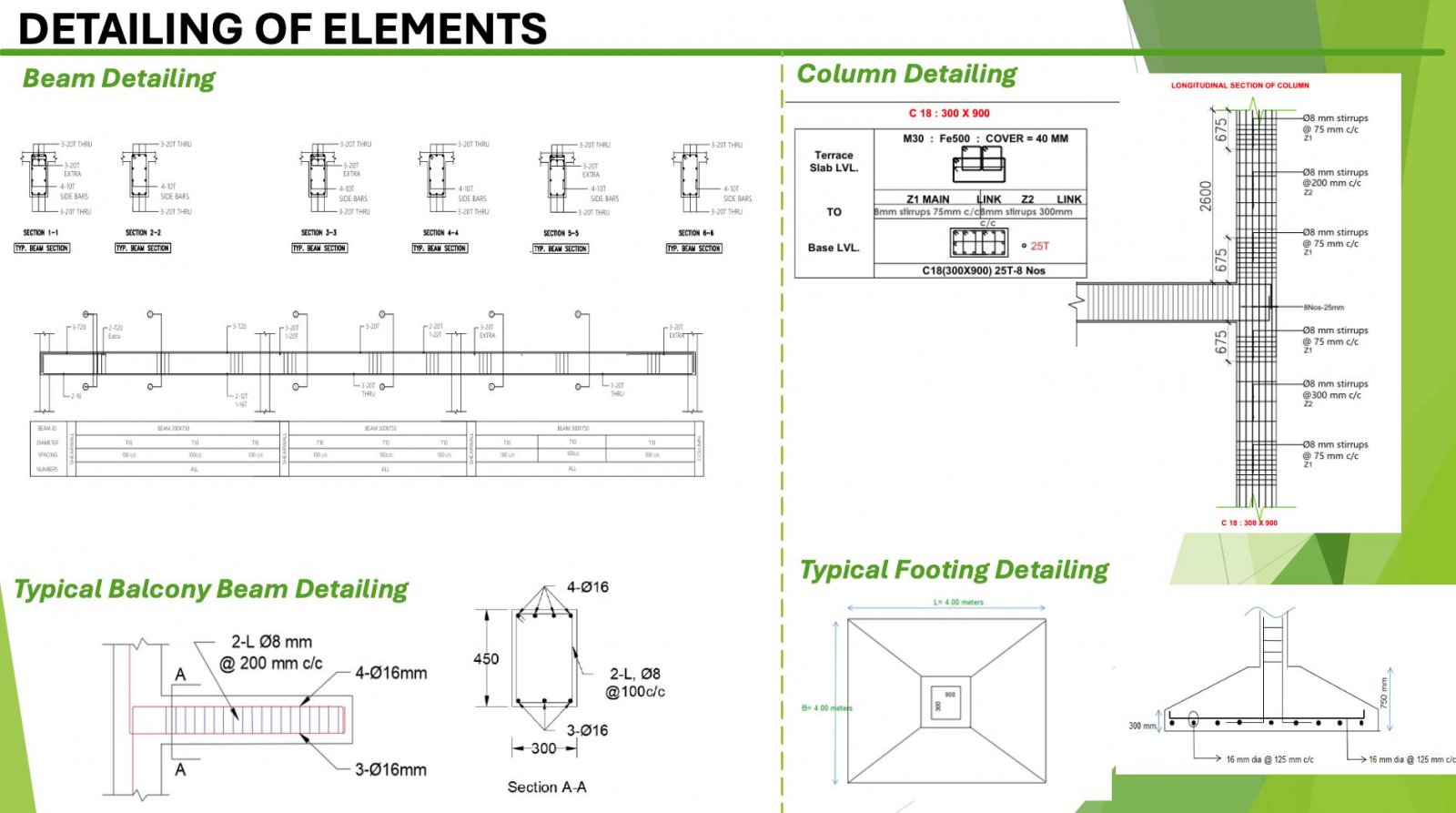

Detailing drawings for various structural elements

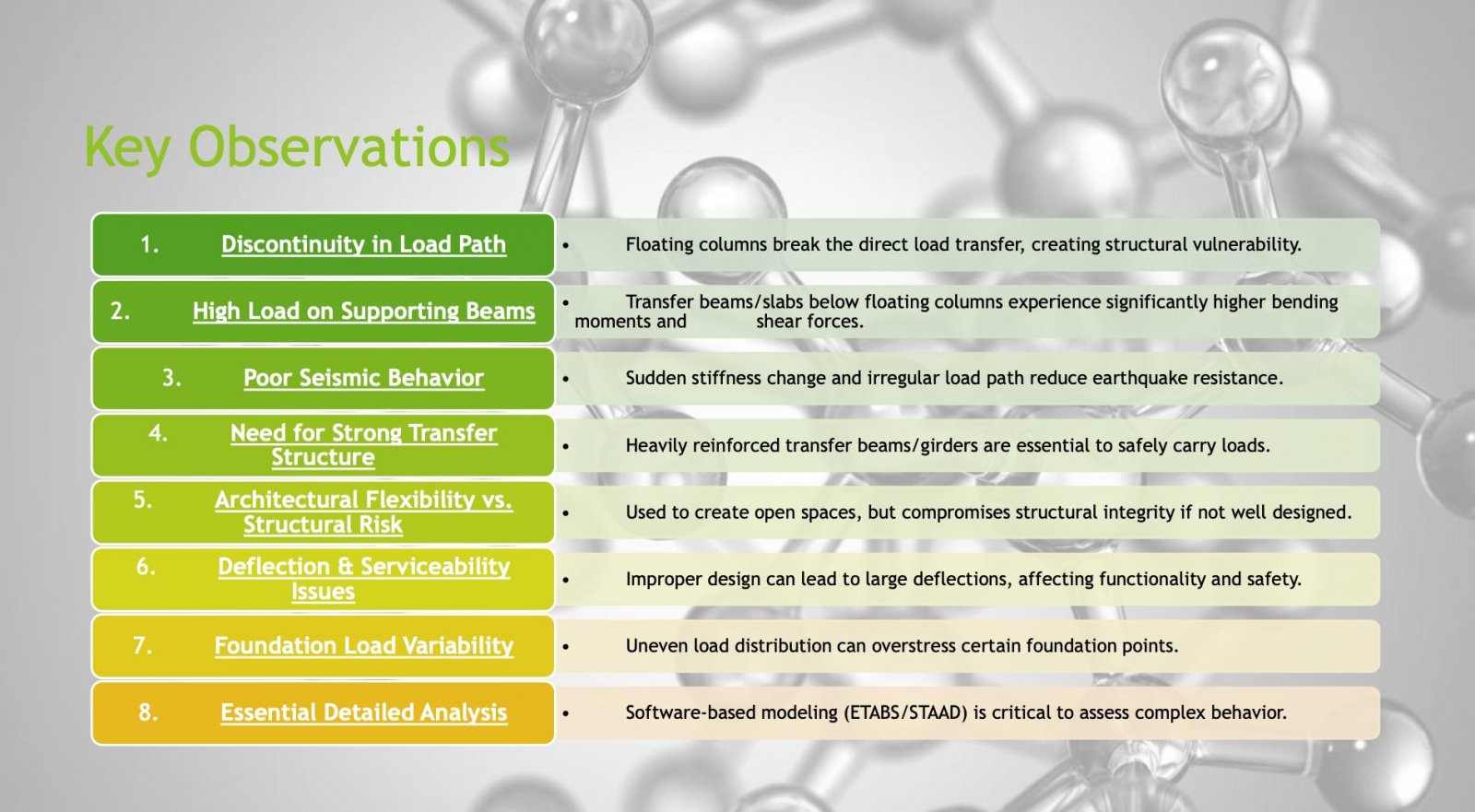

Key learnings and conclusion
