Mahesuriya Sahil Ashvinbhai

SD4006

G+13 Residential Building: Core Shear wall only

The objective of this project is to analyze the behavior G+13 Residential Building with a Shear Wall located  in Core only. The structure will designed by following Indian Codes and Standards and its Detailing will comply with IS 13920 - 2016 & SP : 34(S&T) - 1987.


Report Content

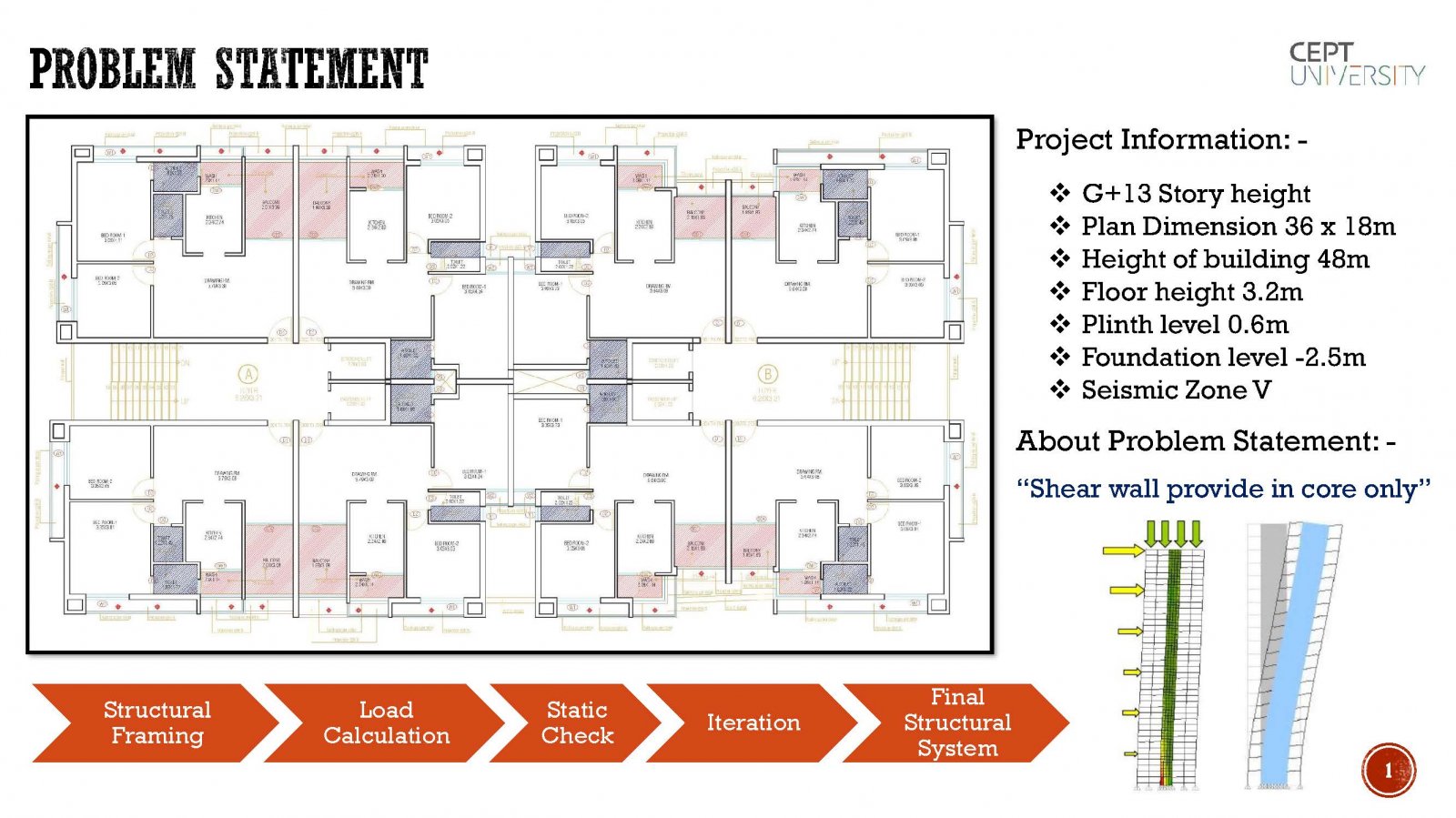

PROBLEM STATEMENT

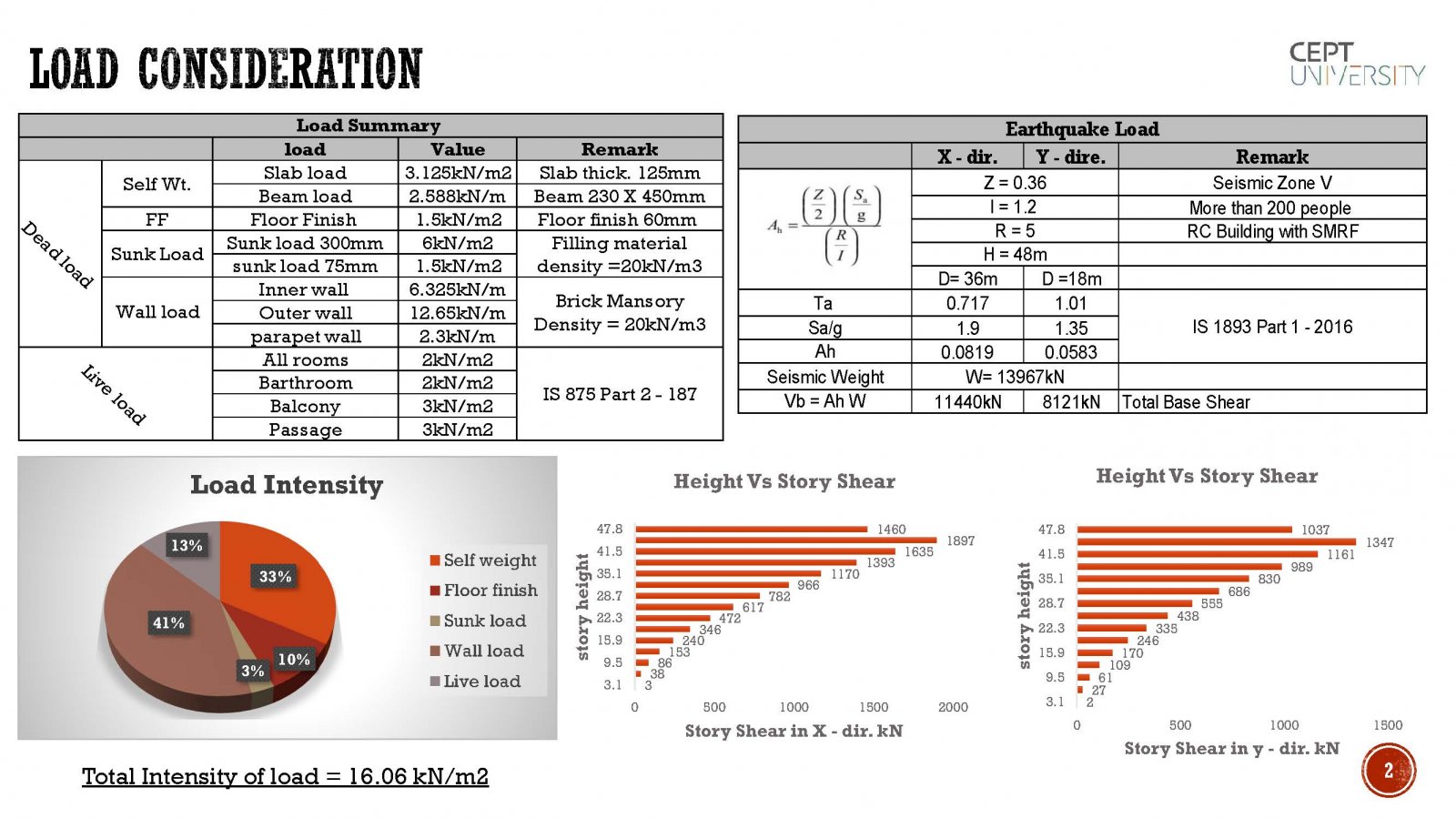

LOAD CONSIDERATION

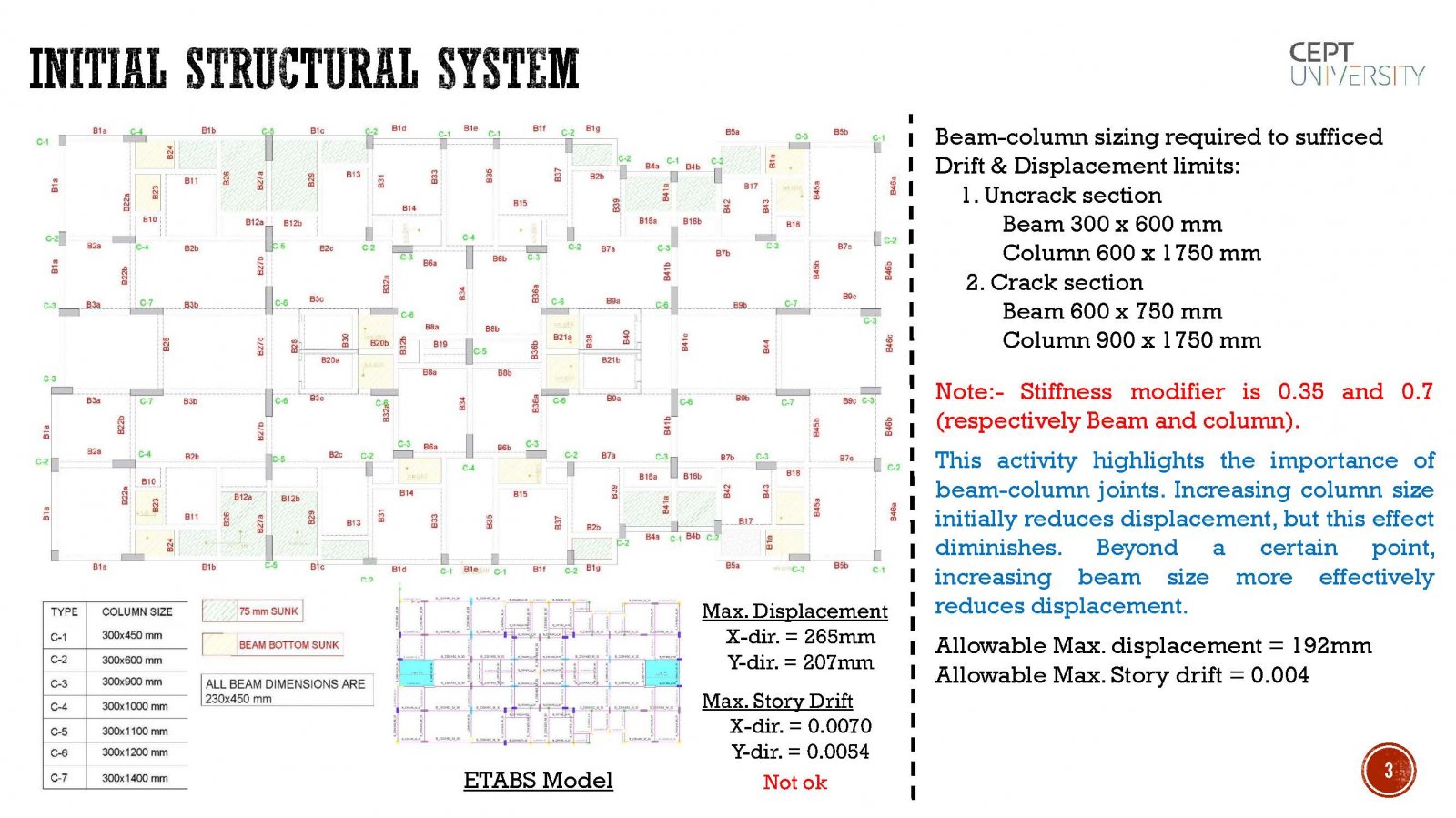

INITIAL STRUCTURAL SYSTEM

INTRODUCED SHEAR WALL IN STRUCTURAL SYSTEM

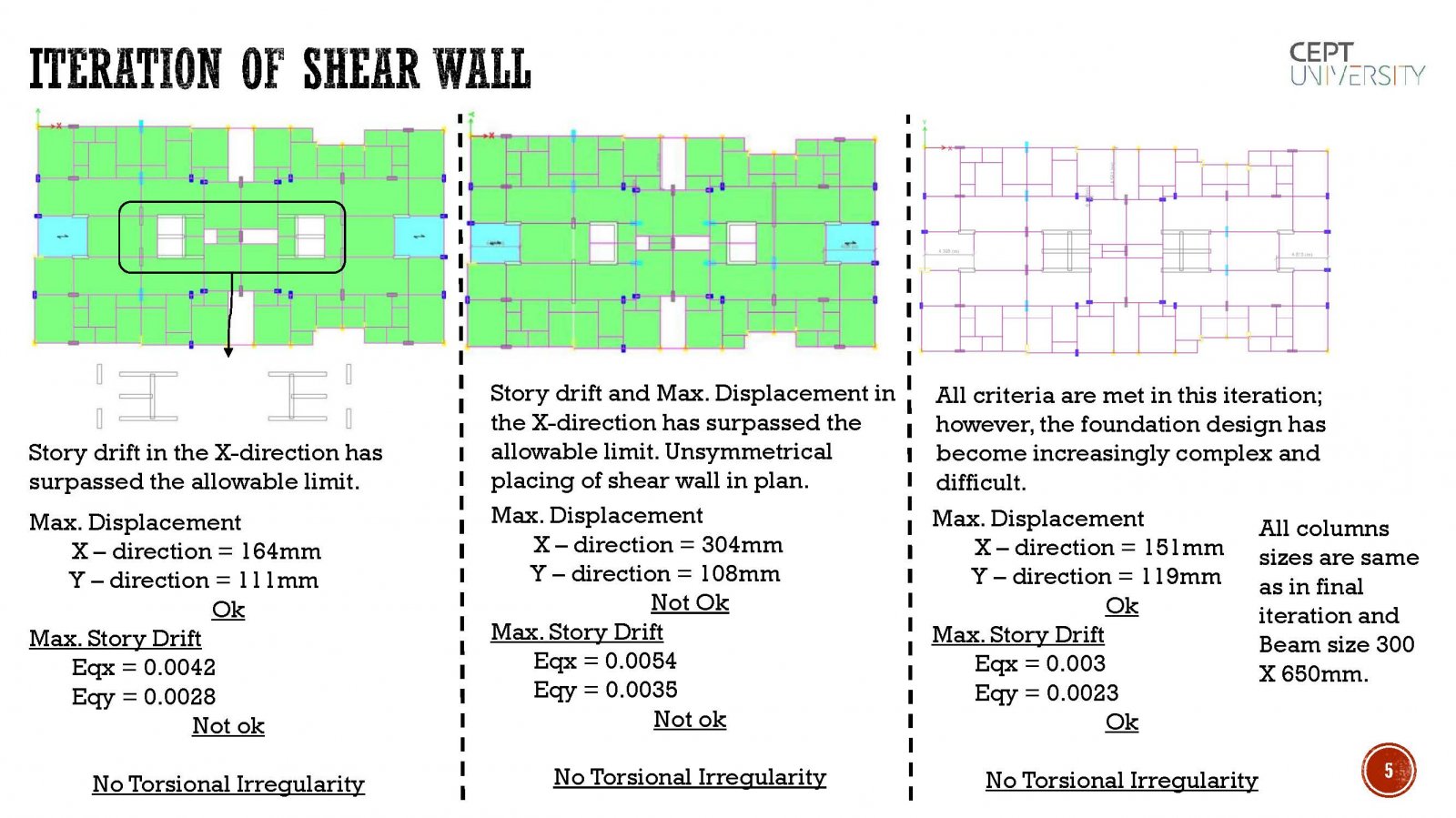

ITERATION OF SHEAR WALL

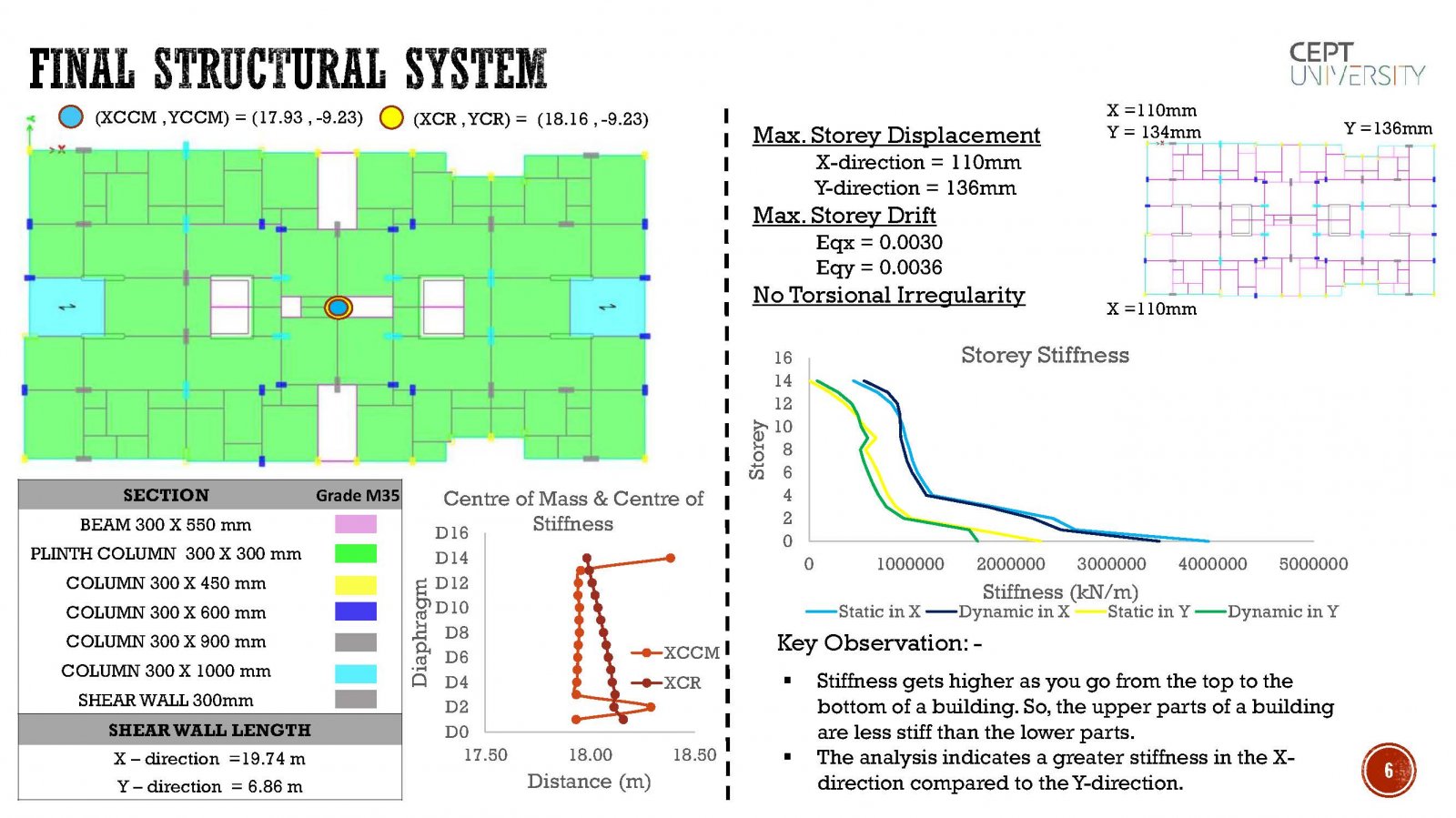

FINAL STRUCTURAL SYSTEM

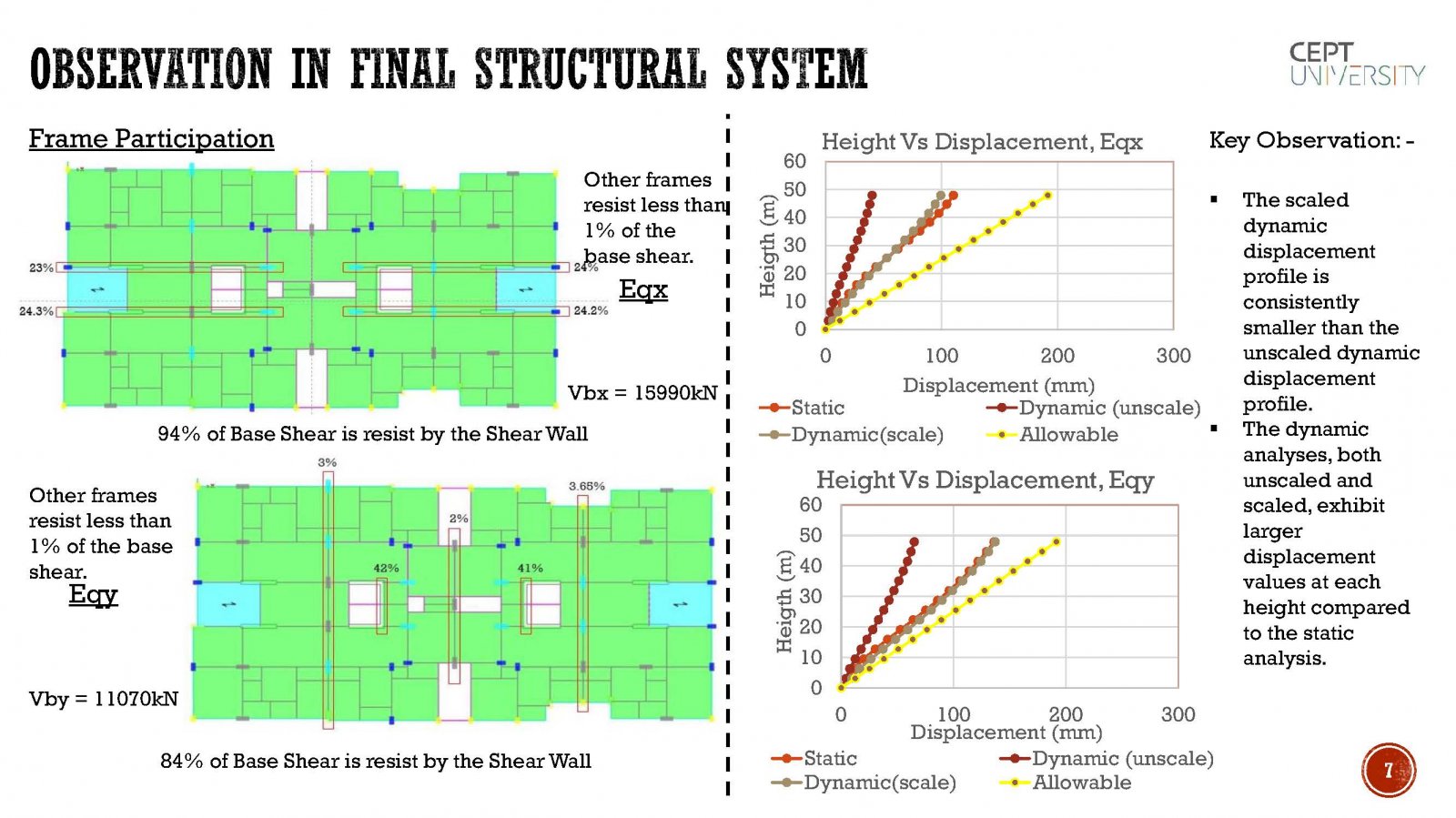

OBSERVATION IN FINAL STRUCTURAL SYSTEM

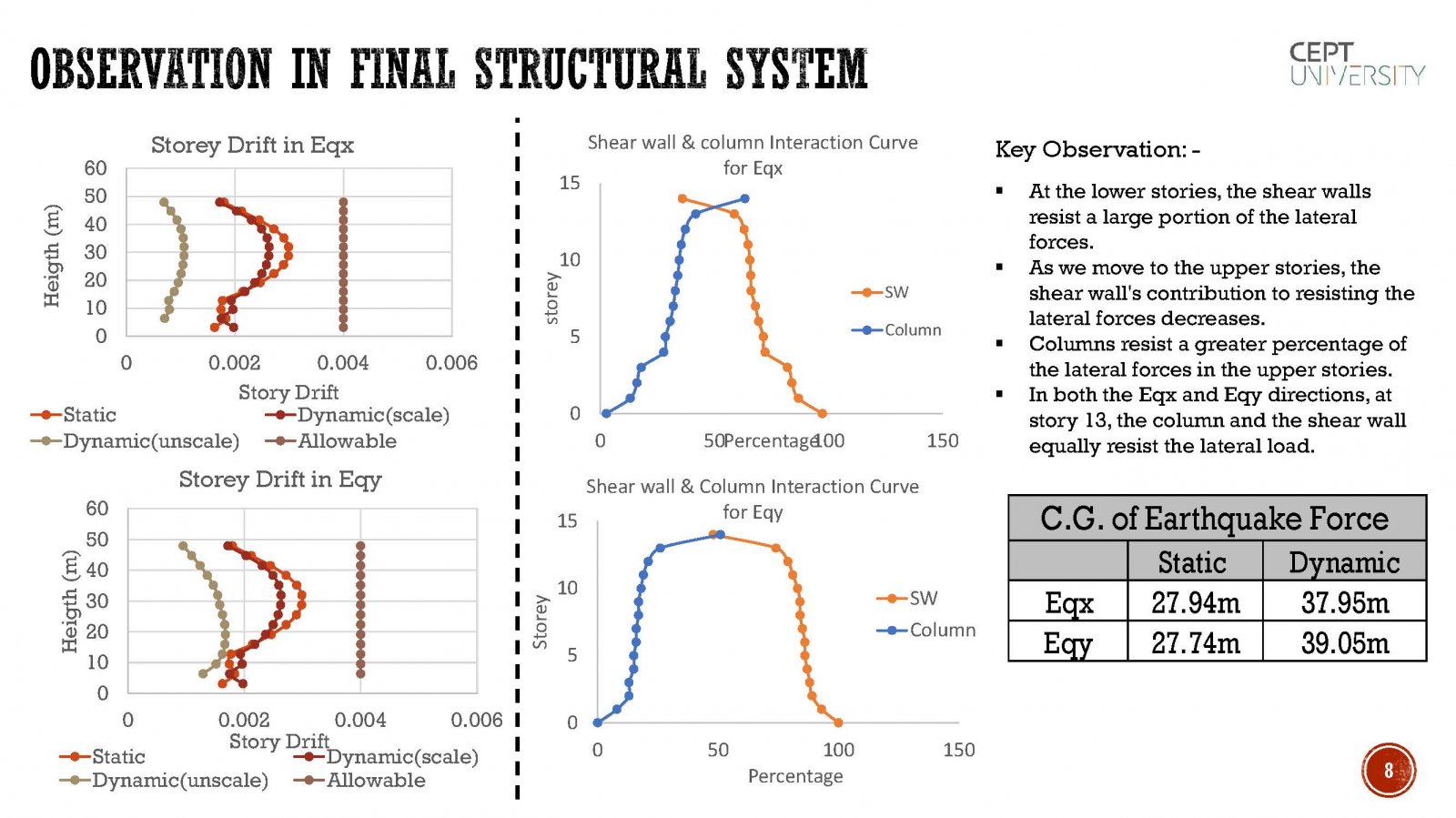

OBSERVATION IN FINAL STRUCTURAL SYSTEM

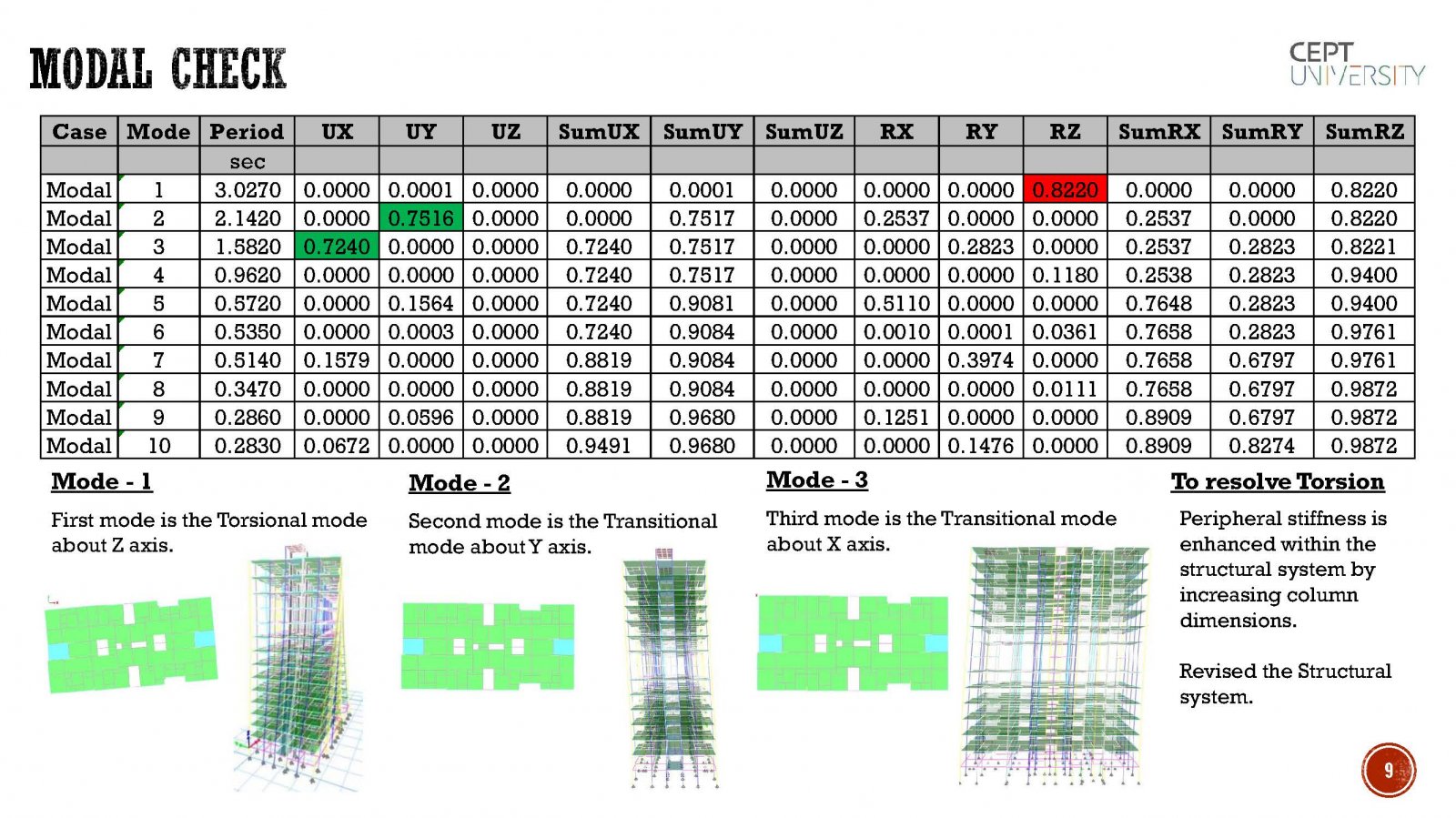

MODAL CHECK

DETAILING OF ELEMENT & CONCLUSION
