A cantilever steel shed is designed using structural steel as the primary material, ensuring compliance with relevant Indian Standards for safety, durability, and functionality (IS 800:2007). The structure was optimized for a 22.5-meter maximum cantilever span, supporting roofing cladding while resisting wind, live, and dead loads as per IS 875 (Parts 1, 2 & 3) . Structural analysis was performed using STAAD.Pro along with some manual calculations , ensuring deflection limits were within permissible values. The project involved detailed architectural working drawings along with some joinery details and physical scaled joinery model.

View Additional Work

Report Content

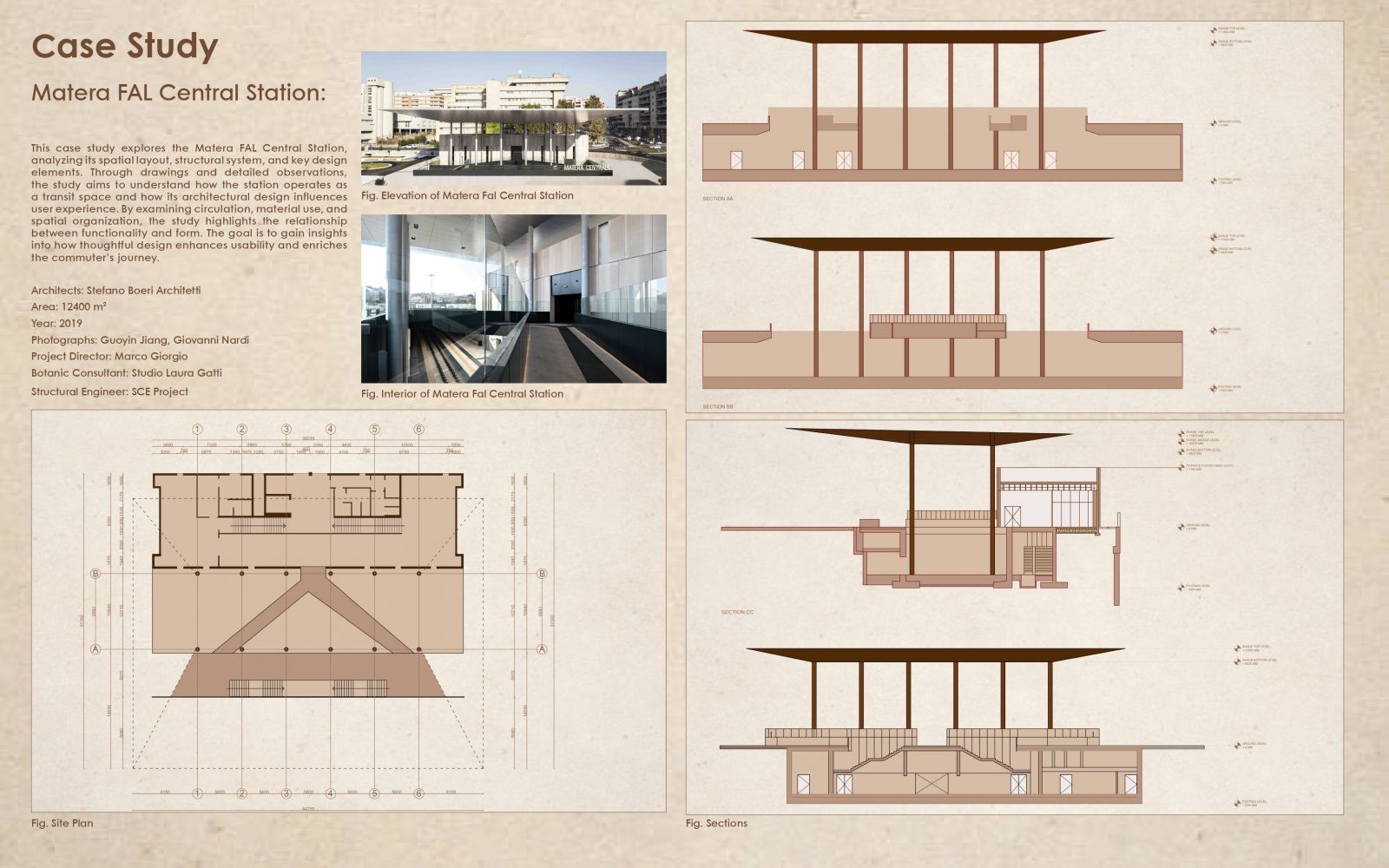

Rendered drawings of the case study .

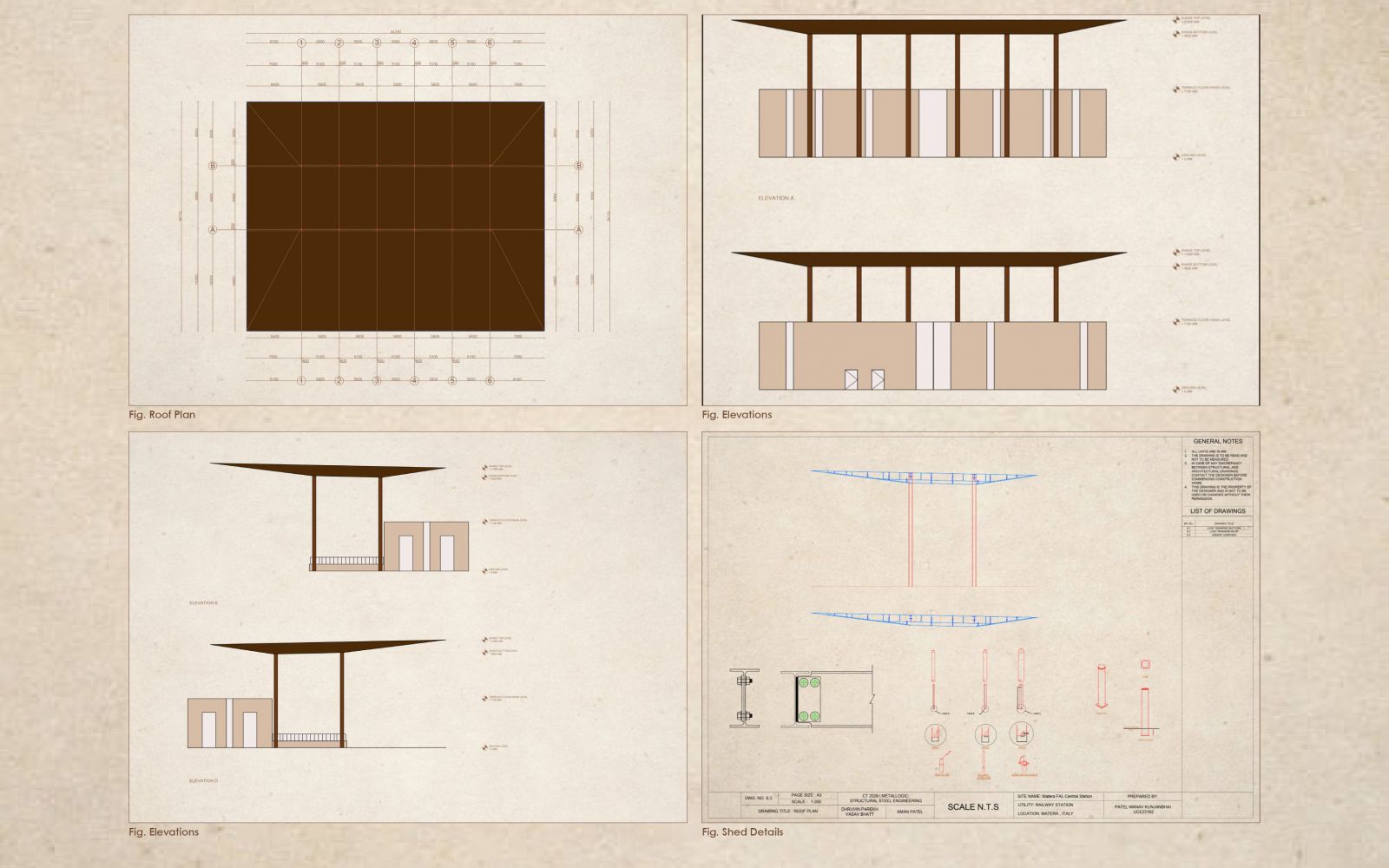

Architectural Drawings with some joinery details .

Structural Analysis of the case study .

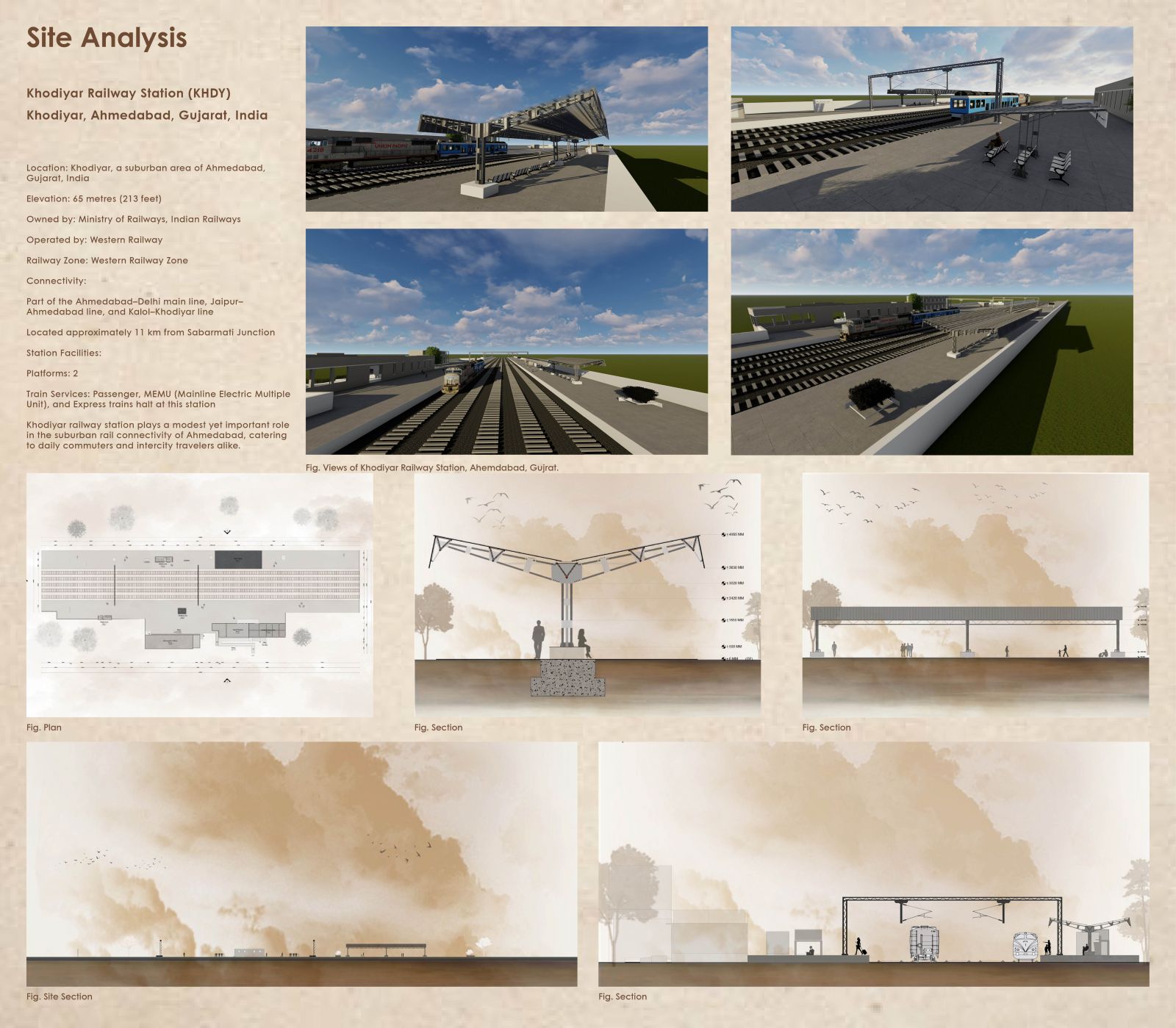

Site documentation for the final project .

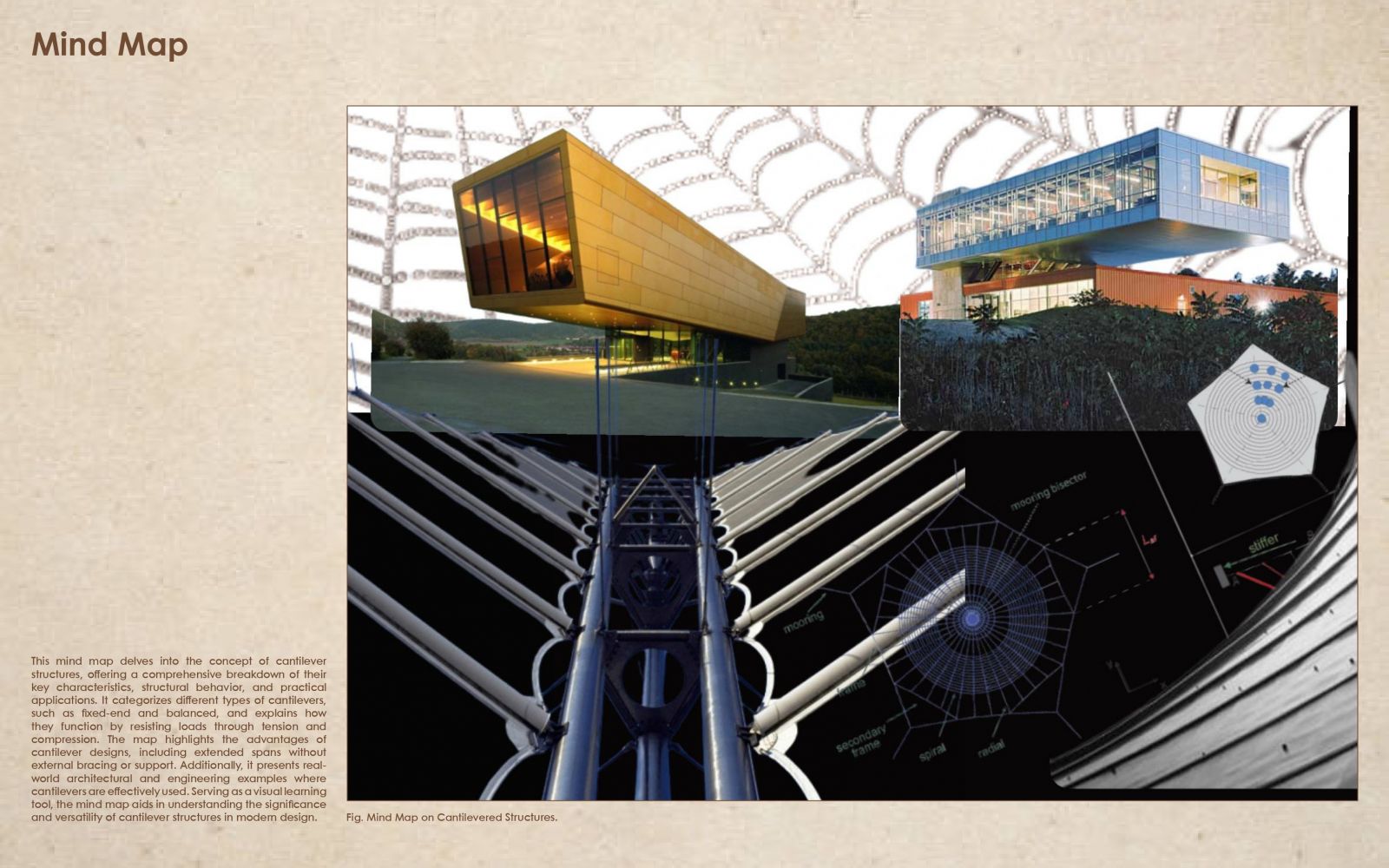

Drawing inspiration from various cantilever tensile structures and creating a Mind Map from it .

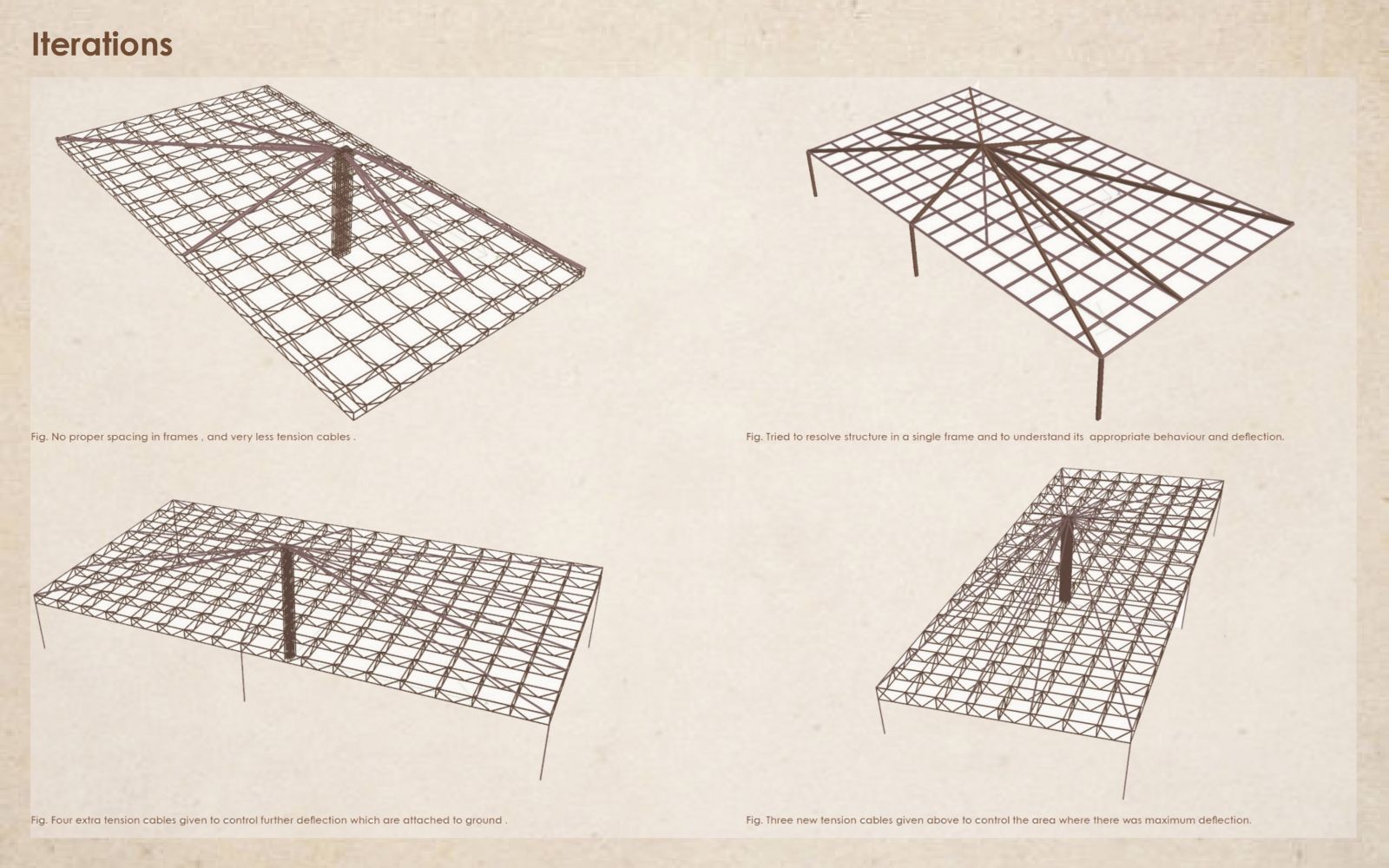

Various structural iterations were developed in order to study the behavior and to select an optimized and economical structural system.

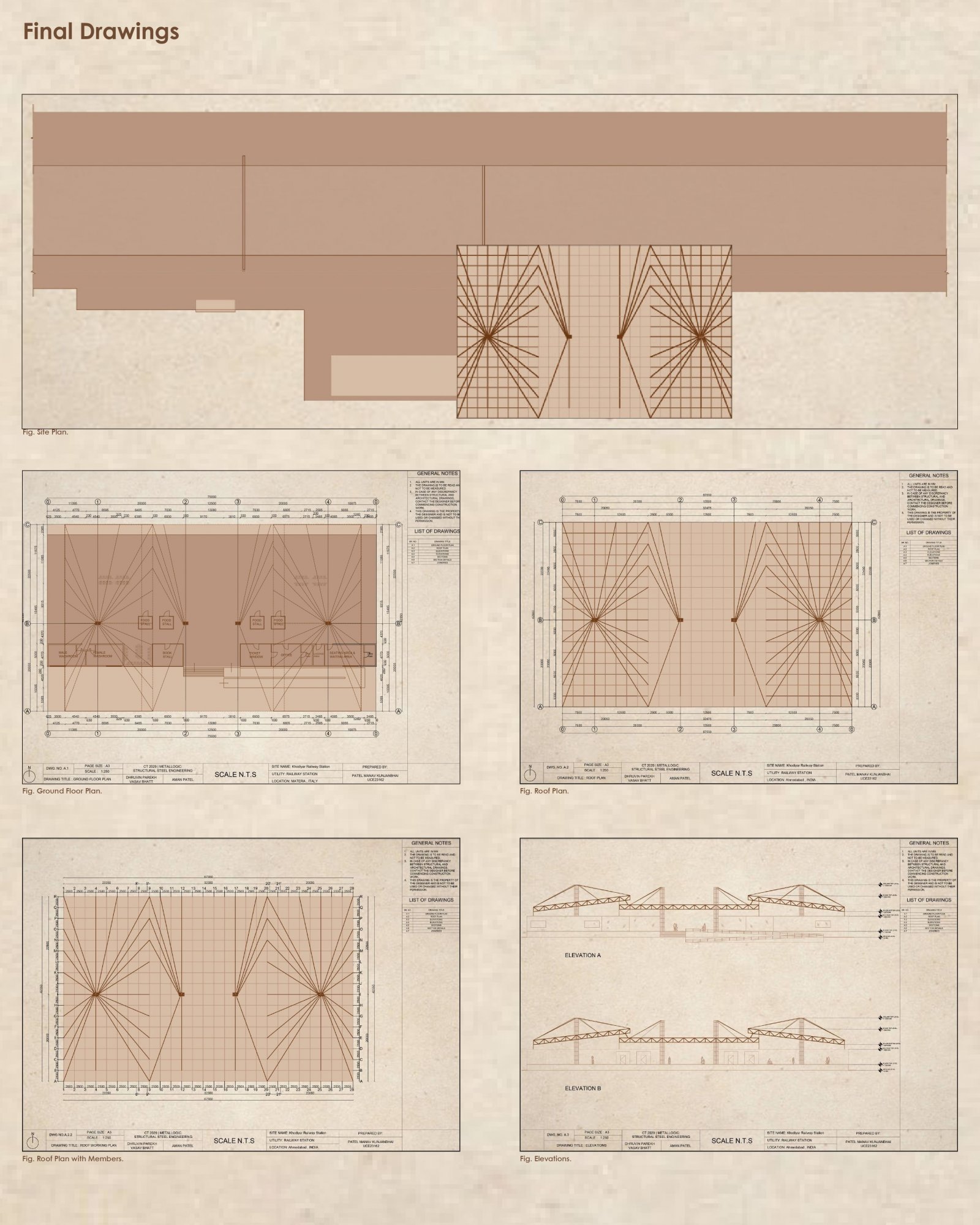

Rendered drawings of the final design .

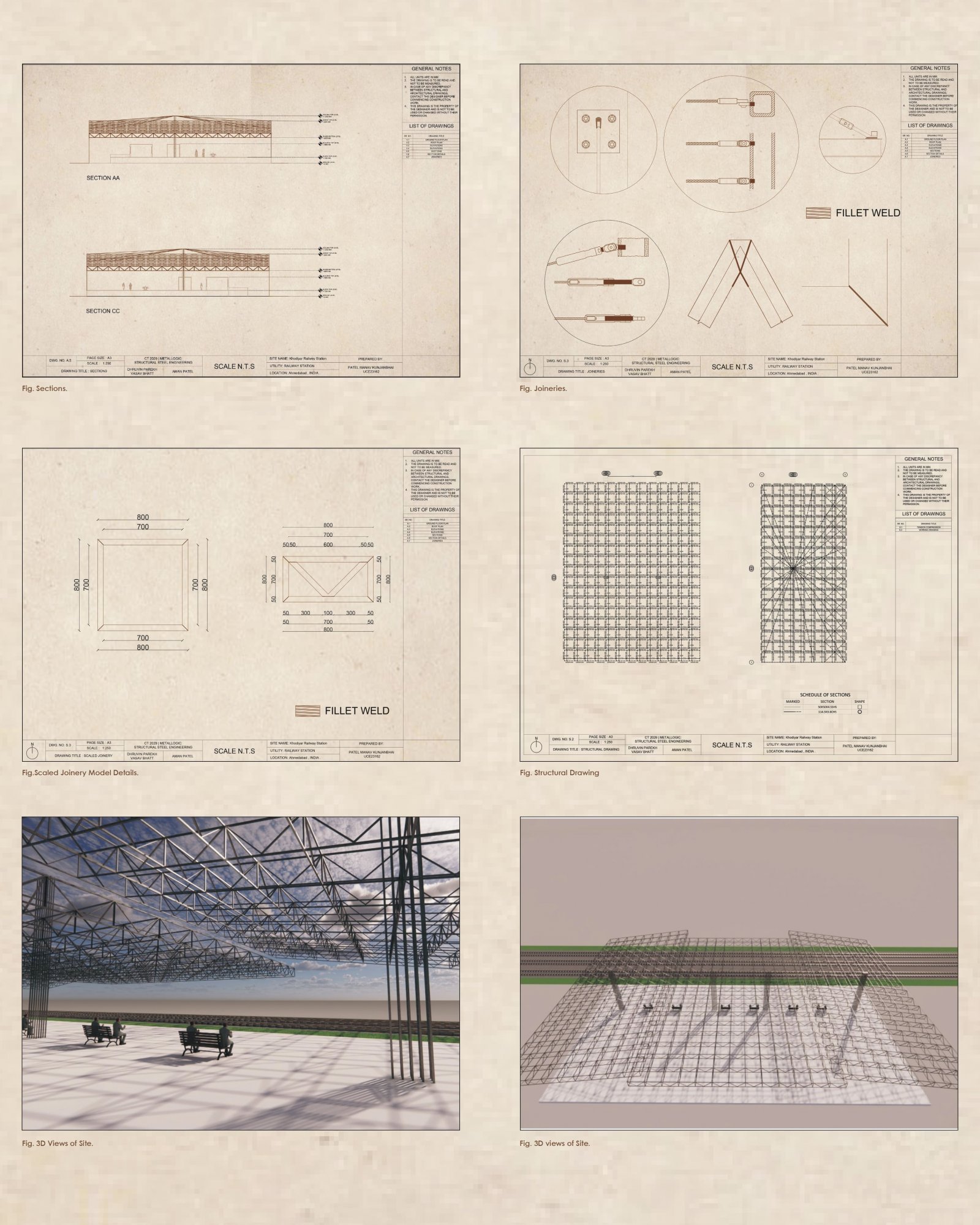

Rendered drawings of the final design with some 3D renders.

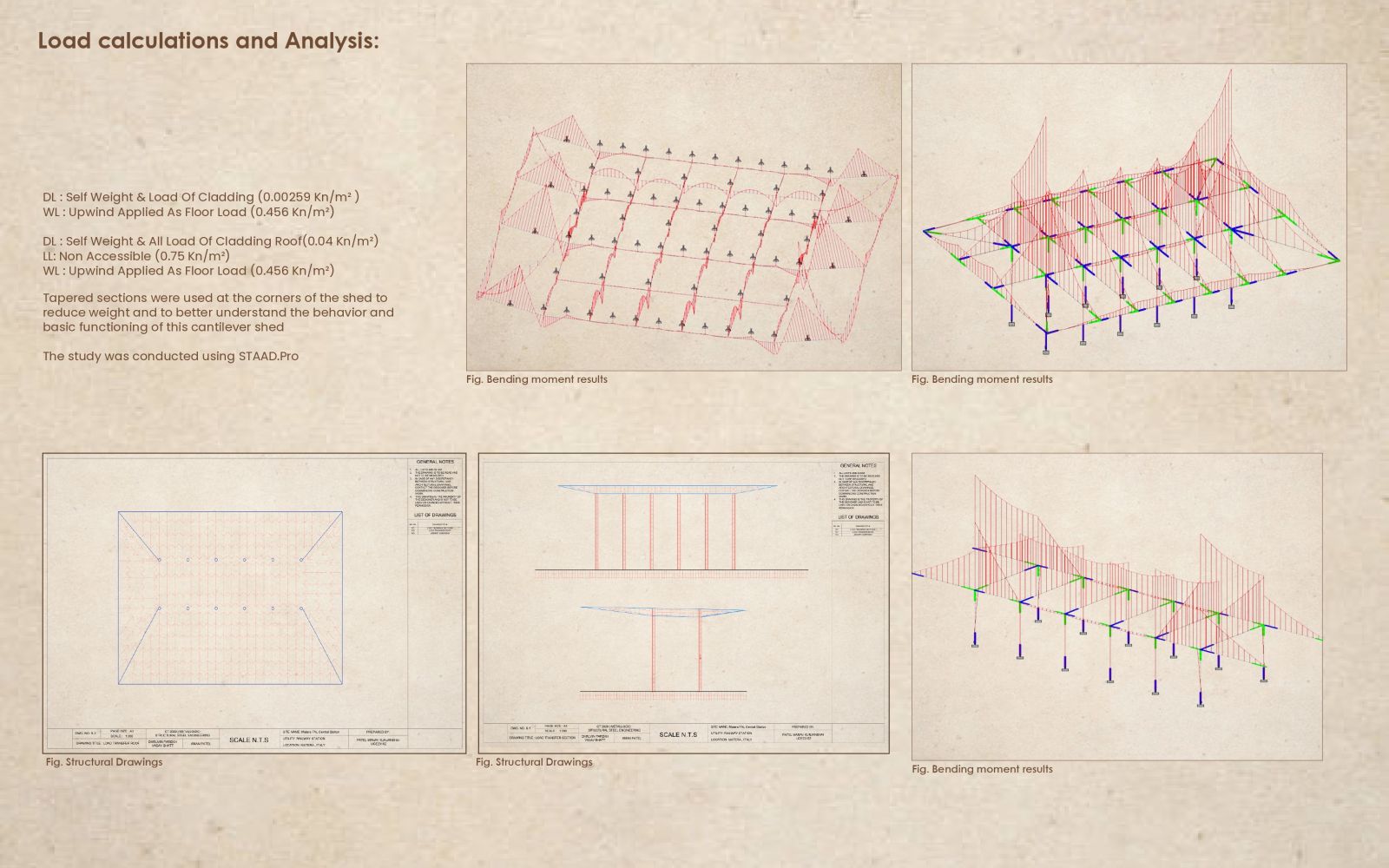

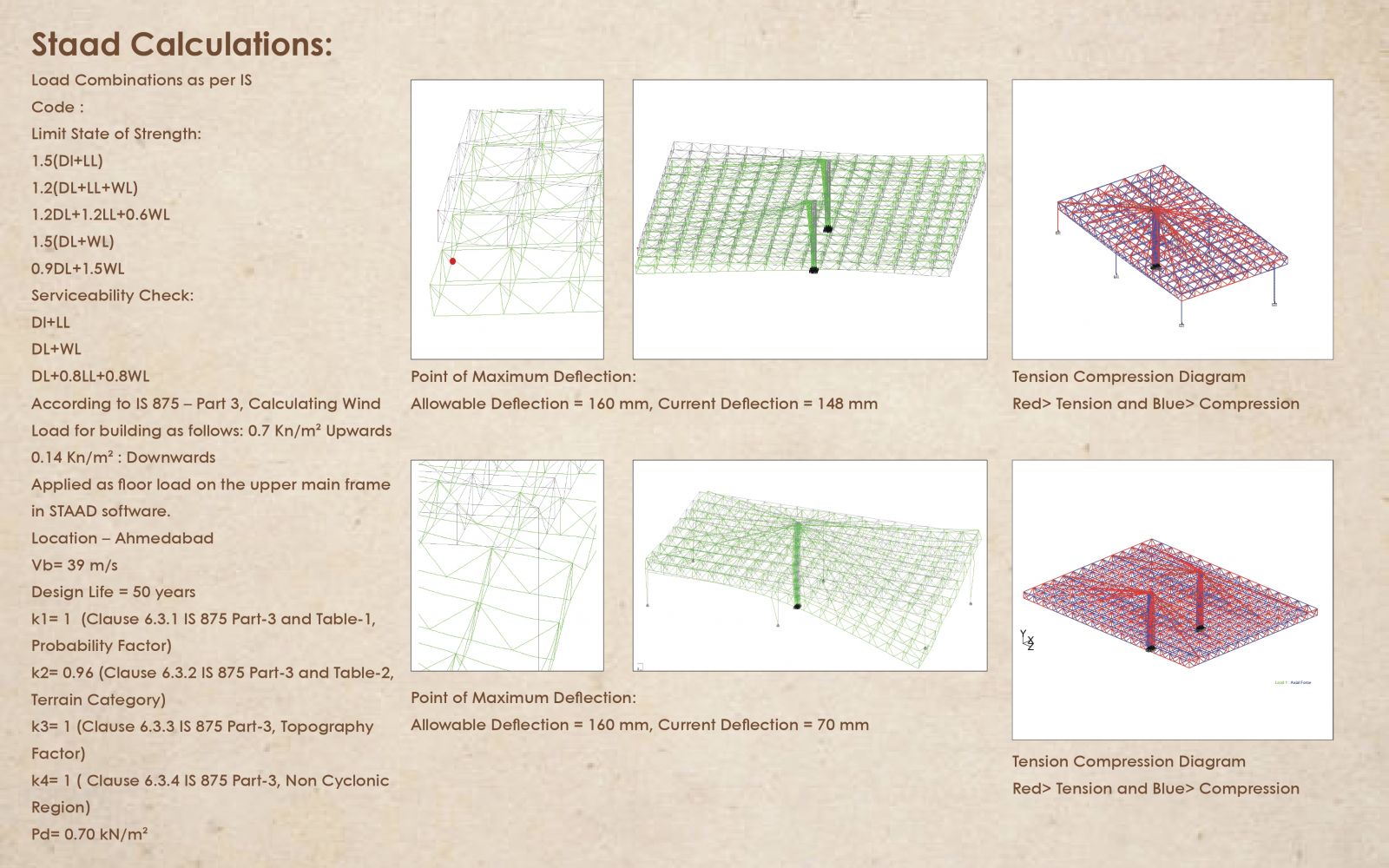

Structural Analysis and Design of final design .

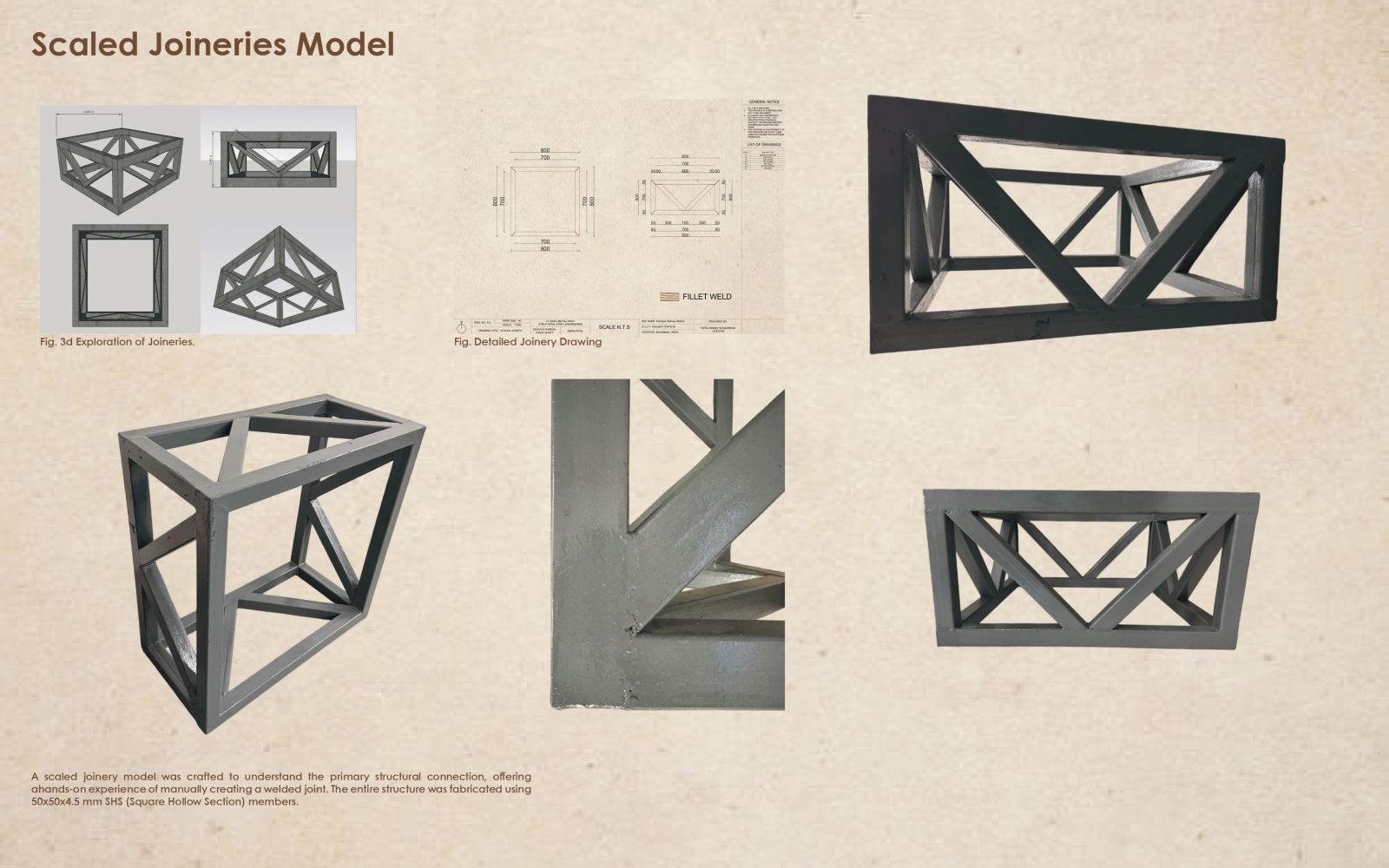

A scaled joinery model with original size sections (50X50X4.5 mm) .
