Arc of Poise: Suspension in Stillness | CEPT - Portfolio

Trivedi Kavya Utpal

AR2038

Arc of Poise: Suspension in Stillness

This bridge arises from the delicate tension between balance and movement- a frozen moment of dynamic equilibrium. Located near Kada Dam in Jambughoda, Gujarat, its form is inspired by the strength of a gymnast, embodying control, tension, and grace. Rooted in tensegrity, the bridge appears to float, with tensile cables countering the thrust of arching compression members. At its core lies a tripod tensegrity module- a self-stabilizing system of cables and struts. As users traverse its length, they experience architectural stillness amid structural tension- a graceful arc framing the landscape with poise and suspension.

View Additional Work

Report Content

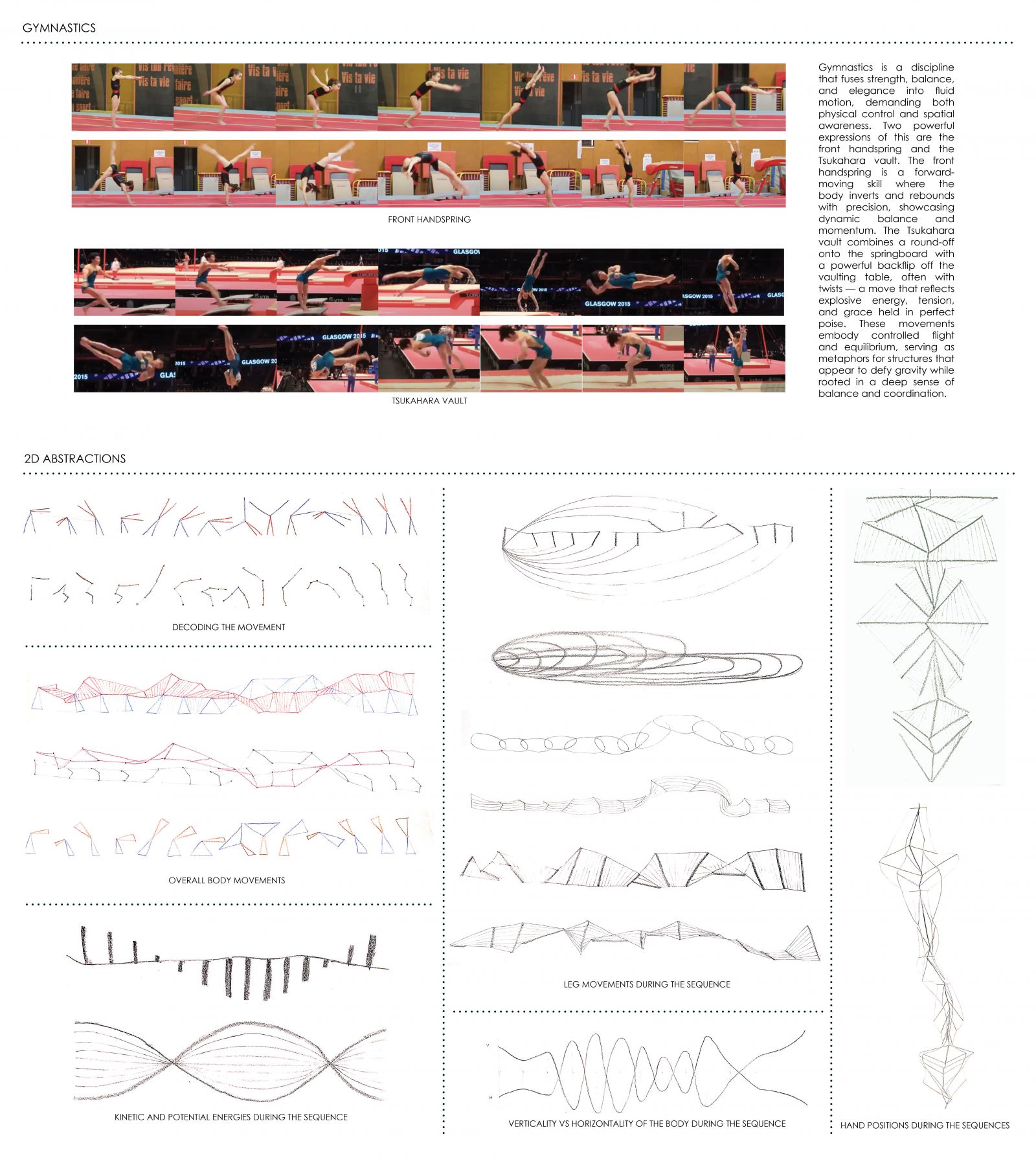

2D abstract diagrams to depict the movement during gymnastics

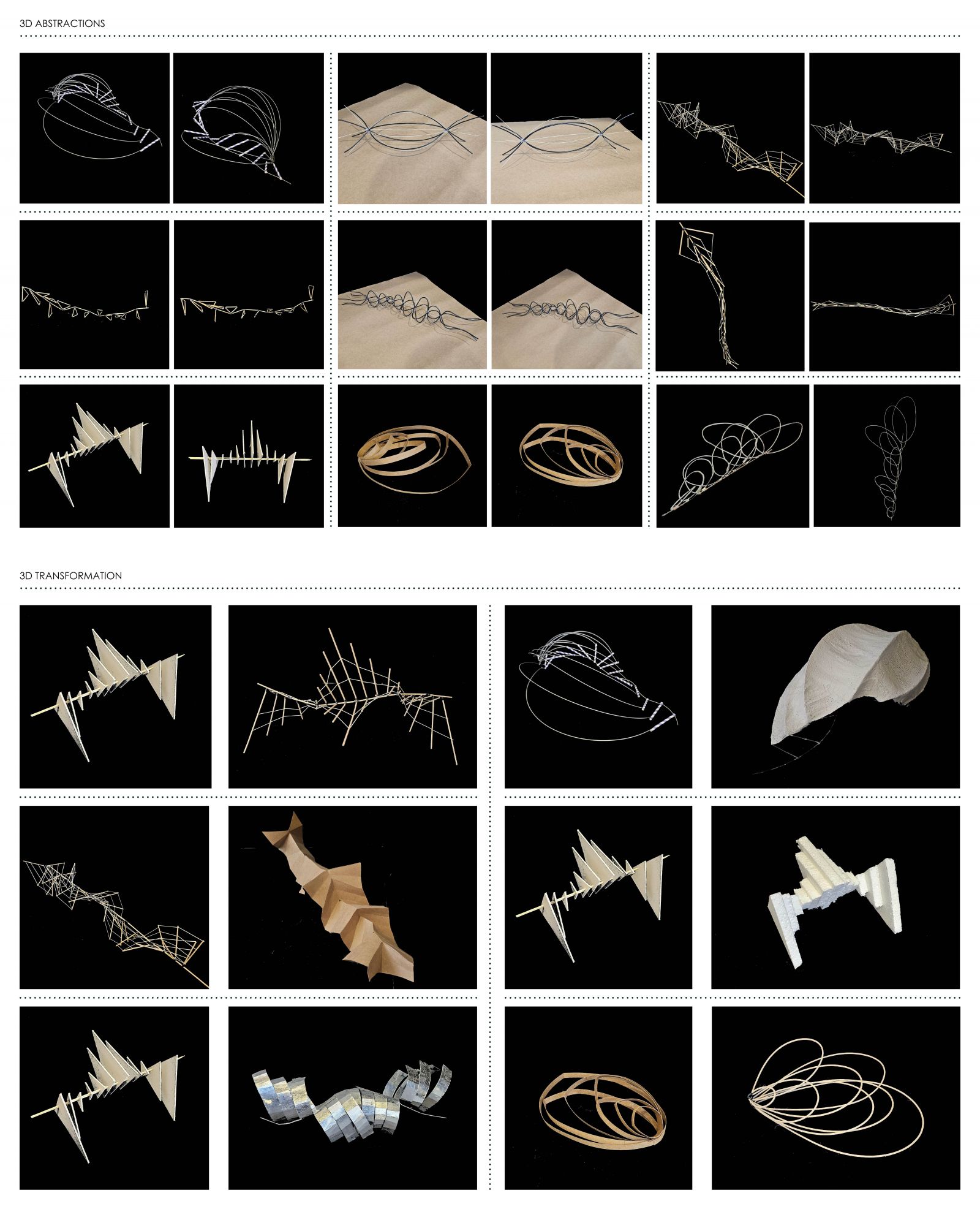

Making 3d models using the abstraction diagrams and then reconstructing them using different materials

Understanding the forces acting on a portal

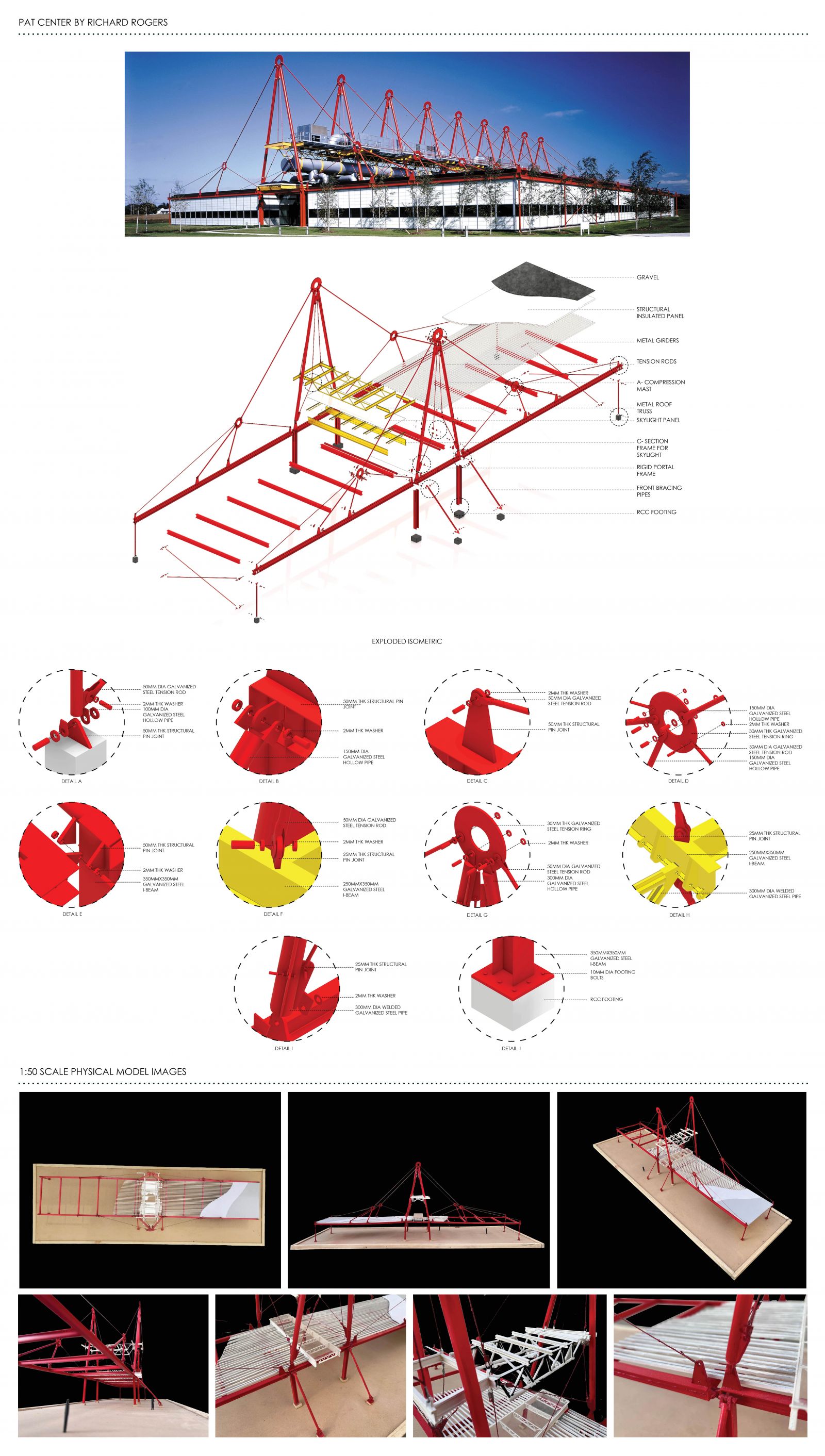

Case-study

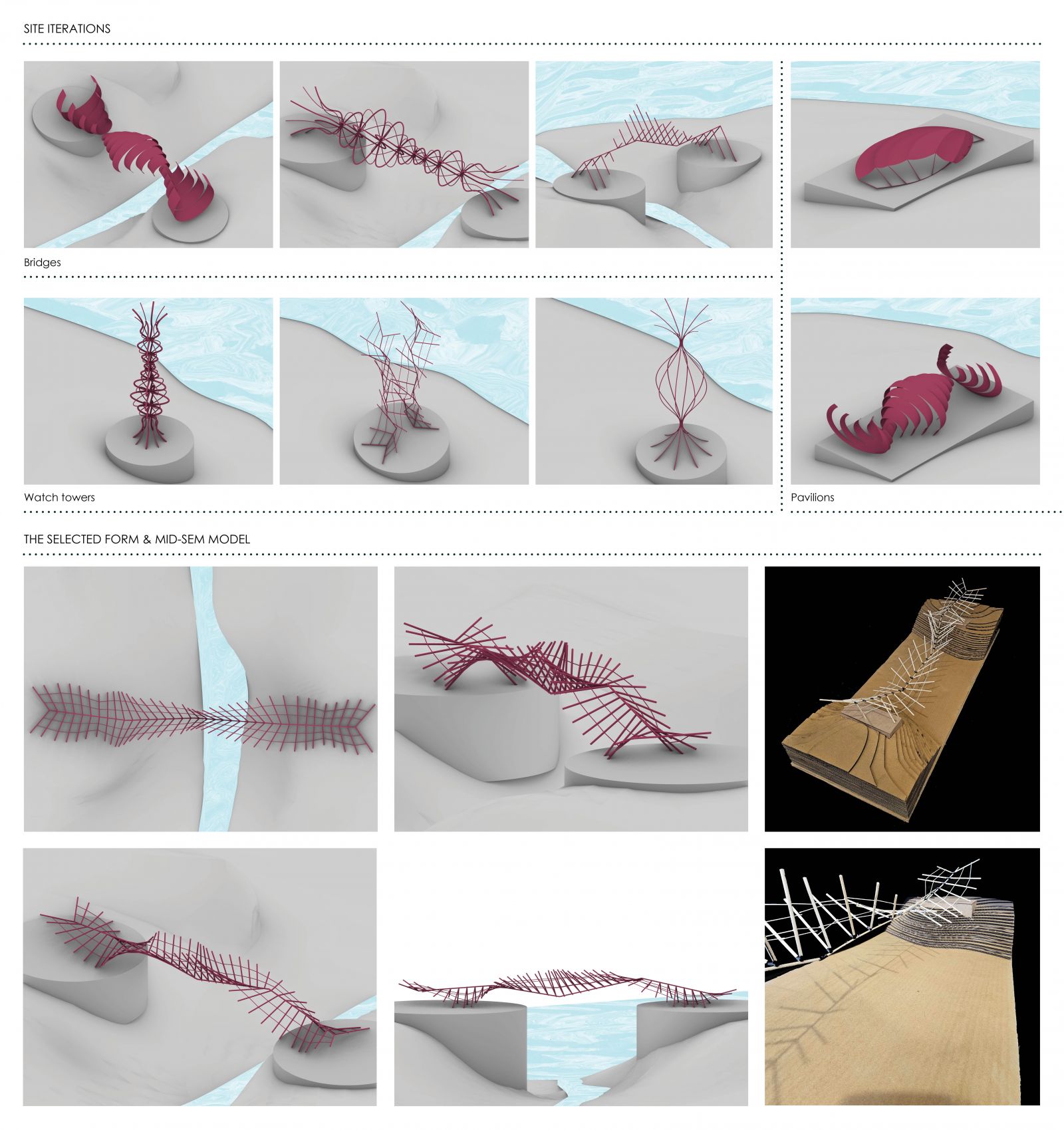

The abstract 3D models were placed on site and were assigned programs

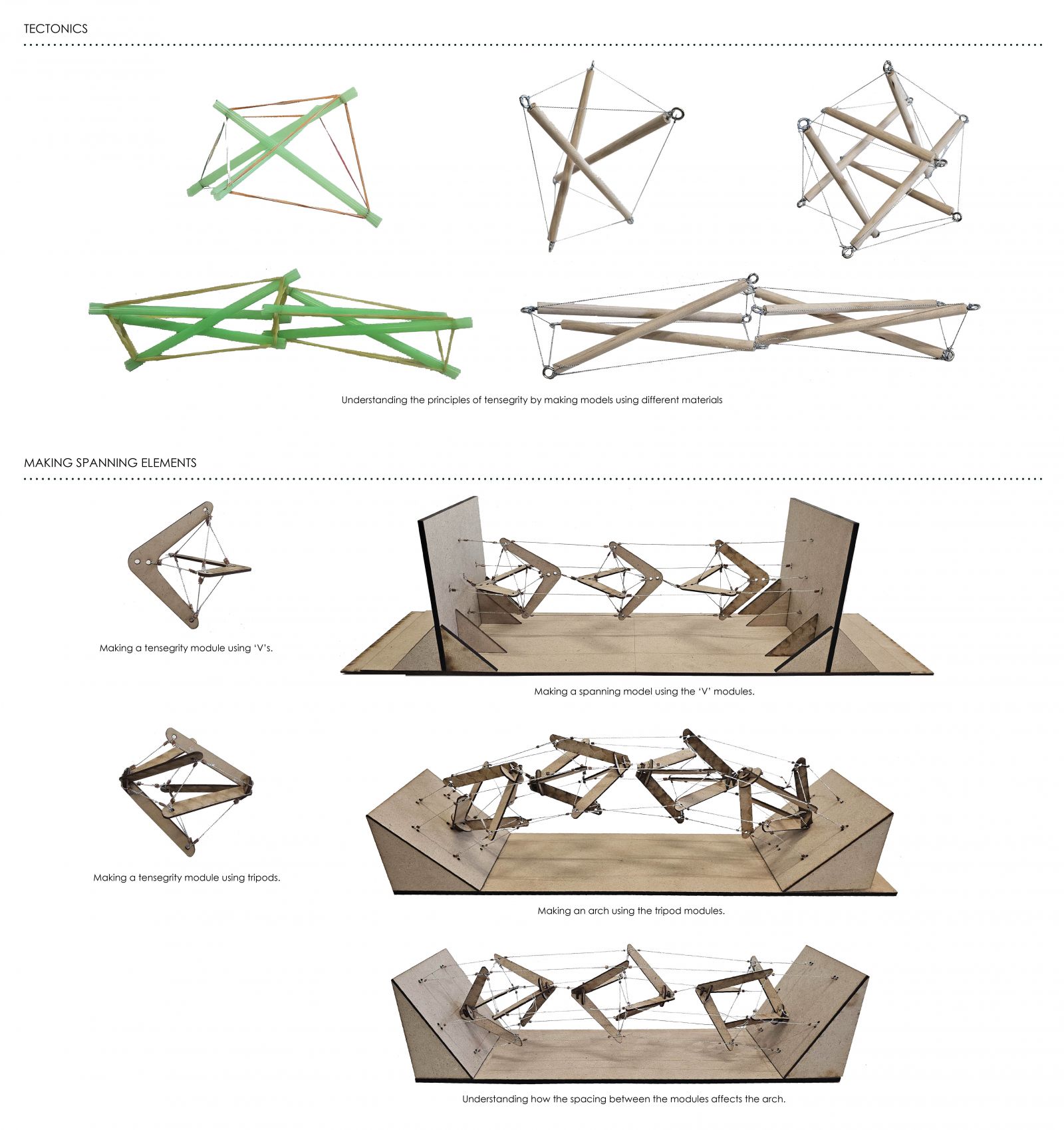

Using tensegrity as the structural system and understanding it through model-making

Plan and elevation of the bridge

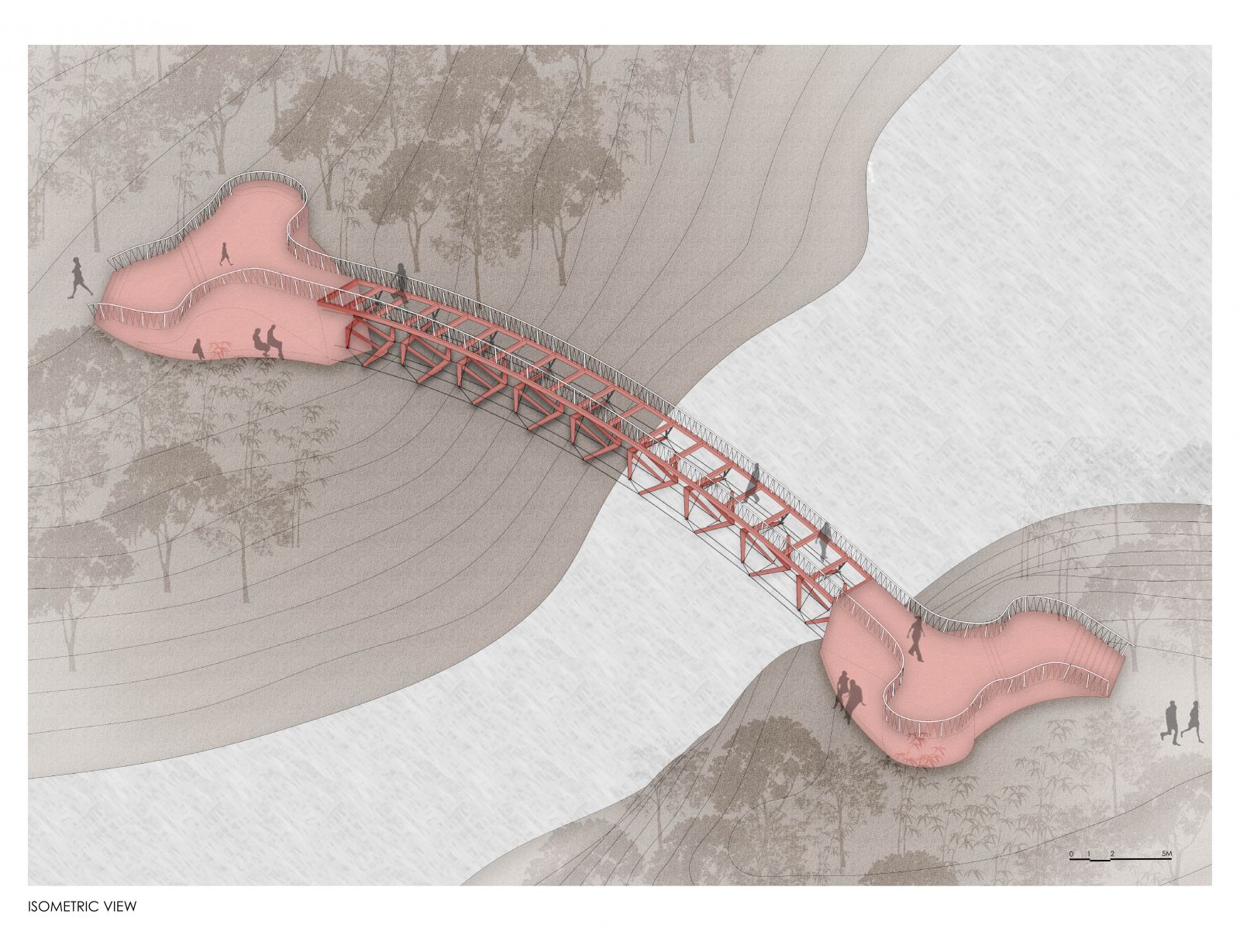

Isometric view of the bridge

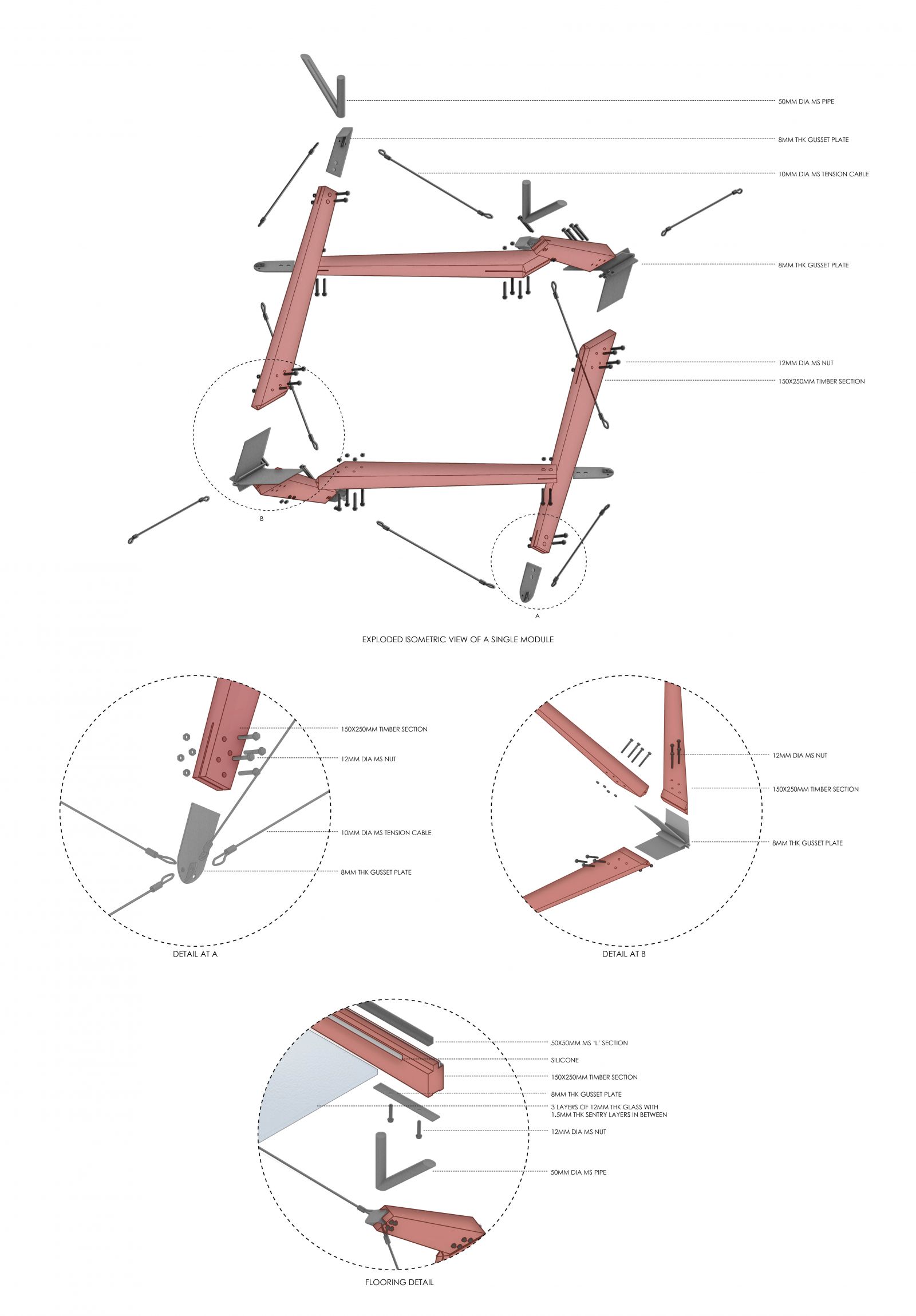

Exploded isometric and joinery details of the modules

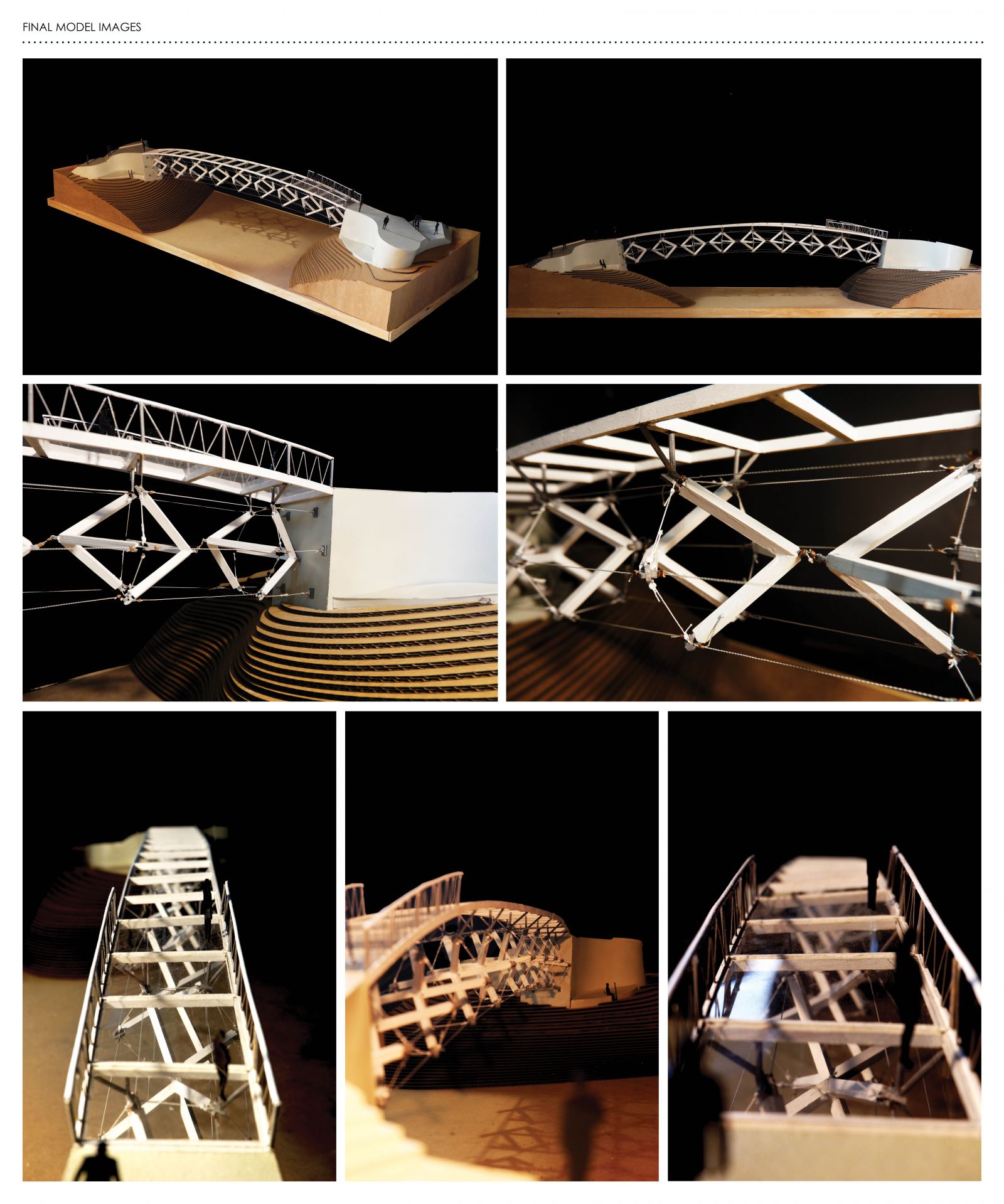

Final images of the 1:33 scale model
