Milen Jai Fraanc

AR2062

KAADU

GRID AND GLADE
AN ARCHITECT’S STUDIO in AUROVILLE
 Designing an architect’s studio where the concept draws from a forest, with trees transforming into a series of planes that enclose space—much like how trees in a dense forest intertwine to form natural enclosures. These unordered planes are embraced by a separate bamboo structure, acting as a precise, ordered grid that provides structure and rhythm to the fluid, organic arrangement of walls and plinth.


Report Content

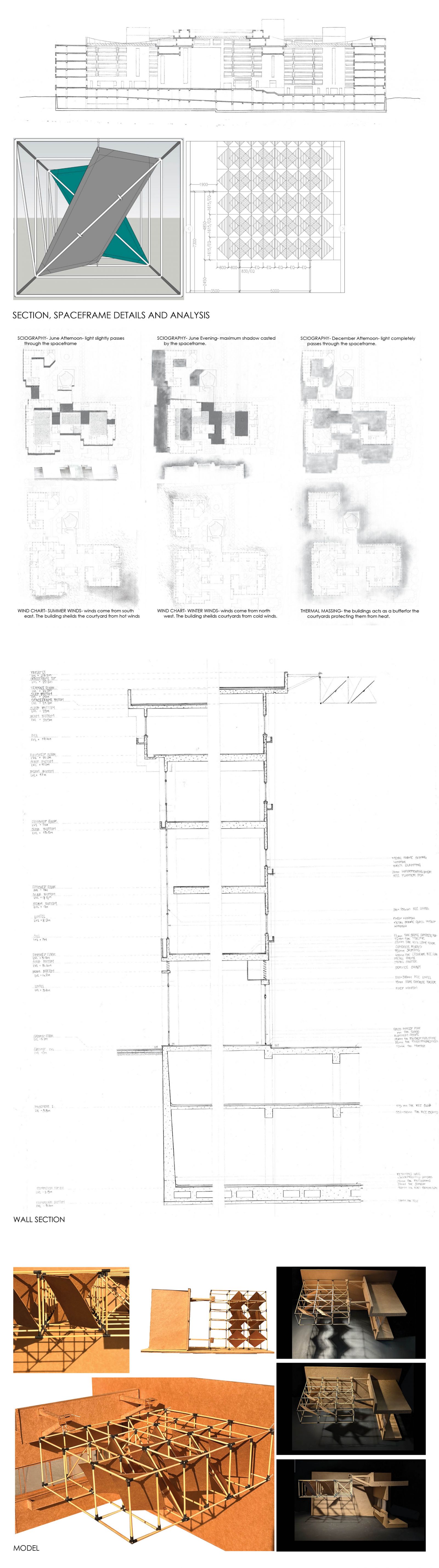

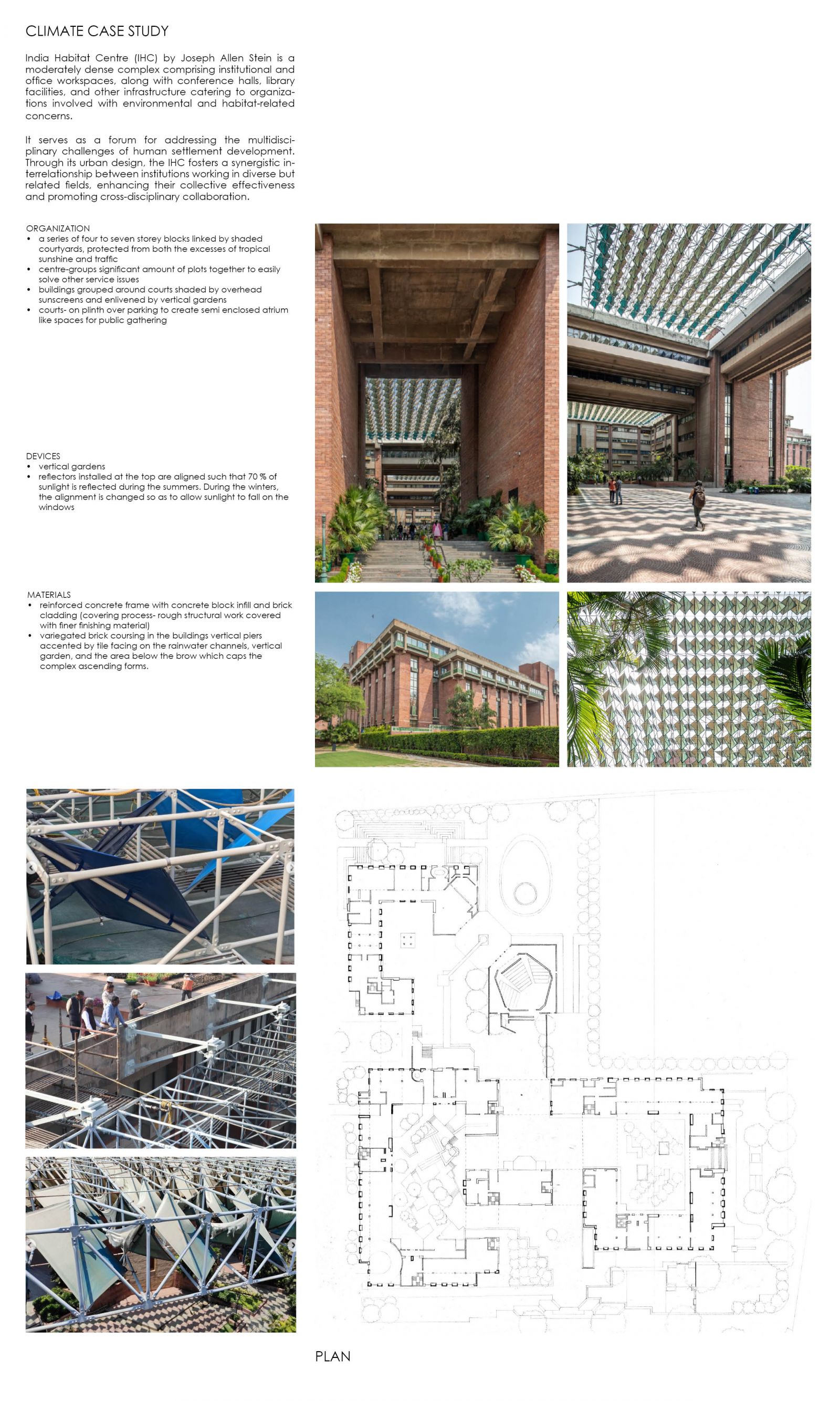

Exercise 1- Climate Case Study- India Habitat Centre, New Delhi

Making plan, sections and overlaying a render of the climatic extremes to test the climatic strategy used and understanding the extent to which it works or if it works.

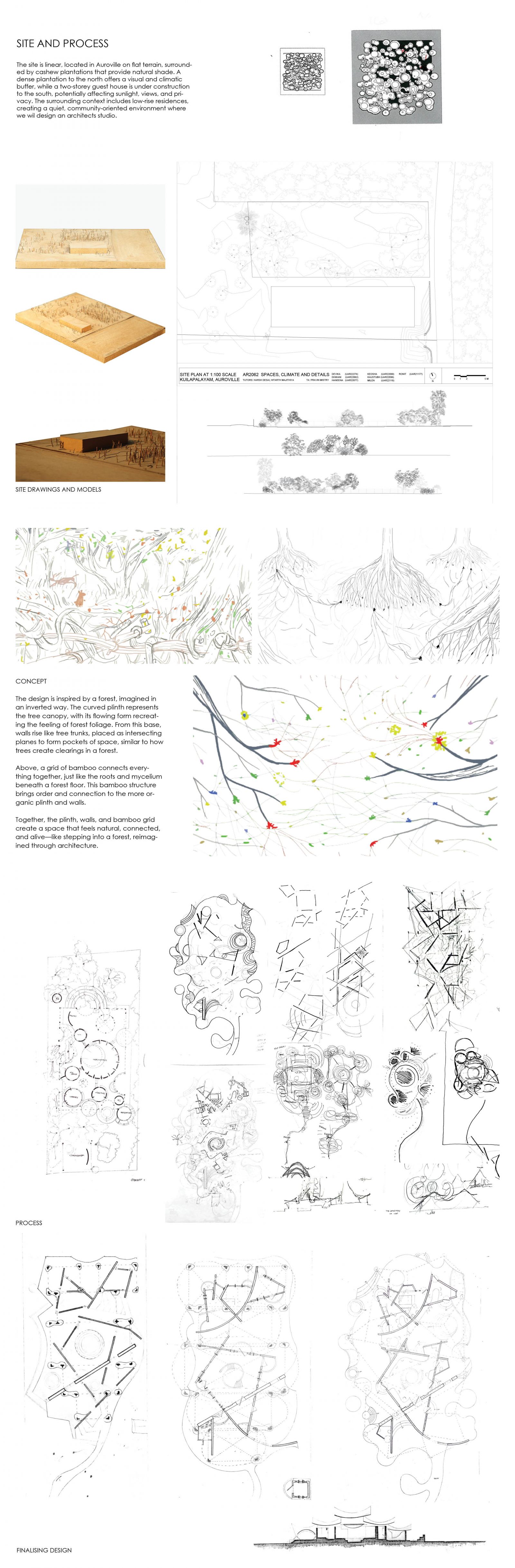

Site is based in Auroville and the Conceptual Development of having a forest as an Architects Studio.

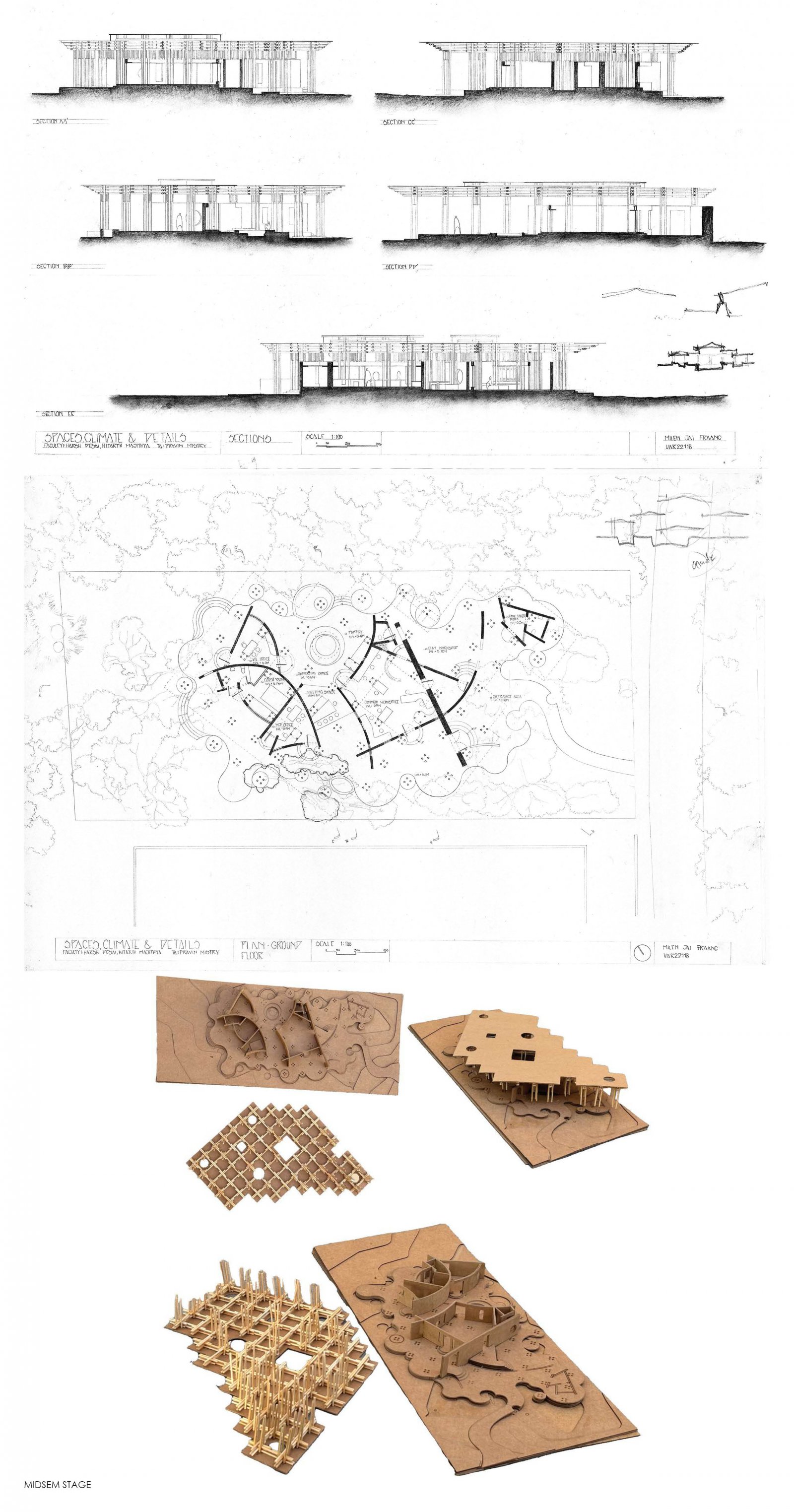

Midsem Stage.

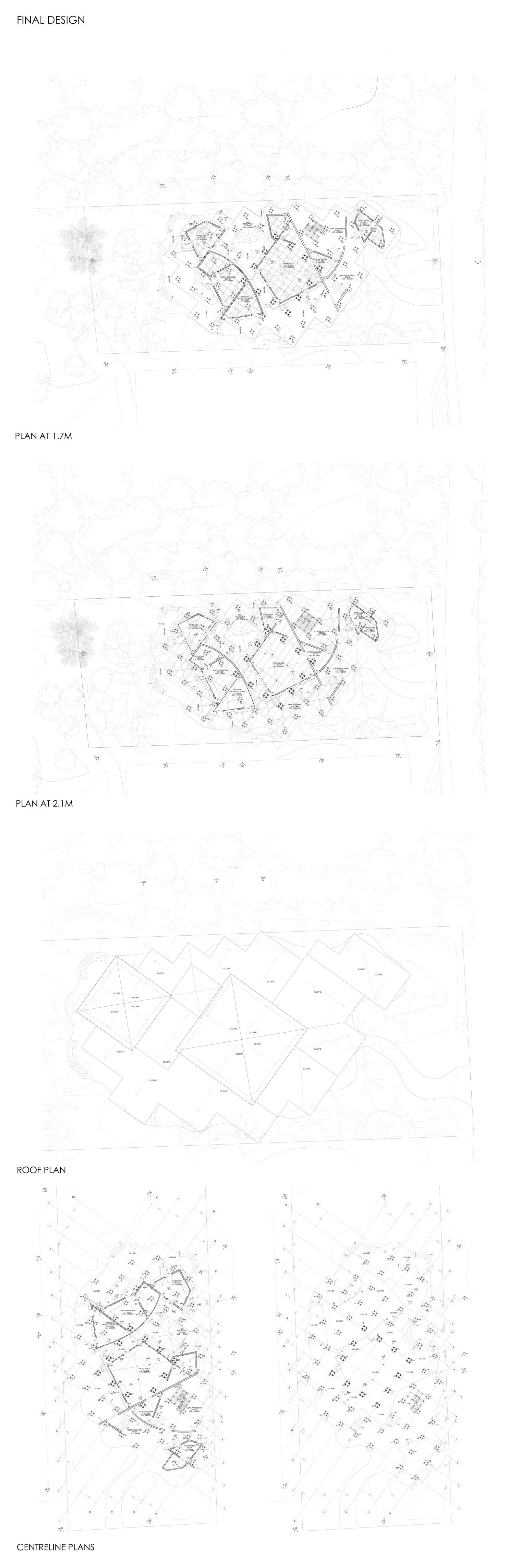

Plans

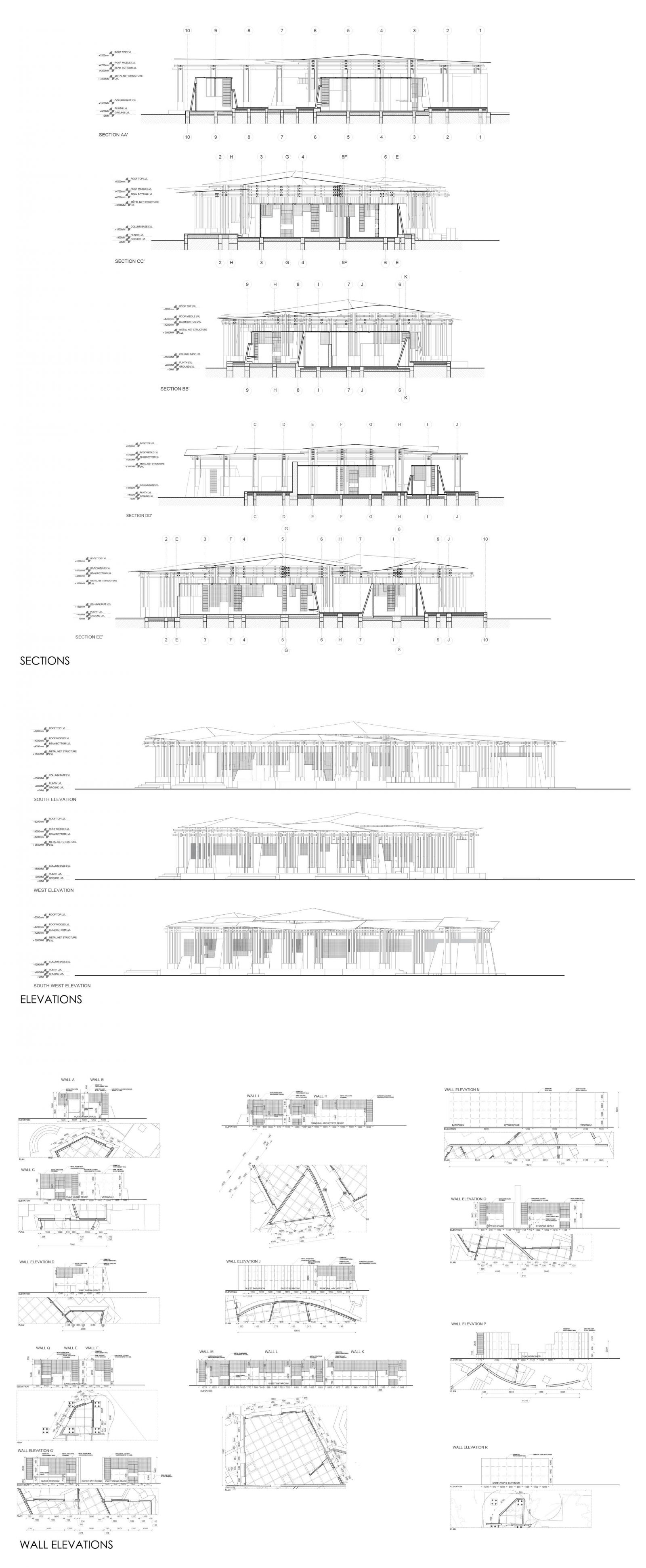

Sections, Elevations and Wall Elevations

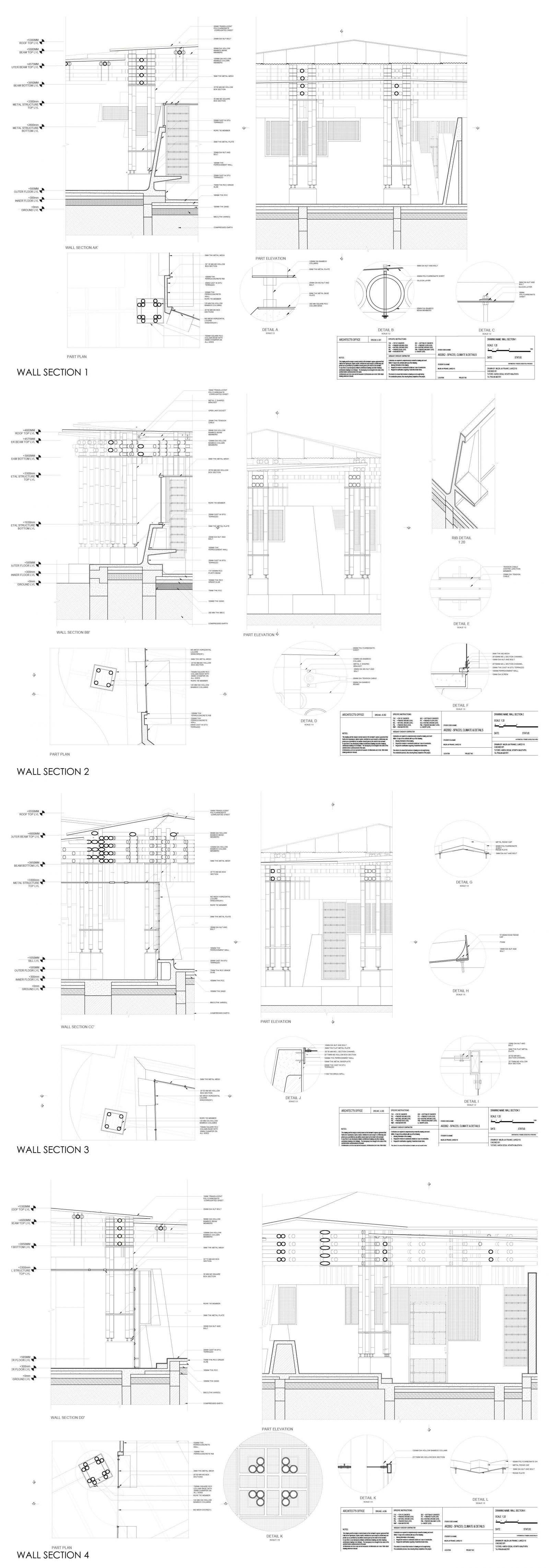

Wall Sections

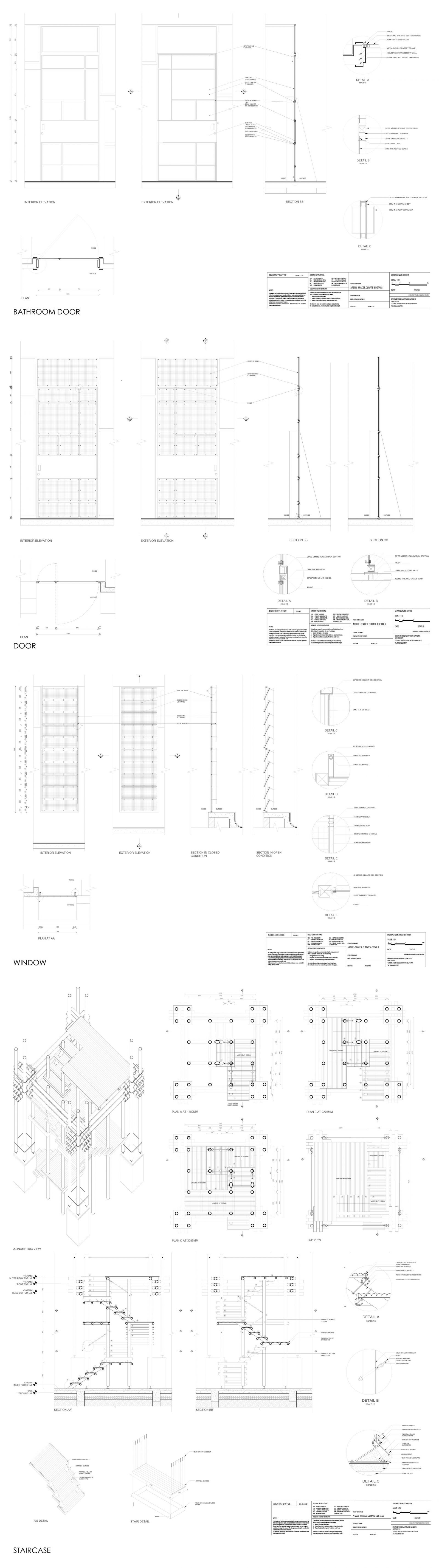

Door Window and Staircase

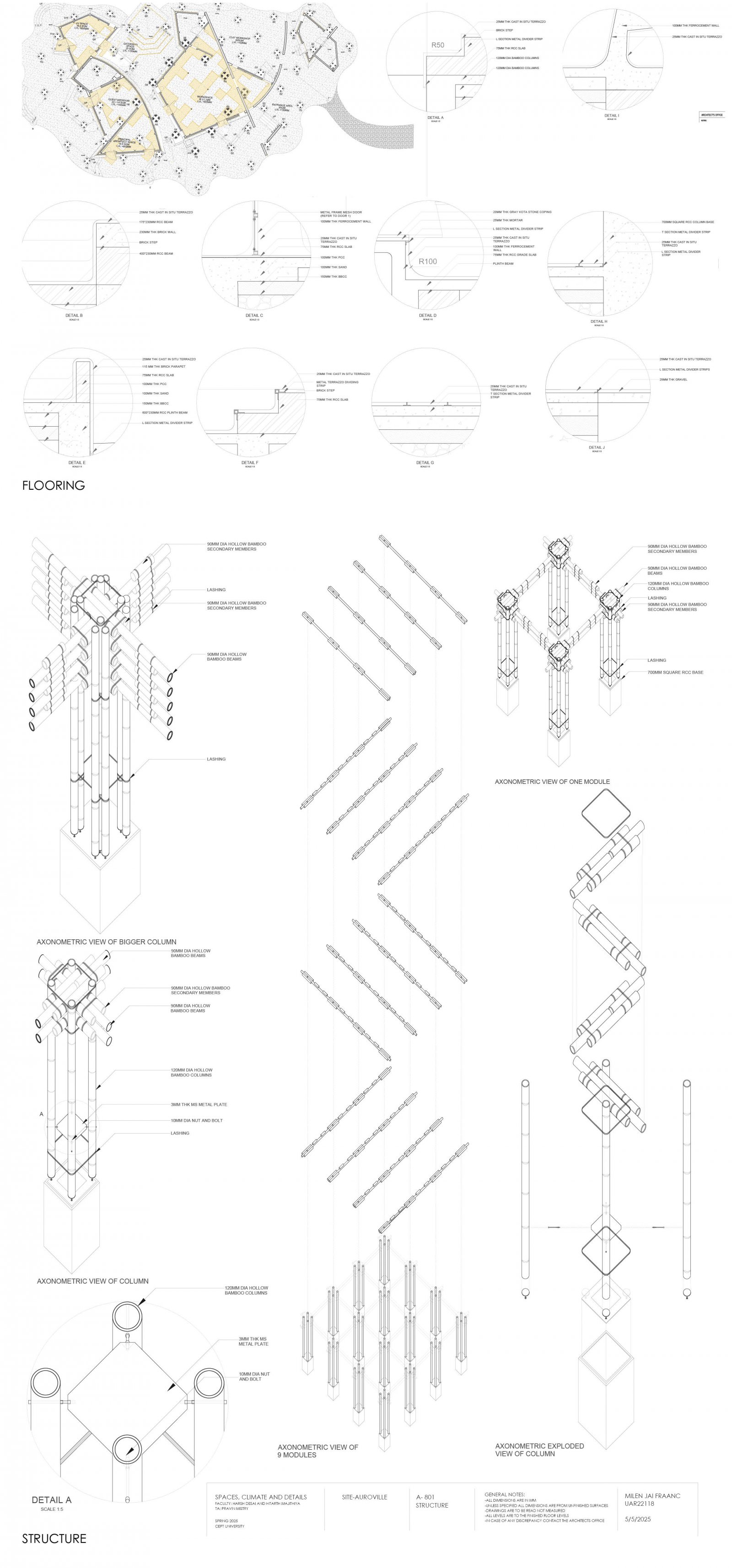

Flooring and Structure

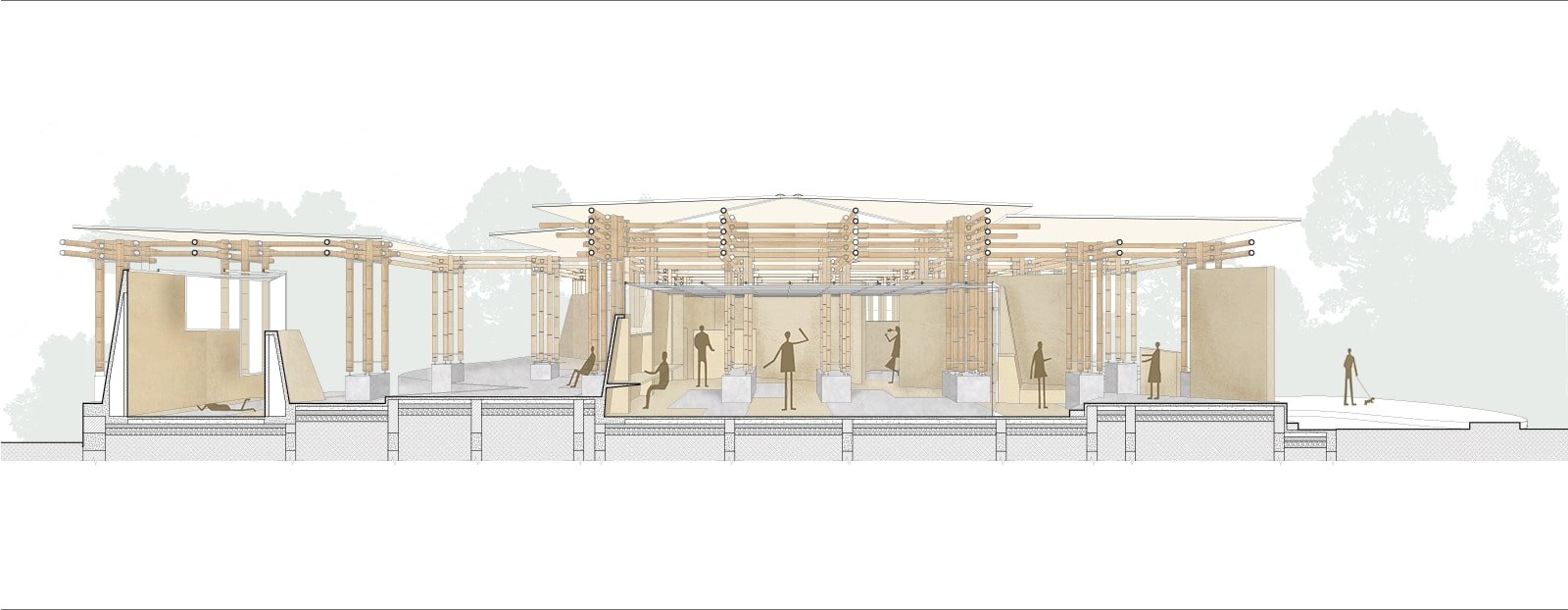

Rendered Sectional Perspective
