Mistry Neel Manojkumar

SD4006

ANALYSIS AND DESIGN OF A G+12 RESIDENTIAL BUILDING

The project involves designing a multi-story Residential building comprising a basement, ground floor, and twelve upper floors (Basement + G + 12) located in seismic zone 5 with considering the effects of P-delta (problem statement). The objective is to study the behavior of building under P-delta, Designing and detailing structural element as per Indian Standards.The project includes a detailed study of the seismic behaviour and performance of the building.


Report Content

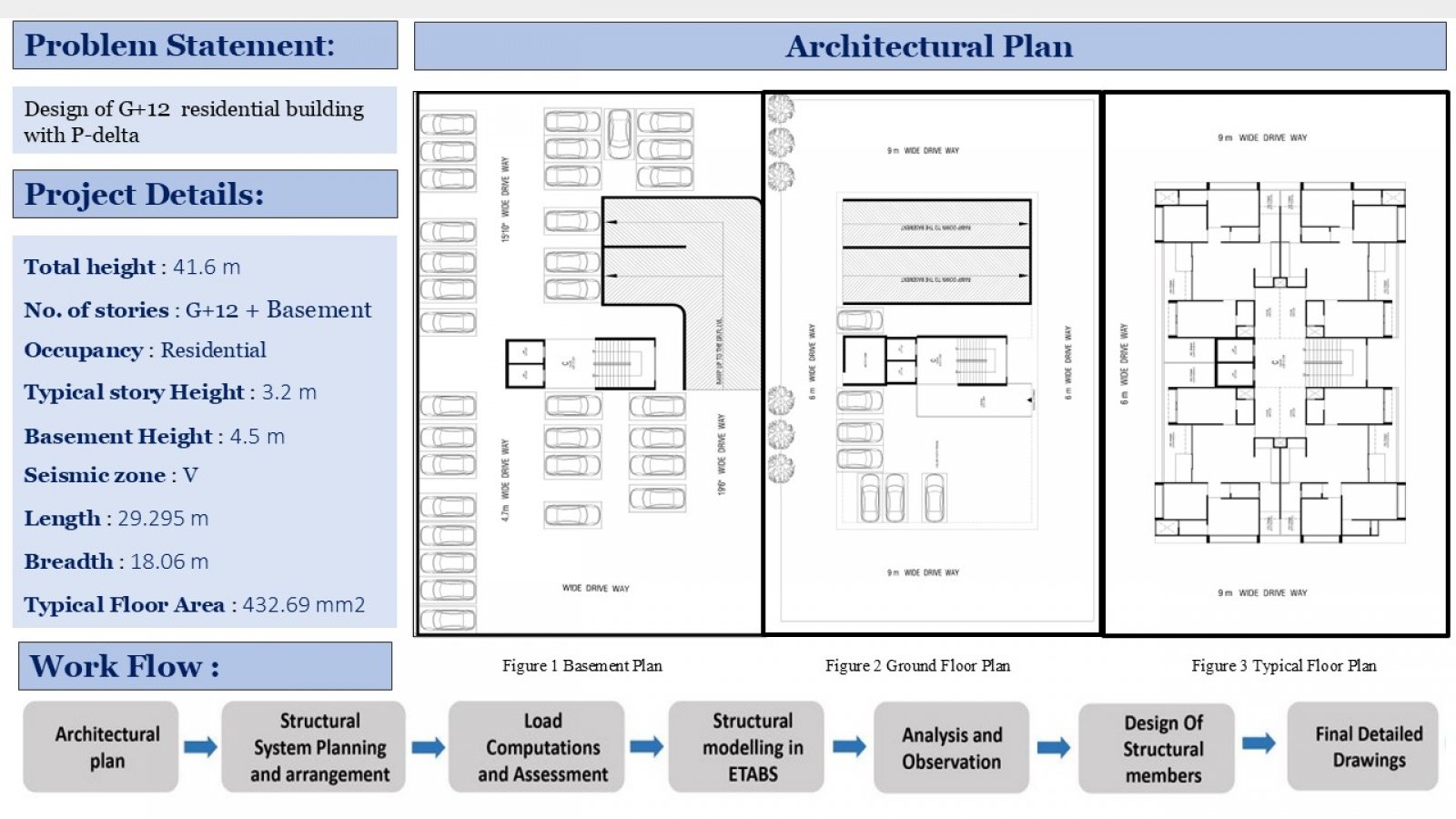

Preliminary Project Information

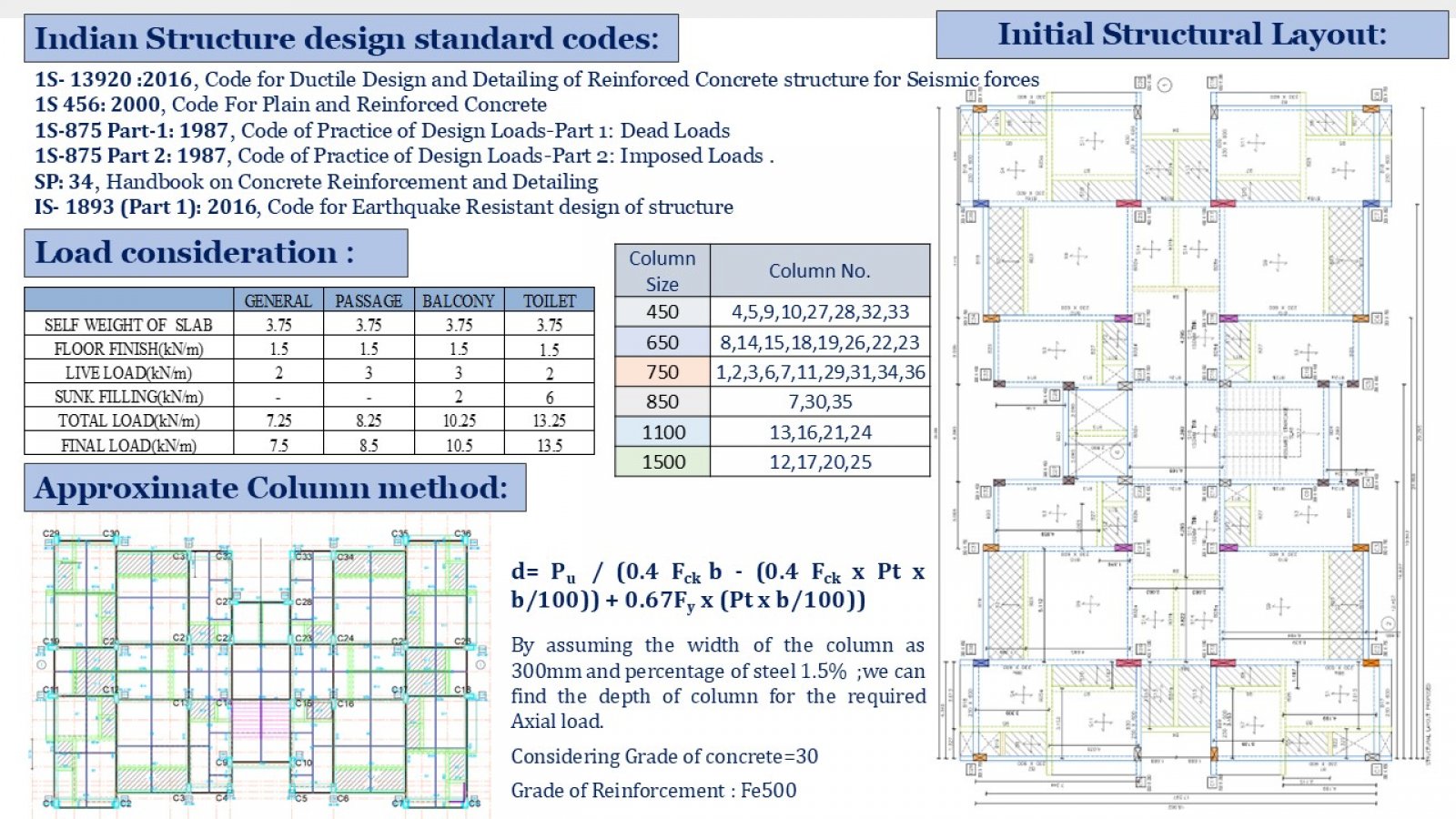

Load Consideration and Initial structural layout

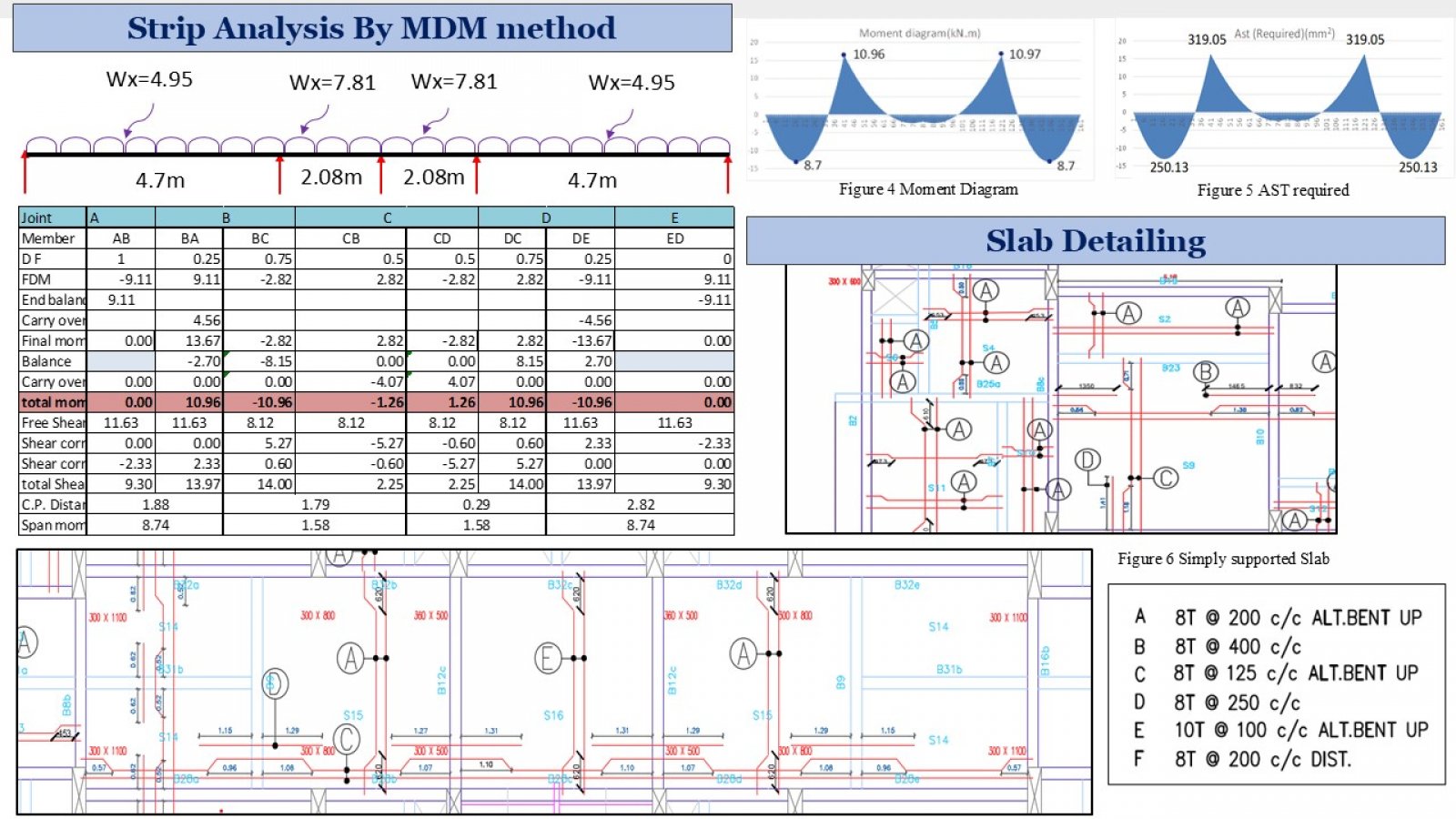

Strip Analysis and Detailing of Slab

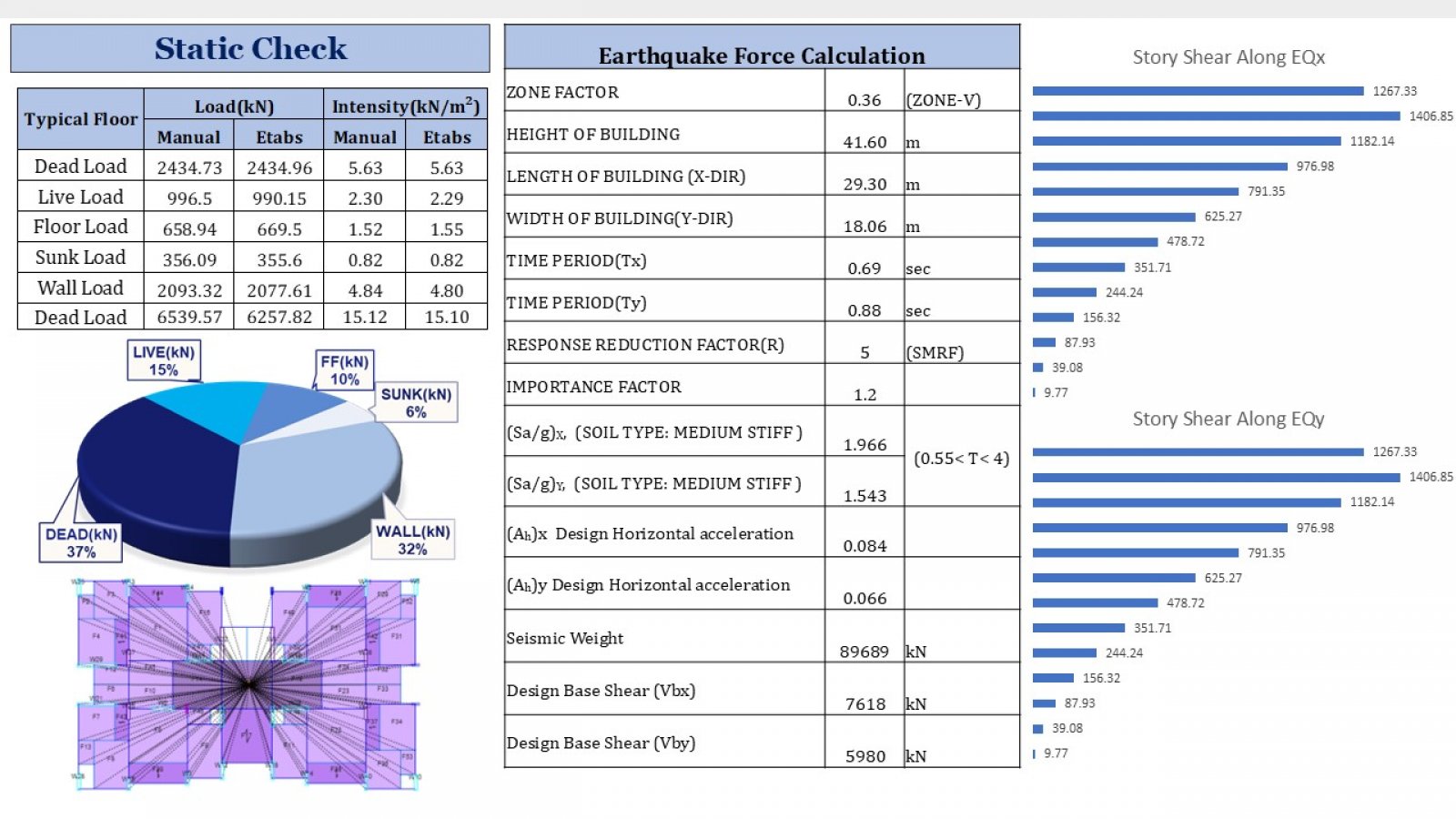

Static Check and Earthquake Force Calculations

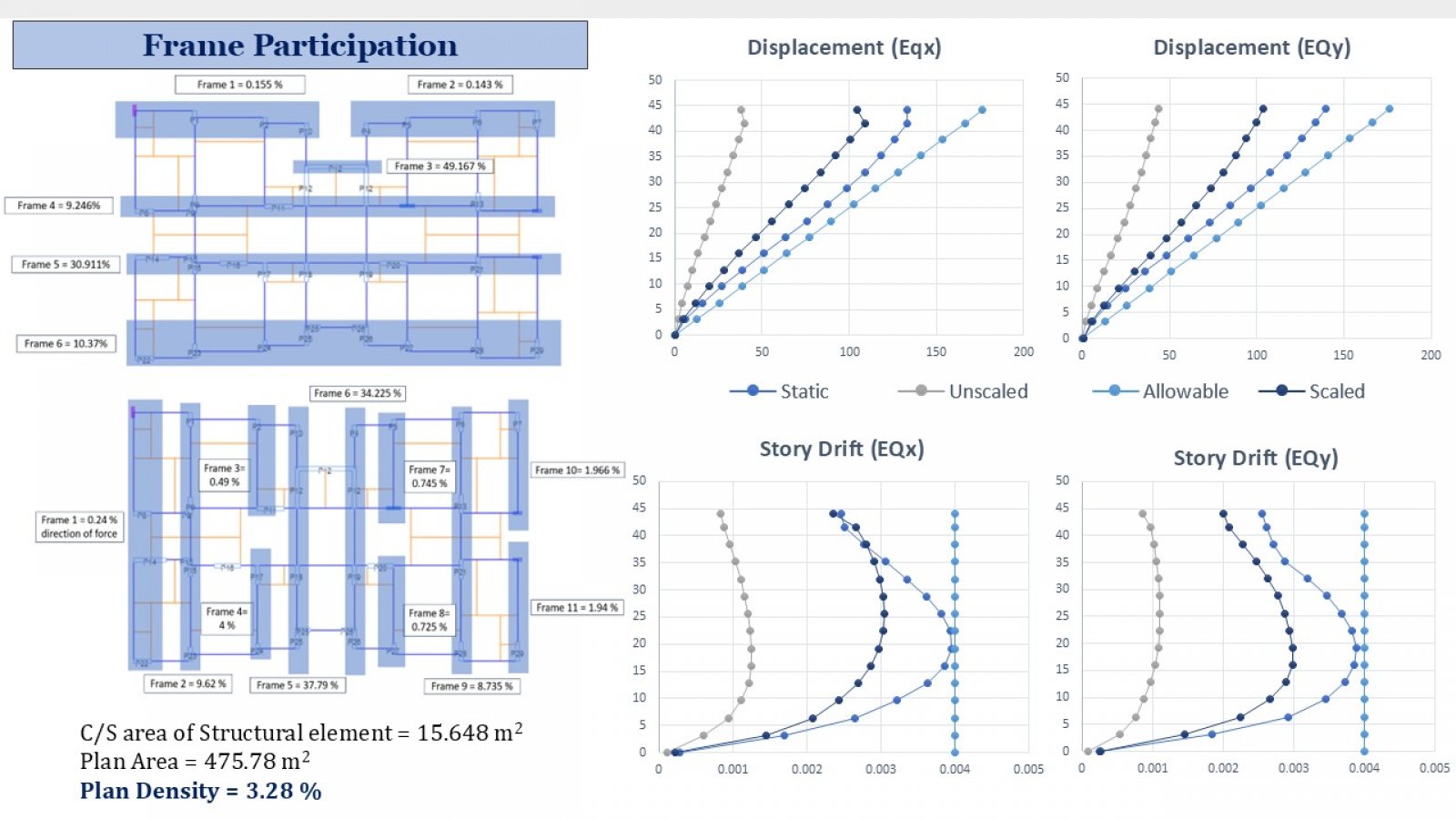

Frame Participation and Displacement & Story Drift Check

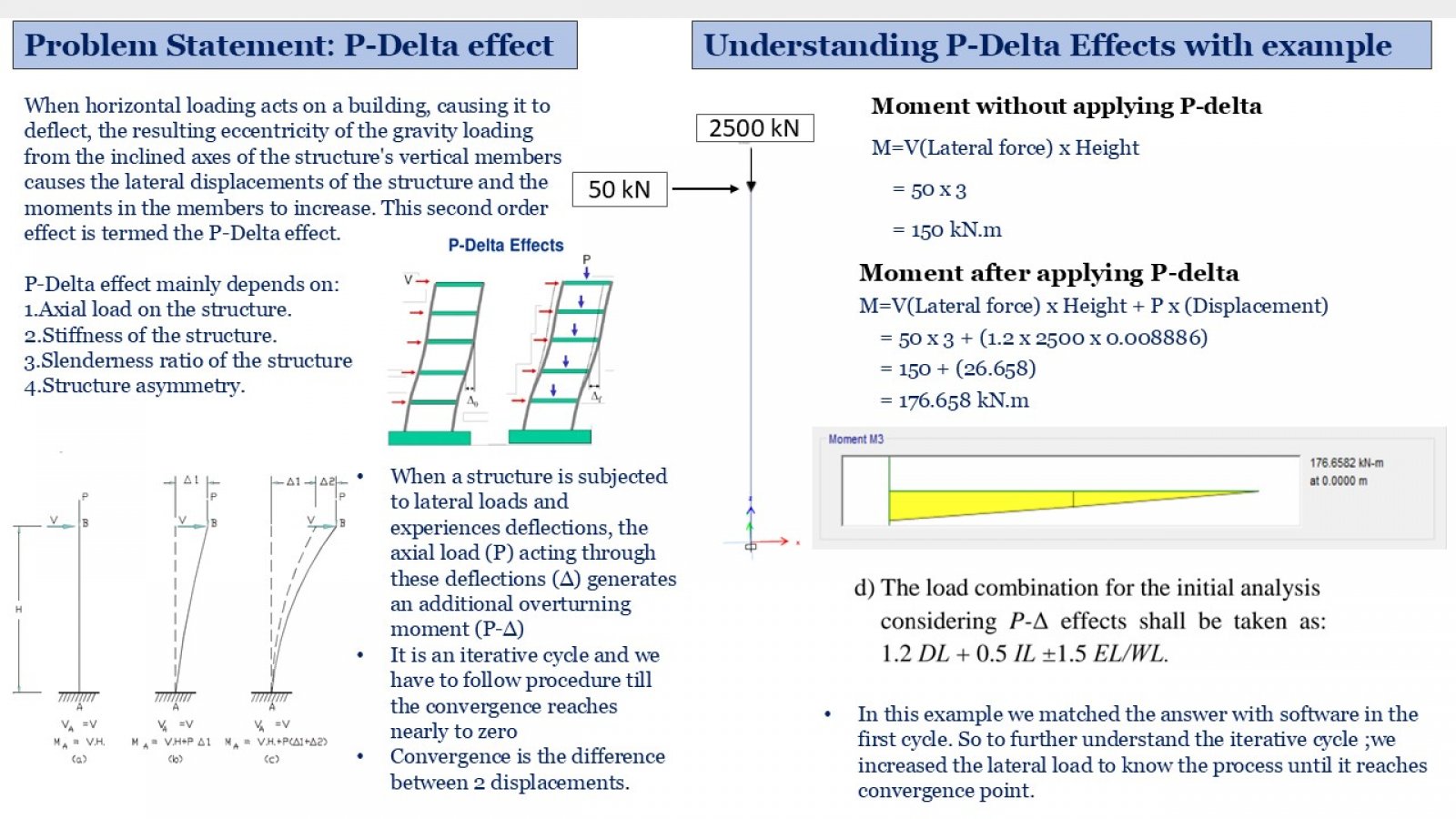

Problem Statement:P-Delta Effects

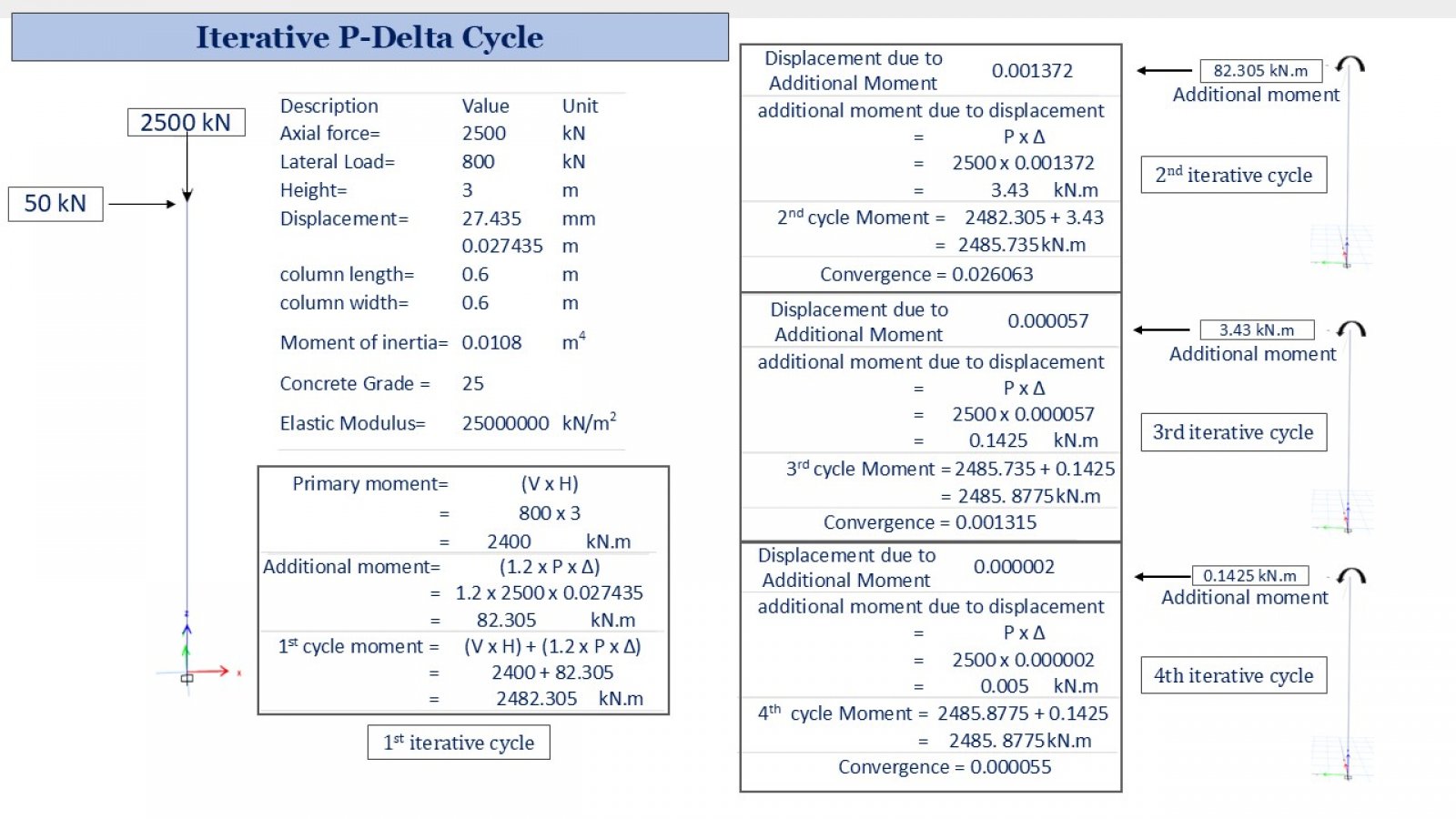

Understanding P-delta effects Iterative cycle

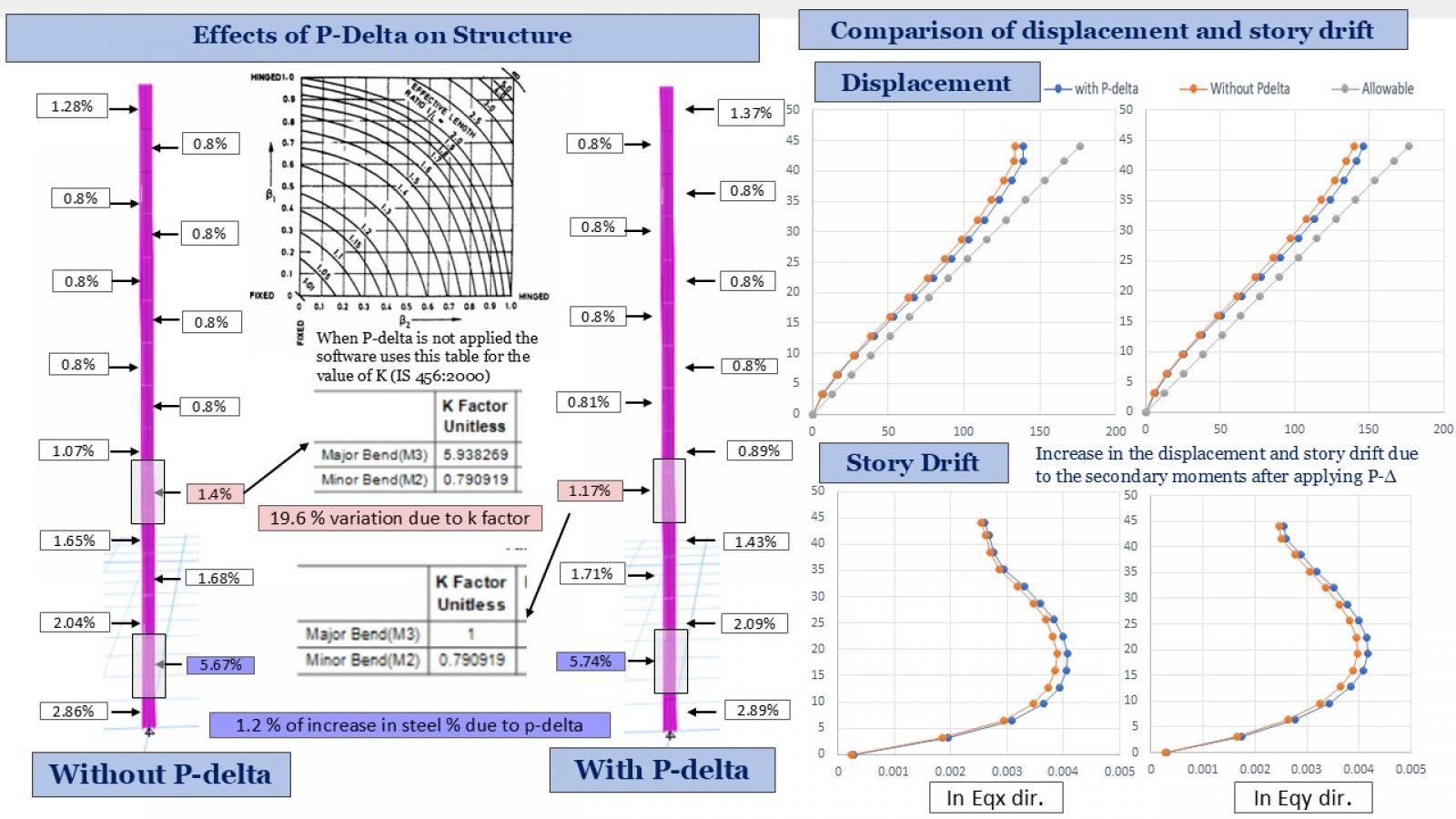

Effects of P-delta on Structure

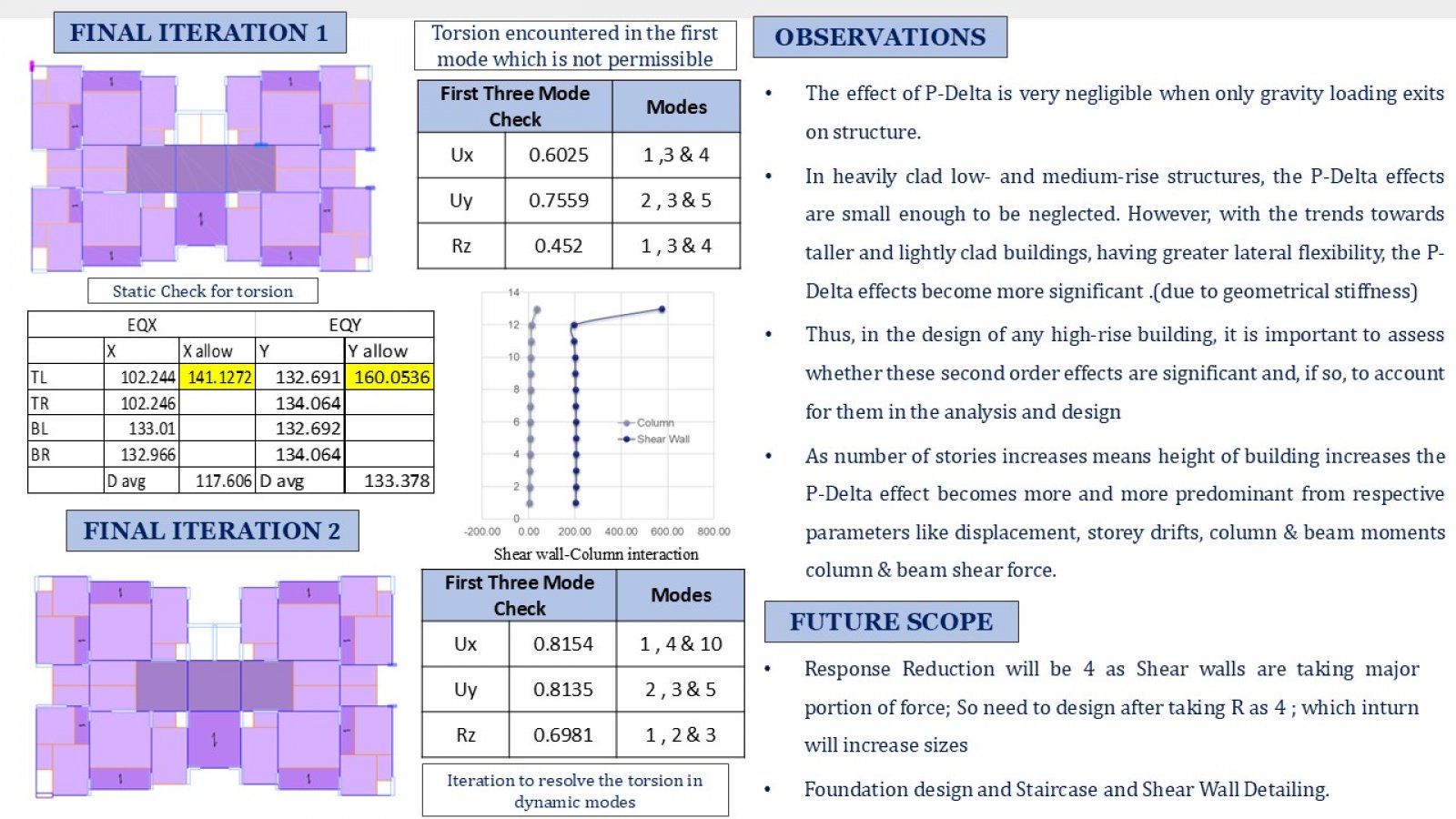

Dynamic Earthquake and Observation

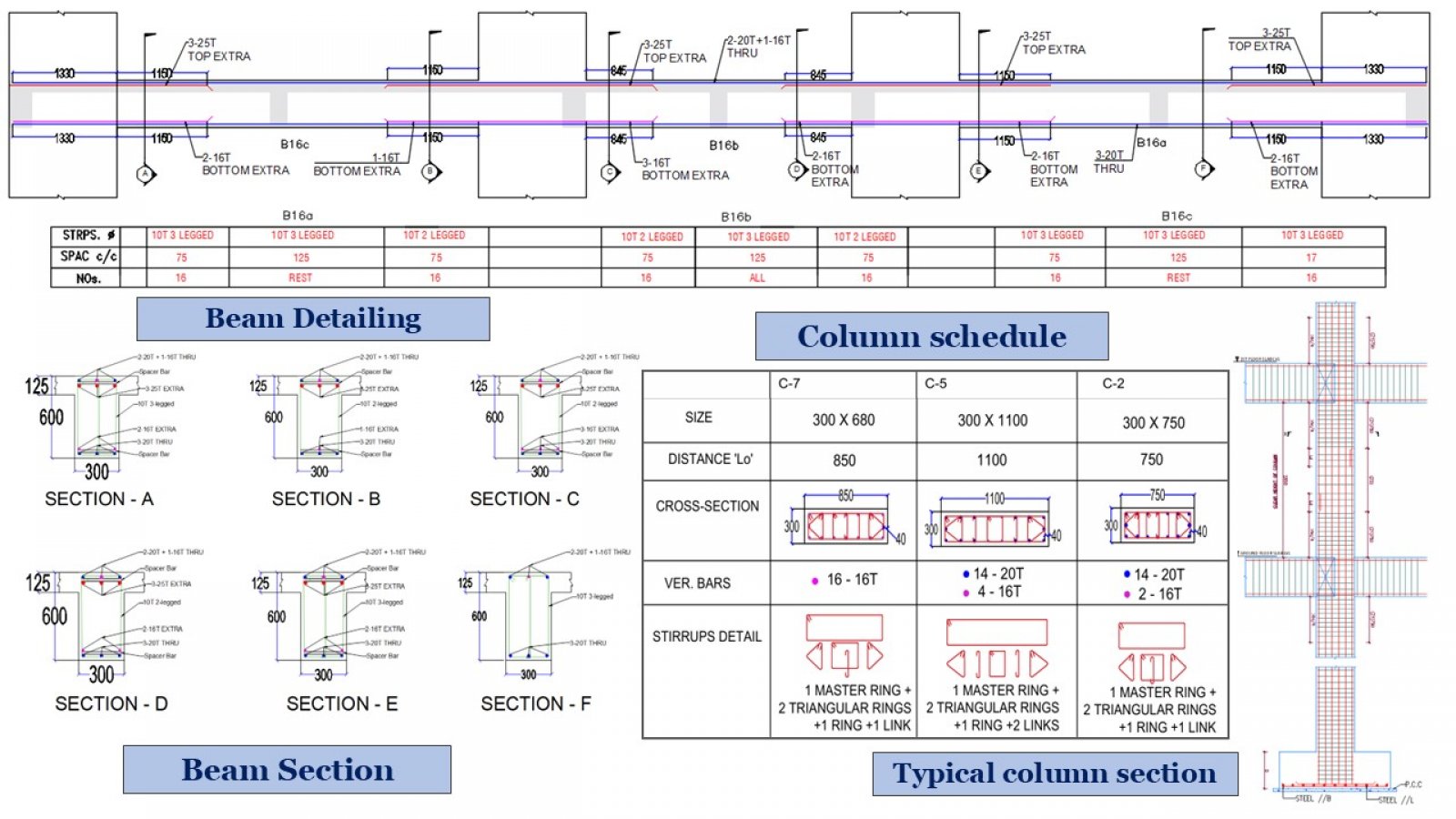

Detailing of Structural Elements
