Chundriger Zaidahmed

SD4006

B+G+12 RESIDENTIAL BUILDING & CAPACITY DESIGN CONCEPT

Objective of this project to study how to to analysis and design B+G+12 residential RCC building and how capacity of column beam junction play important role during Earthquake & how to increase the capacity of beam column is carried out & what INDIAN Standard say about joint capacity.Along with that understand how shear wall help in controlling drift and displacement.


Report Content

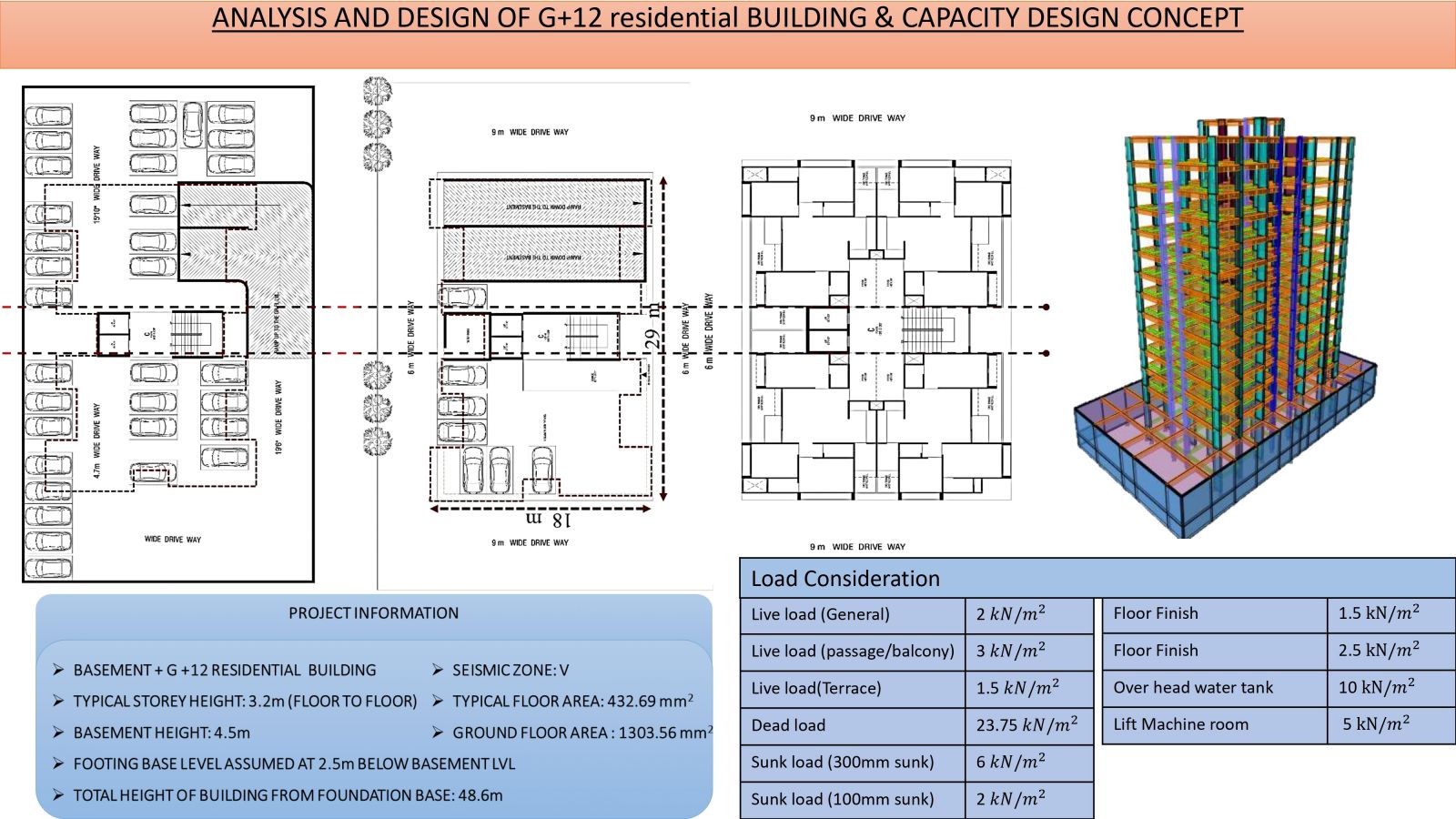

Problem statement, Architectural layout, Project information

Structural layout

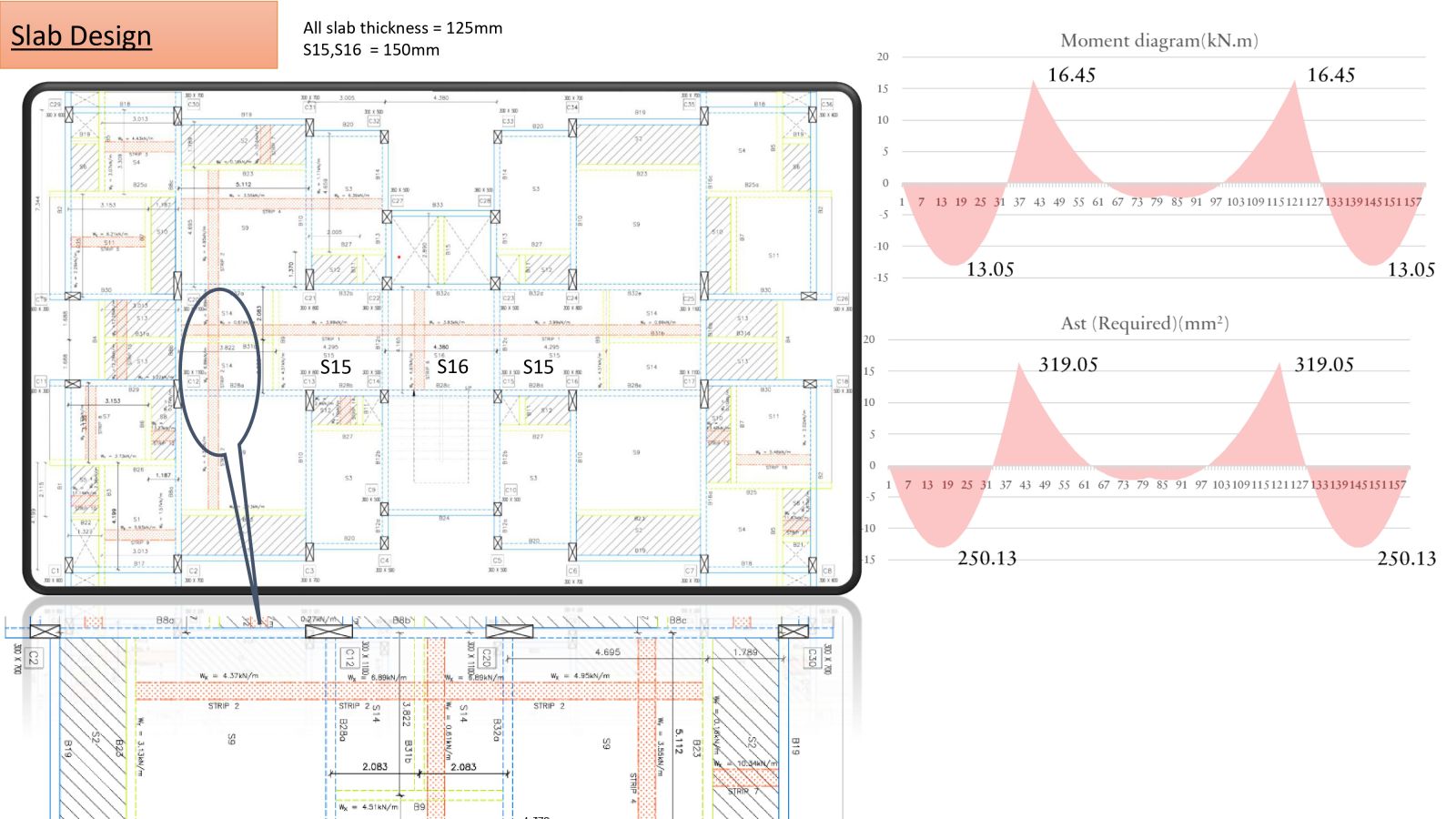

Analysis & Design of slab

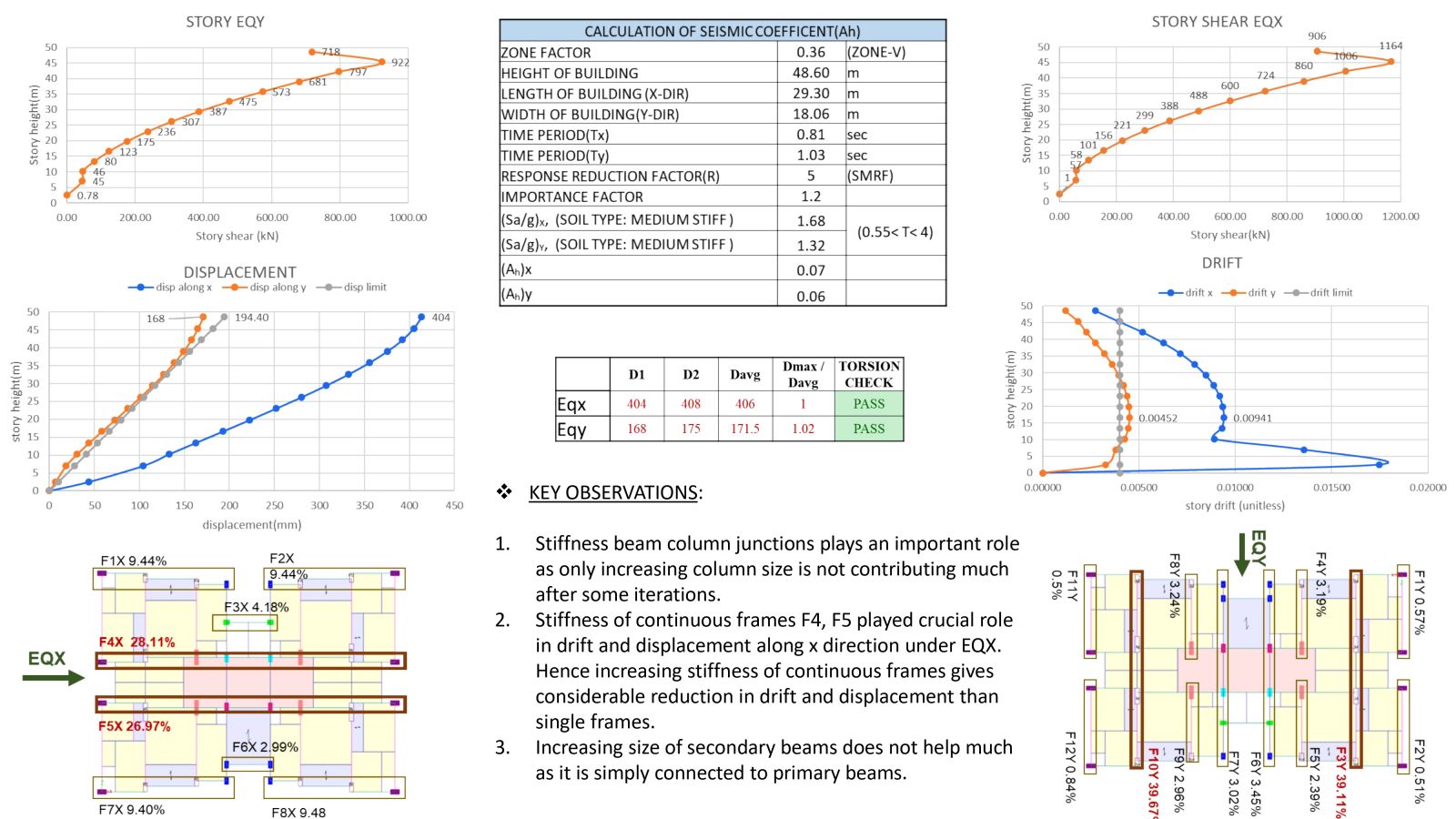

Base shear calculation & displacement, drift of initial model

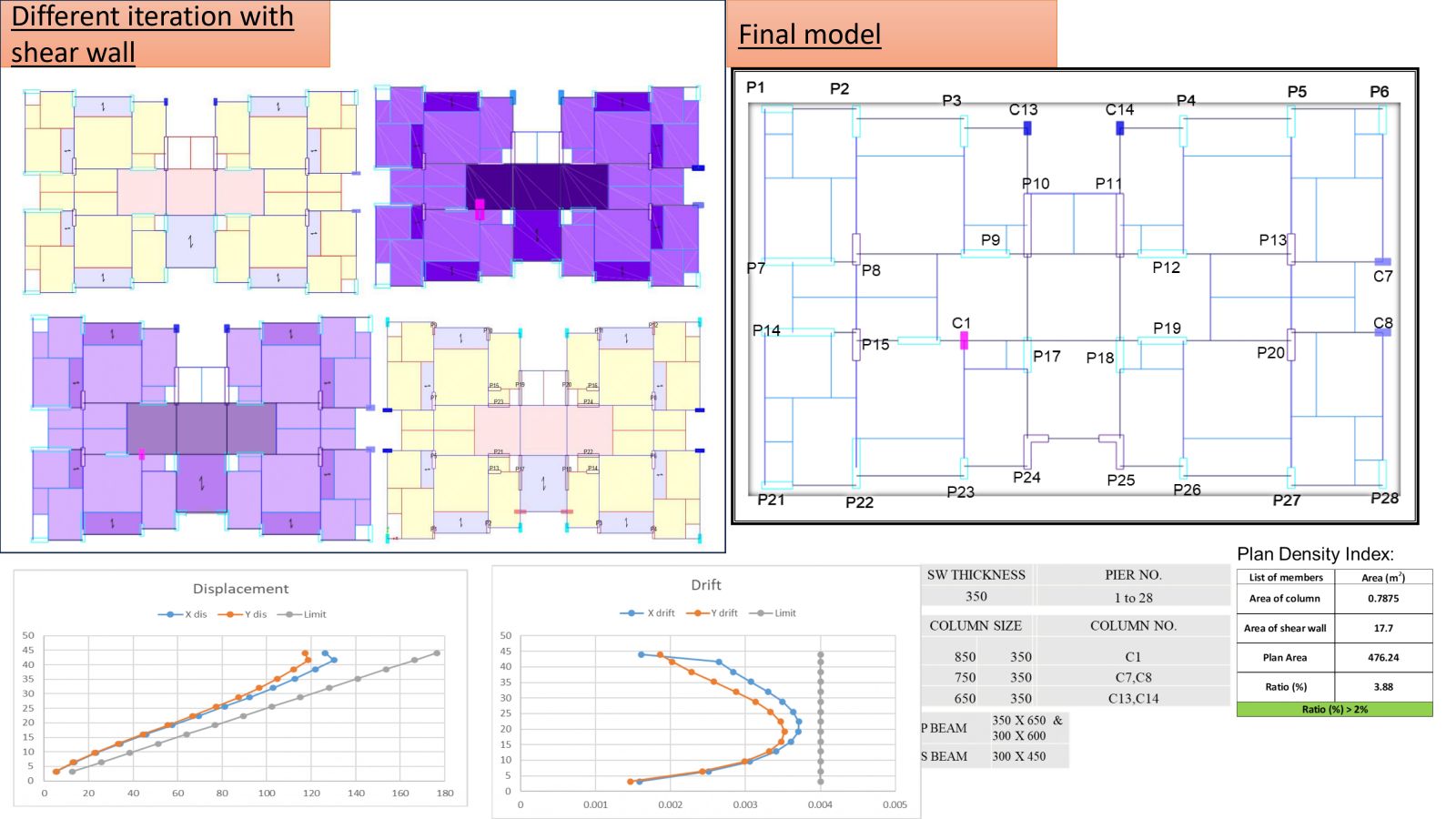

Iteration and final structural system

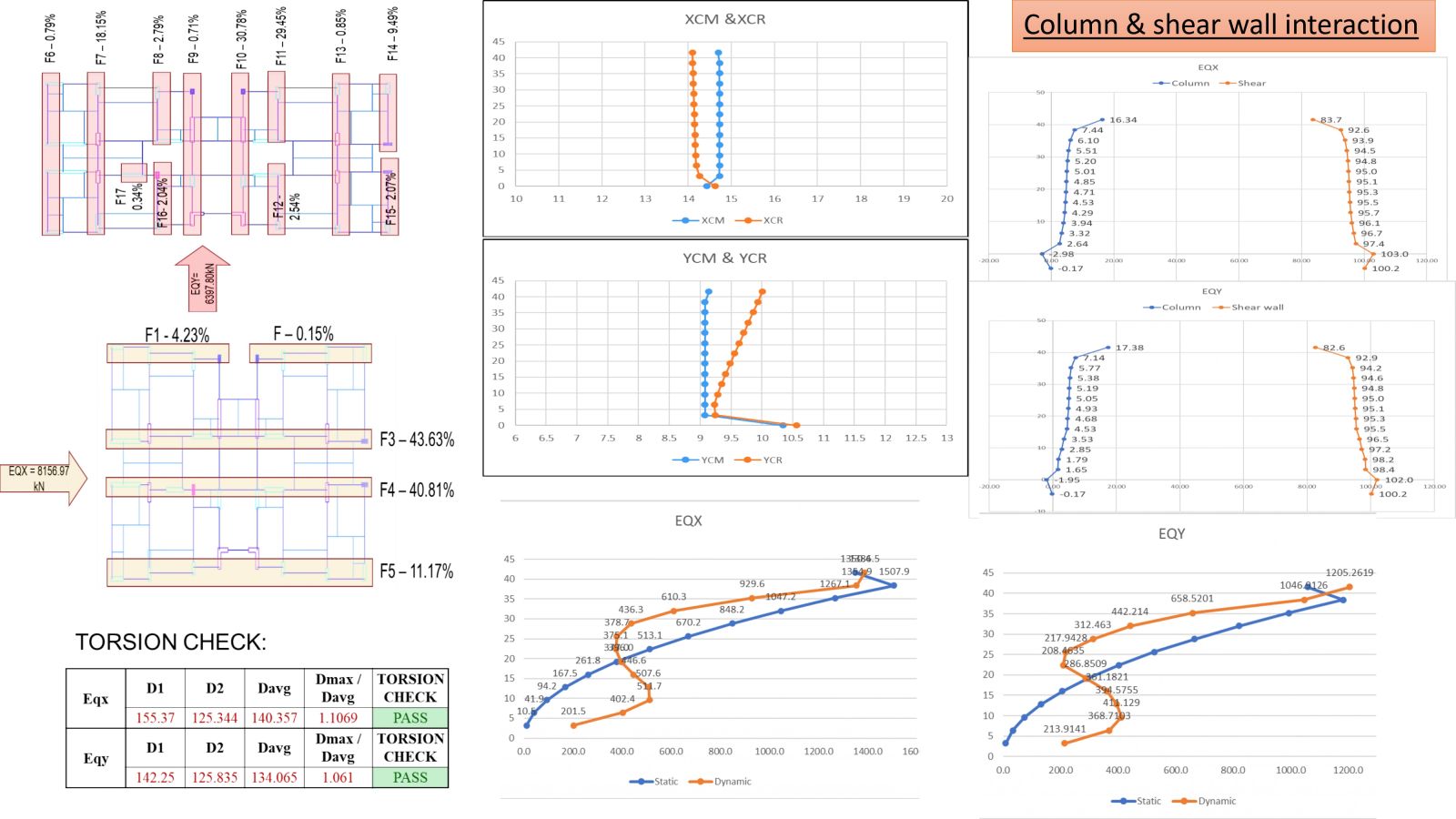

Frame participation, Drift, Displacements, Dynamic & static story shear

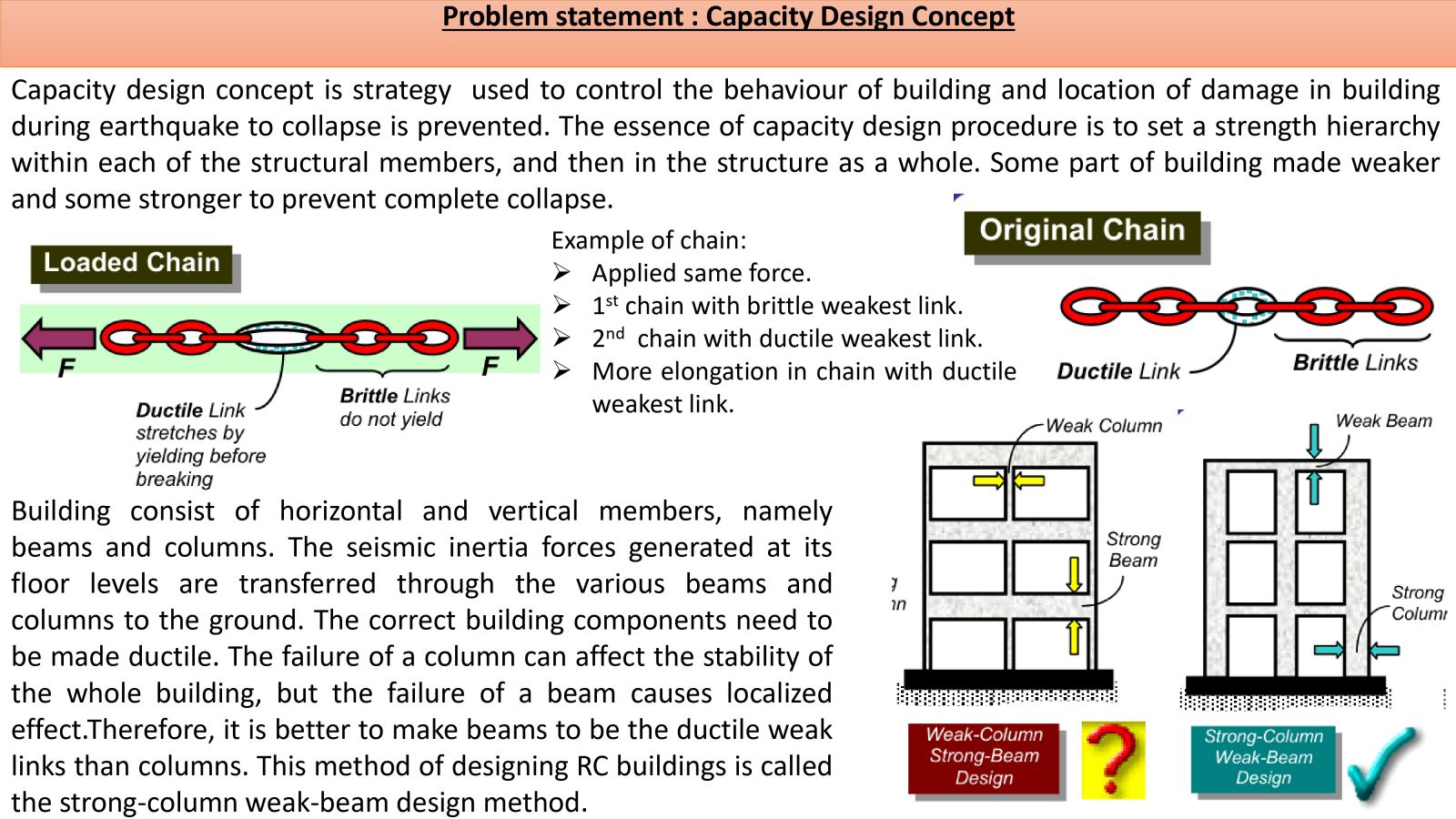

Basic concept of capacity design concept

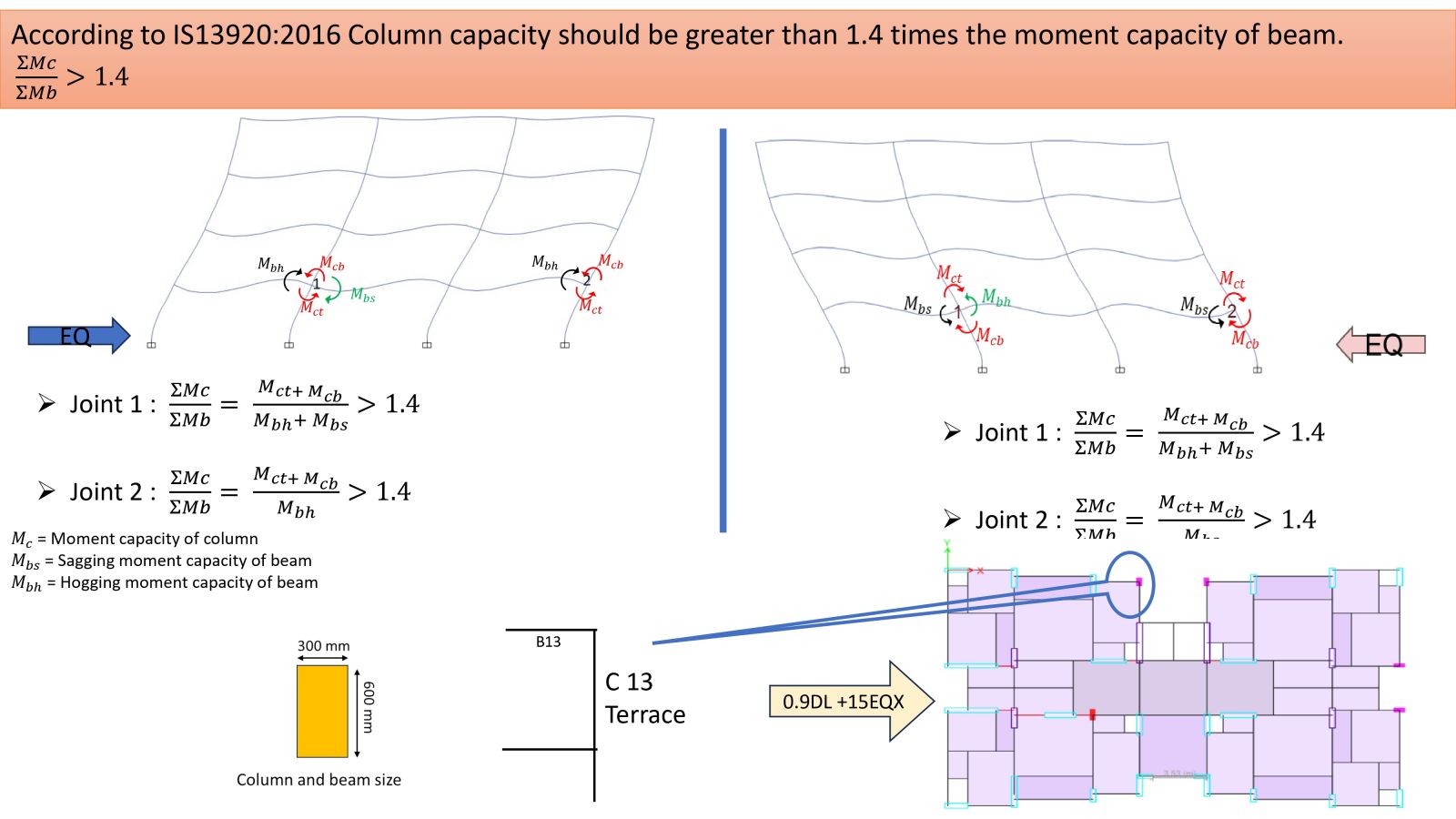

IS code provision of capacity design concept

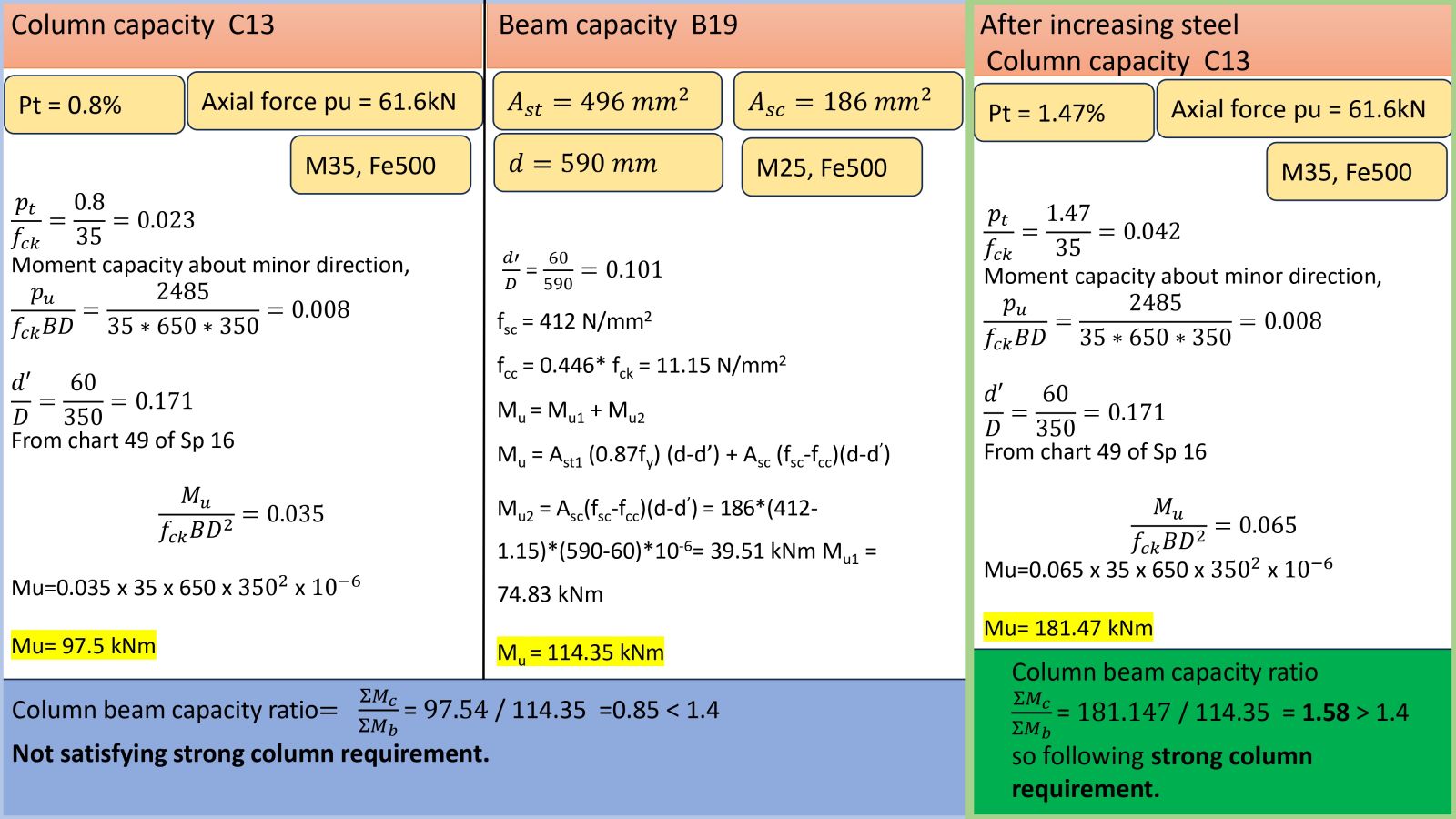

calculation of capacity of joint before and after increasing reinforcement in column

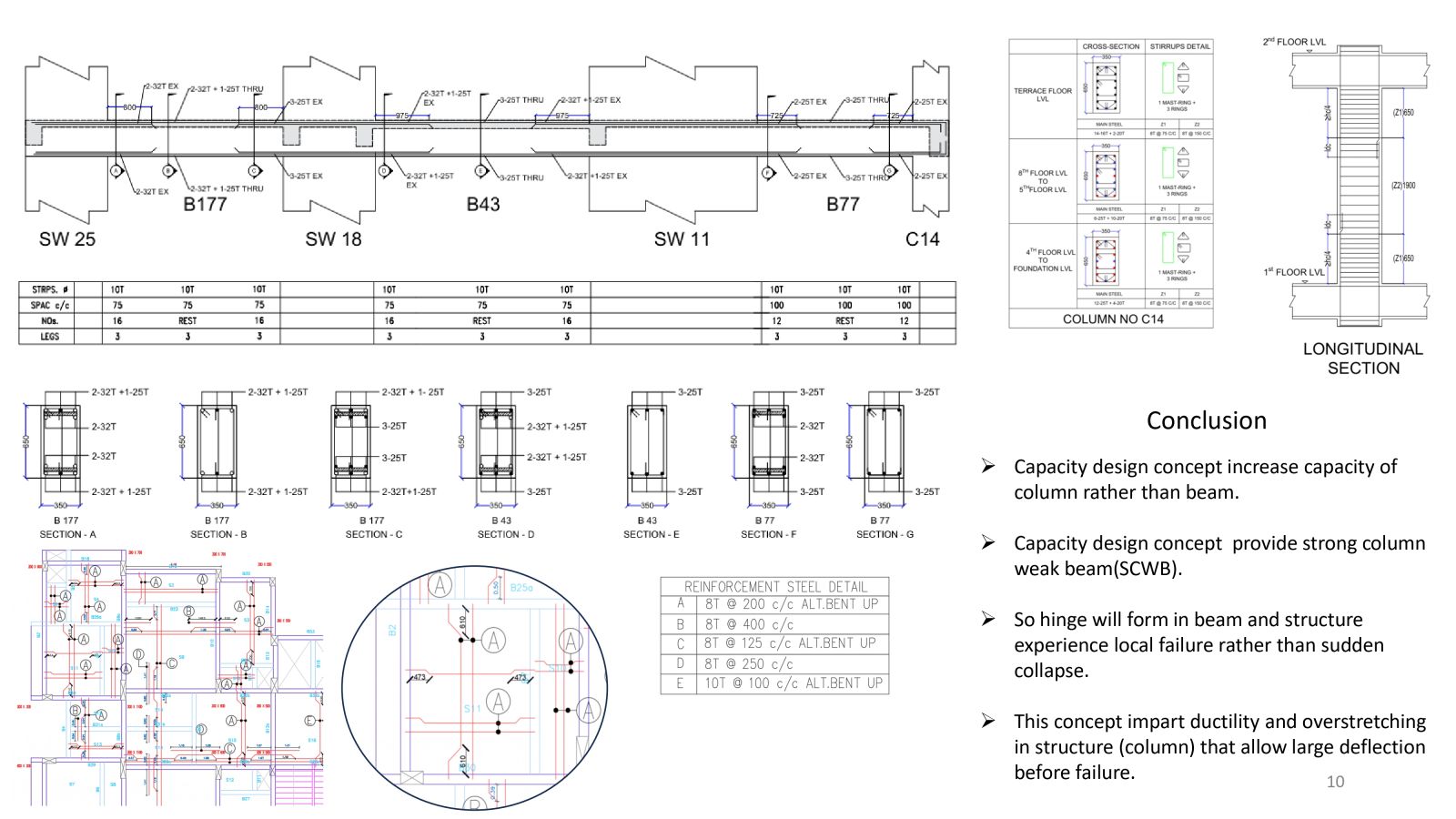

Detail Drawing of Slab, Beam, Column
