  • DESIGN G+13 STOREY PLUS SHAPE BUILDING - PLAN IRREGULAR

Bhavsar Krishna Jayeshkumar

SD4006

DESIGN G+13 STOREY PLUS SHAPE BUILDING - PLAN IRREGULAR

The objective of this project is to study the structural behavior of a building with plan irregularity. As defined in Table 5 of IS 1893:2016, plan irregularities include features such as torsional irregularity, re-entrant corners, and non-parallel lateral force systems. This project focuses specifically on the effects of a plus-shaped building layout, which introduces re-entrant corners and discontinuities in geometry. A major design challenge in such plan irregular configurations is controlling torsional response caused by significant eccentricity between the center of mass and the center of rigidity. This results in uneven distribution of seismic forces and stress concentrations at internal corners.


Report Content

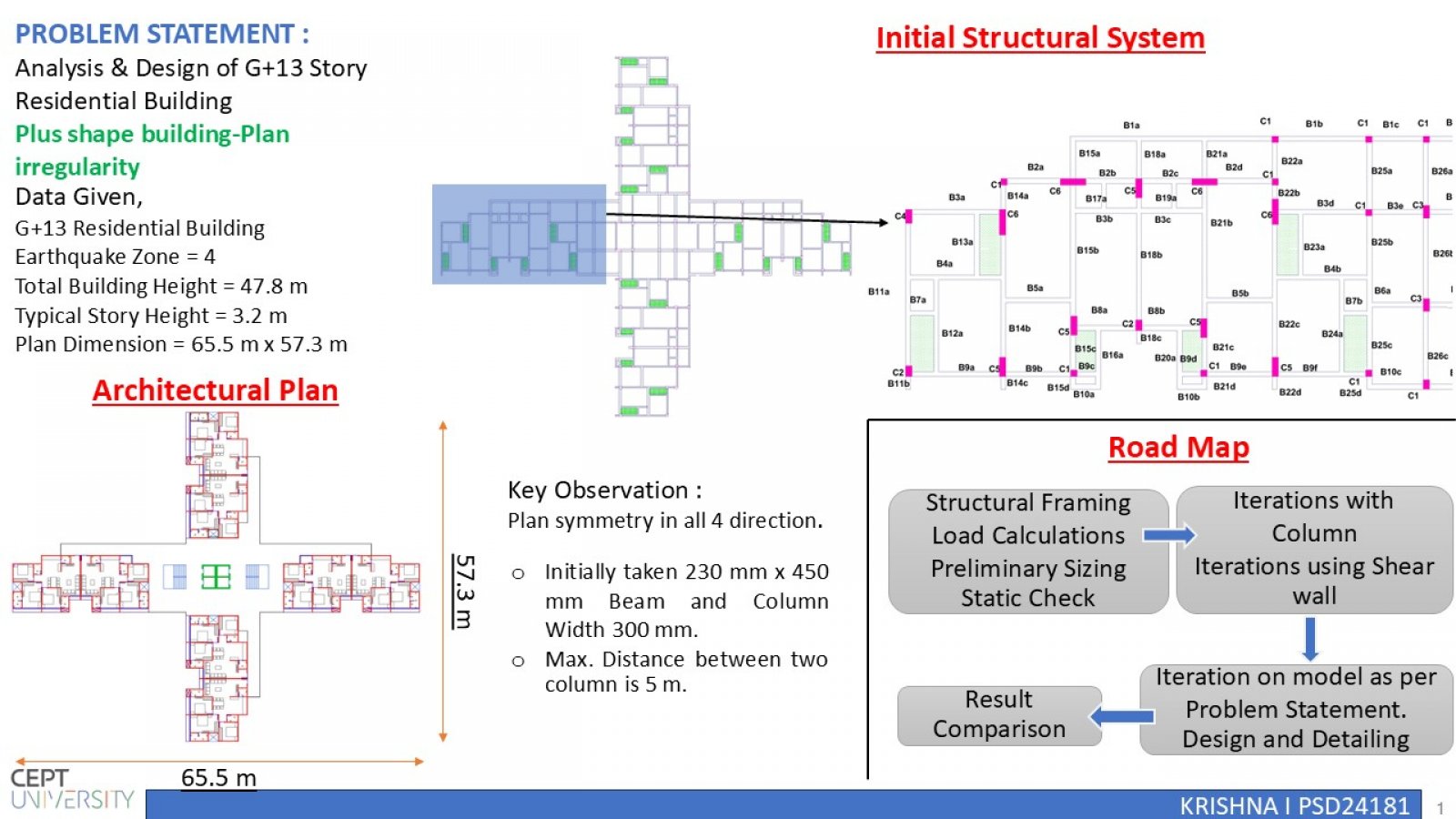

Problem Statement, Architectural Drawings & Initial Structural Layout.

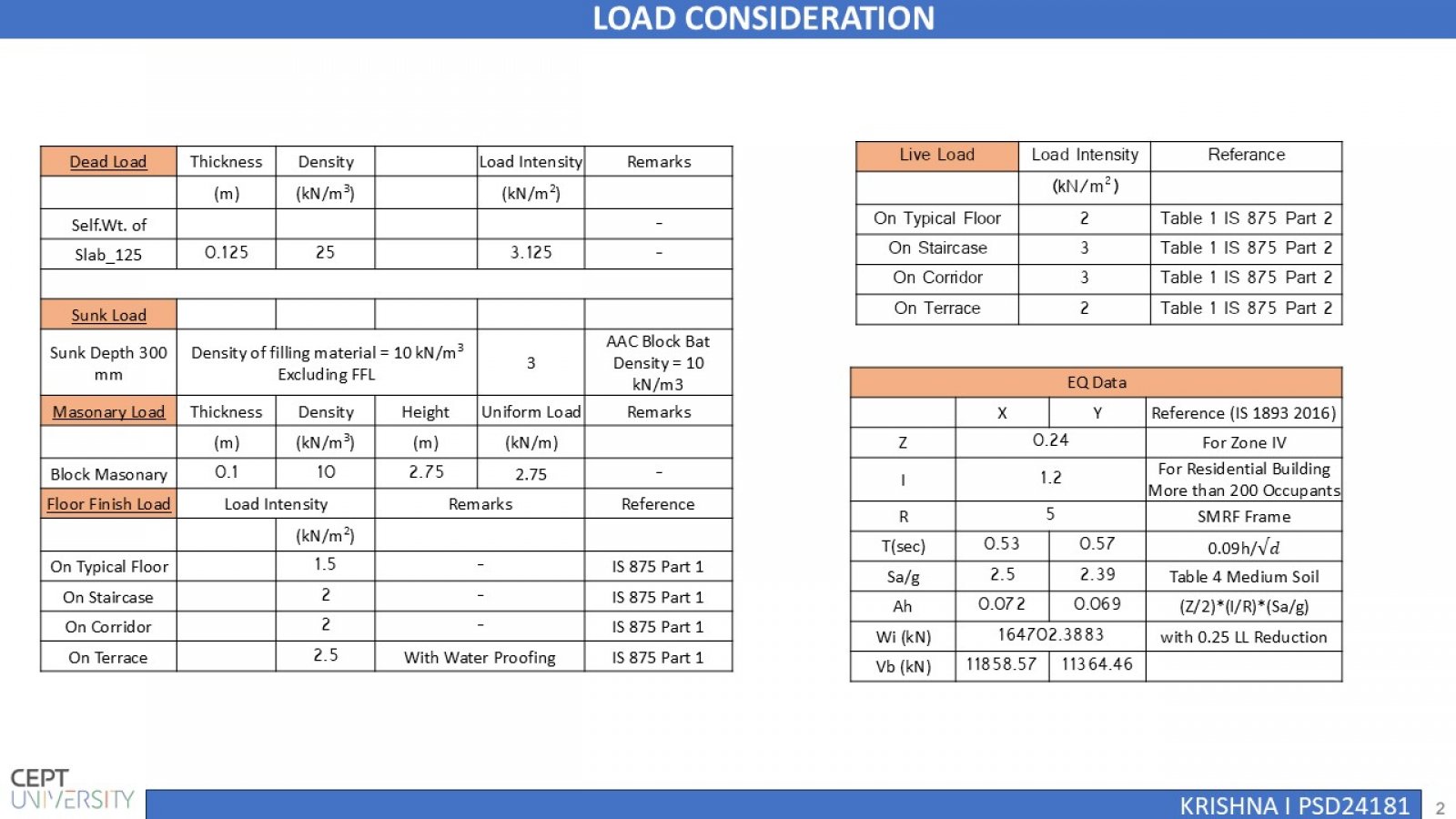

Load considered in case of Dead Load, Live Load & Earthquake load.

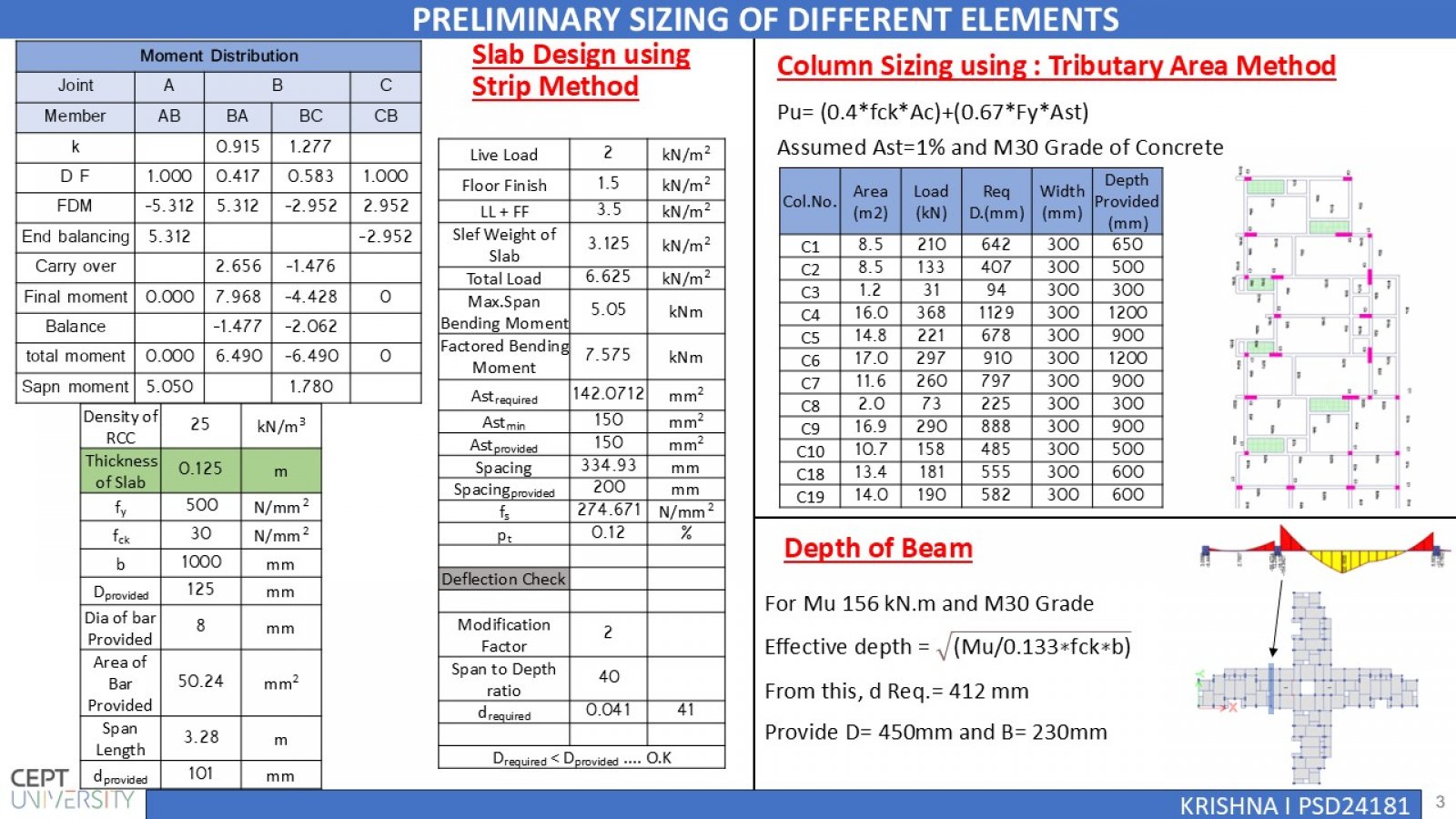

Slab Design using strip method and Preliminary Sizes of Beam & Column.

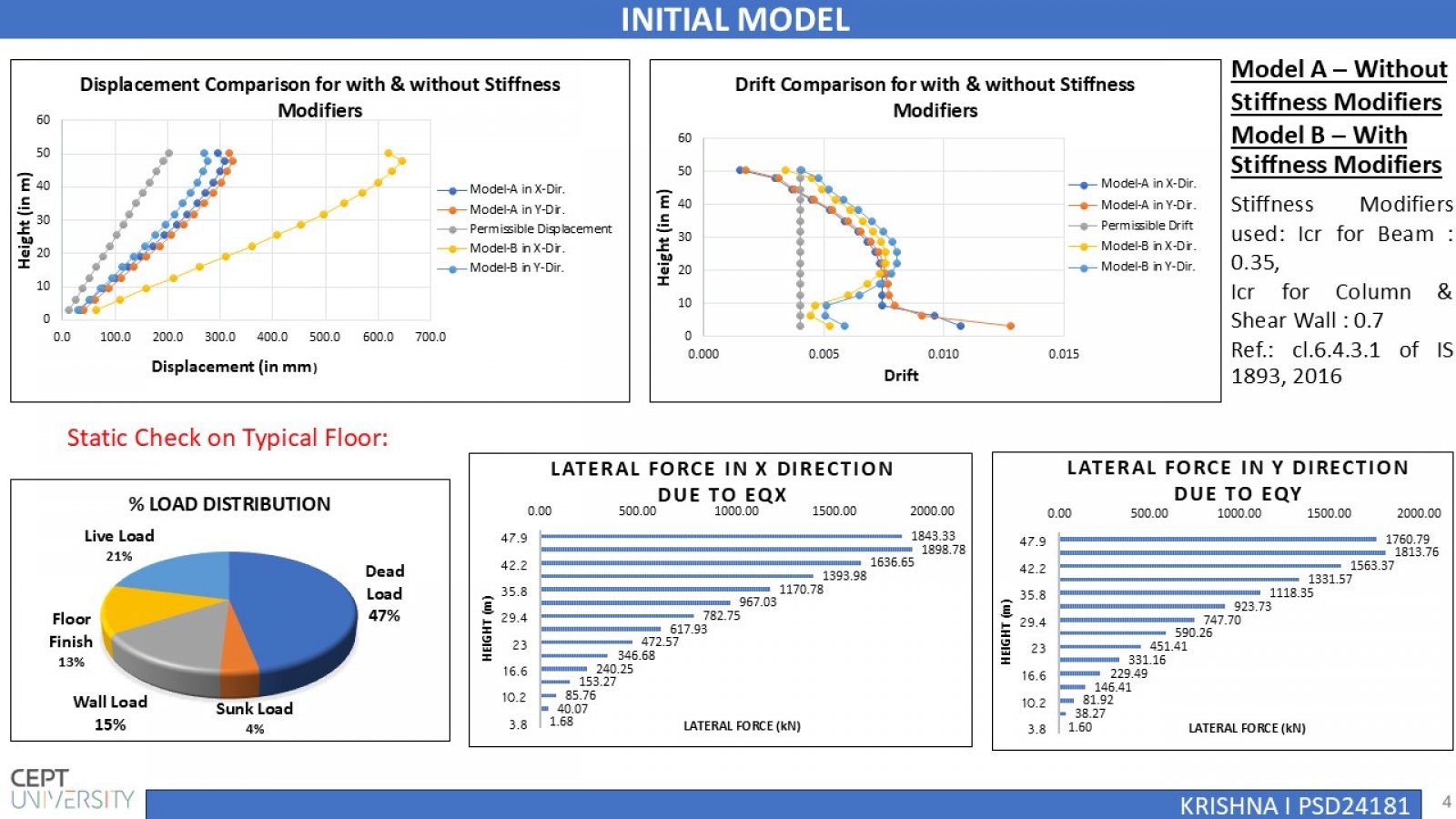

Static checks performed on Initial model. Earthquake Load application to initial model with and without Stiffness modifiers.

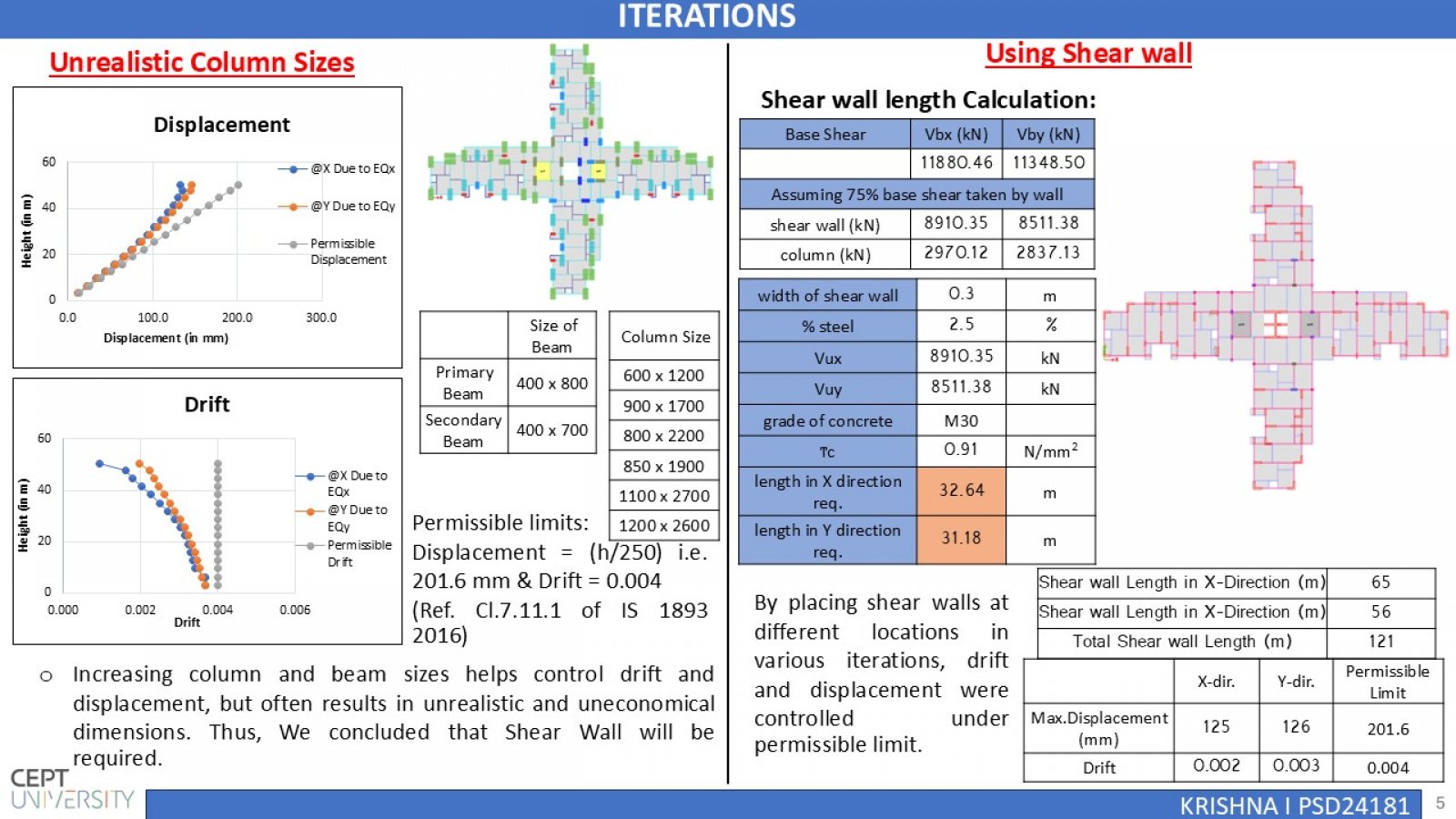

Iterations with unrealistic column sizes. Iterations performed using shear wall.

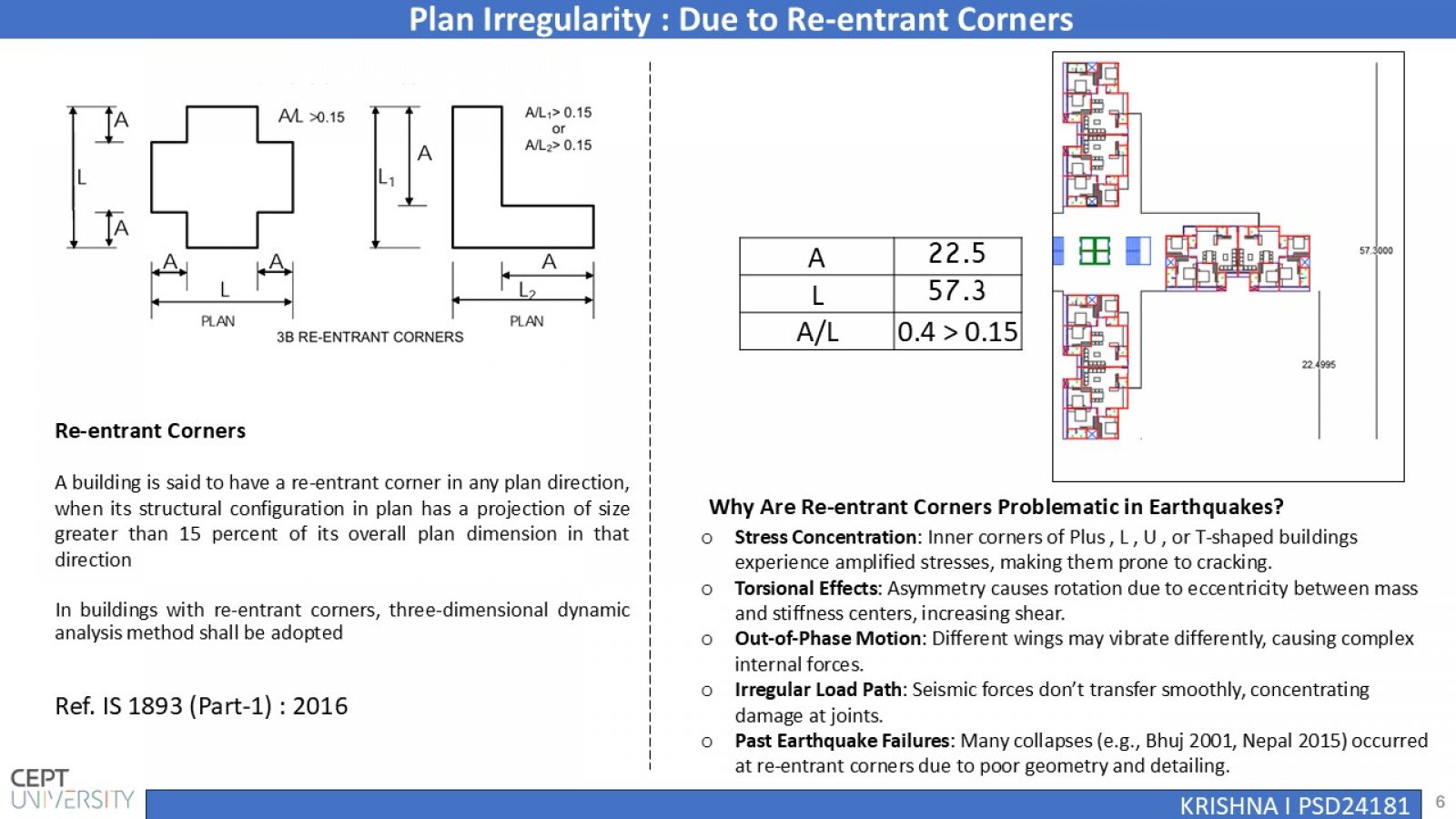

Plan Irregularity : Due to Re-entrant Corners.

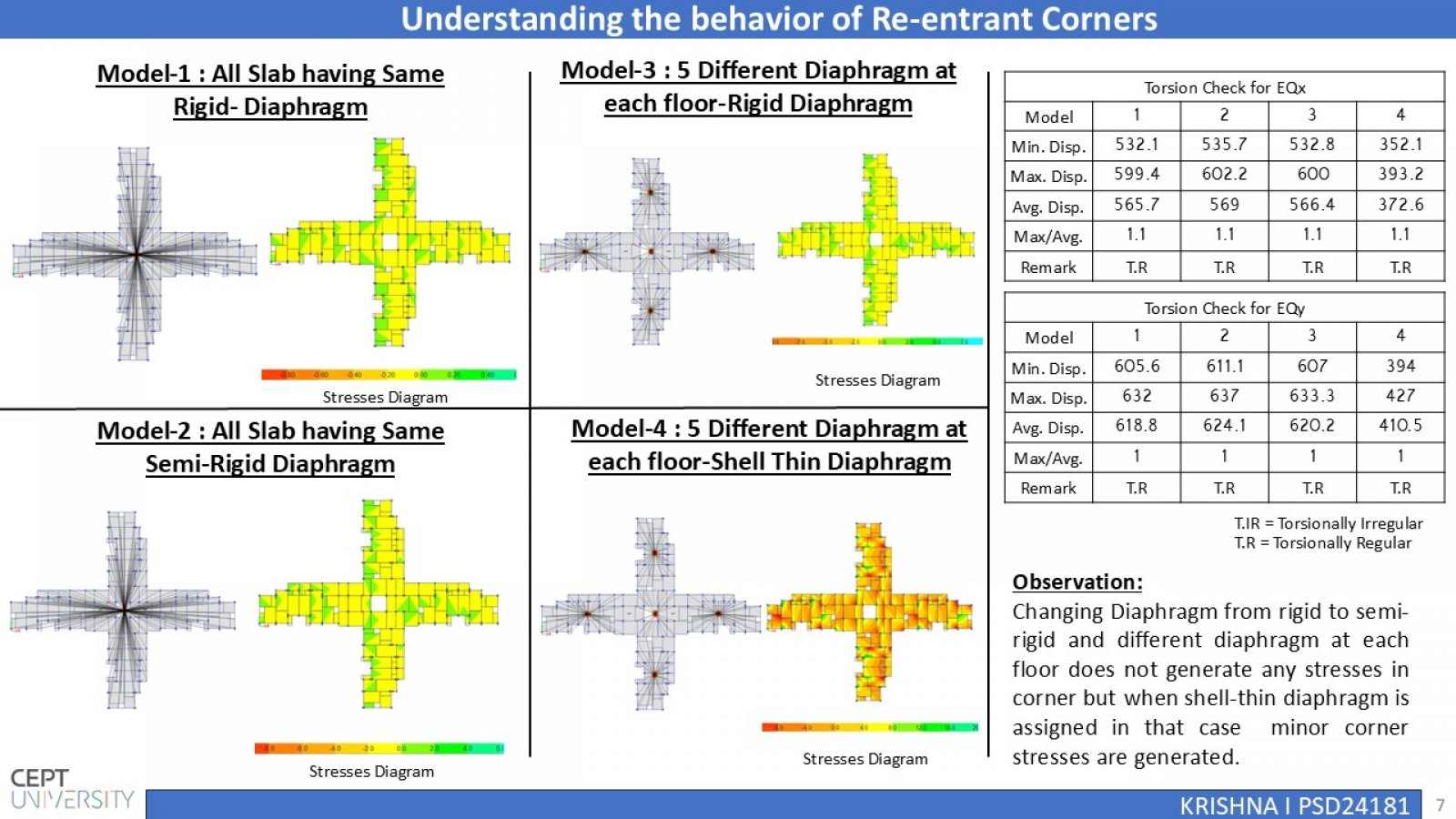

Understanding the behavior of Re-entrant Corners.

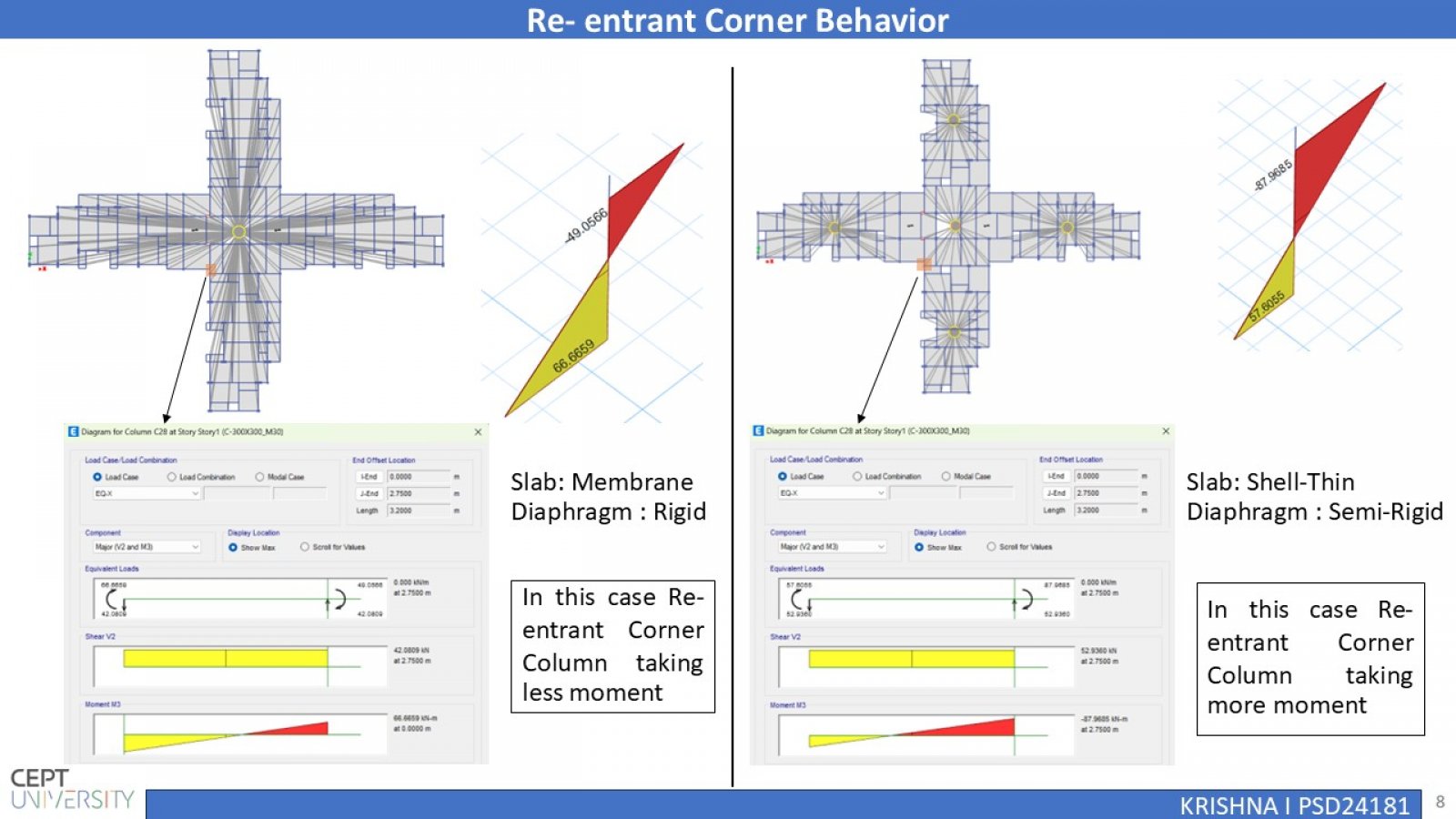

Re- entrant Corner Behavior.

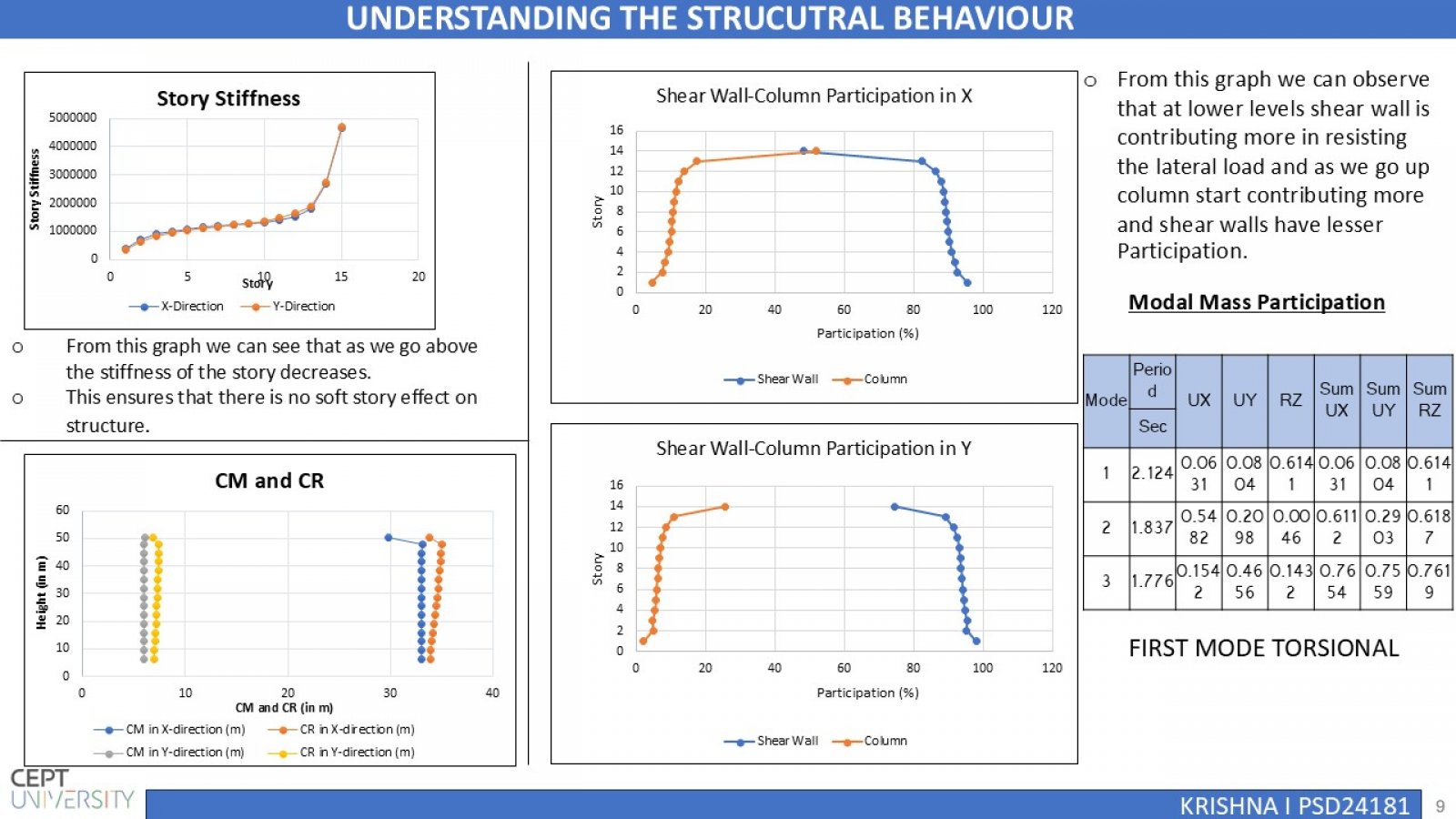

UNDERSTANDING THE STRUCUTRAL BEHAVIOUR

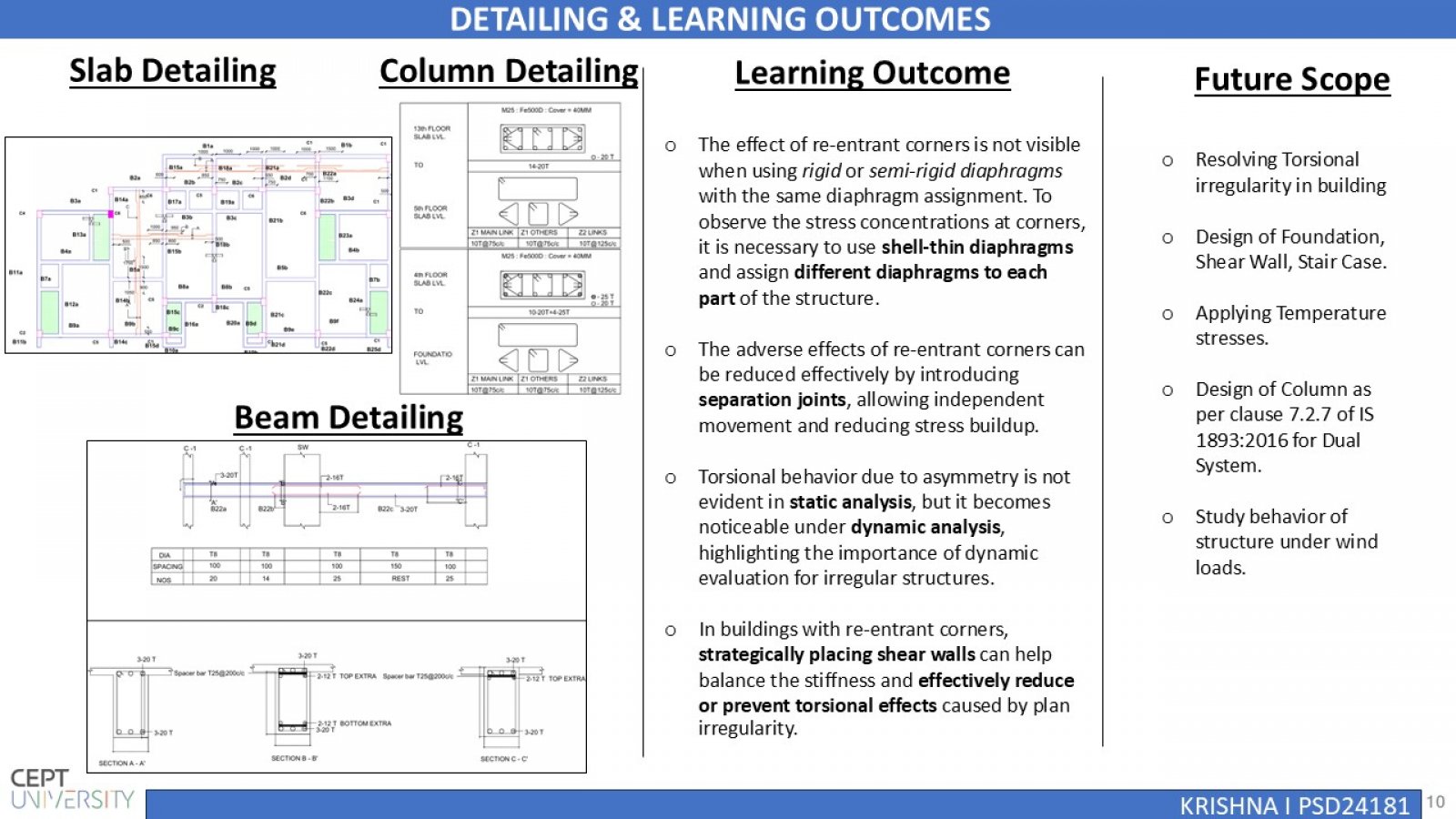

DETAILING & LEARNING OUTCOMES
