Pandya Manthan Pareshkumar

SD4006

DESIGN OF G+12 RCC BUILDING WITH VERTICAL ACCELERATION

This project focuses on studying the structural behavior of an RCC building under vertical ground acceleration, as classified in IS 1893:2016. It specifically addresses the design challenges associated with vertical seismic forces, which are often overlooked. To investigate these effects, we began with a detailed structural analysis and conducted an extensive literature review to understand the implications of vertical acceleration on structural design.

View Additional Work

Report Content

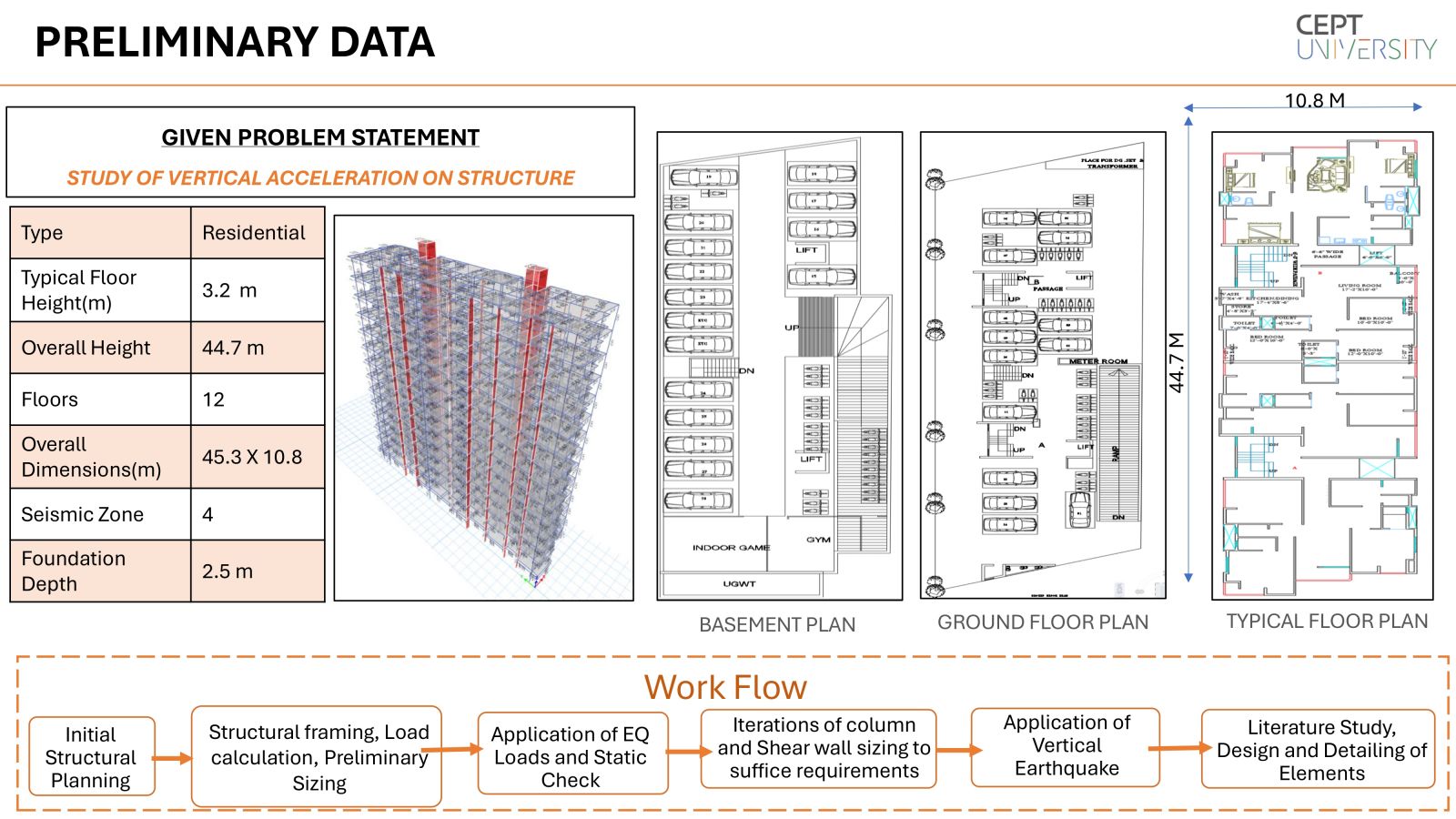

Preliminary Data and Architectural Plans

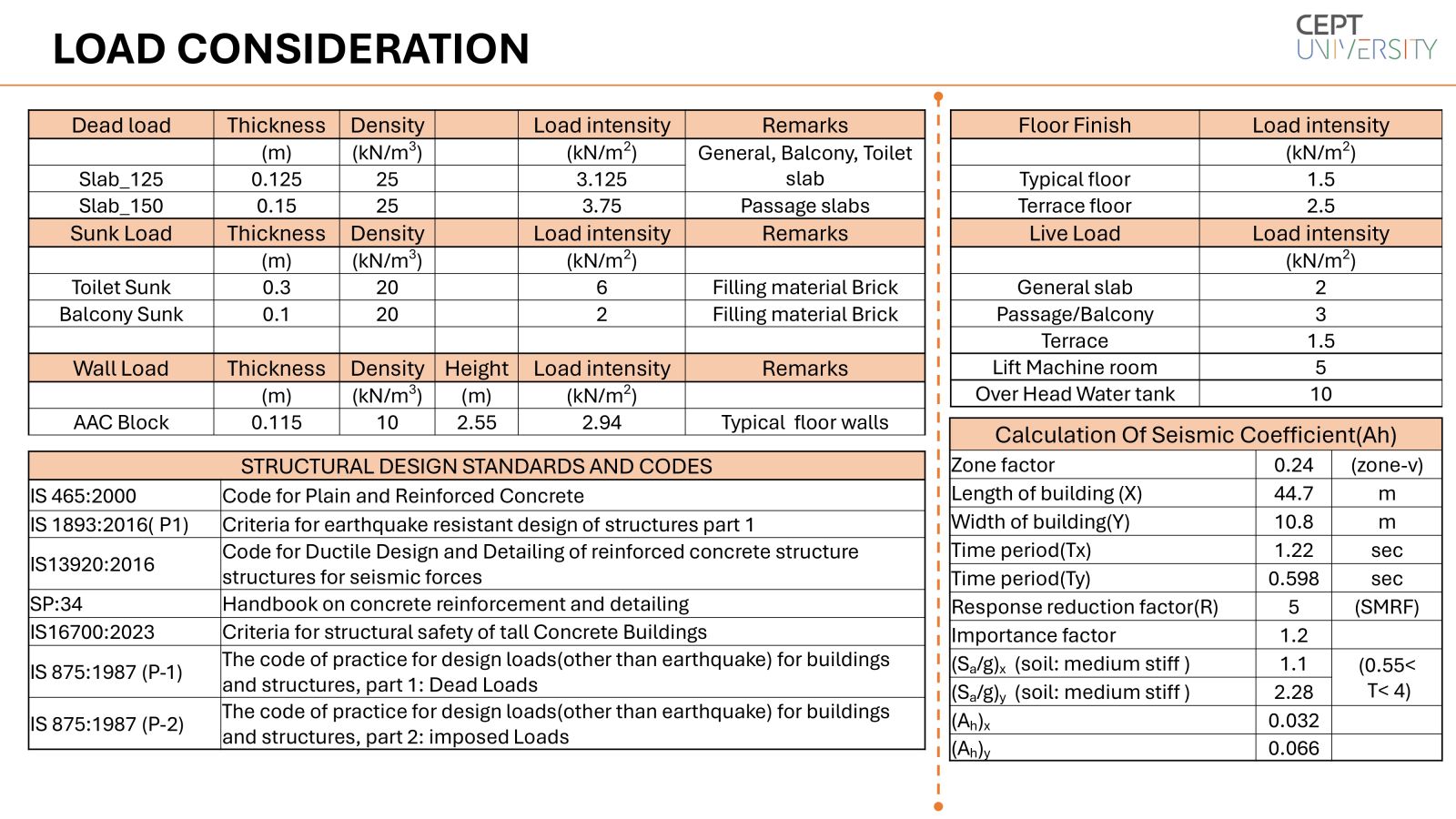

Load Consideration according to respective IS Codes

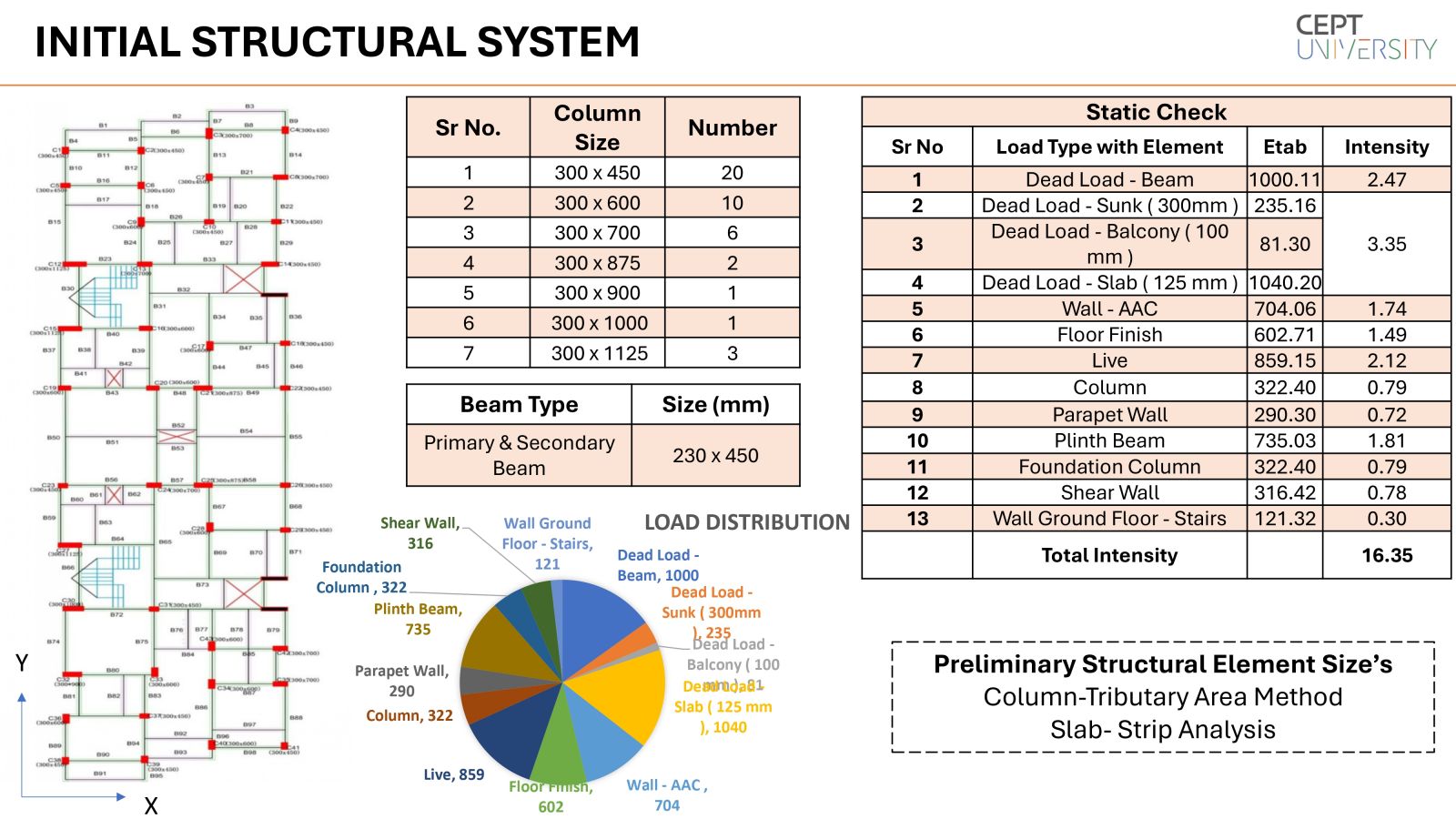

Initial Structural System and Load Distribution of Structure

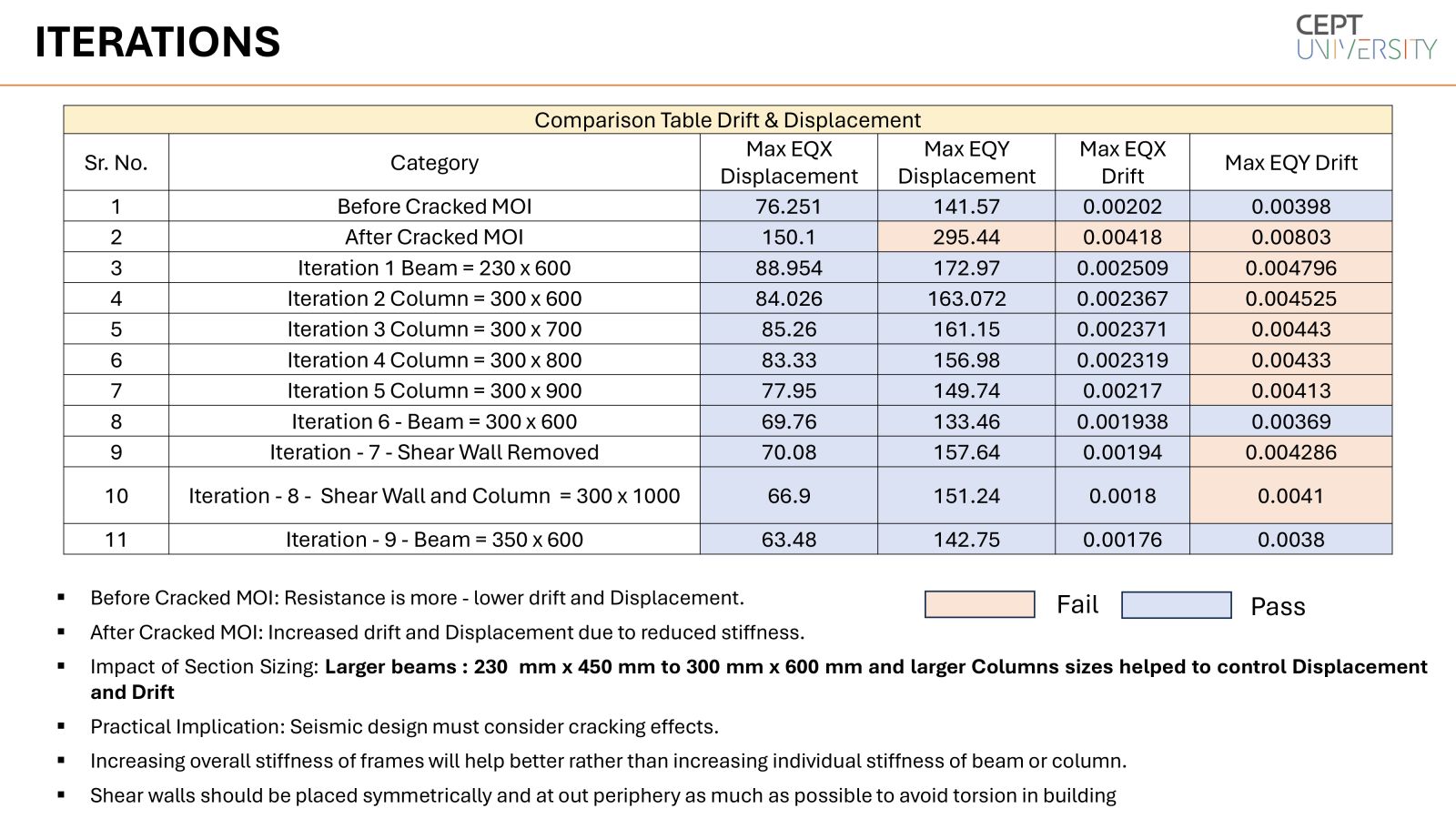

Brief of all Iterations performed to suffice model

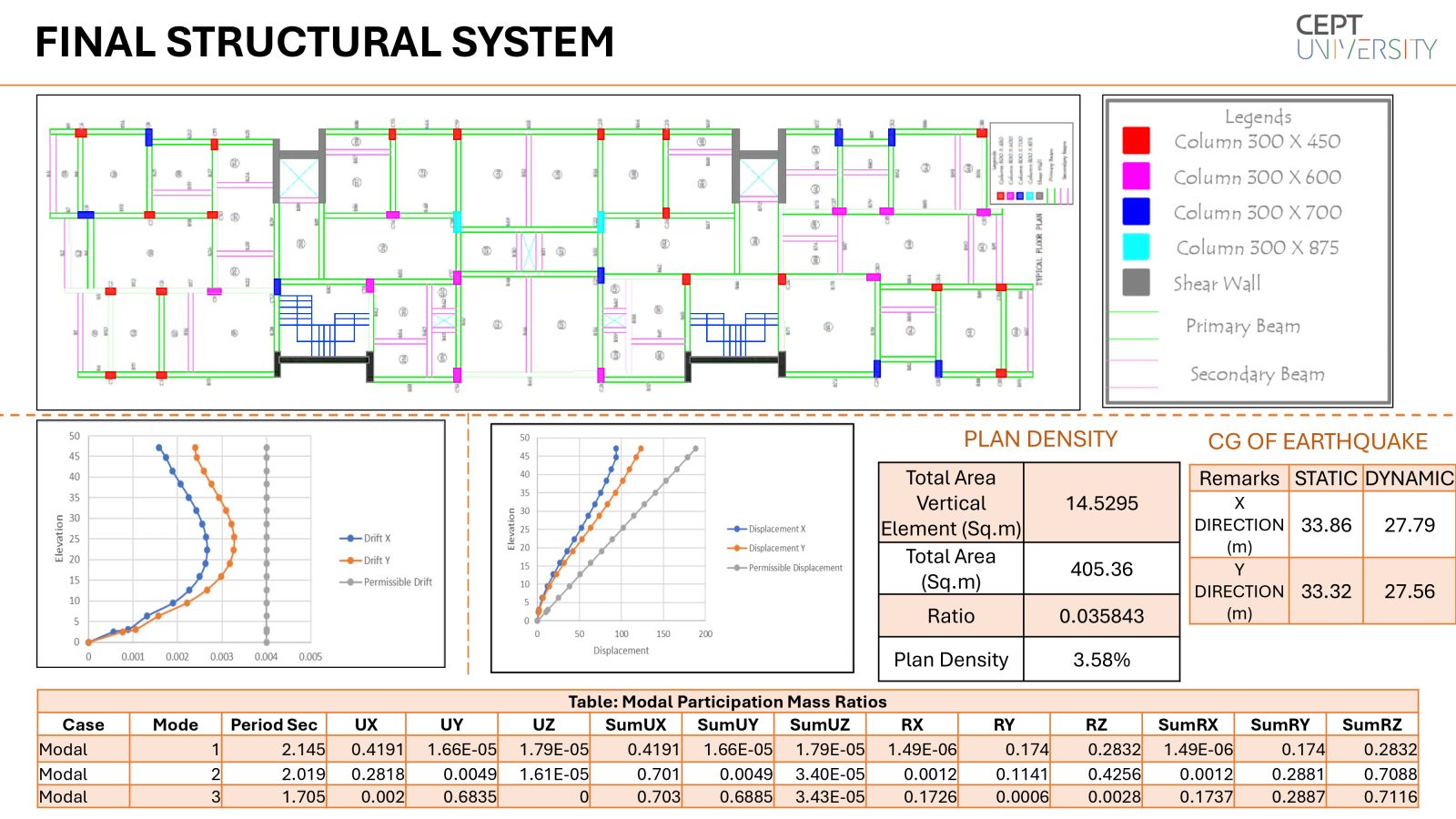

Final Structural System along with Drift, Displacement and Modal Data

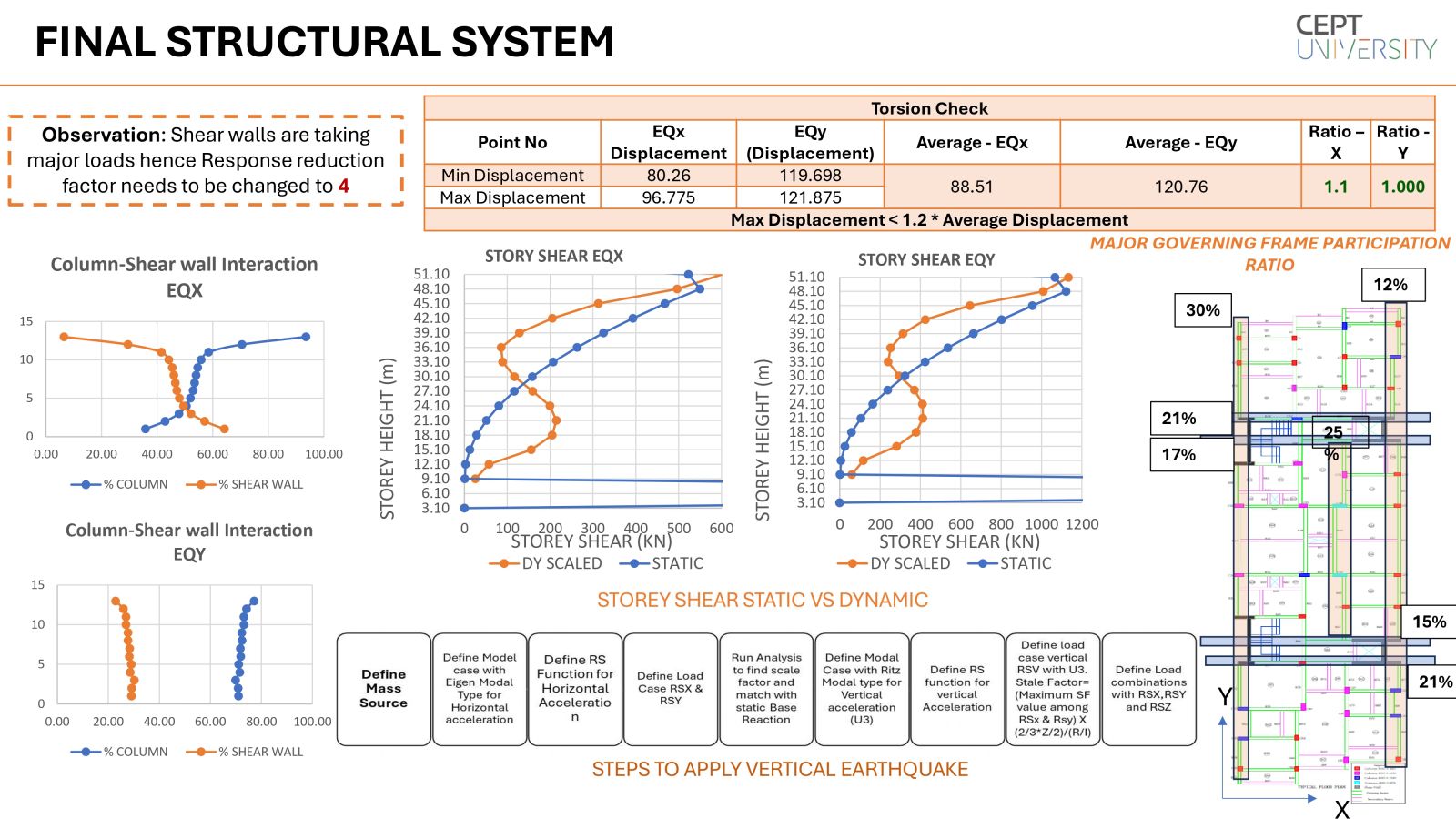

Final Structural System along with Story shear comparison of Static vs Dynamic Earthquake and Column Shear wall participation

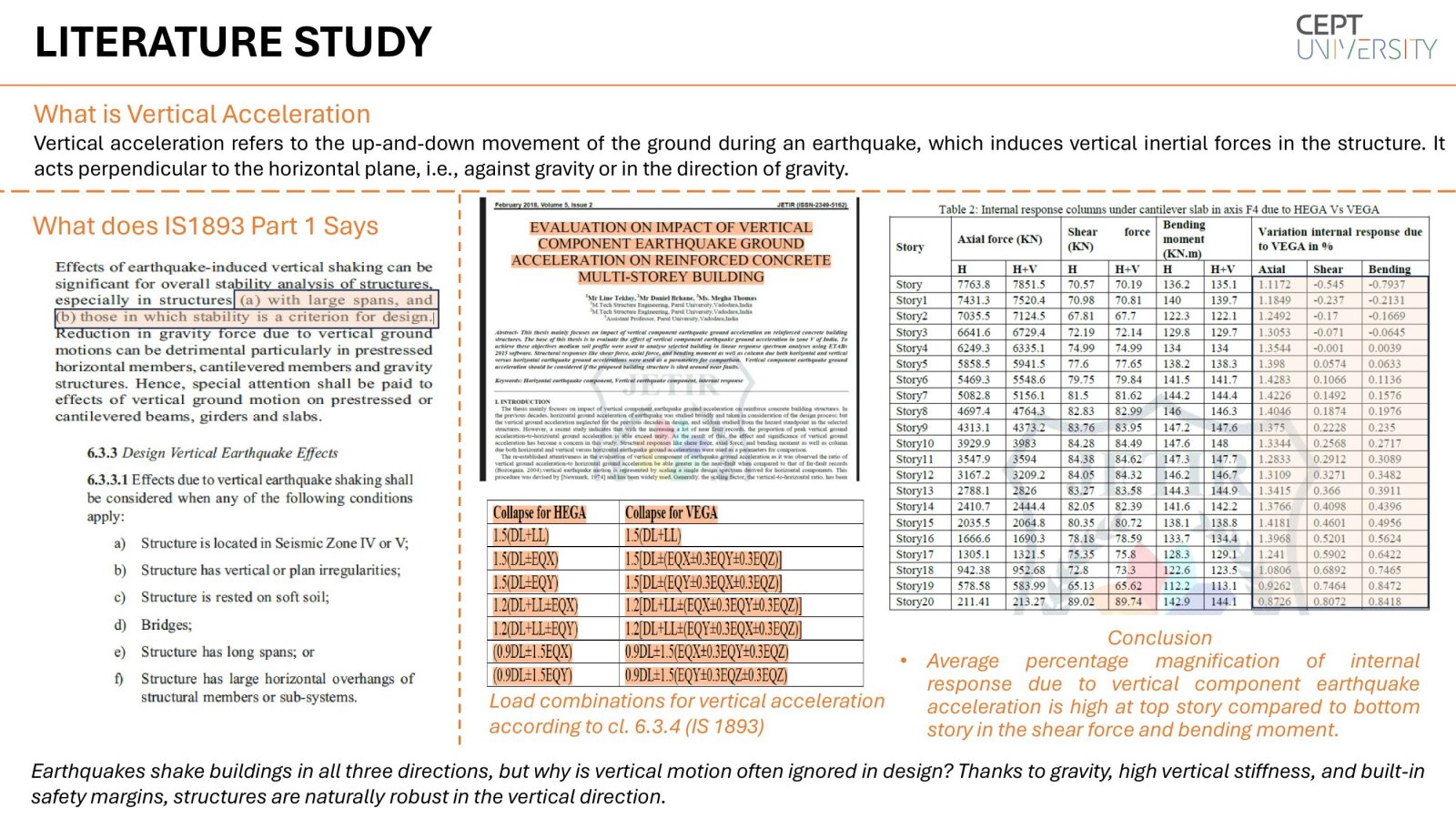

Literature Study to understand the implications of Vertical earthquake.

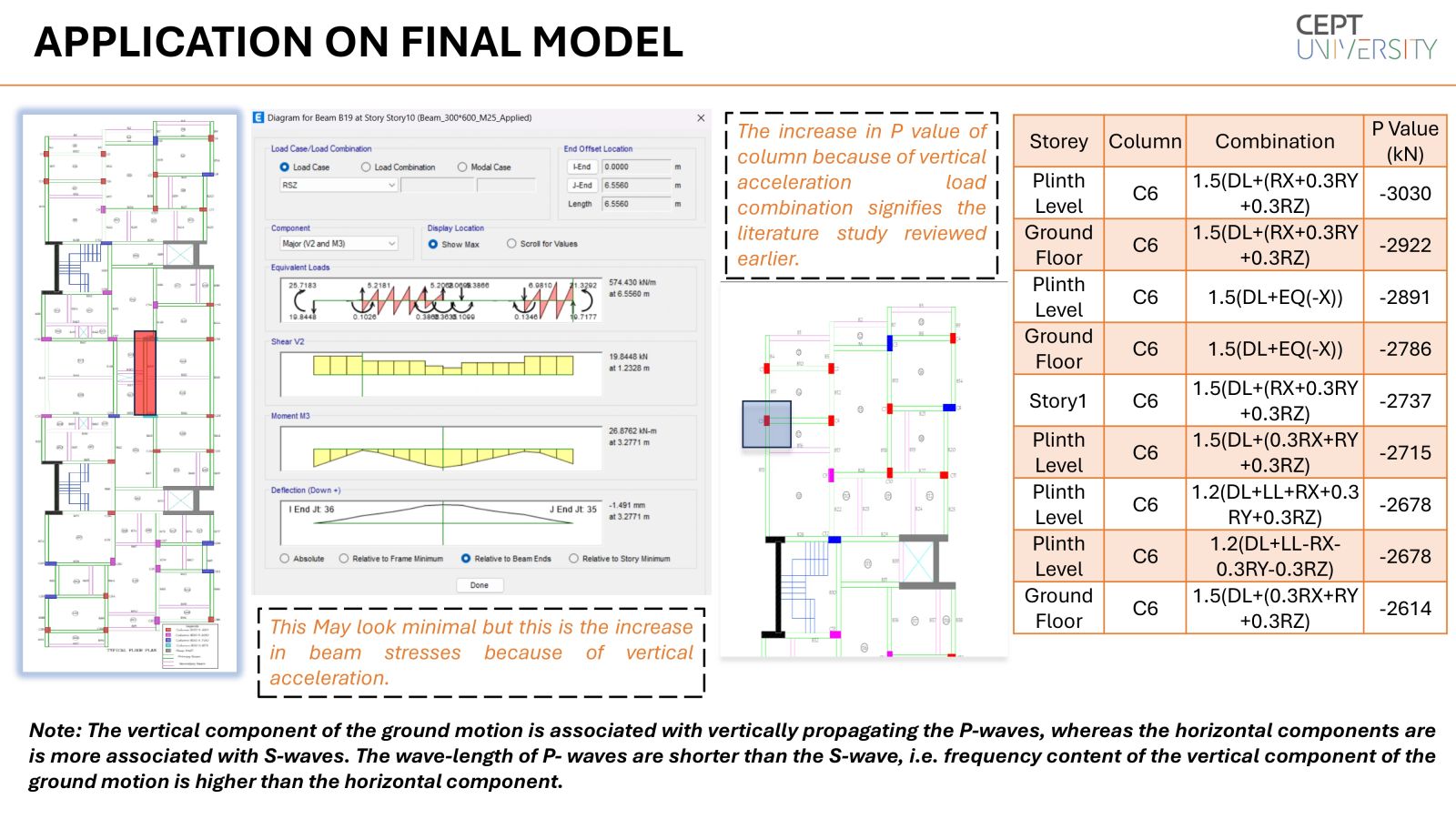

Application of Literature Study on Final Model

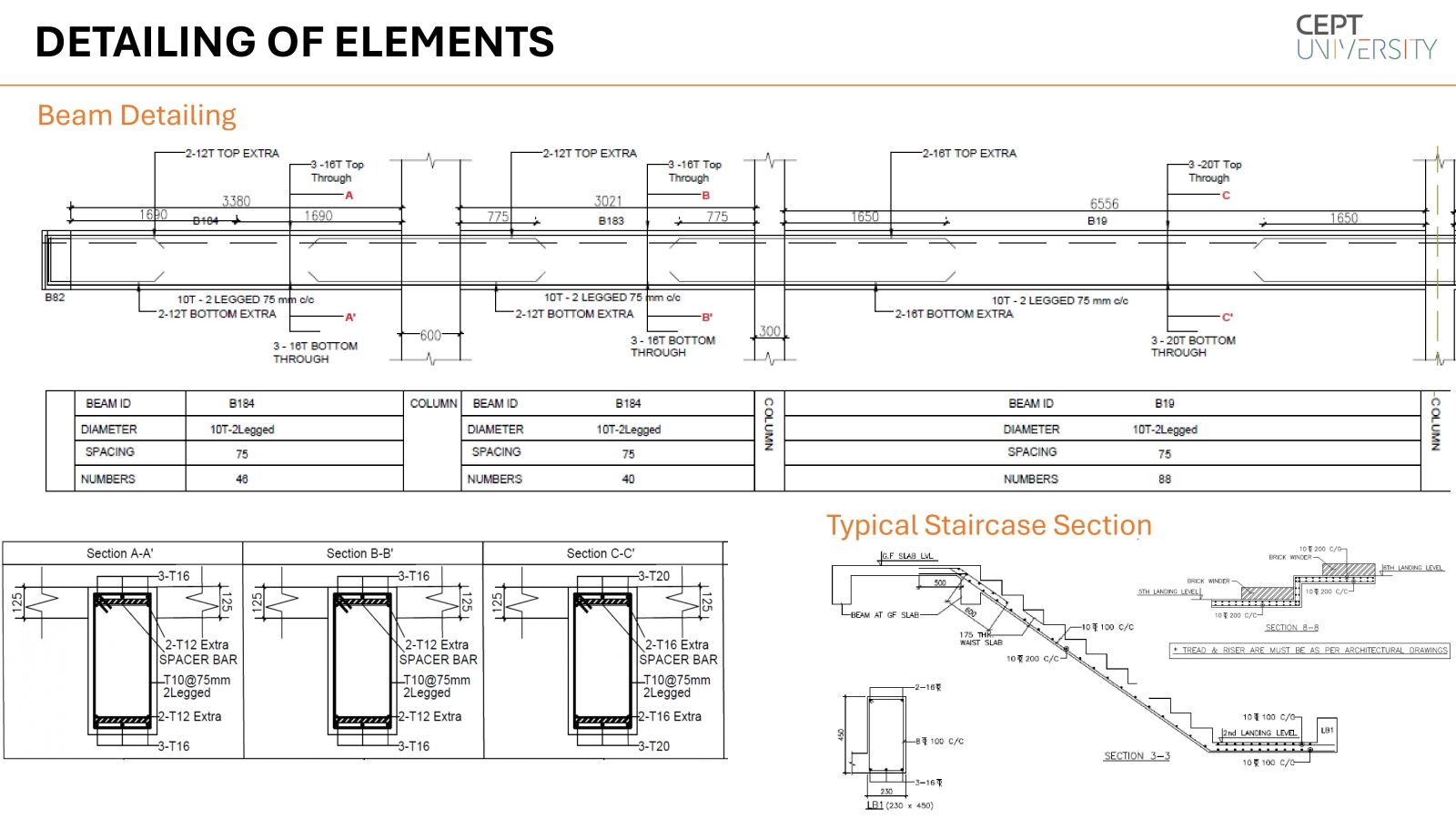

Detailing of Beam and Staircase

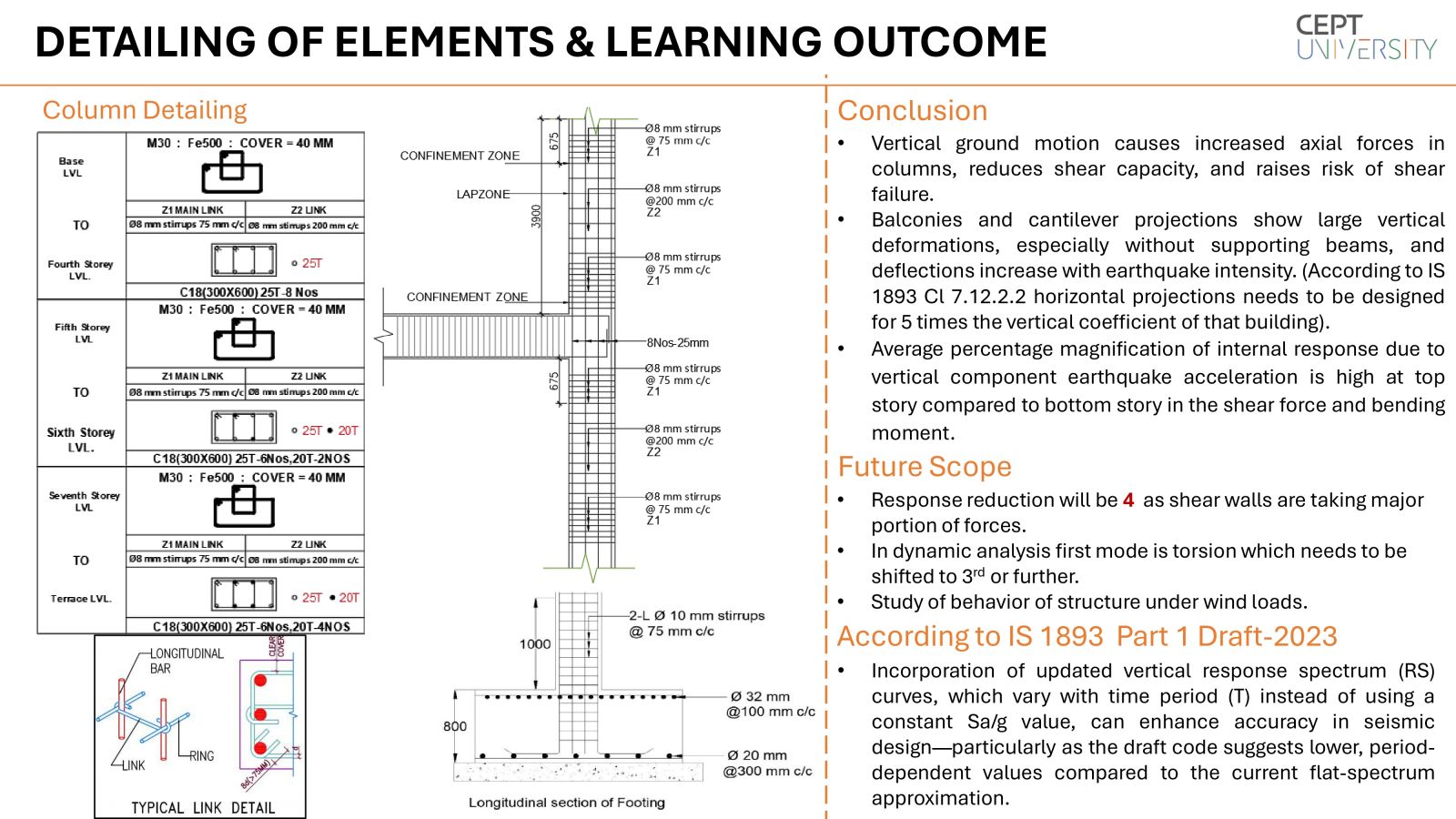

Detailing of column and Foundation. Along with Future scope and learning outcome
