  • Design of G+13 C - Shaped Building ( Plan Irregularity )

Deore Akshay Bhagwan

SD4006

Design of G+13 C - Shaped Building ( Plan Irregularity )

The project entails the RCC design of a G+13 story high-rise residential building in Zone IV. The major goal is to reduce structural torsion, displacement, and inter-storey drift. The design comprises all codal provisions for gravity and earthquake loading. Irregularity inspections are performed in accordance with IS 1893 (Part-1): 2016, and ductile detailing has been incorporated as per IS 13920: 2016

View Additional Work

Report Content

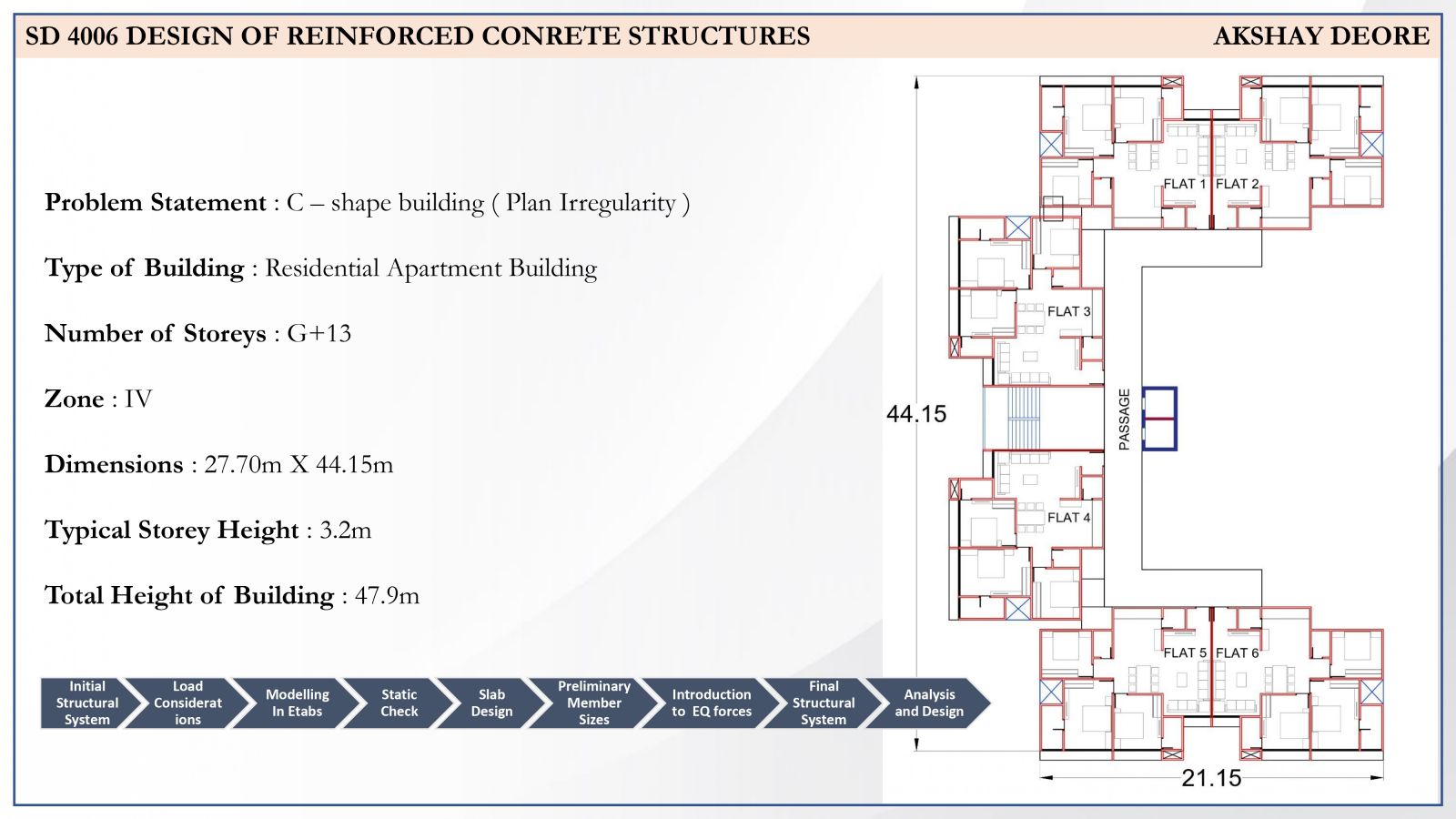

Introduction and Architectural Plan

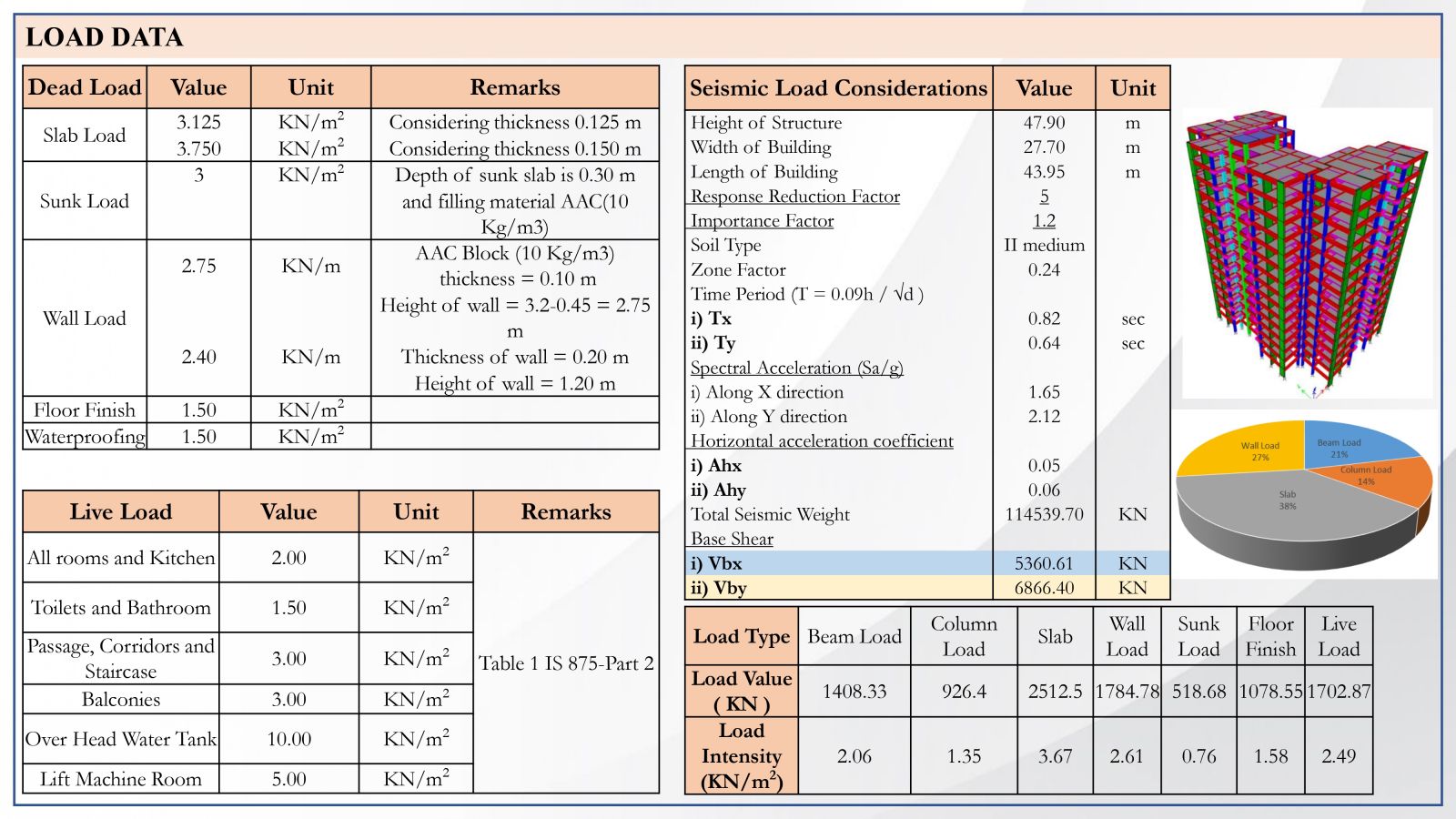

Load Data and Base Shear Calculation

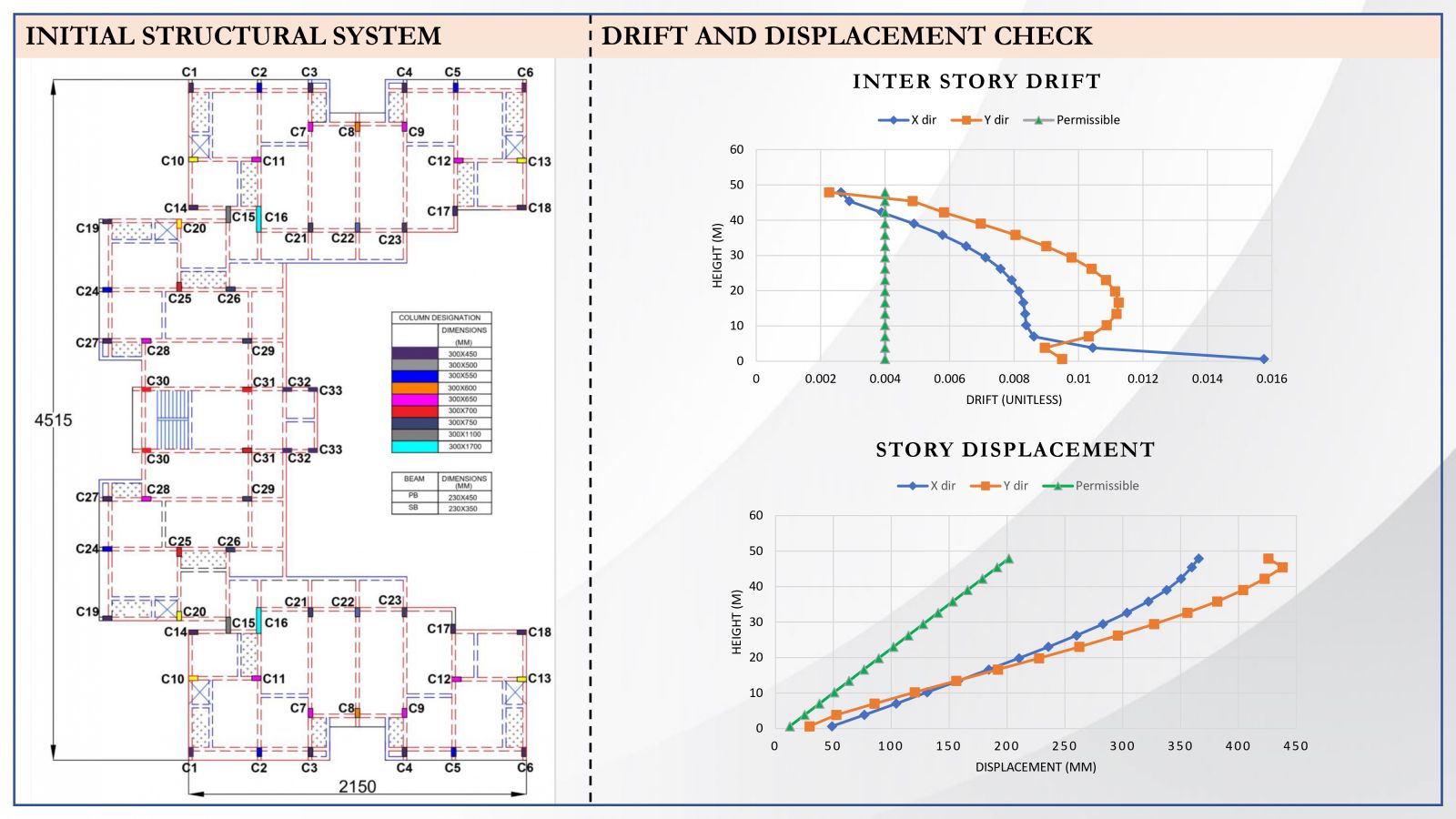

Initial Structural System , Drift and Displacement

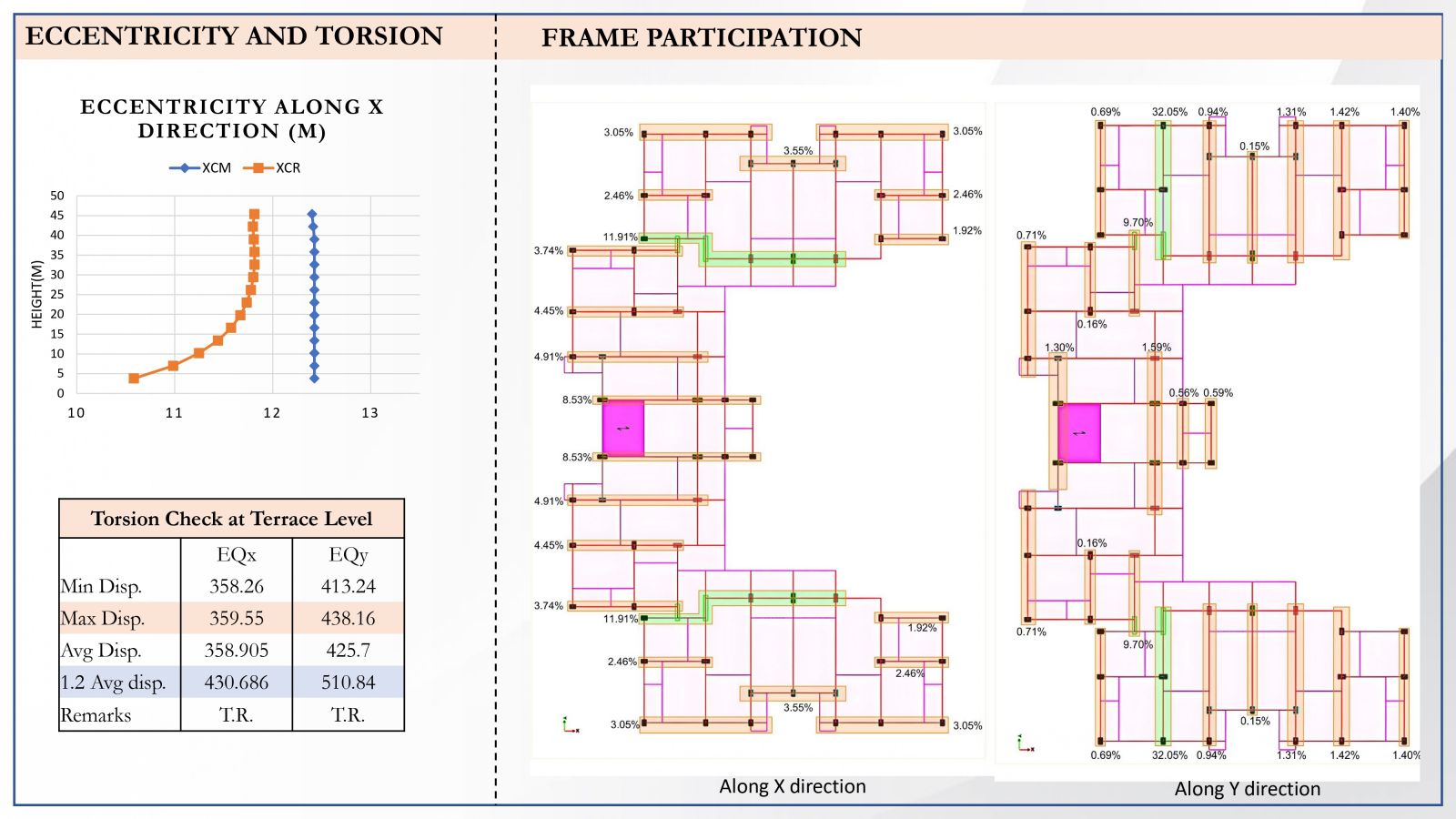

Eccentricity, Torsion Check and Frame Participation

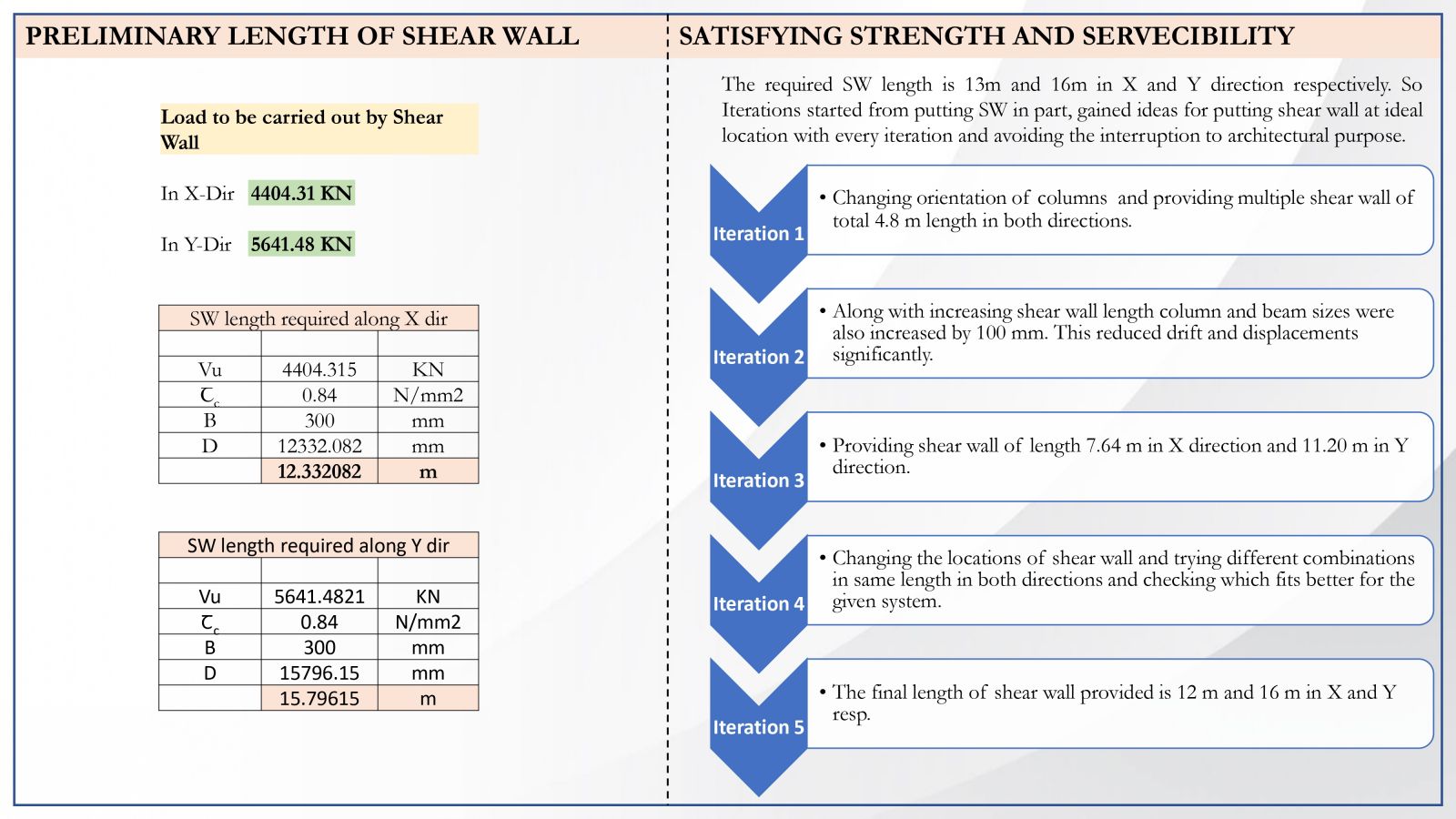

Preliminary length of Shear Wall and Flowchart of Iterations for Satisfying Strength and Serviceability Parameters

Drift, Displacement, Modal Mass Participation, Shear Wall Column Interaction and Final Structural System

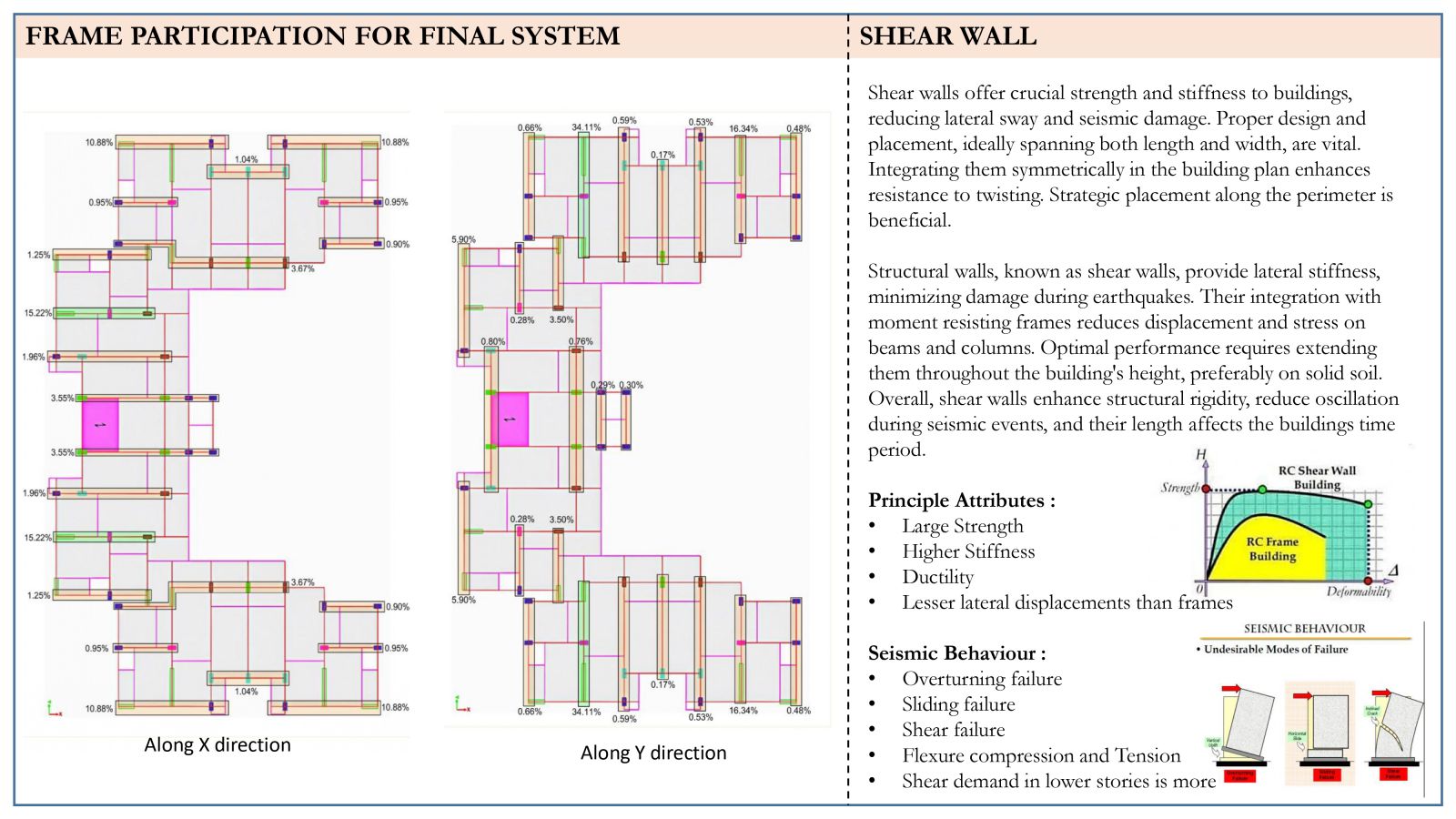

Frame participation and Shear Wall

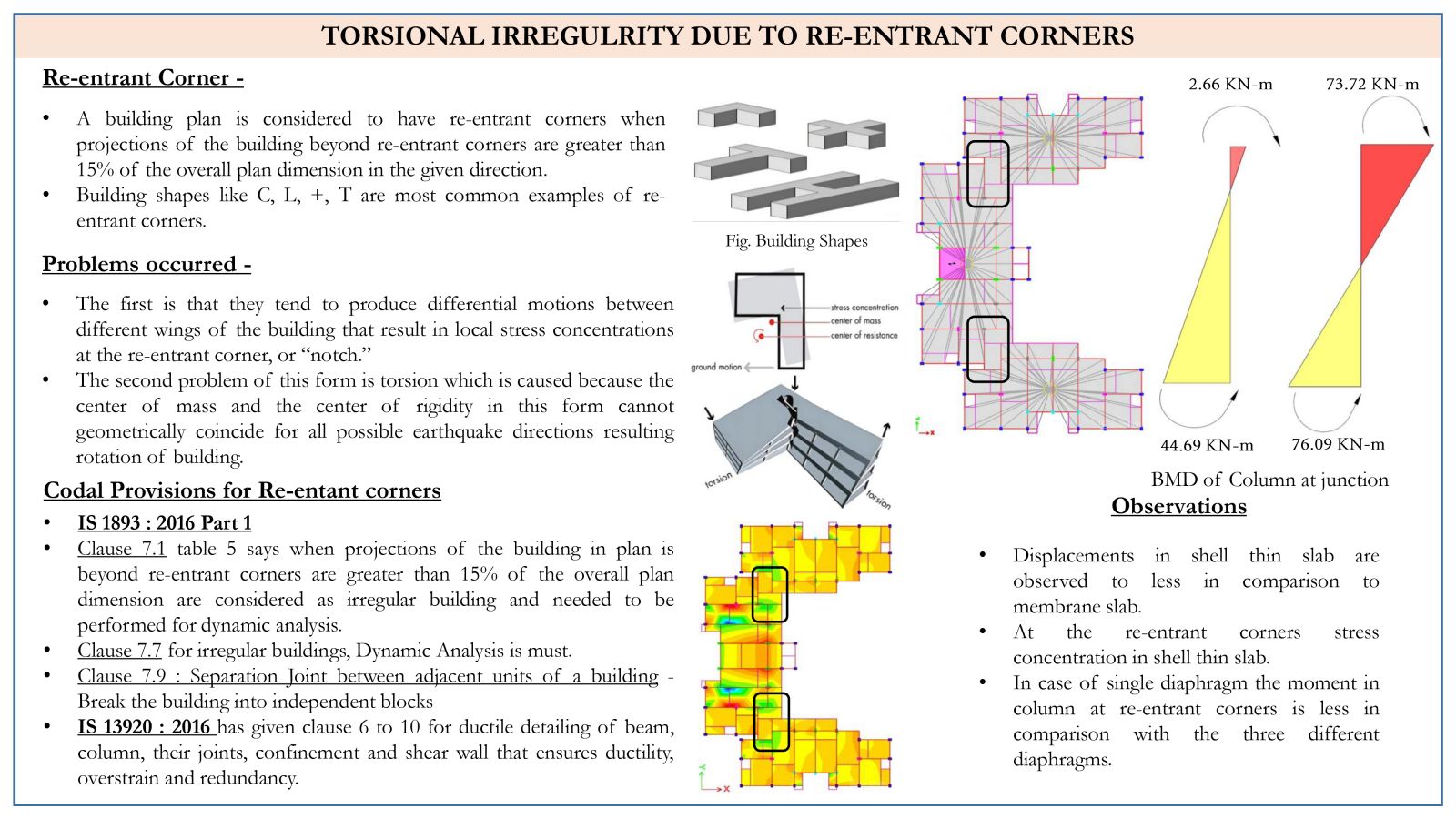

Re-entrant Corners

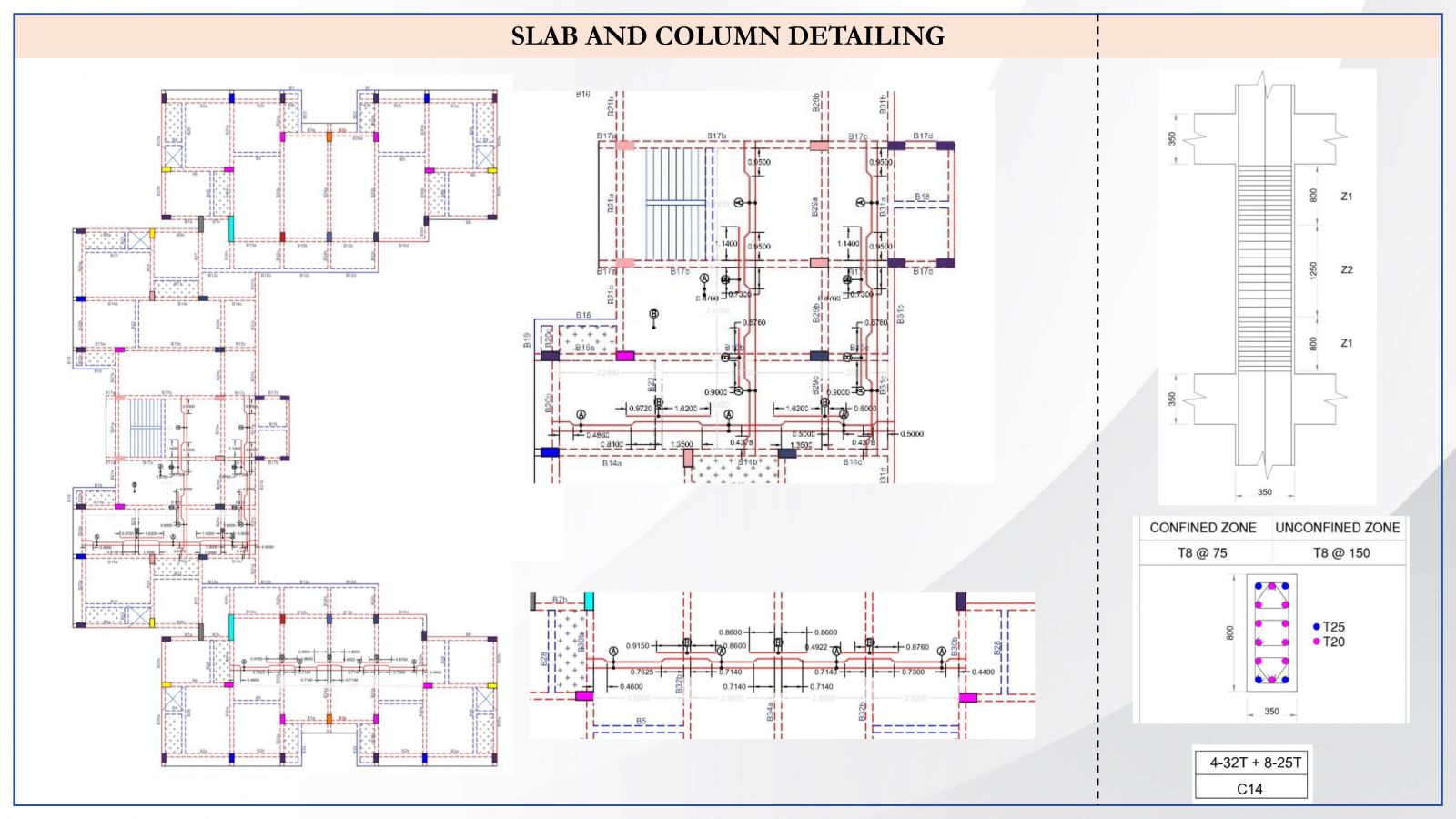

Slab and Column Detailing

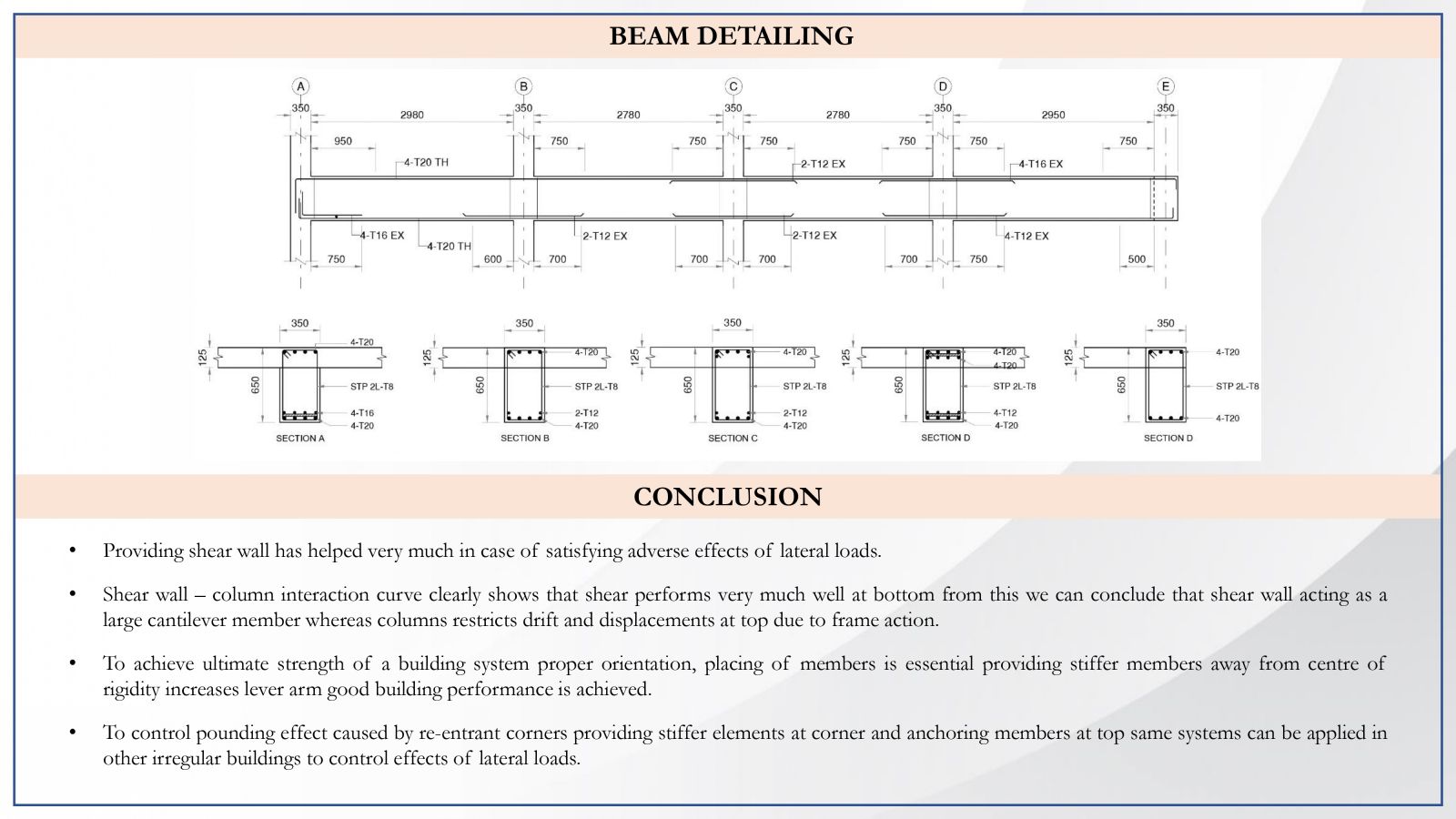

Beam Detailing and Conclusion
