  • Design of G+13 L-Shaped Building ( Separation Joint)

Solanki Aryan Amit

SD4006

Design of G+13 L-Shaped Building ( Separation Joint)

The project involves structural analysis and design reinforced concrete structure (RCC) building with G+13 configuration and L-shaped building. The building is situated in Zone 4, the seismic evaluation and design is done with help of IS1893:2016. A key component of separation joint was introduced in the project for the plan irregularity.  Due to separation joint, torsional irregularities was amplified and ensure the independent movement of the adjacent units was solved. The structural system will be modeled and analyzed using ETABS software, ensuring accurate representation of geometry, loads, boundary conditions, and seismic parameters.


Report Content

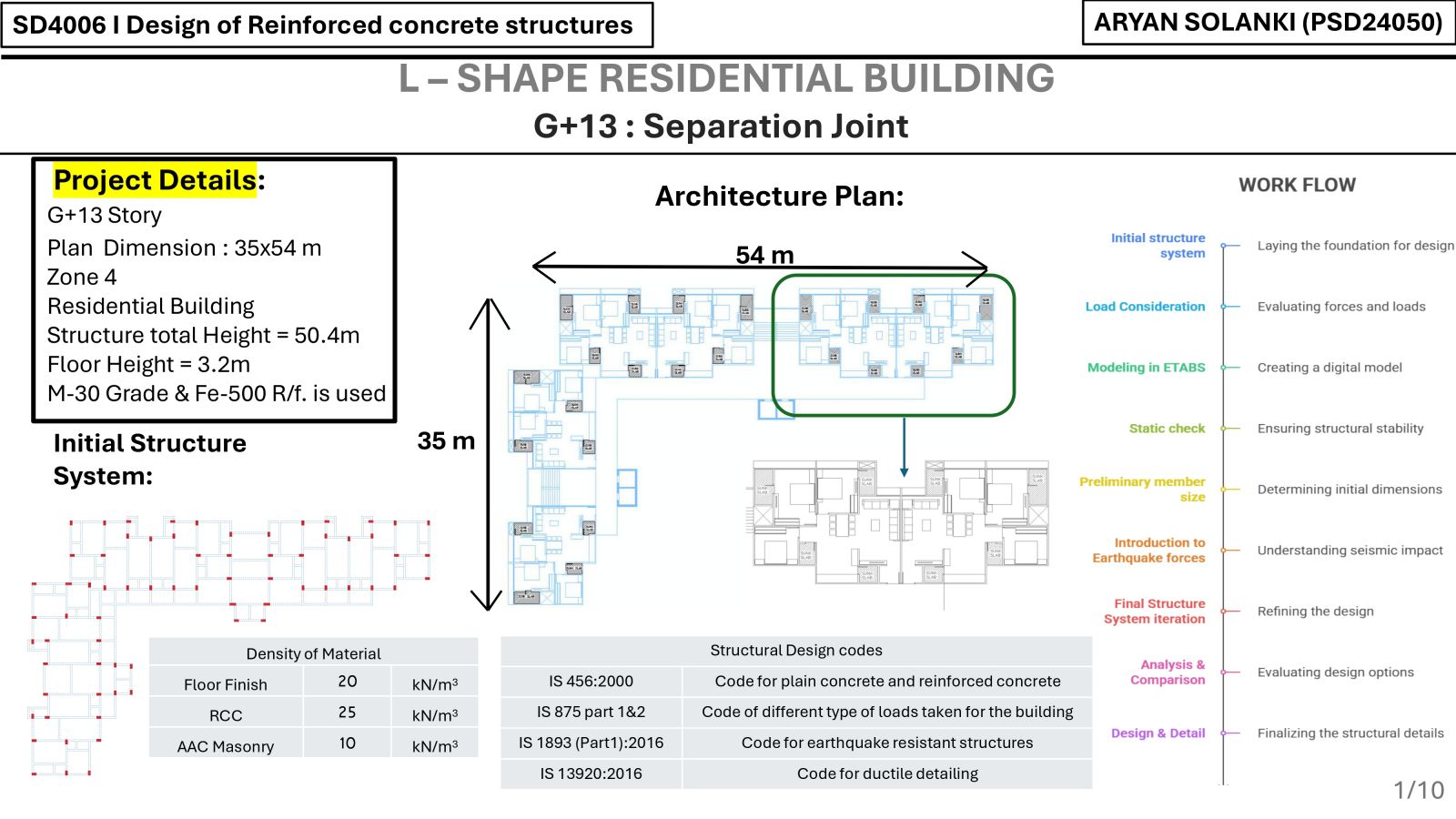

Project Information & Architectural Layout

Static check & Earthquake Calculation

Displacement & Drift check model A -without modifier model B- With Modifier model C- Unrealistic size

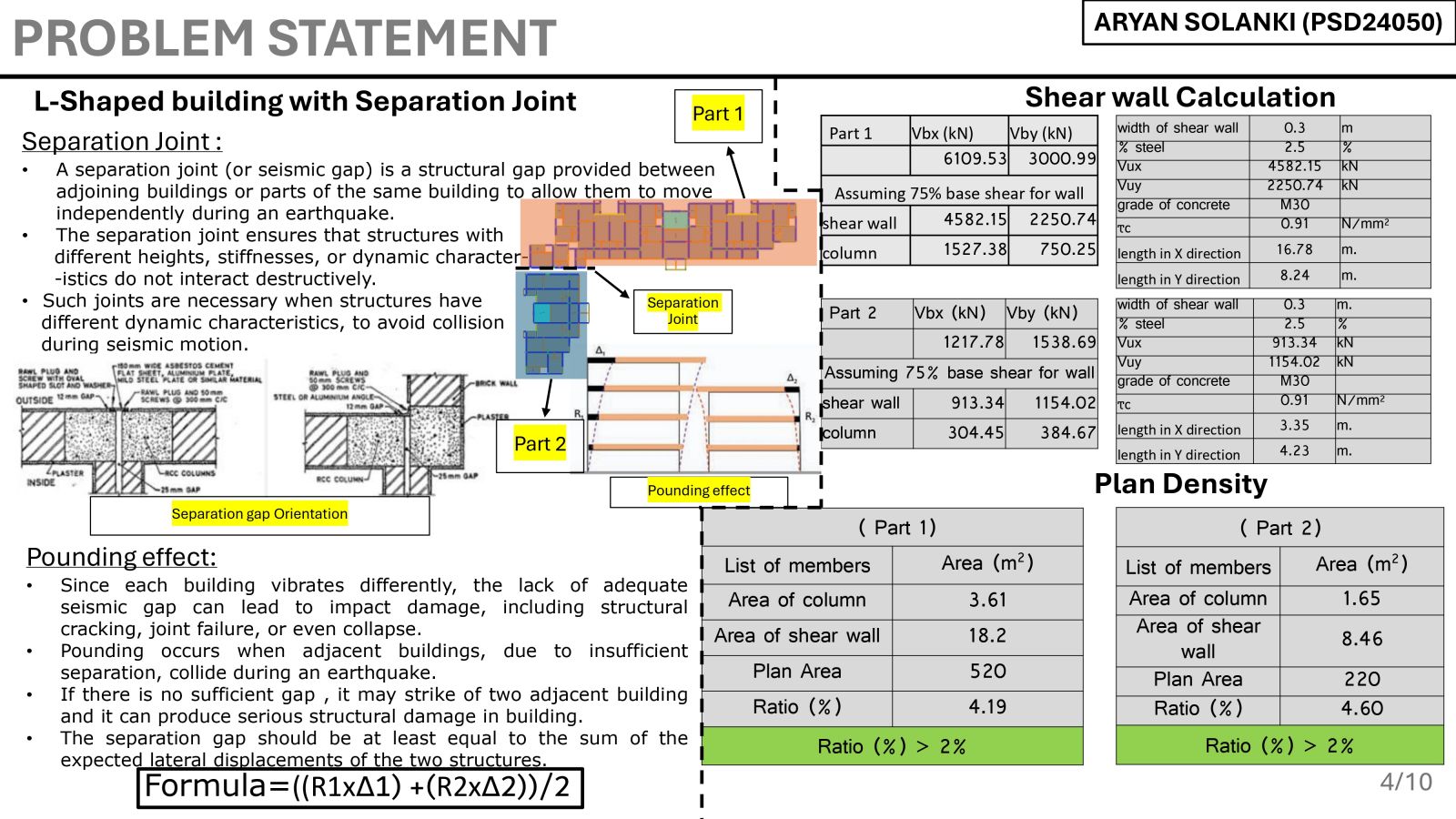

Problem Statement

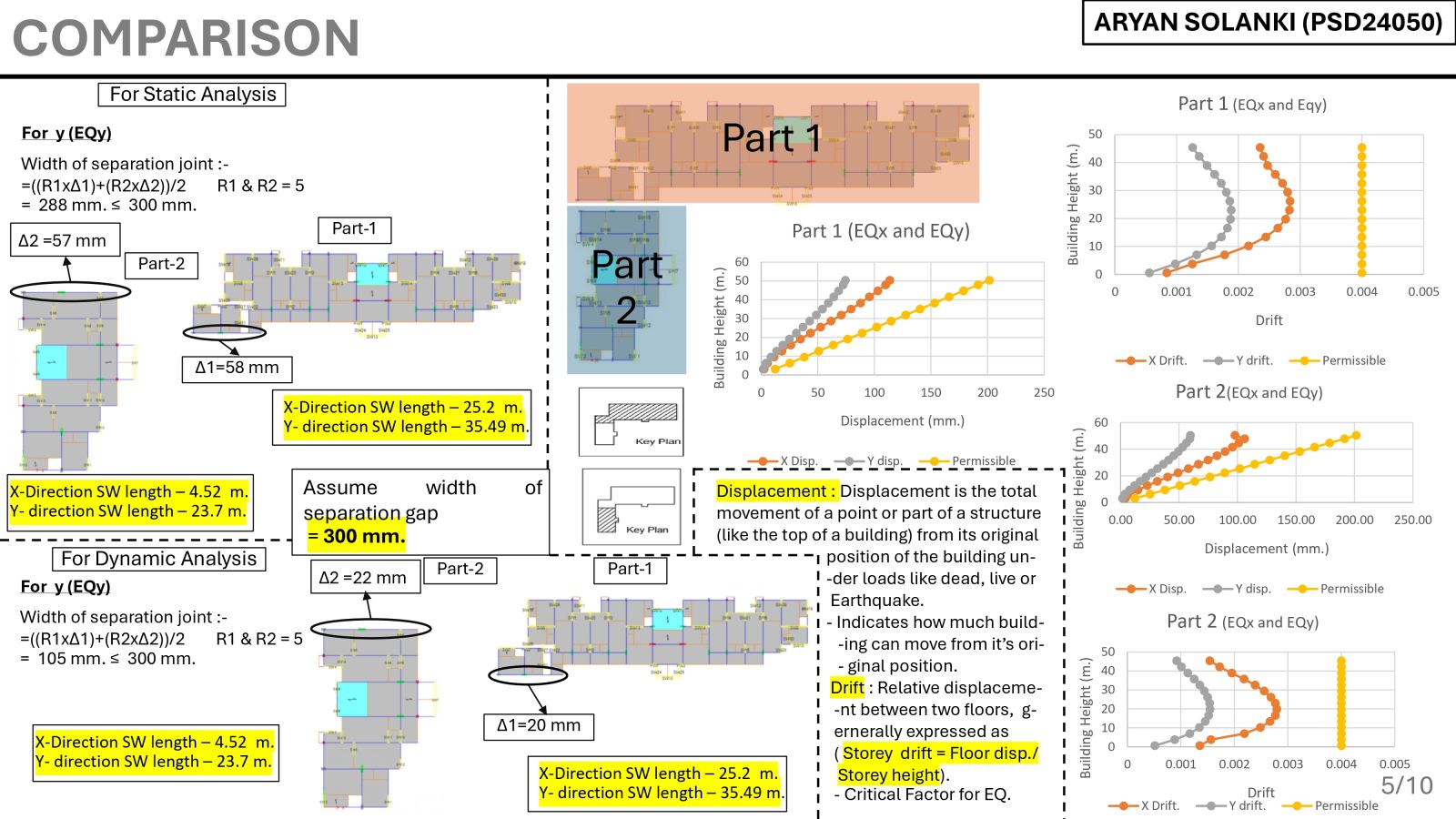

Comparison Part 1 & Part 2

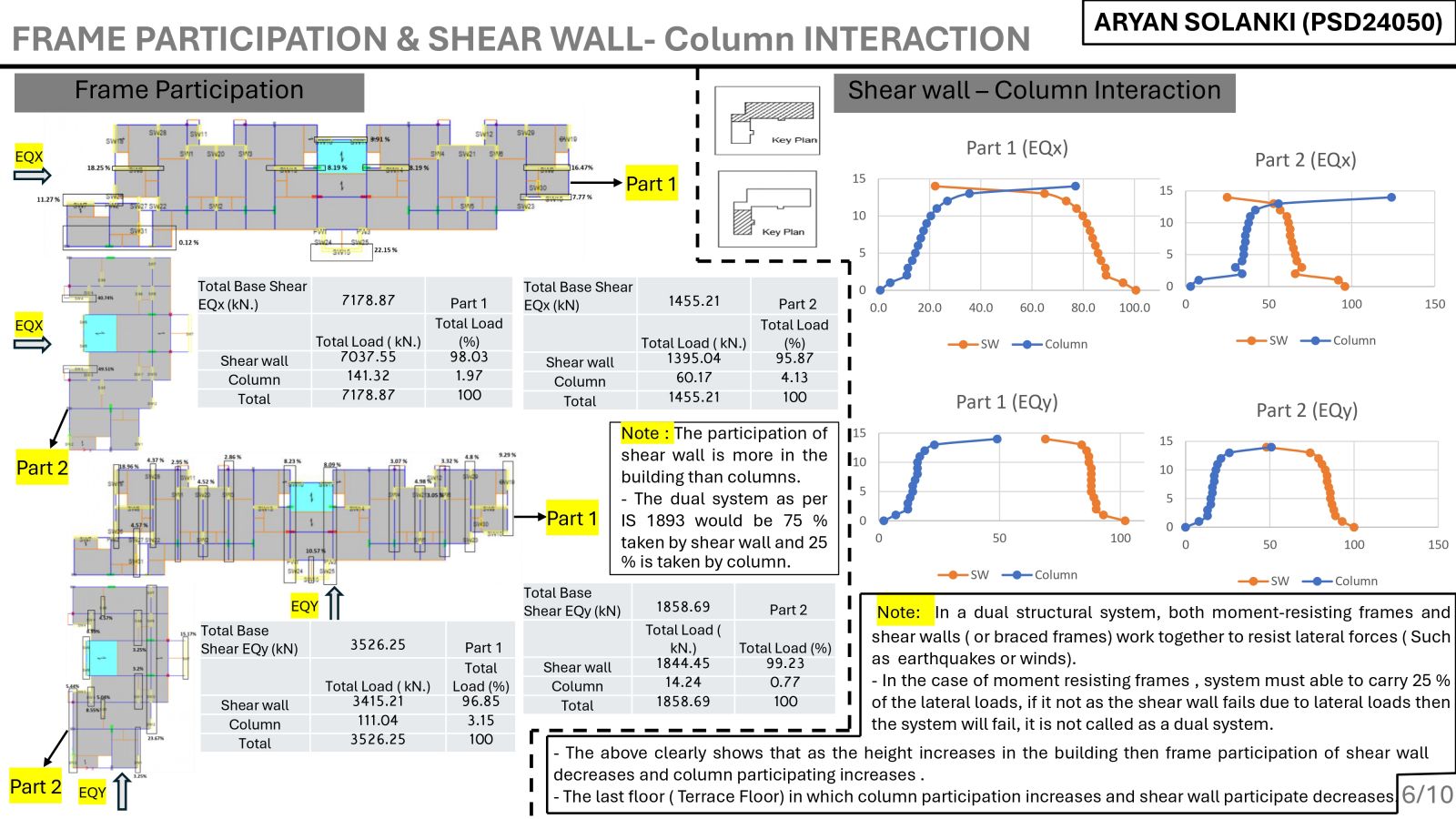

Frame participation & Shear wall - Column Interaction Curve

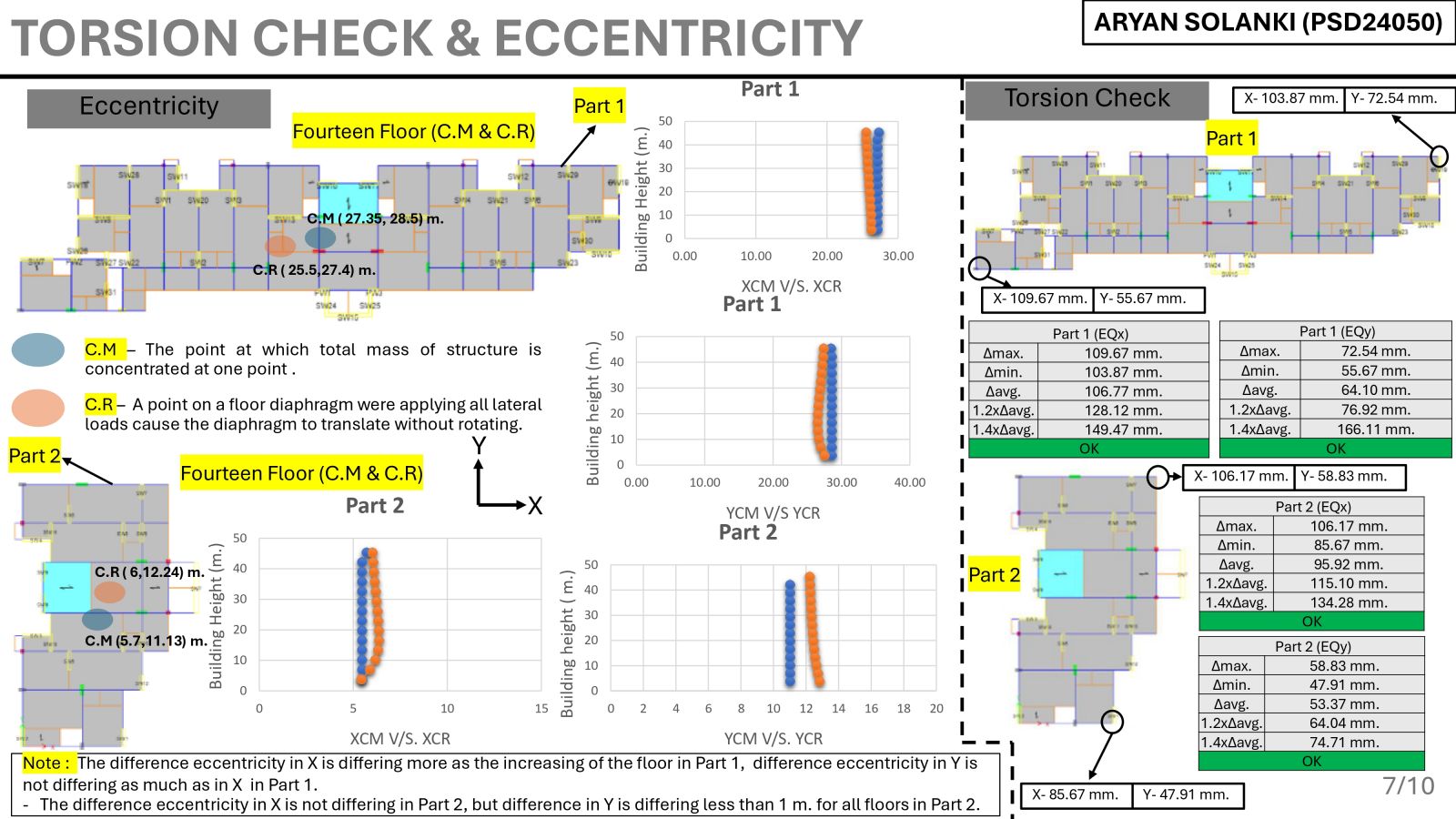

Torsion Check & Eccentricity

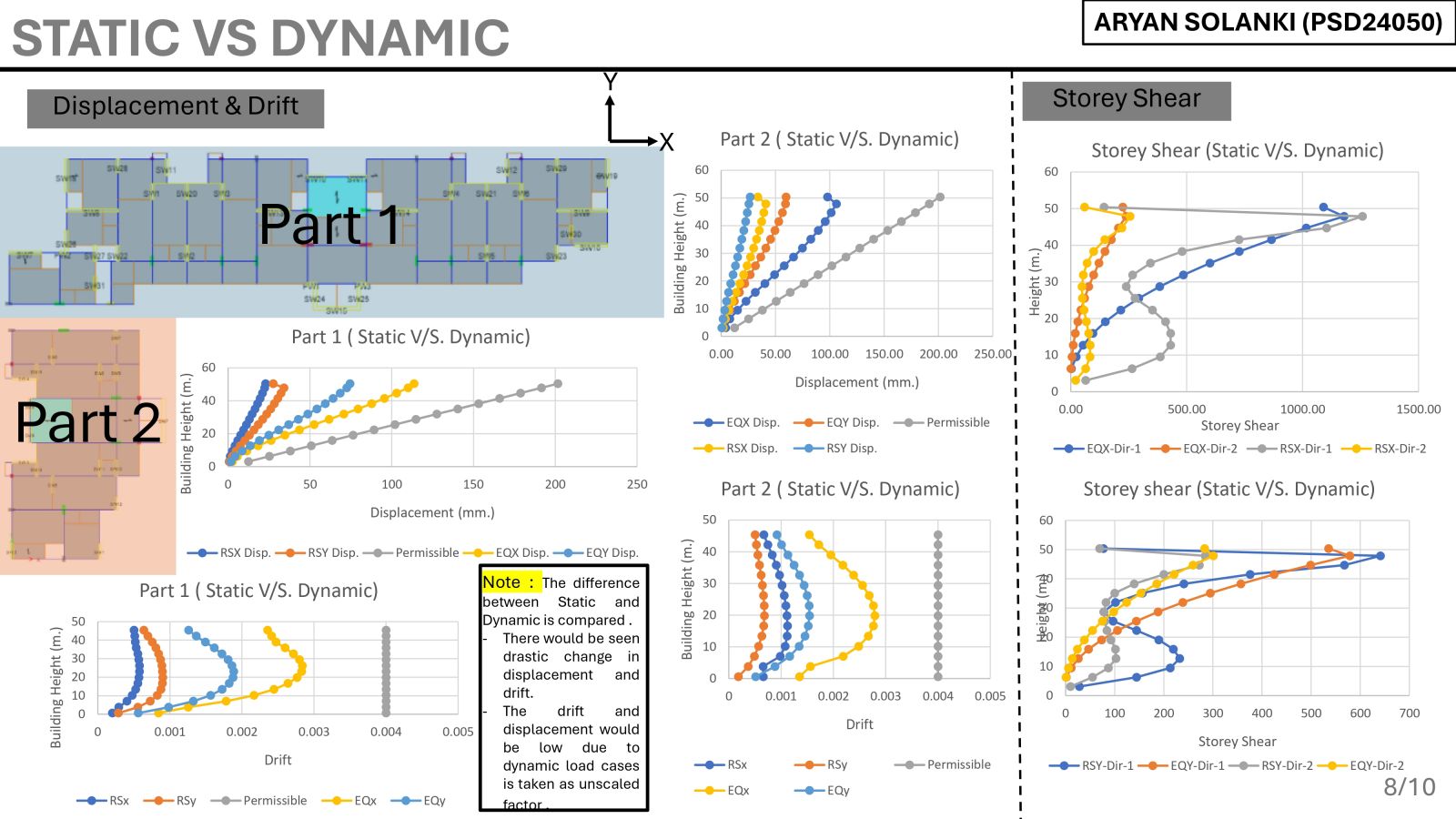

Static analysis V/S. Dynamic analysis

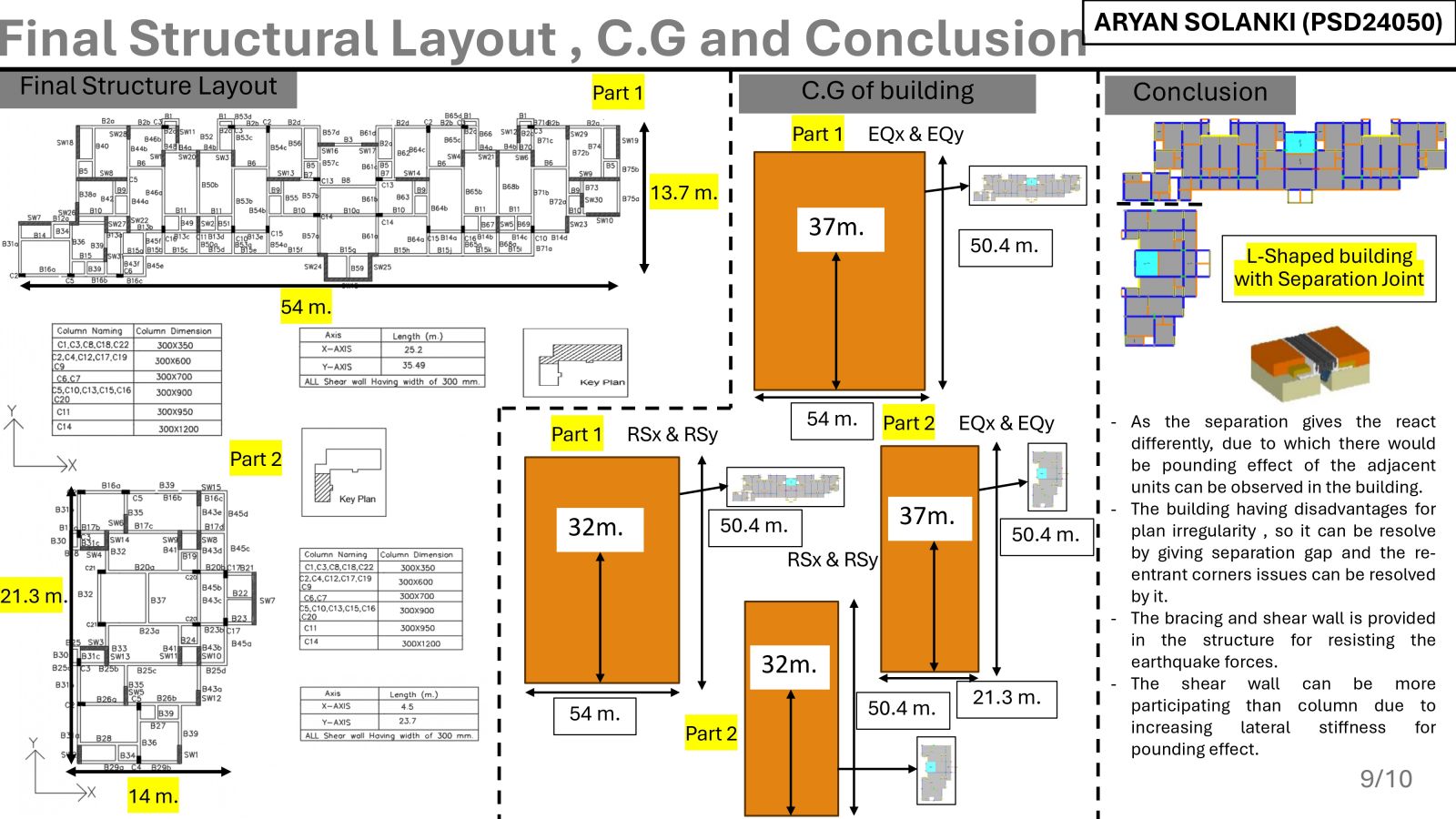

Final Structural Layout , C.G of earthquake & Conclusion

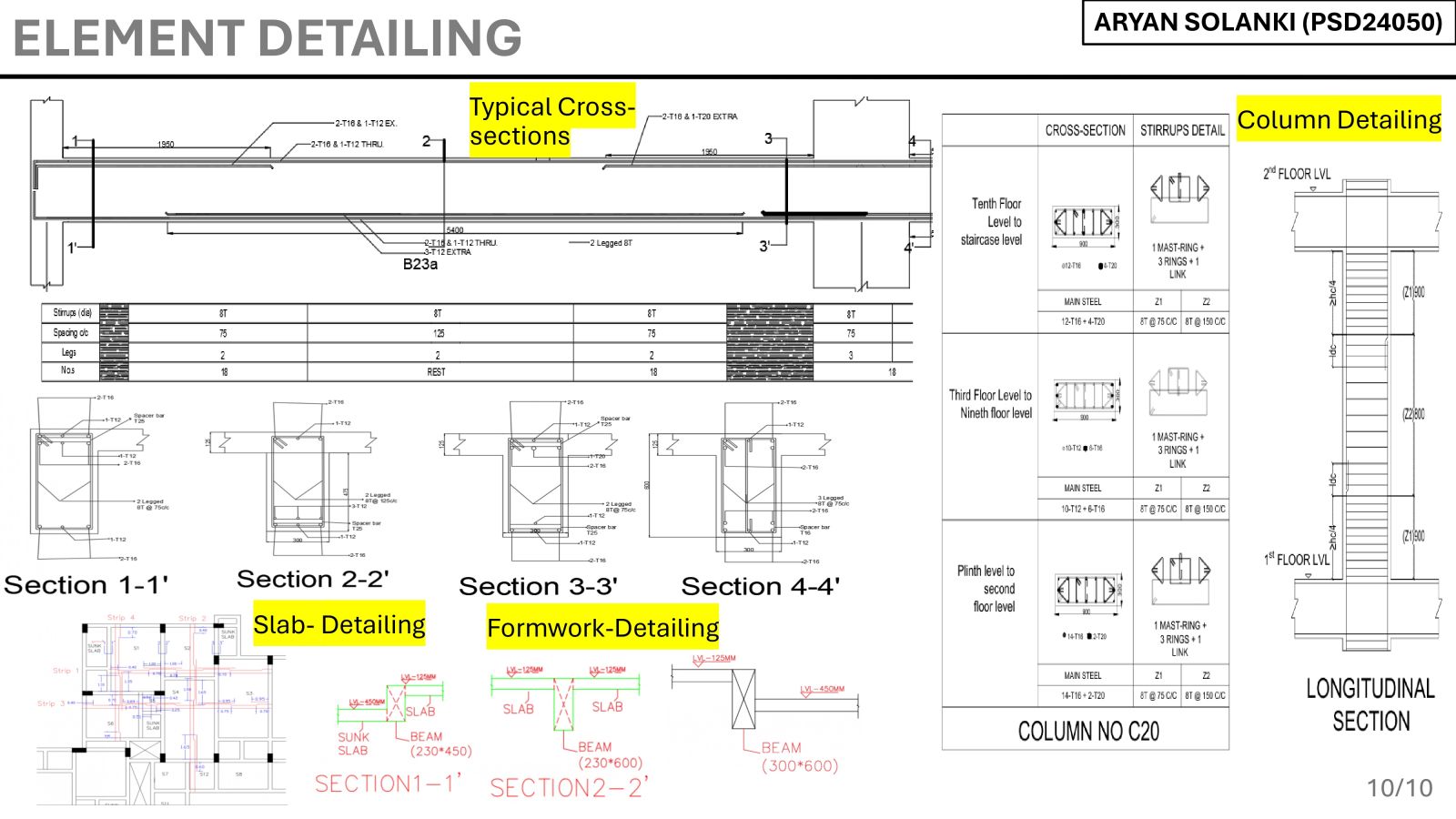

Element Detailing
